Model Image
Manufacturer

Sony

Model Number

XR85X90CK

Description

4k Hdr Full Array Led Tv With Smart Google Tv; Clu

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UC2)
1-007-224-11 1-007-224-11 4P HARNESS(BM5-PZ) (UC2)
1-005-642-12 1-005-642-12 7L AC POWER CODE SETS (US) (UC2)
A-5043-416-A A-5043-416-A 85-INCH REPLACEMENT DISPLAY (YDCM085DCU02)
5-035-050-01 5-035-050-01 BEZEL BT ASSY (4L TGR) (UC2)
5-041-321-01 5-041-321-01 BEZEL TP ASSY (4L TGR) (UC2)
5-034-609-01 5-034-609-01 BEZEL TP ASSY (4L TGR) (UC2)
5-034-607-01 5-034-607-01 BEZEL TP ASSY (4L TGR) (UC2)
5-039-953-11 5-039-953-11 BRACKET SIDE (BNN) A (UC2)
5-039-955-11 5-039-955-11 BRACKET SIDE (BNN) A (UC2)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UC2)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UC2)
1-014-496-11 1-014-496-11 CONNECTOR ASSY 15P (UC2)
1-014-497-11 1-014-497-11 CONNECTOR ASSY 28P (UC2)
1-006-517-11 1-006-517-11 CONNECTOR ASSY 4P (SP) (UC2)
5-036-684-01 5-036-684-01 COVER, BTM(4L TGR) A (UC2)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UC2)
1-014-499-11 1-014-499-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-014-498-11 1-014-498-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-014-501-11 1-014-501-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-014-500-11 1-014-500-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-014-503-11 1-014-503-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-014-502-11 1-014-502-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-014-505-11 1-014-505-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-014-504-11 1-014-504-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-014-507-11 1-014-507-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-014-506-11 1-014-506-11 FLEXIBLE FLAT CABLE 51P (UC2)
A-5042-371-A A-5042-371-A FY22_HT2_MIC_WW_EV_PR MOUNT (UC2)
5-039-876-01 5-039-876-01 LABEL, SIDE TERMINAL HP (TGR) (UC2)
1-014-130-11 1-014-130-11 LIQUID CRYSTAL ELEMENT(A850QVN (UC2)
1-009-973-11 1-009-973-11 LOUDSPEAKER,FY21 14_17MM-TW (UC2)
A-5039-794-A A-5039-794-A MAIN CBA_COMPL 22LD60A1_FT (UC2)
A-5042-769-B A-5042-769-B MAIN CBA_COMPL_BM5STY_UC_FT (UC2)

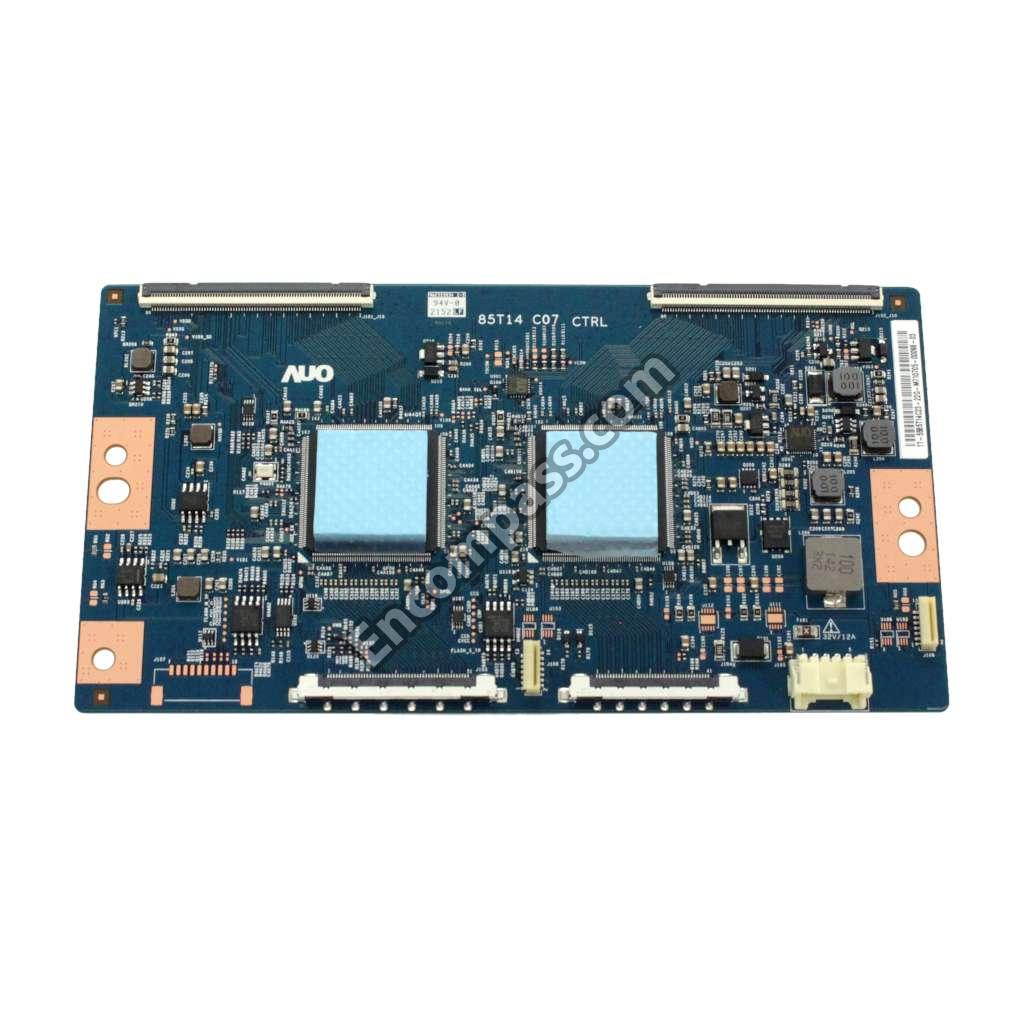

1-014-131-11 1-014-131-11 MOUNTED PWB E-T-CON (85) (UC2)
1-013-673-11 1-013-673-11 MOUNTED PWB LS BAR (TGR 4L) (UC2)
A-5043-563-A A-5043-563-A P-MOD (YDCM085DCU11) (UC2)
1-013-620-21 1-013-620-21 POWER CBA_G23-STATIC CONVERTER (TV) (UC2)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UC2)
5-039-626-01 5-039-626-01 REAR COVER ASSY (4L TGR) (UC2)
5-037-700-11 5-037-700-11 REFERENCE GUIDE (UC2)
1-013-685-23 1-013-685-23 REMOTE COMMANDER (RMF-TX900U) (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2)
5-037-702-11 5-037-702-11 SETUP GUIDE (UC2)
5-027-742-11 5-027-742-11 SHEET, INSULATION (3L PHN) A (UC2)
4-457-451-12 4-457-451-12 SHEET, THERMAL(BAF) (UC2)
5-024-521-22 5-024-521-22 SLIDE SW (UC2)
1-004-511-12 1-004-511-12 SPEAKER BOX ASSY (FY20 W30XL-A) (UC2)
1-004-511-21 1-004-511-21 SPEAKER BOX ASSY (FY20 W30XL-B) (UC2)
5-034-618-01 5-034-618-01 STAND L (4L TGR) A (UC2)
5-034-619-01 5-034-619-01 STAND R (4L TGR) A (UC2)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UC2)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UC2)
