Model Image
Manufacturer

Sony

Model Number

XR85X95L

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
A-5055-905-A A-5055-905-A 23LD864A1 COMPL (UC2) (PANEL PART)
5-047-155-01 5-047-155-01 AC COVER(PLD) (UC2)
1-016-330-11 1-016-330-11 ACTUATOR, FY23 PZ2X2X9 (UC2)
4-462-871-03 4-462-871-03 BAG, SCREW A (CCT) (UC2)
5-045-608-02 5-045-608-02 BEZEL BTM (4L PLD) A (UC2) (PANEL PART)
5-044-058-11 5-044-058-11 BRACKET CI(MLB) (UC2)
5-045-951-61 5-045-951-61 BRACKET SIDE (CBN) A (UC2)
5-044-989-01 5-044-989-01 BRACKET, VESA (PLD) (UC2)
4-262-708-04 4-262-708-04 CLAMPER, CABLE (UC2)

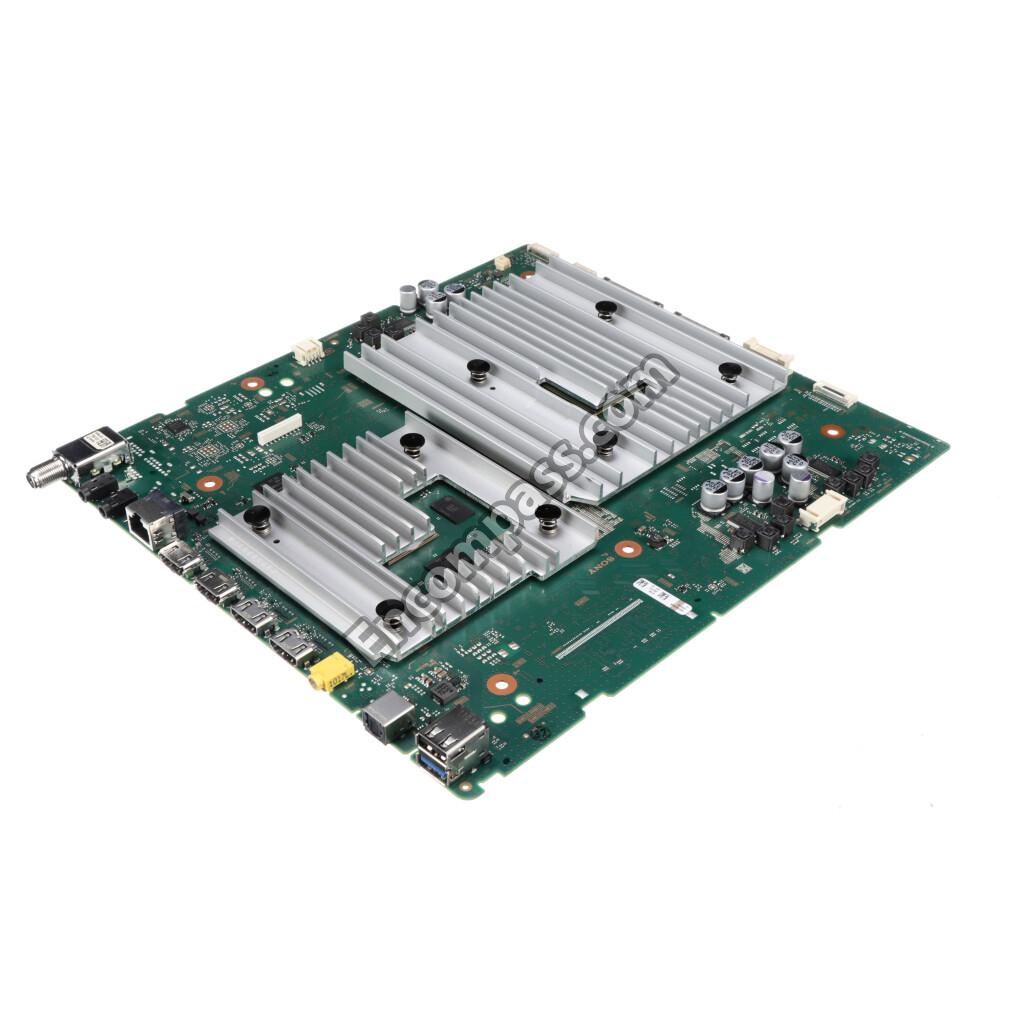

A-5058-393-A A-5058-393-A COMPL_BM5STY_TP_UCM (UC2)
5-046-210-01 5-046-210-01 COVER TML V (3L PLD) A (UC2)
5-047-934-01 5-047-934-01 COVER, BTM(PLD) (UC2)
5-025-143-21 5-025-143-21 COVER, SHEET TAB (GMN) (UC2) (PANEL PART)
5-047-937-01 5-047-937-01 COVER, TOP(PLD) (UC2)
5-028-044-01 5-028-044-01 CUSHION SB (GMN) (UC2) (PANEL PART)
1-011-410-11 1-011-410-11 FFC T-CON 80 (85) (UC2) (PANEL PART)
1-017-854-11 1-017-854-11 FLEXIBLE FLAT CABLE 20P/25P (UC2)
1-017-855-11 1-017-855-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-017-847-11 1-017-847-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-017-848-11 1-017-848-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-016-568-11 1-016-568-11 G315 - STATIC CONVERTER(TV) (UC2)
5-047-939-01 5-047-939-01 GUIDE LIGHT, ILM(PLD) (UC2)
5-044-985-01 5-044-985-01 GUIDE LIGHT, OPT (MLB) (UC2)
5-032-675-01 5-032-675-01 GUIDE,LIGHT LED(MKY) (UC2)
5-032-676-01 5-032-676-01 GUIDE,LIGHT RGB(MKY) (UC2)
1-017-920-11 1-017-920-11 HARNESS ASSY 28P (UC2)
1-017-921-11 1-017-921-11 HARNESS ASSY 8P (SP) (UC2)
A-5055-893-A A-5055-893-A HR4_WW_M5SI_RA_NI_CI MOUNT (UC2)
5-049-168-01 5-049-168-01 LABEL, MIC SW (PLD) (UC2)
1-016-399-11 1-016-399-11 MOUNTED PWB E-T-CON (85) (UC2) (PANEL PART)
5-044-977-01 5-044-977-01 OP (PLD) (UC2)
A-5052-876-A A-5052-876-A P-MOD(YDDO085MDU02) (UC2)
1-849-274-11 1-849-274-11 POWER-SUPPLY CORD (WITH CONN.) (UC2)
5-044-650-01 5-044-650-01 REAR COVER (4L PLD) A (UC2)
5-049-498-11 5-049-498-11 REFERENCE GUIDE (UC2)
1-016-940-21 1-016-940-21 REMOTE COMMANDER (RMF-TX810U) (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
4-731-435-01 4-731-435-01 SCREW, +F M3X4.8 (UC2) (PANEL PART)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2)
2-580-600-01 2-580-600-01 SCREW, +PSW M4X8 (UC2) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UC2) (PANEL PART)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2)
5-049-499-11 5-049-499-11 SETUP GUIDE (UC2)
5-044-055-01 5-044-055-01 SHEET THERMAL(BM6SL M6L) (UC2)
5-044-056-01 5-044-056-01 SHEET THERMAL(BM6SL SRK) (UC2)
4-549-528-11 4-549-528-11 SHEET, THERMAL (SC) (UC2) (PANEL PART)
5-046-255-01 5-046-255-01 SHT, INSULATION (PLD 4L) (UC2)
5-032-677-01 5-032-677-01 SILICON,MIC(MKY) (UC2)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (UC2)
1-016-173-11 1-016-173-11 SP BOX ASSY, FY23 D33 SLIT(L) (UC2)
1-016-173-21 1-016-173-21 SP BOX ASSY, FY23 D33 SLIT(R) (UC2)
5-046-214-01 5-046-214-01 STAND COVER CL (PLD) A (UC2)
5-046-215-01 5-046-215-01 STAND COVER CR (PLD) A (UC2)
5-046-212-01 5-046-212-01 STAND COVER LR (3L PLD) A (UC2)
5-044-656-01 5-044-656-01 STAND L (4L PLD) A (UC2)
5-044-657-01 5-044-657-01 STAND R (4L PLD) A (UC2)
A-5060-278-A A-5060-278-A SW_WW COMPL (UC2)
5-045-746-12 5-045-746-12 TAPE LL REAR BTM (PLD) (UC2) (PANEL PART)
5-045-746-02 5-045-746-02 TAPE LL REAR BTM (PLD) (UC2) (PANEL PART)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UC2)
