Model Image
Manufacturer

Sony

Model Number

XR85Z9J

Description

85-inch Class Bravia Xr Master Series Led 8k (hdr)

Interactive Exploded View

Parts List

Part Number Description
A-5026-241-A A-5026-241-A (MAIN CBA) BM5S21_AQ_UCMX COMPL (UCM)

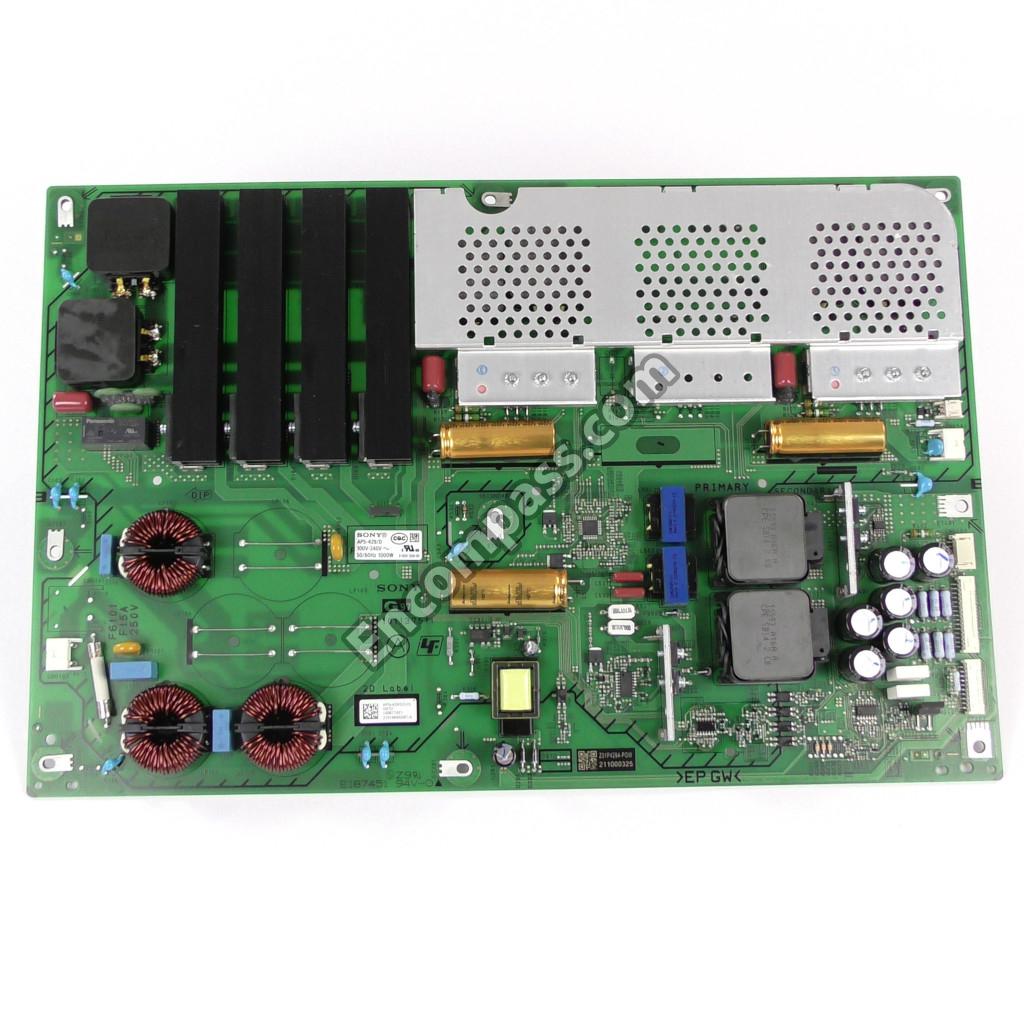

1-006-774-21 1-006-774-21 (POWER CBA) G97D - STATIC CONVERTER(TV) (UCM)

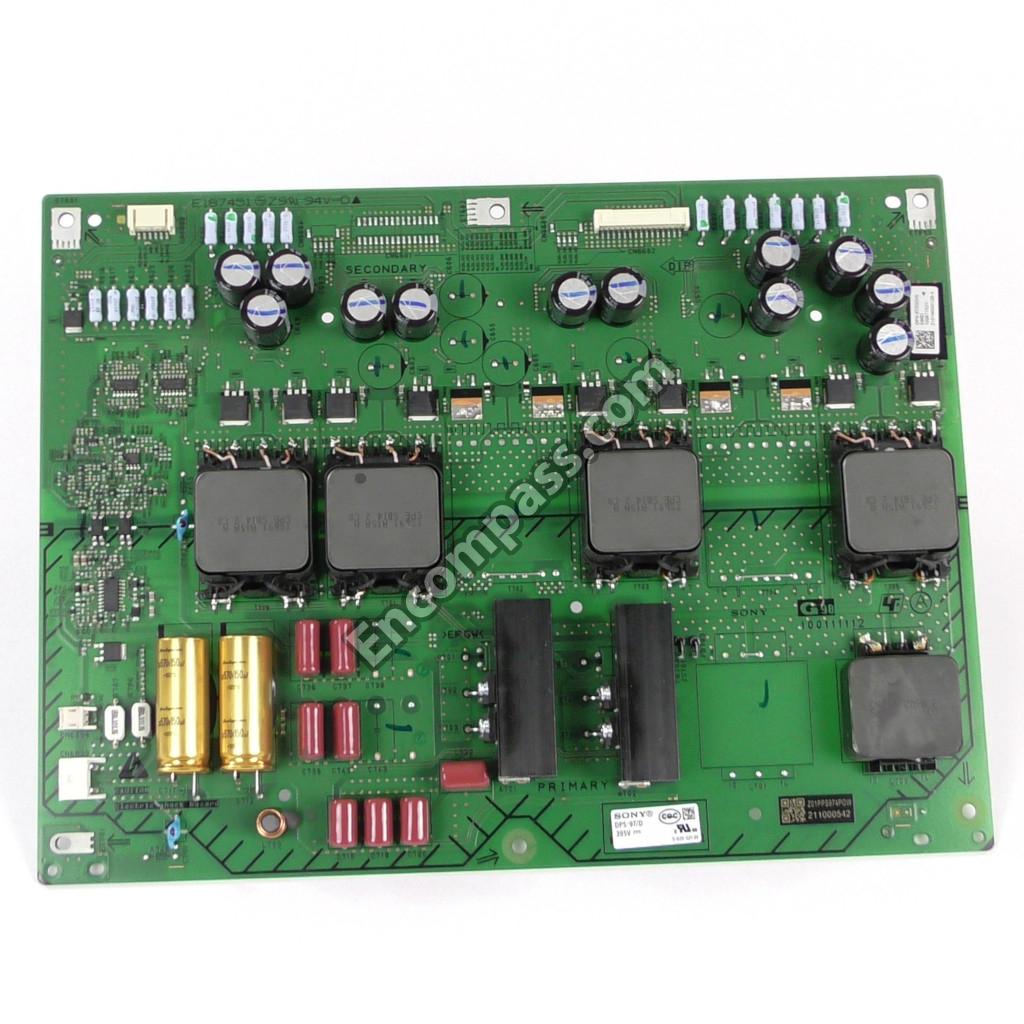

1-006-775-21 1-006-775-21 (POWER CBA) G98D - STATIC CONVERTER(TV) (UCM)
A-5027-230-A A-5027-230-A 21LD418A1 COMPL (UCM) (PANEL PART)
5-024-601-21 5-024-601-21 AC COVER (AQR) (UCM)
1-010-051-11 1-010-051-11 ACTUATOR, FY21 PZ2X2X9 (UCM)
4-462-871-03 4-462-871-03 BAG, SCREW A (CCT) (UCM)
5-022-005-61 5-022-005-61 BRACKET SIDE(SGT) (UCM)
5-023-335-61 5-023-335-61 BRACKET SIDE(SGT) (UCM)
4-726-396-13 4-726-396-13 BRACKET UNDER (BM2A) (UCM)
4-724-146-13 4-724-146-13 BRACKET UNDER(BM2A (UCM)
4-743-315-12 4-743-315-12 BRACKET, CNT SP (OCD) (UCM)
4-743-381-01 4-743-381-01 BRACKET, ONT (OCD) (UCM)
5-023-713-01 5-023-713-01 BRACKET, VESA(3L LMN) (UCM)
5-009-189-01 5-009-189-01 BRACKET, VESA(3L LMN) (UCM)
1-005-644-11 1-005-644-11 C18 AC INLET ASSY (UCM)
1-854-260-11 1-854-260-11 CENTER CHANNEL INPUT CONNECTOR (UCM)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UCM)
1-010-597-11 1-010-597-11 CONNECTOR ASSY 20P (UCM)
1-010-599-11 1-010-599-11 CONNECTOR ASSY 2P (UCM)
1-010-600-11 1-010-600-11 CONNECTOR ASSY 2P (UCM)
1-010-594-11 1-010-594-11 CONNECTOR ASSY 30P(PWR1) (UCM)
1-010-595-11 1-010-595-11 CONNECTOR ASSY 30P(PWR2) (UCM)
1-010-596-11 1-010-596-11 CONNECTOR ASSY 6P(PWR3) (UCM)
5-021-842-21 5-021-842-21 COVER,BTM(AQR) (UCM)
5-021-843-21 5-021-843-21 COVET,TOP(AQR) (UCM)
4-570-862-01 4-570-862-01 CUSHION 2025A (UCM)
4-539-189-01 4-539-189-01 CUSHION 825D (UCM) (PANEL PART)
5-023-821-21 5-023-821-21 CUSHION, MC CNR BL (4L AQR) (UCM) (PANEL PART)
5-023-822-21 5-023-822-21 CUSHION, MC CNR BR (4L AQR) (UCM) (PANEL PART)
5-023-408-21 5-023-408-21 CUSHION, MC FRONT (4L AQR) (UCM) (PANEL PART)
1-010-653-11 1-010-653-11 FLEXIBLE FLAT CABLE 14P (UCM)
1-010-656-11 1-010-656-11 FLEXIBLE FLAT CABLE 14P (UCM)
1-010-673-11 1-010-673-11 FLEXIBLE FLAT CABLE 20P/25P (UCM)
1-010-675-11 1-010-675-11 FLEXIBLE FLAT CABLE 20P/25P (UCM)
1-010-674-11 1-010-674-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-010-676-11 1-010-676-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-010-659-11 1-010-659-11 FLEXIBLE FLAT CABLE 41P(B-ONT) (UCM)
1-010-681-11 1-010-681-11 FLEXIBLE FLAT CABLE 51P (OT1) (UCM)
1-010-682-11 1-010-682-11 FLEXIBLE FLAT CABLE 51P (OT2) (UCM)
1-010-683-11 1-010-683-11 FLEXIBLE FLAT CABLE 51P (OT3) (UCM)
1-010-684-11 1-010-684-11 FLEXIBLE FLAT CABLE 51P (OT4) (UCM)

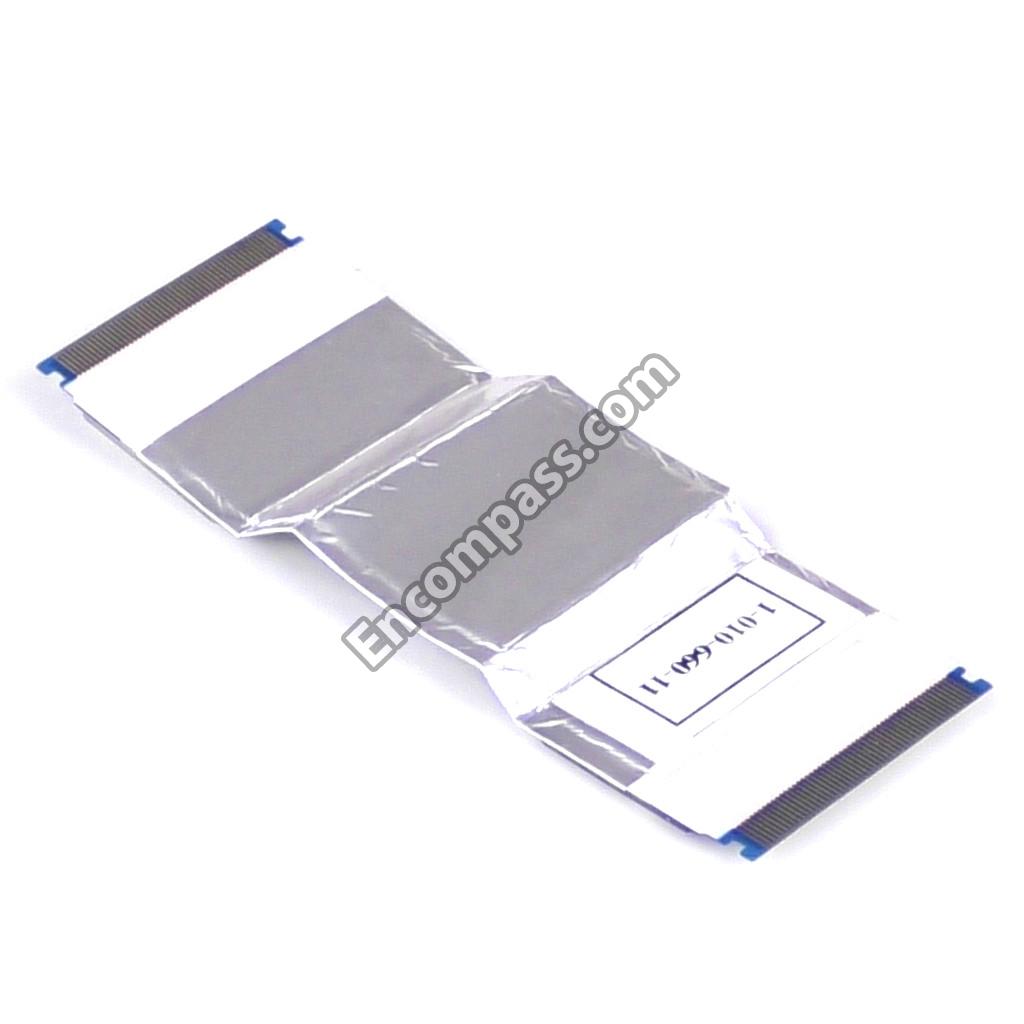

1-010-660-11 1-010-660-11 FLEXIBLE FLAT CABLE 51P(B-ONT) (UCM)
5-014-063-01 5-014-063-01 GASKET, SPCB (LMN) (UCM) (PANEL PART)
5-010-815-01 5-010-815-01 GASKET, TCON BTM(3L LMN) (UCM) (PANEL PART)
1-010-598-11 1-010-598-11 HARNESS ASSY(SP) (UCM)
A-5026-983-A A-5026-983-A HT2_8K_RGB_MIC_WW_CT MT (UCM)
5-000-203-01 5-000-203-01 LABEL, CENTER SP (OCD) (UCM)
4-747-311-01 4-747-311-01 LABEL, COVER HDMI (UCM)
5-012-813-01 5-012-813-01 LABEL, HDMI (LMN) (UCM)
5-024-392-01 5-024-392-01 LABEL, SIDE TERMINAL (BM5S21) (UCM)
5-023-599-01 5-023-599-01 LABEL, UNDER TERMINAL (AQR) (UCM)
5-023-066-21 5-023-066-21 LIGHT GUIDE ILM (COM) (UCM)
5-024-518-21 5-024-518-21 LIGHT GUIDE ILM (COM) (UCM)
5-023-067-21 5-023-067-21 LIGHT GUIDE LED (COM) (UCM)
5-024-519-21 5-024-519-21 LIGHT GUIDE LED (COM) (UCM)
5-023-065-21 5-023-065-21 LIGHT GUIDE OPT (COM) (UCM)
5-024-517-21 5-024-517-21 LIGHT GUIDE OPT (COM) (UCM)
5-023-349-21 5-023-349-21 LIGHT,GUIDE RGB(SGT) (UCM)
5-021-785-21 5-021-785-21 LIGHT,GUIDE RGB(SGT) (UCM)
1-011-546-11 1-011-546-11 MOUNTED PWB E-T-CON (85) (UCM) (PANEL PART)
5-021-844-21 5-021-844-21 OP, INNER (AQR) (UCM)
1-836-883-12 1-836-883-12 POWER-SUPPLY CORD (UCM)
1-912-810-11 1-912-810-11 POWER-SUPPLY CORD SET(UC) (UCM)
5-023-853-21 5-023-853-21 REAR COVER A (4LAQR) (UCM)
5-024-565-11 5-024-565-11 REFERENCE GUIDE (UCM)
1-009-947-11 1-009-947-11 RMF-TX621U (UCM)
3-701-833-02 3-701-833-02 SCREW +BVTP 3X10 TYPE2 IT-3 (UCM)
7-682-948-09 7-682-948-09 SCREW +PSW 3X8 (UCM) (PANEL PART)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-731-435-01 4-731-435-01 SCREW, +F M3X4.8 (UCM) (PANEL PART)
4-731-431-11 4-731-431-11 SCREW, +F M3X9 (UCM) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
2-580-600-01 2-580-600-01 SCREW, +PSW M4X8 (UCM) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-024-566-11 5-024-566-11 SETUP GUIDE (UCM)
5-028-792-21 5-028-792-21 SHEET SHADE, BZ SIDE L(4L AQR) (UCM) (PANEL PART)
5-028-793-21 5-028-793-21 SHEET SHADE, BZ SIDE R(4L AQR) (UCM) (PANEL PART)
5-028-790-21 5-028-790-21 SHEET SHADE, BZ TOP L(4L AQR) (UCM) (PANEL PART)
5-028-791-21 5-028-791-21 SHEET SHADE, BZ TOP R(4L AQR) (UCM) (PANEL PART)
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR) (UCM)
5-011-960-01 5-011-960-01 SHEET THERMAL(LMN TCON) (UCM)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UCM)
5-023-828-01 5-023-828-01 SHEET, THERMAL (ONT2) (UCM)
4-738-393-01 4-738-393-01 SHEET, THERMAL (SPN G A S) (UCM) (PANEL PART)
5-023-858-01 5-023-858-01 SHT, INSULATION (AQR 4L) L A (UCM)
5-027-034-01 5-027-034-01 SHT, INSULATION (AQR 4L) S (UCM)
5-023-161-21 5-023-161-21 SILICON MIC(PHN) (UCM)
5-027-173-21 5-027-173-21 SILICON MIC(PHN) (UCM)
4-745-336-01 4-745-336-01 SLIDE, CLAMP (MINI) (UCM)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (UCM)
1-012-964-11 1-012-964-11 SOURCE DRIVER IC MT BOARD (UCM) (PANEL PART)
1-010-044-11 1-010-044-11 SP-BOX ASSY, FY21 D42-SLIT(L) (UCM)
1-010-044-21 1-010-044-21 SP-BOX ASSY, FY21 D42-SLIT(R) (UCM)
5-010-601-01 5-010-601-01 SPA SPCB, BC (3L LMN) (UCM) (PANEL PART)

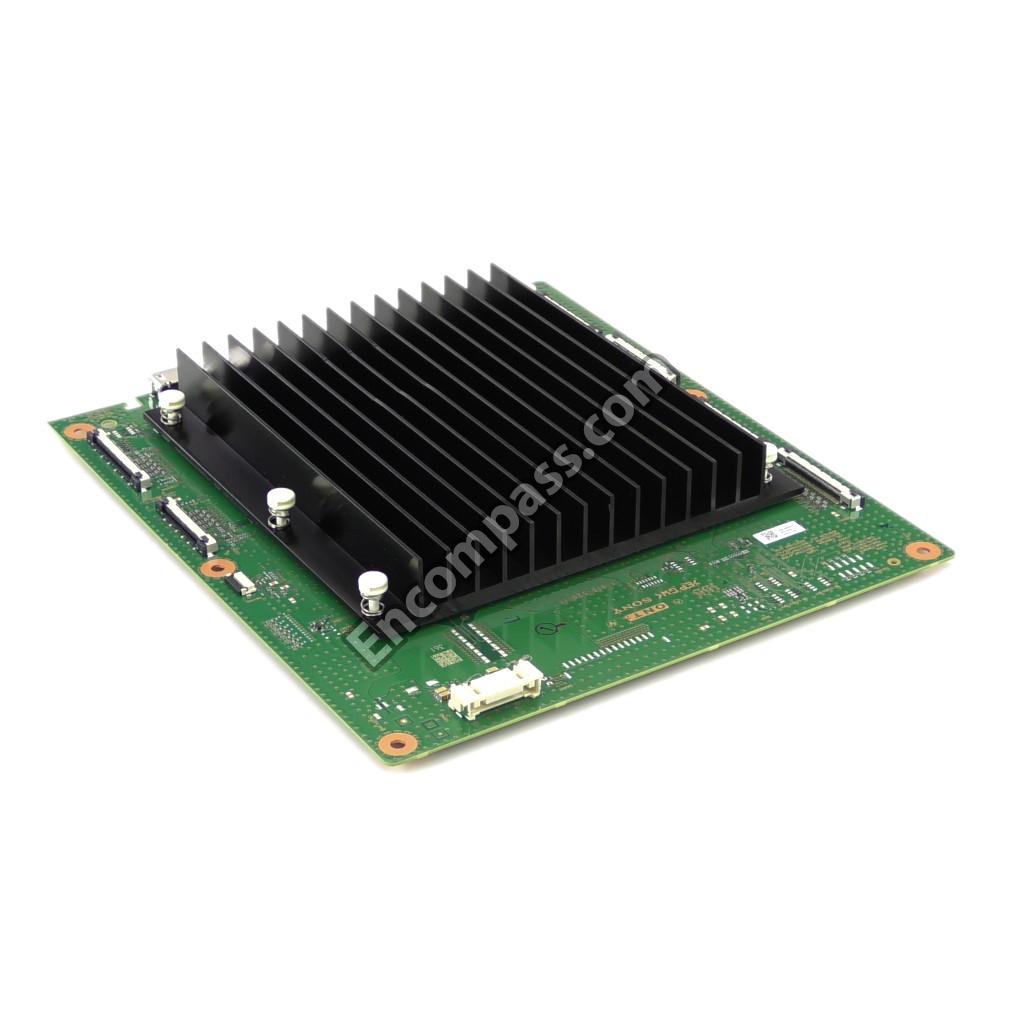

A-5028-569-A A-5028-569-A SPRO (ONT2) (UCM)
5-024-452-21 5-024-452-21 STAND COVER L A (AQR) (UCM)
5-024-453-21 5-024-453-21 STAND COVER R A (AQR) (UCM)
5-022-999-21 5-022-999-21 STAND L(4L AQR) A (UCM)
5-023-000-21 5-023-000-21 STAND R(4L AQR) A (UCM)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (UCM) (PANEL PART)
5-023-818-21 5-023-818-21 TAPE, BLU CNR B (AQR) (UCM) (PANEL PART)
5-024-599-21 5-024-599-21 TML COVER H (AQR) (UCM)
5-024-600-21 5-024-600-21 TML COVER S (AQR) (UCM)
5-024-598-21 5-024-598-21 TML COVER V (AQR) (UCM)
1-005-419-31 1-005-419-31 WLAN/BT MODULE (11AC) (UCM)
1-005-419-12 1-005-419-12 WLAN/BT MODULE(11AC) (UCM)
