Model Image
Manufacturer

Sony

Model Number

ZV1M2

Description

Vlog Camera Zv-1 Ii

Interactive Exploded View

Parts List

Part Number Description
5-043-595-01 5-043-595-01 3RD BARREL SPRING (2050)
A-5055-490-A A-5055-490-A BARRIER ASSY (2050A-BK) (BLACK)
A-5055-521-A A-5055-521-A BARRIER ASSY (2050A-LS) (WHITE)
X-5002-587-1 X-5002-587-1 BT HOLDER ASSY (64700) (BK) (BLACK)
X-5002-590-1 X-5002-590-1 BT HOLDER ASSY (64700) (WH) (WHITE)
5-034-719-01 5-034-719-01 BT SHEET TIM (64700)
A-5001-215-A A-5001-215-A BT-2030 FLEXIBLE BOARD, COMPLETE
4-300-106-11 4-300-106-11 BTITE (1.4 (CH)) (L = 5.0 MM)

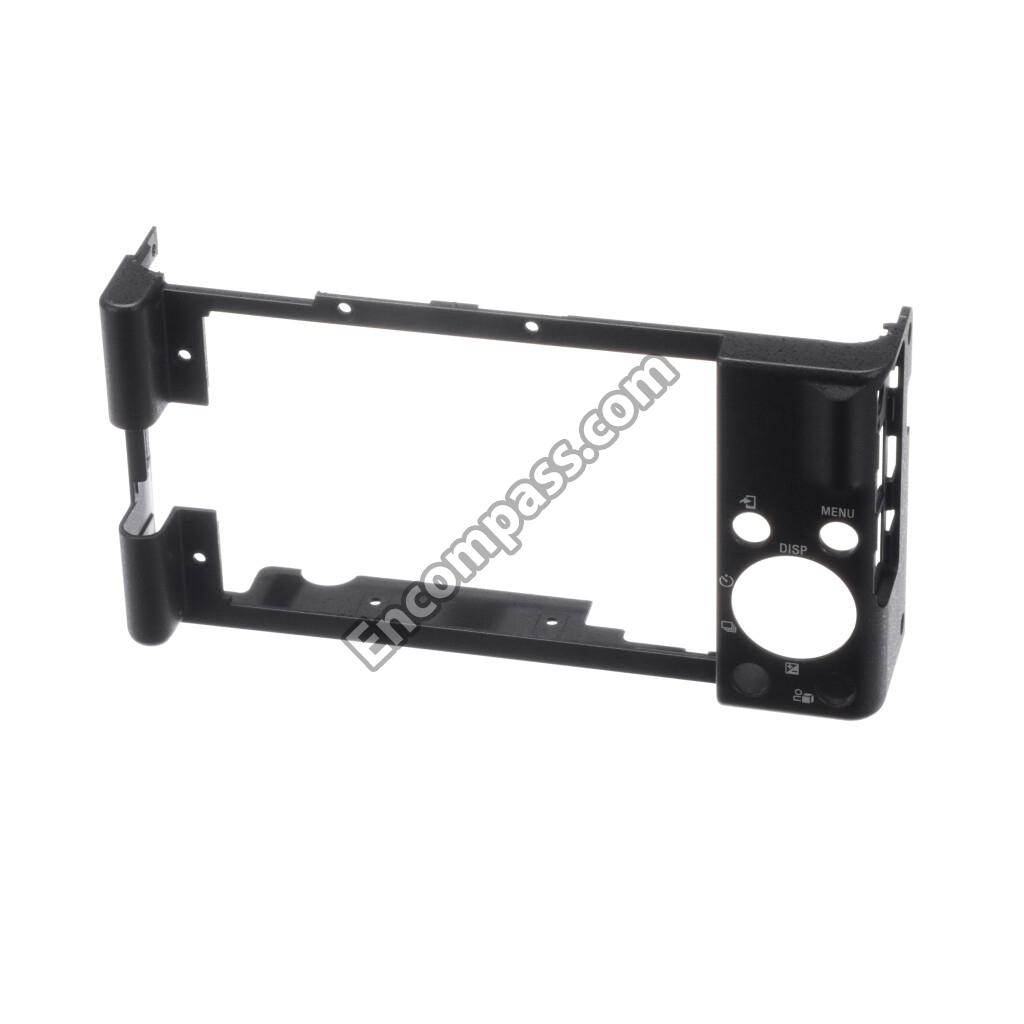

5-032-623-01 5-032-623-01 CABINET REAR (64700) (BK) (BLACK)
5-032-623-11 5-032-623-11 CABINET REAR (64700) (WH) (WHITE)
5-035-272-01 5-035-272-01 CABINET REAR COVER (64700) (BK) (BLACK)
5-035-272-11 5-035-272-11 CABINET REAR COVER (64700) (WH) (WHITE)
A-5064-470-A A-5064-470-A CD-1009 MOUNT SERVICE ASSY
5-059-947-01 5-059-947-01 COIN BATTERY WARNING LABEL (UC)
A-5055-499-A A-5055-499-A DC MOTOR FIXED TUBE ASSY (2050)
5-043-610-01 5-043-610-01 FILTER MASK (2050)
1-005-976-31 1-005-976-31 FINE COXIAL CABLE

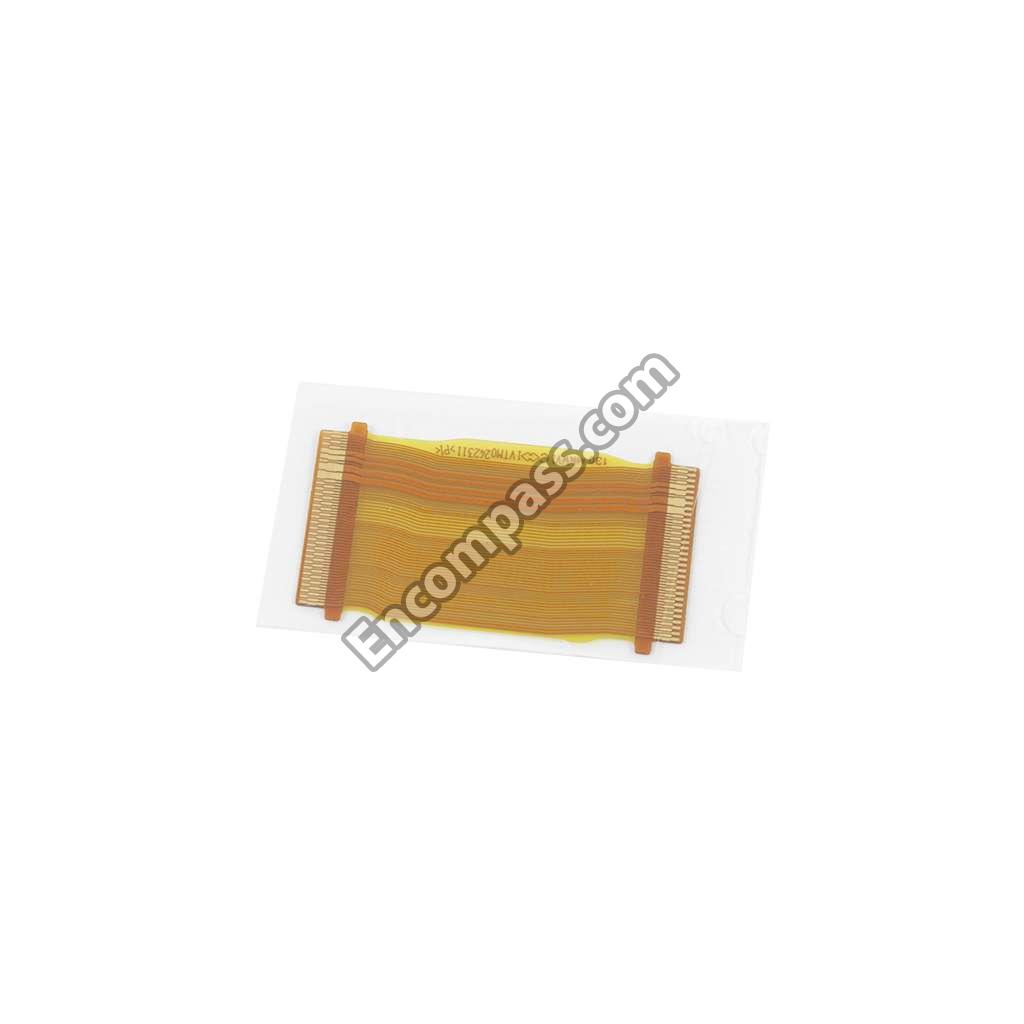

1-982-414-11 1-982-414-11 FP-2423 FLEXIBLE BOARD
5-006-835-11 5-006-835-11 FPC 2438 PROTECT SHEET (88100)
1-983-607-11 1-983-607-11 FPC-2022 FLEXIBLE BOARD
5-013-538-02 5-013-538-02 FRAME SHEET (64500)
5-032-603-01 5-032-603-01 FRONT FRAME (64700)
4-575-789-01 4-575-789-01 GASKET (F (795))
4-685-567-11 4-685-567-11 GASKET L
5-036-236-01 5-036-236-01 GASKET S (CN (799))
A-1940-536-A A-1940-536-A GEARALUBRICATEDASSY
1-969-682-11 1-969-682-11 HARNESS (HN-1002)
5-033-811-01 5-033-811-01 HDMI LID (64700) (BK) (BLACK)
5-033-811-11 5-033-811-11 HDMI LID (64700) (WH) (WHITE)
5-032-616-01 5-032-616-01 HEAT SINK (64700), BT
5-000-561-01 5-000-561-01 HOLDER (64210), MIC
5-032-618-01 5-032-618-01 HOLDER (64700), JACK
5-017-676-01 5-017-676-01 IMG RADIATION SHEET (64500)
4-595-796-01 4-595-796-01 INSULATING SHEET (ST3) (63900)
5-003-112-01 5-003-112-01 INSULATING SHEET, BT (64210)

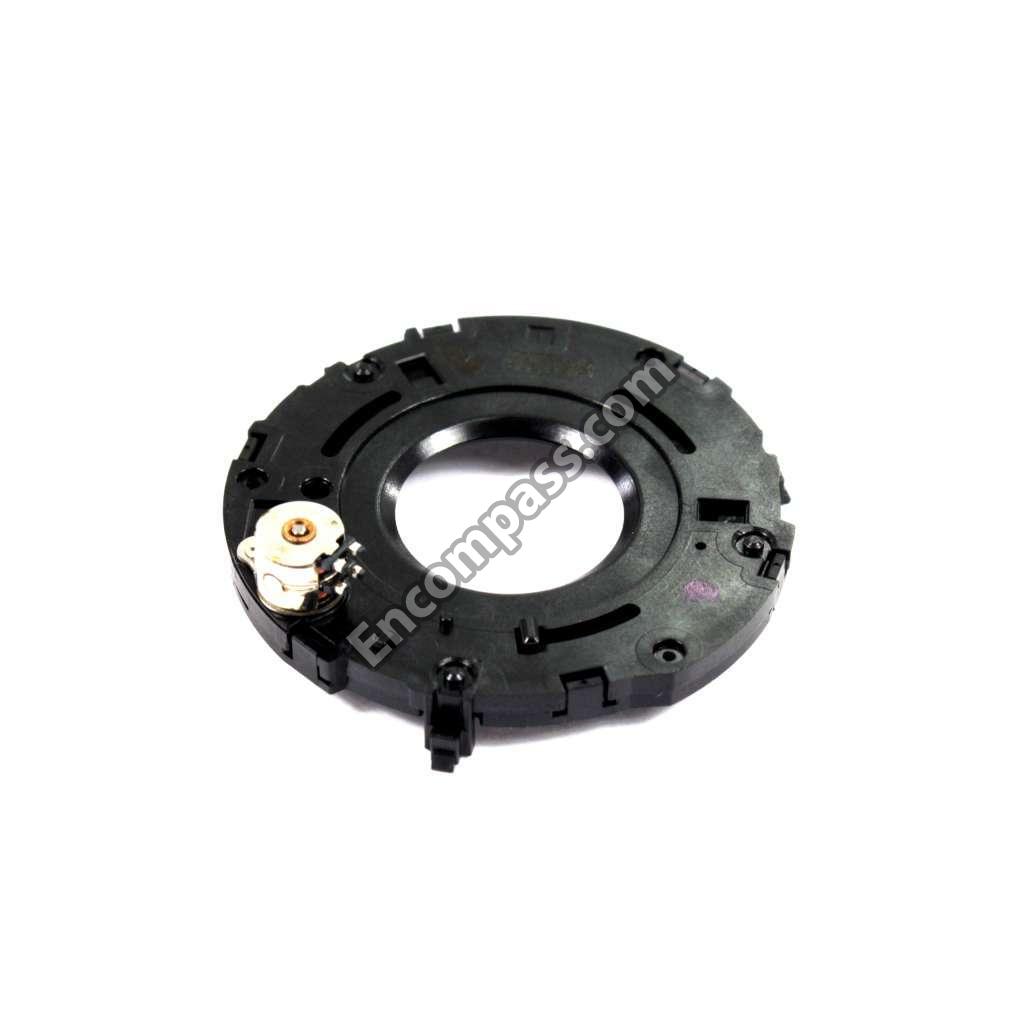

1-856-613-11 1-856-613-11 IRIS (IR1710)
4-410-488-01 4-410-488-01 IRIS SPRING
5-013-544-01 5-013-544-01 LC LOCK (64500) (BLACK)
5-013-544-11 5-013-544-11 LC LOCK (64500) (WHITE)
5-013-545-01 5-013-545-01 LC LOCK SPRING (64500)
5-034-716-01 5-034-716-01 LENS CUSHION UNDER (64700)
A-5061-833-A A-5061-833-A LENS DEVICE LSV-2050A-BK SERVICE (BLACK)
A-5061-834-A A-5061-834-A LENS DEVICE LSV-2050A-LS SERVICE (WHITE)
5-046-818-01 5-046-818-01 LENS RING (64800) (BLACK)
5-046-818-11 5-046-818-11 LENS RING (64800) (WHITE)
A-5050-738-A A-5050-738-A LF-2383 MAIN FPCASSY (2050)
5-043-606-02 5-043-606-02 LIGHT SHIELD RING (2050)
1-756-813-14 1-756-813-14 LITHIUM RECHARGEABLE BATTERY
1-859-210-12 1-859-210-12 LOUDSPEAKER (1.0 CM)
A-2032-915-A A-2032-915-A LUBRICATING BLOCK ASSY, WHEEL
A-5055-504-A A-5055-504-A LUBRICATING BLOCKASSY, GEAR B
1-471-748-12 1-471-748-12 MAGNET
1-471-738-11 1-471-738-11 MAGNET, SENSOR
5-032-624-01 5-032-624-01 MAIN FRAME (64700)
5-013-550-01 5-013-550-01 MAIN FRAME INSULATION (64500)
5-049-601-11 5-049-601-11 MANUAL, INSTRUCTION (STARTUP GUIDE) (ENGLISH) (MADE IN CHINA)
5-051-675-11 5-051-675-11 MANUAL, INSTRUCTION (STARTUP GUIDE) (ENGLISH) (MADE IN THAILAND)
5-013-552-01 5-013-552-01 MG SENSOR ADHESIVE A (64500)
5-014-830-01 5-014-830-01 MG SENSOR ADHESIVE B (64500)
5-002-946-02 5-002-946-02 MI SHOE SCREW COVER (88100)
5-002-943-02 5-002-943-02 MI SHOE SHELL PLATE (88100) (BLACK)
5-002-943-11 5-002-943-11 MI SHOE SHELL PLATE (88100) (WHITE)
5-002-945-02 5-002-945-02 MI SHOE SPRING PLATE (88100) (BLACK)
5-002-945-12 5-002-945-12 MI SHOE SPRING PLATE (88100) (WHITE)
5-032-604-01 5-032-604-01 MIC FRAME (64700)
5-032-625-01 5-032-625-01 MIC JACK PLATE (64700)
5-032-627-01 5-032-627-01 MIC LID (64700) (BK) (BLACK)
5-032-627-11 5-032-627-11 MIC LID (64700) (WH) (WHITE)
5-032-605-01 5-032-605-01 MIC RUBBER (64700)
A-5054-227-A A-5054-227-A MIS-2006 FLEXIBLE BOARD, COMPLETE
5-034-720-02 5-034-720-02 MS SHEET TIM (64700)
5-046-950-01 5-046-950-01 MS SHEET TIM (64800)
A-5040-828-A A-5040-828-A MS-1041 BOARD, COMPLETE
1-016-273-11 1-016-273-11 ND (ND2050)
1-856-585-12 1-856-585-12 OPTICALFILTERBLOCK (OFB-01-84)
5-043-587-01 5-043-587-01 ORNAMENT RING A (2050) (BLACK)
5-043-587-11 5-043-587-11 ORNAMENT RING A (2050) (WHITE)
5-043-608-01 5-043-608-01 PI RETAINER (2050)
A-5039-765-B A-5039-765-B RE-1010 FLEXIBLE BOARD,
NPBX1_M8 NPBX1_M8 RECHARGEABLE BATTERY PACK (NP-BX1/UC) (US, CANADIAN)
A-5016-150-A A-5016-150-A RL-1065 BOARD, COMPLETE
A-5050-300-A A-5050-300-A RL-1072 FLEXIBLE BOARD, COMPLETE
A-5055-502-A A-5055-502-A S-LUBRICATING BLOCK ASSY, Z CAM
4-287-435-11 4-287-435-11 SCREW (M1.4 EUROPE) TYPE (L = 1.4 MM)
4-264-751-01 4-264-751-01 SCREW (M1.4), NEW TRU-STAR (L = 3.5 MM)
4-412-769-11 4-412-769-11 SCREW (M1.4), NEW TRU-STAR, P2 (L = 2.5M)
4-535-068-01 4-535-068-01 SCREW (M1.4), NEW TRU-STAR, P2 (L= 3.5 MM)
3-348-998-41 3-348-998-41 SCREW (M1.4X3), TAPPING, PAN (WHITE)
3-348-998-51 3-348-998-51 SCREW (M1.4X3.5), TAPPING, PAN
2-599-475-31 2-599-475-31 SCREW (M1.7) (L = 4.0 MM) (WHITE)
2-599-475-21 2-599-475-21 SCREW (M1.7) (L =3.0 MM)
4-446-949-11 4-446-949-11 SCREW (M1.7) (L= 4.0 MM) (BLACK)
5-002-947-11 5-002-947-11 SCREW (M1.7) SPECIAL HEAD (L =3.5MM)
3-713-791-35 3-713-791-35 SCREW (M1.7X5), TAPPING, P2
3-086-251-01 3-086-251-01 SCREW, SPECIAL (M1.4 X 1.4 MM)
4-299-468-11 4-299-468-11 SCREW, TAPPING UB1.2 (CH) (L = 3.5 MM)
3-283-643-52 3-283-643-52 SCREW, TRIPOD
5-043-609-01 5-043-609-01 SEAL RUBBER (2050)
4-208-152-02 4-208-152-02 SEAL, Z
A-5049-813-A A-5049-813-A SERVICE CAB FRONT ASSY (64700) B (BLACK)
A-5049-814-A A-5049-814-A SERVICE CAB FRONT ASSY (64700) W (WHITE)
A-5049-811-A A-5049-811-A SERVICE HINGE COVER MG ASSY BK (BLACK)
A-5049-812-A A-5049-812-A SERVICE HINGE COVER MG ASSY WH (WHITE)
A-5059-513-A A-5059-513-A SERVICE PANEL CAB FRONT ASSY B(INCLUDING PD-1065 BOARD) (BLACK)
A-5059-514-A A-5059-514-A SERVICE PANEL CAB FRONT ASSY W(INCLUDING PD-1065 BOARD) (WHITE)
A-5049-807-A A-5049-807-A SERVICE PANEL CAB REAR ASSY BK
A-5049-808-A A-5049-808-A SERVICE PANEL CAB REAR ASSY WH
4-732-318-01 4-732-318-01 SHEET (64200), INTERCEPTION
4-692-129-01 4-692-129-01 SHEET (799), NFC ADHESIVE
5-003-306-01 5-003-306-01 SHEET (WIFI), ADHESIVE 64210
5-014-829-01 5-014-829-01 SHIELD SHEET RE-C (64500)
5-013-539-01 5-013-539-01 SHOE FPC GUARD (64500)
5-032-608-01 5-032-608-01 SHOE FRAME (64700)
5-032-606-01 5-032-606-01 SIDE SPACER (64700)
5-047-750-01 5-047-750-01 SPACER CUSHION (64700)
4-410-539-01 4-410-539-01 SPACER PLATE (THICKNESS = 100 MICROMETER)
4-410-539-11 4-410-539-11 SPACER PLATE (THICKNESS = 110 MICROMETER)
4-410-539-21 4-410-539-21 SPACER PLATE (THICKNESS = 120 MICROMETER)
4-410-539-31 4-410-539-31 SPACER PLATE (THICKNESS = 130 MICROMETER)
4-410-539-41 4-410-539-41 SPACER PLATE (THICKNESS = 140 MICROMETER)
4-410-539-51 4-410-539-51 SPACER PLATE (THICKNESS = 150 MICROMETER)
4-410-539-61 4-410-539-61 SPACER PLATE (THICKNESS = 160 MICROMETER)
4-410-539-71 4-410-539-71 SPACER PLATE (THICKNESS = 170 MICROMETER)
4-410-539-81 4-410-539-81 SPACER PLATE (THICKNESS = 180 MICROMETER)
4-410-539-91 4-410-539-91 SPACER PLATE (THICKNESS = 190 MICROMETER)
4-410-540-01 4-410-540-01 SPACER PLATE (THICKNESS = 200 MICROMETER)
4-410-540-11 4-410-540-11 SPACER PLATE (THICKNESS = 210 MICROMETER)
4-410-540-21 4-410-540-21 SPACER PLATE (THICKNESS = 220 MICROMETER)
4-410-540-31 4-410-540-31 SPACER PLATE (THICKNESS = 230 MICROMETER)
4-410-540-41 4-410-540-41 SPACER PLATE (THICKNESS = 240 MICROMETER)
4-410-540-51 4-410-540-51 SPACER PLATE (THICKNESS = 250 MICROMETER)
4-410-540-61 4-410-540-61 SPACER PLATE (THICKNESS = 260 MICROMETER)

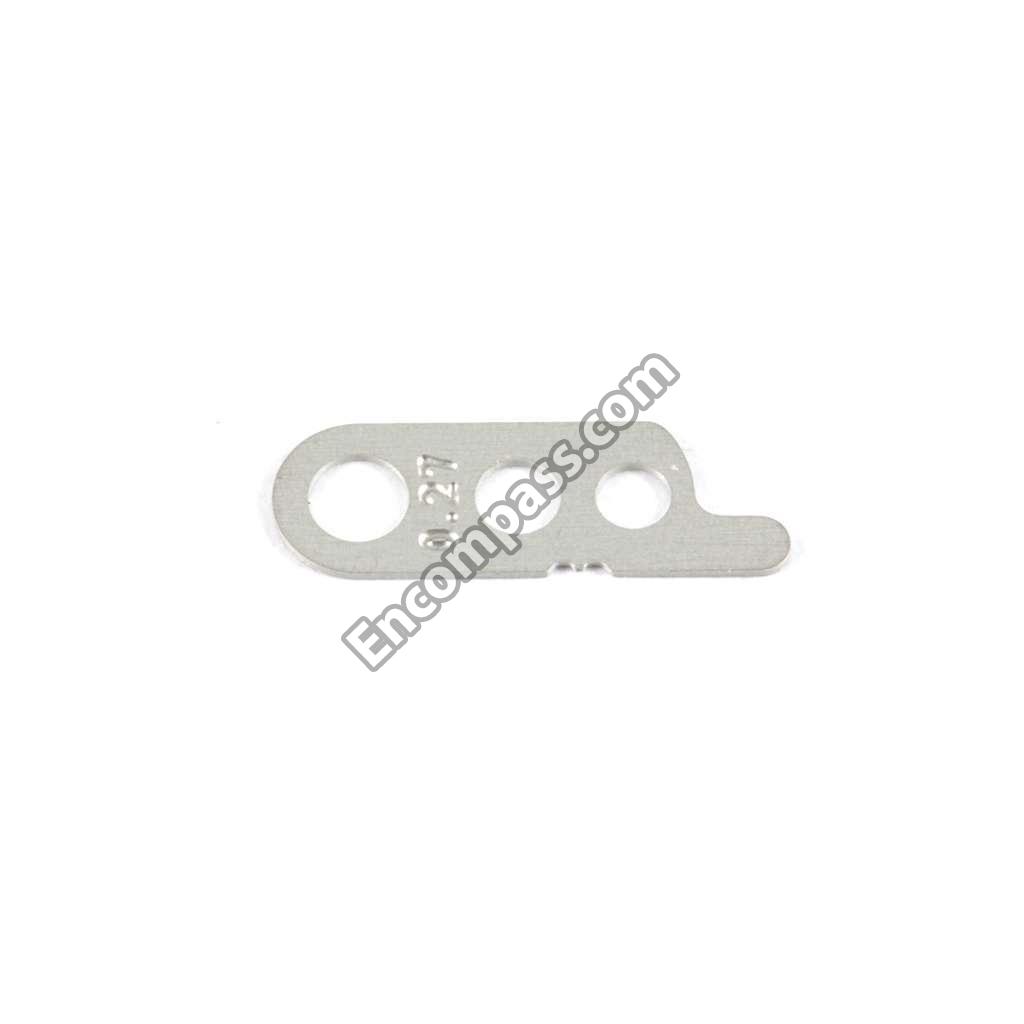

4-410-540-71 4-410-540-71 SPACER PLATE (THICKNESS = 270 MICROMETER)
4-410-540-81 4-410-540-81 SPACER PLATE (THICKNESS = 280 MICROMETER)
4-410-540-91 4-410-540-91 SPACER PLATE (THICKNESS = 290 MICROMETER)

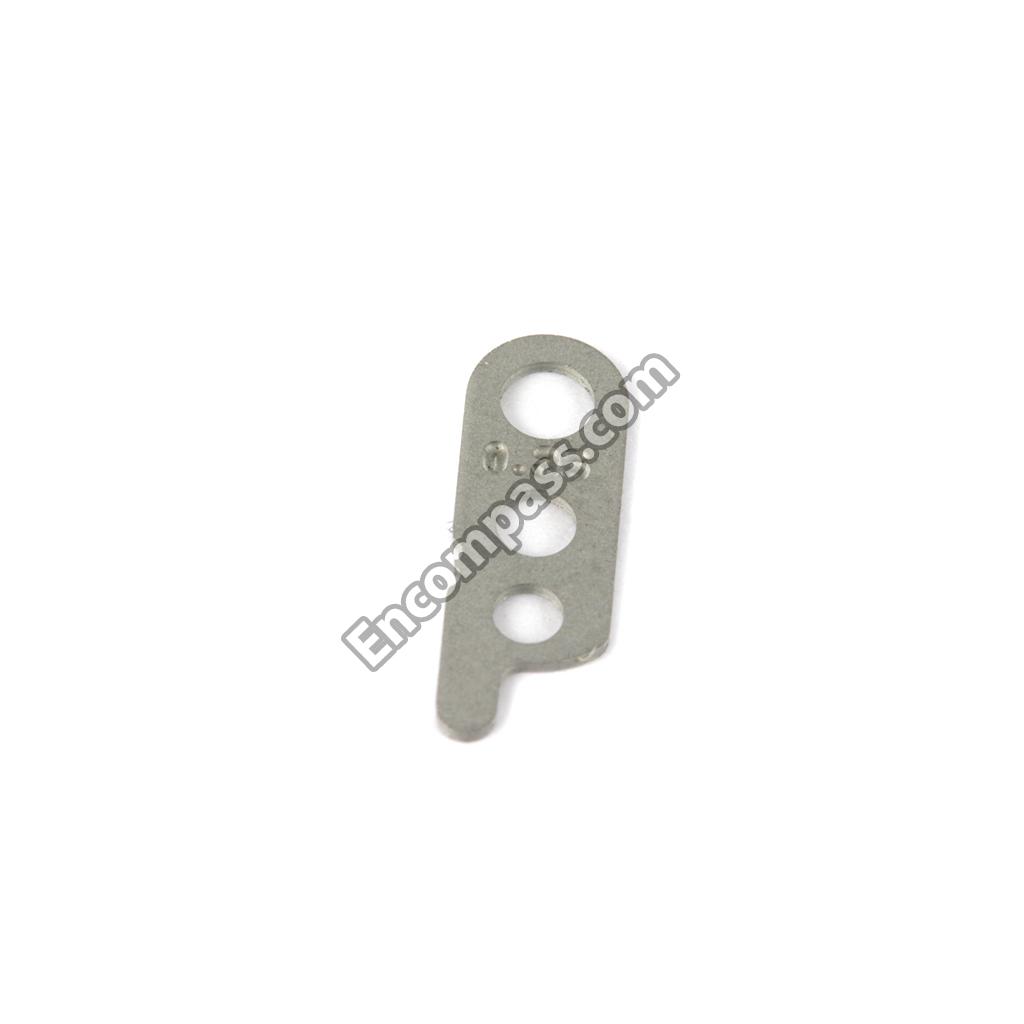

4-437-388-01 4-437-388-01 SPACER PLATE (THICKNESS = 300 MICROMETER)
4-437-388-11 4-437-388-11 SPACER PLATE (THICKNESS = 310 MICROMETER)
4-437-388-21 4-437-388-21 SPACER PLATE (THICKNESS = 320 MICROMETER)
4-437-388-31 4-437-388-31 SPACER PLATE (THICKNESS = 330 MICROMETER)
4-437-388-41 4-437-388-41 SPACER PLATE (THICKNESS = 340 MICROMETER)
4-437-388-51 4-437-388-51 SPACER PLATE (THICKNESS = 350 MICROMETER)
4-437-388-61 4-437-388-61 SPACER PLATE (THICKNESS = 360 MICROMETER)
4-437-388-71 4-437-388-71 SPACER PLATE (THICKNESS = 370 MICROMETER)
4-437-388-81 4-437-388-81 SPACER PLATE (THICKNESS = 380 MICROMETER)
4-437-388-91 4-437-388-91 SPACER PLATE (THICKNESS = 390 MICROMETER)
4-472-511-01 4-472-511-01 SPACER PLATE (THICKNESS = 400 MICROMETER)
4-472-511-11 4-472-511-11 SPACER PLATE (THICKNESS = 410 MICROMETER)
4-472-511-21 4-472-511-21 SPACER PLATE (THICKNESS = 420 MICROMETER)
4-472-511-31 4-472-511-31 SPACER PLATE (THICKNESS = 430 MICROMETER)
4-472-511-41 4-472-511-41 SPACER PLATE (THICKNESS = 440 MICROMETER)
4-472-511-51 4-472-511-51 SPACER PLATE (THICKNESS = 450 MICROMETER)
4-472-511-61 4-472-511-61 SPACER PLATE (THICKNESS = 460 MICROMETER)
4-472-511-71 4-472-511-71 SPACER PLATE (THICKNESS = 470 MICROMETER)
4-472-511-81 4-472-511-81 SPACER PLATE (THICKNESS = 480 MICROMETER)
4-472-511-91 4-472-511-91 SPACER PLATE (THICKNESS = 490 MICROMETER)
4-472-512-01 4-472-512-01 SPACER PLATE (THICKNESS = 500 MICROMETER)
4-472-512-11 4-472-512-11 SPACER PLATE (THICKNESS = 510 MICROMETER)
4-472-512-21 4-472-512-21 SPACER PLATE (THICKNESS = 520 MICROMETER)
4-472-512-31 4-472-512-31 SPACER PLATE (THICKNESS = 530 MICROMETER)
4-472-512-41 4-472-512-41 SPACER PLATE (THICKNESS = 540 MICROMETER)
4-437-538-11 4-437-538-11 SPECIAL (M1.4 (D2.75)) (L = 4.5 MM)
A-5055-503-A A-5055-503-A STRAIGHT FIX BRL ASSY (2050-BK) (BLACK)
A-5058-276-A A-5058-276-A STRAIGHT FIX BRL ASSY (2050-LS) (WHITE)
5-032-621-01 5-032-621-01 STRAP BASE PLATE (64700)
5-032-622-01 5-032-622-01 STRAP COVER (64700) (BK)
5-032-622-11 5-032-622-11 STRAP COVER (64700) (WH)
X-5002-501-1 X-5002-501-1 SV HINGE ASSY
5-011-604-01 5-011-604-01 SV HINGE COVER REAR (BLACK)
5-011-604-11 5-011-604-11 SV HINGE COVER REAR (WHITE)
5-011-611-01 5-011-611-01 SV WP CABLE GROMMET
1-490-435-41 1-490-435-41 SWITCH BLOCK, CONTROL (SW63900) (BLACK)
1-490-435-51 1-490-435-51 SWITCH BLOCK, CONTROL (SW63900) (WHITE)
5-032-619-02 5-032-619-02 SY HEAT SINK (64700)
5-034-714-01 5-034-714-01 SY INSULATION SHEET A (64700)
5-034-715-01 5-034-715-01 SY INSULATION SHEET B (64700)
5-034-713-01 5-034-713-01 SY SHEET TIM (64700)
A-5059-643-A A-5059-643-A SY-1128 BOARD, COMPLETE (SERVICE)
4-433-882-21 4-433-882-21 TAPPING (1.4) (ECOLOGY) (L = 3.0MM)
1-780-826-11 1-780-826-11 TERMINAL BOARD, BATTERY
5-032-607-01 5-032-607-01 TRIPOD PLATE (64700)
5-032-626-01 5-032-626-01 USB LID (64700) (BK) (BLACK)
5-032-626-11 5-032-626-11 USB LID (64700) (WH) (WHITE)
5-034-721-01 5-034-721-01 WIFI SPACER SHEET
5-041-797-01 5-041-797-01 WIND SCREEN (BLACK)
5-041-797-11 5-041-797-11 WIND SCREEN (WHITE)
5-017-216-01 5-017-216-01 WIND SCREEN ADAPTOR (BLACK)
5-017-216-11 5-017-216-11 WIND SCREEN ADAPTOR (WHITE)
