Model Image
Manufacturer

Sony

Model Number

ZV1W

Description

Camera For Content Creators And Vloggers

Interactive Exploded View

Parts List

Part Number Description
X-5001-234-4 X-5001-234-4 BT HOLDER ASSY (64500)
5-013-534-01 5-013-534-01 CABINET REAR COVER(64500)
1-846-486-43 1-846-486-43 CABLE, CONNECTOR (USB)
5-013-553-01 5-013-553-01 CUSHION (UNDER) (64500), LENS
1-005-976-31 1-005-976-31 FINE COXIAL CABLE
5-013-531-01 5-013-531-01 FPC HOLDER(64500)
5-013-538-02 5-013-538-02 FRAME SHEET(64500)
5-013-555-02 5-013-555-02 FRONT FLAME C(64500)

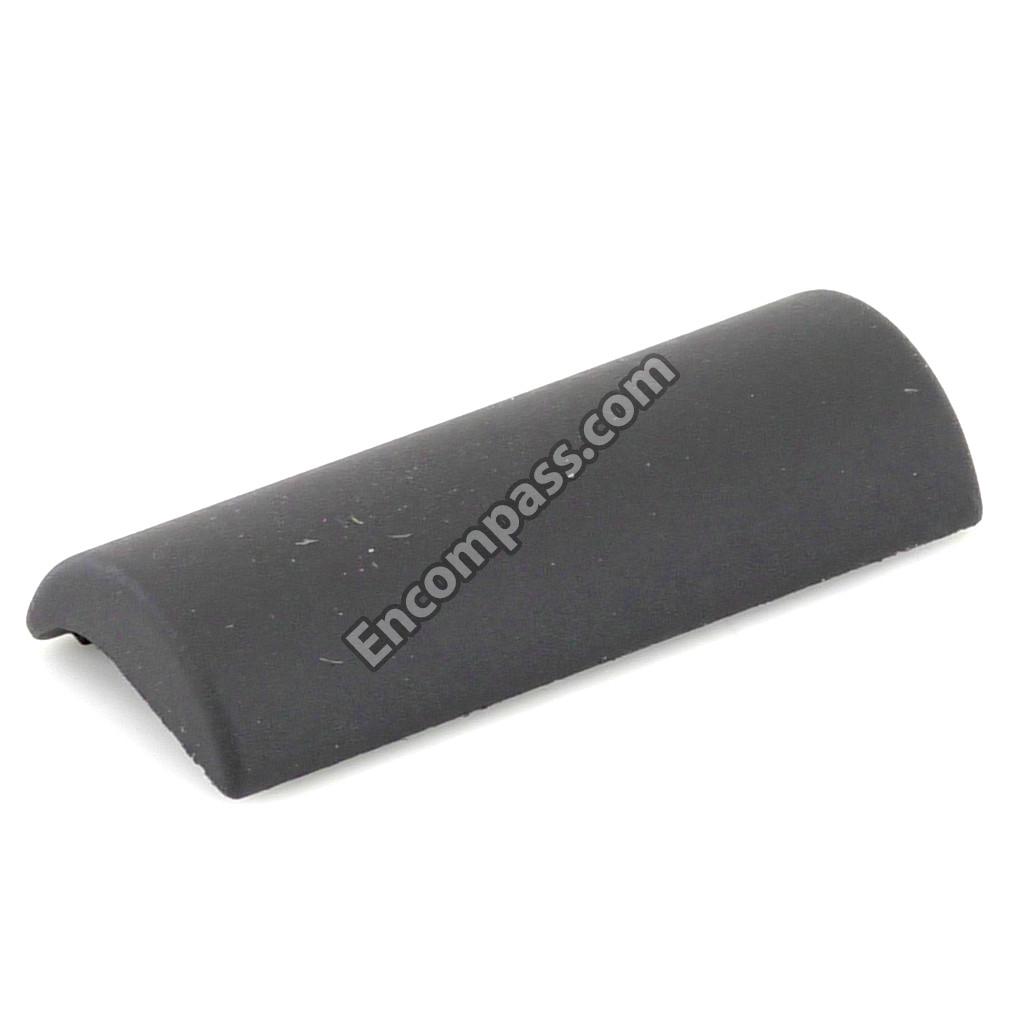

5-013-563-01 5-013-563-01 GRIP FRONT (64500)
5-013-564-01 5-013-564-01 GRIP FRONT ADHESIVE (64500)
5-013-535-01 5-013-535-01 GRIP REAR (64500)
5-013-536-01 5-013-536-01 GRIP REAR ADHESIVE (64500)
5-013-542-01 5-013-542-01 HDMI LID(64500)
5-017-676-01 5-017-676-01 IMG RADIATION SHEET(64500)
A-5012-267-A A-5012-267-A INDIVIDUAL (1710F),BLOCK ASSY
5-013-545-01 5-013-545-01 LC LOCK SPRING(64500)

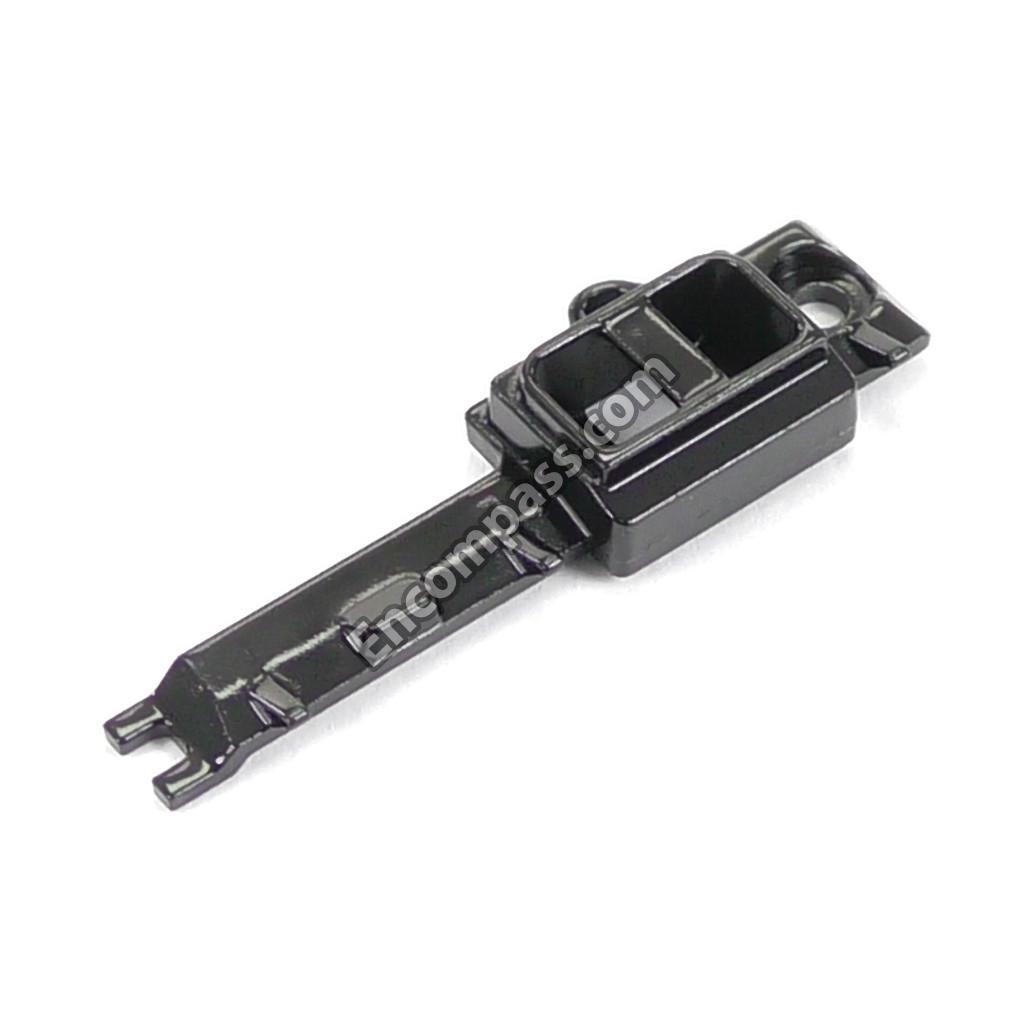

5-013-544-01 5-013-544-01 LC LOCK(64500)

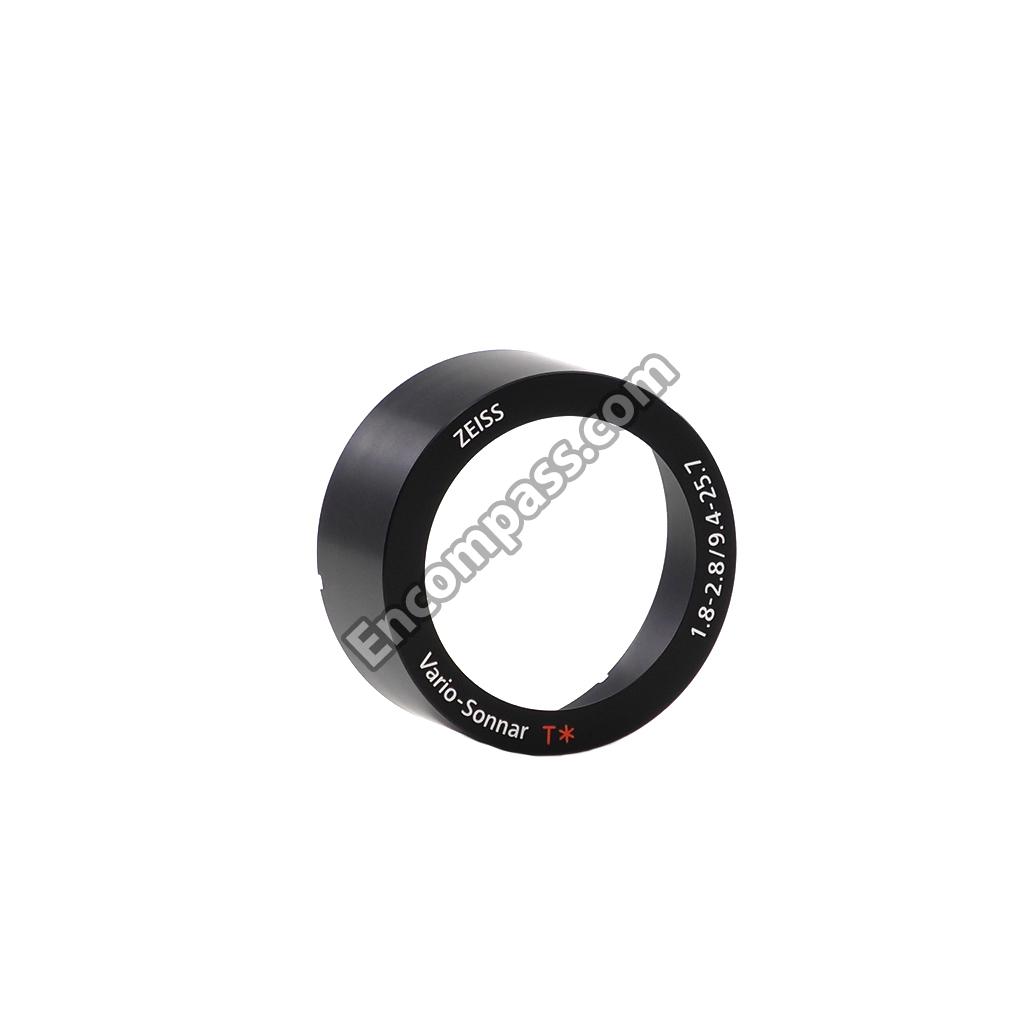

5-013-554-01 5-013-554-01 LENS RING(64500)
5-013-550-01 5-013-550-01 MAIN FRAME INSULATION (64500)
5-013-537-01 5-013-537-01 MAIN FRAME(64500)
5-013-552-01 5-013-552-01 MG SENSOR ADHESIVE A(64500)
5-014-830-01 5-014-830-01 MG SENSOR ADHESIVE B(64500)
5-013-540-01 5-013-540-01 MIC JACK PLATE(64500)
5-013-543-01 5-013-543-01 MIC LID(64500)
5-013-558-01 5-013-558-01 MIC RUBBER(64500)
5-015-426-01 5-015-426-01 MS RADIATION SHEET (64500)
A-5054-330-A A-5054-330-A MS1041_MOUNT
A-5016-151-A A-5016-151-A RE1006_MOUNT
NPBX1_M8 NPBX1_M8 RECHARGEABLE BATTERY PACK..
A-5012-268-A A-5012-268-A RING (A) (SERVICE), ORNAMENTAL
A-5016-150-A A-5016-150-A RL-1065_MOUNT
A-5016-149-A A-5016-149-A RL1066_MOUNT
4-594-873-01 4-594-873-01 RUBBER (B), SEAL
A-5020-565-A A-5020-565-A SERVICE CAB FRONT ASSY (64500)
A-5020-566-A A-5020-566-A SERVICE CAB REAR ASSY(64500)
A-5020-564-A A-5020-564-A SERVICE HINGE COVER MG ASSY
A-5020-567-A A-5020-567-A SERVICE MIC FRAME SPACER ASSY
A-5020-563-A A-5020-563-A SERVICE PANEL CAB FRONT ASSY
A-5020-562-A A-5020-562-A SERVICE PANEL CAB REAR ASSY

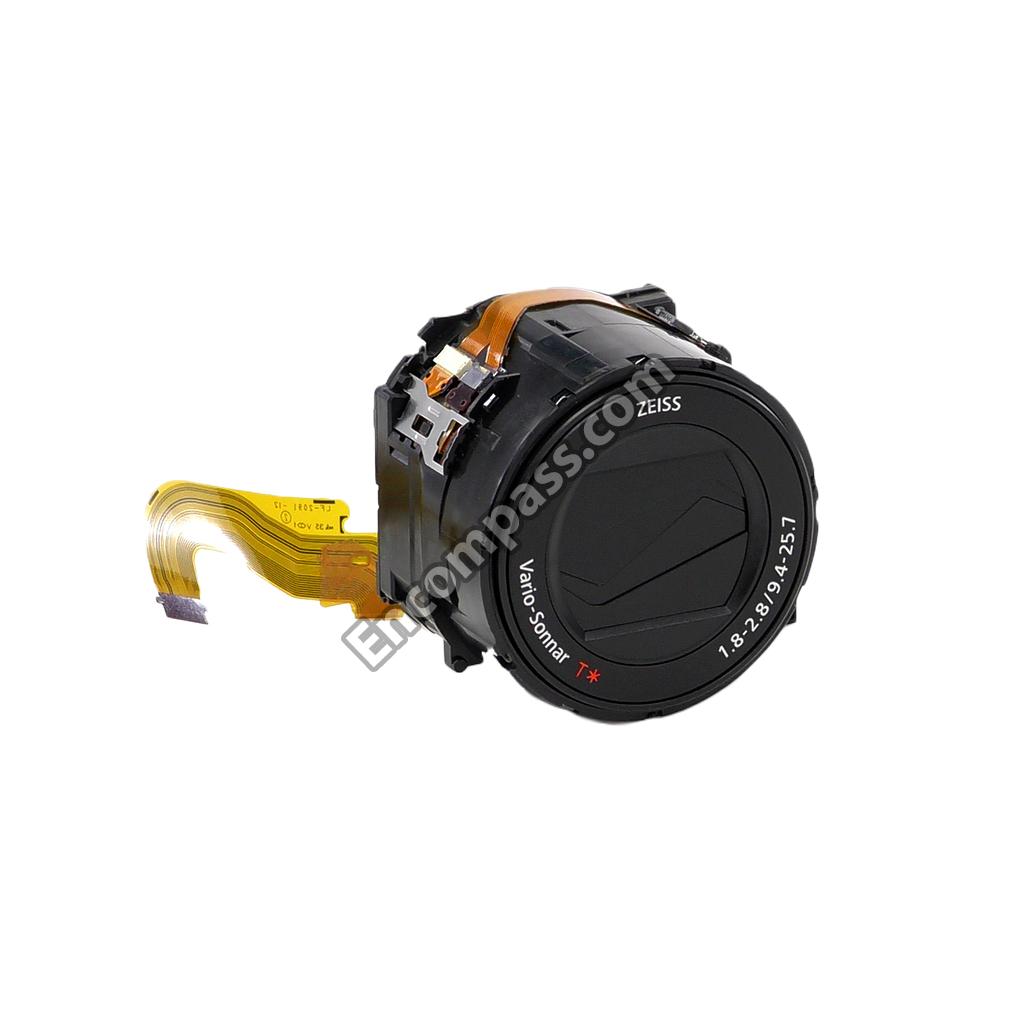

A-5012-793-A A-5012-793-A SERVICE, LENS DEVICE LSV1710F
5-000-569-01 5-000-569-01 SHEET (64210), SY SHIELD
5-000-869-11 5-000-869-11 SHEET EM SHIELD LC FPC (62600)
5-014-829-01 5-014-829-01 SHIELD SHEET REC (64500)
4-438-734-03 4-438-734-03 SHOE CAP (875)
4-438-734-22 4-438-734-22 SHOE CAP (WHITE)
5-013-539-01 5-013-539-01 SHOE FPC GUARD (64500)
5-013-561-01 5-013-561-01 SHOE FRAME(64500)
5-013-560-01 5-013-560-01 SIDE SPACER(64500)
5-013-571-01 5-013-571-01 STRAP BASE PLATE(64500)
5-013-532-01 5-013-532-01 STRAP R(64500)
X-5002-501-1 X-5002-501-1 SV HINGE ASSY
5-011-604-01 5-011-604-01 SV HINGE COVER REAR
5-011-611-01 5-011-611-01 SV WP CABLE GROMMET

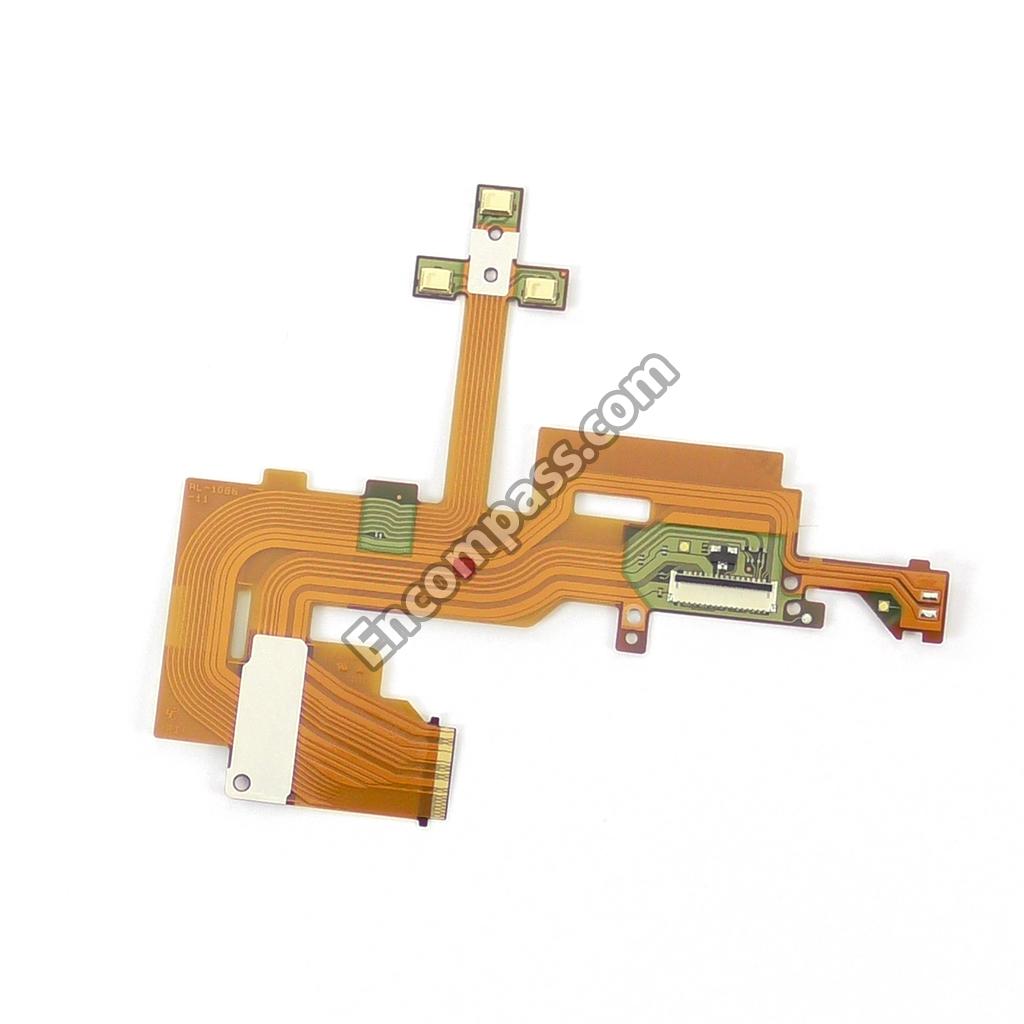

1-490-435-41 1-490-435-41 SWITCH BLOCK, CONTROL(SW63900)
5-013-530-01 5-013-530-01 SY HEAT SINK(64500)
5-013-547-01 5-013-547-01 SY HEAT TRANSFER SHEET(64500)
5-013-548-01 5-013-548-01 SY INSULATION SHEET A (64500)
5-013-549-01 5-013-549-01 SY INSULATION SHEET B (64500)
5-013-546-01 5-013-546-01 SY SPACER(64500)
A-5020-708-A A-5020-708-A SY_ COMPL
3-274-513-11 3-274-513-11 TAPE (ASCD)
A-5012-264-A A-5012-264-A TUBE BLOCK ASSY, STRAIGHT
5-013-541-01 5-013-541-01 USB LID(64500)

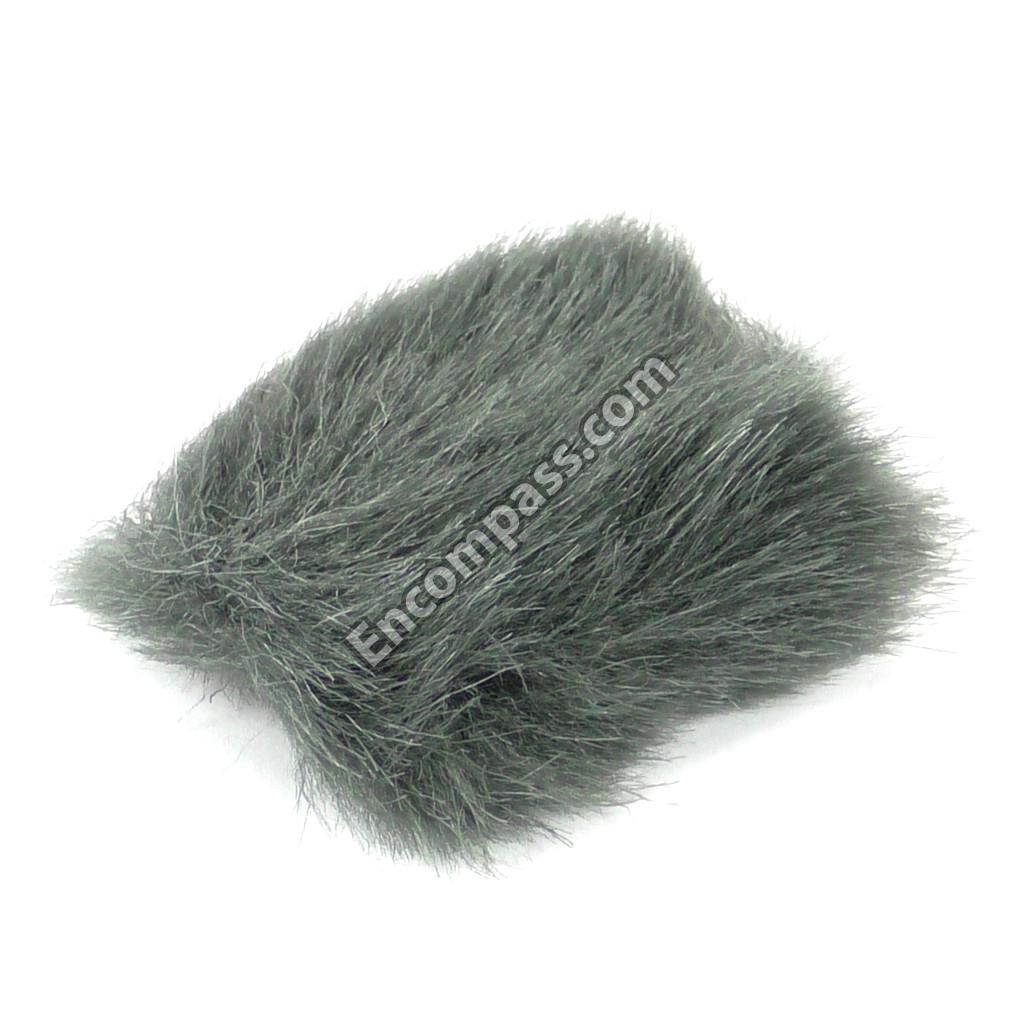

5-017-217-01 5-017-217-01 WIND SCREEN (BLACK)
5-017-217-11 5-017-217-11 WIND SCREEN (WHITE)
5-017-216-01 5-017-216-01 WIND SCREEN ADAPTOR (BLACK)
5-017-216-11 5-017-216-11 WIND SCREEN ADAPTOR (WHITE)
