Manufacturer
Speed Queen
Model Number
ADE3SRGS175CW01
Description
Electric Dryer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| D511637P | ADHESIVE DOW 737 CLR 3 OZ TUBE |
| 27604P | ANTI-SEIZE COMPOUND |
| D510139P | ASSEMBLY BLOWER FAN PKG |
| D510265WP | ASSEMBLY CYL DRYER-GALV-WHT BFLS, PKG |
| D505929LGP | ASSEMBLY CYL-HOME-STAINLESS-LG BFLS |
| D510159WP | ASSEMBLY CYLINDER-HOME-WHITE-PKGD |
| D510177 | ASSEMBLY DOOR CATCH |
| D516508 | ASSEMBLY DOOR LINER & SEAL-GALV SOLID |
| D512476P | ASSEMBLY FRT BULKHEAD-LIGHT-GALV SVC PKG |
| D505899WP | ASSEMBLY FRT BULKHEAD-LIGHT-WHT SVC PKG |
| D510324P | ASSEMBLY HEATER 240V 5.0KW 60HZ PK |
|
|
ASSEMBLY HEATER KIT 208/4.75KW 60H |
| 61927 | ASSEMBLY HEATER KIT 240/5.0KW 60HZ |
| D510142P | ASSEMBLY IDLER WHEEL & BEARING-PKG |
| D510505P | ASSEMBLY LEAD-IN CORD 72 PKG |
| D511629P | ASSEMBLY MOTOR & PULLEY-120/60 PKG |
| D510905WP | ASSEMBLY REAR BLKHD W/SEAL-WHT PKG |
| D511082P | ASSEMBLY REAR BULKHEAD W/SEAL PKG |
| D511277 | ASSEMBLY RESISTOR |
| D510207P | ASSEMBLY SEAL-CYL W/FILLER & INSTR |
| D510190P | ASSEMBLY TERMINAL BLOCK W/SCREWS |
| D510537 | ASSEMBLY WIRE-JUMPER-TIMER |
| D514250WP | ASSEMBLY, ACCESS PANEL, PKG |
| D514251 | ASSEMBLY,ACCESS PANEL SS |
| D518433 | ASSEMBLY,AIR DUCT-LIGHT GRAY(MTWC) |
| D512108 | ASSEMBLY,CYLINDER LIGHT(120V) |
| D510705P | ASSEMBLY,HEATER DUCT |
| D516792 | ASSEMBLY,IDLER LEVER BBS & WHEEL |
| 806597 | ASSEMBLY,KNOB(CHROME) |
| D518128 | ASSEMBLY,REAR BLKHD SS POLISHED W/SEAL |
| D518649 | ASSEMBLY,THERMAL FUSE |
| D518255 | ASSEMBLY,WIRE(1)BLK |
| D518256 | ASSEMBLY,WIRE(1)ORG-HEATER |
| D518708 | ASSEMBLY,WIRE-ORG-FAB SELECTOR |
| D510102LG | BAFFLE,CYLINDER-LIGHT GRAY |
| D510102W | BAFFLE,CYLINDER-WHITE |
| D514245 | BASE,DRYER(2015)(NO KNOCKOUTS) |
| D511255P | BELT CYLINDER-RUBBER FACE PKG |
| D510100 | BRACKET CYLINDER ROLLER 41887 |
| D510145 | BRACKET,CYLINDER GLIDE 41884 |
| D516311 | BRACKET,MOTOR SWITCH |
| D510146 | BRACKET,TOP MOUNT |
| D512106 | CAMERA LENS,CYLINDER LIGHT |
| 203730W | CAP,END(LEFT)WHITE |
| 203729W | CAP,END(RIGHT)WHITE |
| D510180 | CLAMP MOTOR MOUNT |
| 28835 | CLIP SPEED |
| 35358 | CLIP,SPRING-HOLD DOWN |
| D518524 | COVER,OUTLET(NITROCARBURIZED) |
| D500820 | COVER,OUTLET-PERFORATED(41422) |
| D515960W | DOOR,DRYER-SOLID |
| D515960WP | DOOR,DRYER-SOLID(WHITE) |
| D515963 | DOOR,DRYER-SOLID-SS |
| D516196 | DUCT,EXHAUST ONE-PIECE(ROLLED) |
| D503980LG | FILTER,LINT-LIGHT GRAY |
| D503980W | FILTER,LINT-WHITE |
| D501855 | FOOT RUBBER |
| D511056 | GASKET,OUTER TUB |
| D513710 | GLIDE,CYLINDER RULON 488 |
| D503870LG | GRILL,DOOR LINER-LIGHT GRAY |
| D503870W | GRILL,DOOR LINER-WHITE |
| D517236 | HARNESS,BROKEN BELT |
| D517438 | HARNESS,HOMESTYLE 240V/60HZ |
| D513660 | HARNESS,HOMESTYLE 240V/60HZ |
| D511036 | HINGE,DOOR |
| D510136 | HINGE,TOP 41887 |
| D511969WP | HOUSING BLOWER WHITE, PKG |
| D519156 | KIT CONV-TIMER D516411 TO RS |
| 528P3 | KIT DIRECTIONAL EXHAUST |
| D510103WP | KIT DOOR PULL AND WEDGE |
| D511213P | KIT DOOR PULL AND WEDGE (BLACK) |
| 521P3 | KIT FLEX VENT-DISPLAY |
| RB170003 | KIT GLIDE 1992&NEWER SM DRYER |
| 526P3 | KIT HOLD DOWN |
| 590P3 | KIT MOTOR HUB RING |
| RB170002 | KIT ROLLER 1992&NEWER SM DRYER |
| RB170001 | KIT SEAL 1992&NEWER SM DRYER |
| D510029WP | KIT TOP PANEL W/HDW-DOMESTIC |
| D500316 | LABEL WARNING -DUAL LANGUAGE |
| D505281R3 | LABEL WARNING-DISCONNECT POWER |
| D505281 | LABEL WARNING-DISCONNECT POWER |
| D500281R6 | LABEL WARNING-FT PANEL |
| D505984 | LABEL,WARNING-CLEARANCE ELECTRIC |
| D500316R6 | LABEL,WARNING-DUAL LANGUAGE |
| D516243 | LABEL,WARNING-QUEBEC FRENCH |
| 44324001 | LABEL,WARNING-SHOCK/PINCH(ENG/FR) |
| 60954 | LAMP,DRUM 120V - PER BULB |
| D510135 | LEG,LEVELING |
| D516310 | LEVER,IDLER |
| 56079 | LOCATOR,PANEL |
| D518517 | MOUNT,MOTOR |
| 56156 | NUT 3/8-16 SERRATED |
| 52566 | NUT HEX 1/4-20 JAM-UNC-ZNC PLT |
| 56128 | PAD BUMPER |
| D510189 | PAD FELT |
| D510001WP | PANEL CABINET SIDE-LH PKG |
| D510002WP | PANEL CABINET SIDE-RH PKG |
| D514632P | PANEL CABINET-REAR PKG |
| D510066WP | PANEL FRONT PKG |
| 806585 | PANEL,BACK-HOOD(FLW/DRYER) |
| D512542 | PANEL,FRONT S.S. |
| D516435 | PANEL,GRAPHIC CONTRL DRYER RC SQ 3 CYCLE |
| 806547 | PANEL,KNOB SUPPORT CONTROL(FLW/DRYER) |
| D512538 | PANEL,SIDE-STD DRYER LS-SS |
| D512539 | PANEL,SIDE-STD DRYER RS-SS |
|
|
PLATE,ACCESS COVER-3 LOUVER |
| D510186 | PLUG,HINGE HOLE-NATURAL |
|
|
PULLEY,MOTOR-60HZ |
| D512082P | RACK DRYING PKG |
| 45477 | RE 12GA-GRN/YEL STRIPE |
| 38384 | RELIEF STRAIN |
| 23748 | RING RETAINING-EXT .500 |
| D510708P | ROLLER CYLINDER W/INSTR |
| M405188 | SCREW #10 X1/2 DRILL POINT |
| D500227 | SCREW #8AB-18X1/2 PHIL LOWPROF |
| D500824 | SCREW 1/4-20 UNC HEX HD SHOULD |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| D505295 | SCREW 8AB-18X3/4 PHIL-L/PTRUSS |
| D512921 | SCREW SELF TAP PAN HD PHILLSS |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| D502535 | SCREW TAP SLHXWAHD8AB-18X.62 |
| 61199 | SCREW,10-32 X.375 HEX WA HD |
| 20530 | SCREW,HEX WA HD 10-24 3/8 TYPE T CS CLR |
| 203799 | SCREW,TAP #10-14X.500 PLASTITE HEXHDTORX |
| 31260 | SCREW,TAP #8 -10 X 3/8 IND HX WA HD |
| D500226 | SCREW,TAP #8-16X5/8 FLAT CSNK #6 PHL HD |
| D501285 | SCREW,TAP 12-16X.562 SLHXWAHD(PLASTIC) |
| 23222 | SCREW,TAP HXWAHD 8B-18X.250 |
| 33562 | SCREW,TAP SLSERHXWAHD10B-16X.438 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
| 807075 | SCREW,TAPPING #8-18X.375 TORX HEX WA HD |
| 62588 | SCREW,TAPPING HX WA HD PL(10-12X1 BT) |
|
|
SEAL BLOWER HSG PACKAGED |
| D515709 | SEAL,DOOR(GALV LINER) |
| 56461P | SHAFT |
| D510237 | SHIELD,TERMINAL BLOCK |
| D510185 | SPRING IDLER |
| D510181 | STRIKE DOOR-METAL |
|
|

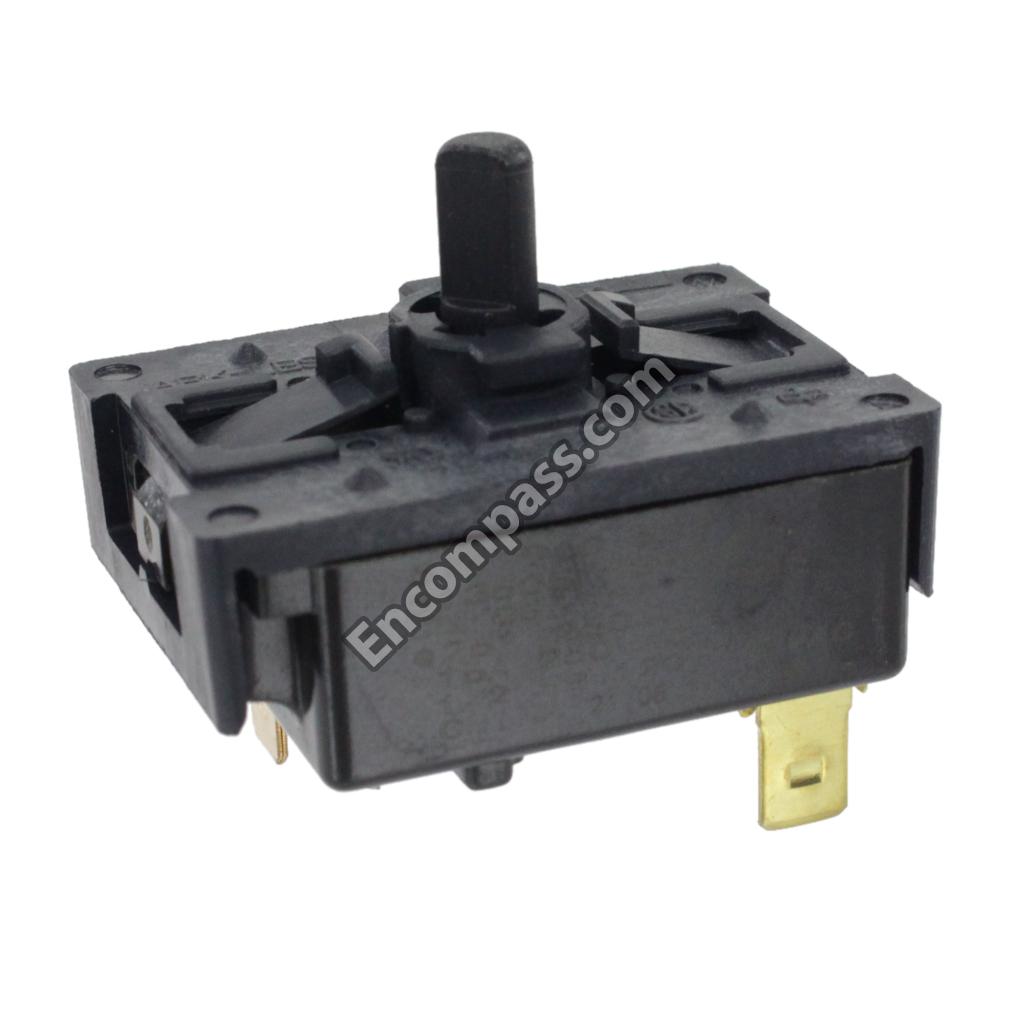

SWITCH,FABRIC SELECTOR(3 POSITION) |
| D512973 | SWITCH,PUSH BUTTON |
| D516391 | SWITCH,ROCKER,90/10 SPST NC,11A 250V |
|
|
THERMOSTAT,CYCLING(GREEN) |

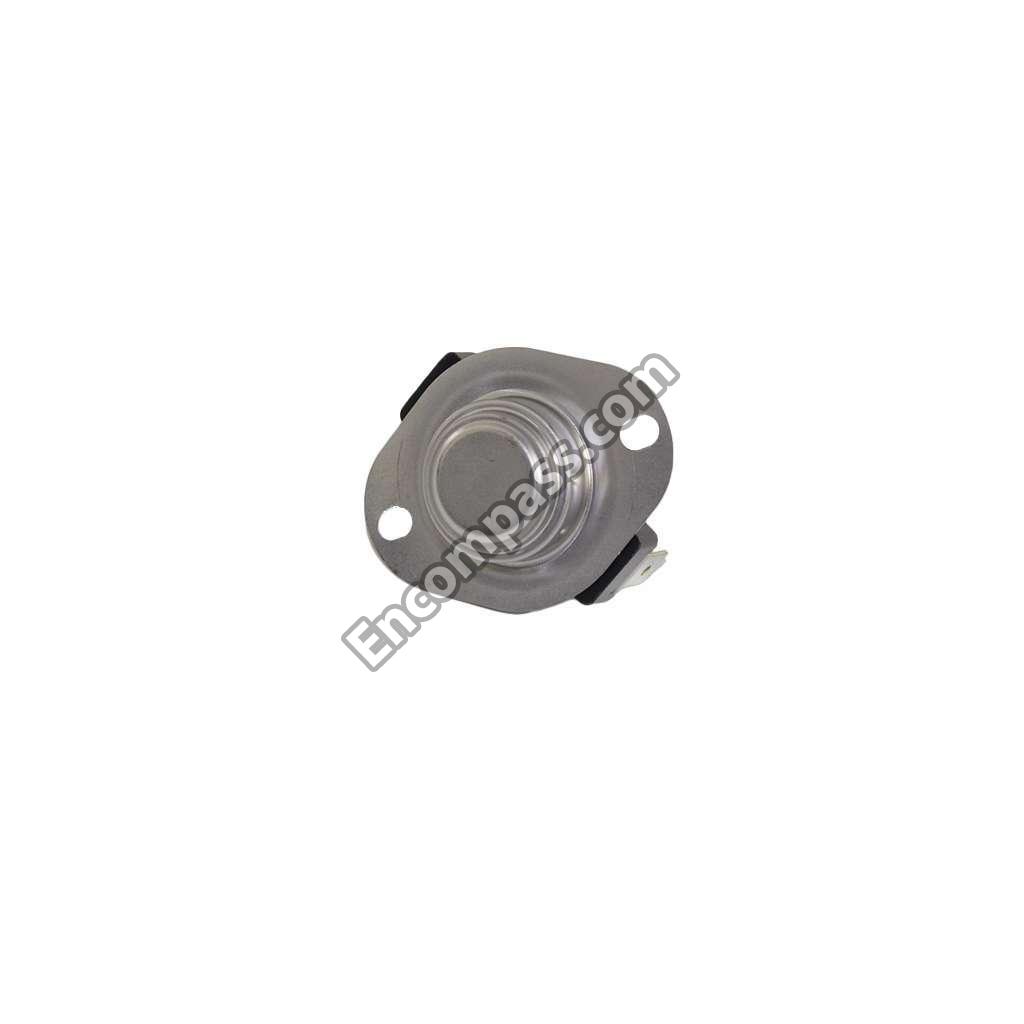

| D515873 | THERMOSTAT,LIMIT-RED |
| D504082 | WASHER WAVE |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| D510129W | WEDGE,DOOR-HANDLE(WHITE) |
| 45380 | WIRE 12GA-ORG |
| 45001 | WIRE 18GA-BLK |
