Manufacturer
Speed Queen
Model Number
ADEE8RGS173TW01
Description
Electric Dryer
Interactive Exploded View

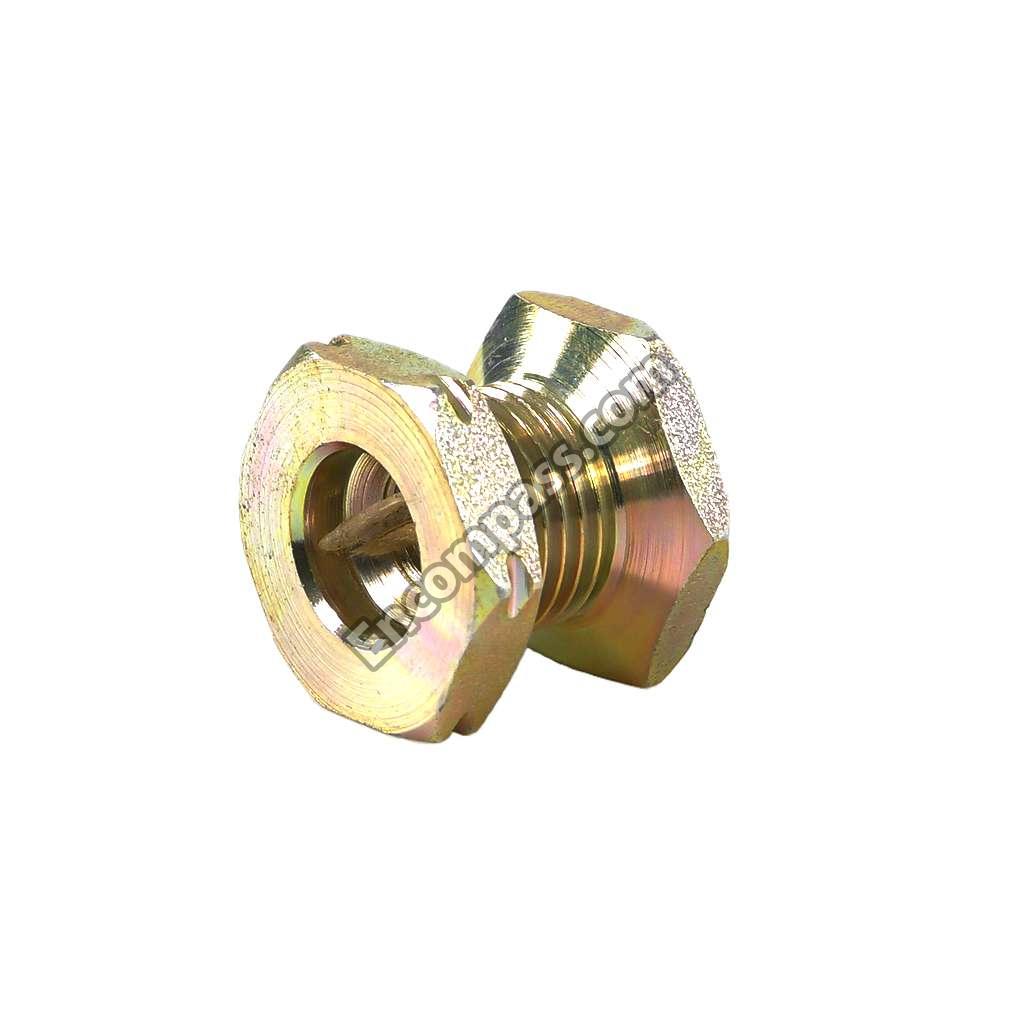

Parts List
| Part Number | Description |
|---|---|
| D511637P | ADHESIVE DOW 737 CLR 3 OZ TUBE |
| 27604P | ANTI-SEIZE COMPOUND |
| D510139P | ASSEMBLY BLOWER FAN PKG |
| D510250 | ASSEMBLY COVER-BLOWER HOUSING |
| D510265LGP | ASSEMBLY CYL DRYER-GALV-LG BFLS, PKG |
| D510159WP | ASSEMBLY CYLINDER-HOME-WHITE-PKGD |
| D510177 | ASSEMBLY DOOR CATCH |
| D515533P | ASSEMBLY FRT BULKHEAD-MS/LIGHT-GAL SVC PK |
| D515544WP | ASSEMBLY FRT BULKHEAD-MS/LIGHT-WHT SVC PK |
| D517256 | ASSEMBLY HARN ELEC 1PH RC W/LT NON BBS |
|
|
ASSEMBLY HEATER KIT 208/4.75KW 60H |
| 61927 | ASSEMBLY HEATER KIT 240/5.0KW 60HZ |
|
|
ASSEMBLY HEATER-ORG-5.35KW PKG |
| D510142P | ASSEMBLY IDLER WHEEL & BEARING-PKG |
| D511629P | ASSEMBLY MOTOR & PULLEY-120/60 PKG |
| D510905WP | ASSEMBLY REAR BLKHD W/SEAL-WHT PKG |
| D511082P | ASSEMBLY REAR BULKHEAD W/SEAL PKG |
| D510207P | ASSEMBLY SEAL-CYL W/FILLER & INSTR |
| D510190P | ASSEMBLY TERMINAL BLOCK W/SCREWS |
| D514250WP | ASSEMBLY, ACCESS PANEL, PKG |
| D518433 | ASSEMBLY,AIR DUCT-LIGHT GRAY(MTWC) |
| D512108 | ASSEMBLY,CYLINDER LIGHT(120V) |
| D516510WP | ASSEMBLY,DOOR-SOLID W GALV-W HANDLE PKG |
| D513797P | ASSEMBLY,DRYER OUTPUT CONTROL |
| D518257 | ASSEMBLY,GROUND WIRE-12GA |
| D510705P | ASSEMBLY,HEATER DUCT |
| D515503P | ASSEMBLY,HEC DRYR CNTRL W/OVRLAY BLU H3 ENGL |
| D516792 | ASSEMBLY,IDLER LEVER BBS & WHEEL |
| D518649 | ASSEMBLY,THERMAL FUSE |
| D510523 | ASSEMBLY,THERMISTOR(BLACK) |
| D518255 | ASSEMBLY,WIRE(1)BLK |
| D518256 | ASSEMBLY,WIRE(1)ORG-HEATER |
| D510102LG | BAFFLE,CYLINDER-LIGHT GRAY |
| D514245 | BASE,DRYER(2015)(NO KNOCKOUTS) |
| D513738 | BASE,MOISTURE SENSOR |
| D511255P | BELT CYLINDER-RUBBER FACE PKG |
| D510100 | BRACKET CYLINDER ROLLER 41887 |
| D510145 | BRACKET,CYLINDER GLIDE 41884 |
| D510127 | BRACKET,DOOR STRIKE 41890 |
| D512106 | CAMERA LENS,CYLINDER LIGHT |
| D510180 | CLAMP MOTOR MOUNT |
| 28835 | CLIP SPEED |
| 687500 | CLIP WIRE 1.00 DIA |
| D504034 | CLIP WIRE-.69 DIA |
| 00161 | CLIP-GROUNDING BLADE |
| D518524 | COVER,OUTLET(NITROCARBURIZED) |
| D500820 | COVER,OUTLET-PERFORATED(41422) |
| D505808W | COVER,TOP PANEL CONTROL (WHITE) |
| D510013WP | DOOR DRYER PKG |
| D512969 | DOOR,DRYER-SOLID-SS |
| D516196 | DUCT,EXHAUST ONE-PIECE(ROLLED) |
| D503980LG | FILTER,LINT-LIGHT GRAY |
| D501855 | FOOT RUBBER |
| D511056 | GASKET,OUTER TUB |
| D513710 | GLIDE,CYLINDER RULON 488 |
| D511036 | HINGE,DOOR |
| D510136 | HINGE,TOP 41887 |
| D500338 | HOUSING 10 POSITION |
| D511969LG | HOUSING,BLOWER-LIGHT GRAY |
| 528P3 | KIT DIRECTIONAL EXHAUST |
| D510103WP | KIT DOOR PULL AND WEDGE |
| D511213P | KIT DOOR PULL AND WEDGE (BLACK) |
| 521P3 | KIT FLEX VENT-DISPLAY |
| RB170003 | KIT GLIDE 1992&NEWER SM DRYER |
|
|
KIT HEATER-ORG-5350W/240V/60HZ |
| 526P3 | KIT HOLD DOWN |
| 590P3 | KIT MOTOR HUB RING |
| RB170002 | KIT ROLLER 1992&NEWER SM DRYER |
| RB170001 | KIT SEAL 1992&NEWER SM DRYER |
| D510029WP | KIT TOP PANEL W/HDW-DOMESTIC |
| D511005 | LABEL CLEARANCE-ELECTRIC |
| D500281R6 | LABEL WARNING-FT PANEL |
| 60954 | LAMP,DRUM 120V - PER BULB |
| D510135 | LEG,LEVELING |
| D516310 | LEVER,IDLER |
| 56079 | LOCATOR,PANEL |
| D518517 | MOUNT,MOTOR |
| 56156 | NUT 3/8-16 SERRATED |
| 52566 | NUT HEX 1/4-20 JAM-UNC-ZNC PLT |
| D514189 | OVERLAY,CONTROL DRYER H3 HEC |
| 56128 | PAD BUMPER |
| D510189 | PAD FELT |
| D510001WP | PANEL CABINET SIDE-LH PKG |
| D510002WP | PANEL CABINET SIDE-RH PKG |
| D514632P | PANEL CABINET-REAR PKG |
| D504009WP | PANEL END-LH-WHITE PKG |
| D504008WP | PANEL END-RH WHITE PKG |
| D510066WP | PANEL FRONT PKG |
| 804565 | PANEL,GRAPHIC FLW/DRYER HEC SQ |
| 804169 | PANEL,HOME HOOD BACK(FLW) |
| 804836 | PANEL,SUPPORT CONTROL(FLW) |
|
|

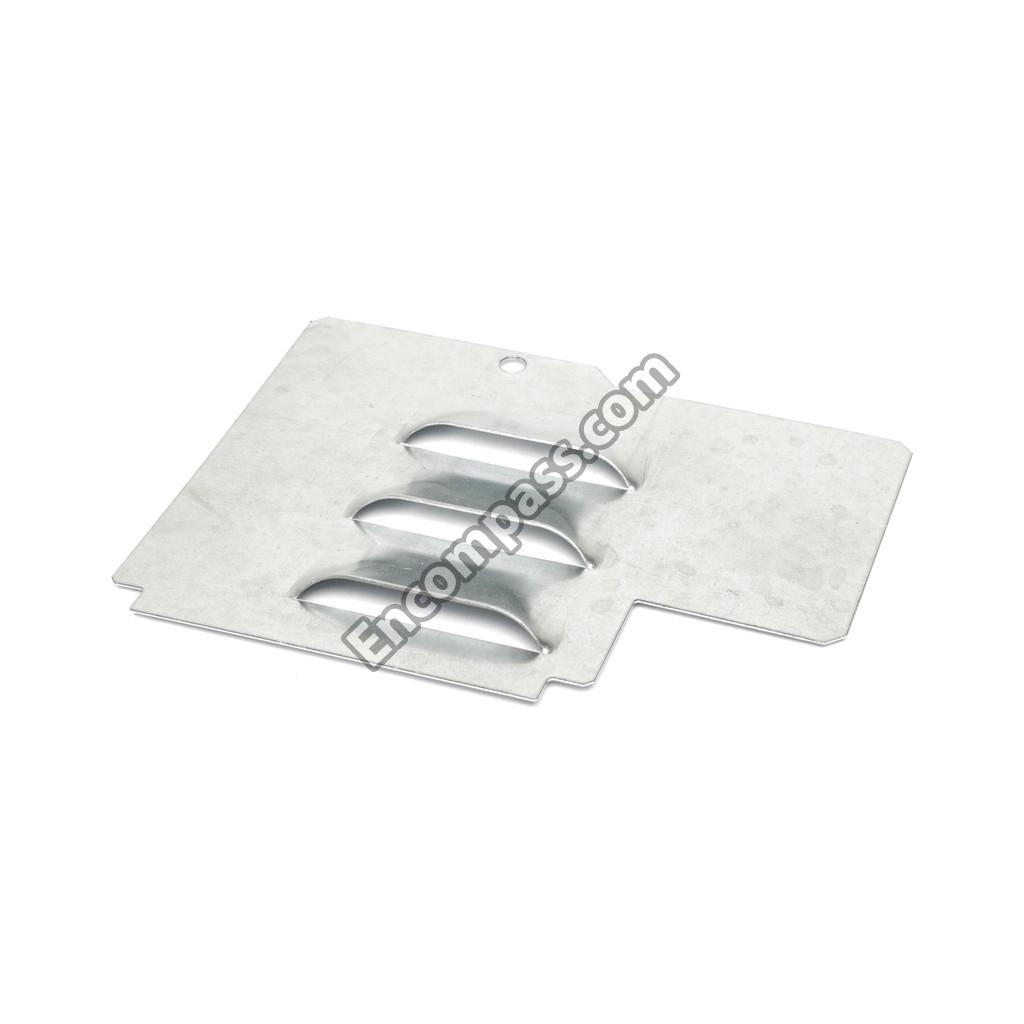

PLATE,ACCESS COVER-3 LOUVER |
| D510186 | PLUG,HINGE HOLE-NATURAL |
|
|
PULLEY,MOTOR-60HZ |
| D512082P | RACK DRYING PKG |
| 23748 | RING RETAINING-EXT .500 |
| D510708P | ROLLER CYLINDER W/INSTR |
| M405188 | SCREW #10 X1/2 DRILL POINT |
| D500227 | SCREW #8AB-18X1/2 PHIL LOWPROF |
| D500824 | SCREW 1/4-20 UNC HEX HD SHOULD |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| D512921 | SCREW SELF TAP PAN HD PHILLSS |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| D502535 | SCREW TAP SLHXWAHD8AB-18X.62 |
| 804667 | SCREW,10-16 SP HX WAS HD |
| 61199 | SCREW,10-32 X.375 HEX WA HD |
| D514428 | SCREW,SHOULDER 10-16 SP UNSL TD IND HX |
| 31260 | SCREW,TAP #8 -10 X 3/8 IND HX WA HD |
| D500226 | SCREW,TAP #8-16X5/8 FLAT CSNK #6 PHL HD |
| D501285 | SCREW,TAP 12-16X.562 SLHXWAHD(PLASTIC) |
| 23222 | SCREW,TAP HXWAHD 8B-18X.250 |
| 33562 | SCREW,TAP SLSERHXWAHD10B-16X.438 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
| 62588 | SCREW,TAPPING HX WA HD PL(10-12X1 BT) |
|
|

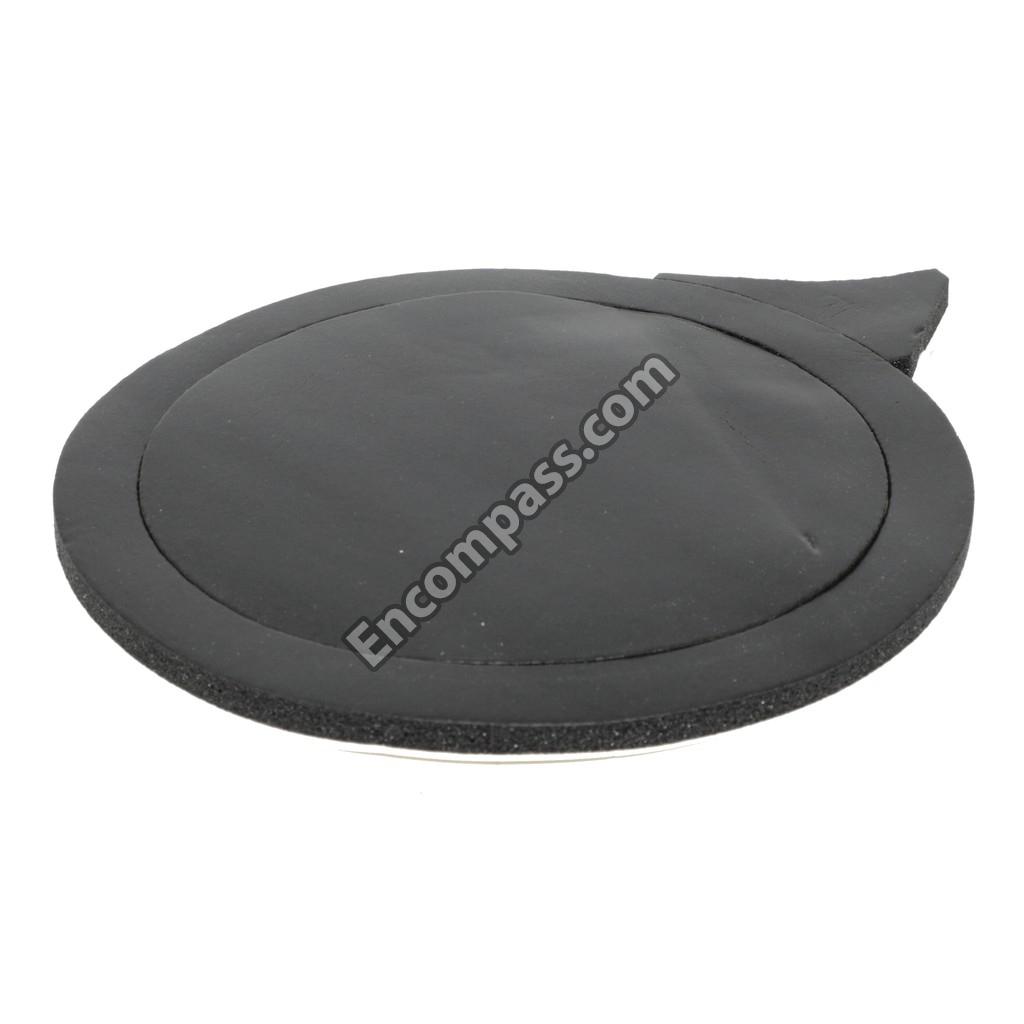

SEAL BLOWER HSG PACKAGED |
| D510147P | SEAL LINER DOOR PACKAGED |
| D513737 | SENSOR,BAR |
| 56461P | SHAFT |
| D510237 | SHIELD,TERMINAL BLOCK |
| D510185 | SPRING IDLER |
| D510181 | STRIKE DOOR-METAL |
| D512973 | SWITCH,PUSH BUTTON |
| D516391 | SWITCH,ROCKER,90/10 SPST NC,11A 250V |
| 00360 | TERM.1/4 FEMALE INSL 10-14AWG NATURAL |
| 00359 | TERM.1/4 FEMALE INSL 18-22AWG NATURAL |
| 00344 | TERMINAL 1/4 FEMALE W/TAB |
| 00255 | TERMINAL FEMALE-1/4 |
| 00223 | TERMINAL FEMALE-1/4 SPADE |
| 00188 | TERMINAL FEMALE-MOLEX-QC-TIMER |
| D515873 | THERMOSTAT,LIMIT-RED |
| 55881 | TIE CABLE 4 |
| 190P4 | TOOL EXTRACTOR HT2066A |
| 283P4 | TOOL TERMINAL EXTRACTOR |
| D504082 | WASHER WAVE |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| D510129W | WEDGE,DOOR-HANDLE(WHITE) |
