Manufacturer
Speed Queen
Model Number
AFN51FSP111TN01
Description
Front Load Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 155P3 | ANCHOR 4 PACK |
| 27604P | ANTI-SEIZE COMPOUND |
| 802844P | ASSEMBLY ANCHOR FLOOR MOUNT (2X) |
| 802365P | ASSEMBLY BASKET-INNER-COMPLETE PKG |
| 803099P | ASSEMBLY BRUSHED CONTROL KNOB PKG |
| 803098P | ASSEMBLY BRUSHED TIMER KNOB PKG |
| 801476P | ASSEMBLY DISPENSER-W/O VALVE PKG |
| 802803 | ASSEMBLY DOOR CATCH |
| 802317P | ASSEMBLY DOOR DOOR LATCH/SWITCH PKG |
| 802866P | ASSEMBLY DOOR SEAL NOZZLE LUBE BLK |
| 802830P | ASSEMBLY DOOR SEAL NOZZLE LUBE GREY |
| 803218P | ASSEMBLY DOOR-COMP HOME SS PKG |
| 802523P | ASSEMBLY E/M CONTROL PKG |
| 803242P | ASSEMBLY HARN-CNTRL FRT E/M HOME |
| 803581 | ASSEMBLY HARN-MOTOR CONTROL |
| 802831P | ASSEMBLY HARNESS-BASE PKG |
| 801324P | ASSEMBLY HARNESS-CONTROL E/M PKG |
| 802274P | ASSEMBLY HARNESS-MOTOR PKG |
| 803008P | ASSEMBLY INNER BASKET |
| 803254P | ASSEMBLY INVERTER CONTROL 120V |
| 802426P | ASSEMBLY LID W/FILTER INSERT PKG |
| 802258 | ASSEMBLY OUTER TUB FRONT-NO HTR |
| 801081P | ASSEMBLY OUTER TUB-COMP PKG |
| 803219 | ASSEMBLY OUTR BZL SILVER SS HINGE |
| 802434P | ASSEMBLY PUMP HOUSING LID&GASKET |
| 800666 | ASSEMBLY TENSION ROD-COMPLETE |
| 802894P | ASSEMBLY WIRE HARNESS MOTOR PKG |
| D514251 | ASSEMBLY,ACCESS PANEL SS |
| 803876 | ASSEMBLY,BASE-COMPLETE-COBRA |
| 803214 | ASSEMBLY,CONTROL PANEL-HOME SS |
| 205241 | ASSEMBLY,PRESSURE BULB |
| 806466 | ASSEMBLY,WIRE RING & SPRING |
| 34500 | BACKFLOW PREVENTER,DUCKBILL |
| 800310 | BACKFLOW PREVENTOR,PUMP |
| 803013 | BADGE Q & SPEED QUEEN |
| 800319P | BELT DRIVE-MICRO-V PKG |
| 29651 | BOLT,RND HD SQ NECK 5/16-18X.500 SHORT |
| 801491 | BRACE CABINET-LH |
| 801492 | BRACE CABINET-RH |
| 802626 | BRACKET PUMP MOUNT |
| 800663 | BRACKET SWITCH MOUNT-OBL |
| 803388 | BRACKET,OBL SWITCH |
| M402542 | BUSHING SNAP-1.375 |
| 801777 | CABINET CONTROL-BASE |
| 803142 | CABINET CONTROL-L SIDE |
| 803141 | CABINET CONTROL-R SIDE |
| 801058 | CABINET CONTROL-REAR |
| 803294 | CAMERA LENS INDICATOR LIGHT |
| 801746 | CAP VINYL-.343 X 3/4 RED |
| 802698 | CLAMP HOSE #4 HIGH STRENGTH |
| 802164 | CLAMP HOSE #8 HIGH STRENGTH |
| 800811 | CLAMP WIRE-PLASTIC |
| 802281 | CLAMP,DOOR SEAL |
| F200204 | CLAMP,HOSE #20 |
| 685725 | CLAMP,HOSE #36 |
| F200206 | CLAMP,HOSE #4 |
| 39282 | CLAMP,HOSE(6.5) |
| 802700 | CLIP GLASS MOUNTING |
| 36985 | CLIP HOSE (PRESSURE HOSE) |
| 687500 | CLIP WIRE 1.00 DIA |
| D504034 | CLIP WIRE-.69 DIA |
| 70030501 | CLIP,EXPANSION 10-16A |
| 800553 | CLIP,PRESSURE HOSE MOUNT |
| 36014 | CLIP,RETAINER(NATURAL) |
| 00161 | CLIP-GROUNDING BLADE |
| 34458 | CORD,LEAD-IN TYPE B US/CAN |
| 800205 | COUNTERWEIGHT E-COAT |
| 800899 | COVER DETERGENT COMPARTMENT |
| 804174P | DEFLECTOR CLOTHES GUARD, PKG |
| 804482 | DEFLECTOR,CLOTHES GUARD (INSERT) |
| 685756P | DISPENSER MLD W/VALVES-CMML PK |
| 685757P | DRAWER COMML DISPENSER |
| 801702 | EDGING SHARP EDGES-MTR ACCESS |
| 802336 | FIXTURE PULLEY BOLT TIGHTENING |
| D501855 | FOOT RUBBER |
| 34318 | FOOT,RUBBER |
| 801755 | FUSE (5MM X 20MM) 10 AMP |
| 802427 | GASKET 1.389ID 2.362ODX.118 |
| 802695P | GLASS DOOR-EGG SHAPE PKG |
| 29175 | GROMMET,PRESSURE BULB (TLW/FLW) |
| 803537 | GUARD CLOTHES |
| 803204P | HANDLE DISPENSER-SILVER |
| D513268 | HARN JUMPER CYCLONE II 800RPM |
| 804676 | HINGE |
| 802934 | HINGE,DOOR |
| 800331 | HOSE DETERGENT-DISPENSR TO TUB |
| 802256 | HOSE DISPENSER TO DOOR SEAL |
| 800317 | HOSE DRAIN-TUB TO PUMP |
| 801464 | HOSE INLET-MIXVALVE TO DISPENS |
| 685730 | HOSE, DRAIN PLASTIC (NDEP) |
| F200116 | HOSE,INLET-WATER,3/8X60(GHT) |
| 802428 | HOUSING PUMP |
| 685716 | INSERT |
| 807875 | KIT ASSEMBLY,SHOCK ABSORBER-BASE |
| RB160001 | KIT BEARING HORIZON |
| 800428P | KIT BEARING HOUSING & HARDWARE |
| 918P3 | KIT BRACE FLW |
| 804560P | KIT CLOTHES GUARD & DEFLECTOR |
| 985P3 | KIT DRAIN FOREIGN OBJECT TRAP |
| 838P3 | KIT HARDWARE-FLW MODULE |
| 808096 | KIT INNER DOOR BEZEL GRAY |
| 801684P | KIT MOTOR AND ROD ASSEMBLY |
| 930P3 | KIT SHIPPING MATERIALS |
| 800622P | KIT SHOCK ABSORBER-TUB |
| 803144P | KIT TOP HOME SS W/HDWE |
| 800749P | KIT TRUNNION SHAFT AND HDW |
| 685766P | KIT VALVE COMML DISPENSER-120V |
| 806512 | KIT, ASSEMBLY SWITCH-OUT OF BALANCE |
| 807865 | KIT, FLW HINGE ATTACHMENT |
| 802074R3 | LABEL HE & OVERSUDSING ENGLISH |
| 685928 | LABEL LH THREAD SCREW REPLACE |
| 802838 | LABEL OVERSUDSING-SPAN REPLACE |
| D500049R4 | LABEL WARNING |
| D500049 | LABEL WARNING |
| D505281R3 | LABEL WARNING-DISCONNECT POWER |
| D505281 | LABEL WARNING-DISCONNECT POWER |
| 803260R1 | LABEL WARNING-DISCONNECT POWER |
| 803260 | LABEL WARNING-DISCONNECT POWER |
| 807552 | LABEL,CAUTION-REMOVE BRACKET ICON |
| 802367 | LABEL,WARNING-REDUCE FIRE RISK |
| 803522 | LABEL,WARNING-SHOCK & INJURY-BILINGUAL |
| 34319 | LEG,LEVELING SCREW 1/2-13 X 1.875 |
| 801431 | LIGHT 2VDC GREEN LED |
| 56079 | LOCATOR,PANEL |
| 802343 | LOCKNUT #10-24 UNF-SS |
| 685846 | LOCKNUT #10-32 UNF-NYLON |
| 685844 | LOCKNUT 3/8-16UNC SS304-NYLON |
| 03815 | LOCKWASHER #10 EXT SHKPF |
| 802291 | NOZZLE BOOT |
| 36020 | NUT #10-24 U TYPE |
| 802292 | NUT HEX 1/2-13 NYLON |
| 03673 | NUT HEX 10-24 MACH-UNC-ZNC PLT |
| 800452 | NUT HEX 3/8-16 STD-UNC-ZNCPLT |
| 23951 | NUT HEX KEPS 10-24 STL |
| F430218 | NUT HEX LOCK 3/8-16 POLY INS |
| 21899 | NUT,HEX 1/2-13 SPECIAL |
| 44087201 | NUT,HEX FLANGE 5/16-18 UNC |
| 802429P | O-RING 2.047ID .118THICKNESS, PKG |
| 56128 | PAD BUMPER |
| 36226 | PAD BUMPER .25 |
| 204552 | PAD,PANEL FRONT |
| 122P4P | PAINT PORC TOUCH-UP-WHITE PKG |
| 800011 | PANEL ACCESS-REAR |
| 803067 | PANEL FC-SQ GOLD/BLACK |
| 802288P | PANEL FRONT-RIGHT HINGE SS PKG |
| 800010P | PANEL REAR PKG |
| 800004DG | PANEL,SIDE-STD FLW LS |
| 800005DG | PANEL,SIDE-STD FLW RS |
| 801024 | PLATE DISPENSER |
| 802206 | PLATE HINGE |
| 800552 | PLATE HOSE MOUNT |
| 800323 | PLATE MIXING VALVE |
| M412154 | PLUG HOLE-PLASTIC 1.125 |
| 800866 | PULLEY DRIVEN |
| 802623P | PUMP DRAIN-120/60 SYNCHRONOUS |
| 38384 | RELIEF STRAIN |
| 32219 | RELIEF,STRAIN-PLASTIC DRAIN HOSE |
| 800312 | RING CLAMP |
| 23748 | RING RETAINING-EXT .500 |
| 685847 | RIVET POP-DOME HD-.156 STL |
| 801062 | ROD,MOTOR |
| 802926 | SCREEN MIXING VALVE |
| M405188 | SCREW #10 X1/2 DRILL POINT |
| 801001 | SCREW #10X5/8 T20 TORX PLASTIT |
| 802431 | SCREW .157X.709SELFT |
| 802430 | SCREW .157X.996SELFT |
| 31645 | SCREW 10-16B X 7/16 SPECIAL |
| D503661 | SCREW 10-16X.44UNSLT IND HX WA |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| 802596 | SCREW 10X24X3/4 PHILLIPS HD |
| 801993 | SCREW HEX HD MACH 10-32X.875 |
| 23008 | SCREW HEX WA HD SEMS 10-24X.75 |
| F430116 | SCREW HH MDS ZC GR5 3/8-16X1 |
| M400043 | SCREW HX CAP 3/8-16X1.00-INCH |
| 800461 | SCREW HX CAP 3/8-16X1.25 IN |
| 800462 | SCREW HX CAP 3/8-16X4.00 IN |
| M400057 | SCREW HX CAP 5/16-18X.75 GR2 |
| D512921 | SCREW SELF TAP PAN HD PHILLSS |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| 685831 | SCREW,3/8-24 X 1 HEX LH THD |
| 20530 | SCREW,HEX WA HD 10-24 3/8 TYPE T CS CLR |
| 801045 | SCREW,HEX WA HD SMS10-24X.62SS |
| 70240301 | SCREW,TAP HXWAHD 10AB-16X.500 |
| D501524 | SCREW,TAP HXWAHD 10T-32X.312 |
| 430497 | SCREW,TAP SERHXWAHD10AB-16X.375 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
| F430956 | SCREW,TAPPING TRUSS 8-18 A X 0.500 SS |
| 800548 | SCREW,TORX 8-16 PLASTITE 48-2 |
|
|

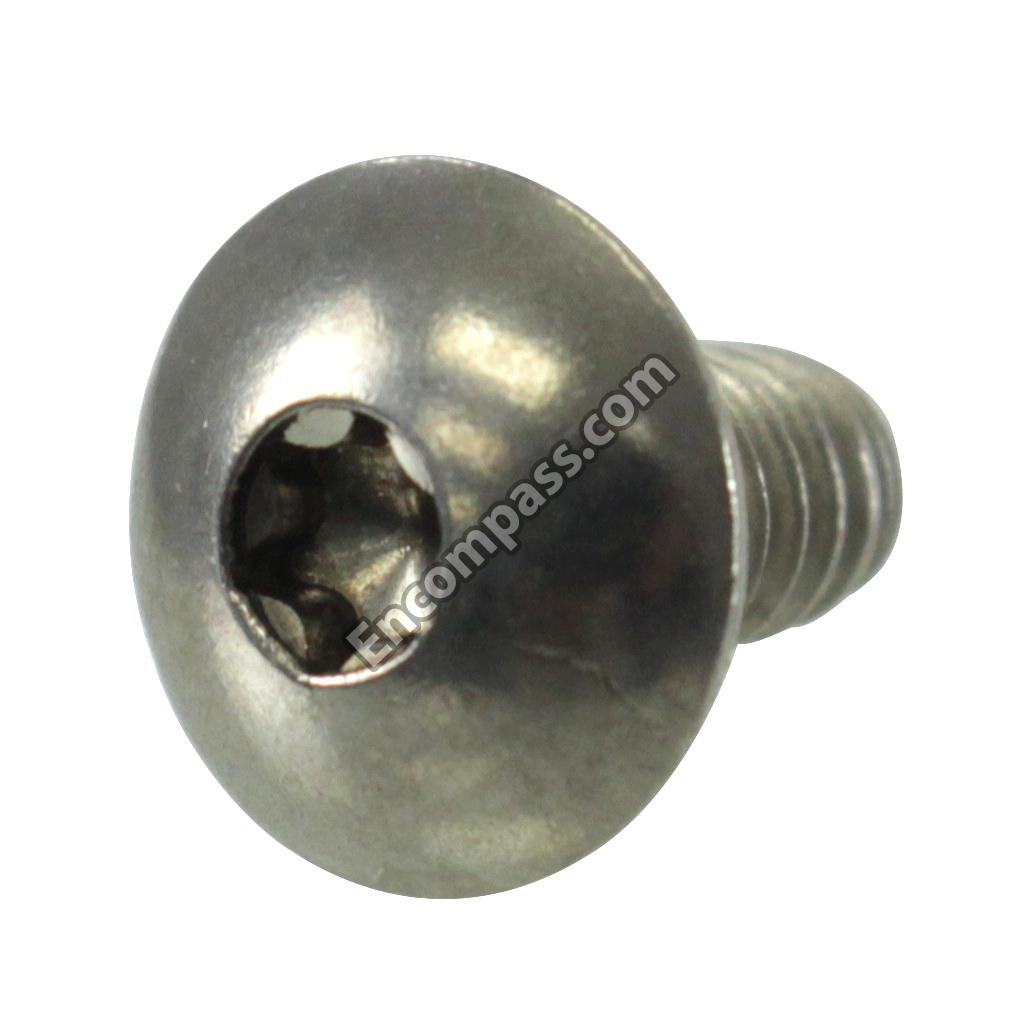

SCREW,TRUSS HEAD TORX(10-24 UNCX0.375) |
| 800432P | SEAL OUTER TUB FRONT PKG |
| 27615P | SEALANT 3M-800 2OZ TUBE |
| 801371 | SHIELD,CONTROL-SINGLE |
| 801061 | SHIELD,DRIP-MOTOR CONTROL |
| 33615 | SLEEVE,DRAIN HOSE |
|
|

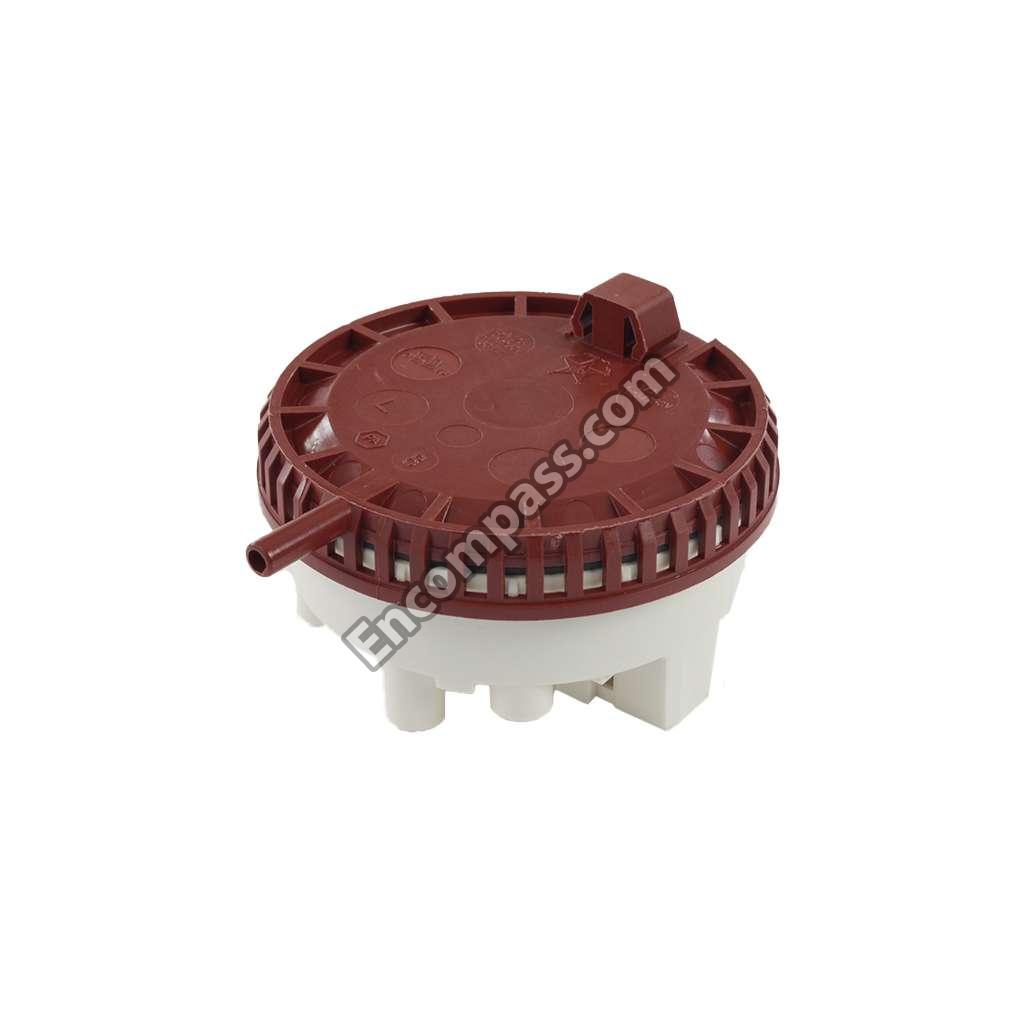

SWITCH PRESSURE 2-LEVEL (2.0) |
| 803569 | SWITCH TWIST-TO-START |
| 803568 | SWITCH,2 POSITION |
| 801240 | SWITCH,CYCLE SELECTOR(6 POSITION) |
| 803415 | SWITCH,PUSH BUTTON SPST NC W/AU |
| 687542 | SWITCH,TEMP SELECTOR(4 POSITION) |
| 33489 | TIE BEADED 14 |
| 55881 | TIE CABLE 4 |
| 38663 | TIE WIRE-PUSH MOUNT |
| 318P4 | TOOL DISPENSER DRAWER |
| 392P4 | TOOL-WRENCH |
| 210018P | TRANSFORMER PKG |
| 800648P | TUBING 36 PKG |
| 802254 | WASHER FLOW RESTRICTOR REDUCER |
| M403958 | WASHER LOCK EXT TOOTH A 3/8 |
| 02834 | WASHER LOCK EXT TOOTH A 5/16 |
| 800457 | WASHER,FLAT (.438 X 1.000 X .083) |
| M400081 | WASHER,FLAT (3/8 STD TYPE A WIDE) |
| M400080 | WASHER,FLAT (5/16 STD TYPE A WIDE) |
| 20290 | WASHER,FLAT NON-FERROUS EPDM .593X1.031 |
| 802293 | WASHER,FLAT NON-FERROUS NYLON .495X.809 |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| 807679 | WASHER,FLAT(.406 ID X 1.500 OD X.180 ) |
| M400014 | WASHER,LOCK REG HELICAL SPRING 3/8 |
| 803615 | WASHER,STRAINER,3/4-INCHES PIPE |
| 802220P | WATER VALVE-MIXING 21N10T PKG |
| 45380 | WIRE 12GA-ORG |
| 45001 | WIRE 18GA-BLK |
| 205655 | WRENCH,FOOT LOCKNUT |
