Manufacturer
Speed Queen
Model Number
ATGE9AGP113TW01
Description
Gas Dryer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| D511637P | ADHESIVE DOW 737 CLR 3 OZ TUBE |
| 155P3 | ANCHOR 4 PACK |
| 27604P | ANTI-SEIZE COMPOUND |
| 802844P | ASSEMBLY ANCHOR FLOOR MOUNT (2X) |
| D510139P | ASSEMBLY BLOWER FAN PKG |
| D514567P | ASSEMBLY BLUE H4 DRYER CNTRL HOME |
| D510149P | ASSEMBLY BURNER PACKAGED |
| D510265WP | ASSEMBLY CYL DRYER-GALV-WHT BFLS, PKG |
| D510159WP | ASSEMBLY CYLINDER-HOME-WHITE-PKGD |
| D510177 | ASSEMBLY DOOR CATCH |
| 802803 | ASSEMBLY DOOR CATCH |
| D516509 | ASSEMBLY DOOR LINER & SEAL-GALV WINDOW |
| 804083WP | ASSEMBLY DOOR-COMPLETE-STANDARD |
| D515533P | ASSEMBLY FRT BULKHEAD-MS/LIGHT-GAL SVC PK |
| D515544WP | ASSEMBLY FRT BULKHEAD-MS/LIGHT-WHT SVC PK |
| D510506P | ASSEMBLY GAS VALVE-SGL-120/60 PKG |
| D517096 | ASSEMBLY HARN GAS UPPER 120V W/LT BBS |
| D510142P | ASSEMBLY IDLER WHEEL & BEARING-PKG |
| D510184P | ASSEMBLY IGNITER & BRKT-PKGD |
| 804374P | ASSEMBLY INNER BASKET |
| 802426P | ASSEMBLY LID W/FILTER INSERT PKG |
| D511629P | ASSEMBLY MOTOR & PULLEY-120/60 PKG |
| 802434P | ASSEMBLY PUMP HOUSING LID&GASKET |
| D511082P | ASSEMBLY REAR BULKHEAD W/SEAL PKG |
| D510207P | ASSEMBLY SEAL-CYL W/FILLER & INSTR |
| D514250WP | ASSEMBLY, ACCESS PANEL, PKG |
| 804428P | ASSEMBLY, DOOR SEAL (BLACK) - COBRA |
| 804429P | ASSEMBLY, DOOR SEAL (GRAY) - COBRA |
| 807175P | ASSEMBLY,1HP SVI ALT IPM CONTROL PKG |
| D518433 | ASSEMBLY,AIR DUCT-LIGHT GRAY(MTWC) |
| D518432 | ASSEMBLY,AIR DUCT-WHITE(MTWC) |
| 804393 | ASSEMBLY,BALANCE RING (FLW) |
| 803876 | ASSEMBLY,BASE-COMPLETE-COBRA |
| 805219P | ASSEMBLY,BLU FLW CNTL HOME H4 |
| 807517 | ASSEMBLY,BLU FLW CNTRL HOME H4 2020 |
| D517585 | ASSEMBLY,BLUE H4 DRYER CNTRL HOME SAHARA |
| D512108 | ASSEMBLY,CYLINDER LIGHT(120V) |
| D516737W | ASSEMBLY,DOOR-W FCT WINDOW GALV W HANDLE |
| 808196P | ASSEMBLY,DRAIN PUMP(100-127,60HZ)YELLOW(MTWC |
| D513797P | ASSEMBLY,DRYER OUTPUT CONTROL |
| 808149 | ASSEMBLY,FLW OUTPUT CONTROL 2(120VAC) |
| 808150 | ASSEMBLY,FLW OUTPUT CONTROL 2(240VAC) |
| D513781WP | ASSEMBLY,FRONT PANEL W/WINDOW DOOR PKG |
| D510705P | ASSEMBLY,HEATER DUCT |
| D516792 | ASSEMBLY,IDLER LEVER BBS & WHEEL |
| D510204 | ASSEMBLY,LEAD-IN PIPE |
| 807618 | ASSEMBLY,OUTER TUB-COMPLETE |
| 803864 | ASSEMBLY,OUTER TUB-COMPLETE |
| 807479 | ASSEMBLY,OUTER TUB-COMPLETE(BPM) |
| 808197 | ASSEMBLY,PULLEY(FLW)MTWC |
| 804483 | ASSEMBLY,PVC PRESSURE SENSOR TUBE |
| 804112W | ASSEMBLY,SEC WRAPPER HOME 1PH(NON-CHEM) |
| D510523 | ASSEMBLY,THERMISTOR(BLACK) |
| 803879 | ASSEMBLY,TUB FRONT |
| D517609 | ASSEMBLY,VALVE BRKT&PIPE(NAT,60HZ,22.5K BTU) |
| 806466 | ASSEMBLY,WIRE RING & SPRING |
| D510102W | BAFFLE,CYLINDER-WHITE |
| D514245 | BASE,DRYER(2015)(NO KNOCKOUTS) |
| D513738 | BASE,MOISTURE SENSOR |
| D511255P | BELT CYLINDER-RUBBER FACE PKG |
| 804985 | BELT DRIVE-MICRO-V |
| 807623 | BELT INSTALL TOOL |
| 58804A | BOOSTER & HOLDING COIL |
| 801491 | BRACE CABINET-LH |
| 801492 | BRACE CABINET-RH |
| D510100 | BRACKET CYLINDER ROLLER 41887 |
| 807441 | BRACKET,CONTROL(FLW INVERTER) |
| D510145 | BRACKET,CYLINDER GLIDE 41884 |
| D510127 | BRACKET,DOOR STRIKE 41890 |
| 803814 | BRACKET,DRAIN BASE |
| 803828 | BRACKET,DRAIN HOSE |
| D516311 | BRACKET,MOTOR SWITCH |
| D510128 | BRACKET,MOUNTING(GAS VALVE) |
| 807280 | BRACKET,OBL SWITCH |
| 804457 | BRACKET,OBL SWITCH |
| 804018 | BRACKET,STACK SHIELD |
| D510146 | BRACKET,TOP MOUNT |
| 808013 | BULB,PRESSURE |
| D513640W | BULKHEAD,FRONT-WHITE-PUNCH-MS/LIGHT |
| D512106 | CAMERA LENS,CYLINDER LIGHT |
| D510180 | CLAMP MOTOR MOUNT |
| 802281 | CLAMP,DOOR SEAL |
| 807386 | CLAMP,HOSE |
| F200204 | CLAMP,HOSE #20 |
| 685725 | CLAMP,HOSE #36 |
| 803891 | CLAMP,HOSE(24) |
| 803802 | CLAMP,RING(FLW)-FLANGED |
| 802700 | CLIP GLASS MOUNTING |
| 36985 | CLIP HOSE (PRESSURE HOSE) |
| 28835 | CLIP SPEED |
| 687500 | CLIP WIRE 1.00 DIA |
| D504034 | CLIP WIRE-.69 DIA |
| 70030501 | CLIP,EXPANSION 10-16A |
| 800553 | CLIP,PRESSURE HOSE MOUNT |
| 36014 | CLIP,RETAINER(NATURAL) |
| D513958 | CLIP,WINDOW |
| 58804B | COIL SECONDARY |
| 202777 | CORD,LEAD-IN TYPE B U.S./CAN |
| 807476 | COUNTERWEIGHT,FLW |
| D510502LG | COVER FILTER-LINT LIGHT GRAY |
| D518524 | COVER,OUTLET(NITROCARBURIZED) |
| D500820 | COVER,OUTLET-PERFORATED(41422) |
| 803669 | COVER,PREWASH COMPARTMENT |
| 806361 | DEFLECTOR GRAY COBRA (TALL) FOREIGN OBJ |
| 804467 | DEFLECTOR,CLOTHES GUARD |
| 805548 | DEFLECTOR,CLOTHES GUARD (INSERT) |
| D510082WP | DOOR DRYER-COMMERCIAL WINDOW |
| D515961W | DOOR,DRYER-WINDOW |
| 803667 | DRAWER,DISPENSER |
| D510131 | DUCT,COMBUSTION-SGL TSTAT-1/2-INCHES |
| D516196 | DUCT,EXHAUST ONE-PIECE(ROLLED) |
| D513072 | ELBOW,BRASS(3/8NPT X 13/16NS 90 DEG) |
| F8161201 | FILTER ELBI VALVE |
| D503980LG | FILTER,LINT-LIGHT GRAY |
| 802336 | FIXTURE PULLEY BOLT TIGHTENING |
| D501855 | FOOT RUBBER |
| 34318 | FOOT,RUBBER |
|
|
FOREIGN OBJECT DEFLECTOR BLK COBRA |
| 803770 | FRONT,OUTER TUB |
| 802427 | GASKET 1.389ID 2.362ODX.118 |
| D511056 | GASKET,OUTER TUB |
| 802695P | GLASS DOOR-EGG SHAPE PKG |
| D513710 | GLIDE,CYLINDER RULON 488 |
| D503870LG | GRILL,DOOR LINER-LIGHT GRAY |
| D503870W | GRILL,DOOR LINER-WHITE |
| 29175 | GROMMET,PRESSURE BULB (TLW/FLW) |
| 804227WP | HANDLE,DISPENSER WHITE |
| 806031 | HARN.CNTRL FLW.FC |
|
|
HARN.CNTRL POWER FC |
| 807293 | HARN.DOOR LOCK |
| 806028 | HARN.DOOR LOCK |
|
|
HARN.MOTOR |
| 806029 | HARN.MOTOR FLW |
| 807298 | HARN.POWER |
| 804433 | HARN.PRESSURE SNSR.FC |
| D517236 | HARNESS,BROKEN BELT |
| D517477 | HARNESS,GAS 120V/240V UPPER |
| D513991 | HARNESS,SECURITY CABINET |
| D511036 | HINGE,DOOR |
| 802934 | HINGE,DOOR |
| D510136 | HINGE,TOP 41887 |
| 804717 | HOSE,DETERGENT(DISP TO TUB) |
| 803849 | HOSE,DISPENSER INLET |
| 807364 | HOSE,DISPENSER INLET(14.350).540 |
| 803976 | HOSE,DRAIN(NDEP) |
| F200116 | HOSE,INLET-WATER,3/8X60(GHT) |
| 803829 | HOSE,TUB TO PUMP |
| D500338 | HOUSING 10 POSITION |
| D511969WP | HOUSING BLOWER WHITE, PKG |
| 802428 | HOUSING PUMP |
| 803815 | ISOLATOR,DRAIN PUMP |
| 805525 | KIT BEARING HOUSING & HARDWARE COBRA |
| 650P3 | KIT CONV-DRYER-LP TO NG-22500 BTU |
| 649P3 | KIT CONV-DRYER-NG TO LP-22500 BTU |
| 528P3 | KIT DIRECTIONAL EXHAUST |
| D510103WP | KIT DOOR PULL AND WEDGE |
| 521P3 | KIT FLEX VENT-DISPLAY |
| 806313 | KIT FOREIGN OBJECT DEFLECTOR GREY-COBRA |
| RB170003 | KIT GLIDE 1992&NEWER SM DRYER |
| 526P3 | KIT HOLD DOWN |
| 808096 | KIT INNER DOOR BEZEL GRAY |
| 808095 | KIT INNER DOOR BEZEL WHITE |
| 808097 | KIT INNER DOOR BEZEL WHITE GLASS FILLED |
| 800004WP | KIT LH CABINET PANEL |
| 805726P | KIT MOTOR AND ROD ASSEMBLY - COBRA |
| 808067P | KIT MOTOR AND ROD ASSEMBLY - MAMBA 1/4 R |
| 590P3 | KIT MOTOR HUB RING |
| 808092 | KIT OUTER DOOR BEZEL BLACK |
| 808094 | KIT OUTER DOOR BEZEL WHITE |
| 806492 | KIT RH SIDE PANEL & DISP BRKT |
| RB170002 | KIT ROLLER 1992&NEWER SM DRYER |
| RB170001 | KIT SEAL 1992&NEWER SM DRYER |
| 805729 | KIT SHIPPING MATERIALS-COBRA |
| 803777P | KIT SHOCK ASSEMBLY |
| D510032WP | KIT TOP W/HDWE-STACKED DRYER |
| 808043P | KIT TRUNNION SHAFT AND HDW - COBRA |
| 804376P | KIT, ASSEMBLY BASKET INNER COMPLETE |
| D517191P | KIT, ASSEMBLY,DRYER OUTPUT CONTROL(SAHARA) |
| 807429P | KIT, BELT,POLY-V(56.700) |
| 806505W | KIT,ASSEMBLY FRT PNL-COMP REAR CON NOT |

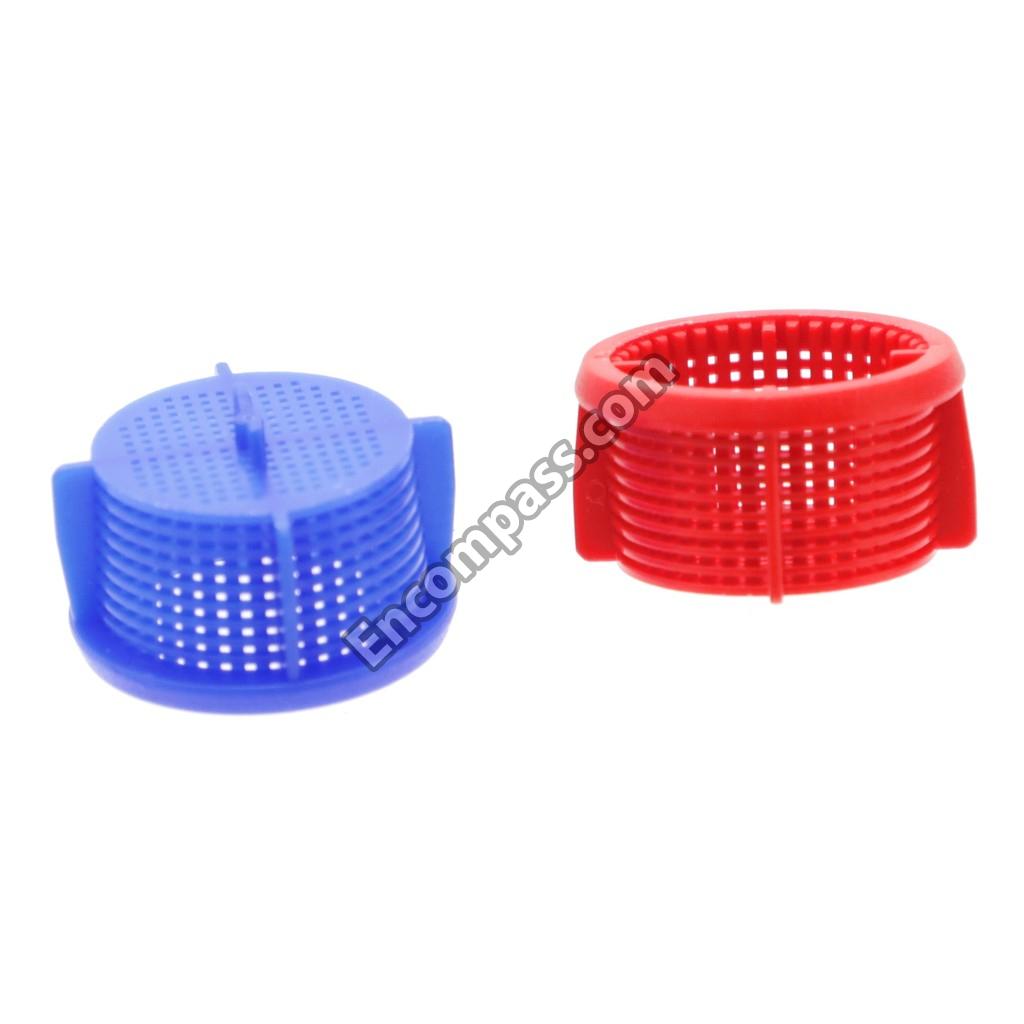

| 205651 | KIT,VALVE INLET PLASTIC FILTERS |
| D511004 | LABEL CLEARANCE |
| 802074R3 | LABEL HE & OVERSUDSING ENGLISH |
| D502791R3 | LABEL INSTRUCTION - VENTING |
| D502791 | LABEL INSTRUCTION - VENTING |
| 685928 | LABEL LH THREAD SCREW REPLACE |
| 802838 | LABEL OVERSUDSING-SPAN REPLACE |
| 59414R5 | LABEL REMOVE DOOR |
| 686901 | LABEL SHIPPING BRACKET REPLACE |
| D505215R2 | LABEL SS FLEX GAS LINE |
| D505215 | LABEL SS FLEX GAS LINE |
| D500049R4 | LABEL WARNING |
| D500049 | LABEL WARNING |
| D505281R3 | LABEL WARNING-DISCONNECT POWER |
| D505281 | LABEL WARNING-DISCONNECT POWER |
| 803260R1 | LABEL WARNING-DISCONNECT POWER |
| 803260 | LABEL WARNING-DISCONNECT POWER |
| D500497R7 | LABEL WARNING-EXHAUST BILINGUL |
| D500497 | LABEL WARNING-EXHAUST BILINGUL |
| D500314 | LABEL WARNING-FRENCH |
| D500281R6 | LABEL WARNING-FT PANEL |
| 807222 | LABEL,NOTICE - PUSH-PULL DOOR TO OPEN |
| D500314R7 | LABEL,WARNING-DUAL LANGUAGE |
| 802367 | LABEL,WARNING-REDUCE FIRE RISK |
| 44324001 | LABEL,WARNING-SHOCK/PINCH(ENG/FR) |
| 60954 | LAMP,DRUM 120V - PER BULB |
| D510135 | LEG,LEVELING |
| 34319 | LEG,LEVELING SCREW 1/2-13 X 1.875 |
| D516310 | LEVER,IDLER |
| 804382 | LIFTER COBRA |
| 56079 | LOCATOR,PANEL |
| 803920 | LOCK,DOOR |
| 802343 | LOCKNUT #10-24 UNF-SS |
| 685846 | LOCKNUT #10-32 UNF-NYLON |
| 03815 | LOCKWASHER #10 EXT SHKPF |
| D518517 | MOUNT,MOTOR |
| 36020 | NUT #10-24 U TYPE |
| 56156 | NUT 3/8-16 SERRATED |
| 52566 | NUT HEX 1/4-20 JAM-UNC-ZNC PLT |
| 03673 | NUT HEX 10-24 MACH-UNC-ZNC PLT |
| 800452 | NUT HEX 3/8-16 STD-UNC-ZNCPLT |
| 23951 | NUT HEX KEPS 10-24 STL |
| F430218 | NUT HEX LOCK 3/8-16 POLY INS |
| 21899 | NUT,HEX 1/2-13 SPECIAL |
| 44071201 | NUT,HEX FLANGE 10-32 UNF |
| 804418 | NUT,HEX FLANGE(NYLON INSERT) |
| 802429P | O-RING 2.047ID .118THICKNESS, PKG |
| D503778 | ORIFICE NG #43 |
| 58719 | ORIFICE, NAT #44 |
| D503786 | ORIFICE,LP #56 |
| D503779 | ORIFICE,NG #45 |
| D503780 | ORIFICE,NG #46 |
| D503781 | ORIFICE,NG #47 |
| 58755 | ORIFICE,SCREW LP #55(1.3MM) |
| 804491 | OVERLAY,CONTROL FLW/DRYER STACK HEC(H4) |
| 56128 | PAD BUMPER |
| 36226 | PAD BUMPER .25 |
| D510189 | PAD FELT |
| 804875 | PAD,FOAM |
| 122P4P | PAINT PORC TOUCH-UP-WHITE PKG |
| D510001WP | PANEL CABINET SIDE-LH PKG |
| D510002WP | PANEL CABINET SIDE-RH PKG |
| D514632P | PANEL CABINET-REAR PKG |
| D510066WP | PANEL FRONT PKG |
| 803960WP | PANEL,CONTROL HOME STACK PKG |
| 802277WP | PANEL,FRONT(RH) PACKAGED |
| 803998 | PANEL,REAR ACCESS |
| 807646 | PANEL,REAR ACCESS(MAMBA) |
| 806716 | PANEL,REAR(FIXED) |
| 803790 | PANEL,REAR(FIXED) |
| 803789 | PANEL,REAR(REMOVABLE) |
| D517566 | PANEL,REAR(SAHARA) |
| 802206 | PLATE HINGE |
|
|
PLATE,ACCESS COVER-3 LOUVER |
| 803843 | PLATE,DISPENSER |
| 806354 | PLATE,DOOR GLASS MOUNTING |
| 803851 | PLATE,SHIPPING |
| M412154 | PLUG HOLE-PLASTIC 1.125 |
| D510186 | PLUG,HINGE HOLE-NATURAL |
|
|
PULLEY,MOTOR-60HZ |
| D512082P | RACK DRYING PKG |
| 38384 | RELIEF STRAIN |
| 32219 | RELIEF,STRAIN-PLASTIC DRAIN HOSE |
| 23748 | RING RETAINING-EXT .500 |
| 685847 | RIVET POP-DOME HD-.156 STL |
| 807739 | ROD,MOTOR 1/4 |
| 803861 | ROD,MOTOR 5/16 |
| D510708P | ROLLER CYLINDER W/INSTR |
| 24122 | SCREEN MIXING VALVE |
| 801001 | SCREW #10X5/8 T20 TORX PLASTIT |
| D500227 | SCREW #8AB-18X1/2 PHIL LOWPROF |
| 802431 | SCREW .157X.709SELFT |
| 36048 | SCREW 1/4-20 IND HEX HD SPECIAL |
| D500824 | SCREW 1/4-20 UNC HEX HD SHOULD |
| 31645 | SCREW 10-16B X 7/16 SPECIAL |
| D503661 | SCREW 10-16X.44UNSLT IND HX WA |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| 802596 | SCREW 10X24X3/4 PHILLIPS HD |
| D505295 | SCREW 8AB-18X3/4 PHIL-L/PTRUSS |
| 801993 | SCREW HEX HD MACH 10-32X.875 |
| F430116 | SCREW HH MDS ZC GR5 3/8-16X1 |
| 02916 | SCREW HX CAP 1/4-20 X.62 FT |
| M400043 | SCREW HX CAP 3/8-16X1.00-INCH |
| 800461 | SCREW HX CAP 3/8-16X1.25 IN |
| 800462 | SCREW HX CAP 3/8-16X4.00 IN |
| M400057 | SCREW HX CAP 5/16-18X.75 GR2 |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| D502535 | SCREW TAP SLHXWAHD8AB-18X.62 |
| 804667 | SCREW,10-16 SP HX WAS HD |
| D515967 | SCREW,10-24X.488 MACHINE PHIL-SPEC FLHD |
| 61199 | SCREW,10-32 X.375 HEX WA HD |
| 685831 | SCREW,3/8-24 X 1 HEX LH THD |
| 20530 | SCREW,HEX WA HD 10-24 3/8 TYPE T CS CLR |
| 51782 | SCREW,HEX WA HD 6B-20X.312 |
| 801045 | SCREW,HEX WA HD SMS10-24X.62SS |
| D514428 | SCREW,SHOULDER 10-16 SP UNSL TD IND HX |
| 31260 | SCREW,TAP #8 -10 X 3/8 IND HX WA HD |
| D500226 | SCREW,TAP #8-16X5/8 FLAT CSNK #6 PHL HD |
| D515597 | SCREW,TAP #8B HI-LO X .60 PHIL-SPEC FLHD |
| D505870 | SCREW,TAP #8B HI-LO X 7/1 PHIL-SPEC FLHD |
| 70240301 | SCREW,TAP HXWAHD 10AB-16X.500 |
| D501524 | SCREW,TAP HXWAHD 10T-32X.312 |
| 23222 | SCREW,TAP HXWAHD 8B-18X.250 |
| 56124 | SCREW,TAP HXWAHD 8T-32X.375 |
| 33562 | SCREW,TAP SLSERHXWAHD10B-16X.438 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
| 804399 | SCREW,TAPPING HEX FLANGE HD 10-16 |
| F8206901 | SCREW,TAPPING HEX WA HD 10-16X.625 SP |
| 62588 | SCREW,TAPPING HX WA HD PL(10-12X1 BT) |
| 800548 | SCREW,TORX 8-16 PLASTITE 48-2 |
| 804699 | SCREW,TRUSS HEAD TORX RECESS |
|
|
SCREW,TRUSS HEAD TORX(10-24 UNCX0.375) |
|
|
SCREW,WAFER HEAD TORX RECESS(.46) |
| D510238P | SEAL BLOWER HSG PACKAGED |
| D510147P | SEAL LINER DOOR PACKAGED |
| 803801 | SEAL,OUTER TUB FRONT |
| 27615P | SEALANT 3M-800 2OZ TUBE |
| D513737 | SENSOR,BAR |
| 203843 | SENSOR,PRESSURE(0-400MM H20)GREEN |
| D510213 | SENSOR,RADIANT FLAME |
| 56461P | SHAFT |
| 804363 | SHIELD,CONTROL |
| 804878 | SHIELD,DRIP-MOTOR CONTROL |
| D510101 | SHROUD,HEAT DUCT 41927 |
| 33615 | SLEEVE,DRAIN HOSE |
| D510185 | SPRING IDLER |
| 38732 | STAND,HOSE |
| D510181 | STRIKE DOOR-METAL |
| D512973 | SWITCH,PUSH BUTTON |
| 803415 | SWITCH,PUSH BUTTON SPST NC W/AU |
| D516391 | SWITCH,ROCKER,90/10 SPST NC,11A 250V |
| 807384 | SWITCH,ROCKER,SILVER,MOM,SPST NC,5A 125V |
| 00188 | TERMINAL FEMALE-MOLEX-QC-TIMER |
| 00256 | TERMINL FEMALE 1/4 |
| D510702 | THERMOSTAT,LIMIT |
| 33489 | TIE BEADED 14 |
| 55881 | TIE CABLE 4 |
| 38663 | TIE WIRE-PUSH MOUNT |
| 128P4 | TOOL EXTRACTOR-HT-2038 |
| 283P4 | TOOL TERMINAL EXTRACTOR |
| 392P4 | TOOL-WRENCH |
| D503981W | TRIM WINDOW |
| D515956W | TRIM,WINDOW WHITE(COMPLETE) |
| 807837P | VALVE,MIXING 100-127V GHT(YELLOW/TAN) |
| 808270 | VALVE,MIXING 120V(BLACK/BLUE)DUAL FILTER |
| 802254 | WASHER FLOW RESTRICTOR REDUCER |
| M403958 | WASHER LOCK EXT TOOTH A 3/8 |
| 02834 | WASHER LOCK EXT TOOTH A 5/16 |
| D504082 | WASHER WAVE |
| 26509 | WASHER,FLAT (.271 ID X 1.105 OD X .095) |
| 800457 | WASHER,FLAT (.438 X 1.000 X .083) |
| M400081 | WASHER,FLAT (3/8 STD TYPE A WIDE) |
| 804458 | WASHER,FLAT (3/8) |
| M400080 | WASHER,FLAT (5/16 STD TYPE A WIDE) |
| 20290 | WASHER,FLAT NON-FERROUS EPDM .593X1.031 |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| 807679 | WASHER,FLAT(.406 ID X 1.500 OD X.180 ) |
| M400014 | WASHER,LOCK REG HELICAL SPRING 3/8 |
| 803615 | WASHER,STRAINER,3/4-INCHES PIPE |
| D510129W | WEDGE,DOOR-HANDLE(WHITE) |
| 803698 | WELDMENT,DISPENSER |
| D503982P | WINDOW DOOR, PKG. |
| D515681 | WINDOW,DOOR DRYER GLASS |
| 45380 | WIRE 12GA-ORG |
| 45001 | WIRE 18GA-BLK |
