Manufacturer
Speed Queen
Model Number
AWN432SP111TW01
Description
Top Load Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 36878 | ADAPTER,STANDPIPE |
| 27604P | ANTI-SEIZE COMPOUND |
| 39837 | ASSEMBLY BALANCE RING-WHITE HOME |
| 803119P | ASSEMBLY CONTROL KNOB. PACKAGED |
| 39253 | ASSEMBLY SHORT WELDMENT & BEARING |
| 803116 | ASSEMBLY TIMER SKIRT |
| 202133 | ASSEMBLY TLW TIMER KNOB |
| 39169 | ASSEMBLY TUB CVR GASKET & CHANNEL |
| 38661P | ASSEMBLY WIRE HARNESS PACKAGED |
| 201851P | ASSEMBLY WIRING HARN-HOOD 2SP HOME |
| 205612 | ASSEMBLY,COUNTERWEIGHT |
| 205225 | ASSEMBLY,DISPENSER-FABRIC SOFTENER(MTWC) |
| 34443 | ASSEMBLY,LEG & STABILIZER BAR |
| 204979 | ASSEMBLY,LID SWITCH-SINGLE |
|
|
ASSEMBLY,MOTR MNT & ISOLATOR-L |
| 205241 | ASSEMBLY,PRESSURE BULB |
| 37992WP | ASSEMBLY,TOP PANEL(HOME, W/BLEACH)WHITE |
| 203603P | ASY OUTER TUB TALL-LIP SEAL PK |
| 39788 | ASY# BASE-COMPLETE-SERVICE |
| 34500 | BACKFLOW PREVENTER,DUCKBILL |
| 28944RP | BEARING UPPER OR LOWER PKG |
| 38174 | BELT,AGITATE & SPIN 60HZ YELLOW LABEL |
| 35097 | BRACE FRONT PANEL 41792 |
| 200553 | BRACE,SHIPPING-HOME |
| 36037 | BRACKET SLL-LEFT 41781 |
| 36036 | BRACKET SLL-RIGHT 41781 |
| 39407 | BRACKET,MIXING VALVE 41772 |
| 200941 | BRACKET,MOTOR MOUNT |
| 21685 | BUMPER,LID |
| 33446 | BUSHING HINGE-LID |
| 37377 | CAPACITOR,MOTOR START 110V 50/60HZ |
| 37535 | CLAMP,CAPACITOR |
| F200204 | CLAMP,HOSE #20 |
| 36801 | CLAMP,HOSE #7 |
| 39282 | CLAMP,HOSE(6.5) |
| 36519 | CLIP HINGE STOP |
| 38271 | CLIP HOLD-DOWN FRONT PANEL |
| 36985 | CLIP HOSE (PRESSURE HOSE) |
| 210202 | CLIP MOUNT-PUMP |
| D504034 | CLIP WIRE-.69 DIA |
| 21036 | CLIP,CABLE |
| 205340 | CLIP,HOOD HOLD DOWN |
| 35865 | CLIP,PANEL |
| 36014 | CLIP,RETAINER(NATURAL) |
| 35358 | CLIP,SPRING-HOLD DOWN |
| 70366201 | CLIP,WIRE,PNL MT 3/4-INCHES |
| 00161 | CLIP-GROUNDING BLADE |
| 21091 | CONNECTOR |
| 34458 | CORD,LEAD-IN TYPE B US/CAN |
| 39905W | COVER,TOP PANEL CONTROL(WHITE) |
| 202996 | DISPENSER,BLEACH |
| F8161201 | FILTER ELBI VALVE |
| 39371 | FILTER,LINT |
| 34318 | FOOT,RUBBER |
| 38359 | GASKET,OUTER TUB |
| 204253 | GREASE, SILICONE DOW 7 2OZ |
| 29175 | GROMMET,PRESSURE BULB (TLW/FLW) |
| 38008 | HELIX,PLASTIC |
| 36513 | HINGE LID-LEFT STOP |
| 36437 | HINGE LID-RIGHT |
| 204155 | HINGE,HOLD DOWN LUG |
| 254P4P | HOOK WASHER AGITATOR |
| 38155 | HOSE MIXING VALVE TO TUB COVER |
| 38351 | HOSE TUB TO PUMP-DDP |
| F8597201 | HOSE,CAP 3/4 FHT |
| 39893 | HOSE,DRAIN(DDP BLACK) |
| 20618 | HOSE,INLET-WATER,3/8X120 |
| F200116 | HOSE,INLET-WATER,3/8X60(GHT) |
| 20617 | HOSE,INLET-WATER,3/8X96 |
| 29728 | INSERT SPLINE |
| 566P3 | KIT ADJUSTABLE LEG EXTENSION |
| RB150003 | KIT BELT&PUMP MODEL M/N 8/POST |
| 38505P | KIT BRAKE & WASHERS |
| 735P3 | KIT BRAKE PAD |
| 451P3 | KIT DRAIN EXTENSION |
| 39508P | KIT DRIVE BELL-SEAL |
| 766P3A | KIT HUB & LIP SEAL |
| 38034P | KIT MOTOR 120V/60-2SP CAP DD |
| 38612WP | KIT SERVICE CABINET |
| 562P3 | KIT SIPHON BREAK |
| 725P3 | KIT TOOL-TOP LOAD |
| 719P3 | KIT WASHTUB SS TALL |
| 204486 | KIT, ALUMINUM PULLEY 60HZ |
| 205217P | KIT, ASSEMBLY PUMP-COMP-(VIB-WELDED)MTWC |
|
|

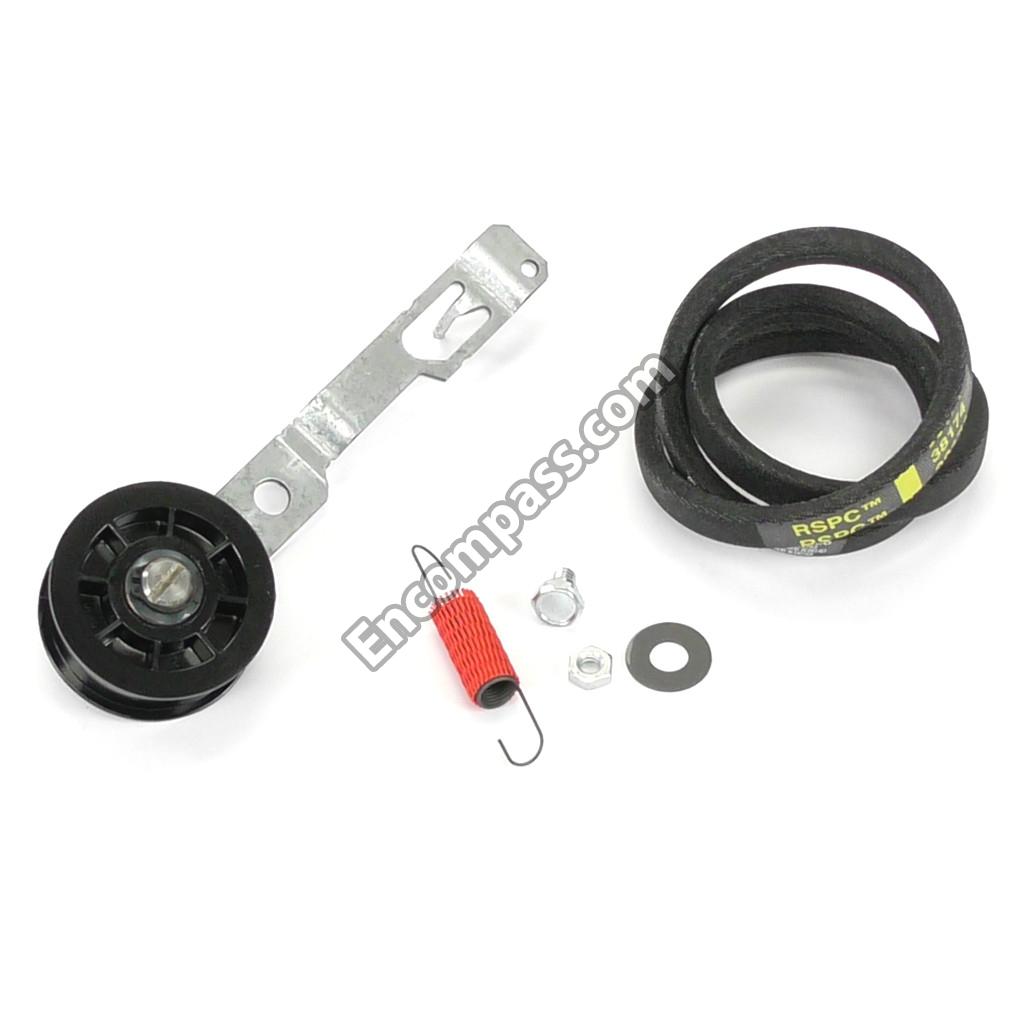

KIT, IDLER LEVER AND BELT |
| 204449 | KIT, MOTOR MNTS & ISOLATORS U/L |
| 204870 | KIT, PANEL FRONT W/ PADS & CARTON WHT |
| 203768 | KIT, TRANSMISSION/ LIP SEAL KIT |
| D500049R4 | LABEL WARNING |
| D500049 | LABEL WARNING |
| D505281R3 | LABEL WARNING-DISCONNECT POWER |
| D505281 | LABEL WARNING-DISCONNECT POWER |
| 803260R1 | LABEL WARNING-DISCONNECT POWER |
| 803260 | LABEL WARNING-DISCONNECT POWER |
| 34319 | LEG,LEVELING SCREW 1/2-13 X 1.875 |
| 38011 | LEVER,IDLER |
| 37395WP | LID,TLW W/LABEL PKG |
| 56079 | LOCATOR,PANEL |
| 28102 | LOCATOR,PANEL |
| 29220 | LOCKNUT |
| 685846 | LOCKNUT #10-32 UNF-NYLON |
| 35632P | MOTOR SWITCH |
| 52566 | NUT HEX 1/4-20 JAM-UNC-ZNC PLT |
| 28803 | NUT HEX 3/8-16 JAM-UNC-ZNCPLT |
| 21899 | NUT,HEX 1/2-13 SPECIAL |
| M400981 | NUT,SPEED(TWIN TYPE)6-32 UNC |
| 56128 | PAD BUMPER |
| 36226 | PAD BUMPER .25 |
| 204552 | PAD,PANEL FRONT |
| 122P4P | PAINT PORC TOUCH-UP-WHITE PKG |
| D504009WP | PANEL END-LH-WHITE PKG |
| D504008WP | PANEL END-RH WHITE PKG |
| 202075W | PANEL GRAPHIC-SQ |
| 37782 | PANEL,BACK-HOOD |
| 38565 | PANEL,SUPPORT CONTROL(MECH)(XR 3RD POS) |
| 27926 | PLATE LEG .063 THICK 40815 |
| 34677 | PLUG 10 CIRCUIT |
| 23033 | PLUG 9 CIRCUIT |
| 36511 | PLUG BELL |
| 34675 | PLUG MIXING VALVE-NATURAL |
| 34676 | PLUG MIXING VALVE-RED |
| 38149 | PLUG,SHIPPING |
| 294P4 | PULLER WASHER AGITATOR DRIVE BELL |
| 38225P | PULLEY (WHEEL) IDLER |
| 26163 | RECEPTACLE 9 CIRCUIT |
| 32746 | RECEPTACLE,RIGHT HAND(24 POSITION) |
| 38384 | RELIEF STRAIN |
| 32219 | RELIEF,STRAIN-PLASTIC DRAIN HOSE |
| 37937 | RING FRICTION |
| 23748 | RING RETAINING-EXT .500 |
| 24122 | SCREEN MIXING VALVE |
| 35148 | SCREW 1/4-14 X 3/8 HX HD |
| 39566 | SCREW 1/4-15 X3/4 HEX HD HI-LO |
| 27220 | SCREW 1/4-20 X 5/8 |
| 39739 | SCREW 1/4-20 X9/16 HEX FLNG HD |
| 31645 | SCREW 10-16B X 7/16 SPECIAL |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| 27196 | SCREW 12BX1/2 #10 HX WSHR SPEC |
| 39397 | SCREW 8B-18X .75 IND HEXHD TAP |
| M402574 | SCREW PAN HD CR REC 6-32X.875 |
|
|
SCREW SHOULDER 1/4-20 HXFLGH |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| 27229 | SCREW,1/4-20 SHOULDER |
| 34337 | SCREW,FLAT HD/SEMS #6-32 X .340 |
| 35369 | SCREW,HEX FLANGE HD 5/16-18X.430 |
| 27202 | SCREW,HEX FLANGE HD 5/16-18X.875 |
| 52909 | SCREW,HEX WA HD 10-16 1/2 TYPE B CS CLR |
| D501524 | SCREW,TAP HXWAHD 10T-32X.312 |
| 23962 | SCREW,TAP HXWAHD 8B-18X.375 |
| 33562 | SCREW,TAP SLSERHXWAHD10B-16X.438 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
|
|
SCREW,TAPPING #12BT X 1/2 #10 HEX WA HD |
| 36425 | SEAL,BELL & TRANSMISSION TUBE |
| 200996P | SEALANT 3M-560 10 OZ TUBE PKG |
| 210186 | SHAFT(TLW & DRYER) |
| 34754 | SHIELD,MOTOR(NATURAL) |
| 33615 | SLEEVE,DRAIN HOSE |
|
|

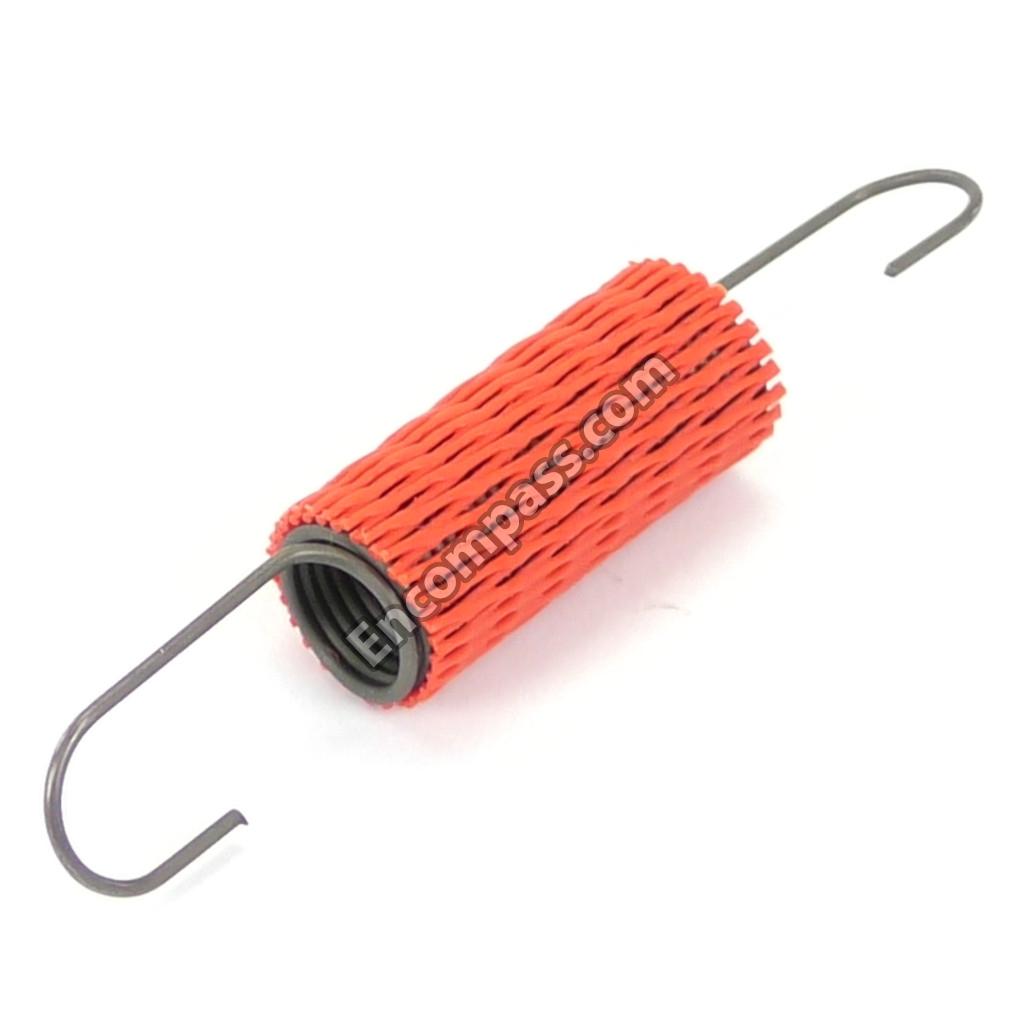

SPRING IDLER LEVER W/SILENCER |
| 37575 | SPRING,LEG TALL TUB(BLUE) |
| 205365 | SPRING,TLW IDLER(50HZ BLUE) |
| 38732 | STAND,HOSE |
| 201609P | SWITCH PRESSURE-VAR MINI PKG |
| 38424W | SWITCH,ROCKER SPST MAINT.WHT |
| 33445 | SWITCH,SNAP,85/15,MOM,SPST NO,15A 250V |
| 35115 | SWITCH,TEMP SELECTOR(3 POS) |
| 00359 | TERM.1/4 FEMALE INSL 18-22AWG NATURAL |
| 00223 | TERMINAL FEMALE-1/4 SPADE |
| 00188 | TERMINAL FEMALE-MOLEX-QC-TIMER |
| 00117 | TERMINAL PIN-FEMALE |
| 00116 | TERMINAL PIN-MALE |
| 00110 | TERMINAL RING-10 STUD |
| 00121 | TERMINAL SPADE-1/4 FEMALE |
| 33489 | TIE BEADED 14 |
| 55881 | TIE CABLE 4 |
|
|

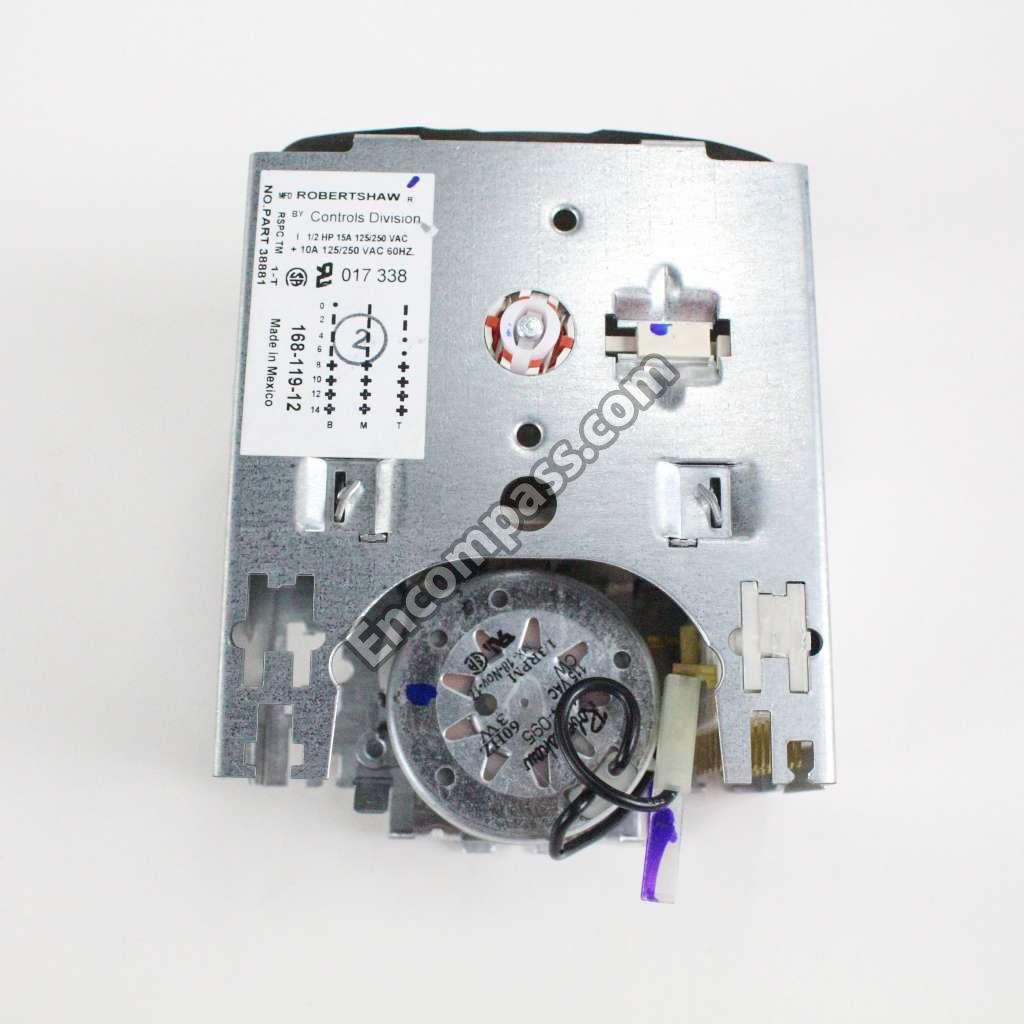

TIMER 115V 60HZ 5 CYCLE PKG |
| 293P4 | TOOL DRIVE BELL SEAL |
| 321P4 | TOOL SPRING HOOK |
| 283P4 | TOOL TERMINAL EXTRACTOR |
| 306P4 | TOOL-HEX WRENCH |
| 202700 | TUBING (PVC) 31.00 |
| 201402P | VALVE MIXING E-1 PKG |
| 36507 | WASHER AGITATOR,FLEX VANE |
| 802254 | WASHER FLOW RESTRICTOR REDUCER |
| 28094 | WASHER RUBBER-GASKET |
| D504082 | WASHER WAVE |
| 26509 | WASHER,FLAT (.271 ID X 1.105 OD X .095) |
| 27015 | WASHER,FLAT (.630 X 2.000 X .067) |
| 39249 | WASHER,FLAT NON-FERROUS ALUM .280X.875 |
| 37772 | WASHER,FLAT NON-FERROUS ALUM .340X.750 |
| 20290 | WASHER,FLAT NON-FERROUS EPDM .593X1.031 |
| 81392 | WASHER,FLAT NYLATRON G5 .390X.875 |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| 35535 | WASHER,FLAT NYLATRON GS .635X2.000 |
| 803615 | WASHER,STRAINER,3/4-INCHES PIPE |
| 45380 | WIRE 12GA-ORG |
| 45001 | WIRE 18GA-BLK |
