Manufacturer
Speed Queen
Model Number
AWN632SP116TB02
Description
Top Load Washer
Interactive Exploded View
Parts List

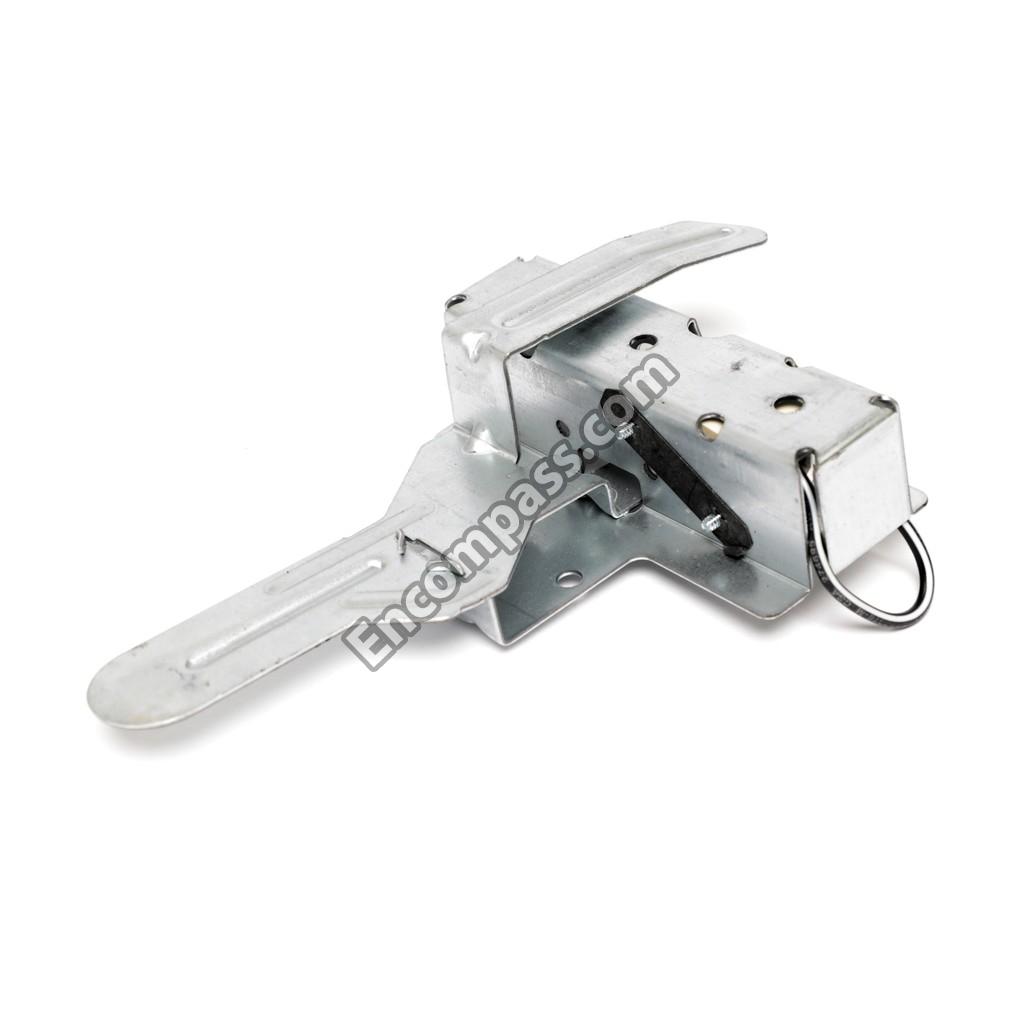

| Part Number | Description |
|---|---|
| 204342 | 10-32X.750 6 LOBE HX/W/HD TRI-LOBE T/R Z |
| 204503 | 8-32X.690 6 LOBE HX/W/HD TRI-LOBE T/R Z |
| 36878 | ADAPTER,STANDPIPE |
| 27604P | ANTI-SEIZE COMPOUND |
| 39837 | ASSEMBLY BALANCE RING-WHITE HOME |
| 39253 | ASSEMBLY SHORT WELDMENT & BEARING |
| 205612 | ASSEMBLY,COUNTERWEIGHT |
| 205225 | ASSEMBLY,DISPENSER-FABRIC SOFTENER(MTWC) |
| 806597 | ASSEMBLY,KNOB(CHROME) |
| 34443 | ASSEMBLY,LEG & STABILIZER BAR |
| 205578 | ASSEMBLY,LID SWITCH-DUAL |
| 204488 | ASSEMBLY,LIGHT GUIDE |
|
|
ASSEMBLY,MOTR MNT & ISOLATOR-L |
| 204063 | ASSEMBLY,MOTR MNT & ISOLATOR-U |
| 205241 | ASSEMBLY,PRESSURE BULB |
| 202965 | ASSEMBLY,SHIELD(TLW OUTPUT) |
| 202508P | ASSEMBLY,TLW OUTPUT BOARD CONTROL |
| 204783 | ASSEMBLY,TLW OUTPUT CONTROL BOARD |
| 37992BP | ASSEMBLY,TOP PANEL(HOME, W/BLEACH)BLACK |
| 37992WP | ASSEMBLY,TOP PANEL(HOME, W/BLEACH)WHITE |
| 202888 | ASSEMBLY,TUB COVER(HOME) |
| 203603P | ASY OUTER TUB TALL-LIP SEAL PK |
| 39788 | ASY# BASE-COMPLETE-SERVICE |
| 28944RP | BEARING UPPER OR LOWER PKG |
| 38174 | BELT,AGITATE & SPIN 60HZ YELLOW LABEL |
| 35097 | BRACE FRONT PANEL 41792 |
| 204678 | BRACE,SHIPPING-HOME |
| 36037 | BRACKET SLL-LEFT 41781 |
| 36036 | BRACKET SLL-RIGHT 41781 |
| 203558 | BRACKET,MIXING VALVE |
| 200941 | BRACKET,MOTOR MOUNT |
| 21685 | BUMPER,LID |
| 33446 | BUSHING HINGE-LID |
| 203962 | CAP,END(LEFT)BLACK |
| 203961 | CAP,END(RIGHT)BLACK |
| 37377 | CAPACITOR,MOTOR START 110V 50/60HZ |
| 37535 | CLAMP,CAPACITOR |
| F200204 | CLAMP,HOSE #20 |
| 36801 | CLAMP,HOSE #7 |
| 39282 | CLAMP,HOSE(6.5) |
| 36519 | CLIP HINGE STOP |
| 36985 | CLIP HOSE (PRESSURE HOSE) |
| 210202 | CLIP MOUNT-PUMP |
| D504034 | CLIP WIRE-.69 DIA |
| 21036 | CLIP,CABLE |
| 205340 | CLIP,HOOD HOLD DOWN |
| 35865 | CLIP,PANEL |
| 36014 | CLIP,RETAINER(NATURAL) |
| 00161 | CLIP-GROUNDING BLADE |
| 202777 | CORD,LEAD-IN TYPE B U.S./CAN |
| 202894 | COVER,TLW INLET |
| 202900 | DEFLECTOR,TLW INLET(HOME) |
| 202996 | DISPENSER,BLEACH |
| F8161201 | FILTER ELBI VALVE |
| 39371 | FILTER,LINT |
| 204365 | FOAM,CAPACITIVE TOUCH |
| 34318 | FOOT,RUBBER |
| 38359 | GASKET,OUTER TUB |
| 202964 | GASKET,OUTPUT BOARD COVER(TLW) |
| 39122 | GASKET,WASHTUB |
| 204253 | GREASE, SILICONE DOW 7 2OZ |
| 29175 | GROMMET,PRESSURE BULB (TLW/FLW) |
| 204714 | HARN.CNTRL COMM'L STD |
|
|
HARN.PRESSURE SNSR FPH TLW |
| 38008 | HELIX,PLASTIC |
| 36513 | HINGE LID-LEFT STOP |
| 36437 | HINGE LID-RIGHT |
| 204155 | HINGE,HOLD DOWN LUG |
| 254P4P | HOOK WASHER AGITATOR |
| 38351 | HOSE TUB TO PUMP-DDP |
| 39893 | HOSE,DRAIN(DDP BLACK) |
| 203720 | HOSE,INLET WATER-IEC(3/8 X 48)GHT/GHT |
| 203719 | HOSE,INLET WATER-IEC(3/8 X 48)GHT/GHT |
| 205703 | HOSE,VALVE TO INLET |
| 29728 | INSERT SPLINE |
| 566P3 | KIT ADJUSTABLE LEG EXTENSION |
| RB150003 | KIT BELT&PUMP MODEL M/N 8/POST |
| 38505P | KIT BRAKE & WASHERS |
| 735P3 | KIT BRAKE PAD |
| 451P3 | KIT DRAIN EXTENSION |
| 39508P | KIT DRIVE BELL-SEAL |
| 766P3A | KIT HUB & LIP SEAL |
| 38034P | KIT MOTOR 120V/60-2SP CAP DD |
| 38612WP | KIT SERVICE CABINET |
| 38612BP | KIT SERVICE CABINET |
| 562P3 | KIT SIPHON BREAK |
| 725P3 | KIT TOOL-TOP LOAD |
| 719P3 | KIT WASHTUB SS TALL |
| 204486 | KIT, ALUMINUM PULLEY 60HZ |
| 205214P | KIT, ASSEMBLY CTRL,FULL PNL HYBTRAN TLW 6POS |
| 205217P | KIT, ASSEMBLY PUMP-COMP-(VIB-WELDED)MTWC |
|
|
KIT, IDLER LEVER AND BELT |
| 205620 | KIT, PANEL FRONT W/ PADS & CARTON BLK |
| 204383 | KIT, SERVICE TUB TALL |
| 204568 | KIT, SERVICE TUB TALL & TRANSMISSION |
| 203768 | KIT, TRANSMISSION/ LIP SEAL KIT |
| 205765 | KIT,TLW DUAL FILTER VALVE - 120V |
| D500049R4 | LABEL WARNING |
| D500049 | LABEL WARNING |
| D500316 | LABEL WARNING -DUAL LANGUAGE |
| D505281R3 | LABEL WARNING-DISCONNECT POWER |
| D505281 | LABEL WARNING-DISCONNECT POWER |
| 803260R1 | LABEL WARNING-DISCONNECT POWER |
| 803260 | LABEL WARNING-DISCONNECT POWER |
| D500314 | LABEL WARNING-FRENCH |
| 205608 | LABEL,LID WARNING-TLW |
| D500316R6 | LABEL,WARNING-DUAL LANGUAGE |
| D500314R7 | LABEL,WARNING-DUAL LANGUAGE |
| 34319 | LEG,LEVELING SCREW 1/2-13 X 1.875 |
| 38011 | LEVER,IDLER |
| 37395WP | LID,TLW W/LABEL PKG |
| 37395BP | LID,TLW W/LABEL PKG |
| 56079 | LOCATOR,PANEL |
| 28102 | LOCATOR,PANEL |
| 29220 | LOCKNUT |
| 52566 | NUT HEX 1/4-20 JAM-UNC-ZNC PLT |
| 35423 | NUT HEX 10-32SMACH-UNF-ZNC SPL |
| 28803 | NUT HEX 3/8-16 JAM-UNC-ZNCPLT |
| 21899 | NUT,HEX 1/2-13 SPECIAL |
| M400979 | NUT,SPEED(TWIN TYPE)4-40 UNC |
| 56128 | PAD BUMPER |
| 36226 | PAD BUMPER .25 |
| 203484 | PAD,FOAM PE(4.00 X 4.00 X .437) |
|
|
PAD,FOAM(4.00 X 4.00 X .437) |
| 204552 | PAD,PANEL FRONT |
| 205627P | PAINT LIQUID TOUCH-UP BLK (TEXTURE) .6OZ |
| 122P4P | PAINT PORC TOUCH-UP-WHITE PKG |
| 203733 | PANEL,BACK-HOOD(TLW) |
| 205695 | PANEL,GRAPHIC CNTRL TLW TC5 SQ CLASS-BLK |
| 203840 | PANEL,SUPPORT CONTROL KNOB(TLW) |
| 27926 | PLATE LEG .063 THICK 40815 |
| 34677 | PLUG 10 CIRCUIT |
| 23033 | PLUG 9 CIRCUIT |
| 36511 | PLUG BELL |
| 34675 | PLUG MIXING VALVE-NATURAL |
| 34676 | PLUG MIXING VALVE-RED |
| 38149 | PLUG,SHIPPING |
| 294P4 | PULLER WASHER AGITATOR DRIVE BELL |
| 38225P | PULLEY (WHEEL) IDLER |
| 26163 | RECEPTACLE 9 CIRCUIT |
| 32746 | RECEPTACLE,RIGHT HAND(24 POSITION) |
| 38384 | RELIEF STRAIN |
| 32219 | RELIEF,STRAIN-PLASTIC DRAIN HOSE |
| 37937 | RING FRICTION |
| 23748 | RING RETAINING-EXT .500 |
| 24122 | SCREEN MIXING VALVE |
| 35148 | SCREW 1/4-14 X 3/8 HX HD |
| 39566 | SCREW 1/4-15 X3/4 HEX HD HI-LO |
| 27220 | SCREW 1/4-20 X 5/8 |
| 39739 | SCREW 1/4-20 X9/16 HEX FLNG HD |
| 31645 | SCREW 10-16B X 7/16 SPECIAL |
| D503688 | SCREW 10B-16 X .34 IND SER CUP |
| 27196 | SCREW 12BX1/2 #10 HX WSHR SPEC |
| 39397 | SCREW 8B-18X .75 IND HEXHD TAP |
|
|
SCREW SHOULDER 1/4-20 HXFLGH |
| 39733 | SCREW TAP 10B X5/8 #8PN 20TORX |
| 27229 | SCREW,1/4-20 SHOULDER |
| 804667 | SCREW,10-16 SP HX WAS HD |
| 34337 | SCREW,FLAT HD/SEMS #6-32 X .340 |
| 35369 | SCREW,HEX FLANGE HD 5/16-18X.430 |
| 27202 | SCREW,HEX FLANGE HD 5/16-18X.875 |
| 52909 | SCREW,HEX WA HD 10-16 1/2 TYPE B CS CLR |
| 204656 | SCREW,PAN HD CROSS REC 4-40 UNC X 1.000 |
| 203799 | SCREW,TAP #10-14X.500 PLASTITE HEXHDTORX |
| D501524 | SCREW,TAP HXWAHD 10T-32X.312 |
| 23962 | SCREW,TAP HXWAHD 8B-18X.375 |
| 33562 | SCREW,TAP SLSERHXWAHD10B-16X.438 |
| D501086 | SCREW,TAP SLSERHXWAHD8B-18X.375 |
|
|
SCREW,TAPPING #12BT X 1/2 #10 HEX WA HD |
| 807075 | SCREW,TAPPING #8-18X.375 TORX HEX WA HD |
| 800548 | SCREW,TORX 8-16 PLASTITE 48-2 |
| 36425 | SEAL,BELL & TRANSMISSION TUBE |
| 200996P | SEALANT 3M-560 10 OZ TUBE PKG |
| 203843 | SENSOR,PRESSURE(0-400MM H20)GREEN |
| 210186 | SHAFT(TLW & DRYER) |
| 202939 | SHIELD,CONTROL(TLW OUTPUT) |
| 34754 | SHIELD,MOTOR(NATURAL) |
| 33615 | SLEEVE,DRAIN HOSE |
|
|
SPRING IDLER LEVER W/SILENCER |
| 37575 | SPRING,LEG TALL TUB(BLUE) |
| 38732 | STAND,HOSE |
| 204266 | SWITCH,CAPACITIVE TOUCH |
| 00569SG | TERM,CLIP GROUNDING |
| 00577 | TERM,TAB .250 TAB IN |
| 00359 | TERM.1/4 FEMALE INSL 18-22AWG NATURAL |
| 00574SG | TERM.FEMALE MICRO-FIT 20-24AWG |
| 00223 | TERMINAL FEMALE-1/4 SPADE |
| 00188 | TERMINAL FEMALE-MOLEX-QC-TIMER |
| 00116 | TERMINAL PIN-MALE |
| 00257 | TERMINAL PRESSURE SWITCH |
| 00319 | TERMINAL RING 14-18GA |
| 00121 | TERMINAL SPADE-1/4 FEMALE |
| 33489 | TIE BEADED 14 |
| 55881 | TIE CABLE 4 |
| 70296701 | TIE WIRE-PURSE LOCK |
| 293P4 | TOOL DRIVE BELL SEAL |
| 321P4 | TOOL SPRING HOOK |
| 283P4 | TOOL TERMINAL EXTRACTOR |
| 306P4 | TOOL-HEX WRENCH |
| 392P4 | TOOL-WRENCH |
| 203802 | TUBING (PVC) 10.00 |
| 205547P | VALVE,MIXING 4.4GPM 120V 50/60HZ(DUAL) |
| 36507 | WASHER AGITATOR,FLEX VANE |
| 802254 | WASHER FLOW RESTRICTOR REDUCER |
| D504082 | WASHER WAVE |
| 26509 | WASHER,FLAT (.271 ID X 1.105 OD X .095) |
| 27015 | WASHER,FLAT (.630 X 2.000 X .067) |
| 39249 | WASHER,FLAT NON-FERROUS ALUM .280X.875 |
| 37772 | WASHER,FLAT NON-FERROUS ALUM .340X.750 |
| 20290 | WASHER,FLAT NON-FERROUS EPDM .593X1.031 |
| 203950 | WASHER,FLAT NON-FERROUS NYLA .635X1.450 |
| 81392 | WASHER,FLAT NYLATRON G5 .390X.875 |
| 52549 | WASHER,FLAT NYLATRON GS .505X.750 |
| 35535 | WASHER,FLAT NYLATRON GS .635X2.000 |
| 803615 | WASHER,STRAINER,3/4-INCHES PIPE |
| 45380 | WIRE 12GA-ORG |
| 45001 | WIRE 18GA-BLK |
