Model Image
Manufacturer

VIZIO

Model Number

L37

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
0260-0000-0250 0260-0000-0250 AC INLET
1925-1200-8300 1925-1200-8300 ACCESSORY BOX
1947-1200-0360 1947-1200-0360 ACETATE CLOTH TAPE
1947-1200-1500 1947-1200-1500 ACETATE CLOTH TAPE
1947-1200-0400 1947-1200-0400 ACETATE CLOTH TAPE
1947-1200-0330 1947-1200-0330 ACETATE CLOTH TAPE

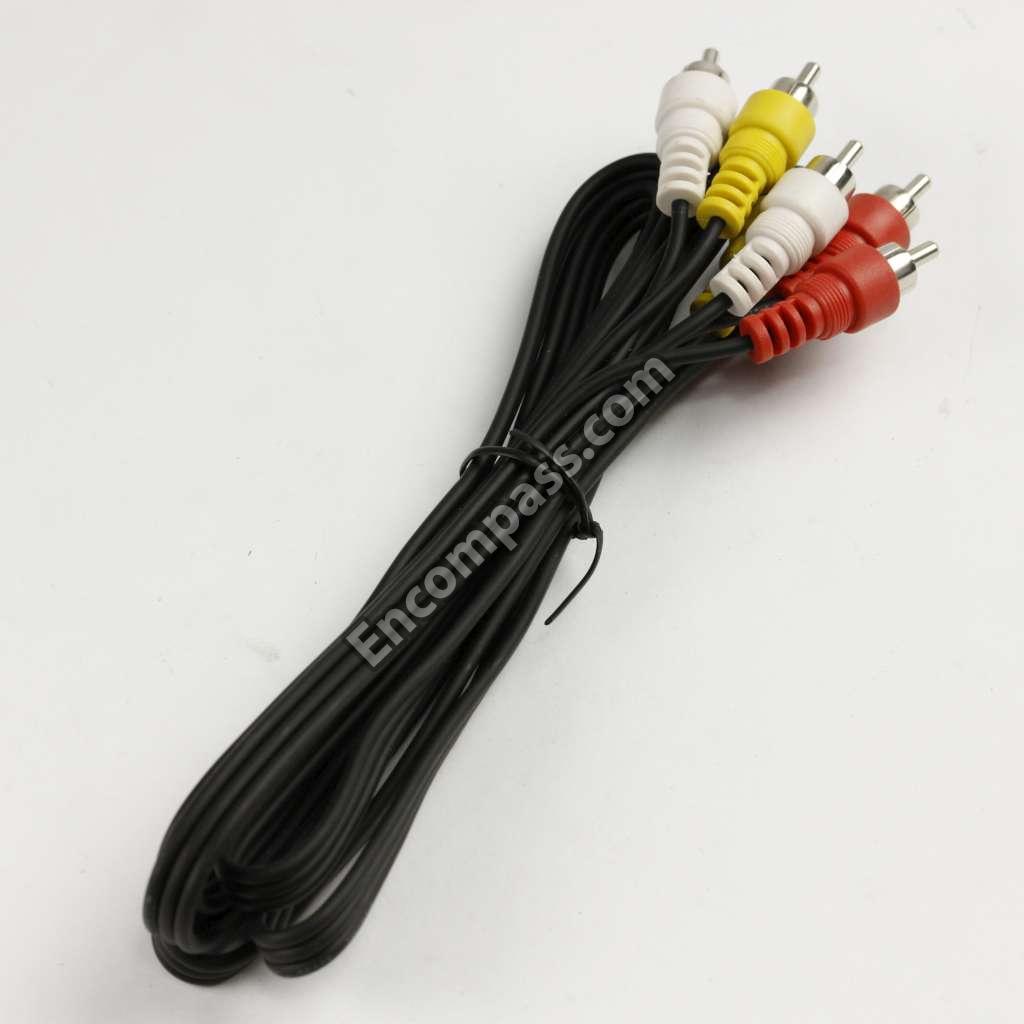

0321-0000-0411 0321-0000-0411 AV CABLE RCA
1712-0100-8871 1712-0100-8871 BASE BRACKET BOTTOM-L

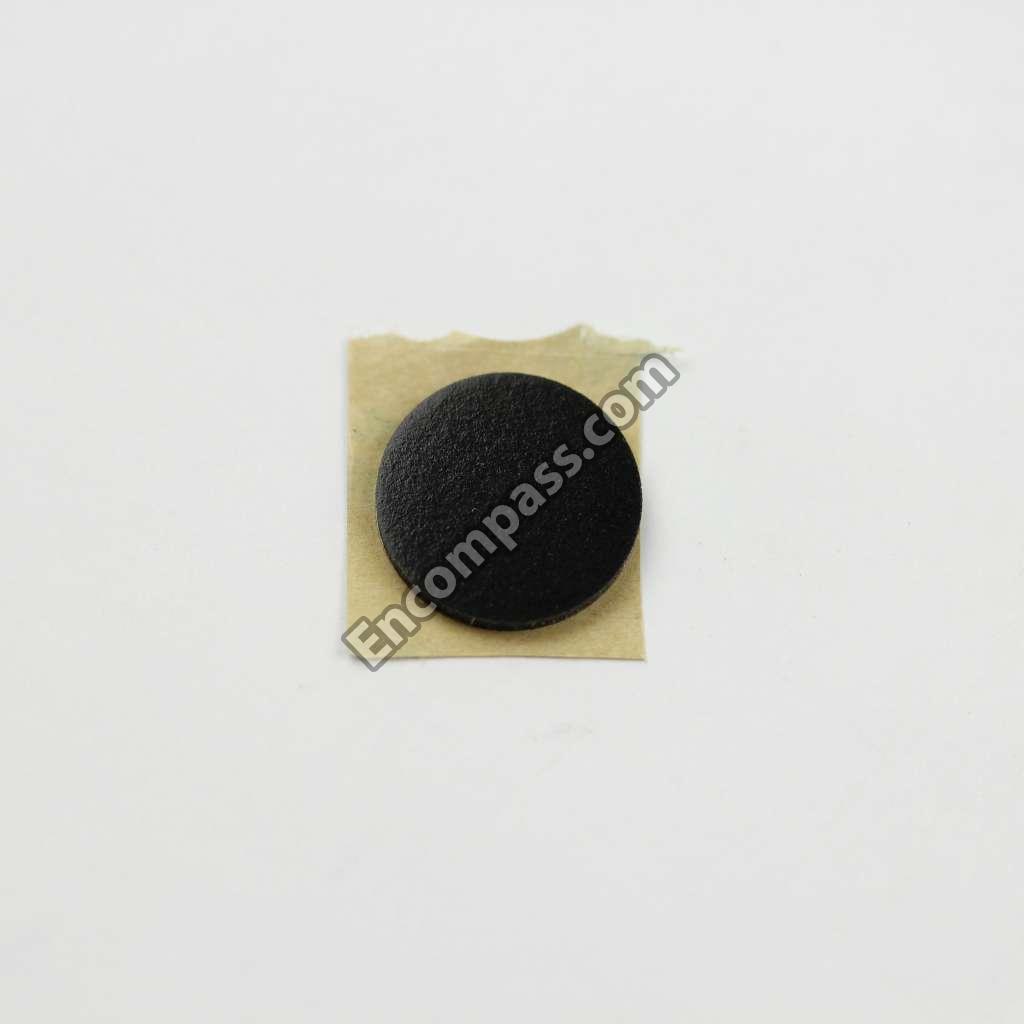

1701-1000-0190 1701-1000-0190 BASE FOOT
0602-3000-0020 0602-3000-0020 BATTERY ZN-CARBON 1.5V AA
1801-0120-0011 1801-0120-0011 BEZEL
1936-1100-8000 1936-1100-8000 BLACK LABEL
1925-1300-7080 1925-1300-7080 BROCHURE SERIES
1701-1925-9010 1701-1925-9010 CARD READER COVER
1925-1200-8221 1925-1200-8221 CARTON
1925-1900-0610 1925-1900-0610 CARTON JOINT
1925-1200-8090 1925-1200-8090 CARTON TRAY
1712-0100-8771 1712-0100-8771 CHASSIS FOR MAIN BD
1925-1000-2681 1925-1000-2681 EPS FORM BOTTOM LEFT
1925-1000-2671 1925-1000-2671 EPS FORM BOTTOM RIGHT
1925-1000-2650 1925-1000-2650 EPS FORM TOP LEFT
1925-1000-2640 1925-1000-2640 EPS FORM TOP RIGHT

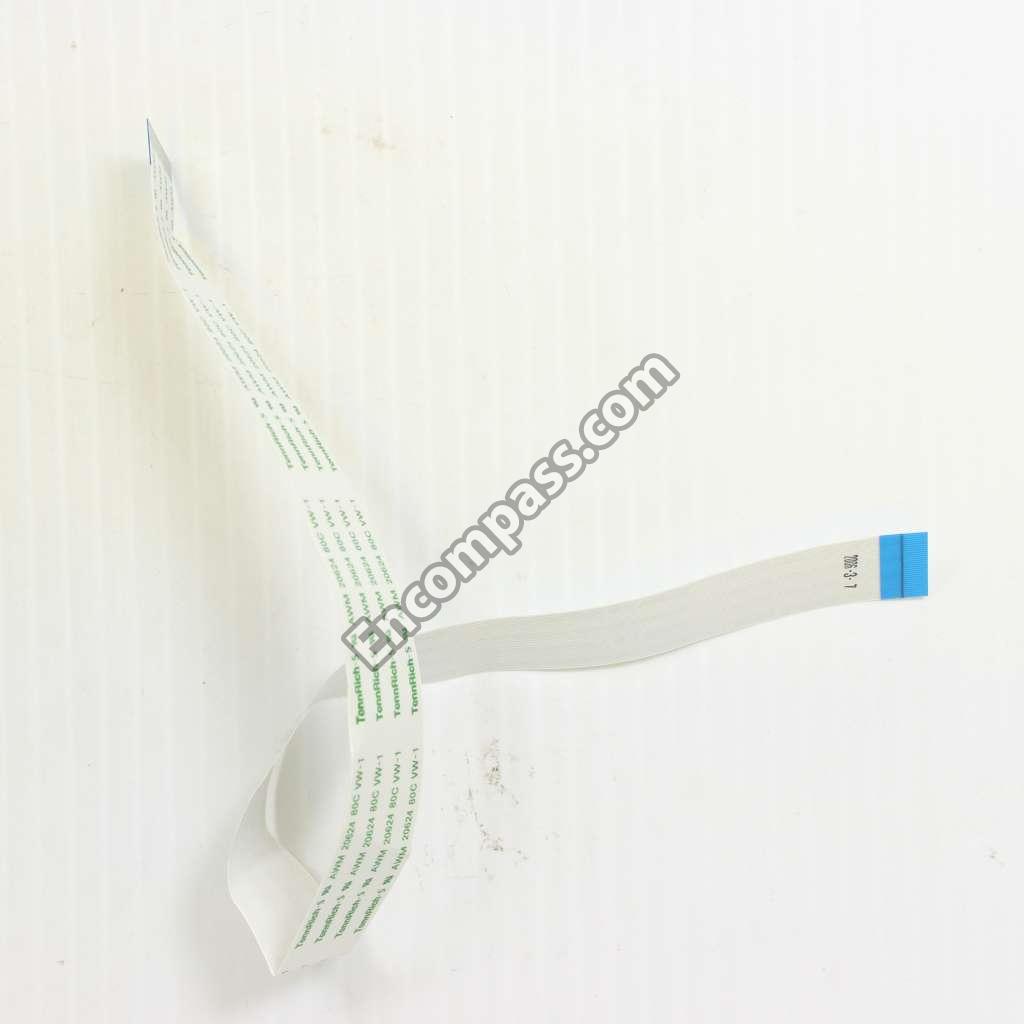

0460-2830-0120 0460-2830-0120 FFC 30P(0.5MM) 305MM CORE
0460-2850-0091 0460-2850-0091 FFC 50P(0.5MM) 180MM CORE
1947-1200-1560 1947-1200-1560 FILAMENT TAPE
1947-1800-0910 1947-1800-0910 GASKET BLOCK
1947-1800-0920 1947-1800-0920 GASKET BLOCK
1947-1800-0660 1947-1800-0660 GASKET BLOCK
1947-1800-0490 1947-1800-0490 GASKET BLOCK
1947-1800-0370 1947-1800-0370 GASKET BLOCK
1947-1800-0160 1947-1800-0160 GASKET BLOCK
1947-1800-0080 1947-1800-0080 GASKET BLOCK
1712-0400-0720 1712-0400-0720 HEAT SINK
1947-1900-0030 1947-1900-0030 HEATPATH
1712-0100-9490 1712-0100-9490 INVERTER SHIELD BKT
1712-0100-8791 1712-0100-8791 IO PLATE BRACKER
3370-0012-0146 3370-0012-0146 LCD CONNECTOR BOARD ASS'Y
3320-0012-0156 3320-0012-0156 LCD DISPLAY BOARD ASS'Y

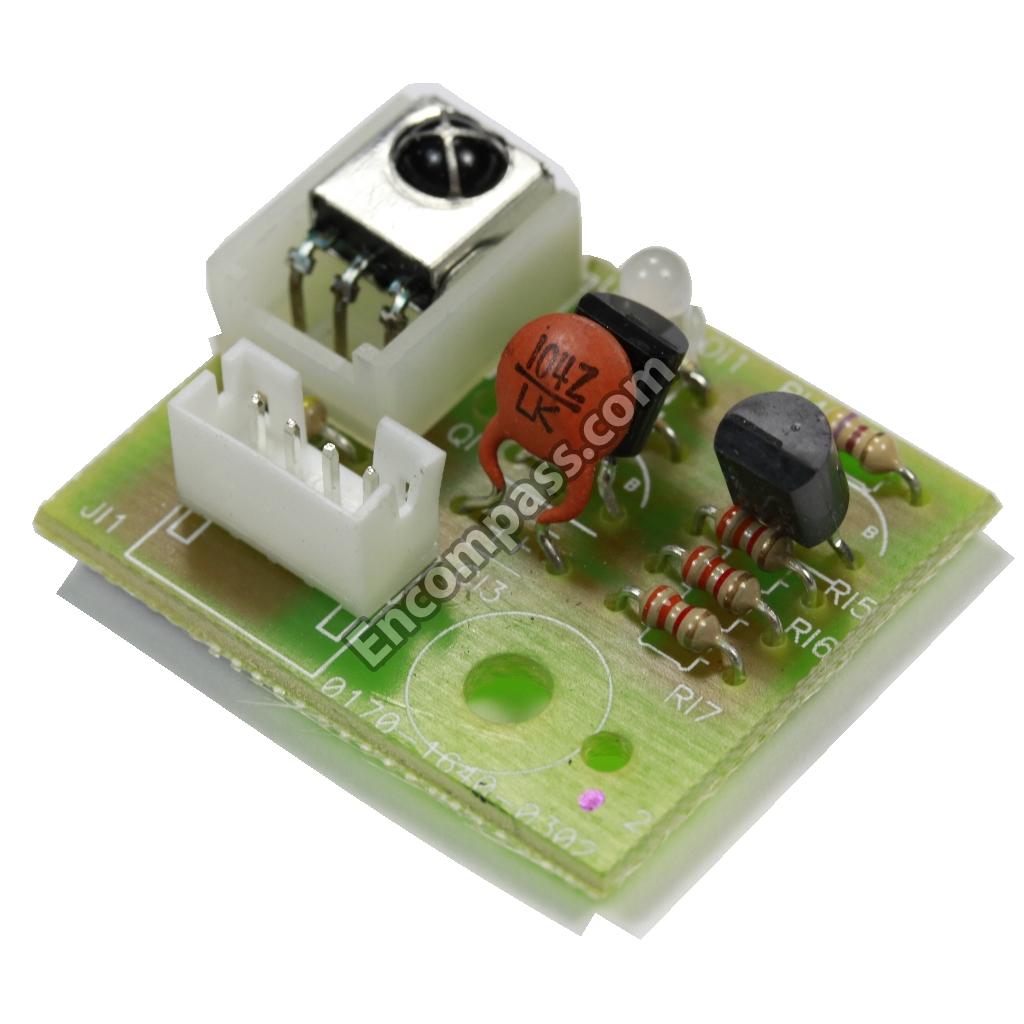

3370-0012-0189 3370-0012-0189 LCD IR BOARD ASS'Y
3370-0012-0395R 3370-0012-0395R LCD MAIN BOARD ASS'Y
0211-0370-0861 0211-0370-0861 LCD MODULE 37.0'' TFT LC370W01-A6
0211-0370-0961 0211-0370-0961 LCD MODULE 37.0'' TFT LC370WX1-SL01
1720-0003-0620 1720-0003-0620 MAC SCREW-MB M3.0*6.0L,NI
1720-3004-0820 1720-3004-0820 MAC SCREW-MF M4.0*8.0L,NI
1720-7344-0820 1720-7344-0820 MAC SCREW-MHSW #4-40*8.0L,NI
1720-1204-0820 1720-1204-0820 MAC SCREW-MPGW M4.0*8.0L,NI
1720-1504-1450 1720-1504-1450 MAC SCREW-MPSWF M4.0*14.0L BLK-NI
1720-1504-0820 1720-1504-0820 MAC SCREW-MPSWF M4.0*8.0L,NI
1712-0100-8901 1712-0100-8901 PANEL BRACKET-L
1712-0100-8912 1712-0100-8912 PANEL BRACKET-R
1712-0100-8830 1712-0100-8830 PANEL HOLDER BOTTOM
1712-0100-8820 1712-0100-8820 PANEL HOLDER RL
1712-0100-9450 1712-0100-9450 PANEL HOLDER RL
1712-0100-9440 1712-0100-9440 PANEL HOLDER RL
1712-0100-8810 1712-0100-8810 PANEL HOLDER TOP
1712-0100-9460 1712-0100-9460 PANEL HOLDER TOP
1925-1100-0230 1925-1100-0230 PE BAG
1925-1100-0280 1925-1100-0280 PE BAG
1925-1100-2040 1925-1100-2040 PE BAG
1947-1500-2570 1947-1500-2570 PORON STRIP
0500-0502-0121 0500-0502-0121 POWER BOARD ASS'Y 250W
1712-0100-8850 1712-0100-8850 POWER BRACKET
0320-4000-0144 0320-4000-0144 POWER CORD 110V UL
1712-0100-8840 1712-0100-8840 POWER SHIELDING
1925-1300-7100 1925-1300-7100 QUICK SETUP GUIDE
1801-0211-7011 1801-0211-7011 REAR COVER
1701-0800-1590 1701-0800-1590 REAR PLATE
1925-1400-2710 1925-1400-2710 REGISTER CARD/VIZIO L15
1947-2000-1070 1947-2000-1070 RUBBER PAD
1721-2305-1220 1721-2305-1220 SCREW BBC #5.0*12.0L, NI
1947-1700-0020 1947-1700-0020 SHIELDING AL. TAPE
1947-1700-0130 1947-1700-0130 SHIELDING AL.TAPE
1712-0100-8781 1712-0100-8781 SHIELDING FOR MAIN BD
1721-0003-0820 1721-0003-0820 TAP SCREW-TB #3 0*8 0L,NI
1721-4003-0621 1721-4003-0621 TAP SCREW-TF #3 0*6 0L,NI
1721-3003-0850 1721-3003-0850 TAP SCREW-TF #M3 0X8 0L,BLK-NI
1721-0004-1020 1721-0004-1020 TAP SCREW-TP #4 0*10 0L,NI
1721-0004-1450 1721-0004-1450 TAP SCREW-TP #4 0*14 0L, BLK-NI
1721-4103-0820 1721-4103-0820 TAP SCREW-TRF #3 0*8 0L,NI
1721-4104-1220 1721-4104-1220 TAP SCREW-TRF #4 0*12 0L,NI
1721-2103-1050 1721-2103-1050 TAP SCREW-TRFW #3 0*10 0L,BLK-NI

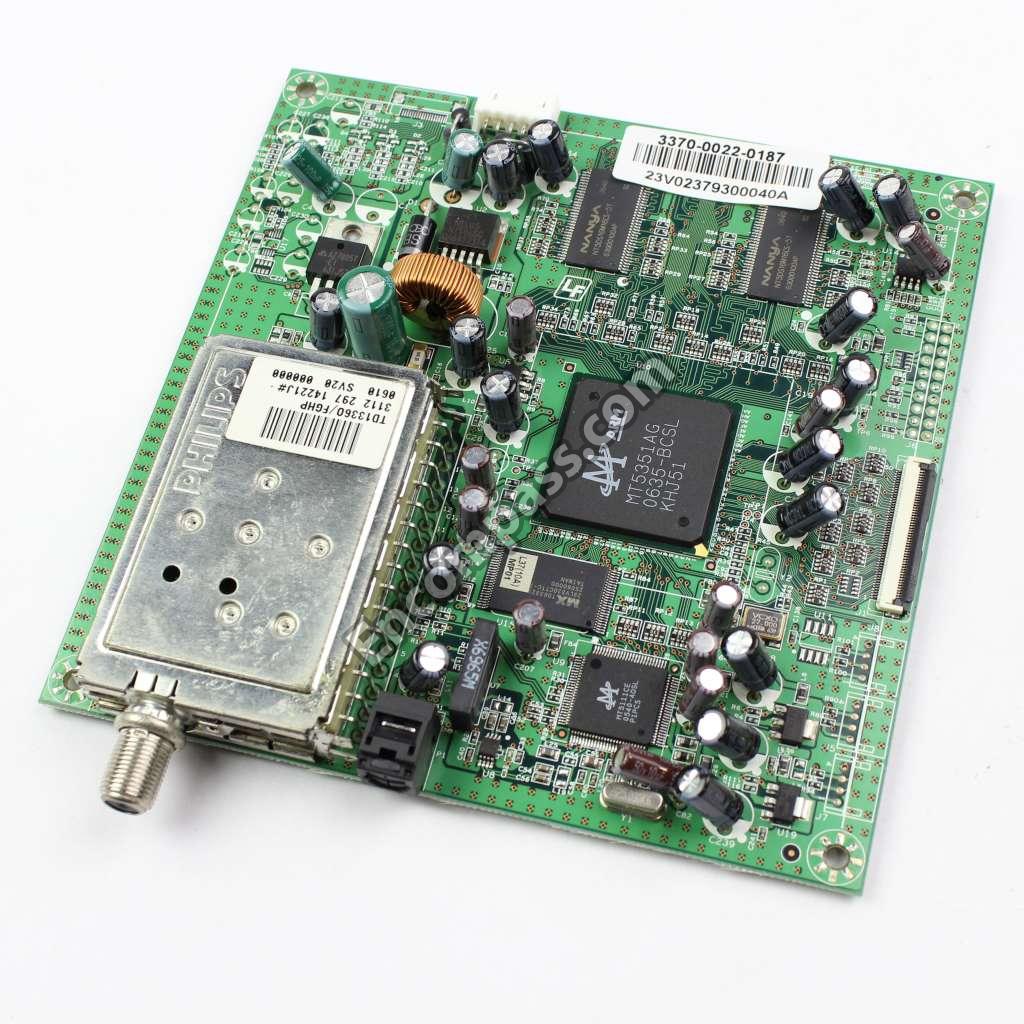

3370-0022-0187 3370-0022-0187 VIDEO BOX BOARD ASS'Y
1925-1400-2810 1925-1400-2810 WARRANTY CARD VINC L32
0460-4012-0020 0460-4012-0020 WH A2543H12P-PH12P 1007#24 300MM
0460-4012-0030 0460-4012-0030 WH A2543H12P-PH12P 1007#24 550MM
0460-4013-0010 0460-4013-0010 WH A2543H13P-PH13P 1007#24 280MM
0460-1012-0182 0460-1012-0182 WH PH12P-PH12P SHIELDING CABLE 470MM CORE
0460-1004-0301 0460-1004-0301 WH PH4P-PH4P 1061#26 80MM
0460-1105-0080 0460-1105-0080 WH XH5P-PH5P 1007#24 100MM
1701-0516-0010 1701-0516-0010 WIRE CLIP
1701-1500-1160 1701-1500-1160 WIRE SADDLE
1701-1500-0690 1701-1500-0690 WIRE SADDLE
1701-1500-0220 1701-1500-0220 WIRE SADDLE
