Manufacturer
VIZIO
Model Number
VW32LHDTV10A
Description
32-inch Lcd Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC INLET +VHR5P 1617#22 500MM 1015#18 100MM +TUBE |
|
|
ACCESSARY BOX (330W*230D*50H) |
|
|
ACETATE CLOTH TAPE20*45MM |
|
|
ACETATE CLOTH TAPE27*75MM |
|
|
ACETATE CLOTH TAPE40*80MM |
|
|
ACETATE CLOTH TAPE60*45MM |
|
|
BASE FOOT (TM-32V) |
|
|
BATTERY ZN-CARBON 1.5V AA |
|
|
BKT FOR SUPPORT (VX32L) |
|
|
BROCHURE VIZIO SERIES |
|
|
CARTON JOINT (TM-32V) |
|
|
CARTON TRAY (VW32L HDTV10A) |
|
|
CARTON VIZIO VW32L HDTV10A |
|
|
CHASSIS (VX32L_LG) |
|
|
CONTROL BOARD- FOR S/N LSPAJAH |
|
|
CR SPONGE 54*12MM*0.5T (VX20L HDTV) |
|
|
DISPLAY BOARD ASS'Y VX32L HDTV |
|
|
EPS FOAM_BL (VW32L HDTV10A) |
|
|
EPS FOAM_BR (VW32L HDTV10A) |
|
|
EPS FOAM_TL (VW32L HDTV10A) |
|
|
EPS FOAM_TR (VW32L HDTV10A) |
|
|
FILAMENT TAPE (TIBON 25WIDE) |
|
|
FRONT BEZEL (VW32L HDTV10A)(ABS,PIANO BLK) ASS'Y |
|
|
GASKET BLOCK (12L*10W*2.5HMM) HOLE 6 ? |
|
|
GASKET BLOCK (17*34*25MM) (773GT) |
|
|
GASKET BLOCK (3.0H*10.0W*100.0L MM) |
|
|
GASKET BLOCK (5.5H*10.0W*30.0LMM) |
|
|
HEAT SINK (VX37L HDTV) |
|
|
HEATPATH (25X14MM) |
|
|
LED BACKLIGHT 18*50 LYSB-4916W/SY-E 450MM |
|
|
LVDS CABLE |
|
|
MAC. SCREW-MB M3.0*6.0L,NI |
|
|
MAC. SCREW-MB M4.0*10.0L, BLK-NI |
|
|
MAC. SCREW-MHSW #4-40*8.0L,NI |
|
|
MAC. SCREW-MPGW M4.0*8.0L,NI |
|
|
MAC. SCREW-MPSWF M4.0*8.0L,NI |
|
|
MAC.SCREW-MF M3.0*8.0L,NI |
|
|
MAC.SCREW-MPSWF M3.0*6.0L NI |
|
|

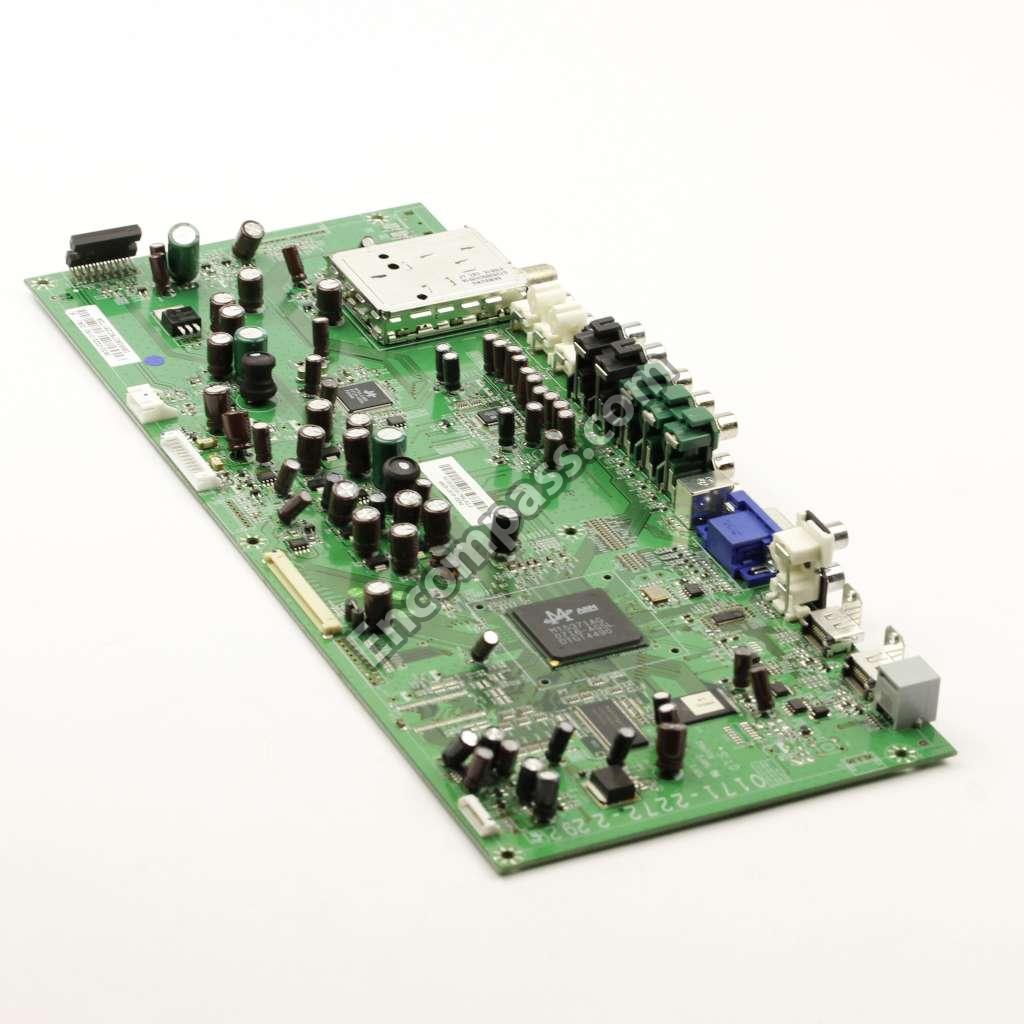

MAIN BOARD ASS'Y VW32L HDTV10A (HDCP) |
|
|
MAIN BOARD ASS'Y VW32L HDTV10A_LC320WX3-SLC1 (HDCP) |
|
|
MAIN BOARD ASS'Y VW32L HDTV10A_LPL_ALPS (HDCP) |
|
|
MAIN BOARD ASS'Y VW32L HDTV10A_SAMSUNG (HDCP) |
|
|
MAIN BOARD ASS'Y VW32L HDTV10A_SAMSUNG_ALPS (HDCP) |
|
|
MYLAR (18.0*28.0*0.6T)(VX32L) |
|
|
PANEL HOLDER_L (VX32L_LG) |
|
|
PANEL HOLDER_R (VX32L_LG) |
|
|
PE BAG (180W*290L*0.04T)(PE-LD)(ACC.-1) |
|
|
PE BAG (VX32L HDTV) |
|
|
PE BAG 320*230*0.04T |
|
|
POWER BOARD ASS'Y DPS-172CP LF |
|
|
POWER BOARD ASS'Y DPS-199AP L-F |
|
|
POWER CORD 110V UL/CSA 1800MM BLK N.M. (VINC) |
|
|
QUICK START GUIDE VIZIO VW32L HDTV10A |
|
|
REAR COVER (VW32L HDTV10A)(ABS,BLK) ASS'Y |
|
|
REAR COVER (VW32L HDTV10A)(ABS,BLK) ASS'Y |
|
|
REGISTER CARD VIZIO SERIES |
|
|
REMOTE CONTROL 66700ABA2-038-R LF |
|
|
SERIAL NO.LBL BYD:SIGN |
|
|
SHIELDING AL. TAPE (50.0*40.0) |
|
|
SHIELDING AL.TAPE (70.0*50.0) |
|
|
SPACER SUPPORT (DCB-6.5) |
|
|
SPK BOX 10W 8OHM(155*56*58) 870/570MM (L,R) LF |
|
|
SPONGE (22.0L*55.0W*0.6T) |
|
|
TAP. SCREW-TB #3.0*8.0L,NI |
|
|
TAP. SCREW-TP #4.0*16.0L, BLK-NI |
|
|
TAP. SCREW-TP #4.0*8.0L,NI |
|
|
TAP. SCREW-TRF #4.0*12.0L,NI |
|
|
TECHNOLOGY LOGO LBL VIZIO VX20L/32/37 HDTV |
|
|
WALL MOUNT SUPPORT (VX32L) |
|
|
WARRANTY ? REPAIR SHEET VIZIO(ORANGE PAPER) |
|
|
WH A1251H02-10P/A1251H02-10P 1571#28 350MM |
|
|
WH A2001H02-14P/A2543H00-12P 1007#24 650MM |
|
|
WH A2543H00-12P/A2001H02-12P 1007#24 600MM |
|
|
WH A2543H12P-PH12P 1007#24 300MM |
|
|
WH A2543H13P-PH13P 1007#24 350MM CORE |
|
|
WH PH4P-PH4P 1061#26 130MM LF |
|
|
WIRE SADDLE (CH-14) |
