Model Image
Manufacturer

Whirlpool

Model Number

16TW3BK49

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4002F329-51 4002F329-51 BACK-MAIN
7101P227-60 7101P227-60 BOLT, MAIN BACK
4011F125-51 4011F125-51 BOTTOM MA
2205F016-19 2205F016-19 BOTTOM OV
74009863 74009863 BOTTOM- BU
8003P008-60 8003P008-60 BUMPER
7505P196-60 7505P196-60 BURNER REAR (LF)
74004582 74004582 BURNER, ASSEMBLY FRONT
74004583 74004583 BURNER, TOP (R.R.)
7112P068-60 7112P068-60 CLIP
7112P071-60 7112P071-60 CLIP, MAIN TOP REAR
7112P065-60 7112P065-60 CLIP, OVEN BOTTOM
WP7112P004-60 WP7112P004-60 CLIP- THER
7506P154-60 7506P154-60 CUP, TUBING
7104P002-60 7104P002-60 FASTENER
7507P083-60 7507P083-60 FITTING, HALF UNION
7507P049-60 7507P049-60 FLANGE, T STAT
WP74003326 WP74003326 FLASH TUBE
WP74003327 WP74003327 FLASH TUBE
4006W075-80 4006W075-80 FLUE BOX ASSEMBLY
7518P012-60 7518P012-60 GRATE, TOP
WPY8007P02060 WPY8007P02060 GROMMET
16000329 16000329 GUIDE, QUICK REF. - MAGIC CHEF
12001180 12001180 HANDLE, DOOR
12400029 12400029 HINGE KIT (RT)
3418A059-34 3418A059-34 HINGE, DOOR (LT)
74002413 74002413 IGNITER
WP7432P077-60 WP7432P077-60 IGNITER, TOP
7214P015-60 7214P015-60 INSERT, BURNER
7733P072-60 7733P072-60 KNOB VALV
7731P109-60 7731P109-60 KNOB, THERMOSTAT

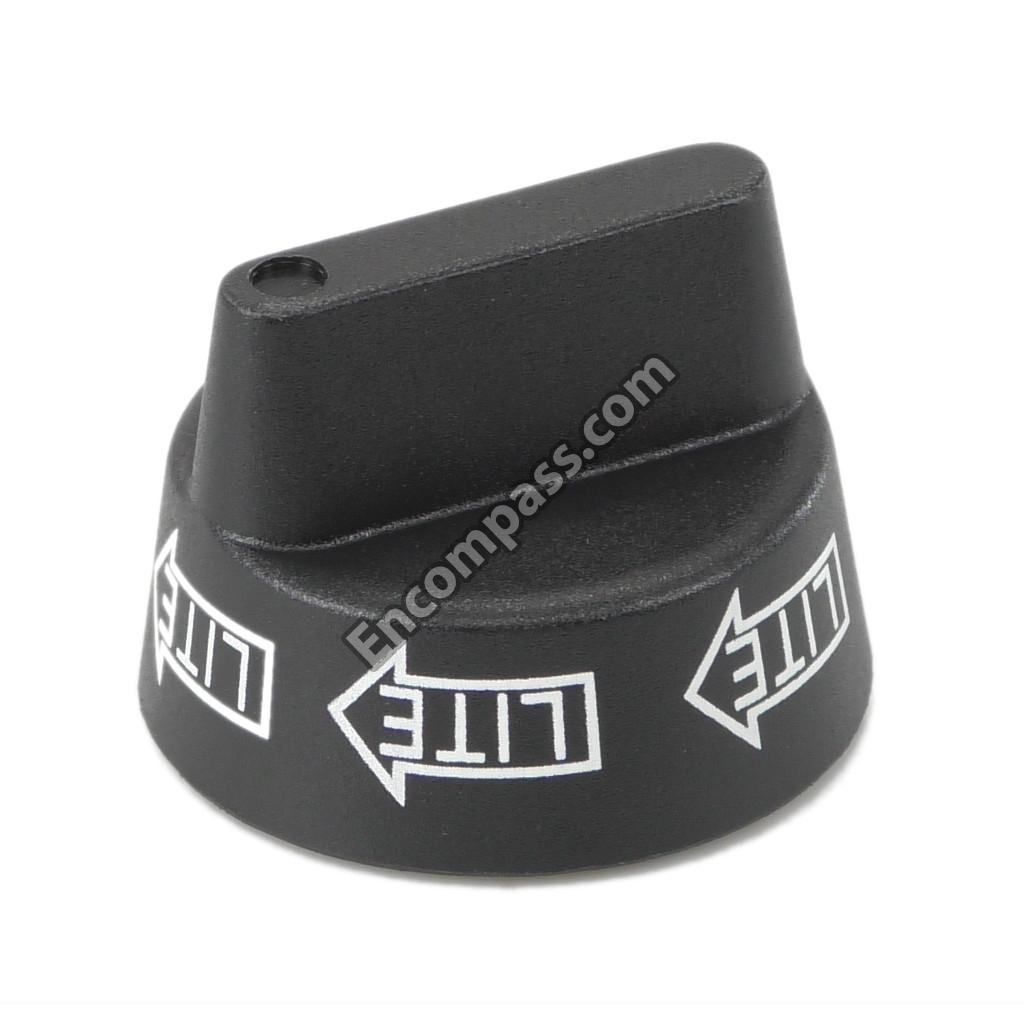

74001794 74001794 KNOB, VALVE
WP74002414 WP74002414 KNOB- IGNI
2402F121-19 2402F121-19 LINING DOOR
8112P118-60 8112P118-60 MANUAL, USE & CARE
3411F003-34 3411F003-34 MIXER AIR
7507P047-60 7507P047-60 NLAPLUG, PIPE
W10080180 W10080180 NUT
WP488130 WP488130 NUT
1555261K 1555261K NUT & FERRULE (3/16``)
1555279 1555279 NUT 1 4
1555280K 1555280K NUT FERR
1555222 1555222 NUT, LOXIT (3/16``)
3403W025-45 3403W025-45 OVEN BURNER ASSEMBLY.
74001273 74001273 PANEL DOO
2616F116-70 2616F116-70 PANEL, MANIFOLD
968-143 968-143 PILOT, OVEN
7513P161-60 7513P161-60 PIPE, MANIFOLD
74003106 74003106 RACK- OVEN
12001285 12001285 REGULATOR, PRESSURE
7101P231-60 7101P231-60 SCREW
WP98008545 WP98008545 SCREW
WP7101P126-60 WP7101P126-60 SCREW
W10828565 W10828565 SCREW
7212P038-60 7212P038-60 SEAL, DOOR (SIDES)
WP7212P014-60 WP7212P014-60 SEAL- DOOR
74002809 74002809 SHIELD DE
4016F033-51 4016F033-51 SIDE BODY LF
4016F034-51 4016F034-51 SIDE BODY RT
7803P051-60 7803P051-60 SPRING OV
3423F001-34 3423F001-34 SPRNG-DOOR
74001834 74001834 SUPPORT O
3807F462-45 3807F462-45 SUPPORT T
7103P109-60 7103P109-60 T-NUT (RV HINGE)
7515P029-60 7515P029-60 THERMOSTAT
74001333 74001333 TOP, MAIN (WHT)
3608W056-70 3608W056-70 TRIM, SIDE (BLK) (LT)
3608W055-70 3608W055-70 TRIM, SIDE (BLK) (RT)
3414F079-44 3414F079-44 TUBING, 1/4``- ODX42 1/2
3414F077-44 3414F077-44 TUBING, 3/16 X 41.5``
7501P056-60 7501P056-60 VALVE, OVEN
7502P181-60 7502P181-60 VALVE, TOP BURNER (5200)
74001795 74001795 VALVE, TOP BURNER (7100)
WP5111A719-60 WP5111A719-60 WIRE- IGNI
