Model Image
Manufacturer

Whirlpool

Model Number

1999IW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
D7527001 D7527001 (+)BASKET FREEZER WE
B8314701 B8314701 AIR BLOCK
D7484901 D7484901 AIR TUNNEL
D7393501 D7393501 ANGLE, EVAPORATOR COVER, LEFT
D7393502 D7393502 ANGLE-EVAP COVER
B5795201 B5795201 ANGLE-FR BAFFLE
D7422301 D7422301 ARM ACTIVATE- A
C8954101 C8954101 ARM SHUT OFF
C8824401 C8824401 ARM-DETENT
R0161032 R0161032 ASSY, MOLD & HEATER
C3655001 C3655001 BACK, MACH COMPT K
D7482203 D7482203 BAFFLE, FZ BACK
C8852202 C8852202 BEARING, HINGE
C8852201 C8852201 BEARING-HINGE
B5742603 B5742603 BLADE, FAN
C8868301 C8868301 BLOCK AIR COIL
C8850502 C8850502 BRACKET
WPD7701602 WPD7701602 BRACKET
C8938501 C8938501 BRACKET, COND MOTOR
C8836305 C8836305 BRACKET, ROLLER
A3085401 A3085401 BRACKET, SUPPORT
C8829701 C8829701 BRACKET-EVAP MOTOR
D7511102 D7511102 BREAKER
D7511002 D7511002 BREAKER
D7510802 D7510802 BREAKER
D7424402 D7424402 BREAKER FRAME
D7424401 D7424401 BREAKER FRAME
D3952506 D3952506 BREAKER FRAME
D3952604 D3952604 BREAKER FRAME
D7510902 D7510902 BREAKER FRAME
D3952402 D3952402 BREAKER FRAME
D3953104 D3953104 BREAKER FRAME
A3132401 A3132401 BUSHING
B5700502 B5700502 BUSHING A
B5698401 B5698401 BUSHING A
67004412A 67004412A BUTTER TRAY
625913 625913 CAM
D7700505 D7700505 CAVITY ASSEMBLY
D7526705 D7526705 CAVITY DISPENSER A
D7534202 D7534202 CHASSIS FRONT
M0102804 M0102804 CLAMP
M0102303 M0102303 CLAMP
R0191073 R0191073 CLAMP
M0104002 M0104002 CLAMP-DRIER
WPM0117303 WPM0117303 CLIP
M0113401 M0113401 CLIP
B5720302 B5720302 CLIP
A3153701 A3153701 CLIP
WPM0104106 WPM0104106 CLIP
B8324801 B8324801 CLIP GROUND
A3140801 A3140801 CLIP K
B8325201 B8325201 CLIP THERMOSTAT K
10798001 10798001 CLIP, WATER VALVE
12454802 12454802 CLIP, WATERLINE
WPM0114003 WPM0114003 CLIP- SPEE
M0110505 M0110505 CLIP-CABLE
A3054502 A3054502 CLIP-COND
B5784101 B5784101 CLIP-HEATER
B8324701 B8324701 CLIP-HEATER
D7743202 D7743202 COMPRESSOR AEA1410AXA
D7455202 D7455202 CONDENSER
C3615018 C3615018 CONTROL
C3643113 C3643113 CONTROL, REFRIFERATOR
M1200001 M1200001 COTTER PIN K
WP10244903 WP10244903 COUPLING, SOLENOID VALVE AND H
B5644001 B5644001 COVER
B0559501 B0559501 COVER K
D7192602 D7192602 COVER, LIFT WHEEL A
D7484702 D7484702 COVER/GASKET ASSEMBLY
D7511309 D7511309 DAIRY DOOR
B8344402 B8344402 DAMPER ASSEMBLY
B5695802 B5695802 DOOR CHUTE A/ K
D7022901 D7022901 DOOR CLOSURE
D7573707 D7573707 DOOR HANDLE
D7573712 D7573712 DOOR HANDLE
D7573711 D7573711 DOOR HANDLE
D7624318 D7624318 DOOR LR FR L-T-SRI19F
D7624314 D7624314 DOOR LR FR W-T-SRI19F
D7624306 D7624306 DOOR REF L-T-SRI19F
D7624302 D7624302 DOOR REF W-T-SRI19F
D7624312 D7624312 DOOR UP FR L-T-SRI19F
D7624308 D7624308 DOOR UP FR W-T-SRI19F
C8820601 C8820601 DRAIN CUP
C8876801 C8876801 DRAIN TUBE
D7384701 D7384701 DRAIN TUBE
WPB2150504 WPB2150504 DRIER
C8810601 C8810601 DRIVE LINK
D7429606 D7429606 EGG TRAY-ASSY
R0183101 R0183101 EJECTOR
D7521601 D7521601 END CAP
C8878901 C8878901 END CAP, HANDLE
C8878902 C8878902 END CAP, HANDLE
C3692901 C3692901 END CAP-HELIX A
D7345504 D7345504 ESCUT FRZ, CONT.
D7417303 D7417303 ESCUTCHEON
R0170012 R0170012 EVAPORATOR ASSEMBLY
A3127402 A3127402 EXT-FILL TUBE
A0381401 A0381401 EYELET K
R0156652 R0156652 FACADE ASSEMBLY
B8350201 B8350201 FACADE STIFFENER
B8350301 B8350301 FACADE STIFFENER
D7641702 D7641702 FAN SHROUD
12033101 12033101 FAN-EVAP
R0182123 R0182123 FILL TUBE
WP4373559 WP4373559 FITTING
D7698502 D7698502 FOAM BLACK, WARID
D7599701 D7599701 FRAME
D7601404 D7601404 FRAME CONT.
D7599601 D7599601 FRAME CRISPER
D7601601 D7601601 FRAME, CRISPER TOP
A3030344 A3030344 GASKET
D7092609 D7092609 GASKET
B5759608 B5759608 GASKET
B5759609 B5759609 GASKET
B5757702 B5757702 GASKET
M0275202 M0275202 GASKET ( 1=1FT. )
10839714 10839714 GASKET 1
C8947003 C8947003 GASKET A
A3212304 A3212304 GASKET A
B8320501 B8320501 GASKET AIR TUNNEL
B8328101 B8328101 GASKET BAFFLE
A3113601 A3113601 GASKET CONTROL
B5757703 B5757703 GASKET, AIR BLOCK
C8947002 C8947002 GASKET, CAVITY A
C8947001 C8947001 GASKET, CAVITY A
B5697802 B5697802 GASKET, DOOR
D7251018 D7251018 GASKET, DOOR - UP FR
B8327901 B8327901 GASKET, EVAP.
D7251019Q D7251019Q GASKET, LOWER FZ
B8315901 B8315901 GASKET-DAMPER
A30303-35 A30303-35 GASKET-PER FT
WP628210 WP628210 GEAR
B5700401 B5700401 GEAR PINION A
C8823423 C8823423 GLASS SHELF ASSEMBLY
A3213401 A3213401 GLIDE
D7442901 D7442901 GLIDE BASKET-L K
D7442902 D7442902 GLIDE BASKET-R K
M0266510 M0266510 GLIDER BOLT
C3588305 C3588305 GRILLE A
D7531601 D7531601 GRILLE-SUMP-CAV K
D7520510 D7520510 GRILLE-TOE-B K
M0580010 M0580010 GROMMET
A3138301 A3138301 GROMMET
B5766402 B5766402 GROMMET
M0580009 M0580009 GROMMET
A4573802 A4573802 GROMMET
C8830701 C8830701 GROMMET
M0580401 M0580401 GROMMET A
M0580002 M0580002 GROMMET A
A3026101 A3026101 GROMMET K
M0500107 M0500107 GROMMET K
211881 211881 GROMMET, CORD
M0580007 M0580007 GROMMET, SCREW
C8951201 C8951201 HARNESS - AUGER
D7655301 D7655301 HARNESS M.C
D7698701 D7698701 HARNESS, CAVITY A
D7699601 D7699601 HARNESS, LINER
D7646501 D7646501 HEAT EXCHANGER
D7725501 D7725501 HEATER CHUTE UP MULL
D7747001 D7747001 HEATER MULLION
D7725601 D7725601 HEATER, CAVITY
D7479703 D7479703 HEATER-EVAP
C3693901 C3693901 HELIX
D7250103 D7250103 HINGE
D7250104 D7250104 HINGE
B5698003 B5698003 HINGE
C3694101 C3694101 HINGE-CENTER
C8816601 C8816601 HINGE-LEFT
C8816602 C8816602 HINGE-RIGHT
A1039101 A1039101 HOLDER PIVOT WIRE K / A
A3211601 A3211601 HOLDER-ARM A
B5697602 B5697602 HOLDER-SHUT OFF ARM
D7636002 D7636002 I M BRACKET
D7550301 D7550301 ICE BUCKET A
D7733101 D7733101 ICE MAKER ASSEMBLY
R0157337 R0157337 INLET KIT

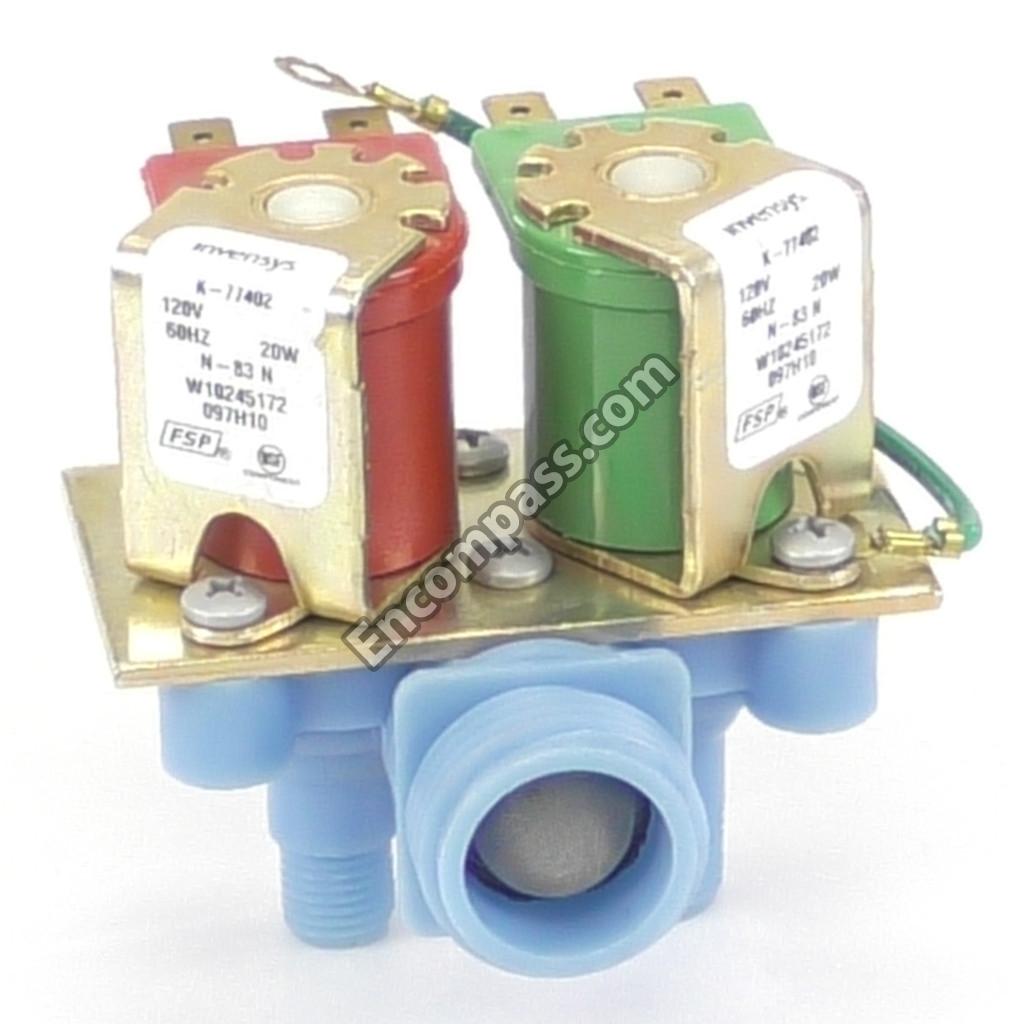

W10245172 W10245172 INLET VALVE
D7521701 D7521701 INNER DOOR LWR FRZR
D7180804 D7180804 INNER DR PANEL
D7534401 D7534401 INNER DR PANEL REF
A0329806 A0329806 INSUL TUBING 1=12``
B5612010 B5612010 INSULATION
B5629022 B5629022 INSULATION
B0523582 B0523582 INSULATION
B5612009 B5612009 INSULATION
B5629003 B5629003 INSULATION
B5629006 B5629006 INSULATION
B5629016 B5629016 INSULATION
B5683517 B5683517 INSULATION BATT
B0523563 B0523563 INSULATION FT. K
D7525101 D7525101 INSULATION M.C. A-K
10851302 10851302 INSULATION, TUBE
B0523581 B0523581 INSULATION, UPPER
C8860701 C8860701 INSULATION-DAMP CNT
R0196041 R0196041 INSULATOR
D7466205 D7466205 JUICE RACK
A3120801 A3120801 KEY
R0157335 R0157335 KIT
R9800670 R9800670 KIT, SCREW
D7009802 D7009802 KNOB
D7009801 D7009801 KNOB
D7103701 D7103701 LADDER
R0183087 R0183087 LEVER ARM
WPA3073101 WPA3073101 LIGHT BULB
W10857122 W10857122 LIGHT BULB
8009 8009 LIGHT BULB
C3597606 C3597606 LIGHT SHIELD
D3954208 D3954208 LIGHT SHIELD
B5708201 B5708201 LIGHT SOCKET A
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
C8831001 C8831001 MOTOR
D7241412 D7241412 MOTOR
R0154016 R0154016 MOTOR
833697 833697 MOTOR-COND
C8902301 C8902301 MTG PAD NAMEPLATE K
A3214403 A3214403 MTG PLATE
C8810405 C8810405 MULLION (ALMOND)
C8887806 C8887806 MULLION L
C8810401 C8810401 MULLION VERT.WHITE)
B5716202 B5716202 MULLION WELD
C8886706 C8886706 MULLION, LOWER, ALMOND
C8886702 C8886702 MULLION, LOWER, WHITE
D7822101 D7822101 NAMEPLATE
D7601403 D7601403 NET-FRAME,CANTILEVER
WP627018 WP627018 NUT
M0281401 M0281401 NUT A
M0286003 M0286003 NUT A
M0282201 M0282201 NUT, COMPRESSION
R0189030 R0189030 NUT, WIRE
M0292002 M0292002 NUT-WELL
M0500702 M0500702 O RING K
C8866905 C8866905 OVERLOAD
B5691701 B5691701 PAD A
D7001001 D7001001 PAN, DRAIN
D7182001 D7182001 PARTITION PANEL A
M1210001 M1210001 PIVOT PIN K
R0194137 R0194137 PLATE
R0194212 R0194212 PLATE MTG
D7371506 D7371506 PLATE, FAN MOTOR
A0387302 A0387302 PLUG
A3069103 A3069103 PLUG
A3091302 A3091302 PLUG BUTTON
M0310316 M0310316 PLUG BUTTON
WPA3076901 WPA3076901 PLUG, BUTTON
A3080001 A3080001 PLUG, BUTTON (BLK)
A4539616 A4539616 POP RIVET
R0157154 R0157154 POWER CORD
C8941002 C8941002 RAIL CHASSIS
C3611303 C3611303 RAIL REAR
D7003305 D7003305 RAIL, FRONT
D7679502 D7679502 REAR CHASSIS
C3553401 C3553401 RELAY
D7025101 D7025101 RETAINER
D7415734 D7415734 RETAINER ASSEMBLY
D7025105 D7025105 RETAINER GASKET
D7025109 D7025109 RETAINER GASKET
D7025110 D7025110 RETAINER GASKET
D7025107 D7025107 RETAINER GASKET
D7025103 D7025103 RETAINER GASKET
D7025108 D7025108 RETAINER GASKET
B8302620 B8302620 RETAINER PKG.
B8302621 B8302621 RETAINER PKG.
B8344901 B8344901 RETURN AIR ASSEMBLY
M0274601 M0274601 RING-RETAINING A
WPM1205302 WPM1205302 RIVET
M0010202 M0010202 RIVET A
WP12580304 WP12580304 ROLLER
A3034801 A3034801 SADDLE VALVE
M0233230 M0233230 SCREW
M0211530 M0211530 SCREW
M0230926 M0230926 SCREW
M0230727 M0230727 SCREW
WP67006715 WP67006715 SCREW
M0253916 M0253916 SCREW
M0232908 M0232908 SCREW
M0234466 M0234466 SCREW
M0216531 M0216531 SCREW
8169479 8169479 SCREW
M1252001 M1252001 SCREW
WPM0219730 WPM0219730 SCREW
M0254331 M0254331 SCREW
WP489399 WP489399 SCREW
WP489464 WP489464 SCREW
WPM0223816 WPM0223816 SCREW
M0241132 M0241132 SCREW
M0237032 M0237032 SCREW
WP488402 WP488402 SCREW
M0233104 M0233104 SCREW
WP90767 WP90767 SCREW
M0226960 M0226960 SCREW
WP98165 WP98165 SCREW
M0211020 M0211020 SCREW
WP3400094 WP3400094 SCREW
R0186033 R0186033 SCREW
M0227527 M0227527 SCREW
R0186022 R0186022 SCREW
R0186031 R0186031 SCREW
R0186030 R0186030 SCREW
R0186020 R0186020 SCREW
R0186019 R0186019 SCREW
M0227534 M0227534 SCREW
WP489128 WP489128 SCREW
67006425 67006425 SCREW (3)
M0254022 M0254022 SCREW A
M0257025 M0257025 SCREW A
M0257023 M0257023 SCREW A
M0253704 M0253704 SCREW A K
M0236230 M0236230 SCREW K
M0238833 M0238833 SCREW SHOULDER
681390 681390 SCREW, 8-32 X 3/8
M0230017 M0230017 SCREW,TC
M0241118 M0241118 SCREW-SM
M0238636 M0238636 SCREW-SM
B8314102 B8314102 SEAL-FAN SHROUD Q
D7645901 D7645901 SHELF
D7549808 D7549808 SHELF
D7549804 D7549804 SHELF
B8303801 B8303801 SHELF-FR
B8338901 B8338901 SHIELD A
A3143603 A3143603 SHIM
A3143602 A3143602 SHIM
A3225603 A3225603 SHIM
A3225602 A3225602 SHIM KIT
A3270303 A3270303 SHIM KIT
C8824301 C8824301 SHUT OFF ARM
B5778702 B5778702 SLEEVE
B5637601 B5637601 SOCKET
B5777701 B5777701 SOCKET LIGHT A
12096901 12096901 SOCKET-LIGHT
A3044202 A3044202 SPACER
B0544103 B0544103 SPACER
R0191074 R0191074 SPACER
B8346302 B8346302 SPACER COND A
B8346301 B8346301 SPACER COND.
M0287901 M0287901 SPEED NUT A- K
A3225902 A3225902 SPRING
WPA1055105 WPA1055105 SPRING
R0183097 R0183097 SPRING
R0183073 R0183073 SPRING
B5700602 B5700602 SPRING ARM A
B5725801 B5725801 SPRING CLIP K
A3211001 A3211001 SPRING DOOR CHUTE K A
A1055102 A1055102 SPRING K
C8916701 C8916701 SPRING K
A3125701 A3125701 STOP,DRAIN PAN
A3041801 A3041801 STRAP K
A3221801 A3221801 STRIP A
R0183090 R0183090 STRIPPER
M0258801 M0258801 STUD
B5689501 B5689501 SUPPORT
B0595101 B0595101 SUPPORT
B8364601 B8364601 SUPPORT
R0183086 R0183086 SUPPORT
B5631705 B5631705 SUPPORT - CREAM LH
B0530006 B0530006 SUPPORT K
B5608001 B5608001 SUPPORT MULLION
B0594201 B0594201 SUPPORT MULLION
B5631706 B5631706 SUPPORT- -CREAM RH
M0342001 M0342001 SWITCH
C3680306 C3680306 SWITCH
W11384469 W11384469 SWITCH
M0340702 M0340702 SWITCH A
M0340108 M0340108 SWITCH LIGHT A
R0163054 R0163054 SWITCH, S.P.S.T.
M0275166 M0275166 TAPE ALUM
B8326801 B8326801 TERM BOARD
R0161026 R0161026 THERMOSTAT
C8871201 C8871201 THERMOSTAT K
B5781707 B5781707 THINPLATE
M0321401 M0321401 TIE
C3647902 C3647902 TIMER BRACKET
W10822278 W10822278 TIMER-DEF
D3951406 D3951406 TOP FRUIT PAN
D3966704 D3966704 TOP, CRISPER AND TOP, FRUIT BI
C8774504 C8774504 TRIM
C8831708 C8831708 TRIM
C8803102 C8803102 TRIM
B0596602 B0596602 TRIM
C8831507 C8831507 TRIM A
C8795201 C8795201 TRIM SHELF K
B8372601 B8372601 TUBE-PLASTIC
B5705317 B5705317 TUBING, PLASTIC, FROM WATER TA
C8887802 C8887802 UPPER MULLION, PNT (WHITE)
M0270519 M0270519 WASHER
M0274050 M0274050 WASHER
M0272511 M0272511 WASHER
M0274013 M0274013 WASHER K
M0274014 M0274014 WASHER K
M0590101 M0590101 WASHER, NYLON K
D7222301 D7222301 WATER TANK
W10823511 W10823511 WATER TUBE
C8820412 C8820412 WELD COMP SUPT PNT
D7192701 D7192701 WHEEL-LIFT A
R0164192 R0164192 WIRE ASSEMBLY
B8346901 B8346901 WIRE PIVOT
R0164191 R0164191 WIRING HARNESS
Main Menu x
