Model Image
Manufacturer

Whirlpool

Model Number

35FB2CXON

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
0284307 0284307 + BRACKET
7601P044-60 7601P044-60 + CLOCK
1430287 1430287 + KIT, TRIM DECOR
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
4002F092-20 4002F092-20 BACK, MAIN
3601F094-51 3601F094-51 BAFFLE, OVEN DOOR NLA
WPW10245259 WPW10245259 BLOCK-TERM
4011F128-23 4011F128-23 BOTTOM BU
WPW10196405 WPW10196405 BOWL-DRIP
WPW10196406 WPW10196406 BOWL-DRIP
0277238 0277238 BRACE
3802F003-80 3802F003-80 BRACE
3802F008-80 3802F008-80 BRACE, BACK-LEFT
3802F010-80 3802F010-80 BRACE, BACK-RIGHT
3802F044-51 3802F044-51 BRACE, DRAWER
3801F031-51 3801F031-51 BRACKET
8003P010-60 8003P010-60 BUMPER, MAIN TOP
7111P002-60 7111P002-60 CLAMP
7112P034-60 7112P034-60 CLIP DOOR
7112P019-60 7112P019-60 CLIP, HINGE PIN
7112P030-60 7112P030-60 CLIP, TOP RETAINER
WP7112P004-60 WP7112P004-60 CLIP- THER
4005F016-80 4005F016-80 COVER, BACK BURNER BOX
3405F008-80 3405F008-80 DRAWER, SERVICE
WPY04000041 WPY04000041 ELEMENT- B
WPY04000048 WPY04000048 ELEMENT- B
3603F013-80 3603F013-80 FRAME WIN
4012F013 4012F013 FRAME, BURNER BOX FRONT
7706P243-60 7706P243-60 FRAME, DOOR
WP7201P017-60 WP7201P017-60 GASKET, WINDOW
WP7902P715-60 WP7902P715-60 GLASS DOOR
7902P109-60 7902P109-60 GLASS, CLOCK
7902P274-60 7902P274-60 GLASS, DOOR
8016P004-60 8016P004-60 GLIDE DRA
8016P009-60 8016P009-60 GLIDE, DRAWER
8016P005-60 8016P005-60 GLIDE, FRONT
7701P047-60 7701P047-60 HANDLE, DOOR
7701P014-78 7701P014-78 HANDLE, DRAWER COFFEE
3418A072-34 3418A072-34 HINGE ASSEMBLY (LT)
3418A071-34 3418A071-34 HINGE ASSEMBLY (RT)
4001F016-19 4001F016-19 HOUSING
4001F016-23 4001F016-23 HOUSING, LAMP
4001F051-51 4001F051-51 HOUSING,MAIN WIRE
WP3413F018-19 WP3413F018-19 INSERT
7728P012-60 7728P012-60 INSERT, OVEN DOOR HANDLE
7711P291-60 7711P291-60 KNOB (CHR)
7711E018 7711E018 KNOB, SWITCH
7711P138-60 7711P138-60 KNOB, THERMOSTAT
WP7711P466-60 WP7711P466-60 KNOB- CLOC
Y7101P25460 Y7101P25460 LEG, LEVELING
8009 8009 LIGHT BULB
1406251 1406251 LIGHT, INDICATOR
4009W029-80 4009W029-80 LINING ASSEMBLY, INNER SIDE
2402W091-23 2402W091-23 LINING ASSEMBLY, OV DR
4009W053-80 4009W053-80 LINING, INNER SIDE
2402W154-19 2402W154-19 LINING, OVEN DOOR
3413F002-23 3413F002-23 M*INSERT PAN
3605F153-80 3605F153-80 NLAPLATE, CONDUIT
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE NOT REPLACABLE
WP3401F075-19 WP3401F075-19 PAN, BROIL
2601W180-88 2601W180-88 PANEL, BKGD COFFEE
2601W132-88 2601W132-88 PANEL, BKGD-B
2416F006-78 2416F006-78 PANEL, SERVICE DRAWER COFFEE
2618F052-78 2618F052-78 PANEL, SIDE COFFEE
7113P002-60 7113P002-60 PIN- HINGE
3605F146-51 3605F146-51 PLATE
3605F148-80 3605F148-80 PLATE CONDUIT
WP7801P030-60 WP7801P030-60 RACK, OVEN
7408P035-60 7408P035-60 RECEPT, OVEN LIGHT
12001676 12001676 RECEPTACLE ASSEMBLY.
3804F040-51 3804F040-51 RETAINER - GLASS
3406F020-80 3406F020-80 RUNNER, INNER
3406F026-80 3406F026-80 RUNNER, INNER
3406F027-51 3406F027-51 RUNNER, OUTER
3406F025-51 3406F025-51 RUNNER,OUTER
WP7101P126-60 WP7101P126-60 SCREW
WP74004005 WP74004005 SCREW
7101P123-60 7101P123-60 SCREW
1986231 1986231 SCREW, SPECIAL
7101P013-60 7101P013-60 SCREW, SPECIAL
7101P028-60 7101P028-60 SCREW, TOP HINGE
1726252 1726252 SEAL
7212P002-60 7212P002-60 SEAL, OVEN
0787389 0787389 SHIELD
4005F013-80 4005F013-80 SHIELD
3604F017-45 3604F017-45 SHIELD
1783233 1783233 SPACER
8010P048-60 8010P048-60 SPACER, MAIN TOP
8003P011-60 8003P011-60 SPACER, MAIN TOP
WP8010P069-60 WP8010P069-60 SPACER- HI
WP7803P058-60 WP7803P058-60 SPRING- OV
3420A033-34 3420A033-34 STOP OVEN
0862417 0862417 SUPPORT
0862418 0862418 SUPPORT
0862426 0862426 SUPPORT
3807F176-15 3807F176-15 SUPPORT, BROIL ELEMENT
3807F205-45 3807F205-45 SUPPORT, OVEN REAR

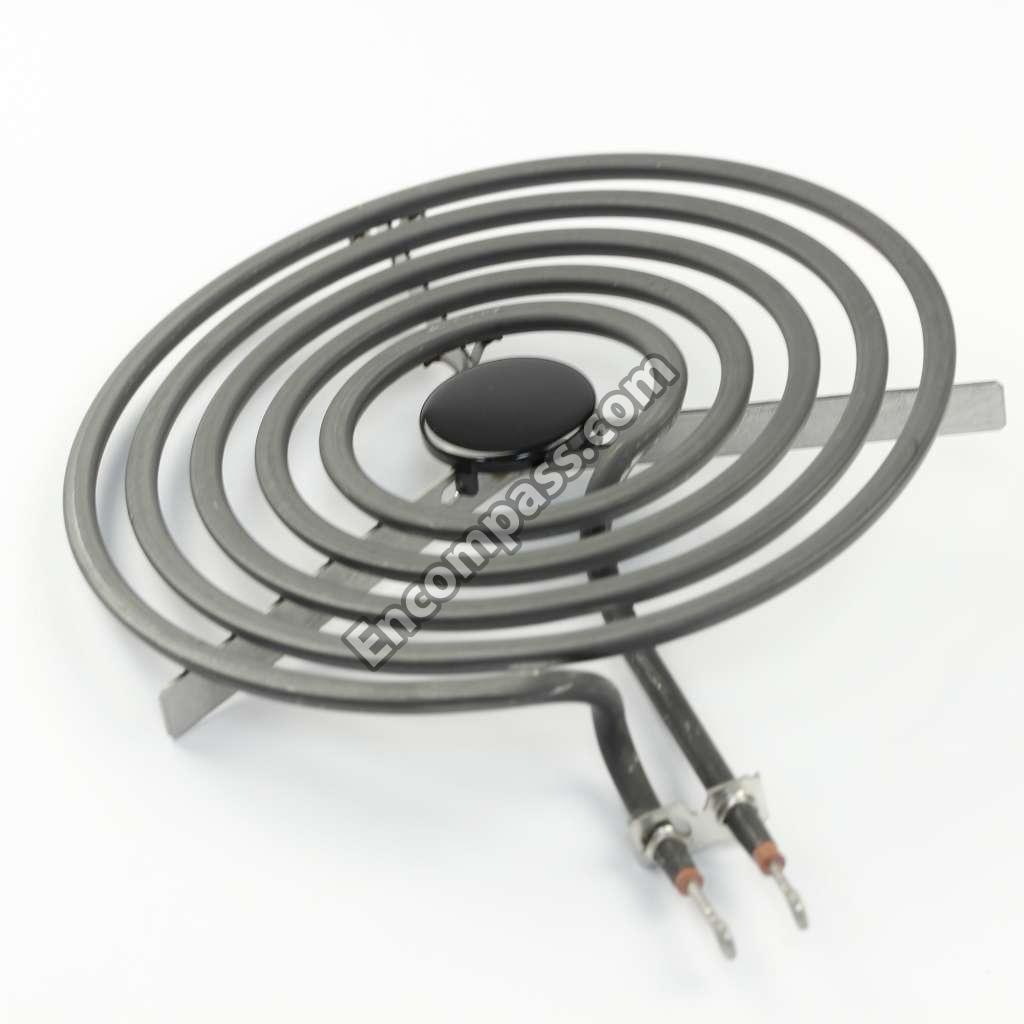

WP3191454 WP3191454 SURFACE ELEMENT
WP660532 WP660532 SURFACE ELEMENT
7403P086-60 7403P086-60 SWITCH, INF. CONTROL
7403P170-60 7403P170-60 SWITCH, INF. CONTROL
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
7403P082-60 7403P082-60 SWITCH, SELECTOR
7404P030-60 7404P030-60 THERMOSTAT
2002W028-08 2002W028-08 TOP ASSEMBLY, MAIN B
1916212 1916212 TRIM
1916211 1916211 TRIM
7703P089-60 7703P089-60 TRIM, BKGD-MC
7720P073-60 7720P073-60 TRIM, GLASS RET
8026P003-60 8026P003-60 TUBE, OVEN VENT
