Model Image
Manufacturer

Whirlpool

Model Number

38HA3TXON

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
WPW10245259 WPW10245259 BLOCK-TERM
7116P003-60 7116P003-60 BOLT
4011F180-80 4011F180-80 BOTTOM, BURNER BOX
4011F158-80 4011F158-80 BOTTOM, BURNER BOX
4011F198-80 4011F198-80 BOTTOM, BURNER BOX
4006W056-45 4006W056-45 BOX ASSEMBLY VENT
3802F003-80 3802F003-80 BRACE
3802F008-80 3802F008-80 BRACE, BACK-LEFT
3802F010-80 3802F010-80 BRACE, BACK-RIGHT
3802F044-51 3802F044-51 BRACE, DRAWER
3802F046-80 3802F046-80 BRACE, MAIN TOP
3801F093-51 3801F093-51 BRACKET
WP3801F656-51 WP3801F656-51 BRACKET
3801F024-51 3801F024-51 BRACKET
3801F118-45 3801F118-45 BRACKET C
3801F101-80 3801F101-80 BRACKET, TIE DOWN
8003P002-60 8003P002-60 BUMPER DOOR (ROUND)
7711P335-60 7711P335-60 BUTTON SE
7711P452-60 7711P452-60 BUTTON, CLOCK SET
7711P449-60 7711P449-60 BUTTON, CONTROL SET
7730P002-60 7730P002-60 CAMERA LENS, CLOCK
7730P005-60 7730P005-60 CAMERA LENS, CLOCK
8002P020-60 8002P020-60 CATCH ASSEMBLY.
7111P002-60 7111P002-60 CLAMP
7112P034-60 7112P034-60 CLIP DOOR
7112P003-60 7112P003-60 CLIP, DOOR LATCH HANDLE
7112P019-60 7112P019-60 CLIP, HINGE PIN
7112P030-60 7112P030-60 CLIP, TOP RETAINER
7601P162-60 7601P162-60 CLOCK
7601P070-60 7601P070-60 CLOCK
7601P100-60 7601P100-60 CLOCK
7601P175-60 7601P175-60 CLOCK, ELECTRONIC
7601P154-60 7601P154-60 CNTRLELEC
4005F284-80 4005F284-80 COVER, BKGD WIRE
4005F338-80 4005F338-80 COVER, BKGD WIRE
4005F200-80 4005F200-80 COVER, SENSOR PROBE
4005F295-51 4005F295-51 COVER, UPPER FLUE BOX
4005F191-23 4005F191-23 COVER, UPPER FLUE BOX
4005F182-80 4005F182-80 COVER, WIRE HOUSING
3405F008-80 3405F008-80 DRAWER, SERVICE
WPY04000042 WPY04000042 ELEMENT, BROIL

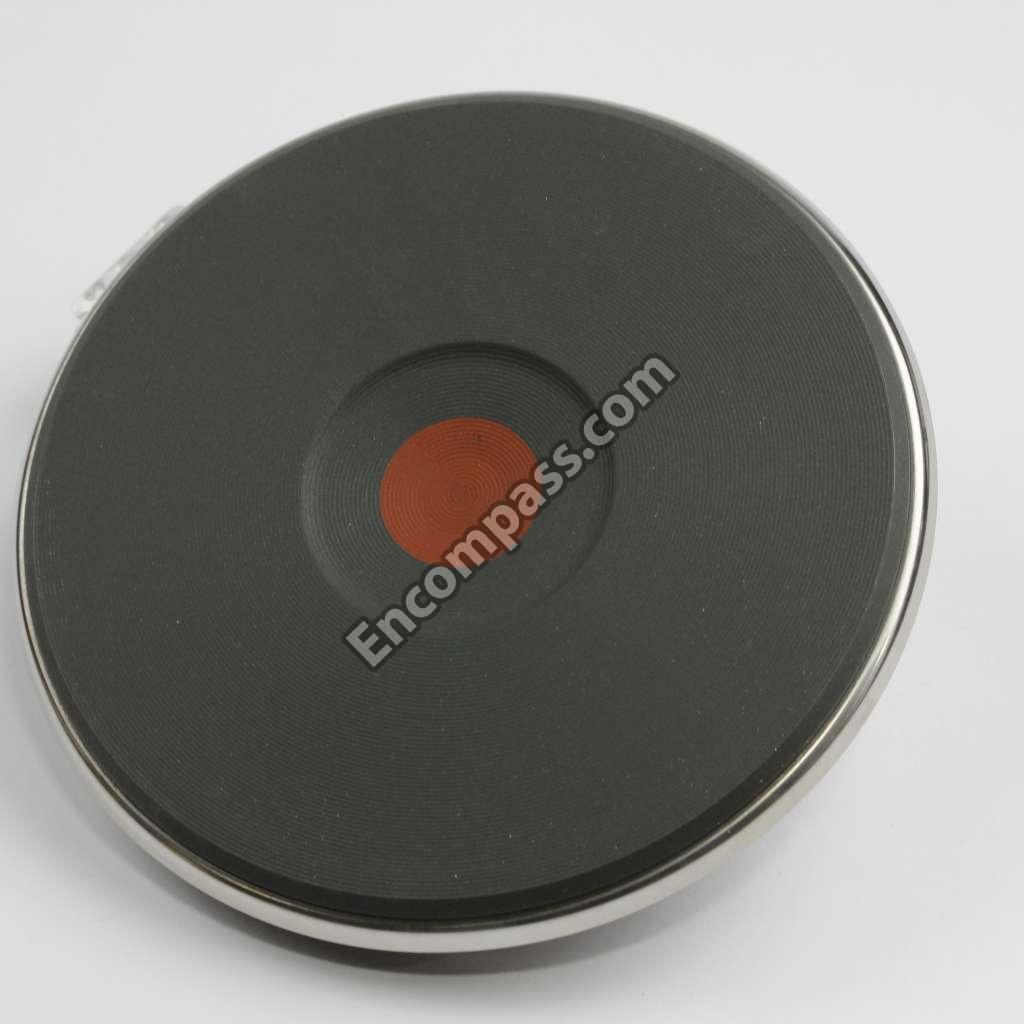

7406P024-60 7406P024-60 ELEMENT, SOLID DISC (8``)
WPY04000041 WPY04000041 ELEMENT- B
7706P243-60 7706P243-60 FRAME, DOOR
4012F017-80 4012F017-80 FRONT, BURNER BOX BOTTOM
7201P003-60 7201P003-60 GASKET, ELEMENT
7201P014-60 7201P014-60 GASKET, HOUSING
7201P015-60 7201P015-60 GASKET, LAMP RETAINER
7201P036-60 7201P036-60 GASKET- OV
7910P039-60 7910P039-60 GLASS, BACKGUARD
7910P110-60 7910P110-60 GLASS, BKGD
7902P275-60 7902P275-60 GLASS, DOOR
7902P057-60 7902P057-60 GLASS, LAMP GUARD
8016P004-60 8016P004-60 GLIDE DRA
8016P009-60 8016P009-60 GLIDE, DRAWER
8016P005-60 8016P005-60 GLIDE, FRONT
2411F001-74 2411F001-74 HANDLE DOOR ALM
7701P047-60 7701P047-60 HANDLE, DOOR
7701P068-60 7701P068-60 HANDLE, DOOR LATCH (BLK)
5170P087-60 5170P087-60 HARNESS O
5170P100-60 5170P100-60 HARNESS, OVEN SENSOR
5170P006-60 5170P006-60 HARNESS, RELAY
3418F029-34 3418F029-34 HINGE, OVEN DOOR (LT)
3418F030-34 3418F030-34 HINGE, OVEN DOOR (RT)
4001F020-19 4001F020-19 HOUSING, LAMP
4001F020-11 4001F020-11 HOUSING, OVEN LIGHT
7728P068-60 7728P068-60 INSERT, HANDLE (CHROME)
7728P012-60 7728P012-60 INSERT, OVEN DOOR HANDLE
7002P118-60 7002P118-60 INSULATION, DOOR
WP7737P021-60 WP7737P021-60 KNOB
7711P172-60 7711P172-60 KNOB CLOC

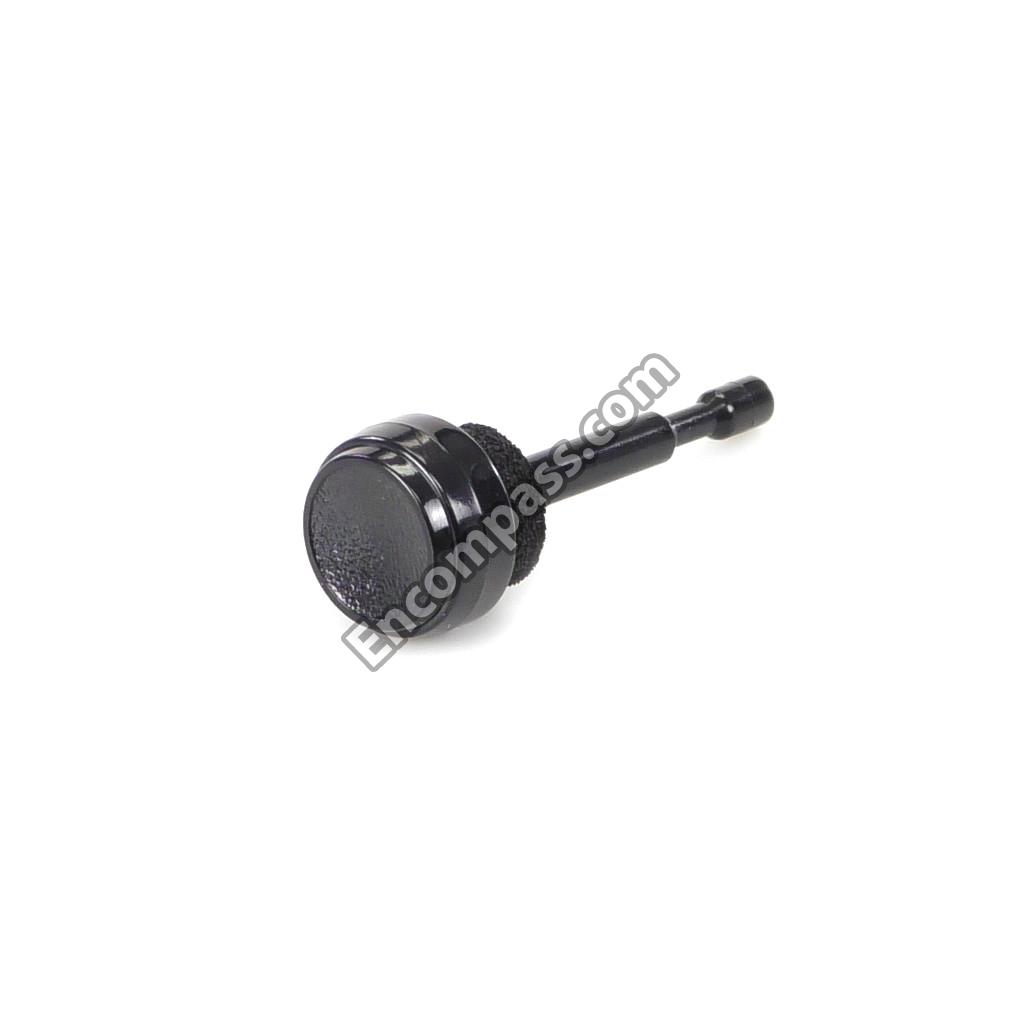

W11238392 W11238392 KNOB- CLOC
WP7711P492-60 WP7711P492-60 KNOB- CLOC
8009P018-60 8009P018-60 LEVER DOO
8009P009-60 8009P009-60 LEVER, DOOR LOCK
8009 8009 LIGHT BULB
7407P029-60 7407P029-60 LIGHT, SIGNAL
2402W173-19 2402W173-19 LINING
4009W029-80 4009W029-80 LINING ASSEMBLY, INNER SIDE
2402W153-15 2402W153-15 LINING, DOOR
4009W053-80 4009W053-80 LINING, INNER SIDE
7807P004-60 7807P004-60 LINK SWIT
7807P012-60 7807P012-60 LINK, DOOR LOCK
3413F002-23 3413F002-23 M*INSERT PAN
4002F086-80 4002F086-80 NLABACK- MAIN
3605F171-80 3605F171-80 NLAPLATE SWITCH MTG
7212P032-60 7212P032-60 NLASEAL, COVER
3604F007-80 3604F007-80 NLASHIELD, LIGHT RECEPTACLE
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE NOT A REPLACEABLE PART
7103P053-60 7103P053-60 NUT PUSH
WP7103P114-60 WP7103P114-60 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
2410W041-15 2410W041-15 PAD
2410W041-19 2410W041-19 PAD, DOOR
7201P045-60 7201P045-60 PAD, FOAM GASKET
2410F012-51 2410F012-51 PAD, INNER OV DR
2416F006-74 2416F006-74 PANEL
2601W325-84 2601W325-84 PANEL BKGD
2601W189-84 2601W189-84 PANEL, BACKGUARD
2618F052-74 2618F052-74 PANEL, SIDE (ALM)
7113P002-60 7113P002-60 PIN- HINGE
3605F091-20 3605F091-20 PLATE, SWITCH MNTG.
WP7801P030-60 WP7801P030-60 RACK, OVEN
7408P002-60 7408P002-60 RECEPTACLE, LAMP
WP7428P005-60 WP7428P005-60 RELAY, BOARD ASSEMBLY.
3804F012-45 3804F012-45 RETAINER, LAMP GUARD
7107P017-60 7107P017-60 RIVET
3406F020-80 3406F020-80 RUNNER, INNER
3406F026-80 3406F026-80 RUNNER, INNER
3406F027-51 3406F027-51 RUNNER, OUTER
3406F025-51 3406F025-51 RUNNER,OUTER
7101P287-60 7101P287-60 SCREW
WP7101P126-60 WP7101P126-60 SCREW
7101P123-60 7101P123-60 SCREW
7101P029-60 7101P029-60 SCREW, SPECIAL
7208P002-60 7208P002-60 SEAL
WP854334 WP854334 SEAL-STRIP
3604F092-45 3604F092-45 SHIELD
8010P045-60 8010P045-60 SPACER GL
WP8010P069-60 WP8010P069-60 SPACER- HI
WP7803P058-60 WP7803P058-60 SPRING- OV
3420A033-34 3420A033-34 STOP OVEN
3807F010-80 3807F010-80 SUPPORT
3807F012-80 3807F012-80 SUPPORT
8004P011-60 8004P011-60 SUPPORT
8004P012-60 8004P012-60 SUPPORT, 8``
3807F176-15 3807F176-15 SUPPORT, BROIL ELEMENT
3807F408-45 3807F408-45 SUPPORT, CATCH ASSEMBLY.
3807F195-45 3807F195-45 SUPPORT, CATCH ASSEMBLY.
3807F422-45 3807F422-45 SUPPORT, DOOR LOCK SWITCH
3807F193-45 3807F193-45 SUPPORT, LOCK SWITCH
3807F205-45 3807F205-45 SUPPORT, OVEN REAR
8004P020-60 8004P020-60 SUPPORT, RELAY BOARD
WP3147131 WP3147131 SURFACE ELEMENT
7403P099-60 7403P099-60 SWITCH OV
7403P166-60 7403P166-60 SWITCH, HI LIMIT GLASS
7403P170-60 7403P170-60 SWITCH, INF. CONTROL
7403P268-60 7403P268-60 SWITCH, INFINITE (1400W)
7403P269-60 7403P269-60 SWITCH, INFINITE (2600W)
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
8270P078-60 8270P078-60 TAPE, FOIL (29 1/2``)
2002W032-84 2002W032-84 TOP ASSEMBLY, MAIN ALMOND
7740P010-60 7740P010-60 TRIM, BEZEL
7720P091-60 7720P091-60 TRIM, BEZEL
7740P016-60 7740P016-60 TRIM, BEZEL
7715P016-60 7715P016-60 TRIM, BKGD TOP
7726P019-60 7726P019-60 TRIM, BKGD.
7726P008-60 7726P008-60 TRIM, BKGD. (LT)
7720P088-60 7720P088-60 TRIM, GLASS RET
7742P009-60 7742P009-60 TRIM, RETAINER GLASS
8026A011-60 8026A011-60 TUBE, VENT
