Model Image
Manufacturer

Whirlpool

Model Number

3CA2781XSW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
WP359807 WP359807 ACTUATOR
W10873800 W10873800 AGITATOR
WP72107 WP72107 ALMOND
350956 350956 ALMOND
285771 285771 BASE
W10389328 W10389328 BASKET
W10820043 W10820043 BASKTDRIVE
WP8546455 WP8546455 BEARING
WP8546462 WP8546462 BEARING
285205 285205 BEARING
WP62505 WP62505 BLOCK, DISCONNECT (MOTOR 2 SPEED) (USE TERM. 352088)
WP389140 WP389140 BLOCK, DRIVE
3348576 3348576 BRACKET, CONTROL
WP64067 WP64067 BRACKET, SPRING DISPENSER OUTER (2)
WP64065 WP64065 BRACKET, SPRING OUTER (L.F.)
3348573 3348573 BRACKET, TIMER
WP3360977 WP3360977 BREAK-VAC

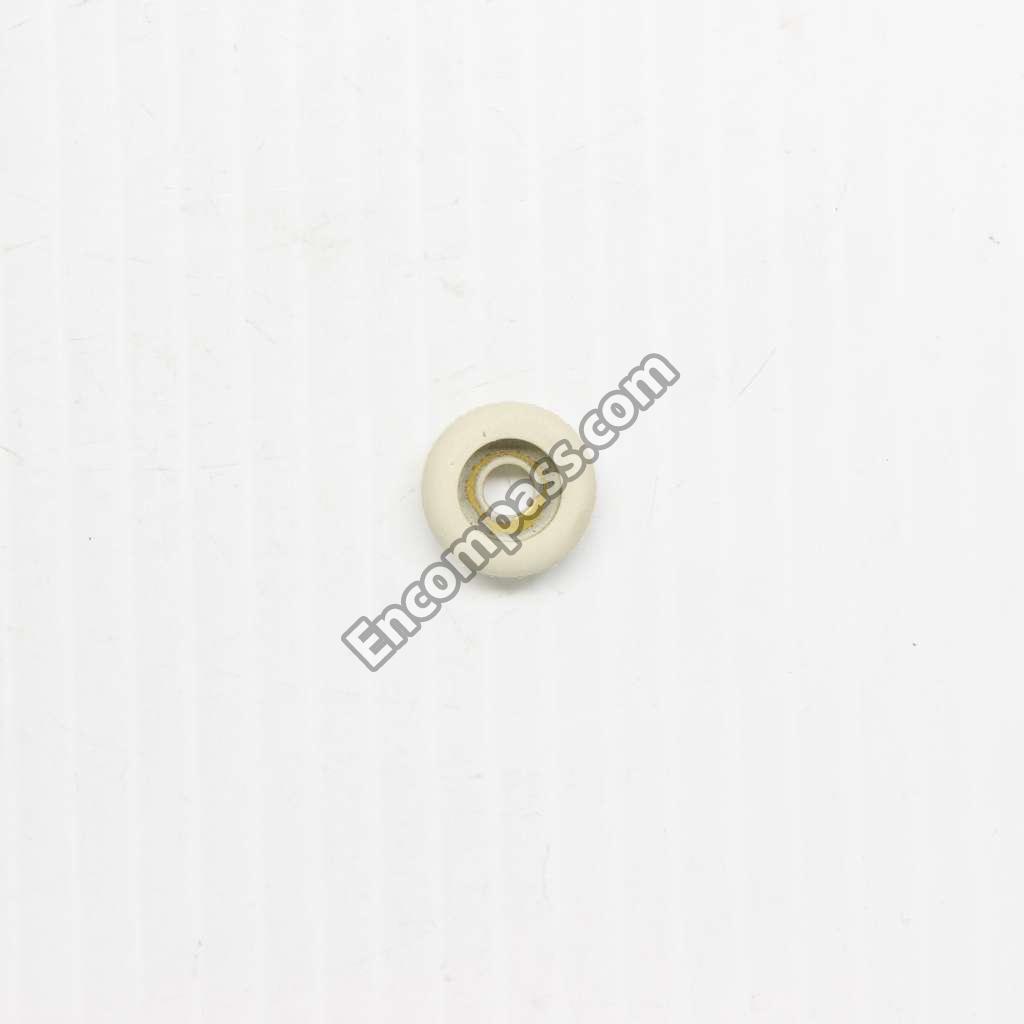

WP356908 WP356908 BUMPER
WP19119 WP19119 BUMPER (2)
63424 63424 CABINET (FOR DESINGER WHITE MODEL)
WP8546461 WP8546461 CAM-BRAKE
WP3348109 WP3348109 CAMERA LENS-LIGHT
WP3348110 WP3348110 CAMERA LENS-LIGHT
WP3355758 WP3355758 CAP
WP62646 WP62646 CAP
63789 63789 CAP, END (L.H.)
63795 63795 CAP, END. (R.H.)
WP8572717 WP8572717 CAPACITOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 23)
WP596669 WP596669 CLAMP
WP371502 WP371502 CLAMP
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
357030 357030 CLAMP, CAPACITOR
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
62732 62732 CLIP
WP90016 WP90016 CLIP
WP98997 WP98997 CLIP
3348535 3348535 CLIP
W10113937 W10113937 CLIP, GROUNDING
388498 388498 CLIP, HARNESS
WP62780 WP62780 CLIP, TOP & CABINET & REAR PANEL (2)
285785 285785 CLUTCH
W10876590 W10876590 CONNECTOR
3347286 3347286 CORD-POWER
285753A 285753A COUPLING
WP384496 WP384496 COUPLING, HOSE 10-16 X 1/2 (2)
285202 285202 COVER, GEARCASE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
285244 285244 FEET-LVLNG
WPW10001130 WPW10001130 FOOT
W10814296 W10814296 GASKET, CENTER POST
WPW10233584 WPW10233584 GEAR-SPIN
3363395 3363395 GEARCASE
3360629 3360629 GEARCASE
285515 285515 GEARCASE
261880 261880 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
WP62691 WP62691 GROMMET, MOTOR (4)
63833 63833 HARNESS, LID SWITCH
WP3359809 WP3359809 HARNESS, MAIN
WP21258 WP21258 HINGE, BEARING (2)
WP387402 WP387402 HINGE, CONSOLE (2)
WP54584 WP54584 HINGE, LID (L.H.)
WP54583 WP54583 HINGE, R.H.
285871 285871 HOSE
285664 285664 HOSE
WP3357328 WP3357328 HOSE
WPW10358149 WPW10358149 HOSE
WP353244 WP353244 HOSE
WP3348552 WP3348552 HOSE, PUMP TO DRAIN CONNECTOR
WP89503 WP89503 HOSE-FILL
350941 350941 LEVELER (THINNER)
WPW10193854 WPW10193854 LID
3348792 3348792 LIGHTS, INDICATOR
285790 285790 LINING
WP63466 WP63466 LINK, LEVELING MECHANISM (2)
LIT3348620 LIT3348620 LIST, REPAIR PARTS
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
387783 387783 MOTOR, MAIN DRIVE
3348794 3348794 MOTOR, TIMER (50 HZ.)
388253A 388253A NEUTRL-PAK
WP358473 WP358473 NUT
WP62739 WP62739 NUT
WP689559 WP689559 NUT
WP21366 WP21366 NUT, LOCK
350572 350572 OIL, GEARCASE (16 OZ.)
285744 285744 PAD
285219 285219 PAD
WP21097 WP21097 PAD, HINGE (2)
WP62747 WP62747 PAD, REAR PANEL
978883 978883 PAINT
799344 799344 PAINT
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
285931 285931 PANEL, REAR
3348575 3348575 PANEL-CNTL
285609 285609 PARTS-MISC
63162 63162 PIN, CABINET GUIDE (2)
WP62837 WP62837 PIN, KNURLED
WP62611 WP62611 PLATE, MOTOR MOUNT TO GEARCASE
54690 54690 PLUG, BUTTON
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
62888 62888 PLUG, TERMINAL (3-WAY)
350938 350938 PRIMER, GRAY
63523 63523 PROTECTOR, HARNESS
WP3348587 WP3348587 PUSHBUTTON (5)
3347730 3347730 RECEPTACLE (6-WAY)
WP62889 WP62889 RECEPTACLE, TERMINAL (3-WAY) (CONNECTS WITH HARNESS)
W11733005 W11733005 RELIEF-STR
WPW10086010 WPW10086010 RETAINER
WP3350222 WP3350222 RETAINER
WP8546127 WP8546127 RETAINER
62677 62677 RETAINER, SPRING (2)
WPW10145155 WPW10145155 RETAINER, SUSPENSION SPRING (ALMOND)
285353 285353 RING
WP62658 WP62658 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP63134 WP63134 RING, SOUND DEADENING
WPW10080230 WPW10080230 RING, SPIN TUBE SUPPORT
285765 285765 RING-RETNR
W10880720 W10880720 RING-TUB
W11033823 W11033823 RING-WIRE
354239 354239 RIVET
WP356907 WP356907 RIVET (2)
WP96160 WP96160 SCREEN, FILTER
WP681414 WP681414 SCREW
WPW10119828 WPW10119828 SCREW
WP3390631 WP3390631 SCREW
WP308685 WP308685 SCREW
WP3400516 WP3400516 SCREW
WP273556 WP273556 SCREW
WP965173 WP965173 SCREW
WP356418 WP356418 SCREW
304795 304795 SCREW
WP3351614 WP3351614 SCREW
WP358237 WP358237 SCREW & WASHER (5/16 - 24 X 1)
354764 354764 SCREW & WASHER, LID SWITCH (2)
WP90767 WP90767 SCREW, 8 A X 3/8
62735 62735 SCREW, GEARCASE TO BASE (3) (5/16-24 X 3/4)
WP3400036 WP3400036 SCREW, GROUND (10-24 X 1)
W11095997 W11095997 SEAL
WP8577376 WP8577376 SEAL, CENTERPOST
WP356427 WP356427 SEAL, DRIVE TUBE
WP91939 WP91939 SEAL, OIL
285352 285352 SEAL, THRUST PLUG
WP3349985 WP3349985 SEAL-COVER
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6 ML)
WP389387 WP389387 SHAFT, AGITATOR (COMPLETE)
WP389231 WP389231 SHAFT-AGIT
LIT387194 LIT387194 SHEET, INSTALLATION INSTRUCTIONS
WP3946532 WP3946532 SHIELD
WP359231 WP359231 SHIELD, LID SWITCH
8539874 8539874 SHIELD, SUDS
W10838408 W10838408 SHIELD-MTR
285438 285438 SHOE-BRAKE
WP3946509 WP3946509 SKATE PLT
285658 285658 SLEEVE
WP63022 WP63022 SLEEVE
WP62750 WP62750 SPACER, CABINET TO TOP (4)
356937 356937 SPACER, DRIVE TUBE
350930 350930 SPRAY (13 OZ.) (WHITE)
8316845 8316845 SPRING
3349948 3349948 SPRING & BUTTON, LID
53748 53748 SPRING & BUTTON, LID ((R.H.))
387806 387806 SPRING, BRAKE
WP63907 WP63907 SPRING, SUSPENSION (3)
62676 62676 SPRING, WASHER AGITATOR
WPW10250667 WPW10250667 SPRING,COUNTERWEIGHT
358472 358472 STOP, PUSH-IN TOP
22965 22965 STRAP
WP358684 WP358684 STRIKE, LID
WP8519200 WP8519200 SUPPORT
280184 280184 SUPPORT
64102 64102 SWITCH, WATER LEVEL
W10820036 W10820036 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR

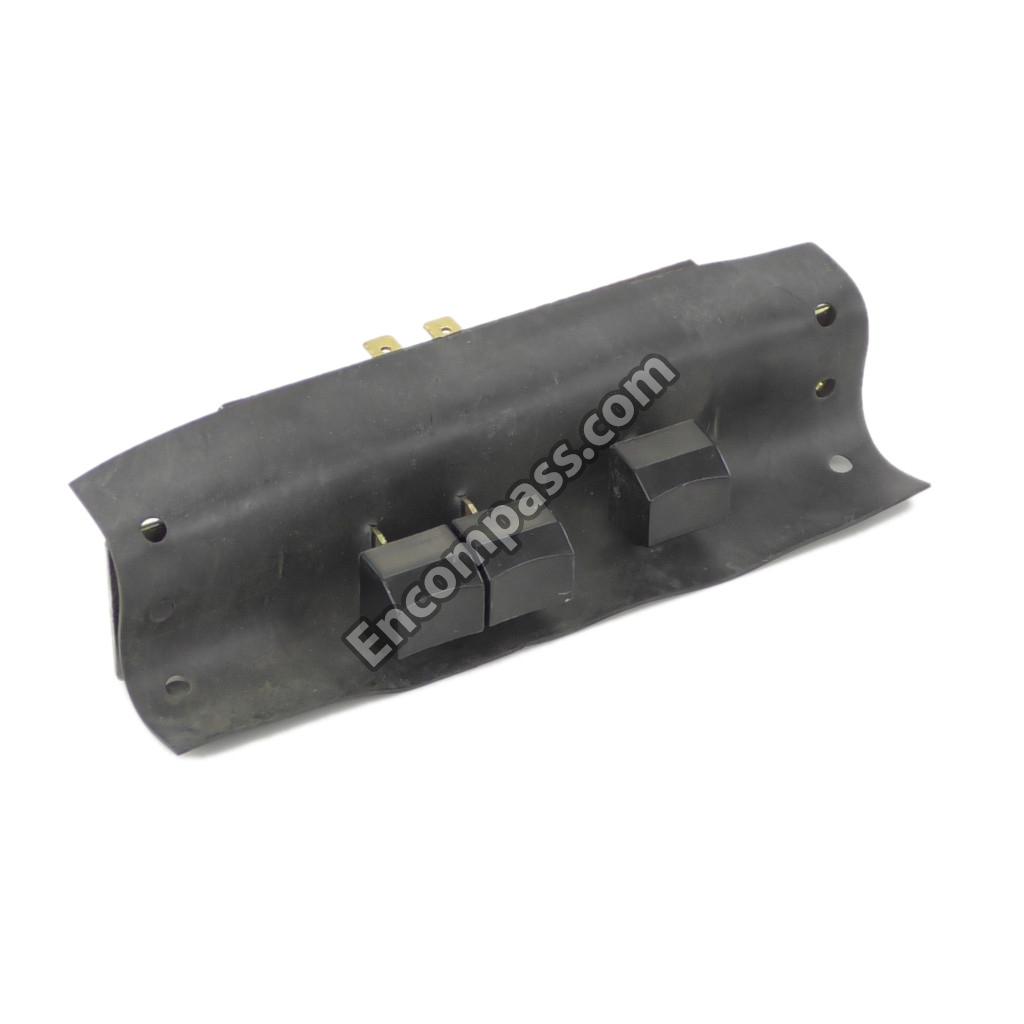

W10330142 W10330142 SWITCH-PB
WPW10339879 WPW10339879 TIE-WIRE
3348793 3348793 TIMER
3359041 3359041 TOP (WHITE)
63849 63849 TUB
WP64208 WP64208 TUBE-SPIN
285874 285874 VALVE
WP388815 WP388815 WASHER
285766 285766 WASHER KIT, THRUST
62618 62618 WASHER, CAM THRUST
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
WP63292 WP63292 WASHER, SPIN TUBE THRUST
62619 62619 WASHER, WASHER AGITATOR GEAR
WP3363394 WP3363394 WATER PUMP
303485 303485 WIRE, GROUND
