Model Image
Manufacturer

Whirlpool

Model Number

3CEP2920DW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR, SWITCH
279264 279264 AIR CHANNEL BOX
WP72107 WP72107 ALMOND
350956 350956 ALMOND
WP342847 WP342847 BAFFLE, DRUM
WP348780 WP348780 BASE, MOTOR

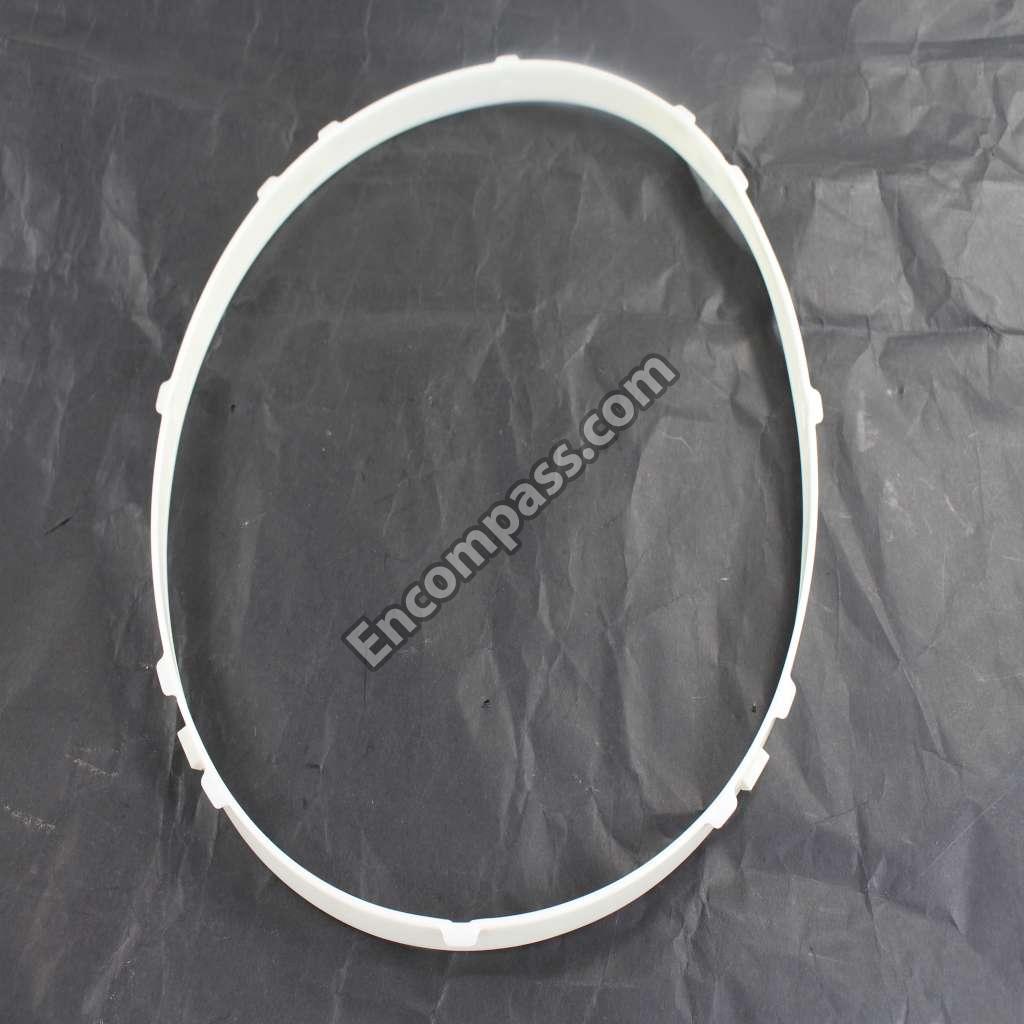

WP3394508 WP3394508 BEARING, RING

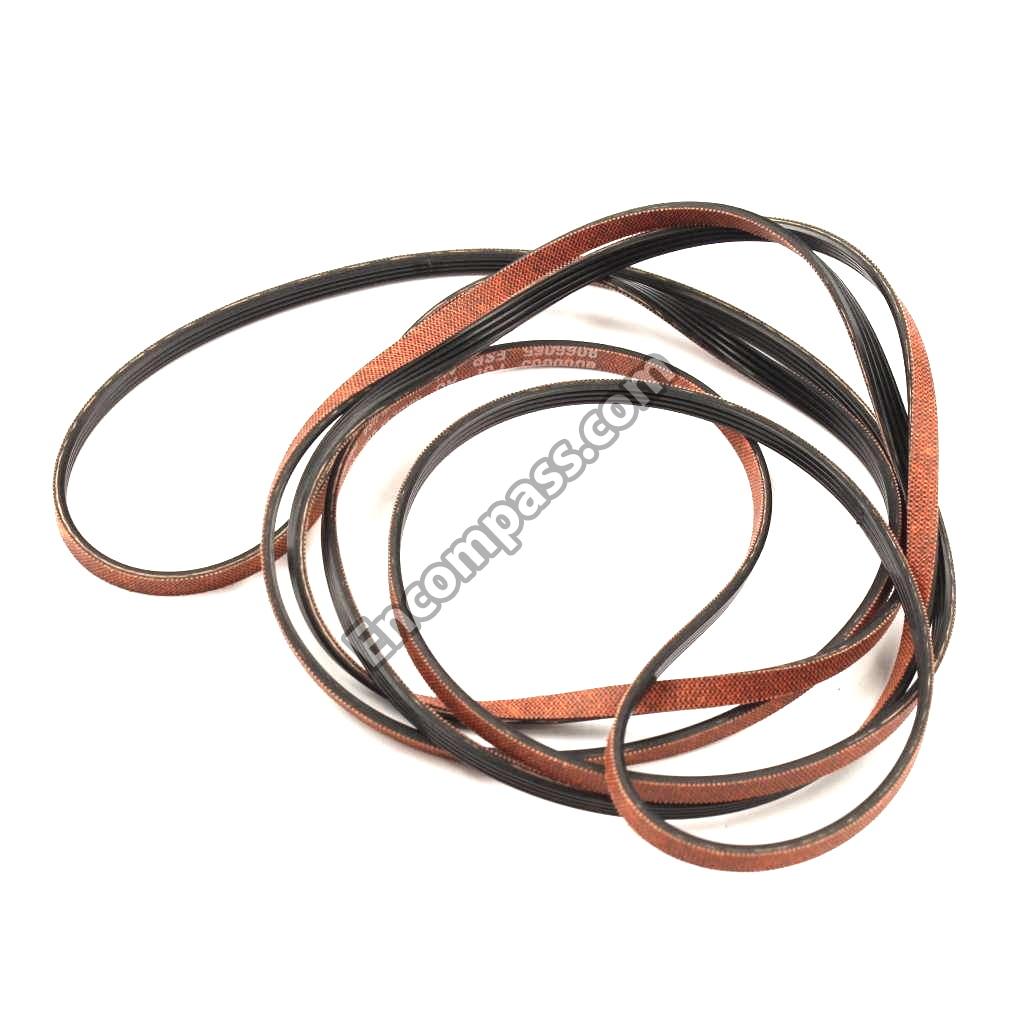

341241 341241 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM

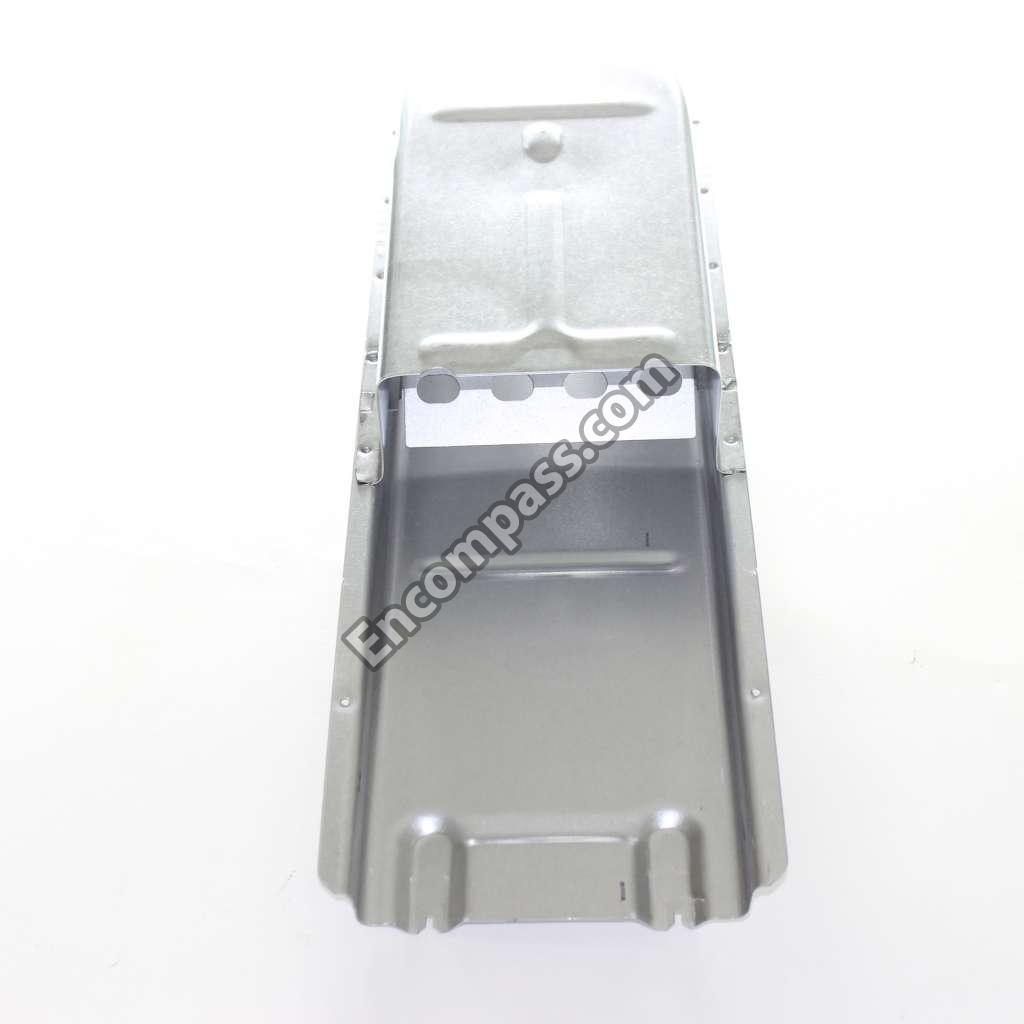

WP8541818 WP8541818 BOX, HEATER
3388374 3388374 BRACKET
3388375 3388375 BRACKET
3357341 3357341 BRACKET
3976435 3976435 BRACKET, SUPPORT
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
279793 279793 BULKHEAD

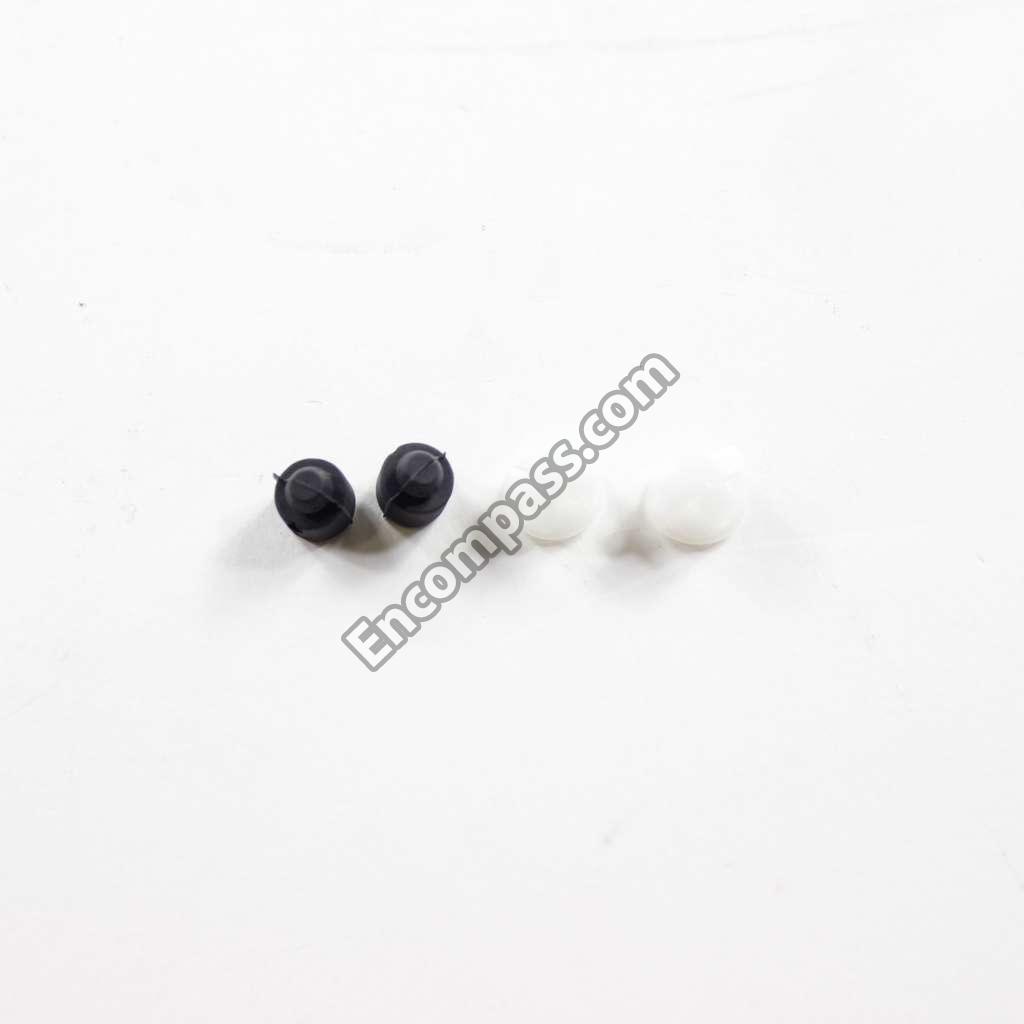

WP3348587 WP3348587 BUTTON (4)
3399580 3399580 CABINET ASSEMBLY (INCLUDES ILLUS. NOS. 9, 15, 18, 25 & 39) (WHITE)
WP339855 WP339855 CAM
WP343777 WP343777 CAM
WP3387974 WP3387974 CAM (3 PIN (60 MIN.))
WP3348109 WP3348109 CAMERA LENS-LIGHT
63789 63789 CAP, END (L.H.)
63795 63795 CAP, END. (R.H.)

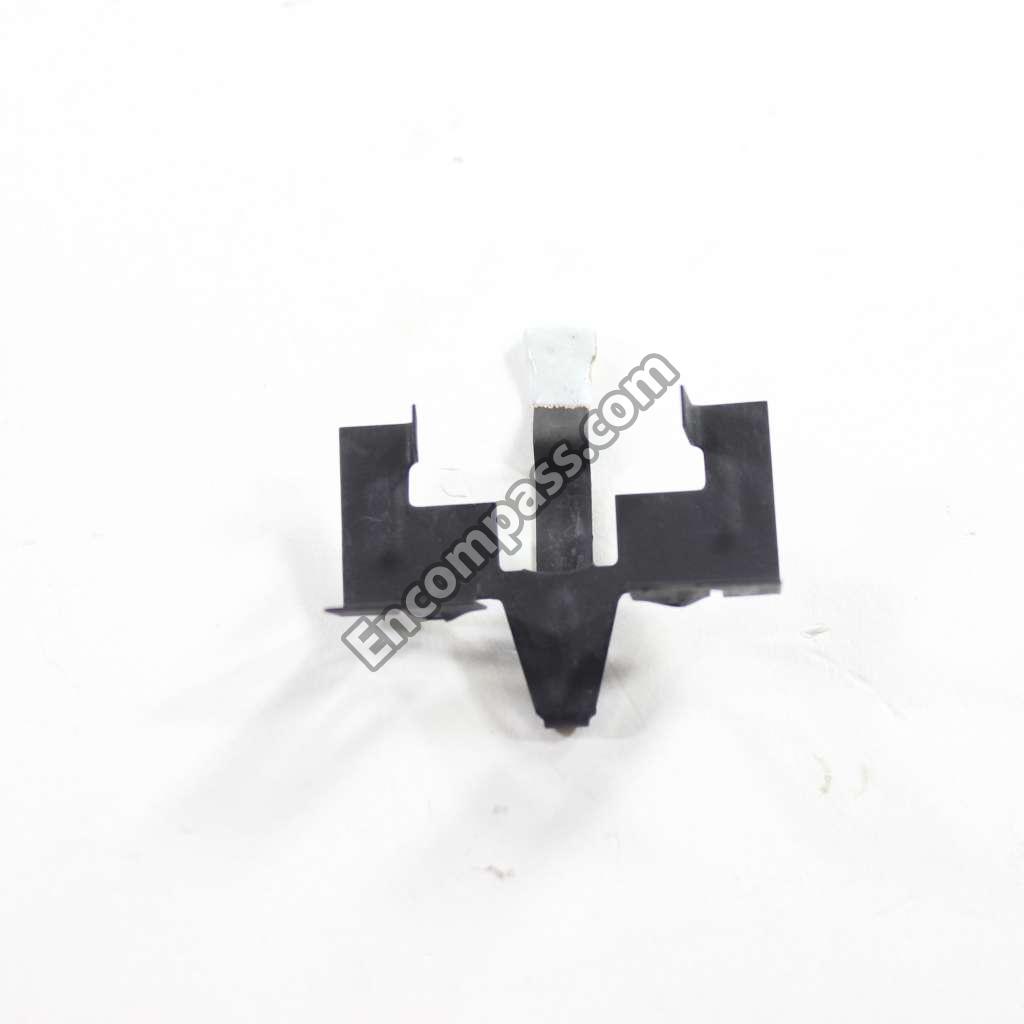

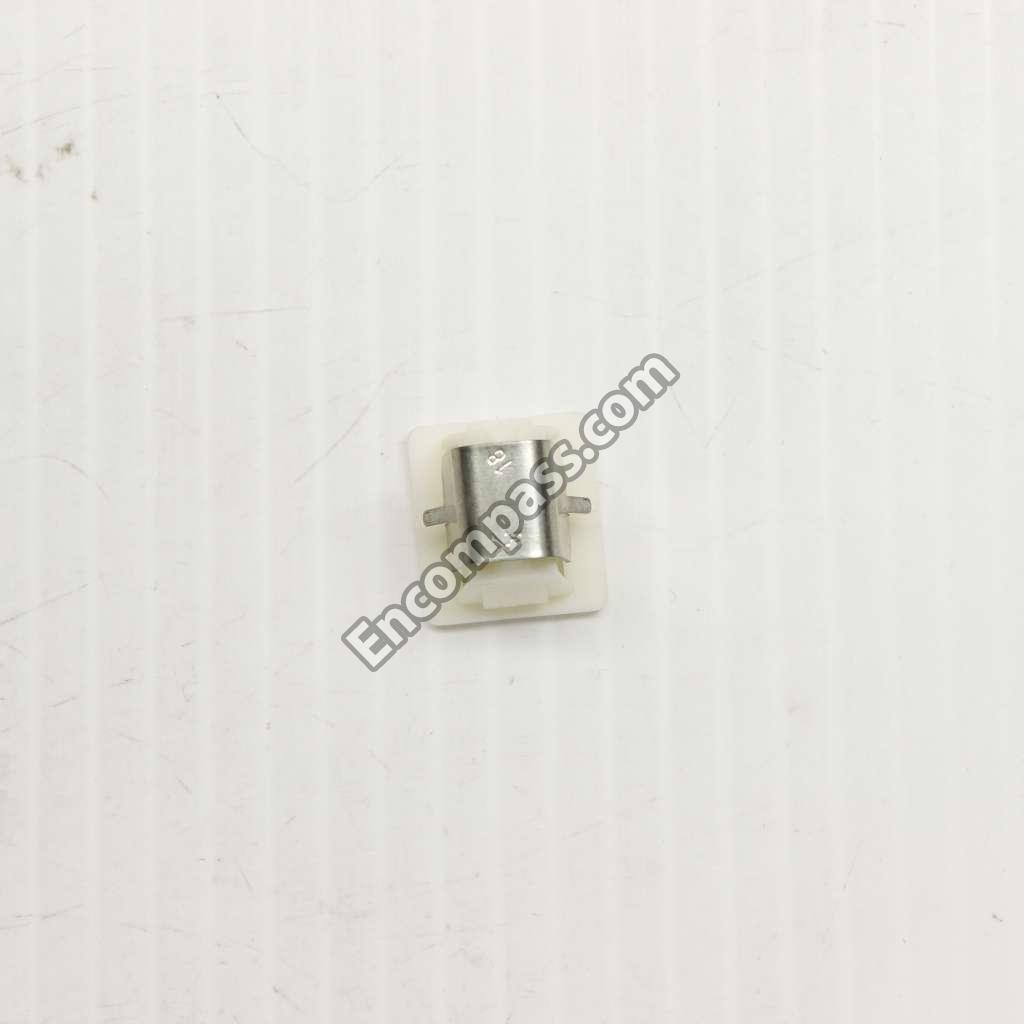

WP3389441 WP3389441 CATCH, DOOR
279505 279505 CHUTE

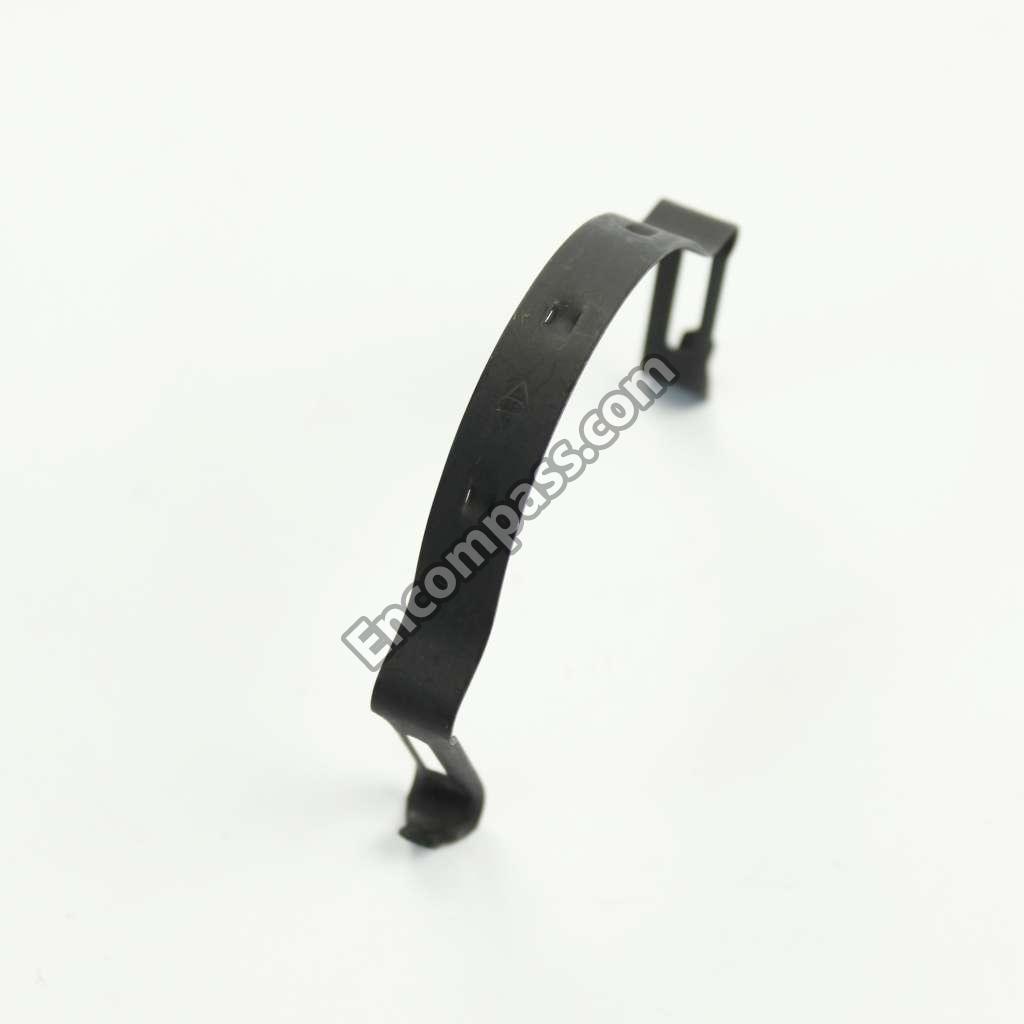

WP660658 WP660658 CLAMP, MOTOR

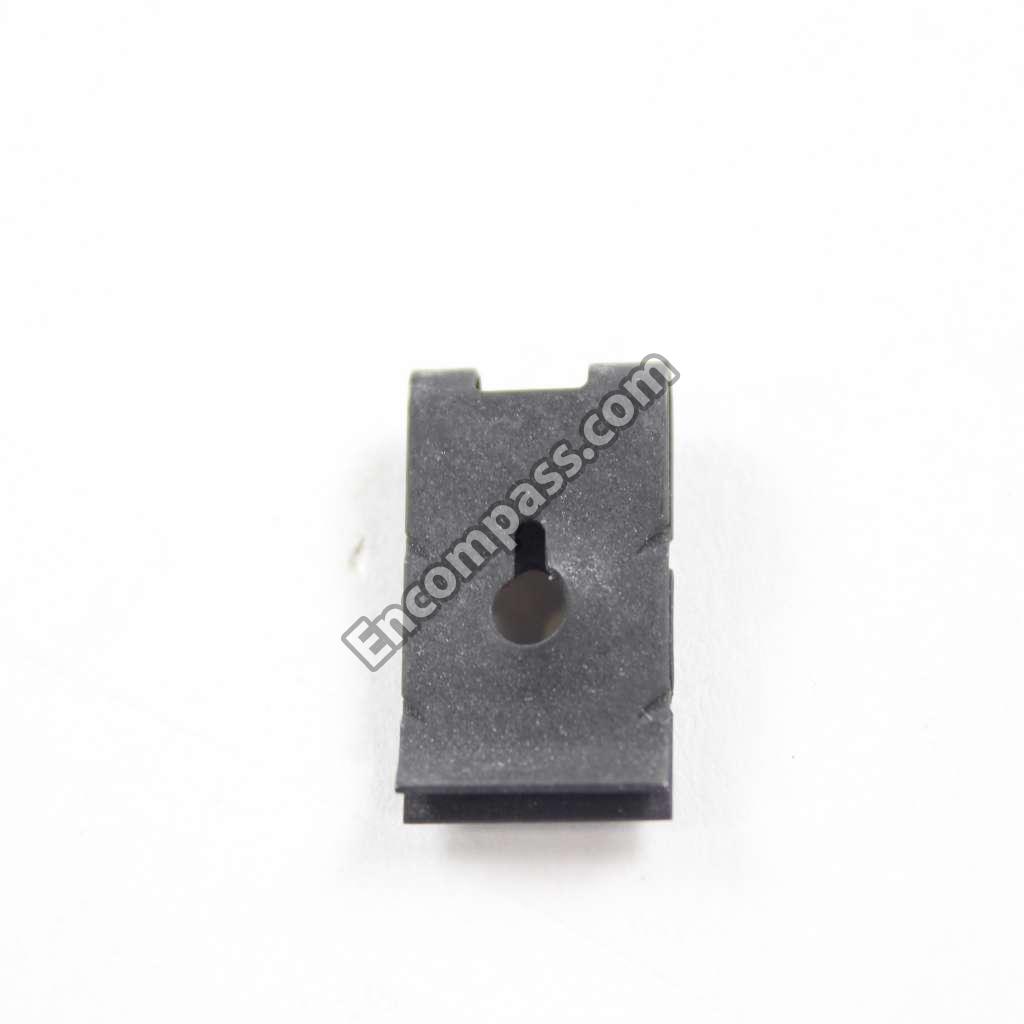

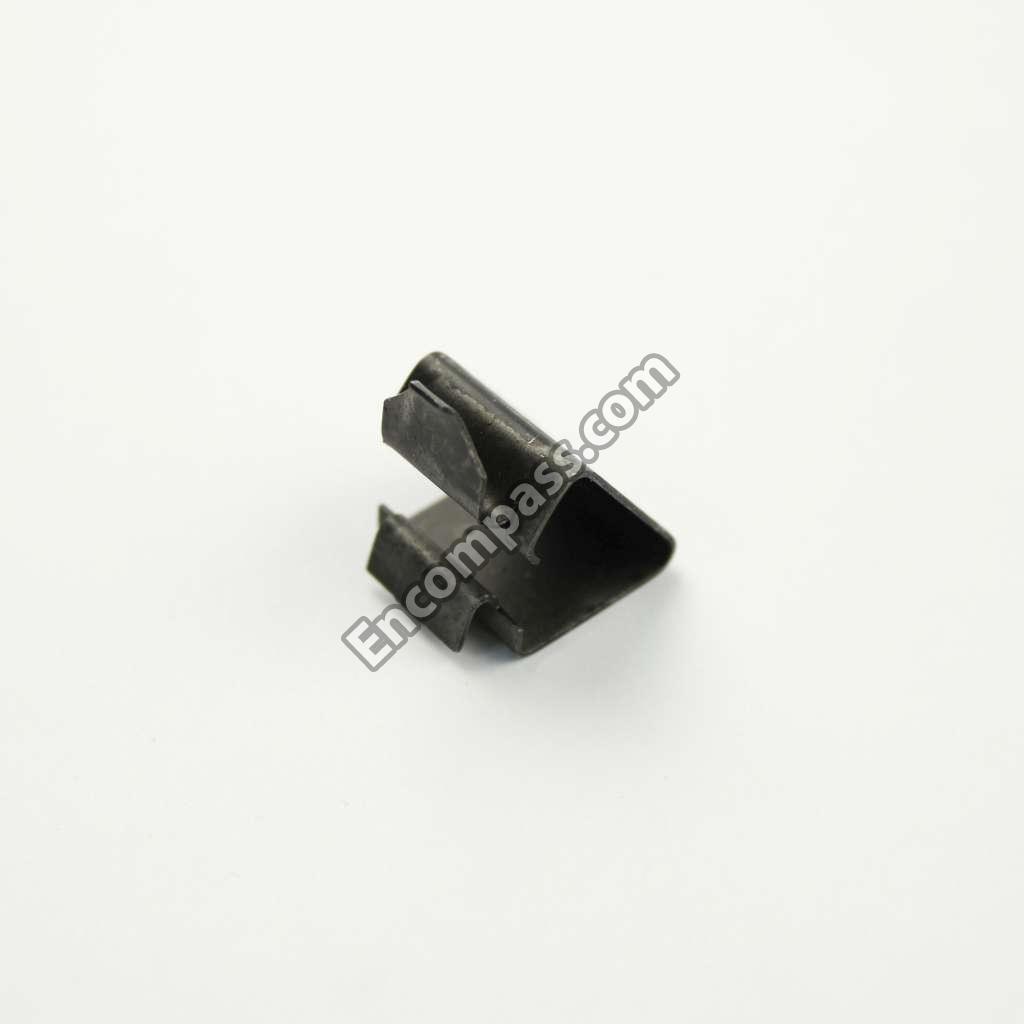

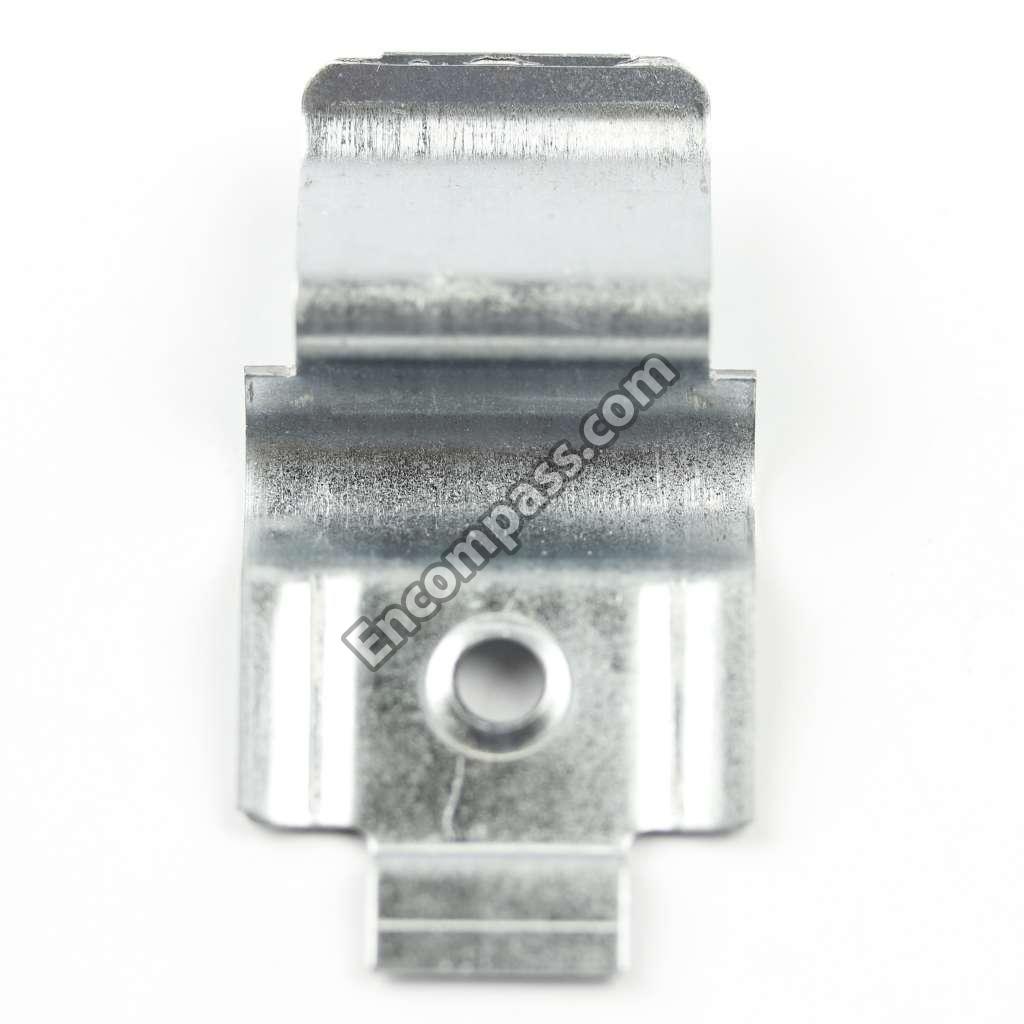

WP297092 WP297092 CLIP
279771 279771 CLIP
279220 279220 CLIP
WP98234 WP98234 CLIP (2)
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
WP697367 WP697367 COVER, LINT SCREEN (WHITE)
W11736322 W11736322 COVER, TERMINAL BLOCK
280077 280077 DOOR
279570 279570 DOOR LATCH
WP348205 WP348205 DOOR, FRONT
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W11618508 W11618508 DRIVE MOTOR
3396775 3396775 DRUM ASSEMBLY
3398066 3398066 ELEMENT
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
WP3392519 WP3392519 FUSE-THRML
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)

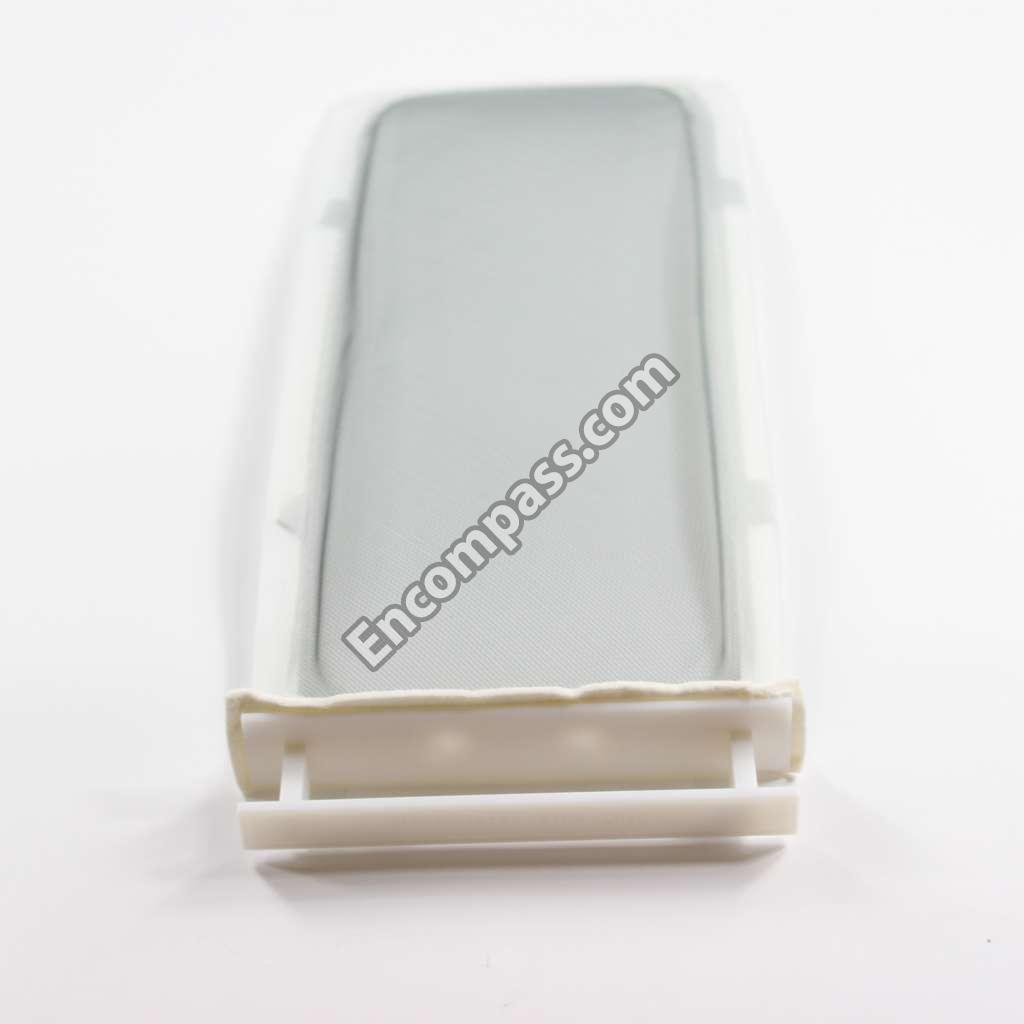

339392 339392 HANDLE & LINT SCREEN ASSEMBLY

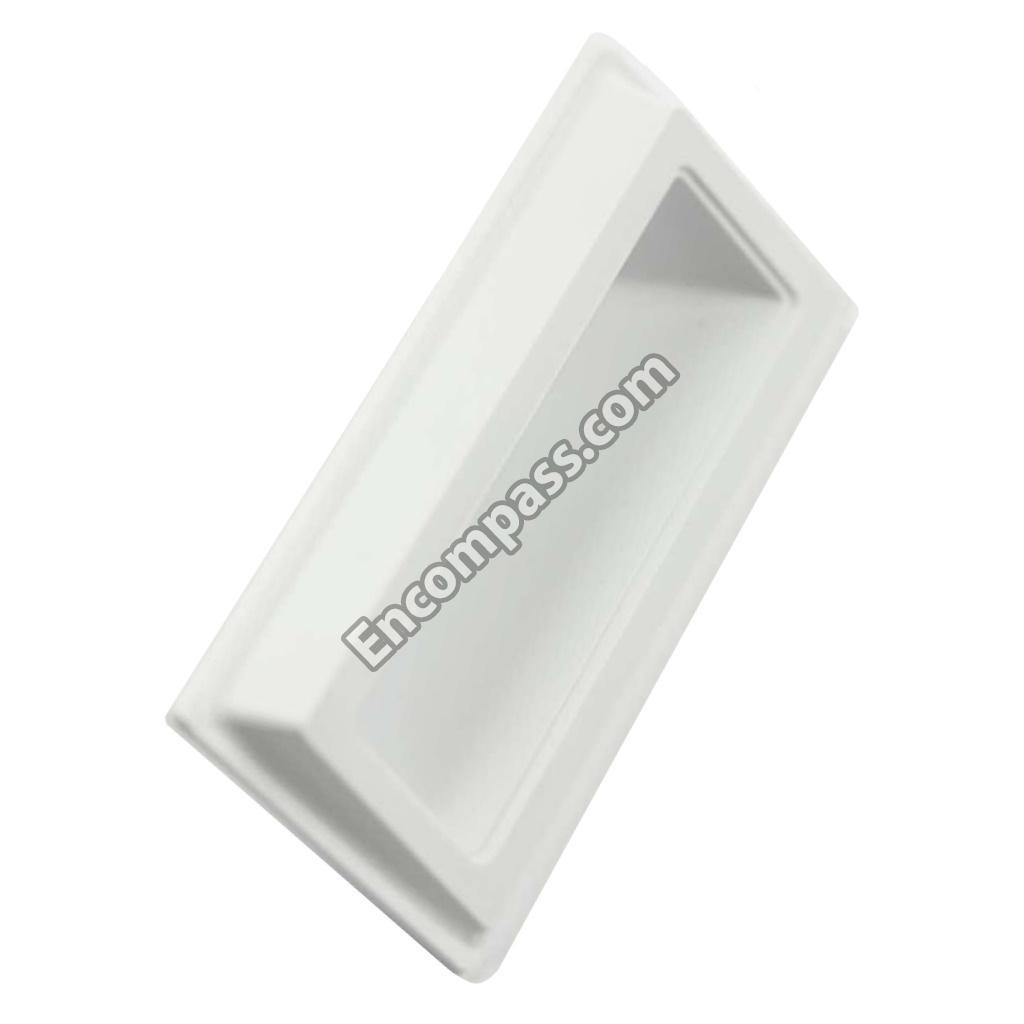

WP686711 WP686711 HANDLE, DOOR (WHITE)
3401662 3401662 HARNS-WIRE
3401767 3401767 HARNS-WIRE
WPW10044480 WPW10044480 HINGE
WPW10044470 WPW10044470 HINGE
WP348023 WP348023 HINGE AND PIN ASSEMBLY (2)
WP8066217 WP8066217 HINGE, TOP (2))

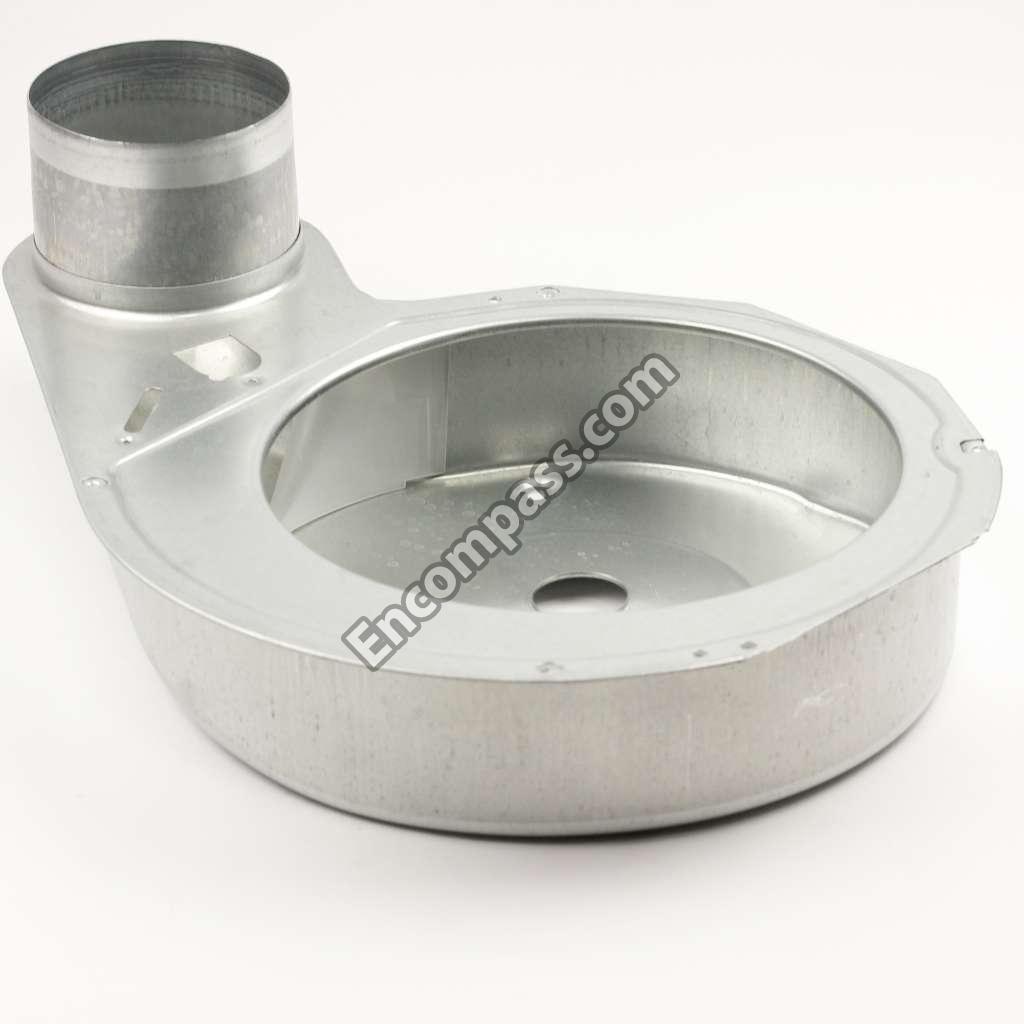

WP8577230 WP8577230 HOUSING

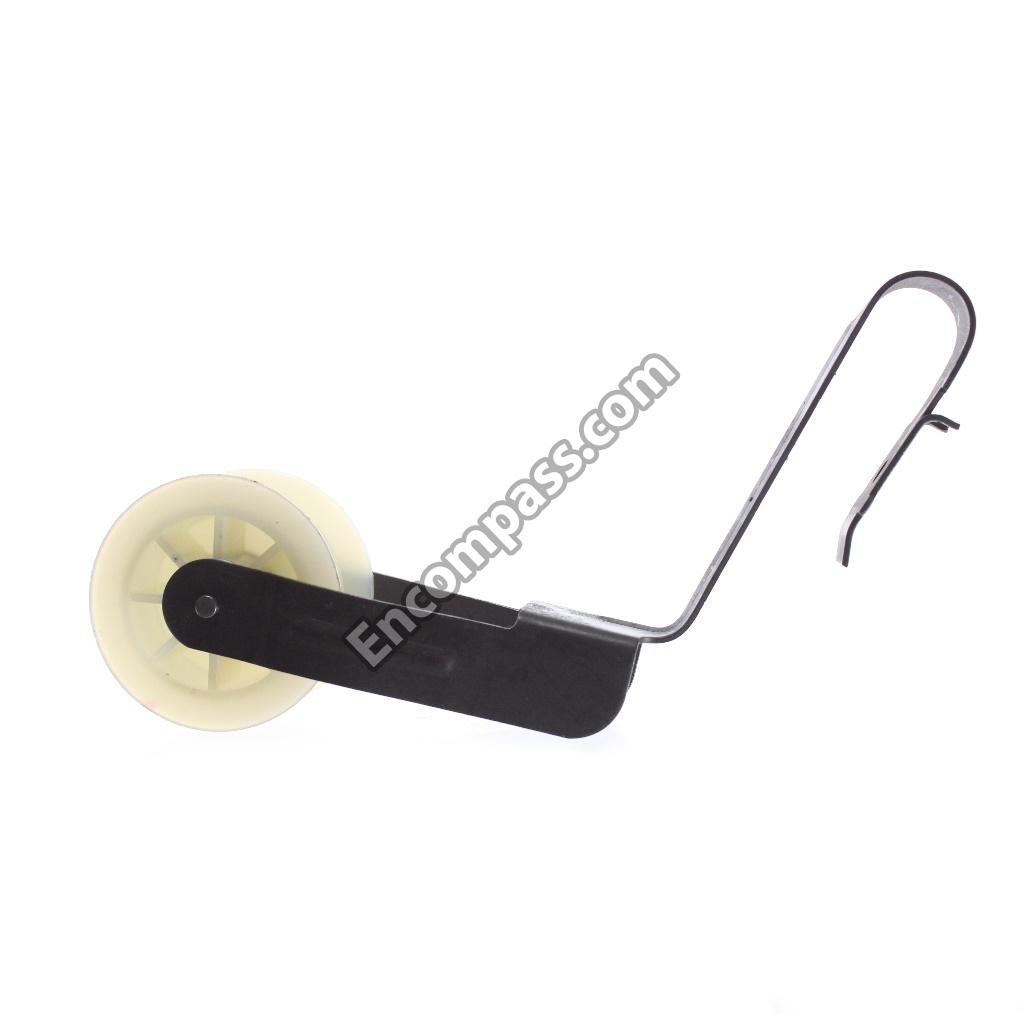

WP691366 WP691366 IDLER PULLEY ASSEMBLY
LIT3402395 LIT3402395 INSTRUCTIONS, INSTALLATION
LIT348772 LIT348772 INSTRUCTIONS, MULTI-VENTING

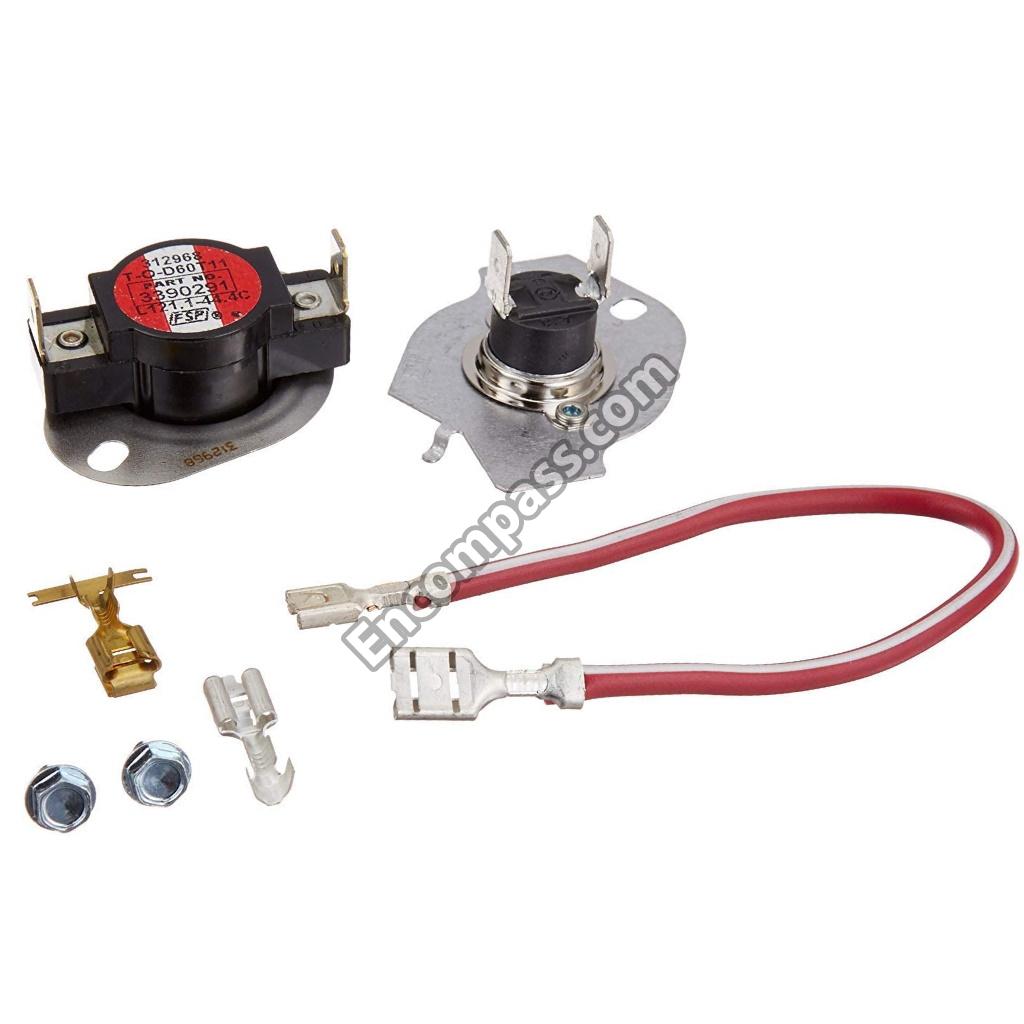

279816 279816 KIT, THERMAL CUT OFF (INCLUDES THERMOSTAT)
LIT3401740 LIT3401740 LABEL, WIRING DIAGRAM
694583 694583 LEVER, TIMER
3401760 3401760 LIGHTS, INDICATOR (240 VOLTS)
LIT4377693 LIT4377693 LIST, SERVICE PARTS
WP18776 WP18776 LOCK, FRONT TOP (2)
261889 261889 NEW AVOCADO (UNCUT)
303776 303776 NO DESCRIPTION AVALIABLE
WP689559 WP689559 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP90406 WP90406 NUT-CAGE
686889 686889 PAD, CABINET
978883 978883 PAINT
799344 799344 PAINT
72109 72109 PAINT, TOUCH-UP 1/2 OZ. (AVOCADO)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
280067 280067 PANEL
8066156 8066156 PANEL, REAR
3389679 3389679 PANEL-CNTL
280040 280040 PANEL-REAR
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
3348310 3348310 POD-INSLTN
350938 350938 PRIMER, GRAY
686770 686770 PROTECTOR SUPPORT
3348574 3348574 PUSHBUTTON

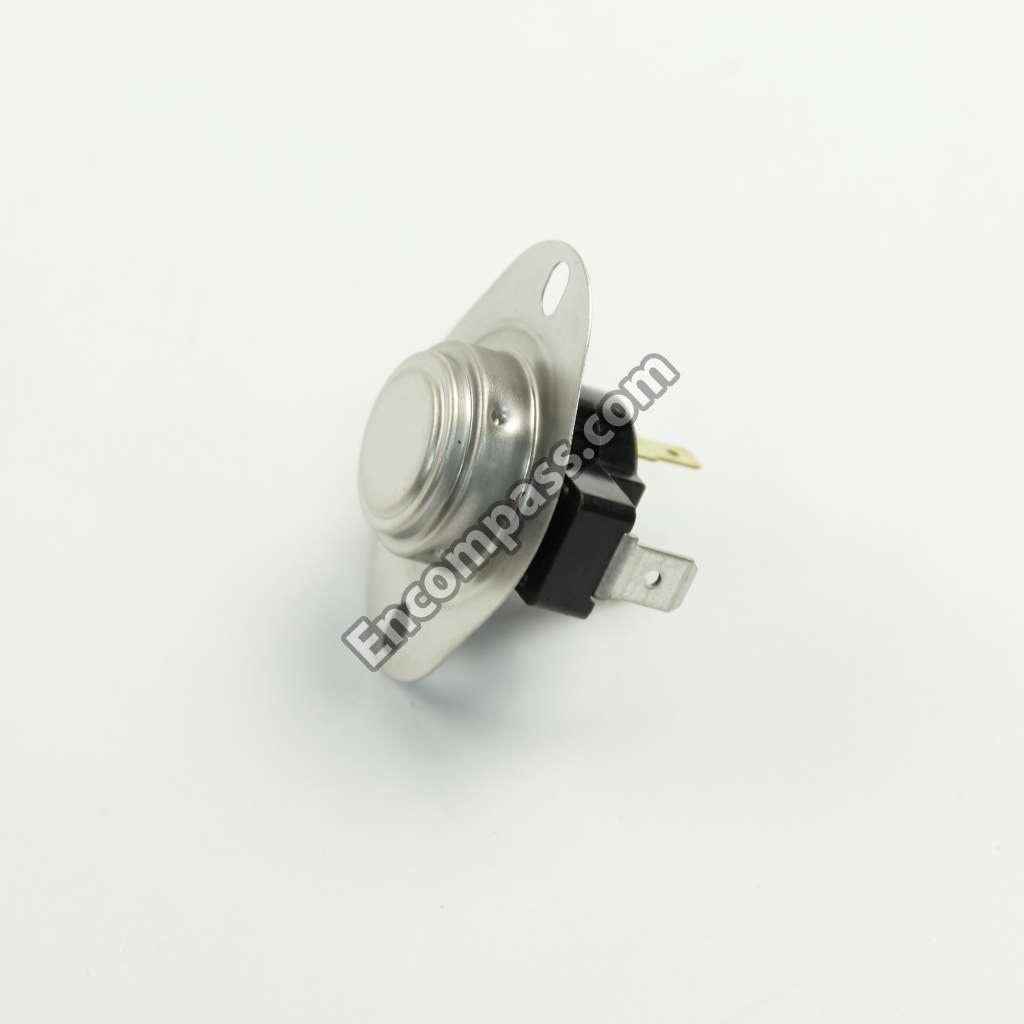

WP3387137 WP3387137 RANGE THERMOSTAT
98669 98669 RIVET
3400500 3400500 SCREW
WP681414 WP681414 SCREW
WPW10109200 WPW10109200 SCREW
WP489463 WP489463 SCREW
W11693756 W11693756 SCREW
WP965173 WP965173 SCREW
WP693995 WP693995 SCREW
98831 98831 SCREW
WP310410 WP310410 SCREW
WP308685 WP308685 SCREW
WP98129 WP98129 SCREW
WP694091 WP694091 SCREW
W10850756 W10850756 SCREW
WP90767 WP90767 SCREW, 8 A X 3/8

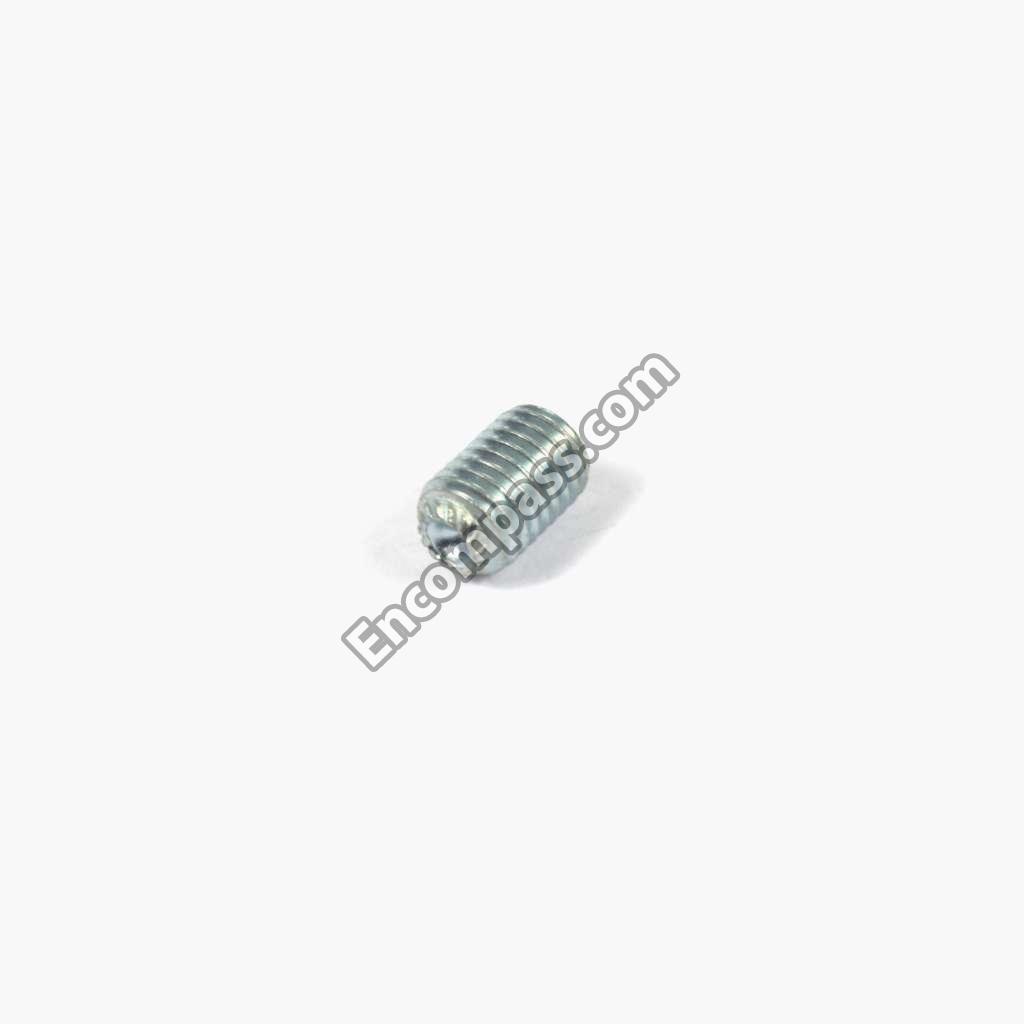

W10278738 W10278738 SCREW, SET
WP3394196 WP3394196 SEAL
239087 239087 SEAL

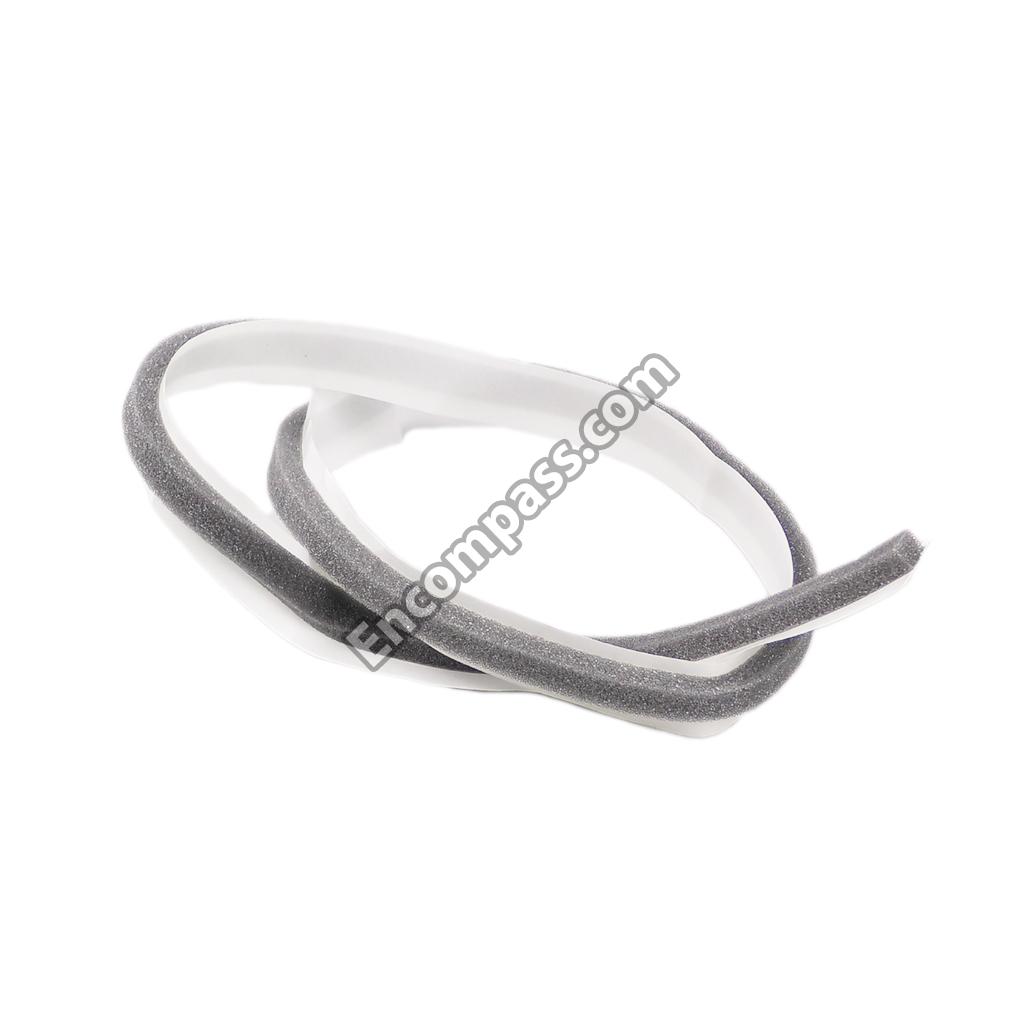

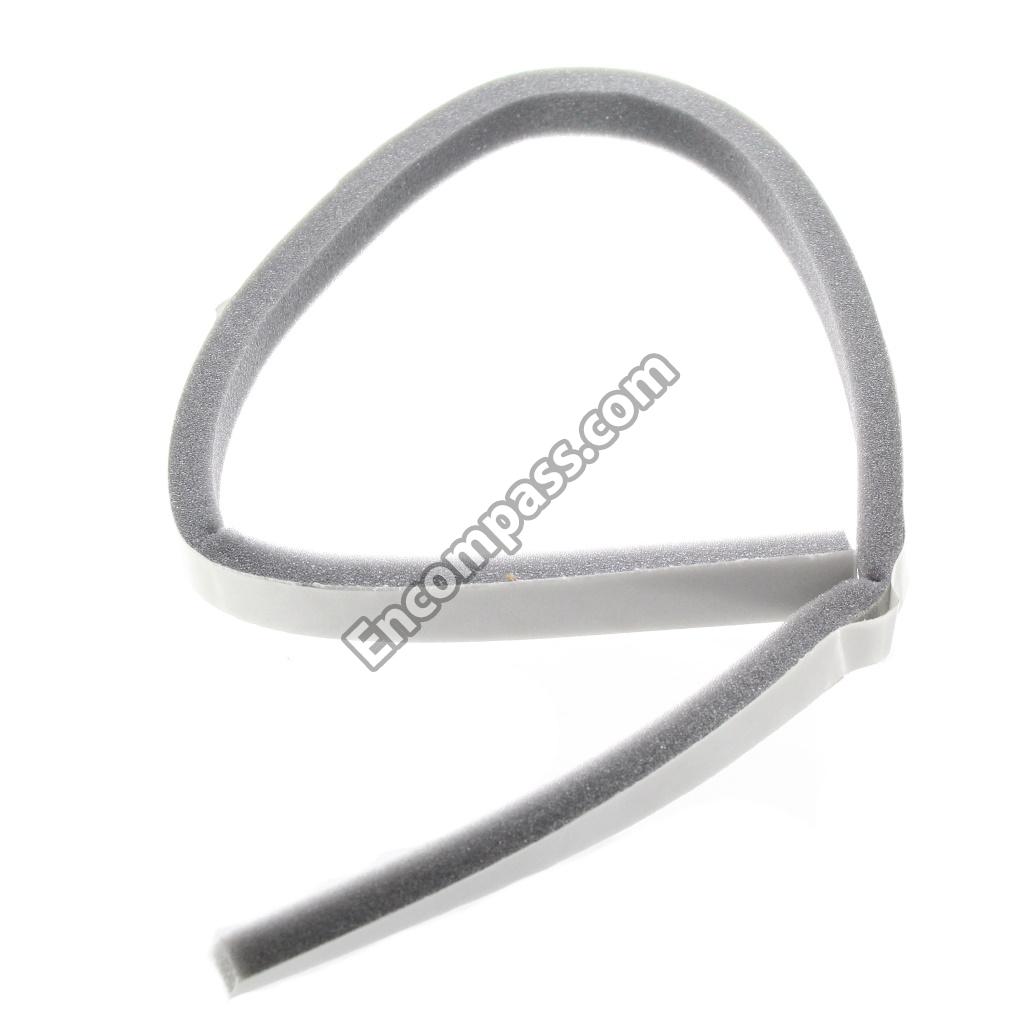

WP339956 WP339956 SEAL FOAM

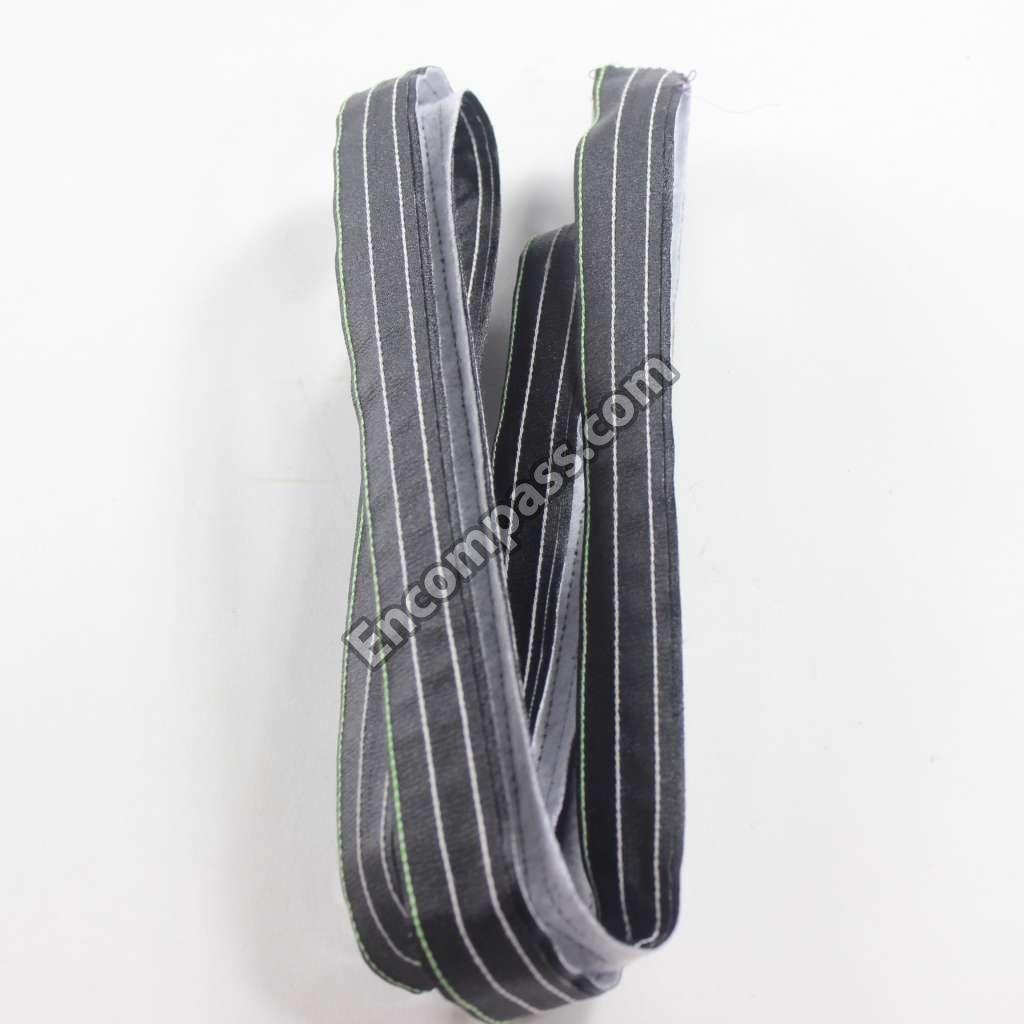

W11613302 W11613302 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE

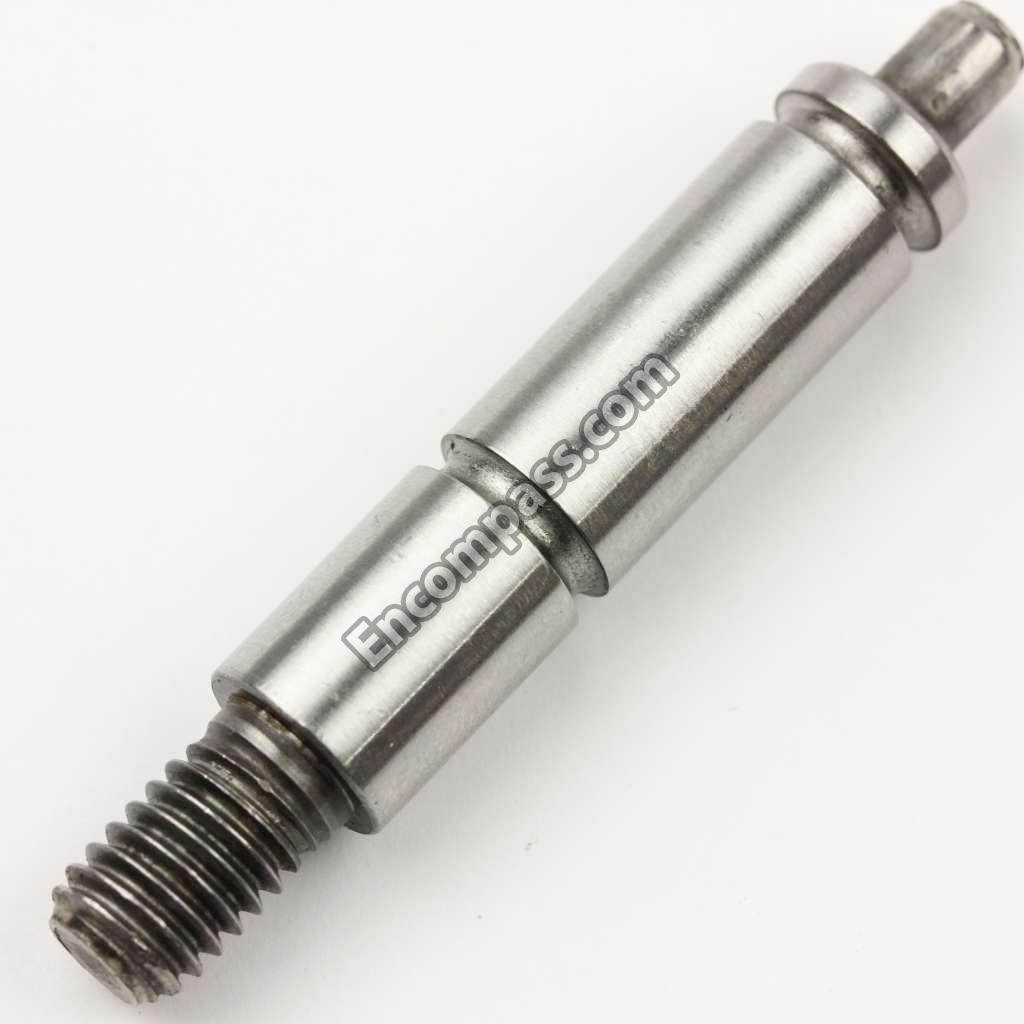

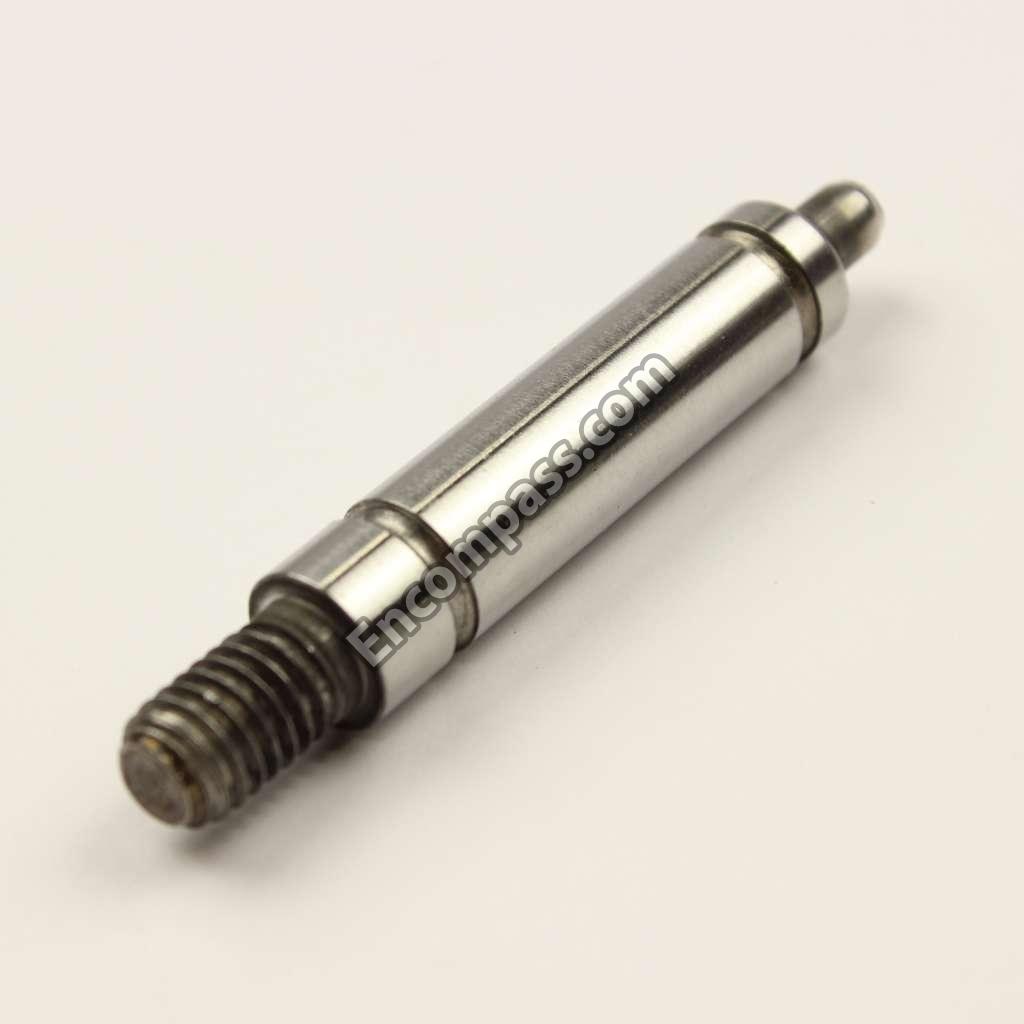

WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
261888 261888 SPRAY
350930 350930 SPRAY (13 OZ.) (WHITE)

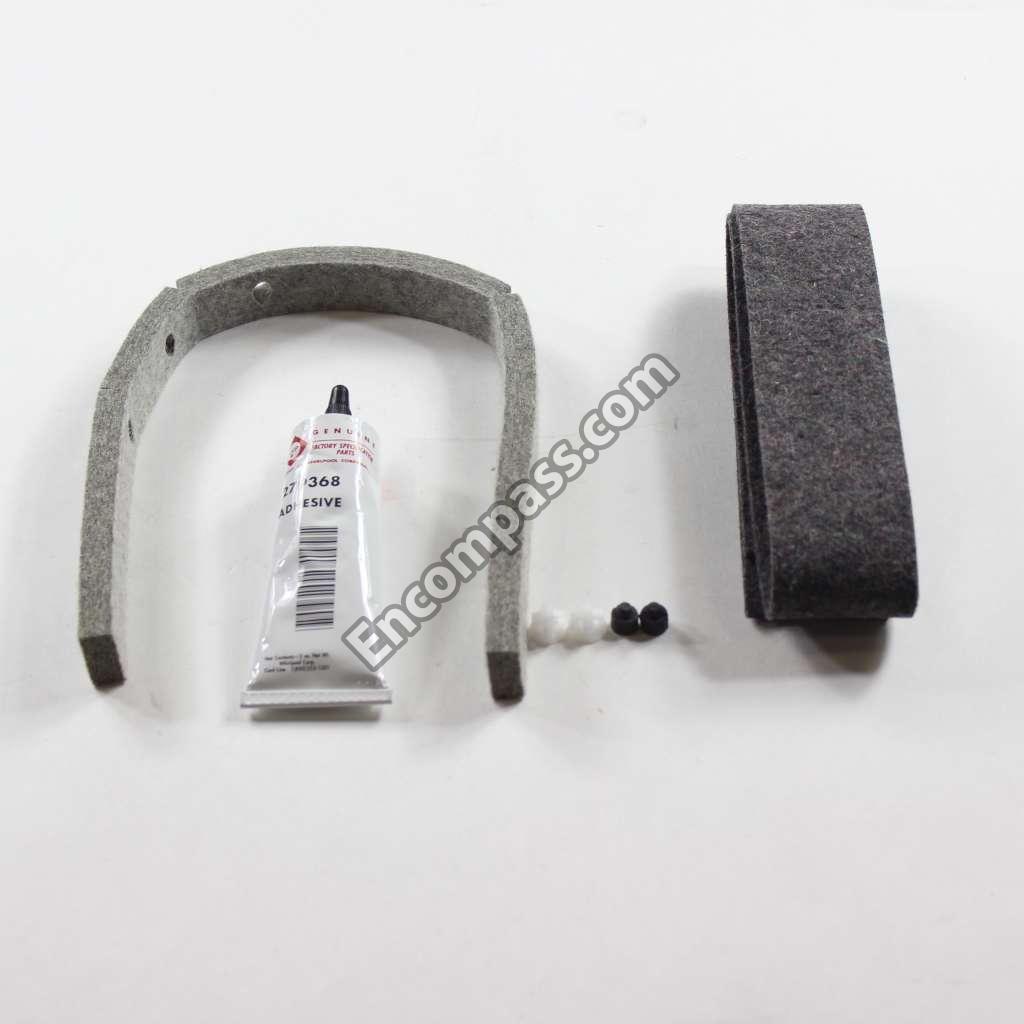

349241T 349241T SUPPORT
279827 279827 SWITCH, MOTOR START (USE W/3391886 MOTOR)
W10820036 W10820036 SWITCH-LID
3394078 3394078 SWITCH-PB
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)

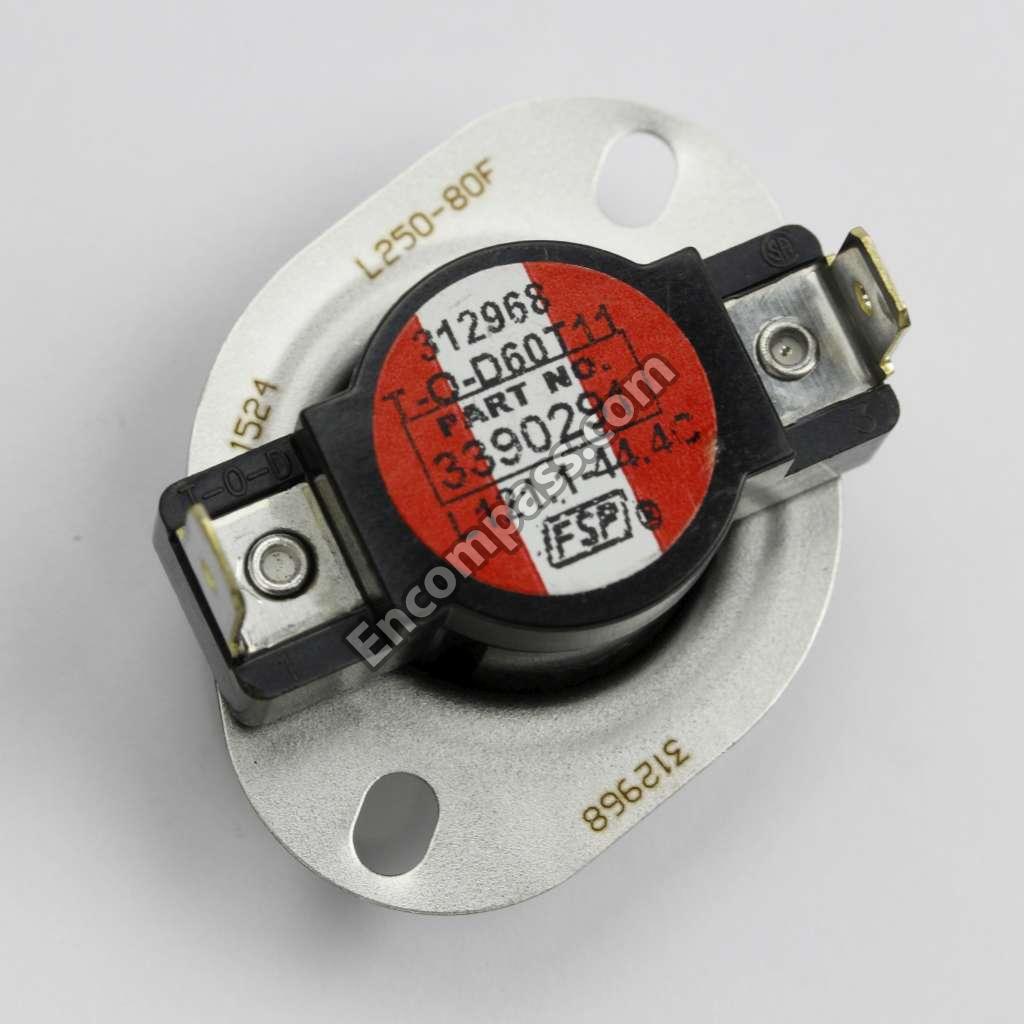

WP3390291 WP3390291 THERMOSTAT (250 F) (121C)
688621 688621 TIMER (INCLUDES 6 PIN TIMING CAM)
279841 279841 TOE PANEL
3393385 3393385 TOP (WHITE)

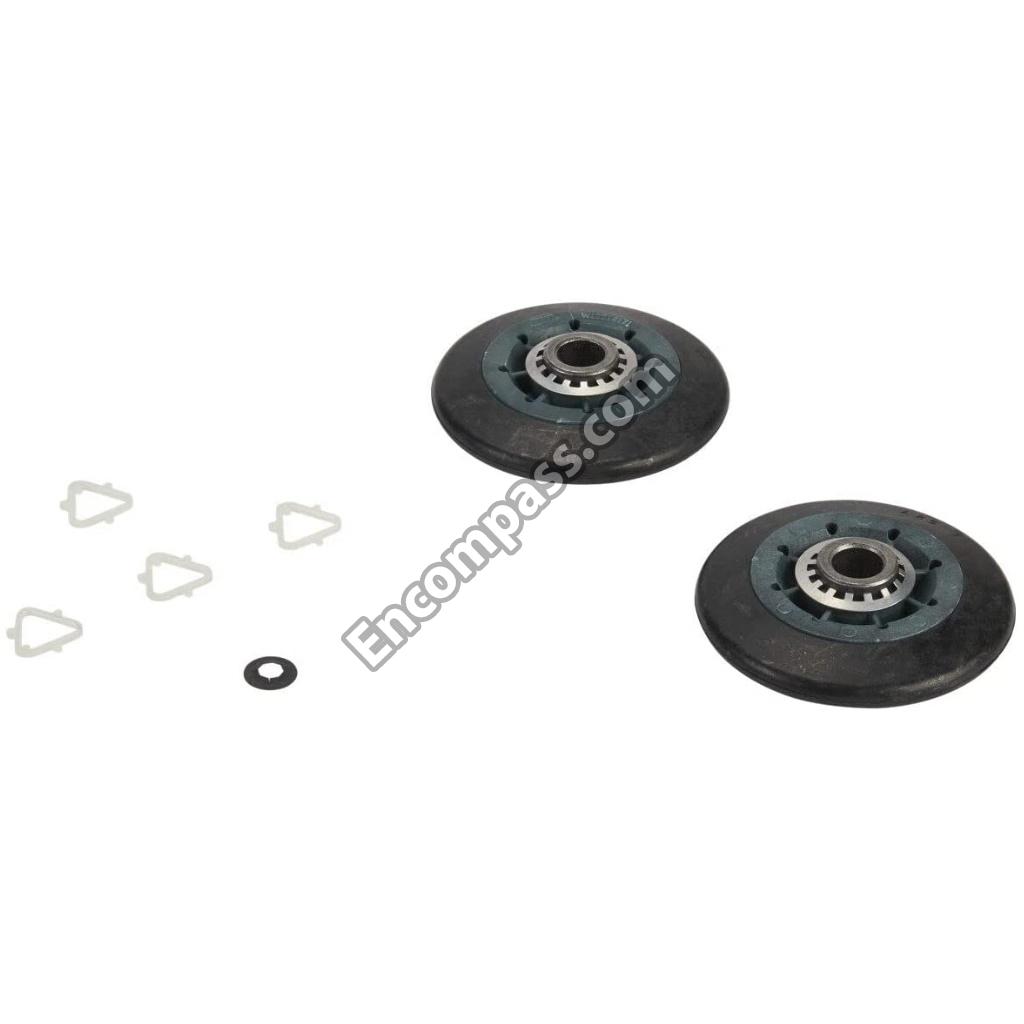

WPW10512946 WPW10512946 TRI-RING (4)

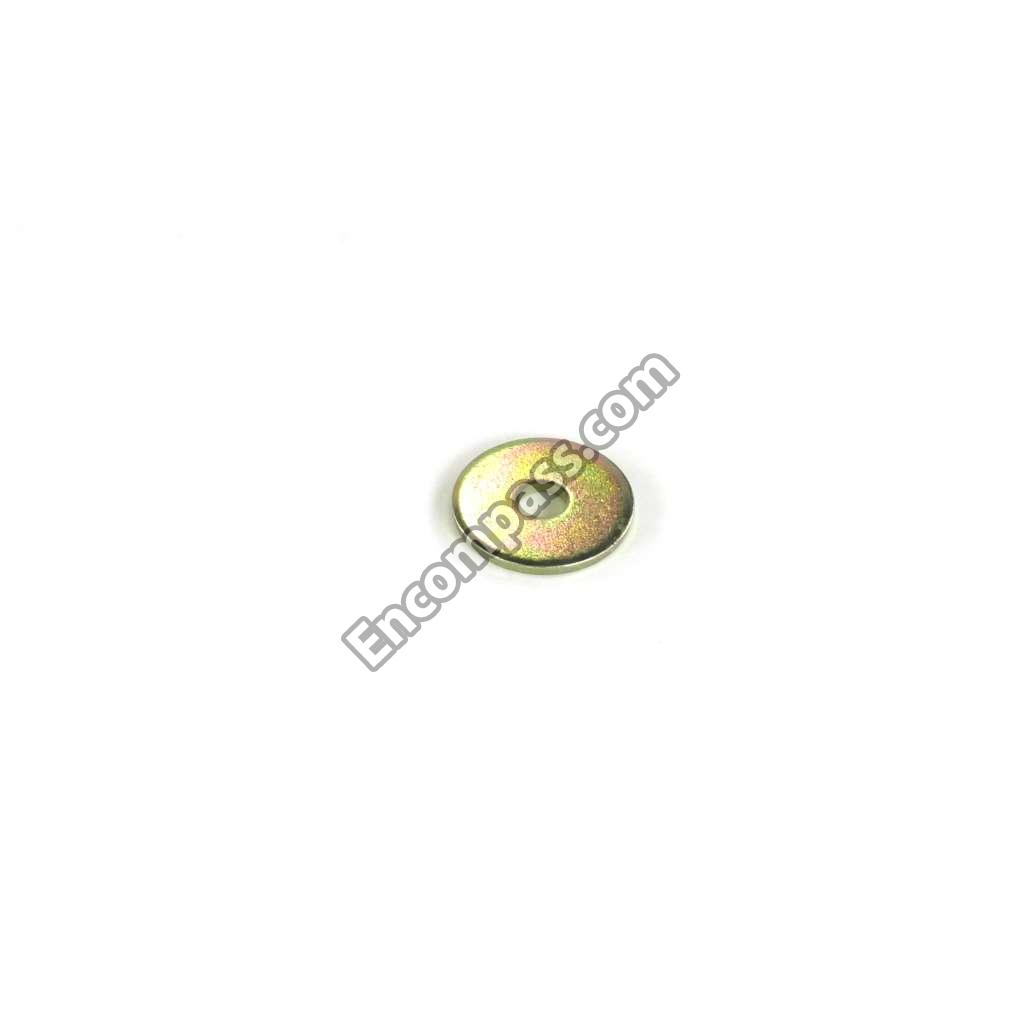

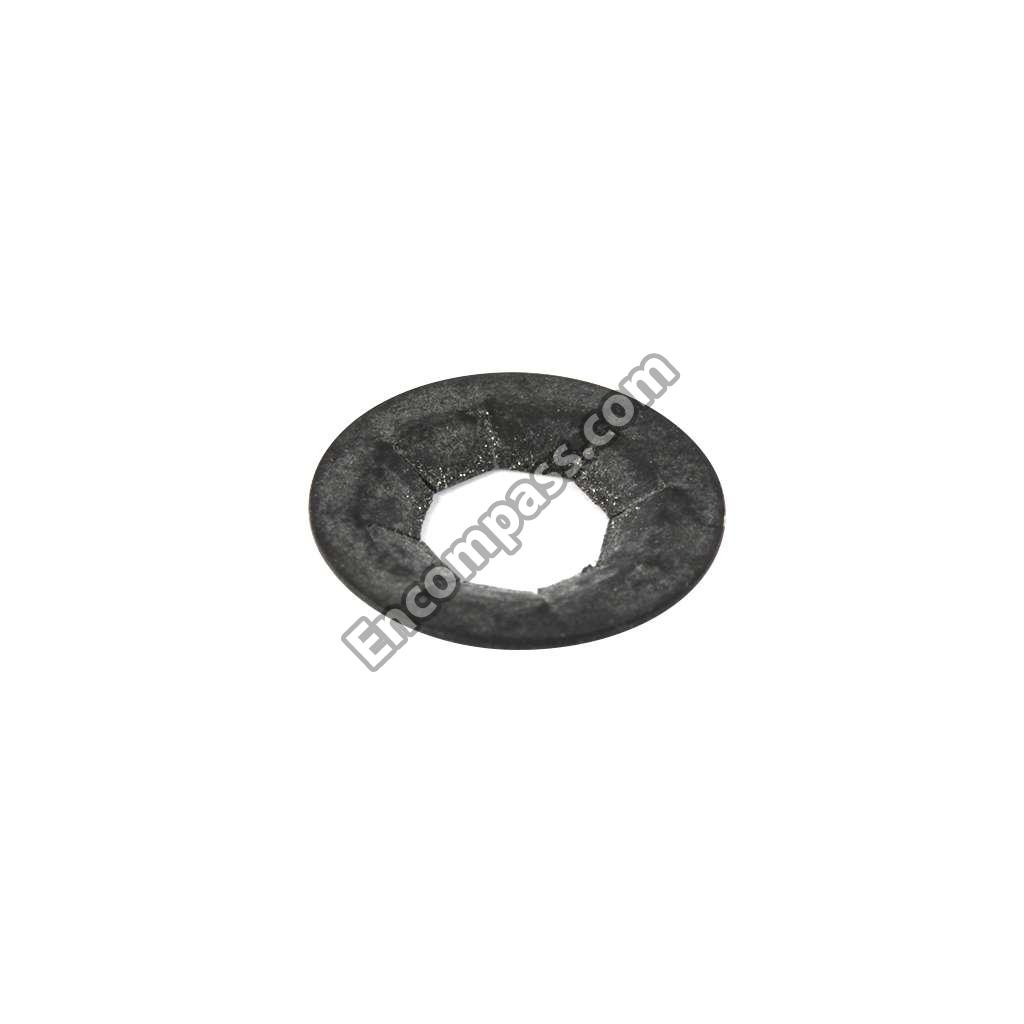

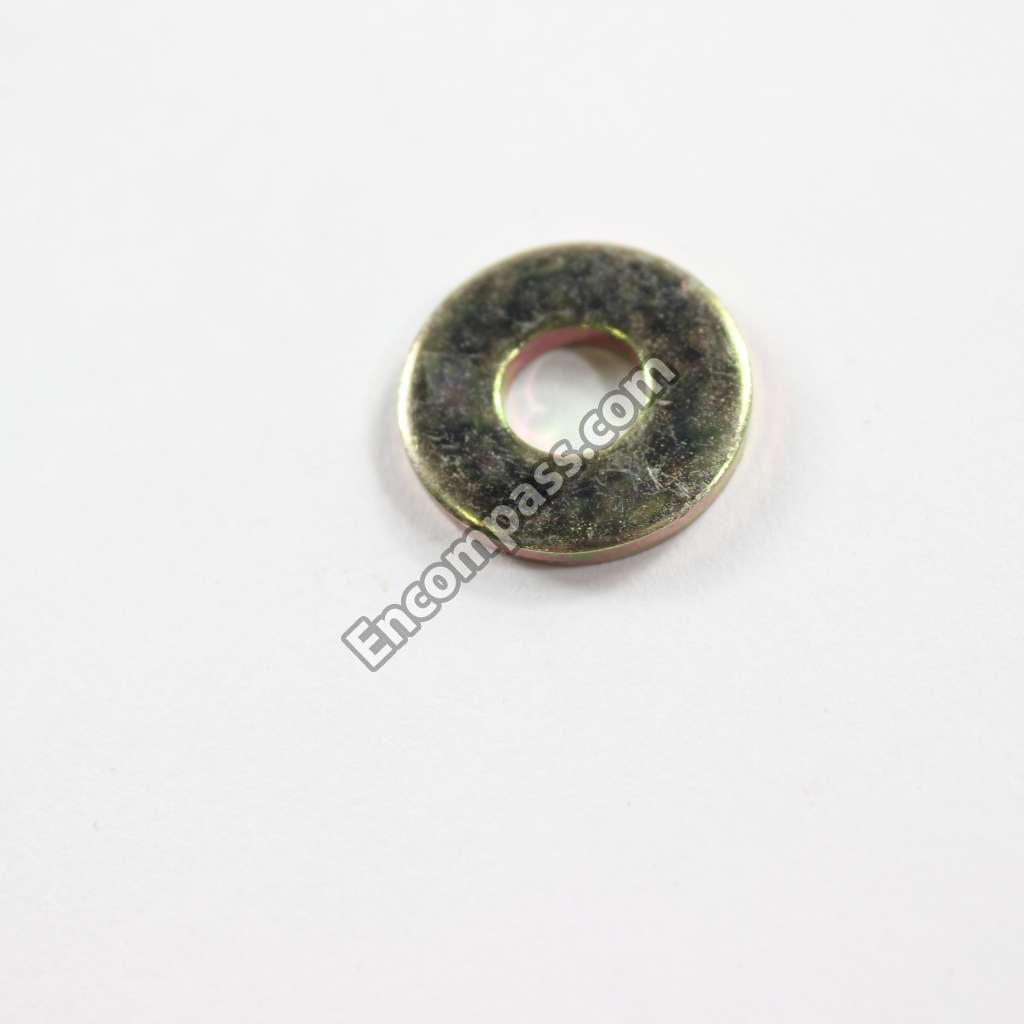

WP3388703 WP3388703 WASHER
WP348197 WP348197 WASHER

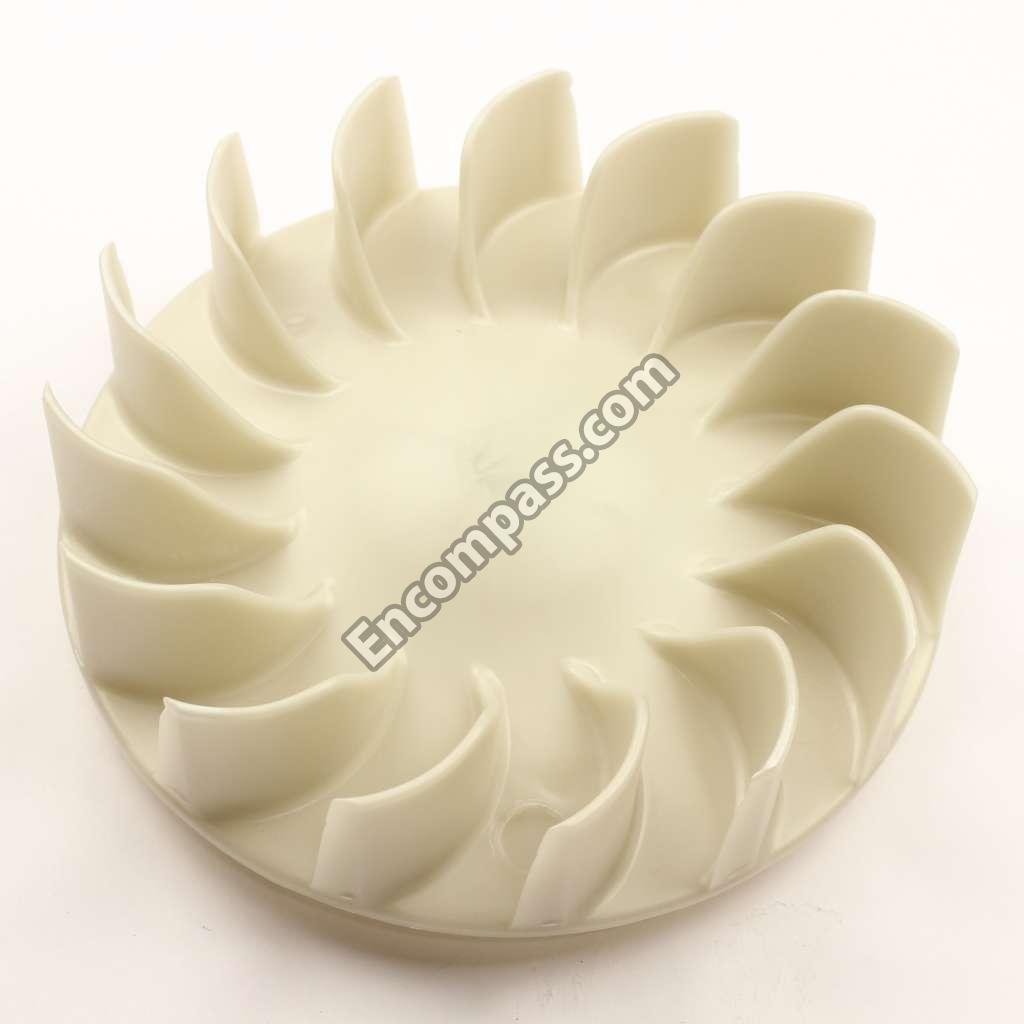

WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
10875 10875 WIRE (16 GA. 80 C BLUE)
69085-3 69085-3 WIRE, GROUND
690236 690236 WIRE, GROUND (MOTOR)
