Model Image
Manufacturer

Whirlpool

Model Number

3ED25DQXVN01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
1118850 1118850 *NLA*CONNECTOR
978030 978030 ACCESS VALVE (3/4``)
2157544 2157544 AIR DUCT FREEZER
WP72107 WP72107 ALMOND
350956 350956 ALMOND
W11256541 W11256541 ARM-PIVOT
W11342242 W11342242 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
W10422851 W10422851 AUGER-ICE
W10852691 W10852691 BAFFLE
W10896764 W10896764 BAFFLE, AIR
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
2181763 2181763 BASKET, SHALLOW
2152090 2152090 BASKET, SLOPE
2152096 2152096 BASKET-FZR
1110560 1110560 BEARING
987917 987917 BEARING, CLIP
983697 983697 BEARING, LEVER
WP4387499 WP4387499 BIMETL-DEF
WP1124846 WP1124846 BIN CONTROL LEVER
72032 72032 BLACK
4319081 4319081 BLACK HANDLE INSERT KIT
WP992920 WP992920 BLADE, FAN
1119009 1119009 BLADE, FIXED (2)
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
2157405 2157405 BLOCK BLADE
1110629 1110629 BRACKET
WP2195950 WP2195950 BRACKET
W11500948 W11500948 BRACKET
2147163 2147163 BRACKET, CONTROL
W10304376 W10304376 BRACKET, MOTOR
1129328 1129328 BRACKET, TRANSFORMER
987049 987049 BRACKET, WATER
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP2182195 WP2182195 CAM ASSEMBLY
WPW10329686 WPW10329686 CAM-DOOR
4318165 4318165 CAM-DOOR
509929 509929 CAP, HINGE SLEEVE
WPW10662129 WPW10662129 CAPACITOR
483059 483059 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
1119036 1119036 CHUTE
513584 513584 CLAMP
1129503 1129503 CLAMP
WPM0103906 WPM0103906 CLAMP
1108431 1108431 CLAMP (4)
1127590 1127590 CLAMP, DRYER
549193 549193 CLAMP, SERVICE CORD
836472 836472 CLAMP, WATER LINE (2)
1119021 1119021 CLIP
WP1108439 WP1108439 CLIP
WP1115374 WP1115374 CLIP
WP628379 WP628379 CLIP
836676 836676 CLIP
1110607 1110607 CLIP, GROUND
2200079 2200079 CLIP, TUBE
548744 548744 CLIP, UNIT COVER (2)
548745 548745 CLIP, WIRE
1115375 1115375 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
W10619807 W10619807 COMPRESSOR
1105640 1105640 CONDENSER ASSEMBLY
1119074 1119074 CONE-FEEDR
1123960 1123960 CONNECTING ROD
227991 227991 CONNECTOR
WP4211117 WP4211117 CONNECTOR
936183 936183 CONNECTOR NLA
WP982704 WP982704 CONTAINER
WPW10670845 WPW10670845 CONTAINER
1129413 1129413 CONTRL BOX
1119019 1119019 CONTROL ARM
312025 312025 CONTROL PANEL
WPW10169511 WPW10169511 COUPLING
W10749708 W10749708 COUPLING, ICE CONVEYOR
WP1126289 WP1126289 COVER
2147510 2147510 COVER
1108115 1108115 COVER
2152019 2152019 COVER, AIR DIFFUSER
1127167 1127167 COVER, EVAPORATOR
1124812 1124812 COVER, MEAT PAN
1110626 1110626 COVER, PLUG
1129352 1129352 COVER, UNIT
1114693 1114693 COVER-FRNT NLA
1105055 1105055 COVER-TERM
2150331 2150331 COVER-WIRE
WP2148279 WP2148279 CRISPER PAN
WP628356 WP628356 CUP-FILL
1108064 1108064 DAMPENER
WP2158826 WP2158826 DAMPENER
4317811 4317811 DEFLECTOR
WP1119017 WP1119017 DEFLECTOR, ICE
1119043 1119043 DEFLECTOR, ICE CONTAINER
WPW10151374 WPW10151374 DIFFUSER
1110666 1110666 DIFFUSER AIR DUCT
1114380 1114380 DIVIDER, SHELF
2177883 2177883 DOOR BIN (2)
1115378 1115378 DOOR DIKE (2)
1115379 1115379 DOOR DIKE, HINGE SIDE
2188433A 2188433A DOOR GASKET
2188434A 2188434A DOOR GASKET
WP2147167 WP2147167 DOOR MECHANISM ASSEMBLY (INCLUDES ITEM 9)
2148289 2148289 DOOR, COMPARTMENT
WP2147168 WP2147168 DOOR, ICE
1115254 1115254 DOOR, ICE COMPARTMENT
2174343 2174343 DOOR, ICE COMPARTMENT
WP1108438 WP1108438 DRAIN EXTENSION
934607 934607 DRAIN, FERRULE CAP
1127495 1127495 DRAWER SLIDE RAIL
2147088 2147088 DRAWER SLIDE RAIL
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
4388736 4388736 DRUM
2182146 2182146 DUCT, ICEMAKER
WP627843 WP627843 EJECTOR
1119359 1119359 END CAP, CENTER HANDLE
1115333 1115333 END CAP, TRIM
1115364 1115364 END CAP, TRIM
2156220 2156220 ENDCAP-HDL
2148231 2148231 ESCUTCHEON, CONTROL BOX
985468 985468 ESCUTCHEON, MEAT PAN CONTROL
1110668 1110668 EVAPORATOR
4318017 4318017 EVAPORATOR MOTOR
1108436 1108436 EVAPORATOR, SUPPORT
1114662 1114662 EXCHANGER, HEAT
WP1108179 WP1108179 FAN BLADE
1127163 1127163 FAN SCROLL
548695 548695 FAN, MOTOR BRACKET
489285 489285 FASTENER, PUSH-ON
1118362 1118362 FILLER BOTTOM MULLION (ALMOND)
1118361 1118361 FILLER BOTTOM MULLION (WHITE)
2196095 2196095 FILLER, WRAPPER (ALMOND)
1110708 1110708 FILLER, WRAPPER (WHITE)
WP4388152 WP4388152 FITTING
WP2196157 WP2196157 FITTING
942768 942768 FITTING, DRAIN
2152716 2152716 FRAME, SLIDES
1110655 1110655 FREEZER, DOOR PANEL (ALSO ORDER ITEM 11) (ALMOND)
1110652 1110652 FREEZER, DOOR PANEL (ALSO ORDER ITEM 11) (WHITE)
2150311 2150311 FRONT COVER, HOUSING (INCLUDES ITEM 39)
4386774 4386774 FRONT ROLLER (2)
1126290 1126290 FRONT, CRISPER
1114694 1114694 FRONT, MEAT PAN
988494 988494 GASKET (2)
1121384 1121384 GASKET (REAR)
1118302 1118302 GASKET RETAINER, SIDE (2)
1118306 1118306 GASKET RETAINER, TOP & BOTTOM
1115291 1115291 GASKET, CRISPER (FRONT)
1121385 1121385 GASKET, CRISPER (REAR)
1110676 1110676 GASKET, EVAPORATOR COVER TOP (2)
68139-1 68139-1 GLASS SHELF
WP1114687 WP1114687 GLASS, SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
WP2155485 WP2155485 GRILLE (BLACK)
WP983900 WP983900 GRILLE, OVERFLOW (CHROME)
987048 987048 GROMMET
WP531933 WP531933 GROMMET
937252 937252 GROMMET (4)
876811 876811 GROMMET (4) ((PRODUCTION))
1110663 1110663 GUARD, FAN
1124730 1124730 GUIDE, ICE (WHITE)
W10850503 W10850503 GUIDE, SOLENOID
LIT1129509 LIT1129509 GUIDE, USE & CARE
1118417 1118417 HANDLE, CENTER
1119212 1119212 HARNESS, DOOR (INCLUDES ITEM 18)
2149943 2149943 HARNS-DISP
2149784 2149784 HARNS-WIRE
2147166 2147166 HARNS-WIRE
2149756 2149756 HARNS-WIRE
1121404 1121404 HEAT SHIELD, FRAME
1129434 1129434 HEATER
2154543 2154543 HEATER, DEFROST
1129454 1129454 HEATER, DISPENSER
4386946 4386946 HINGE BOTTOM (R.H.)
1119787 1119787 HINGE COVER
WP1129262 WP1129262 HINGE COVER (WHITE)
1123514 1123514 HINGE, TOP
1123510 1123510 HINGE, TOP (L.H.)
534927 534927 HOLE PLUG (2)
940014 940014 HOLE PLUG, CONTROL BOX
WPW10185018 WPW10185018 HOUSING
1107943 1107943 HOUSING, DISPENSER
1124820 1124820 HOUSING, HUMIDITY CONTROL
WP2195914 WP2195914 HOUSING-IM
4317943 4317943 ICEMAKER ASSEMBLY

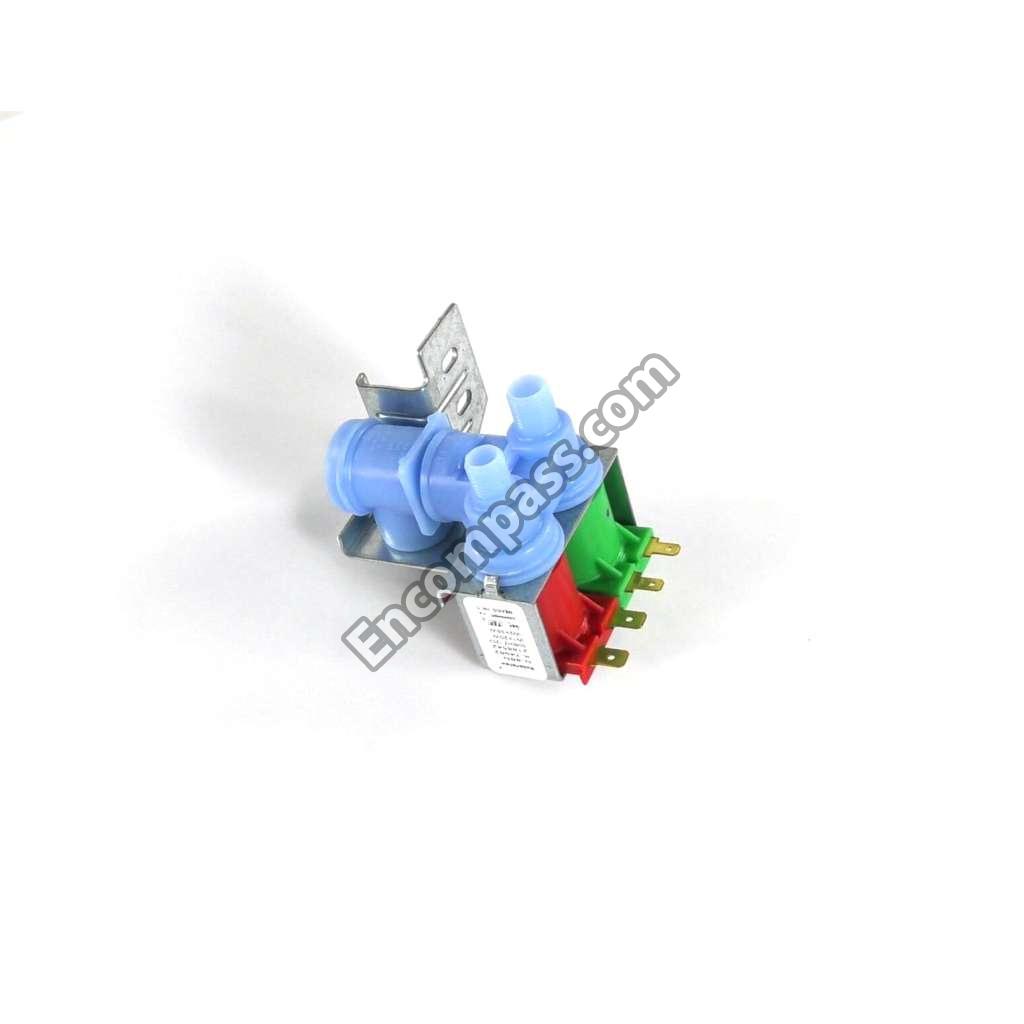

4318046 4318046 INLET VALVE
WP1129177 WP1129177 INSERT
941262 941262 INSERT RETAINER (BOTTOM)
2194770 2194770 INSERT RETAINER (BOTTOM)
1119363 1119363 INSERT, HANDLE (ALMOND)
1119375 1119375 INSERT, HANDLE (ALMOND)
1119361 1119361 INSERT, HANDLE (WHITE)
1119373 1119373 INSERT, HANDLE (WHITE)
4387491 4387491 INSERT, TUBE
876370 876370 INSULATION
1118237 1118237 INSULATION
1119038 1119038 INSULATION, DISPENSER
WP625834 WP625834 INSULATION, SWITCH
2147164 2147164 INSULATOR, CONTROL BRACKET
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
2197871 2197871 KNOB, AIR CONTROL
2166862 2166862 LAMP HOLDER
350941 350941 LEVELER, ENAMEL (13 OZ. SPRAY CAN)
WP2177149 WP2177149 LEVER ASSEMBLY, WATER DISPENSER
2177144 2177144 LEVER, ICE DISPENSER (STAINLESS STEEL AND BLACK MODELS)

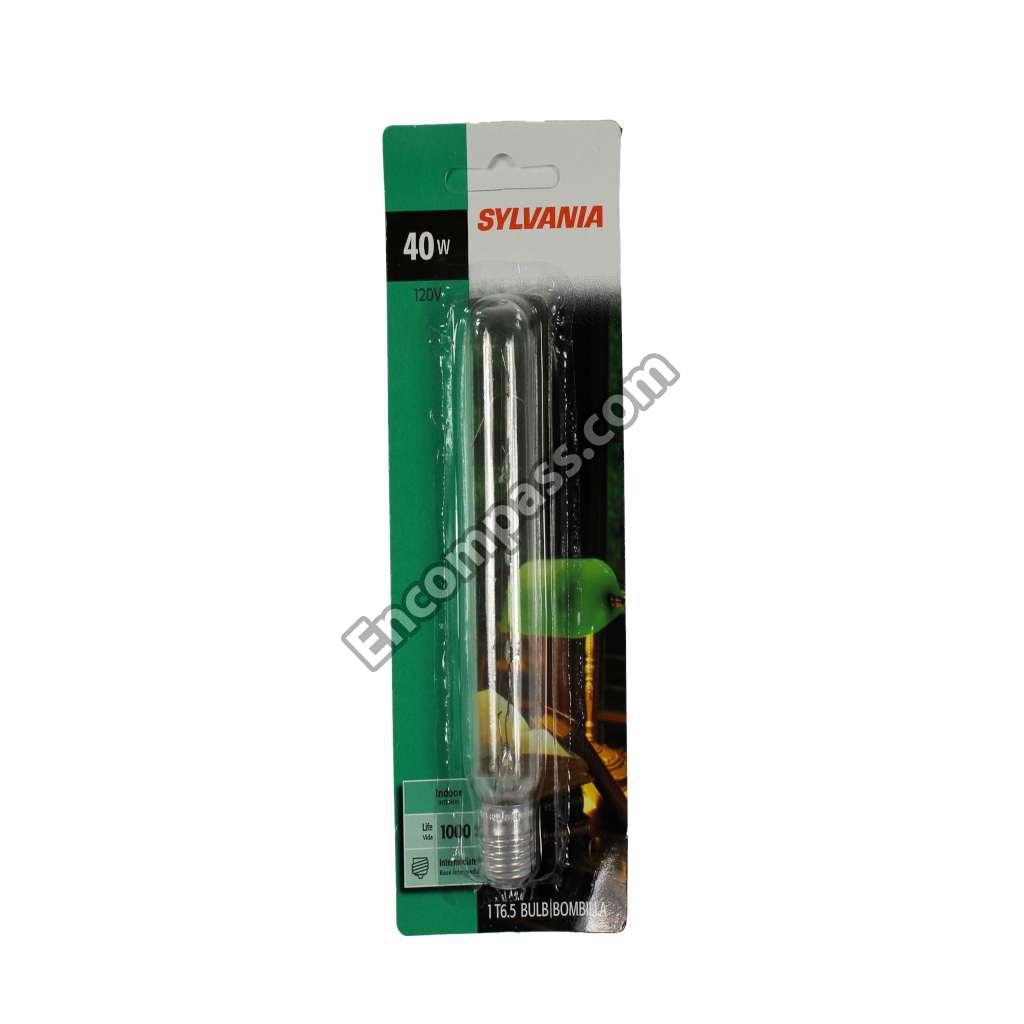

WP548049 WP548049 LIGHT BULB
8009 8009 LIGHT BULB
WP22002263 WP22002263 LIGHT BULB
2169504 2169504 LIGHT CAMERA LENS
1115389 1115389 LIGHT CAMERA LENS
983359 983359 LIGHT CAMERA LENS, DISPENSER
1110690 1110690 LIGHT SOCKET
1114690 1114690 MEAT PAN
1114691 1114691 MEAT PAN
WP1120581 WP1120581 MECHANISM DELAY
LIT628107 LIT628107 MODULAR ICEMAKER SERVICE SHEET
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
WP2188242 WP2188242 MOTOR
833697 833697 MOTOR-COND
W10190935 W10190935 MOTOR-MODL
2155016 2155016 MULLION RAIL
2152334 2152334 NAMEPLATE
1129193 1129193 NLACOVER-WIRE
1129178 1129178 NLAGROMMET
303776 303776 NO DESCRIPTION AVALIABLE
833873 833873 NO LONGER AVAILABLE
489142 489142 NUT
4318011 4318011 NUT
WP1119018 WP1119018 NUT, BEARING
WP627018 WP627018 NUT, COMPRESSION 1/4``
819100 819100 OVERLOAD
819160 819160 OVERLOAD
943320 943320 OVERLOAD SPRING
992358 992358 PAD, FOAM
978883 978883 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
1124842 1124842 PANEL, INTERIOR DOOR
4317821 4317821 PANEL-INT
LIT4361079 LIT4361079 PARTS LIST
2196166 2196166 PIN PLATE (4)
W10851606 W10851606 PIN-PLATE
2162923 2162923 PLAQUE, FRONT COVER (WHITE)
941242 941242 PLATE
992245 992245 PLATE
350942 350942 PRIMER
1115253 1115253 RACK, PIZZA
1110645 1110645 REFRIGERATOR DOOR (ALMOND (ALSO ORDER ITEM 38))
1110642 1110642 REFRIGERATOR DOOR (WHITE)
1101014 1101014 RELAY
WP2262181 WP2262181 RELAY-STRT
WP2256126 WP2256126 RESERVOIR
837444 837444 RETAINER
943322 943322 RETAINER
938384 938384 RETAINER
1118301 1118301 RETAINER
WP2256085 WP2256085 RETAINER
WP2315522 WP2315522 RETAINER THERMOSTAT
992953 992953 RING, COMPRESSION
WP489236 WP489236 RING-E
WP489115 WP489115 RIVET
WPW10250570 WPW10250570 ROLLER-CAB
489229 489229 ROLLPIN
WP2161231 WP2161231 SCOOP-AIR
489364 489364 SCREW
WP681249 WP681249 SCREW
W10759522 W10759522 SCREW
489284 489284 SCREW
WP489427 WP489427 SCREW
WP489399 WP489399 SCREW
WP250830 WP250830 SCREW
WP489478 WP489478 SCREW
WP489464 WP489464 SCREW
WP488488 WP488488 SCREW
798639 798639 SCREW
W11624204 W11624204 SCREW
WP488729 WP488729 SCREW
W11693756 W11693756 SCREW
WP489128 WP489128 SCREW
WP488787 WP488787 SCREW
WPW10141645 WPW10141645 SCREW
WP489069 WP489069 SCREW
489090 489090 SCREW
WP488234 WP488234 SCREW
WP965173 WP965173 SCREW
489197 489197 SCREW
WP3400906 WP3400906 SCREW
489340 489340 SCREW
WPW10141625 WPW10141625 SCREW
489392 489392 SCREW
627068 627068 SCREW
WP488163 WP488163 SCREW
487523 487523 SCREW (2)
489362 489362 SCREW (2)
489168 489168 SCREW (2)
489397 489397 SCREW (2)
8533917 8533917 SCREW (2)
489136 489136 SCREW 3-24 X 23/64
486214 486214 SCREW 8-15 X 1/2
489155 489155 SCREW,
489365 489365 SCREW,
488361 488361 SCREW, 4-4- X 1 (4)
4387279 4387279 SCREW, 6-20 X 3/8 (4)
WP939101 WP939101 SCREW, 8 X 1/2
489327 489327 SCREW, 8 X 5/8
718257 718257 SCREW, 8-18 X 1.38
681390 681390 SCREW, 8-32 X 3/8
488681 488681 SCREW, ADJUSTING
4159456 4159456 SCREW, NO.8-18 X 3/8``, HWHTCS
482672 482672 SEAL
WP1106508 WP1106508 SEAL GASKET
939886 939886 SEAL, HINGE PIN
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
1115322 1115322 SEALING GASKET
LIT1129776 LIT1129776 SERVICE & WIRING SHEET
WP2194297K WP2194297K SHELF
2162991 2162991 SHELF ASSEMBLY, GLASS SLIDING (3)
1124854 1124854 SHELF BIN (3)
1126355 1126355 SHELF TRACK (LEFT SIDE (2))
1126354 1126354 SHELF TRACK (RIGHT SIDE (2))
4388538 4388538 SHELFSTUD
1119041 1119041 SHIELD, WIRING
935075 935075 SHIM
988421 988421 SHIM
WP1104787 WP1104787 SHIM, DOOR CAM
1123515 1123515 SHIM, HINGE TOP
1129195 1129195 SHIM-SLIDE
4317870 4317870 SLEEVE
WP2002171 WP2002171 SLEEVE
W10845585 W10845585 SLIDE, CONTAINER (LEFT SIDE)
2152719 2152719 SLIDE, CUBE/CRUSH SWITCH
1124819 1124819 SLIDE, HUMIDITY CONTROL
1115380 1115380 SLIDE, ICE DOOR
2152724 2152724 SLIDE, LIGHT SWITCH
984102 984102 SLIDE, MEAT CONTROL
1115262 1115262 SNACK BIN
WP2152713 WP2152713 SOLENIOD ASSEMBLY
WP1119007 WP1119007 SPACER, FLAT (2)
1129868 1129868 SPACER, HINGE
WP1119005 WP1119005 SPACER, STEP
WP486692 WP486692 SPEED NUT (1/4-20)
350930 350930 SPRAY (13 OZ.) (WHITE)
983659 983659 SPRING
983696 983696 SPRING, LEVER(2)
1119020 1119020 SPRING, RETURN
489203 489203 SPRING, WASHER
1114190 1114190 SPRING-OVR
1118480 1118480 STOP, CONE
851095 851095 STRAP
WP2149540 WP2149540 STUD L.S. FRONT
WP1115290 WP1115290 STUD L.S. REAR
1115399 1115399 STUD, SPACER (2)
4388405 4388405 STUD-SHELF
4388537 4388537 STUD-SHELF
1119055 1119055 SUPPORT
WP1114631 WP1114631 SUPPORT, STUD (24)
W11457217 W11457217 SWITCH
814037 814037 SWITCH
WP2149705 WP2149705 SWITCH
WP938213 WP938213 SWITCH-PM
2147310 2147310 TAP PLATE (2)
978601 978601 TAPE
W11238399 W11238399 TAPE
833938 833938 TERMINAL
1103840 1103840 TERMINAL
WP627985 WP627985 THERMOSTAT
WP2198202 WP2198202 THERMOSTAT
2182111 2182111 THERMOSTAT KNOB
WP2154653 WP2154653 TIMER-DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
W10845583 W10845583 TRACK
WP1114633 WP1114633 TRACK, SHELF (LEFT SIDE (3))
WP1115265 WP1115265 TRACK, SHELF (LEFT SIDE)
WP1114632 WP1114632 TRACK, SHELF (RIGHT SIDE (2))
W10853640 W10853640 TRACK, SHELF (RIGHT SIDE)
1129495 1129495 TRANSFORMER
515393 515393 TRANSFORMER (115-230 VOLT)
1110674 1110674 TRAY, EVAPORATOR
4318791 4318791 TRIM KIT
2179512 2179512 TRIM, BASKET (LOWER)
1110795 1110795 TRIM, CRISPER COVER
1119062 1119062 TRIM, DOOR
1106959 1106959 TRIM, DOOR COMPARTMENT
1127144 1127144 TRIM, DOOR SHELF
1114376 1114376 TRIM, DOOR SHELF
4210352 4210352 TRIMLESS BLACK DECOR PANEL
1129176 1129176 TUBE
510716 510716 TUBE CLAMP
1105607 1105607 TUBE CLAMP (2)
480389 480389 TUBE, INLET VALVE
4378431 4378431 TUBE, WATER INLET
2196117 2196117 TUBE, WATER LINE
2304904 2304904 UNIT MOUNTING FRAME
2305374 2305374 UNIT MOUNTING RAIL
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
489143 489143 WASHER
628337 628337 WASHER
WP489235 WP489235 WASHER RING
489234 489234 WASHER, PLAIN
W10823511 W10823511 WATER TUBE
1115261 1115261 WINE RACK
WP2187501 WP2187501 WIRE HARNESS
WP2187464 WP2187464 WIRE HARNESS
1114607 1114607 WIRING COVER
1119063 1119063 WIRING SHIELD, LONG
1108440 1108440 WIRING SHIELD, SHORT
4210446 4210446 WOODGRAIN HANDLE INSERT
WP488878 WP488878 XXTUBE CLAMP
537588 537588 XXXNUT, INLET VALVE
488819 488819 ``O`` RING
Main Menu x
