Model Image
Manufacturer

Whirlpool

Model Number

3LBR6132EQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
3363920A 3363920A ADAPTER-DRAIN HOSE.
WP3350830 WP3350830 AGITATOR
WP72107 WP72107 ALMOND
350956 350956 ALMOND
285459 285459 BASE

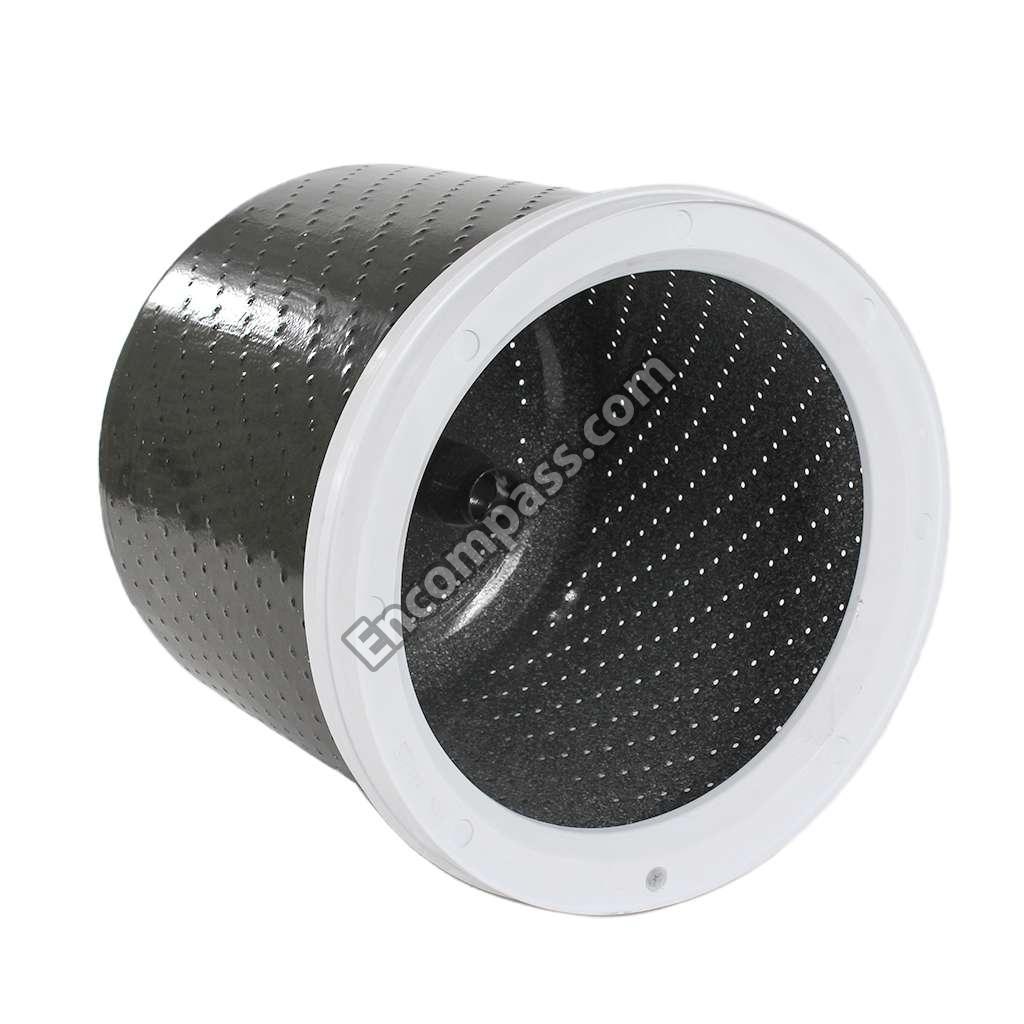

3956207 3956207 BASKET & BALANCE RING
8575076A 8575076A BASKET & CLOTHES GUARD (INCLUDES ILLUS. 7)
W10820043 W10820043 BASKTDRIVE
WP8546455 WP8546455 BEARING
WP8546462 WP8546462 BEARING
285205 285205 BEARING
WP3363661 WP3363661 BEARING DRIVEN CAM
3390423 3390423 BLOCK, DISCONNECT (12-WAY) (TIMER) (USE TERM. 94613)
WP62505 WP62505 BLOCK, DISCONNECT (MOTOR 2 SPEED) (USE TERM. 352088)
3348075 3348075 BLOCK, DISCONNECT (MOTOR 3 SPEED) (USE TERM. 94613 OR 94614)
WP389140 WP389140 BLOCK, DRIVE
3948814 3948814 BRACKET, CONTROL
WP64067 WP64067 BRACKET, SPRING DISPENSER OUTER (2)
WP64065 WP64065 BRACKET, SPRING OUTER (L.F.)
WP3347034 WP3347034 BREAK, VACUUM
WP9724509 WP9724509 BUMPER
WP19119 WP19119 BUMPER (2)
63128 63128 CABINET (FOR WHITE MODEL)
285811 285811 CAM-AGIT
WP8546461 WP8546461 CAM-BRAKE
WPW10074580 WPW10074580 CAP
WP62646 WP62646 CAP
WP482156 WP482156 CAPACITOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 23)
WP596669 WP596669 CLAMP
WP616099 WP616099 CLAMP
WP371502 WP371502 CLAMP
WP3357331 WP3357331 CLAMP
WP285655 WP285655 CLAMP
3949496 3949496 CLAMP, CAPACITOR
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
3352944 3352944 CLIP
WP90016 WP90016 CLIP
WP8519815 WP8519815 CLIP
WP3355454 WP3355454 CLIP
8528351 8528351 CLIP
WP3354845 WP3354845 CLIP, AGITATOR
388498 388498 CLIP, HARNESS
8281256 8281256 CLIP, HARNESS
WP62780 WP62780 CLIP, TOP & CABINET & REAR PANEL (2)
285785 285785 CLUTCH
3347243 3347243 CONNECTOR
3354925 3354925 CONNECTOR
3354926 3354926 CONNECTOR
W10876590 W10876590 CONNECTOR
352090 352090 CONNECTOR
WP3360056 WP3360056 CONNECTOR
717252 717252 CONNECTOR (2-WAY) (USE TERM. 94614)
WP2172937 WP2172937 CONNECTOR (T.P.A.) (3-CIRCUIT) (LID SWITCH) (USE
3948615 3948615 CONNECTOR (T.P.A.) (6-CIRCUIT) (TEMP. SWITCH) (USE TERM. 3948619 OR 3948620.)
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
3349494 3349494 CONNECTOR, ETC
60687 60687 CONNECTOR, RELAY (USE TERM. 308569 OR 338664)
3407125 3407125 CONTROL, ETC
3950970 3950970 CORD, POWER
285753A 285753A COUPLING
WP16272 WP16272 COUPLR-HSE
285202 285202 COVER

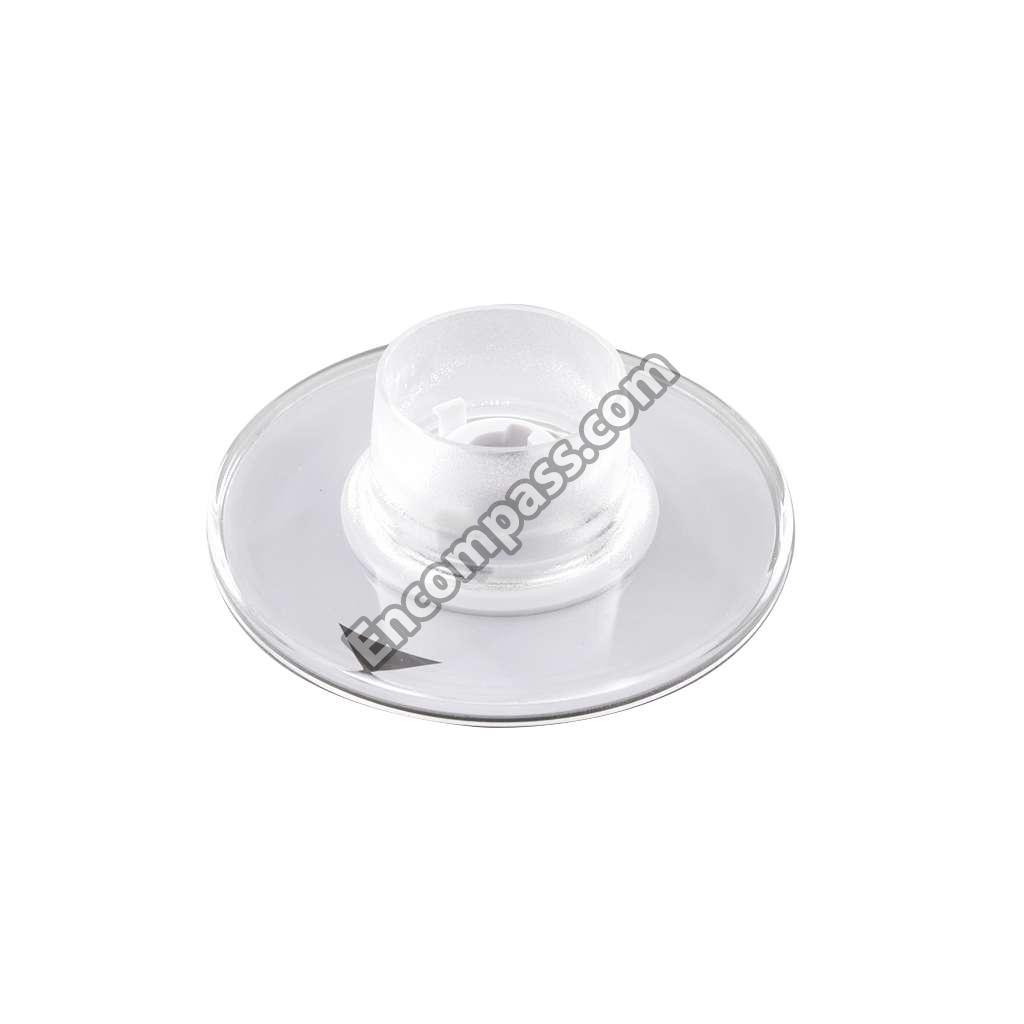

WP3957841 WP3957841 DIAL
63580 63580 DISPENSER
WP3362952 WP3362952 DISPENSER, BLEACH
80040 80040 DOG-AGIT
367031 367031 DRAIN PROTECTOR (NOT INCLUDED)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
285846 285846 ENDCAP
285244 285244 FEET-LVLNG
WP3349019 WP3349019 FILTER, MANUAL
WPW10001130 WPW10001130 FOOT
W10814296 W10814296 GASKET, CENTER POST
W10821664 W10821664 GASKET, TUB RING
WPW10233584 WPW10233584 GEAR-SPIN
3363395 3363395 GEARCASE
3360629 3360629 GEARCASE
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
WP62691 WP62691 GROMMET, MOTOR (4)
LIT3951059 LIT3951059 GUIDE, USE AND CARE
3950852 3950852 HARNESS, WIRING (FOR DETAIL SEE WIRING HARNESS PARTS PAGE) ALSO SEE CLIPS.
WP21258 WP21258 HINGE, BEARING (2)
WP387402 WP387402 HINGE, CONSOLE (2)
WP54584 WP54584 HINGE, LID (L.H.)
WP54583 WP54583 HINGE, R.H.
285702 285702 HOSE
285664 285664 HOSE
WP3357328 WP3357328 HOSE
WPW10358149 WPW10358149 HOSE
WP3352515 WP3352515 HOSE
285871 285871 HOSE
WP353244 WP353244 HOSE
WP3948705 WP3948705 HOSE, BLEACH
WPW10489643 WPW10489643 HOSE-FILL
LIT3948884 LIT3948884 INSTALLATION INSTRUCTIONS
285320 285320 IPHON BREAK KIT
W10807860 W10807860 KNOB
WP3957796 WP3957796 KNOB
LIT3950562 LIT3950562 LABEL, WIRING DIAGRAM
285574 285574 LARGE RING (2 REQ)
WPW10193874 WPW10193874 LID
285790 285790 LINING
63138 63138 LINK, LEVELING MECHANISM (2)
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP3950297 WP3950297 MOTOR, MAIN DRIVE
388253A 388253A NEUTRL-PAK
WP3357027 WP3357027 NOZZLE, DRAIN HOSE
W10080180 W10080180 NUT
WP62739 WP62739 NUT
WP21366 WP21366 NUT, LOCK
WP357213 WP357213 NUT, PUSH-IN (4)
350572 350572 OIL, GEARCASE (16 OZ.)
285219 285219 PAD
285744 285744 PAD
WP62747 WP62747 PAD, REAR PANEL
978883 978883 PAINT
799344 799344 PAINT
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
3950962 3950962 PANEL, CONSOLE
3357976 3357976 PANEL, REAR
285654 285654 PARTS-MISC
WP62837 WP62837 PIN, KNURLED
WP62611 WP62611 PLATE, MOTOR MOUNT TO GEARCASE
WP3946509 WP3946509 PLATE, SUSPENSION
285868 285868 PLUG
388818 388818 PLUG, TERMINAL (12-WAY) (USE TERM. 94613 OR 94614)
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
387566 387566 PLUG, TERMINAL (4-WAY) (POWER CORD) (USE M3 SCREWS)
350938 350938 PRIMER, GRAY
63523 63523 PROTECTOR
WP3363892 WP3363892 PUMP (COMPLETE)
3347730 3347730 RECEPTACLE, (6-WAY) (USE TERM. 94613)
WP62889 WP62889 RECEPTACLE, TERMINAL (3-WAY) (CONNECTS WITH HARNESS)
8559320 8559320 RESTRAINT, HOSE
3349557 3349557 RETAINER
WP8546127 WP8546127 RETAINER
WP389379 WP389379 RETAINER
WPW10086010 WPW10086010 RETAINER, MOTOR (2)
62677 62677 RETAINER, SPRING (2)
WPW10145155 WPW10145155 RETAINER, SUSPENSION SPRING (ALMOND)
285353 285353 RING
WP62658 WP62658 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP63134 WP63134 RING, SOUND DEADENING
WPW10080230 WPW10080230 RING, SPIN TUBE SUPPORT
WP3956205 WP3956205 RING-BAL
WPW10072840 WPW10072840 RING-O
285765 285765 RING-RETNR
W11033823 W11033823 RING-WIRE
W10915367 W10915367 SCREW
WPW10119828 WPW10119828 SCREW
WP681414 WP681414 SCREW
WP308544 WP308544 SCREW
WP3390631 WP3390631 SCREW
WP308685 WP308685 SCREW
WP3400516 WP3400516 SCREW
WP273556 WP273556 SCREW
WP358237 WP358237 SCREW & WASHER (5/16 - 24 X 1)
WP3356311 WP3356311 SCREW & WASHER, LID SWITCH (2)
WP388326 WP388326 SCREW (PANEL TO TOP)
WP90767 WP90767 SCREW, 8 A X 3/8
WP3351614 WP3351614 SCREW, GEARCASE COVER MOUNTING (8) (10-24 X 3/8)
W11095997 W11095997 SEAL
WP8577376 WP8577376 SEAL, CENTERPOST
WP356427 WP356427 SEAL, DRIVE TUBE
WP3349985 WP3349985 SEAL, GEARCASE COVER
WP91939 WP91939 SEAL, OIL
285352 285352 SEAL, THRUST PLUG
WP3359586 WP3359586 SEAL, TUB RING
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6 ML)
WP389387 WP389387 SHAFT, AGITATOR (COMPLETE)
WP3946532 WP3946532 SHIELD
WP8314879 WP8314879 SHIELD, INLET
3950995 3950995 SHIELD, LID SWITCH
W10838408 W10838408 SHIELD-MTR
3348675 3348675 SHIPPING KIT
285438 285438 SHOE-BRAKE
285321 285321 SLEEVE
285658 285658 SLEEVE
WP63022 WP63022 SLEEVE
WP62750 WP62750 SPACER, CABINET TO TOP (4)
356937 356937 SPACER, DRIVE TUBE
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3946792 WP3946792 SPRING
8316845 8316845 SPRING
WP62647 WP62647 SPRING
WP63907 WP63907 SPRING, SUSPENSION (3)
62676 62676 SPRING, WASHER AGITATOR
WPW10250667 WPW10250667 SPRING,COUNTERWEIGHT
89121 89121 STAND-PIPE KIT
387710 387710 STRAIN RELIEF, POWER CORD
WP358684 WP358684 STRIKE
WP8519200 WP8519200 SUPPORT
280184 280184 SUPPORT
3950299 3950299 SWITCH, LID
WPW10168256 WPW10168256 SWITCH, ROTARY (TEMP. SWITCH)
WP8529896 WP8529896 SWITCH-MTR
WP3950560 WP3950560 TIMER
3369366 3369366 TIMER, BLOCK DISCONNECT (BLACK) (AMP) (USE TERM. 3369365)
3950288 3950288 TOP (FOR WHITE MODEL)
3361597 3361597 TUB (INCLUDES ITEM 18)
WP64208 WP64208 TUBE-SPIN
WP3360397 WP3360397 VALVE
WP3949550 WP3949550 WASHER
WP4159494 WP4159494 WASHER
285587 285587 WASHER
WP388815 WP388815 WASHER
285766 285766 WASHER KIT, THRUST
WP8543666 WP8543666 WASHER, AGITATOR
62618 62618 WASHER, CAM THRUST
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
WP63292 WP63292 WASHER, SPIN TUBE THRUST
62619 62619 WASHER, WASHER AGITATOR GEAR
WP3356467 WP3356467 WATER LEVEL SWITCH
