Model Image
Manufacturer

Whirlpool

Model Number

3LMVWC315FW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285863 285863 ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP
W10135699 W10135699 ACCESSORY PARTS, AFFRESH WASHER CLEANER
DRNEXT4 DRNEXT4 ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212487RP 8212487RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
W11511138 W11511138 ACTUATOR
WPW10476822 WPW10476822 ADAPTER
WPW10476820 WPW10476820 ADAPTER
WPW10475423 WPW10475423 ADAPTER
W10554251 W10554251 BASKET ASSEMBLY
WP21258 WP21258 BEARING
WPW10006388 WPW10006388 BELT
WP389140 WP389140 BLOCK
W11661767 W11661767 BRACE
W11712680 W11712680 BRACE
W10521453 W10521453 BRACE-GUARD, CABINET FRONT TOP
W10521454 W10521454 BRACE-GUARD, CABINET REAR TOP
WP9724509 WP9724509 BUMPER
W10596395 W10596395 CABINET
W10339680 W10339680 CABLE TIE
W10006353 W10006353 CAM RING, SPLUTCH
W10006354 W10006354 CAM, SPLUTCH
W11205047 W11205047 CAPACITOR
WP356138 WP356138 CLAMP
WP285655 WP285655 CLAMP
W10005430 W10005430 CLAMP, CABLE
WP90016 WP90016 CLIP
WP8312709 WP8312709 CLIP
W11608064 W11608064 CONTROL BOARD
W11099688 W11099688 CONTROL PANEL
WP384496 WP384496 COUPLR-HSE
W10676061 W10676061 COVER, HARNESS
WPW10192089 WPW10192089 DISPENSER
W10863011 W10863011 DISPENSER, FABRIC SOFTENER
W10919224 W10919224 DOOR LATCH
W11039788 W11039788 DRIVE MOTOR
W10193826 W10193826 END CAP (LEFT) (WHITE)
W10193823 W10193823 END CAP (RIGHT) (WHITE)
W11735636 W11735636 FEET-LVLNG
W11660637 W11660637 FILTER
WPW10215093 WPW10215093 FILTER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11454741 W11454741 GEARCASE
W10746354 W10746354 HARNESS, LOWER
W10694685 W10694685 HARNESS, UPPER
W10694682 W10694682 HARNESS, UPPER
W10917060 W10917060 HARNESS, VALVE
WP91770 WP91770 HINGE
W11244231 W11244231 HOSE
WP353244 WP353244 HOSE
W10899966 W10899966 HOSE
W10849505 W10849505 INSTALLATION INSTRUCTIONS
WPW10558463 WPW10558463 KNOB
WPW10562155 WPW10562155 KNOB
WPW10338625 WPW10338625 LID
WPW10612925 WPW10612925 NAMEPLATE
W10759923 W10759923 NUT
WP21366 WP21366 NUT-SPANER
W10849502 W10849502 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11486091 W11486091 PANEL-REAR
WPW10461159 WPW10461159 PANEL-REAR
W10628159 W10628159 POWER CORD, 10A CORD LOCK
W10834290 W10834290 POWER CORD, UNIVERSAL
WPW10280024 WPW10280024 RETAINER
W10429200 W10429200 RETAINER, PUSH-IN

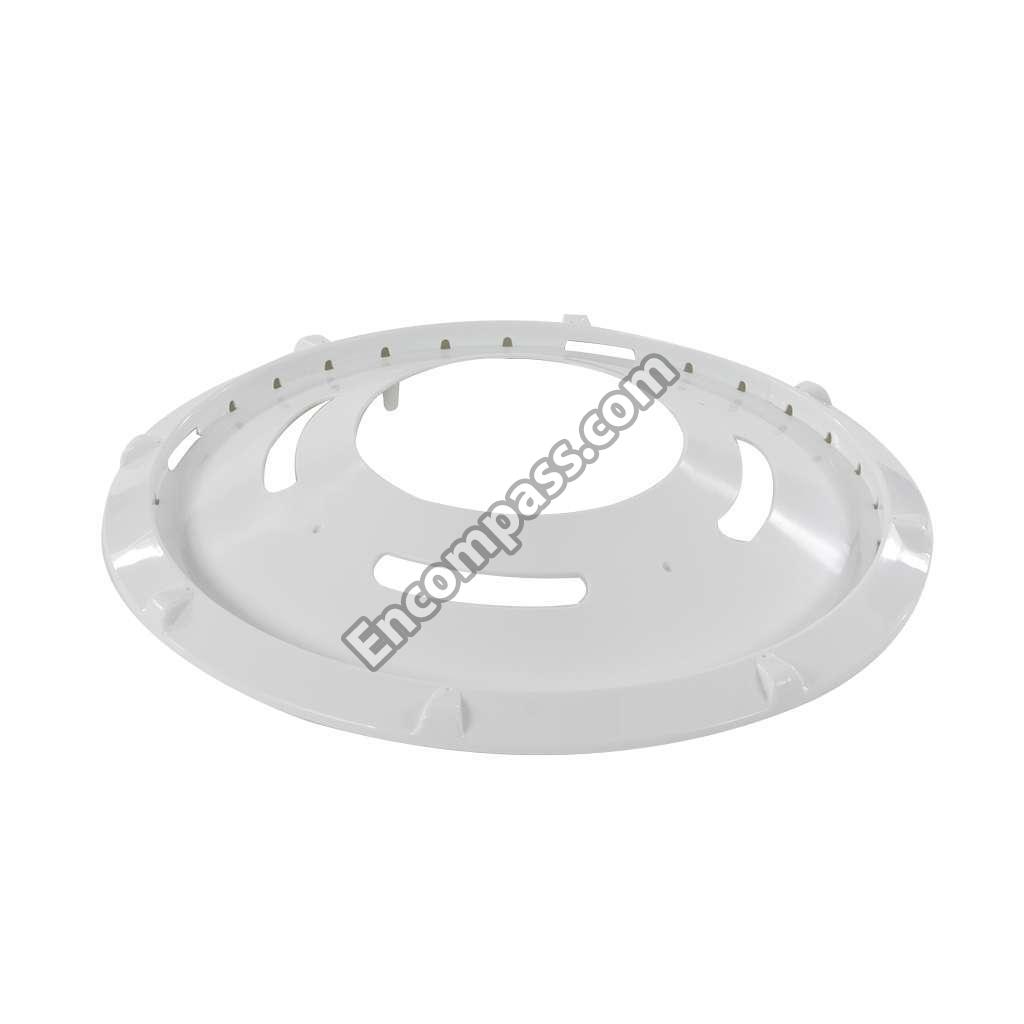

WPW10531289 WPW10531289 RING-TUB
WP9740848 WP9740848 SCREW
WPW10119828 WPW10119828 SCREW
WPW10273971 WPW10273971 SCREW
WP489069 WP489069 SCREW
WP489128 WP489128 SCREW
W10846509 W10846509 SCREW
WPW10213953 WPW10213953 SCREW
WP90767 WP90767 SCREW
W11693756 W11693756 SCREW
W11568617 W11568617 SCREW
W10772621 W10772621 SCREW
WPW10109200 WPW10109200 SCREW
WP8533953 WP8533953 SCREW
WP8533928 WP8533928 SCREW
WPW10004910 WPW10004910 SCREW
WPW10249633 WPW10249633 SCREW
W11685857 W11685857 SCREW
W11596033 W11596033 SCREW
W11573574 W11573574 SCREW
W10324647 W10324647 SEAL-TUB
WP285195 WP285195 SEALER
W11085570 W11085570 SHIELD
WPW10427633 WPW10427633 SHIELD
W10339098 W10339098 SHIELD, SPLASH
W10759993 W10759993 SPLUTCH KIT (50 HZ)
W10721967 W10721967 SPRING, SPLUTCH
W10837741 W10837741 STRIKE
W10780045 W10780045 SUSPENSION ROD KIT
WPW10285517 WPW10285517 SWITCH-CYC
WPW10285512 WPW10285512 SWITCH-CYC
WPW10285511 WPW10285511 SWITCH-CYC
W10845896 W10845896 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
W11026446 W11026446 TOP
W10371566 W10371566 TUB-OUTER
W11038628 W11038628 VALVE
WP3949550 WP3949550 WASHER
W11447102 W11447102 WASHER AGITATOR
WPW10292579 WPW10292579 WATER PUMP
285835 285835 WATER SYSTEM PARTS, CONNECTOR ASSEMBLY
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
