Model Image
Manufacturer

Whirlpool

Model Number

3LTE5243BN0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285666 285666 ACCESSORY PARTS, 8' DRAIN HOSE W/CLAMP
WP691581 WP691581 ACTUATOR, SWITCH

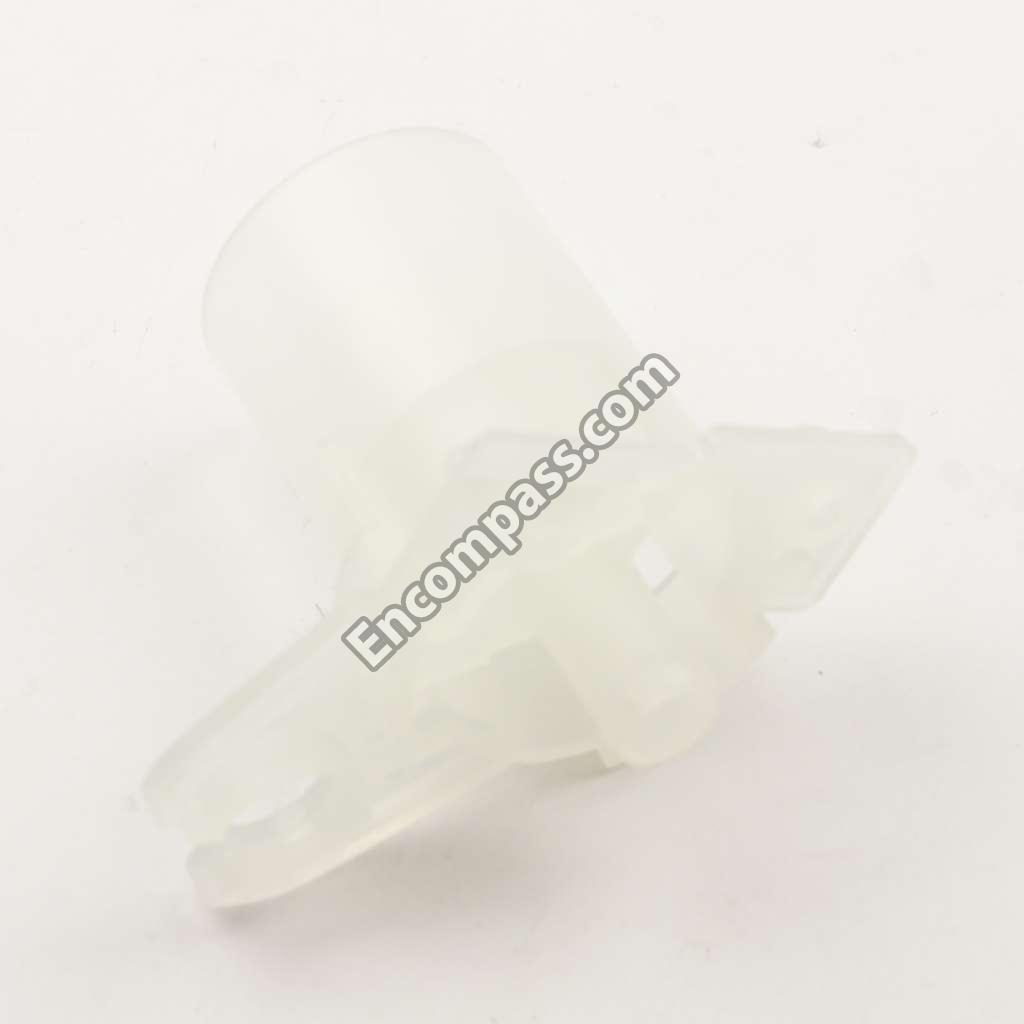

3357451 3357451 ADAPTER
WP3357397 WP3357397 ADAPTER

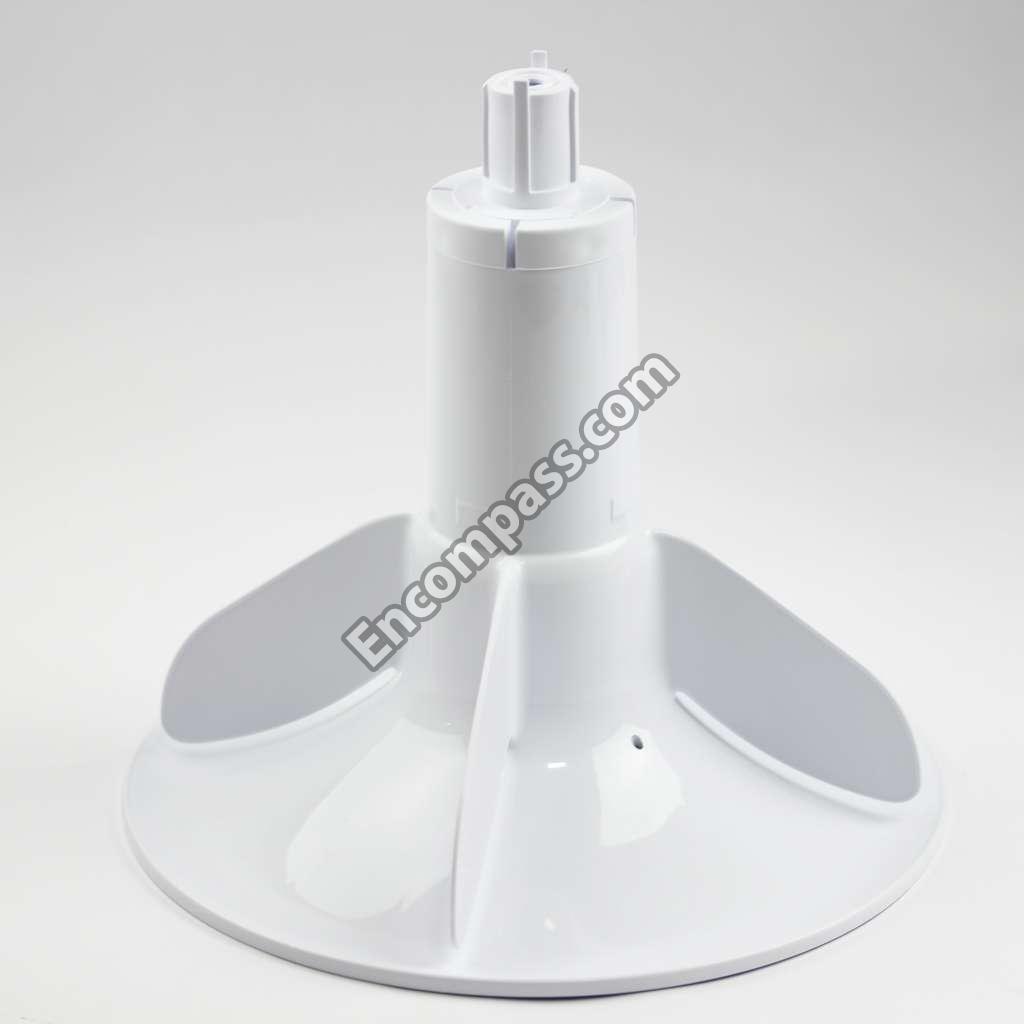

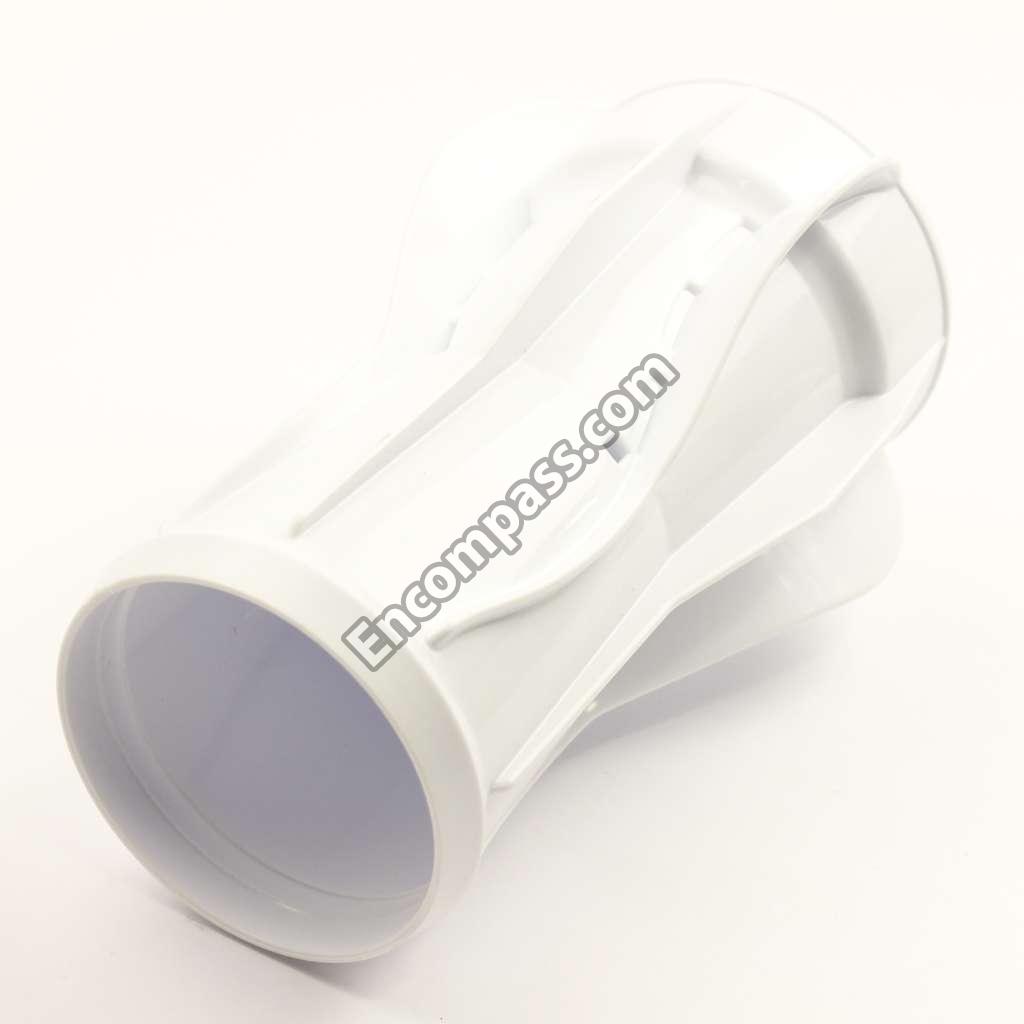

WP3349098 WP3349098 AGITATOR
WP3355758 WP3355758 AGITATOR CAP
279264 279264 AIR CHANNEL BOX
696547 696547 AIR DUCT & BRACKET
WP72107 WP72107 ALMOND
350956 350956 ALMOND
692791 692791 ALMOND PLUG DRYER SIDE PNL
685207 685207 BAFFLE-DRM
694320 694320 BAR, SLIDE

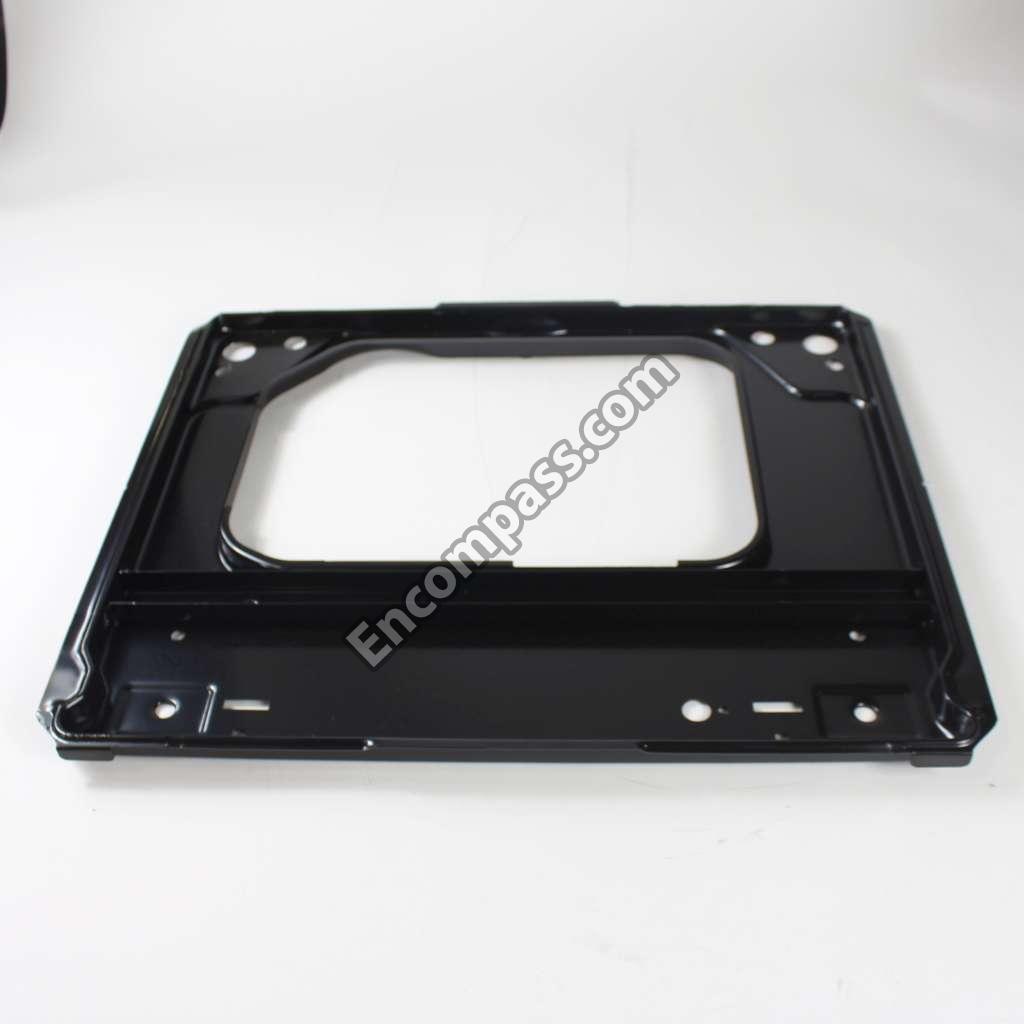

696541 696541 BASE
WP8577373 WP8577373 BASE
3399632 3399632 BASE-DRYER

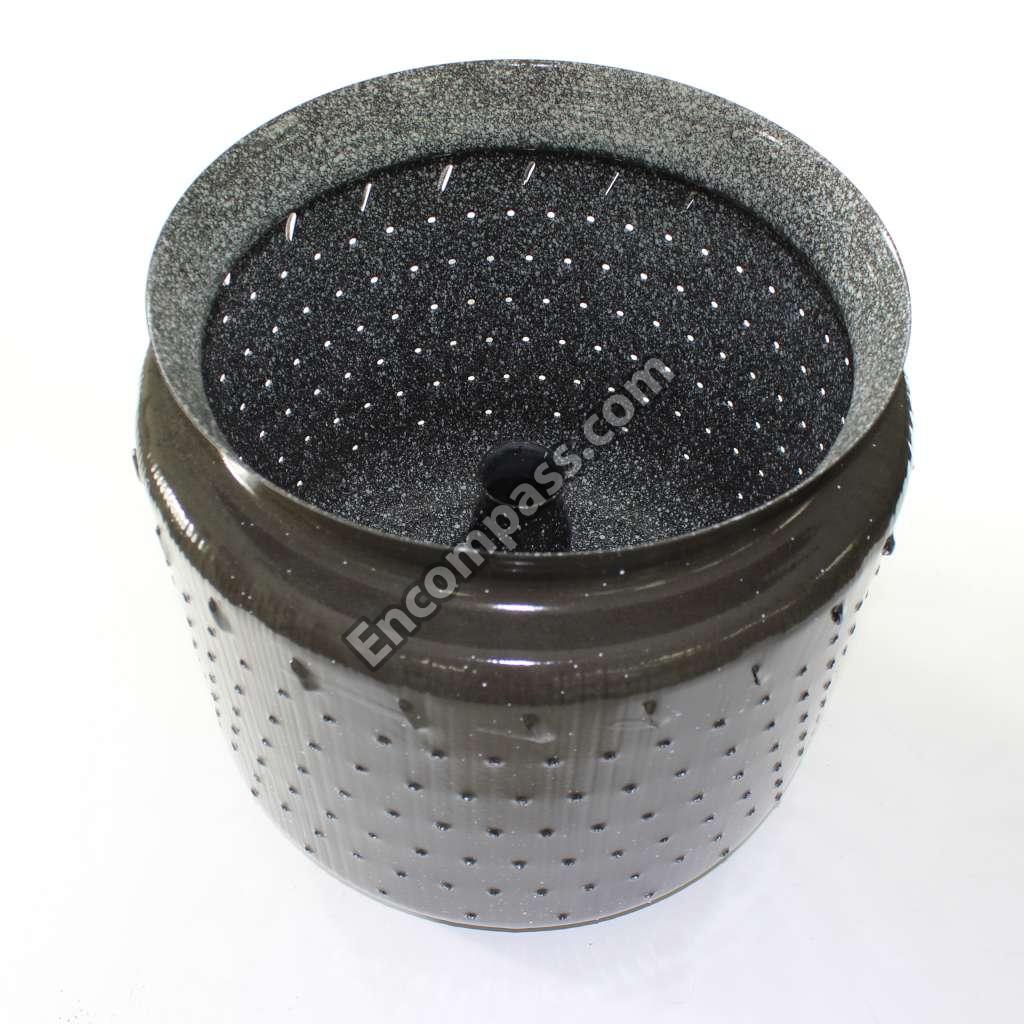

3351985 3351985 BASKET
W10820043 W10820043 BASKTDRIVE
WP8546455 WP8546455 BEARING
285205 285205 BEARING
WP8546462 WP8546462 BEARING
WP3394508 WP3394508 BEARING, RING

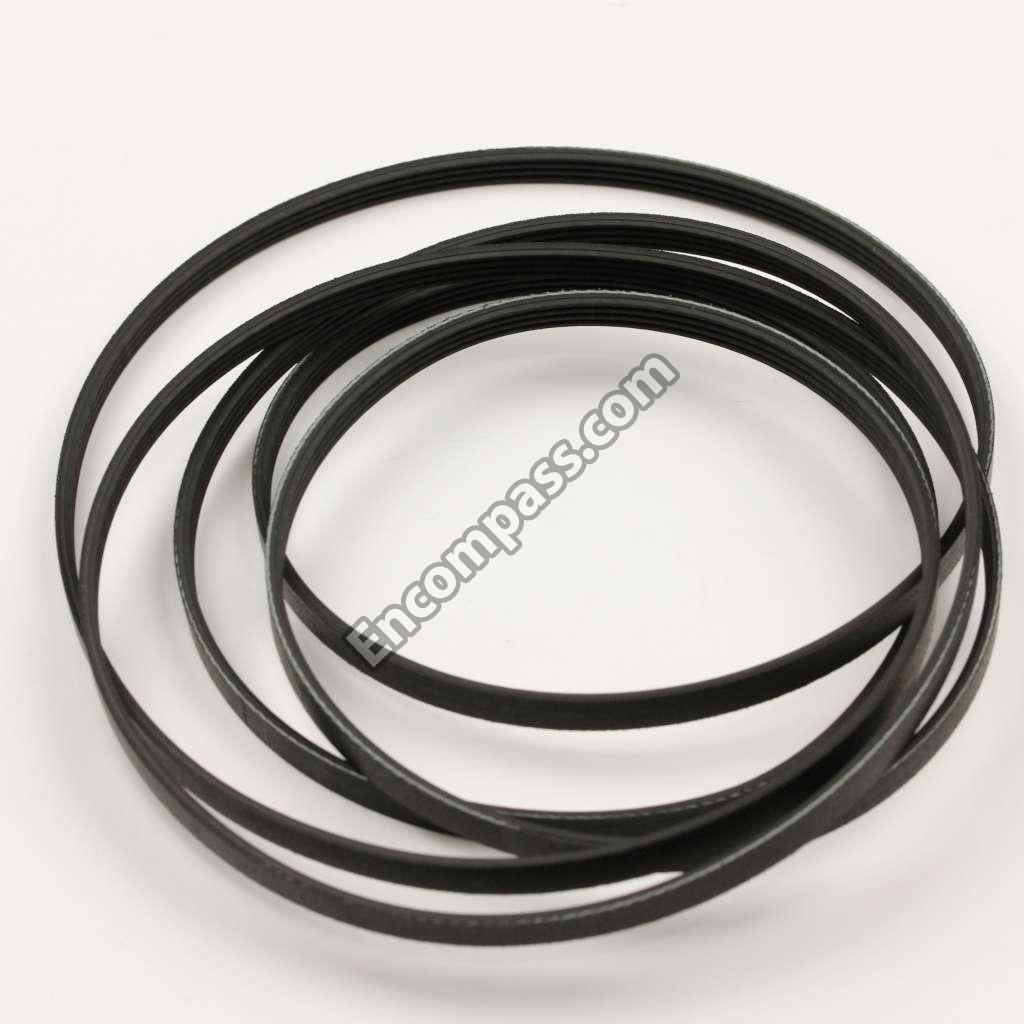

3394652 3394652 BELT, DRIVE
WP62505 WP62505 BLOCK, DISCONNECT (MOTOR 2 SPEED) (USE TERM. 352088)
WP389140 WP389140 BLOCK, DRIVE
696044 696044 BLOCK, RESTRAINT (2)
279320 279320 BLOCK-TERM
WP3401380 WP3401380 BOX

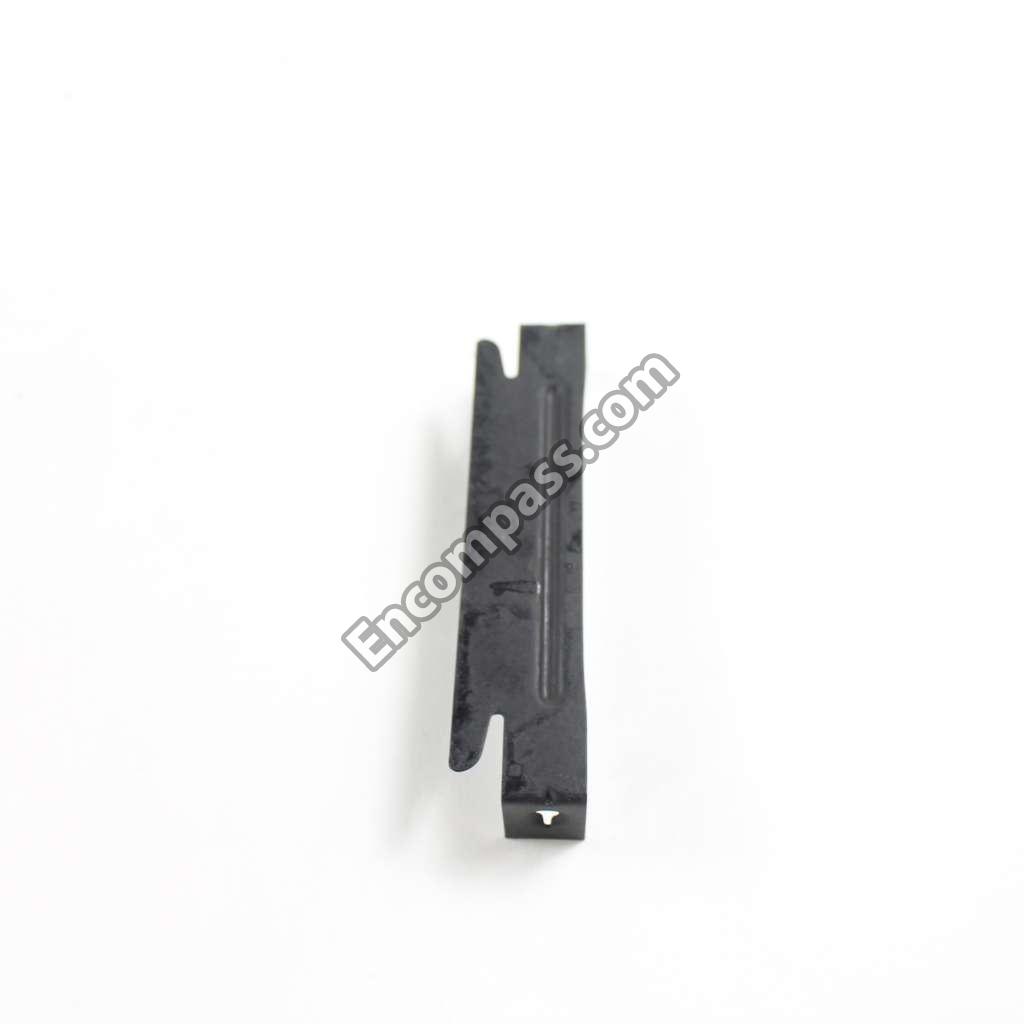

694338 694338 BRACKET, CONTROL
63636 63636 BRACKET, COUNTERWEIGHT SPRING
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
279848 279848 BULKHEAD
80011 80011 BUMPER (2)
WP19119 WP19119 BUMPER (2)
693152 693152 BUMPER, CONSOLE (5)
69639-6 69639-6 BUTTON, SLIDE CHROME
WP694419 WP694419 BUZZER
696014 696014 CABINET (ALMOND)
696013 696013 CABINET (WHITE)
WP8546461 WP8546461 CAM-BRAKE
WP356471 WP356471 CAP
WP62646 WP62646 CAP
WP8572717 WP8572717 CAPACITOR
WP3389441 WP3389441 CATCH, DOOR
285203 285203 CENTERPOST BEARING KIT (INCLUDES ITEMS 13, 14 & 23)
WP596669 WP596669 CLAMP
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP371502 WP371502 CLAMP
WP3357331 WP3357331 CLAMP UP DRAIN HOSE
357030 357030 CLAMP, CAPACITOR
WP660658 WP660658 CLAMP, MOTOR
488946 488946 CLAMP, TUBING
8577411 8577411 CLIP
279220 279220 CLIP
345396 345396 CLIP
279771 279771 CLIP
693141 693141 CLIP
W11712577 W11712577 CLIP
8528351 8528351 CLIP
WP90016 WP90016 CLIP
WP692985 WP692985 CLIP
WP3355454 WP3355454 CLIP
WP3395536 WP3395536 CLIP
WP98234 WP98234 CLIP (2)
356746 356746 CLIP, CONDENSER (2)
694037 694037 CLIP, CONSOLE
WP359364 WP359364 CLIP, LEVELING MECHANISM (2)
W10854425 W10854425 CLIP, TOE PANEL
WP692781 WP692781 CLOSURE
692782 692782 CLOSURE, CONTROL AREA (ALMOND)
285785 285785 CLUTCH
3350130 3350130 CONNECTOR
W10876590 W10876590 CONNECTOR
WP717253 WP717253 CONNECTOR
W11213338 W11213338 CONNECTOR
285442 285442 CONNECTOR KIT, PLASTIC DRAIN HOSE
3395683 3395683 CONNECTOR, (MOTOR)
W10511286 W10511286 CORD-POWER
285753A 285753A COUPLING
WP16272 WP16272 COUPLR-HSE
WP692926 WP692926 COVE
285202 285202 COVER
WP3394228 WP3394228 COVER
W10828351 W10828351 COVER
694304 694304 COVER, CHANNEL
3403095 3403095 DIAL
3403096 3403096 DIAL, TIMER (WASHER) (ALMOND)
280077 280077 DOOR
WP689314 WP689314 DOOR
279570 279570 DOOR LATCH
WP693145 WP693145 DOOR LATCH-LID
WP348205 WP348205 DOOR, FRONT
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W11618508 W11618508 DRIVE MOTOR

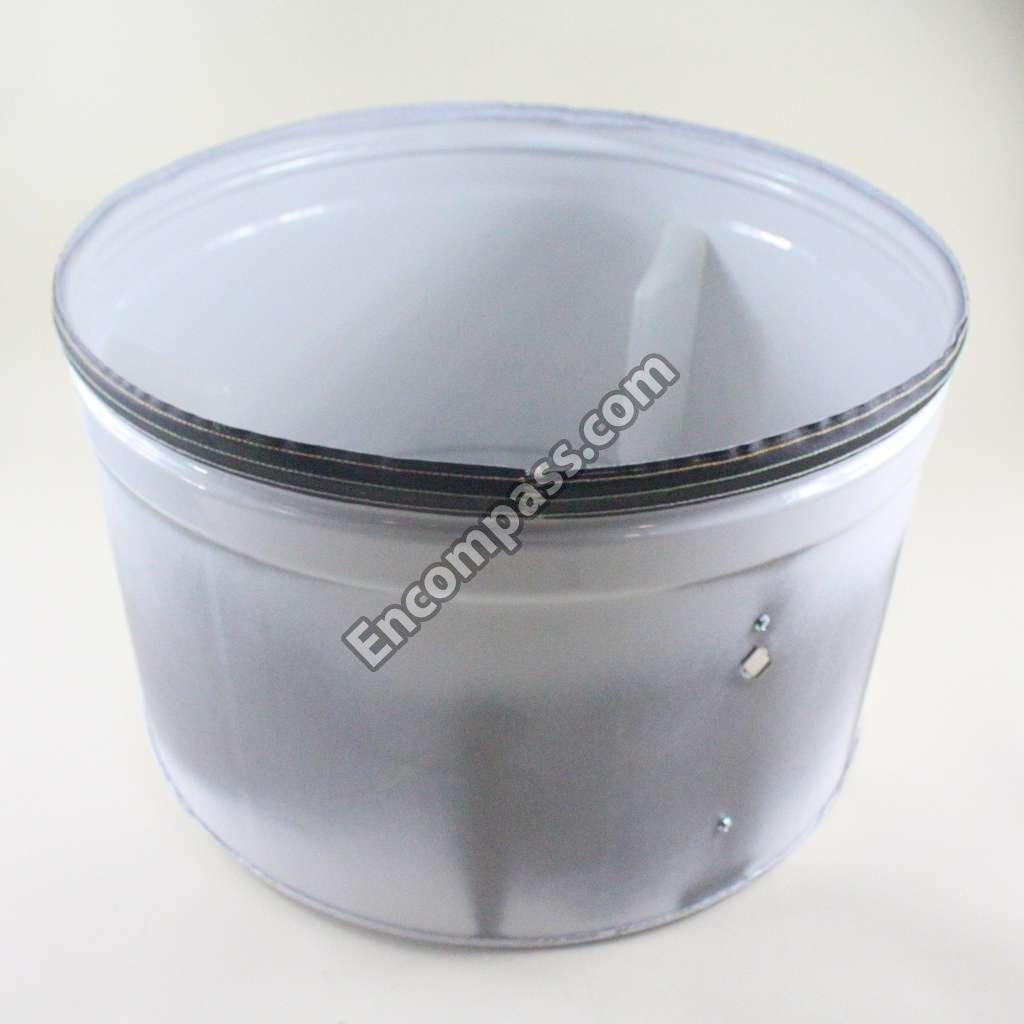

3391834 3391834 DRUM
3399603 3399603 ELBOW
WP3399602 WP3399602 ELBOW
WP279843 WP279843 ELEMENT
692993 692993 END CAP, CONSOLE (L.H. & R.H.)
694609 694609 EXHAUST DEFLECTOR KIT (COMPLETE)
WP90296 WP90296 FASTENER, FLAT (2)

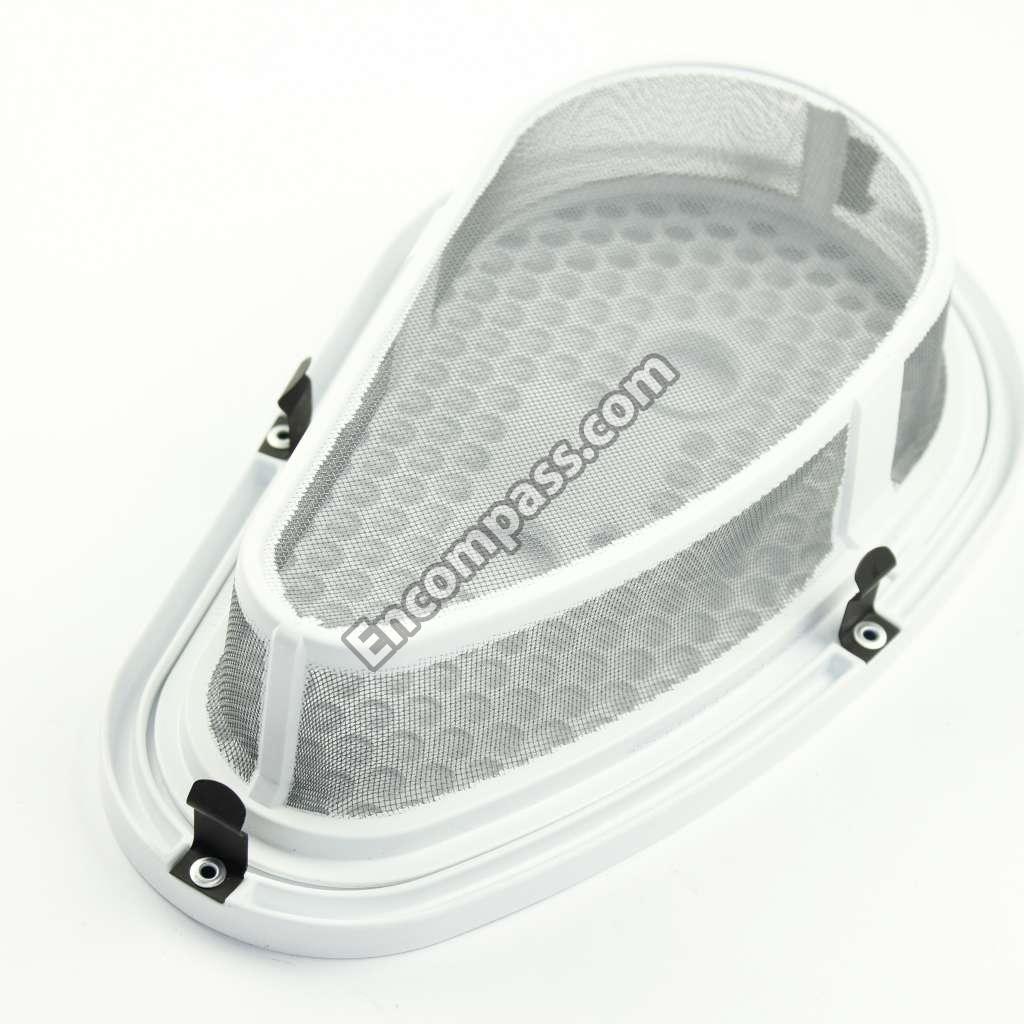

WP63840 WP63840 FILTER
WP367594 WP367594 FOOT, FRONT (2)
WP358594 WP358594 FOOT, REAR (2)

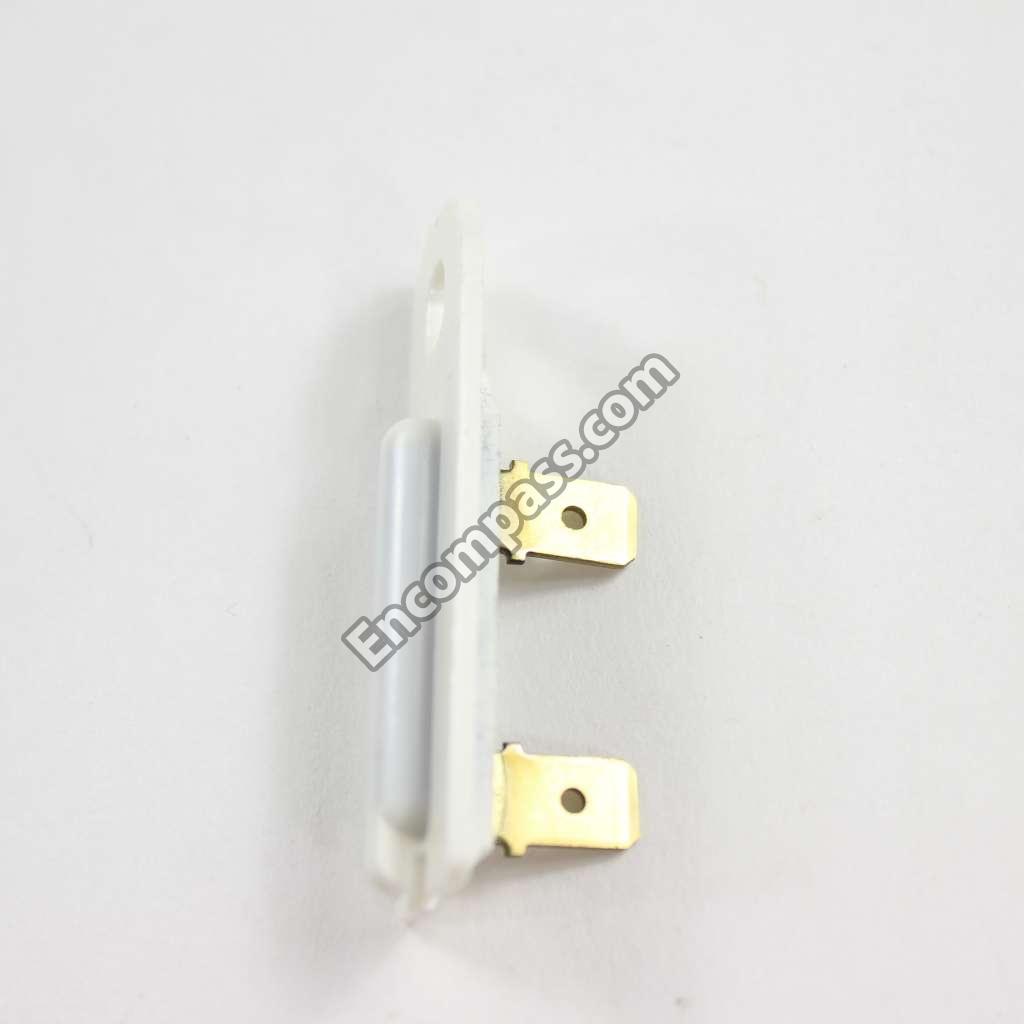

WP3399849 WP3399849 FUSE, THERMAL
W10814296 W10814296 GASKET, CENTER POST
WP3359587 WP3359587 GASKET, TUB RING
WPW10233584 WPW10233584 GEAR-SPIN
3363395 3363395 GEARCASE
3360629 3360629 GEARCASE
LIT3396315 LIT3396315 GUIDE, USE & CARE
WP689308 WP689308 HANDLE, DOOR (ALMOND)
WP686711 WP686711 HANDLE, DOOR (WHITE)
3398879 3398879 HARNESS, CONSOLE WIRING (AUTOMATIC) (INCLUDES ILLUS. 1A, 1B & 1C)
692728 692728 HARNESS, DOOR SWITCH (INCLUDES ILLUS. 1A)
3404314 3404314 HARNESS, MAIN DRYER WIRING (INCLUDES NOS.36A, 36B & 36C)
3388677 3388677 HARNS-WIRE
WP348023 WP348023 HINGE AND PIN ASSEMBLY (2)
WP21258 WP21258 HINGE, BEARING (2)
384458 384458 HINGE, LID (L.H.)
384459 384459 HINGE, LID (R.H.)

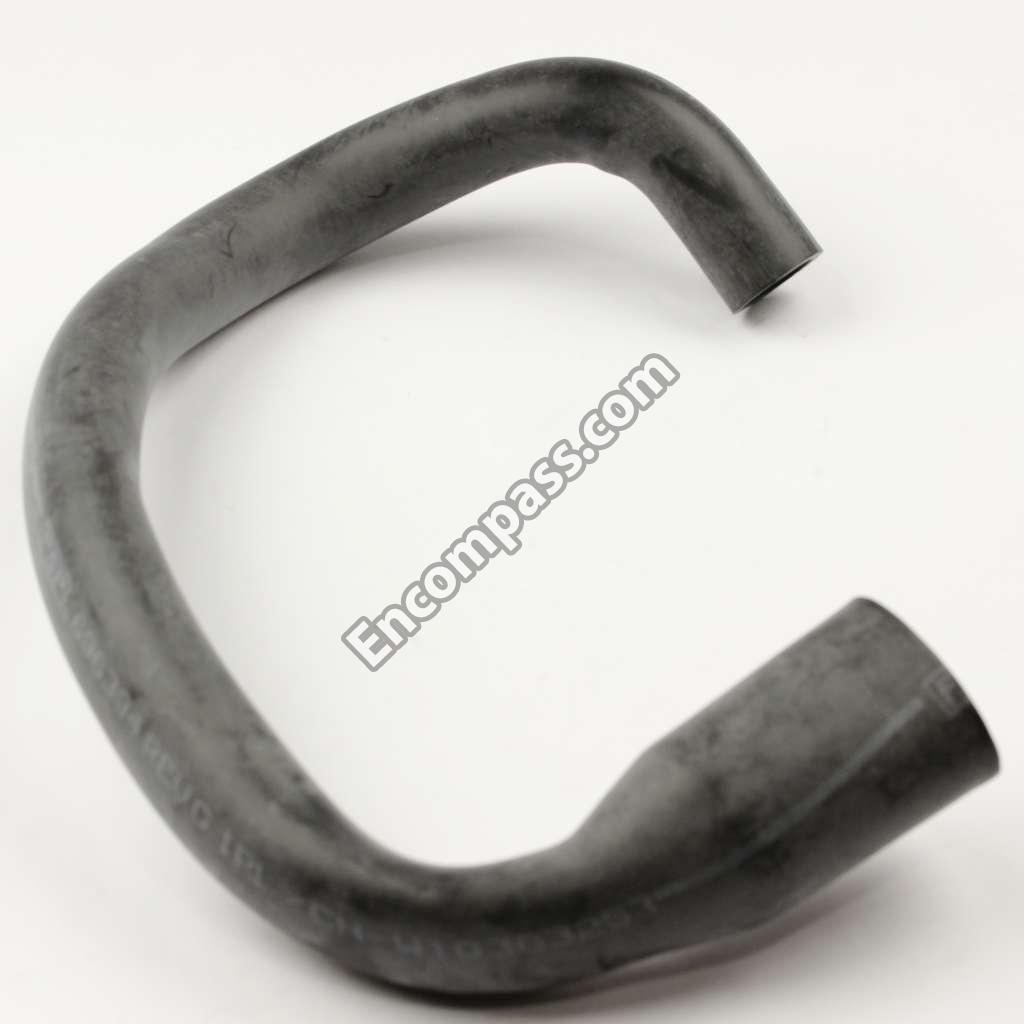

WP692699 WP692699 HOSE
WP696394 WP696394 HOSE
280120 280120 HOSE
285664 285664 HOSE
WP696710 WP696710 HOSE, DRAIN
W10834213 W10834213 HOSE, PRESSURE SWITCH
WP89503 WP89503 HOSE-FILL
WP691366 WP691366 IDLER PULLEY ASSEMBLY
LIT3397516 LIT3397516 INSTRUCTIONS, INSTALLATION
285320 285320 IPHON BREAK KIT
WP3957750 WP3957750 KNOB
WP3957800 WP3957800 KNOB
WP3957796 WP3957796 KNOB
3950760 3950760 KNOB, CONTROL (ALMOND)
WP3364293 WP3364293 KNOB, TIMER (WASHER)
LIT3404324 LIT3404324 LABEL, WIRING DIAGRAM
350941 350941 LEVELER (THINNER)
3398844 3398844 LID
WP3398848 WP3398848 LID
285790 285790 LINING
WP358652 WP358652 LINK
WP692983 WP692983 LOCK, CONSOLE (2)
WP345670 WP345670 LOCK, TOP
285208 285208 LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
3946894 3946894 MOTOR, MAIN DRIVE
388253A 388253A NEUTRL-PAK
WP3357027 WP3357027 NOZZLE, DRAIN HOSE
WP245183 WP245183 NUT
WP692771 WP692771 NUT
W10080180 W10080180 NUT
279710 279710 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP21366 WP21366 NUT, LOCK
WP692400 WP692400 NUT, PUSH-IN
350572 350572 OIL, GEARCASE (16 OZ.)
978883 978883 PAINT
799344 799344 PAINT
285314 285314 PANEL
285315 285315 PANEL
280069 280069 PANEL
WP3402293 WP3402293 PANEL
WP3402287 WP3402287 PANEL
WP692628 WP692628 PANEL
285882 285882 PANEL
3404261 3404261 PANEL, CONTROL (ALMOND)
3404260 3404260 PANEL, CONTROL (WHITE)
3402294 3402294 PANEL, SIDE (L.H.) (ALMOND)
3402288 3402288 PANEL, SIDE (R.H.) (ALMOND)
692934 692934 PANEL, TRANSITION (ALMOND)
692933 692933 PANEL, TRANSITION (WHITE)
WPW10112403 WPW10112403 PARTS-MISC
WP62611 WP62611 PLATE, MOTOR MOUNT TO GEARCASE
696074 696074 PLUG, TERMINAL (12-WAY) (CONNECTS WITH AUTOMATIC CONSOLE HARNESS)
WP660975 WP660975 PLUG, TOP TO CABINET 689587 (ALT.) 694010 (ALT.)
350938 350938 PRIMER, GRAY
3390046 3390046 PROTECTOR
W11233559 W11233559 PULLEY-MTR
WP3363394 WP3363394 PUMP (COMPLETE)
WP3387137 WP3387137 RANGE THERMOSTAT
696073 696073 RECEPTACLE, CONNECTOR (CONNECTS WITH LOWER AUTOMATIC HARNESS)
717252 717252 RECEPTACLE, TERMINAL (2-WAY) (CONNECTS WITH DOOR SWITCH HARNESS)
WP62889 WP62889 RECEPTACLE, TERMINAL (3-WAY) (CONNECTS WITH HARNESS)
WP8546127 WP8546127 RETAINER
WPW10086010 WPW10086010 RETAINER, MOTOR (2)
62677 62677 RETAINER, SPRING (2)
285353 285353 RING
WP62658 WP62658 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP63134 WP63134 RING, SOUND DEADENING
WPW10080230 WPW10080230 RING, SPIN TUBE SUPPORT
285765 285765 RING-RETNR
W11033823 W11033823 RING-WIRE
60001022 60001022 SCREW
348689 348689 SCREW
354975 354975 SCREW
W11676450 W11676450 SCREW
WP694091 WP694091 SCREW
WP3390631 WP3390631 SCREW
WP356418 WP356418 SCREW
WP3400882 WP3400882 SCREW
WP98129 WP98129 SCREW
WP681414 WP681414 SCREW
W10850756 W10850756 SCREW
WP308685 WP308685 SCREW
WP489463 WP489463 SCREW
WPW10119828 WPW10119828 SCREW
WP308544 WP308544 SCREW
WP3400516 WP3400516 SCREW
WP273556 WP273556 SCREW
W11573574 W11573574 SCREW
WP358237 WP358237 SCREW & WASHER (5/16 - 24 X 1)
386011 386011 SCREW & WASHER (BASE TO CABINET)
WP3356311 WP3356311 SCREW & WASHER, LID SWITCH (2)
WP693304 WP693304 SCREW AND WASHER
690372 690372 SCREW, 11-16 X 7/8
WP90767 WP90767 SCREW, 8 A X 3/8
WP488729 WP488729 SCREW, 8 X 3/8
693710 693710 SCREW, CONSOLE LOCK (2)
WP3351614 WP3351614 SCREW, GEARCASE COVER MOUNTING (8) (10-24 X 3/8)
WP696418 WP696418 SCROLL-FAN
279735 279735 SEAL
W11095997 W11095997 SEAL
WP339956 WP339956 SEAL FOAM
WP8577376 WP8577376 SEAL, CENTERPOST

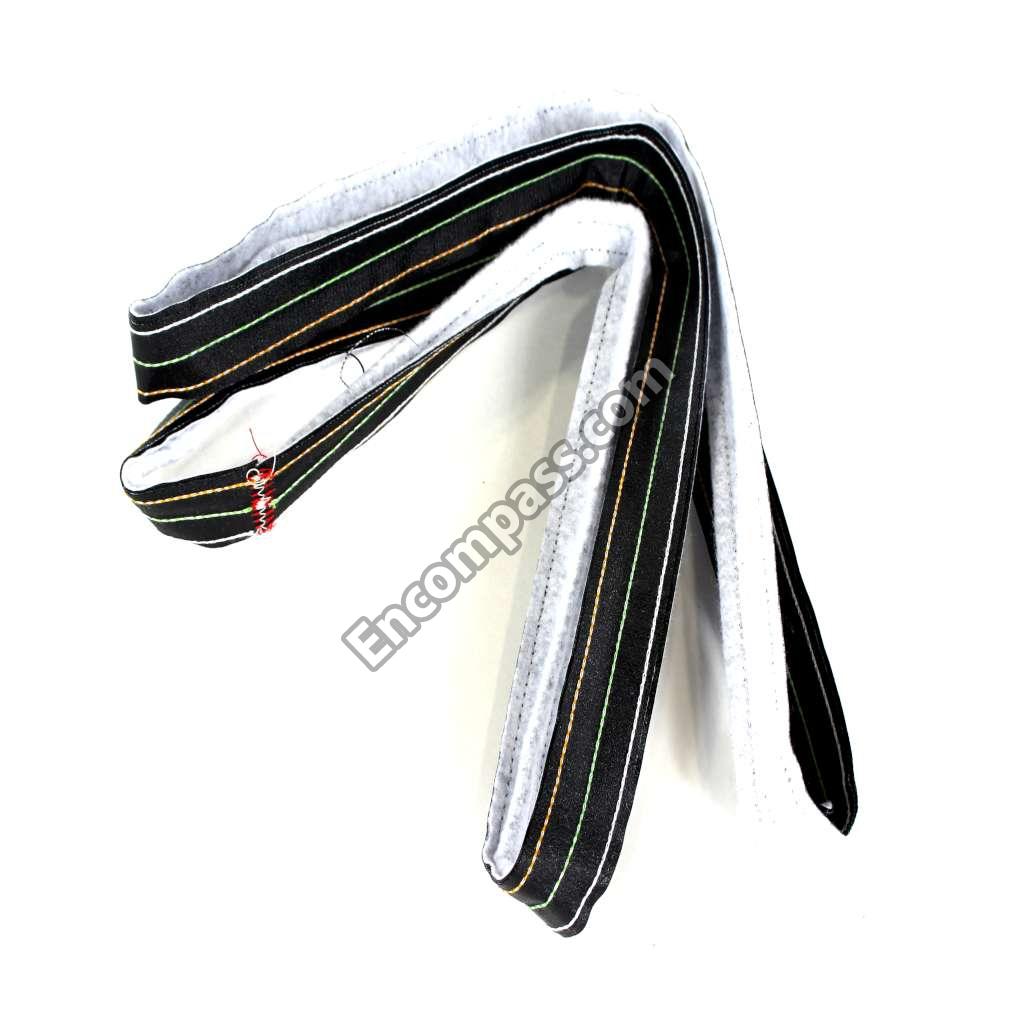

W11613302 W11613302 SEAL, DOOR
WP356427 WP356427 SEAL, DRIVE TUBE
696658 696658 SEAL, FAN SCROLL
WP3349985 WP3349985 SEAL, GEARCASE COVER
WP91939 WP91939 SEAL, OIL
285352 285352 SEAL, THRUST PLUG
3350013 3350013 SEAL-FOAM
WP285195 WP285195 SEALER, GASKET (.20 FL. OZ.) (6 ML)
W10278738 W10278738 SET SCREW
WPW10359269 WPW10359269 SHAFT
WP389387 WP389387 SHAFT, AGITATOR (COMPLETE)
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
WP3946532 WP3946532 SHIELD
WP64137 WP64137 SHIELD
63637 63637 SHIELD, TUB
285438 285438 SHOE-BRAKE
279823 279823 SIDE EXHAUST KIT
WP356363 WP356363 SIPHON BREAK
285321 285321 SLEEVE
285658 285658 SLEEVE
WP63022 WP63022 SLEEVE
693711 693711 SLEEVE, CONSOLE LOCK SCREW (2)
356937 356937 SPACER, DRIVE TUBE
350930 350930 SPRAY (13 OZ.) (WHITE)
WP8559387 WP8559387 SPRING
W10207783 W10207783 SPRING
WP63748 WP63748 SPRING
62676 62676 SPRING, WASHER AGITATOR
WPW10250667 WPW10250667 SPRING,COUNTERWEIGHT
WP693151 WP693151 SPRNG-LOCK
WP358684 WP358684 STRIKE, LID
693175 693175 STRUT, CONSOLE
349241T 349241T SUPPORT
W11174025 W11174025 SUPPORT
W11174024 W11174024 SUPPORT
692846 692846 SUPPORT PROTECTOR
686770 686770 SUPPORT PROTECTOR
694302 694302 SWITCH 2 POSITION

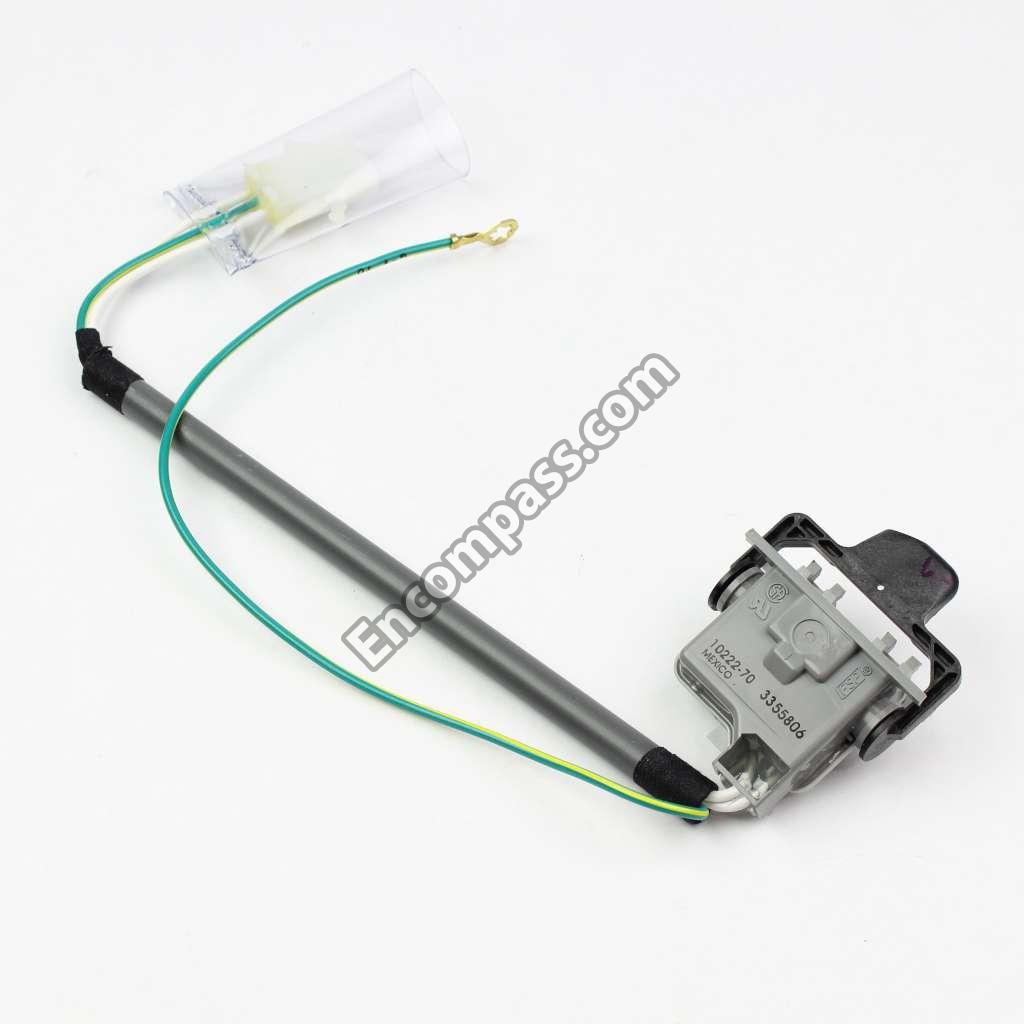

WP3355806 WP3355806 SWITCH, LID

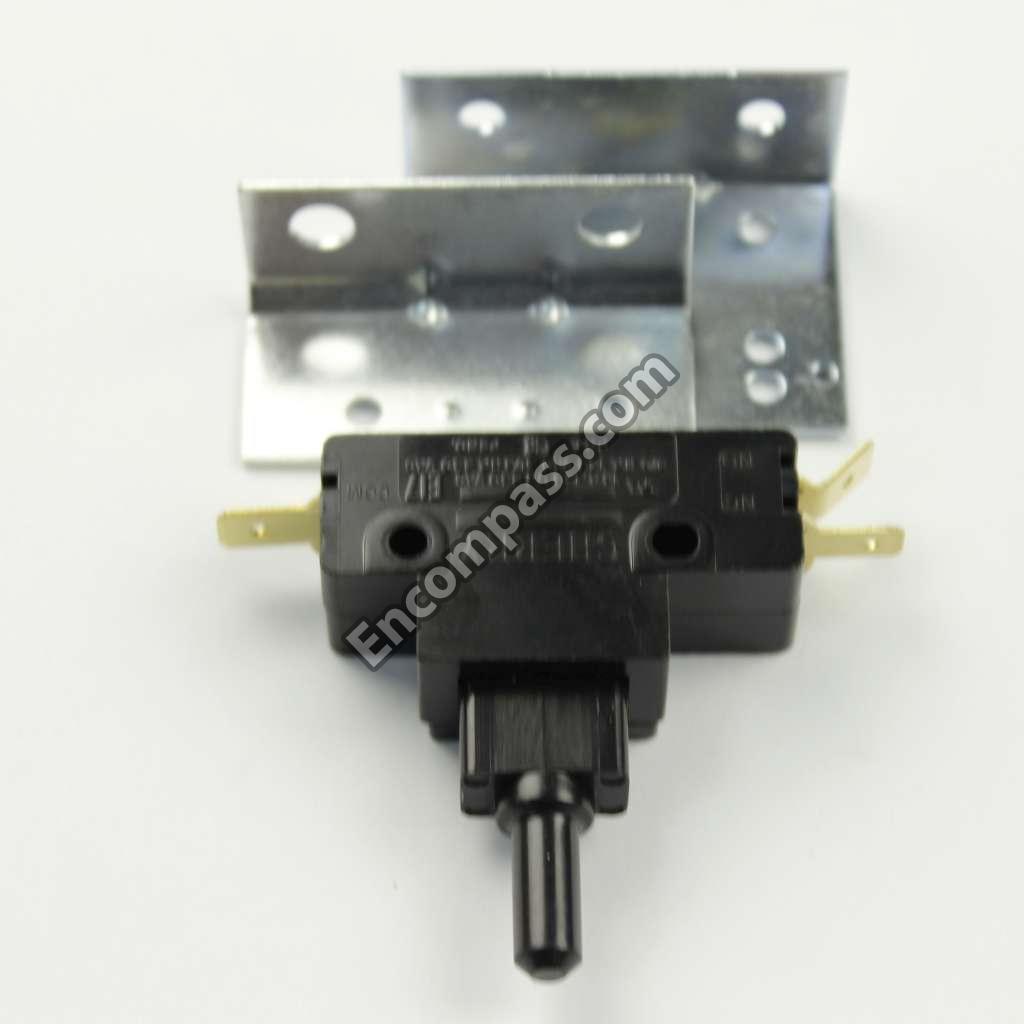

279173 279173 SWITCH, PUSH-TO-START

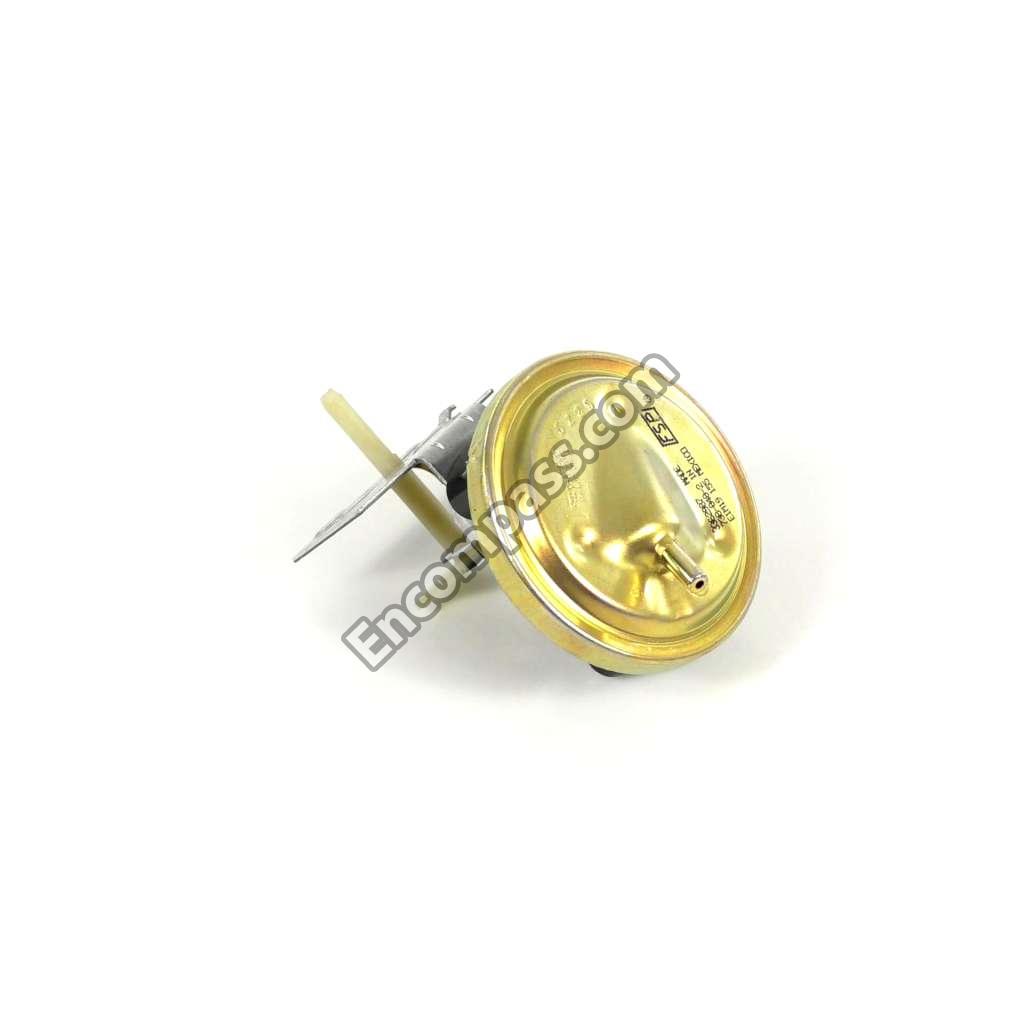

WP3362987 WP3362987 SWITCH, WATER LEVEL
3363042 3363042 SWITCH, WATER TEMPERATURE
W10820036 W10820036 SWITCH-LID
WP8529896 WP8529896 SWITCH-MTR
LIT3397739 LIT3397739 TAG, ENERGY GUIDE
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)

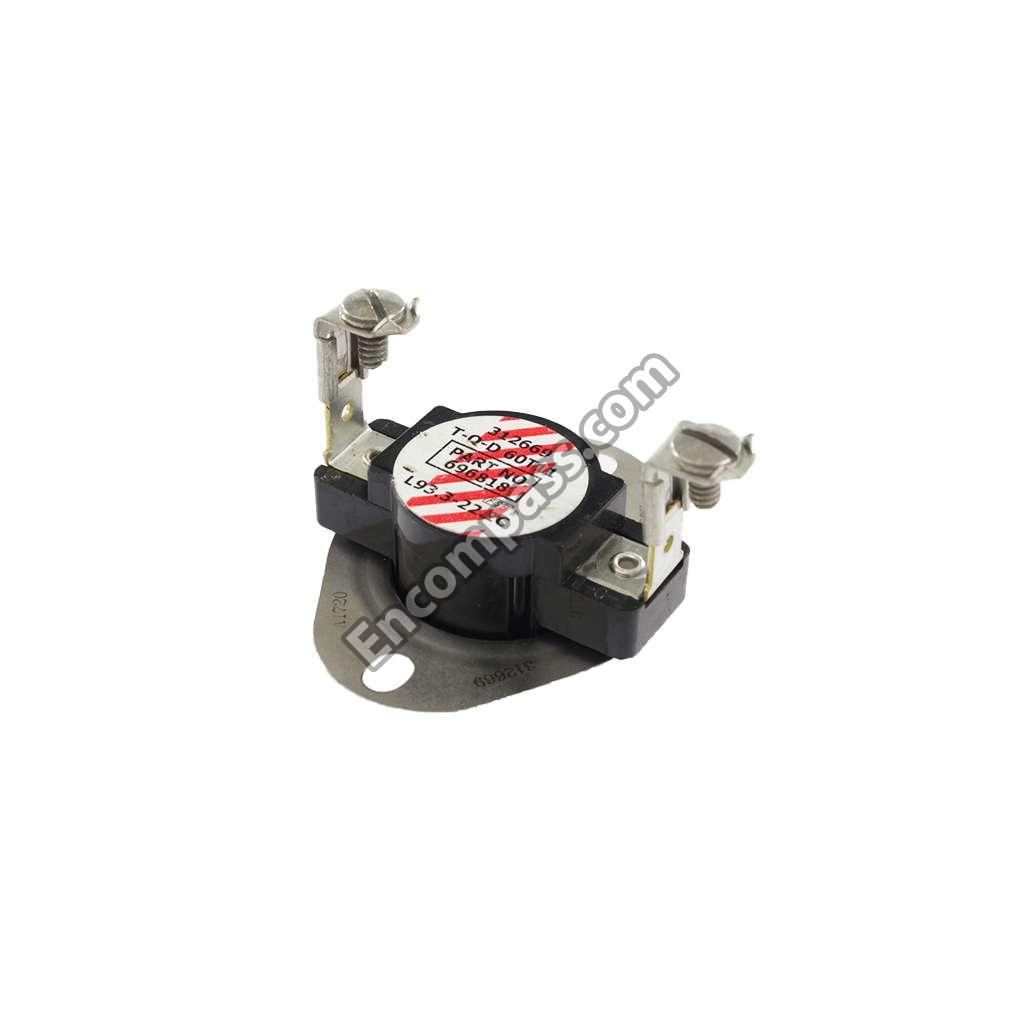

WP696818 WP696818 THERMOSTAT, HEATER BOX (225OF) (107.2OC)
WPW10339879 WPW10339879 TIE-WIRE
3948501 3948501 TIMER, CONTROL (50 HZ.) (AUTOMATIC WASHER)
3404457 3404457 TIMER, CONTROL (50 HZ.) (DRYER) (TIMER MOTOR NOT SERVICEABLE)
W10491983 W10491983 TIP-TINES
WP384693 WP384693 TOP
384694 384694 TOP (ALMOND)
WP692641 WP692641 TOP-DRYER
WPW10512946 WPW10512946 TRI-RING (4)
WP63782 WP63782 TUB

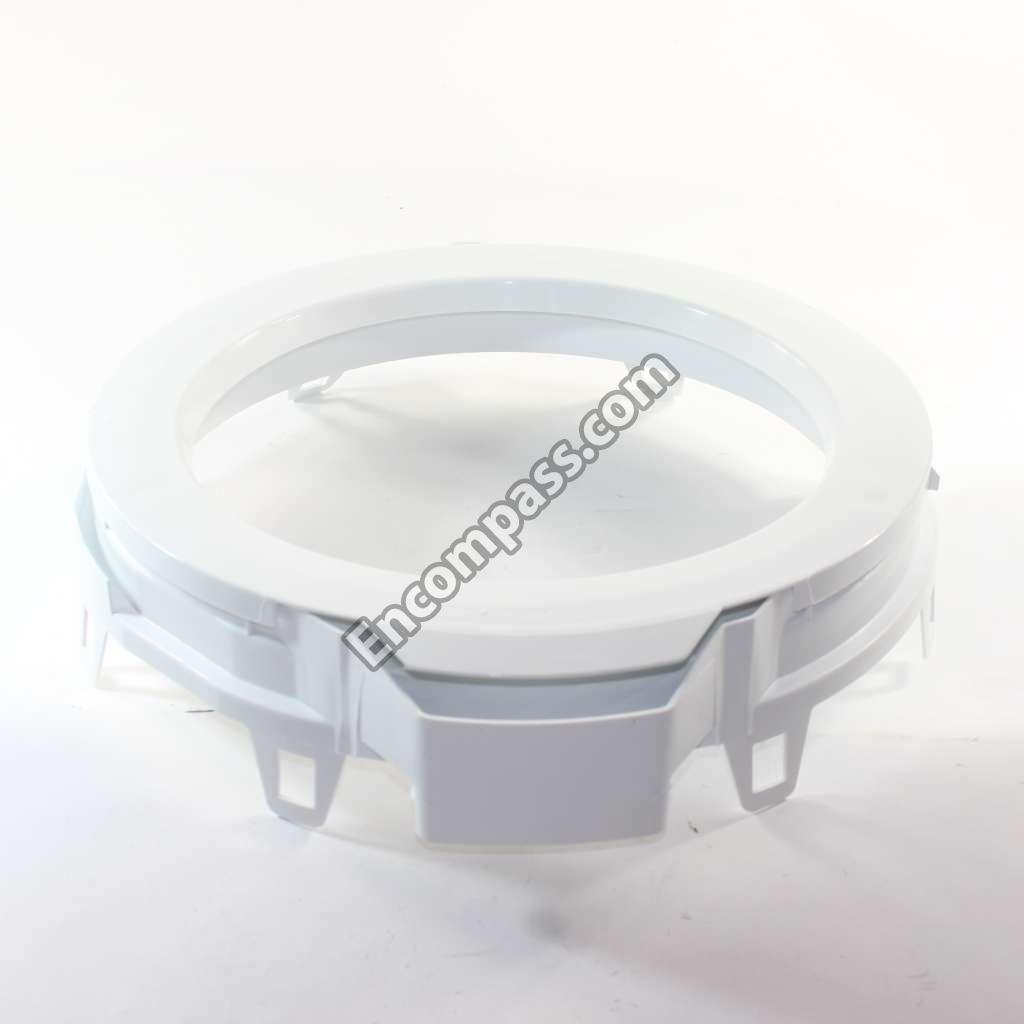

W10831641 W10831641 TUB RING & GASKET (INCLUDES ILLUS. 7, 14 & 15)

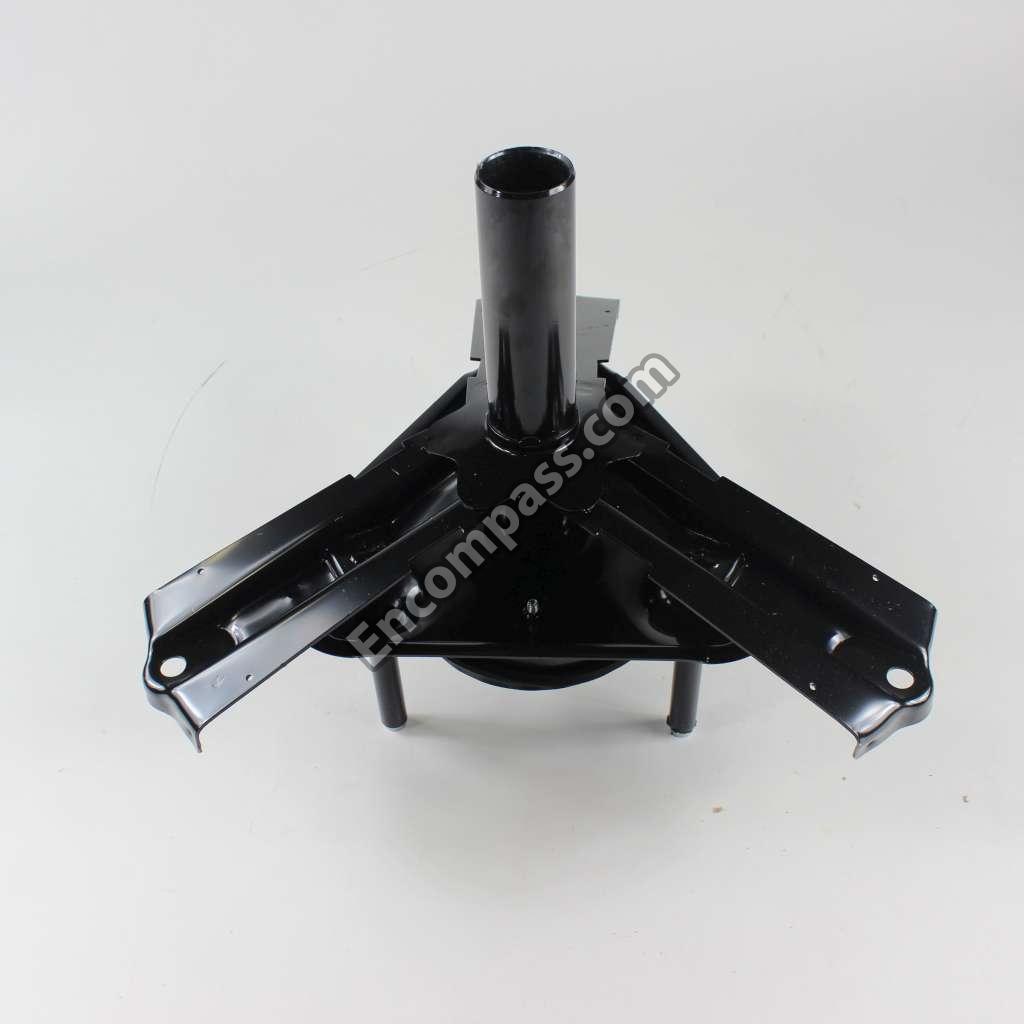

W10863713 W10863713 TUB SUPPORT AND DRUM
356398 356398 TUBE
WP64208 WP64208 TUBE-SPIN
285874 285874 VALVE
WP3388703 WP3388703 WASHER
WP348197 WP348197 WASHER
WP3357450 WP3357450 WASHER
WP388815 WP388815 WASHER
285766 285766 WASHER KIT, THRUST
62618 62618 WASHER, CAM THRUST
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
WP63292 WP63292 WASHER, SPIN TUBE THRUST
62619 62619 WASHER, WASHER AGITATOR GEAR

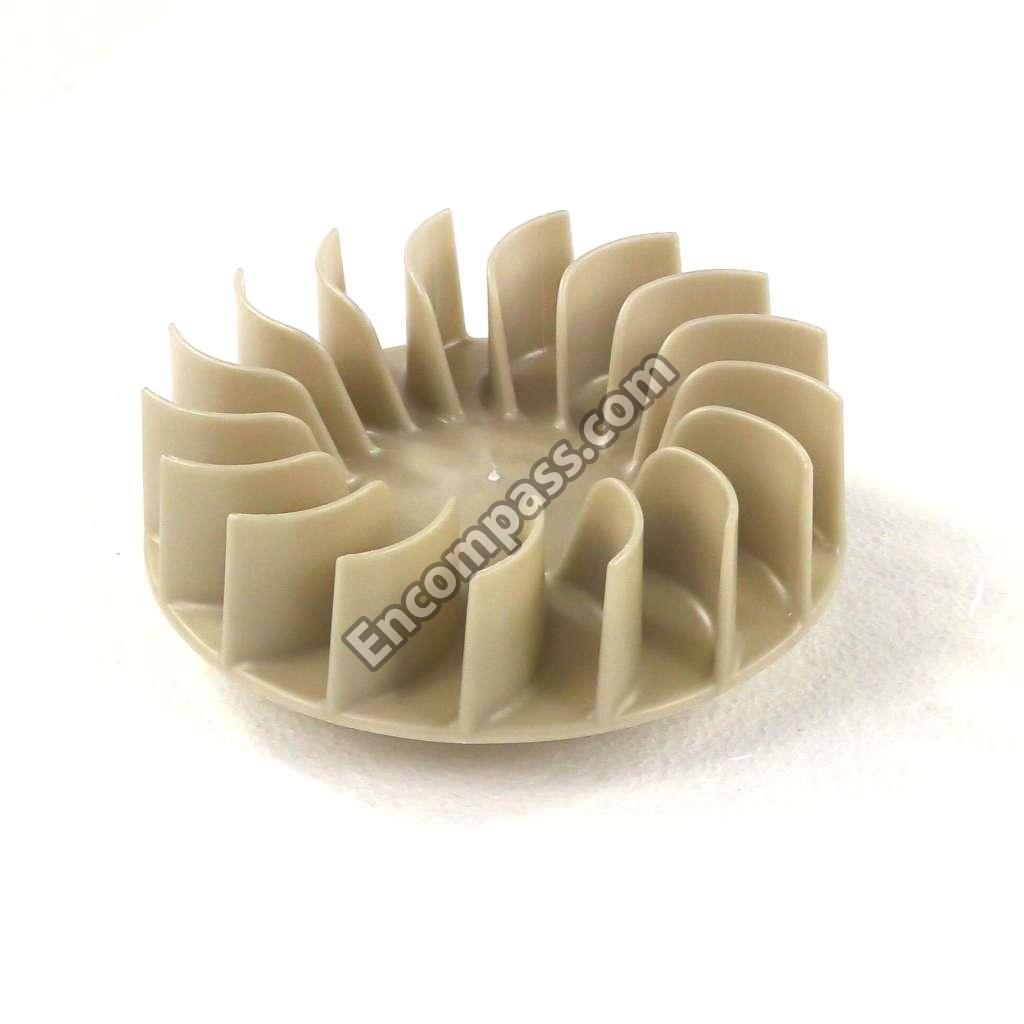

WP696426 WP696426 WHEEL, BLOWER
692790 692790 WHITE, PLUG DRYER SIDE PNL
690236 690236 WIRE, MOTOR GROUND
