Manufacturer

Whirlpool

Model Number

3RAWZ481ETH0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10854980 W10854980 BADGE
WPW10113136 WPW10113136 BAFFLE-DRM
W10119292 W10119292 BASE
WP3387118 WP3387118 BASE
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
W10118337 W10118337 BRACKET
W10118335 W10118335 BRACKET
W10119274 W10119274 BRACKET
W10118063 W10118063 BRACKET
W10118067 W10118067 BRACKET
W10118064 W10118064 BRACKET
8066099 8066099 BRACKET
W10837240 W10837240 BRACKET
W11299300 W11299300 BULKHEAD
WPW10250634 WPW10250634 BULKHEAD
W10129617 W10129617 BUTTON
8522378 8522378 BUZZER-NON
WP3389441 WP3389441 CATCH
W11704629 W11704629 CLAMP
WP660658 WP660658 CLAMP
W11684573 W11684573 CLIP
W11295573 W11295573 CLIP
WP3394427 WP3394427 CLIP
WP688805 WP688805 CLIP
62825 62825 CLIP, S TYPE (3)
353424 353424 CONNECTOR
3401144 3401144 CONNECTOR
3347243 3347243 CONNECTOR
3397269 3397269 CONNECTOR
692997 692997 CONNECTOR
8519483 8519483 COVER
WPW10354249 WPW10354249 COVER
WPW10119283 WPW10119283 COVER-TERM
W10118207 W10118207 DOOR
W11222846 W11222846 DOOR
279570 279570 DOOR LATCH

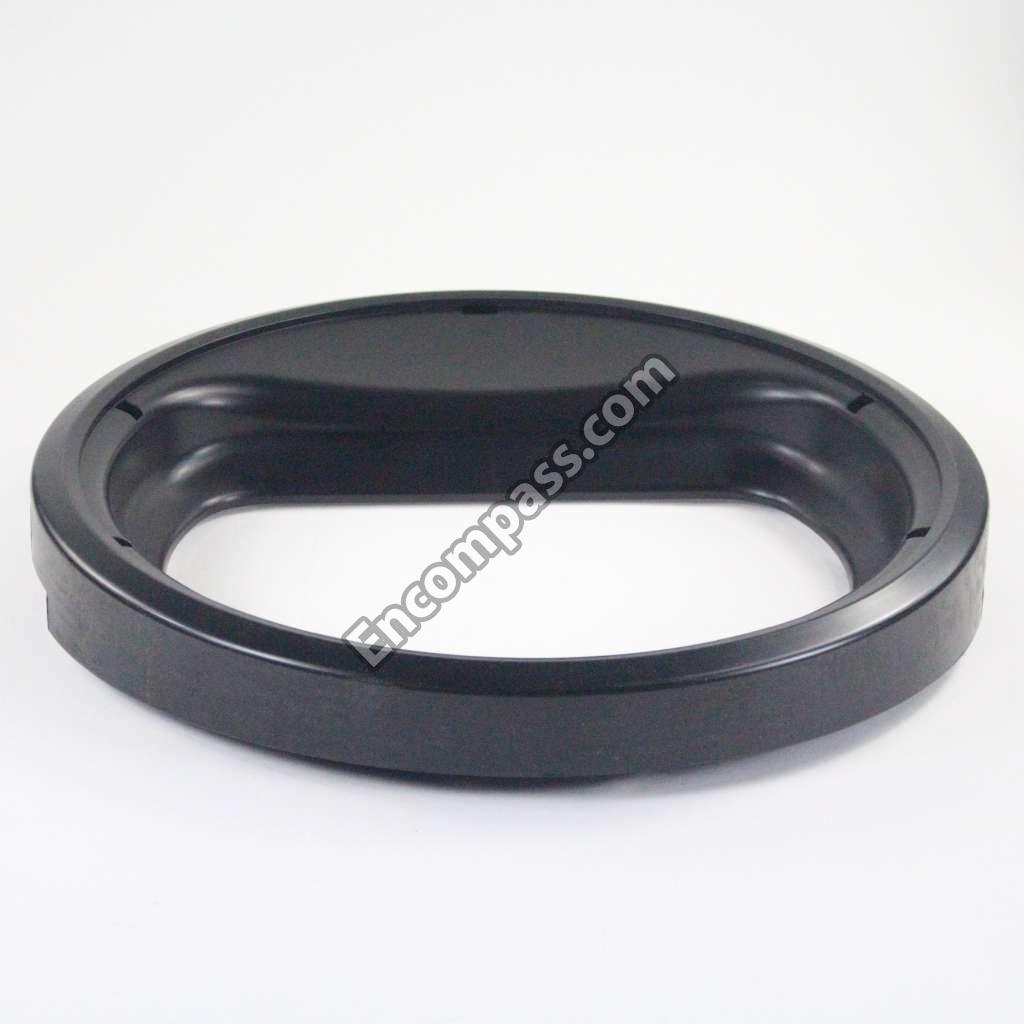

WP8519327 WP8519327 DOOR, OUTER
W10416573 W10416573 DRIVE MOTOR
W10117531 W10117531 DRUM
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387749 WP3387749 ELEMENT
49621 49621 FEET-LVLNG
WPW10111181 WPW10111181 FUSE
W11086603 W11086603 GRILL-OUT

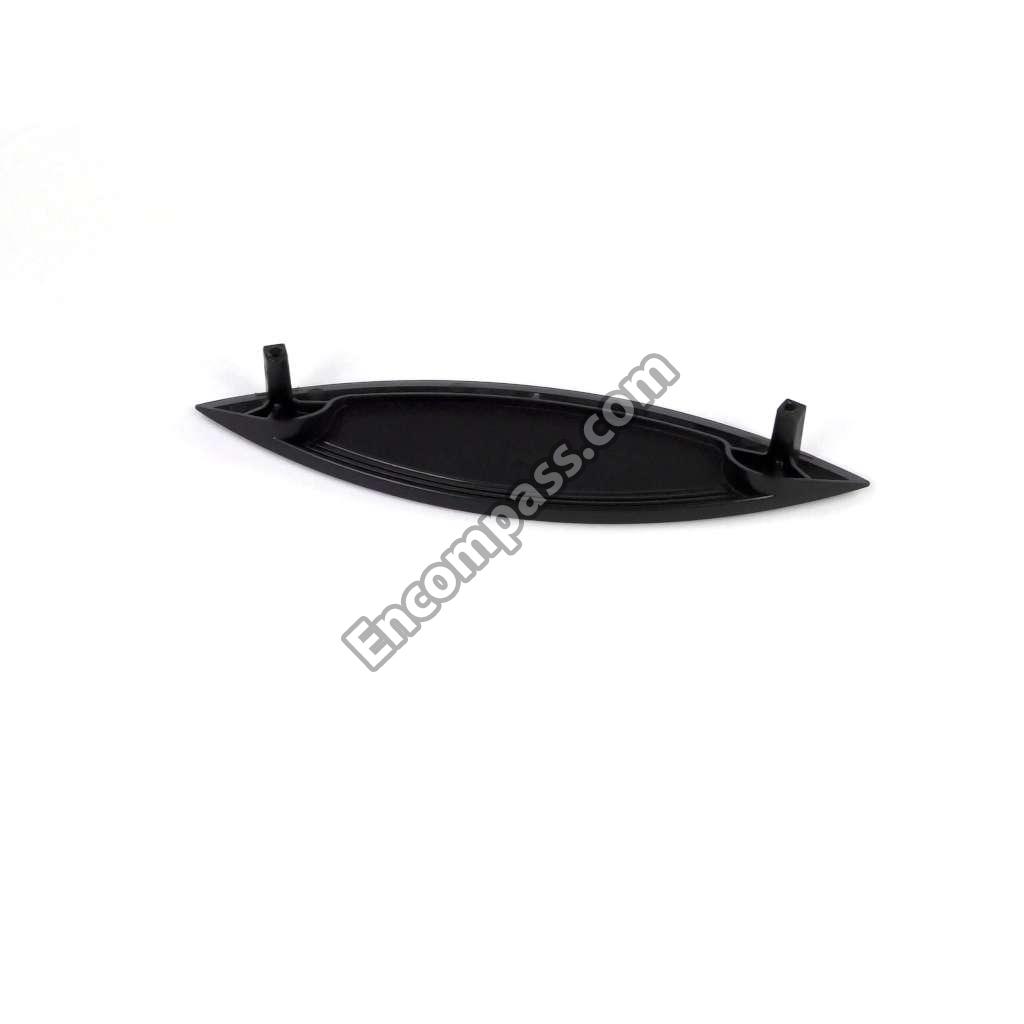

WP8559751 WP8559751 HANDLE
W10110978 W10110978 HARNS-WIRE
W10110980 W10110980 HARNS-WIRE
280201 280201 HINGE
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10131548 W10131548 INSTALLATION & USER GUIDE
8563878 8563878 INSTALLATION INSTRUCTIONS
346764A 346764A KIT, HOLD DOWN
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
W10470674 W10470674 KIT-EXHST
8541503 8541503 KIT-STACK
W10129614 W10129614 KNOB
W10129615 W10129615 KNOB
WPW10085230 WPW10085230 LABEL
8545902 8545902 LABEL, WIRING DIAGRAM
W10854043 W10854043 LEVER
WP692400 WP692400 NUT
WPW10080210 WPW10080210 NUT
WPW10080190 WPW10080190 NUT
100000 100000 OPTIONAL PARTS NOT INCLUDED
4396175 4396175 PAINT, PRESSURIZED SPRAY (12 OZ.) (PEWTER)
280090 280090 PANEL
8578439 8578439 PANEL, SIDE (L.H.)
WPW10117275 WPW10117275 PANEL, SIDE (R.H.)
W10133212 W10133212 PANEL-REAR
W10118949 W10118949 PANELCNTL
W10129618 W10129618 PANELCNTL
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
W10119260 W10119260 PIPEEXHST
8519374 8519374 PLUG
8529007 8529007 PLUG
WPW10404617 WPW10404617 PLUG
3936144 3936144 PLUG, TERMINAL
279640 279640 PULLEY-IDR
3402548 3402548 PULLEY-MTR
W10139360A W10139360A RACK-DRY
8529053 8529053 RAMP
WP3390291 WP3390291 RANGE THERMOSTAT
WP3387137 WP3387137 RANGE THERMOSTAT
WPW10112668 WPW10112668 RELAY-PTS
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
W10080840 W10080840 SCREW
W10080380 W10080380 SCREW
W10080400 W10080400 SCREW
W10080590 W10080590 SCREW
W10080640 W10080640 SCREW
W10118188 W10118188 SCREW
W10080280 W10080280 SCREW
W10080550 W10080550 SCREW
W10080670 W10080670 SCREW
W10080710 W10080710 SCREW
W10130935 W10130935 SCREW
WP489464 WP489464 SCREW
W10080820 W10080820 SCREW
W10080930 W10080930 SCREW
3400238 3400238 SCREW
279393 279393 SCREW
3400097 3400097 SCREW
WP488787 WP488787 SCREW
WPW10109200 WPW10109200 SCREW
W10080340 W10080340 SCREW, 8-18 X 11/16
280203 280203 SCREW-KIT
WP3387242 WP3387242 SEAL
WP697813 WP697813 SEAL
280114 280114 SEAL
WP697770 WP697770 SEAL
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
W11233063 W11233063 SHIELD
3980339 3980339 SHIELD, DRIP
8564134 8564134 SOUND PANEL
3980421 3980421 SPACER PLATE (TIMER)
350938 350938 SPRAY
WPW10446781 WPW10446781 SPRING
WP3394986 WP3394986 SPRING
W10080240 W10080240 STRIKE
8521961 8521961 SUPPORT
WPW10314173 WPW10314173 SUPPORT
W10168170 W10168170 SWITCH
W10168169 W10168169 SWITCH, WRINKLE GUARD
8541808 8541808 SWITCH-DOR
WP8318457 WP8318457 SWITCH-PLG
279318 279318 TERMINAL
WP94614 WP94614 TERMINAL
WP596797 WP596797 TERMINAL
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
WPW10116280 WPW10116280 TIMER
W10116275 W10116275 TOEPNL
W10192481 W10192481 TOP
WP4396174 WP4396174 TUCHUP
W10127718 W10127718 USE & CARE GUIDE
WPW10121334 WPW10121334 WASHER
W11236646 W11236646 WASHER
WP697772 WP697772 WHEEL
WP8545878 WP8545878 WINDOW
8543119 8543119 WIRE
3394081 3394081 WIRE
687133 687133 WIRE
