Model Image
Manufacturer

Whirlpool

Model Number

3RAWZ481GML0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

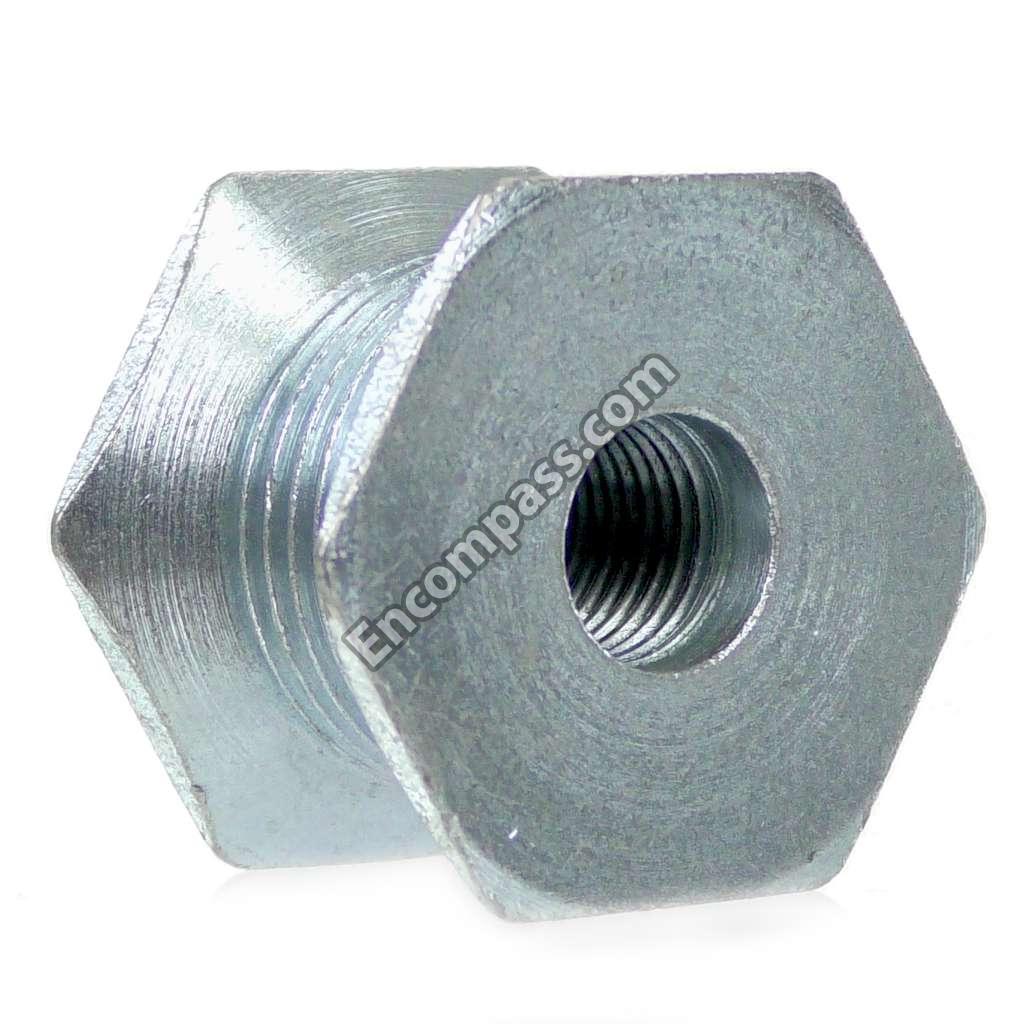

WP8316063 WP8316063 ADAPTER
WPW10113136 WPW10113136 BAFFLE-DRM
WPW10239098 WPW10239098 BASE
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
8519273 8519273 BRACKET
W10181903 W10181903 BRACKET
3389871 3389871 BRACKET
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
694538 694538 BRACKET, COIL
W10118067 W10118067 BRACKET, CONSOLE
3978776 3978776 BRACKET, GAS PIPE
W10837240 W10837240 BRACKET, IDLER
8529005 8529005 BRACKET, LINT DUCT
WP3387118 WP3387118 BRACKET, MOTOR
W10118064 W10118064 BRACKET, SWITCH MOUNTING
W10118063 W10118063 BRACKET, TIMER
W10118337 W10118337 BRACKET-BULKHEAD UPPER MOUNTING
W11299300 W11299300 BULKHEAD
WPW10250634 WPW10250634 BULKHEAD
WP693140 WP693140 BURNER
3402853 3402853 BURNER ASSEMBLY 50 HZ. (WHITE RODGERS)
3980121 3980121 BUTTON, PUSH-TO-START
8522378 8522378 BUZZER-NON
W10118335 W10118335 CHANNEL BRACKET, REAR BULKHEAD (2)
3387561 3387561 CLAMP
WP660658 WP660658 CLAMP
W11295573 W11295573 CLIP
WP3394427 WP3394427 CLIP
W11712577 W11712577 CLIP
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
WP307930 WP307930 COIL-VALVE
WPY307931 WPY307931 COIL-VALVE
3397269 3397269 CONNECTOR
3401144 3401144 CONNECTOR
3347243 3347243 CONNECTOR
692997 692997 CONNECTOR
WP3403498 WP3403498 CONNECTOR
WP3403499 WP3403499 CONNECTOR, 2 POSITION
3956540 3956540 CONSOLE, CENTER
3977712 3977712 CORD, POWER
WPW10354249 WPW10354249 COVER
279780 279780 COVER
3980214 3980214 COVER, DOOR HINGE
WPW10119283 WPW10119283 COVER-TERM
8519309 8519309 DOOR ASSEMBLY (INNER)
8519361 8519361 DOOR HINGE ASSEMBLY
279570 279570 DOOR LATCH
W11222846 W11222846 DOOR, LINT SCREEN
3980213 3980213 DOOR, OUTER

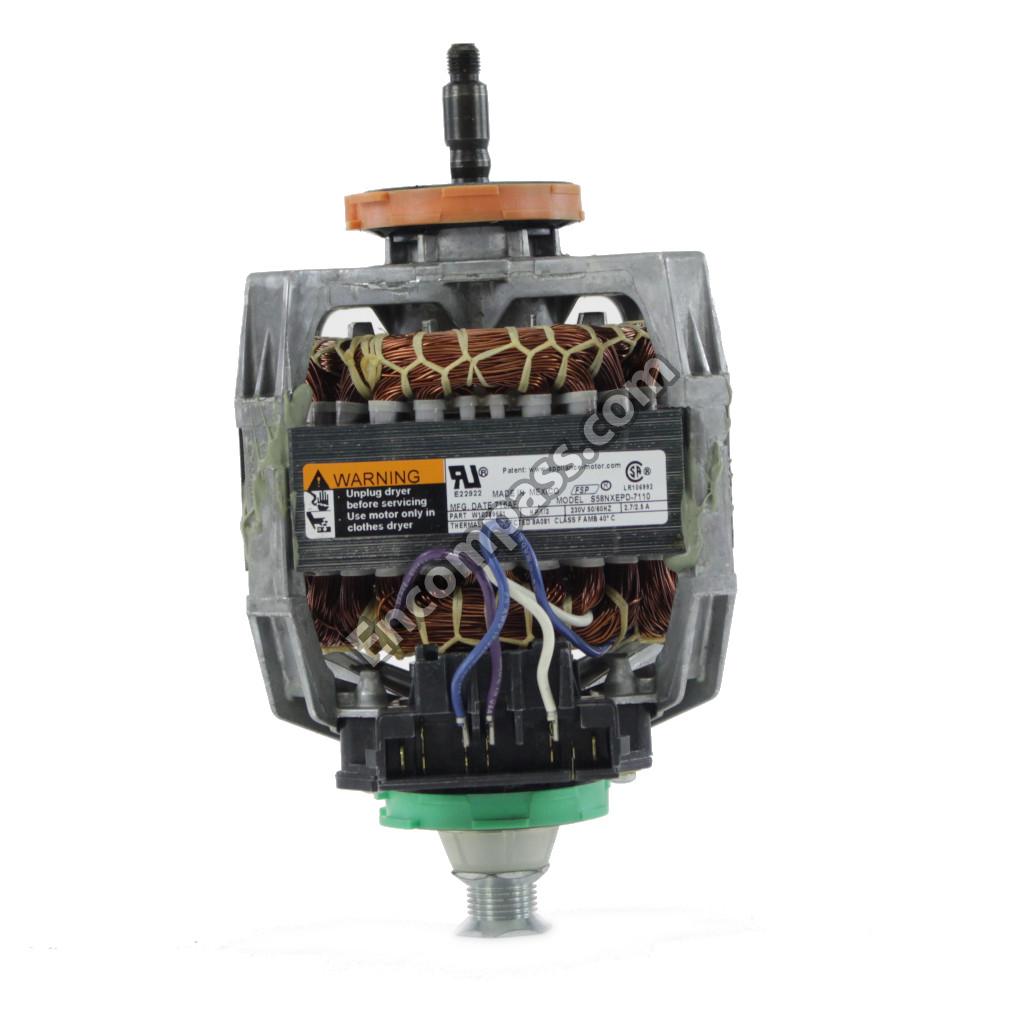

W10416573 W10416573 DRIVE MOTOR
8543082 8543082 DRUM
8521961 8521961 DRY RACK SUPPORT
W11168650 W11168650 DUCT-AIR
3406051 3406051 ELBOW
WPW10416072 WPW10416072 ELBOW
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))

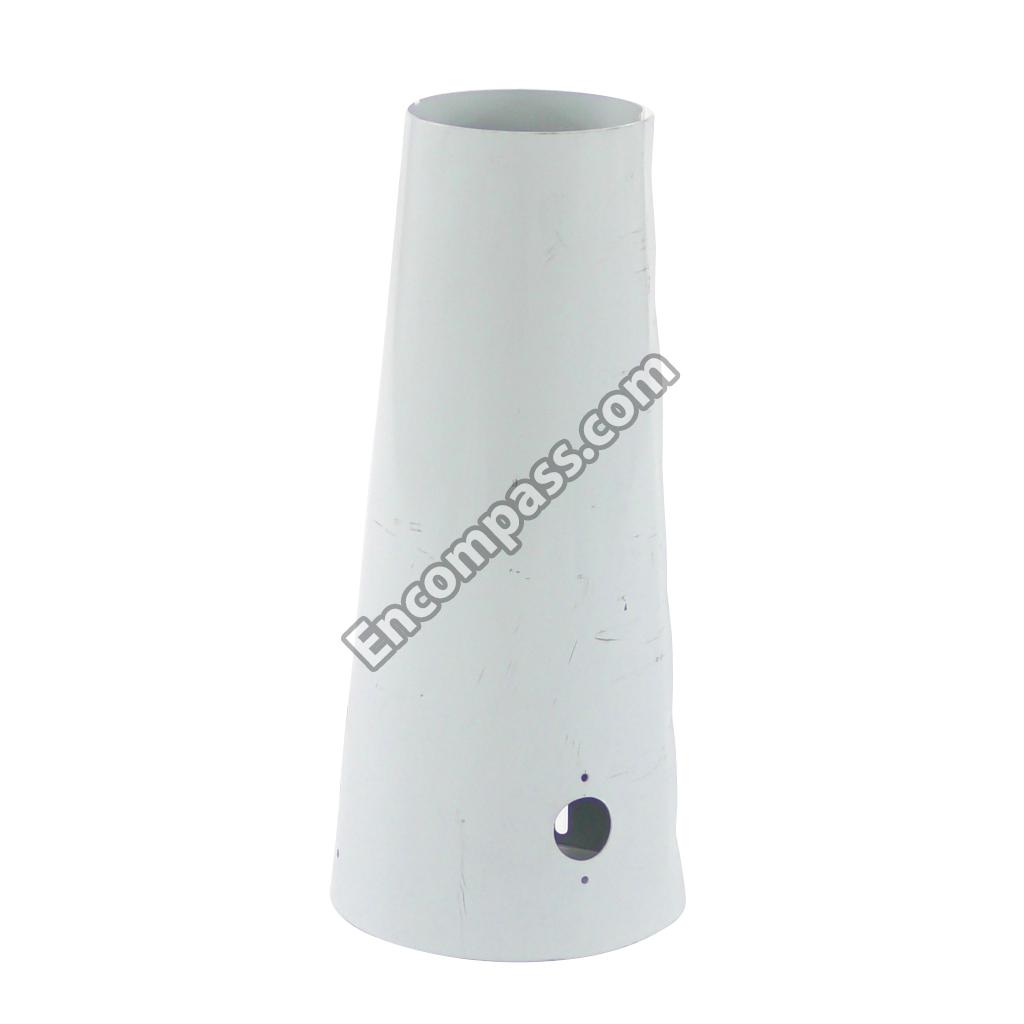

WP8066047 WP8066047 FUNNEL
WP8281918 WP8281918 GAS VALVE
W10470674 W10470674 GREY
W11086603 W11086603 GRILLE, OUTLET
8559752 8559752 HANDLE, DOOR
W10110978 W10110978 HARNESS, CONSOLE
8543290 8543290 HARNS-WIRE
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
346764A 346764A KIT, HOLD DOWN
8541503 8541503 KIT, STACK ASSEMBLY
3957803 3957803 KNOB, CONTROL (2)
3957757 3957757 KNOB, TIMER ASSEMBLY
WP694424 WP694424 LEAK LIMITER
WP8066120 WP8066120 LEVER, DOOR SWITCH
8530036 8530036 LINT DUCT ASSEMBLY
LIT8315975 LIT8315975 LITERATURE PARTS (INSTALLATION & USER GUIDE)
LIT8543079 LIT8543079 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8545902 LIT8545902 LITERATURE PARTS (LABEL, WIRING DIAGRAM)
LIT8543078 LIT8543078 LITERATURE PARTS (USE & CARE GUIDE)

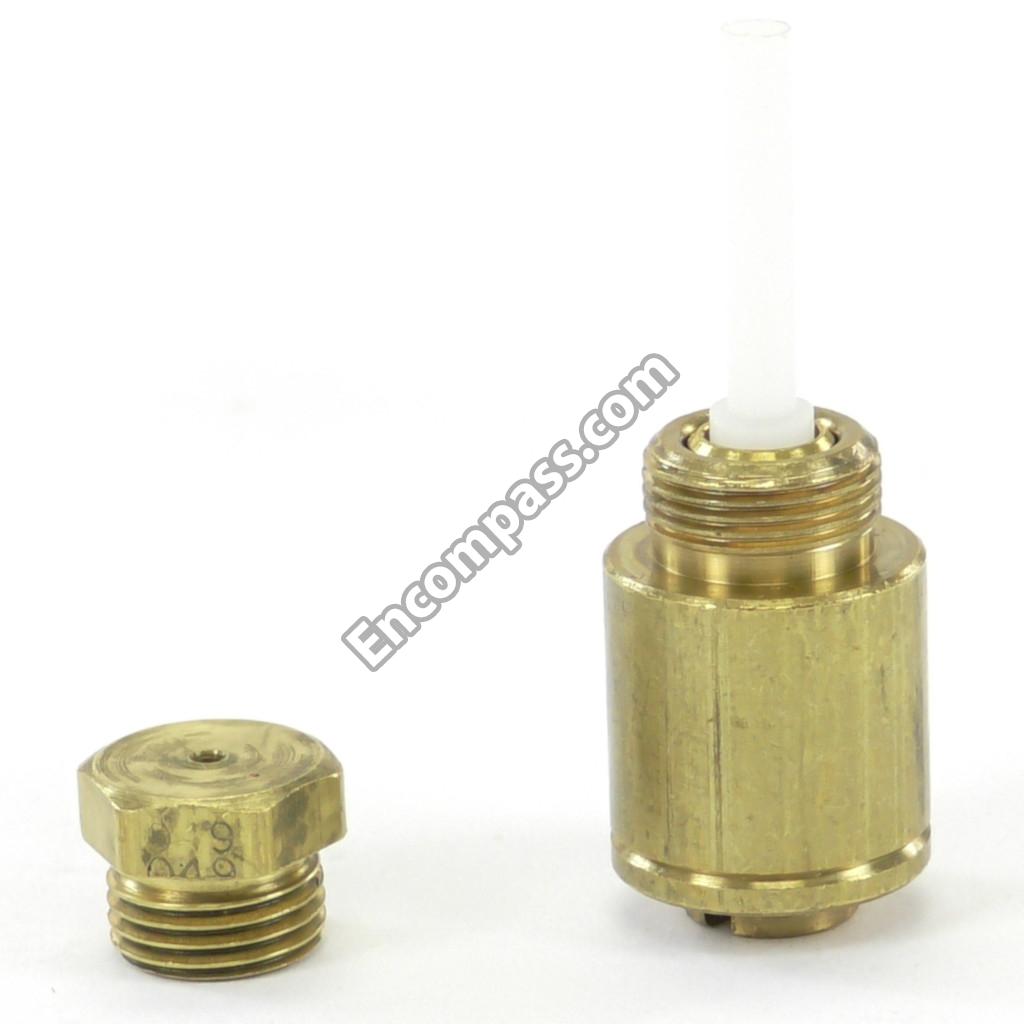

279918A 279918A LP GAS CON
8543319 8543319 MEDALLION
303776 303776 NO DESCRIPTION AVALIABLE
233076 233076 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
WP692400 WP692400 NUT, PUSH-IN
100000 100000 OPTIONAL PARTS NOT INCLUDED
234660 234660 ORIFCE-GAS
299372 299372 ORIFICE, BURNER (BUTANE)
WP8519336 WP8519336 PAD
4396175 4396175 PAINT, PRESSURIZED SPRAY (12 OZ.) (PEWTER)
3980359 3980359 PANEL
3980358 3980358 PANEL
280092 280092 PANEL
3979741 3979741 PANEL, CONSOLE (INCLUDES ILLUS. 13, 14, 15, 17, 18 & 19)
280037 280037 PANEL-REAR
8564134 8564134 PANL-SOUND

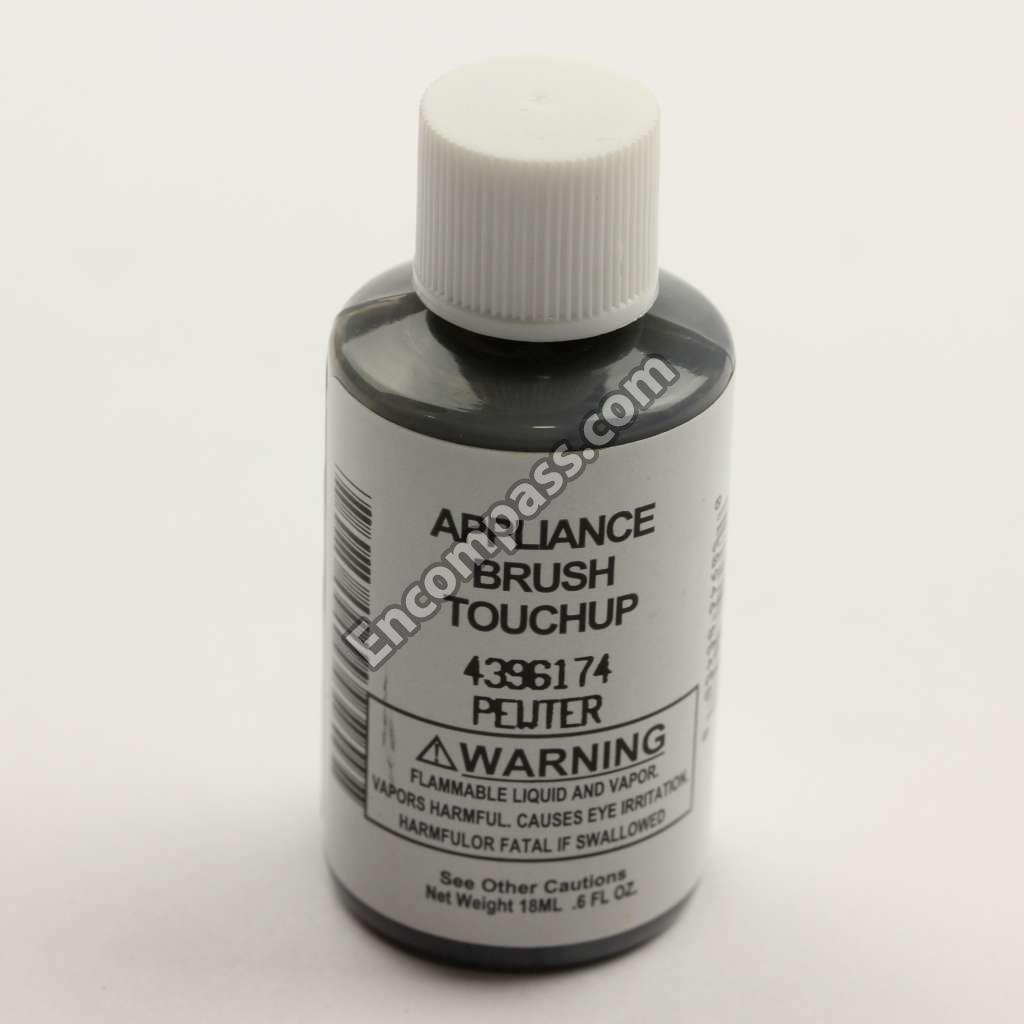

WP4396174 WP4396174 PEWTER
3393767 3393767 PIPE
696237 696237 PIPE
WP8563747 WP8563747 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
279936 279936 PIPE-EXHST
8519374 8519374 PLUG
8529007 8529007 PLUG
8066086 8066086 PLUG
W10295523 W10295523 PLUG
3404417 3404417 PLUG
WPW10404617 WPW10404617 PLUG
3936144 3936144 PLUG, TERMINAL
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
350938 350938 PRIMER, GRAY
3367669 3367669 PROTECTOR, EDGE
279640 279640 PULLEY-IDR
3402548 3402548 PULLEY-MTR
W10139360A W10139360A RACK-DRY
WP338906 WP338906 RADIANT, SENSOR
8529053 8529053 RAMP
WP3387137 WP3387137 RANGE THERMOSTAT
WPW10112668 WPW10112668 RELAY-PTS
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
8281225 8281225 SCREW
W10850046 W10850046 SCREW
WP3387230 WP3387230 SCREW
3400238 3400238 SCREW
3400934 3400934 SCREW
3400097 3400097 SCREW
3400826 3400826 SCREW
WP693995 WP693995 SCREW
WPW10366705 WPW10366705 SCREW
WP488729 WP488729 SCREW
WP488787 WP488787 SCREW
WPW10139210 WPW10139210 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP308685 WP308685 SCREW
WPW10109200 WPW10109200 SCREW
WP355515 WP355515 SCREW (4)
WP3400224 WP3400224 SCREW, 1/4-20 X 1/2
486146 486146 SCREW, 10-24 X 1/2
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP3351614 WP3351614 SCREW, GEARCASE COVER MOUNTING (8) (10-24 X 3/8)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
280114 280114 SEAL
WP697770 WP697770 SEAL
WP8566209 WP8566209 SEAL
WP697813 WP697813 SEAL, OUTLET HOUSING
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
8543133 8543133 SHIELD
W11233063 W11233063 SHIELD
3980339 3980339 SHIELD, DRIP
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING, IDLER
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
WPW10314173 WPW10314173 SUPPORT
W10168170 W10168170 SWITCH
W10168169 W10168169 SWITCH, WRINKLE GUARD
8541808 8541808 SWITCH-DOR
WP8318457 WP8318457 SWITCH-PLG
WP596797 WP596797 TERMINAL
WP94614 WP94614 TERMINAL, FEMALE
WP3392519 WP3392519 THERMAL FUSE
W11050897 W11050897 THERMOSTAT, 205 F (96.1 C)
WPW10116280 WPW10116280 TIMER
3980095 3980095 TOE, PANEL (PEWTER)
3980357 3980357 TOP
W10851673 W10851673 TRANSFORMR
WPW10512946 WPW10512946 TRI-RING (4)
WPW10121334 WPW10121334 WASHER
W11089212 W11089212 WASHER (2)
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
WP8545878 WP8545878 WINDOW
8543119 8543119 WIRE
3394081 3394081 WIRE
687133 687133 WIRE
