Manufacturer

Whirlpool

Model Number

3VET16GKFN02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
9790408 9790408 AIR TOWER
350956 350956 ALMOND
WP72107 WP72107 ALMOND
482801 482801 ALSO ORDER INSTALLATION KIT
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
72032 72032 BLACK
WP1100939 WP1100939 BLADE-FAN
1129346 1129346 BLOCK-TERM
944791 944791 BRACKET
W11745278 W11745278 BRACKET
1129449 1129449 BUSHING
WP2151652 WP2151652 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP487996 WP487996 CAP-TUBE
WP2201147 WP2201147 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
9791833 9791833 CLIP
759114 759114 CLIP
W10812038 W10812038 CLIP
4386951 4386951 CLIP
24364001 24364001 CLIP, COMPRESSOR
510414 510414 CLIP, TUBE (4)
4387775 4387775 COMPRESSOR
WP2252730 WP2252730 CONDENSER
2215213 2215213 CONTROL BOX
1129332 1129332 CORD-POWER
2160404 2160404 COVER
WP2217784 WP2217784 COVER
WP2213360 WP2213360 COVER
WP2162358 WP2162358 COVER ((PRODUCTION ALTERNATE))
WP2183061 WP2183061 COVER, AIR DIFFUSER
WP9790379 WP9790379 COVER, MEAT PAN
987873 987873 COVER, SCREW
2213762 2213762 COVER, UNIT
WPW10244012 WPW10244012 COVER-EVAPORATOR
2264669 2264669 COVER-EVAPORATOR
WP2221992 WP2221992 DIFFUSER
677971L 677971L DIY
677969 677969 DO-IT-YOURSELF MANUAL REF./FZR.

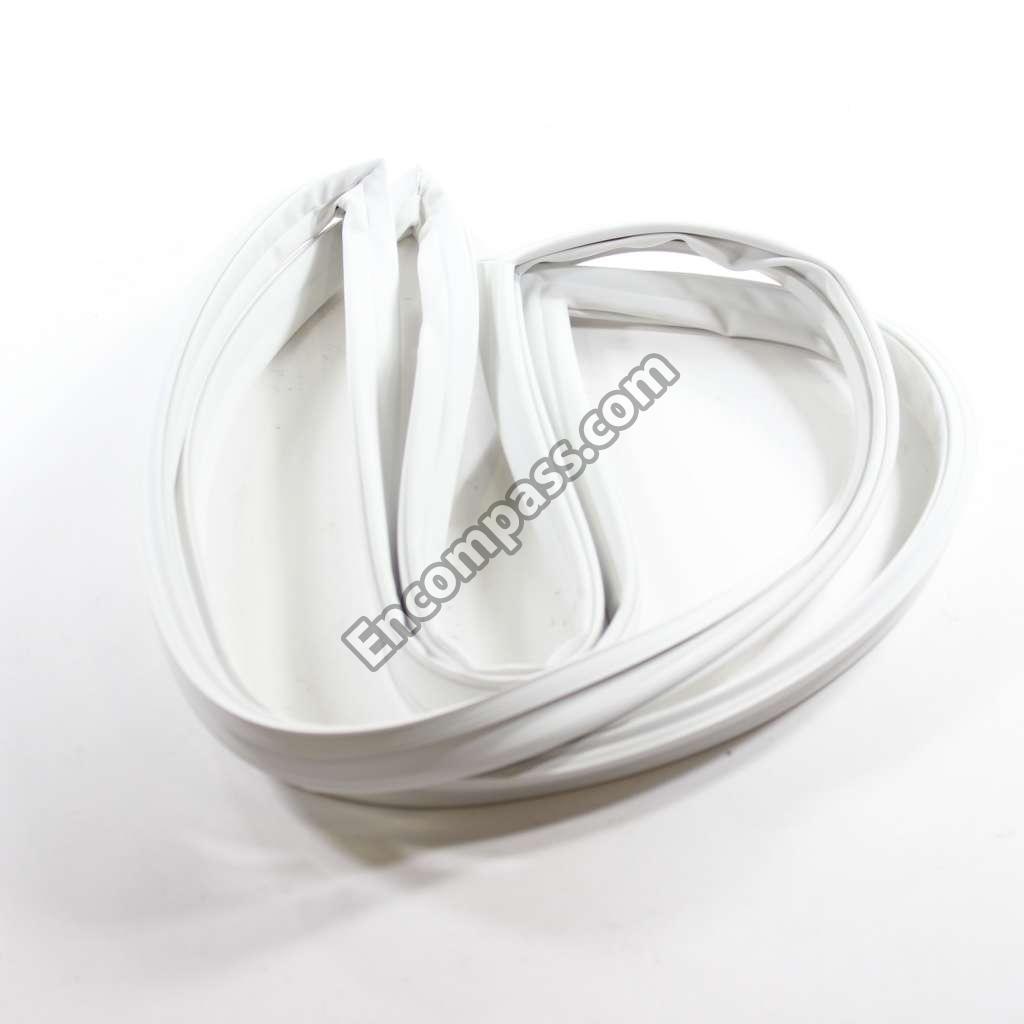

2188448A 2188448A DOOR GASKET

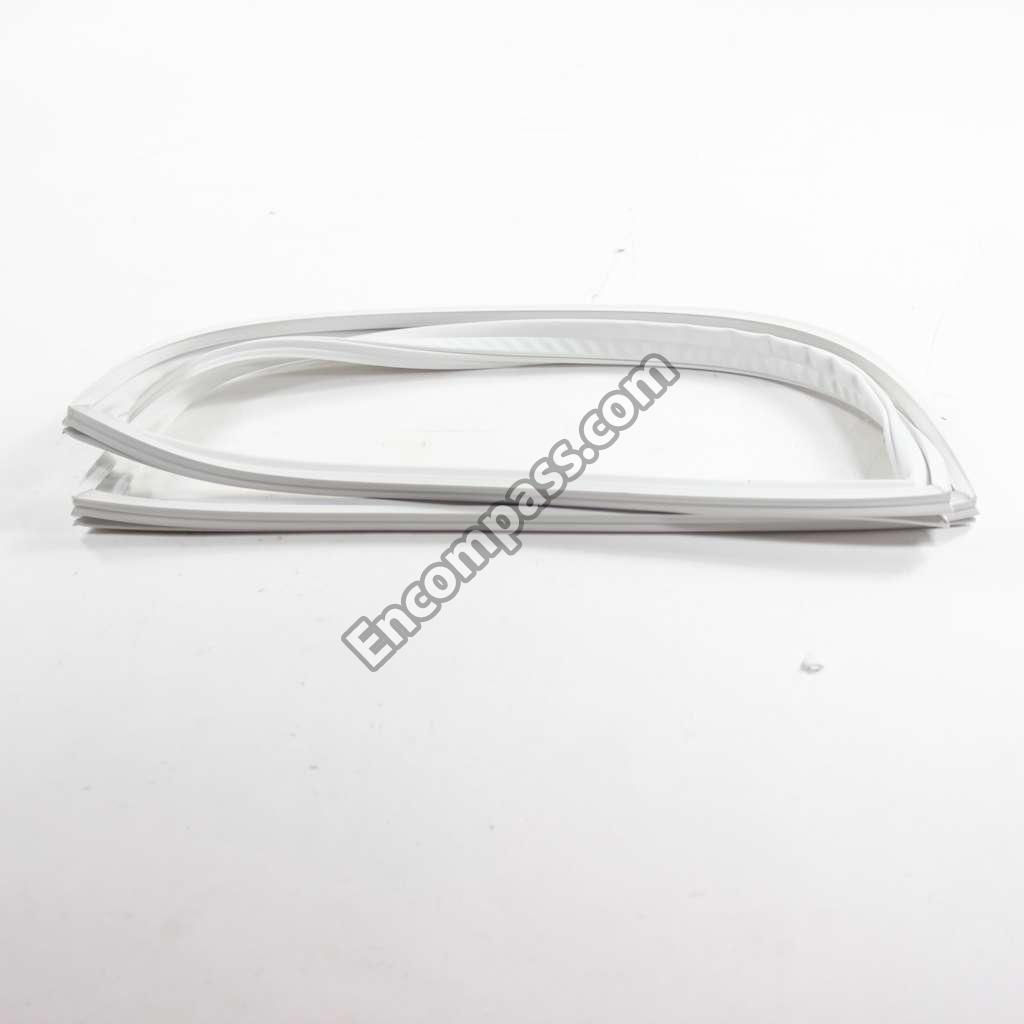

2188462A 2188462A DOOR GASKET
WP2261963 WP2261963 DOOR HINGE
9791757 9791757 DOOR REVERSAL INSTRUCTIONS
2174801 2174801 DOOR-COMP
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
2188194 2188194 ENCLOSURE, TERM.
935105 935105 END CAP
944157 944157 END CAP, HANDLE

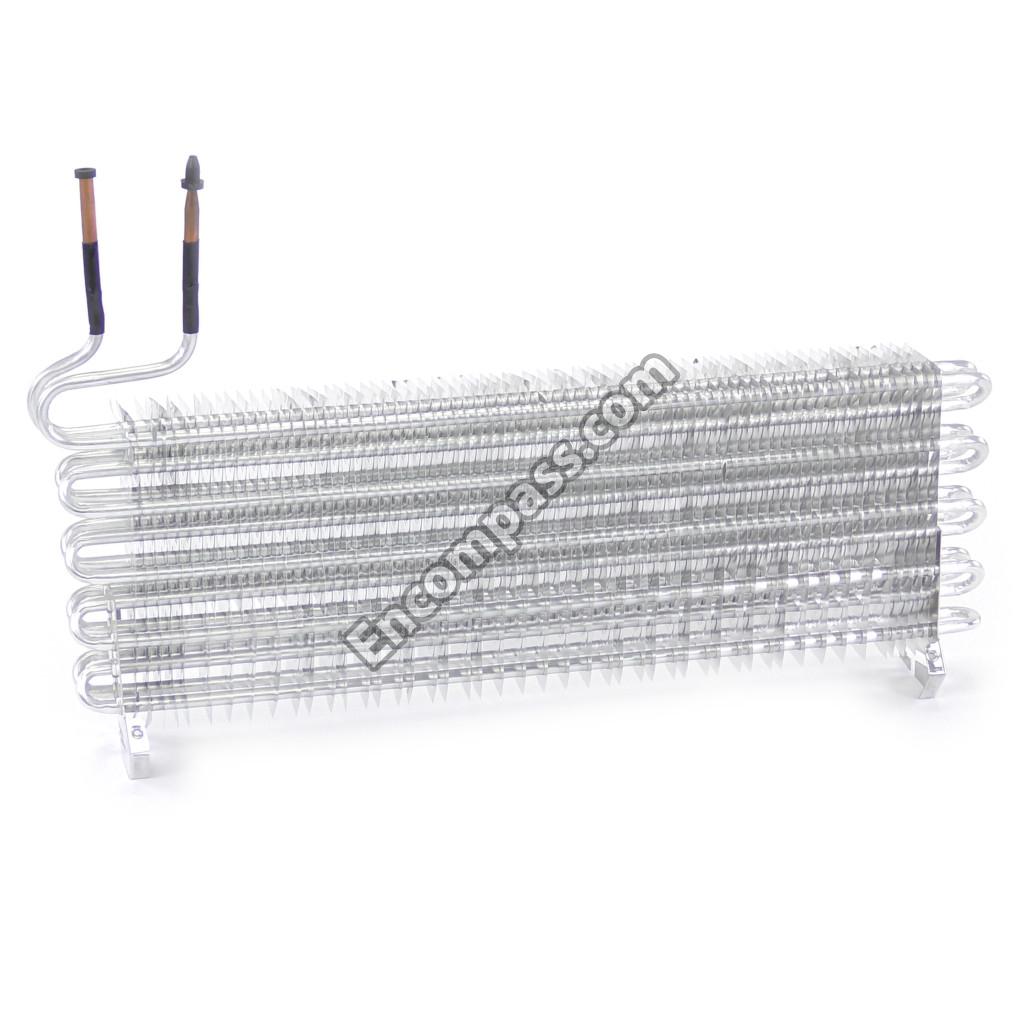

WP2263919 WP2263919 EVAPORATOR
4389152 4389152 EVAPORATOR MOTOR
2166004 2166004 FILLER
W10859322 W10859322 FILLER
WP2196157 WP2196157 FITTING
WP2174798 WP2174798 FLOOR
2201545 2201545 FREEZER DOOR PANEL (ALSO ORDER ITEM 11) (ALMOND)
2158999 2158999 GASKET
WP1120614 WP1120614 GASKET RETAINER, TOP & BOTTOM (2)

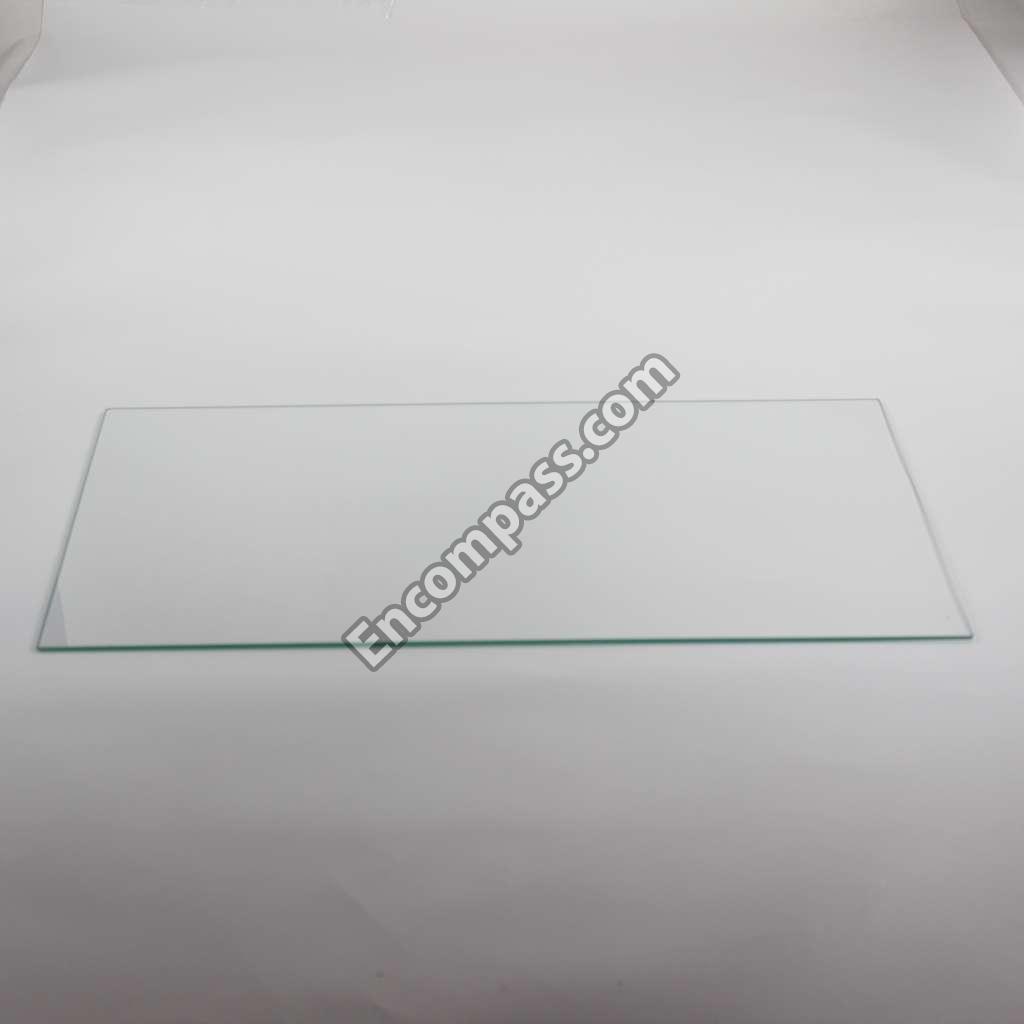

WP9791659 WP9791659 GLASS COVER
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
WP531933 WP531933 GROMMET
WP2163786 WP2163786 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
944163 944163 HANDLE END

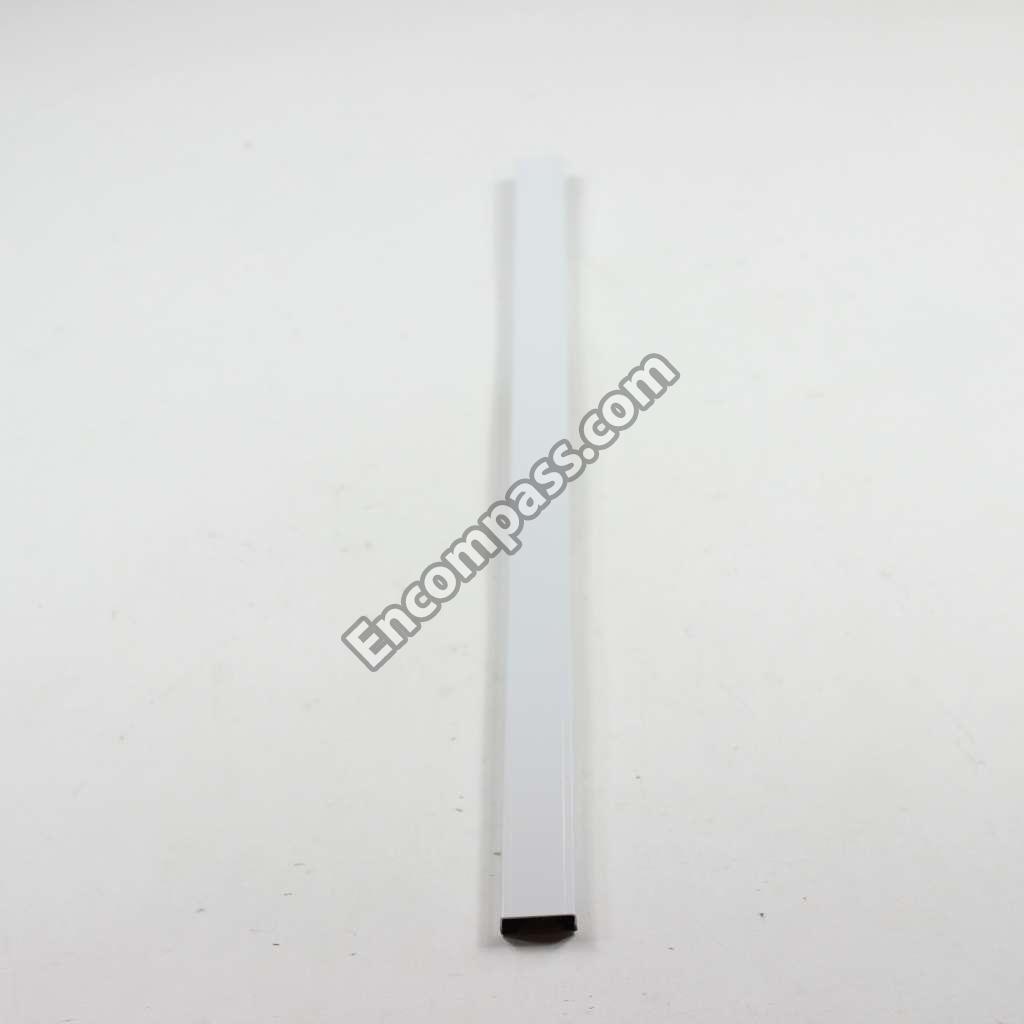

2148669 2148669 HANDLE, CENTER
943276 943276 HANDLE, CENTER (ALMOND)
2174987 2174987 HANDLE, F.C. (ALMOND MODEL)
2176927 2176927 HARNS-WIRE
2192097 2192097 HARNS-WIRE
2266664 2266664 HARNS-WIRE
2319224 2319224 HEAT SHIELD
WP2167357 WP2167357 HEATER
WP2325482 WP2325482 HINGE
WP9791682 WP9791682 HINGE-PIN, BOTTOM
WP941839 WP941839 HOLE COVER, EVAPORATOR
2151653 2151653 HOLE PLUG
842031 842031 HOLE PLUG (3) (WHITE)
989196 989196 HOLE PLUG (ALMOND)
WP2189000 WP2189000 HOLE-PLUG, HANDLE (WHITE)
WP2316186 WP2316186 HOOD & FOIL ASSEMBLY
WP841180A WP841180A ICE TRAY (FOR PLATINUM MODEL ONLY)
W11700559 W11700559 ICEMAKER
1108828 1108828 INSERT, TOP (WHITE)
876370 876370 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 KNOB-THERM
W11034434 W11034434 LENS-LIGHT
WP67002552 WP67002552 LIGHT BULB
2157907 2157907 NAMEPLATE
2152334 2152334 NAMEPLATE
285002 285002 NUT
2169410 2169410 OVERLOAD
978883 978883 PAINT
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)

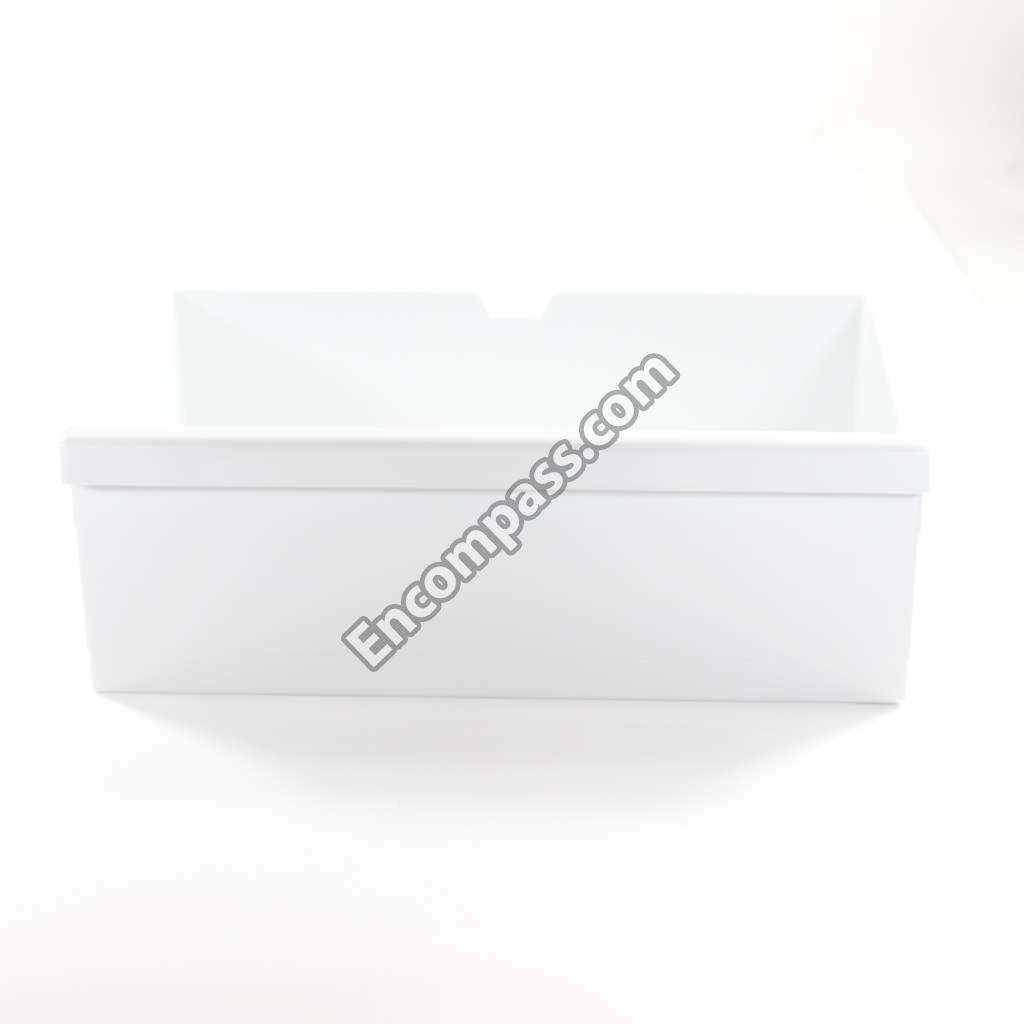

WP2192009 WP2192009 PAN, CRISPER
WP2183273 WP2183273 PAN, MEAT
WP2201544 WP2201544 PANEL-EXT
9790358 9790358 PANEL-INT
2173725 2173725 PANEL-INT
WP2174706 WP2174706 PIN-HITCH
W10833053 W10833053 PLATE, TAP (4)
WP2156006 WP2156006 PLUG TRIM (2)
WP2189008 WP2189008 PLUG-HNDLE
WP2156007 WP2156007 PLUG-TRIM (4)
350942 350942 PRIMER
WP2183003 WP2183003 PROTECTOR
2201547 2201547 REFRIGERATOR DOOR PANEL (ALSO ORDER ITEM 11) (ALMOND)
2195835 2195835 REFRIGERATOR DOOR PANEL (ALSO ORDER ITEM 11) (WHITE)
1122551 1122551 RETAINER
2165773 2165773 RETAINER
1122553 1122553 RETAINER, GASKET
939962 939962 RIVET
W11594405 W11594405 RIVET
WP489115 WP489115 RIVET
4388239 4388239 ROLLER-CAB
9790461 9790461 ROLLER-FRONT
WP488921 WP488921 SCREW
9791768 9791768 SCREW
WP999367 WP999367 SCREW
WP250830 WP250830 SCREW
WPW10141645 WPW10141645 SCREW
WP488920 WP488920 SCREW
WP488729 WP488729 SCREW
WP8281206 WP8281206 SCREW
4387279 4387279 SCREW
WP489174 WP489174 SCREW
WP489474 WP489474 SCREW
WP965173 WP965173 SCREW
WP488163 WP488163 SCREW
WP489128 WP489128 SCREW
WP489497 WP489497 SCREW (8)
WP488714 WP488714 SCREW (REPAIR)
WP489442 WP489442 SCREW 8-15 X 5/8
WPW10272364 WPW10272364 SCREW, 10-16 X 5/8
WP939101 WP939101 SCREW, 8 X 1/2
WP489399 WP489399 SCREW, 8-32 X 5/16
WP1106508 WP1106508 SEAL GASKET
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
LIT2176934 LIT2176934 SERVICE & WIRING SHEET

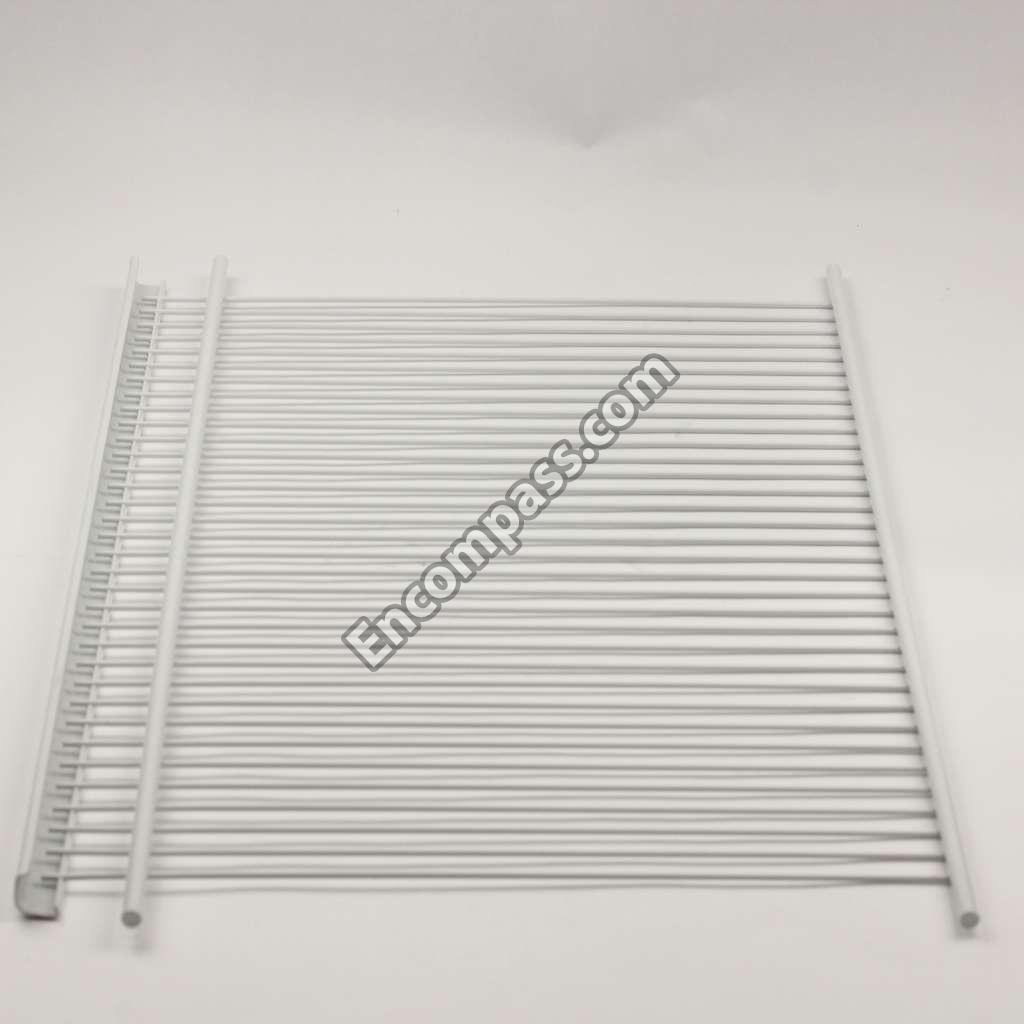

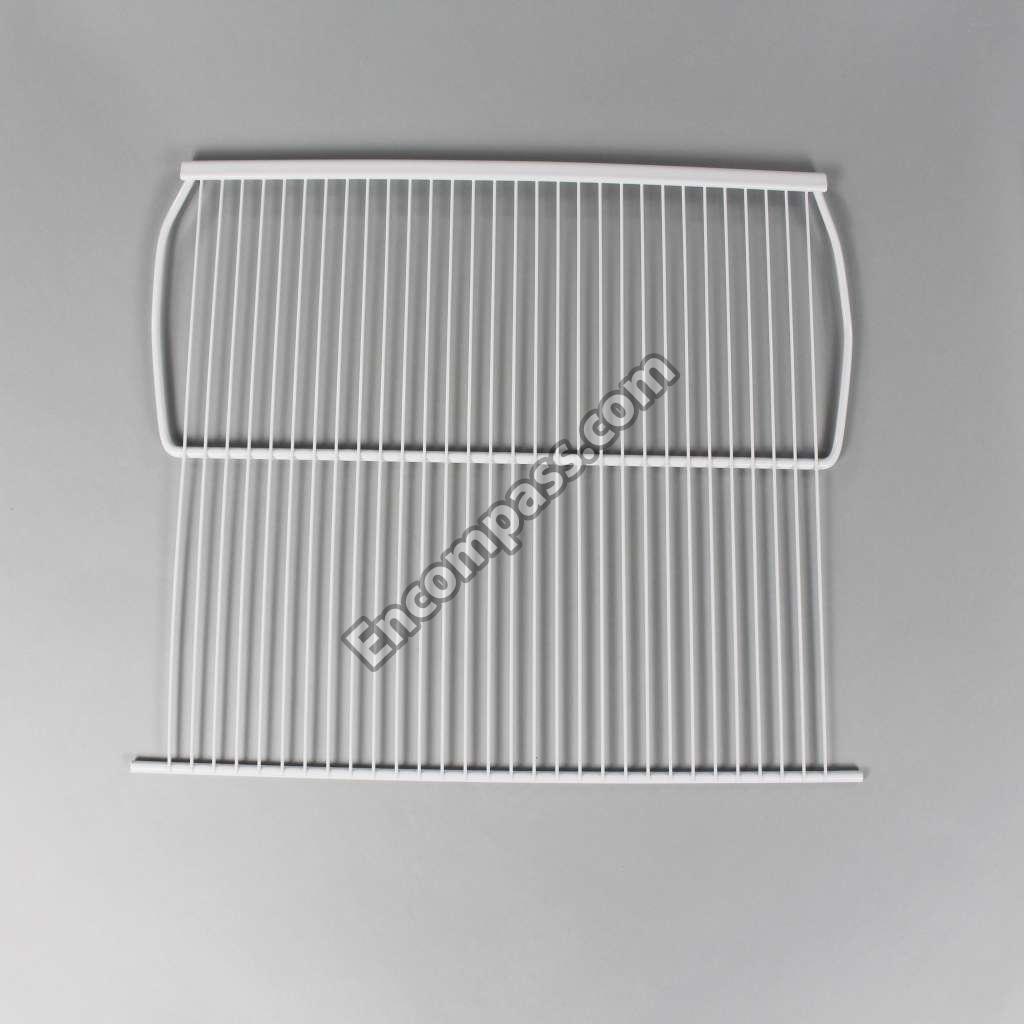

WP2192515 WP2192515 SHELF (2)
WP2192514 WP2192514 SHELF, FREEZER
935074 935074 SHIM
WP2201567 WP2201567 SHIM
935076 935076 SHIM
943187 943187 SHIM, HANDLE END
1123515 1123515 SHIM, HINGE (2)
WP2166037 WP2166037 SHIM, HINGE CENTER
2166043 2166043 SHIM, HINGE CENTER (WHITE)
WP2175210 WP2175210 SHROUD
944772 944772 SPACER
2166010 2166010 SPACER
WP943188 WP943188 SPACER, DOOR HANDLE
350930 350930 SPRAY (13 OZ.) (WHITE)
482278 482278 START KIT
2196665 2196665 SUPPORT
WPW10222451 WPW10222451 SUPPORT
8201619 8201619 SUPPORT-EV
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 TAPE
833938 833938 TERMINAL

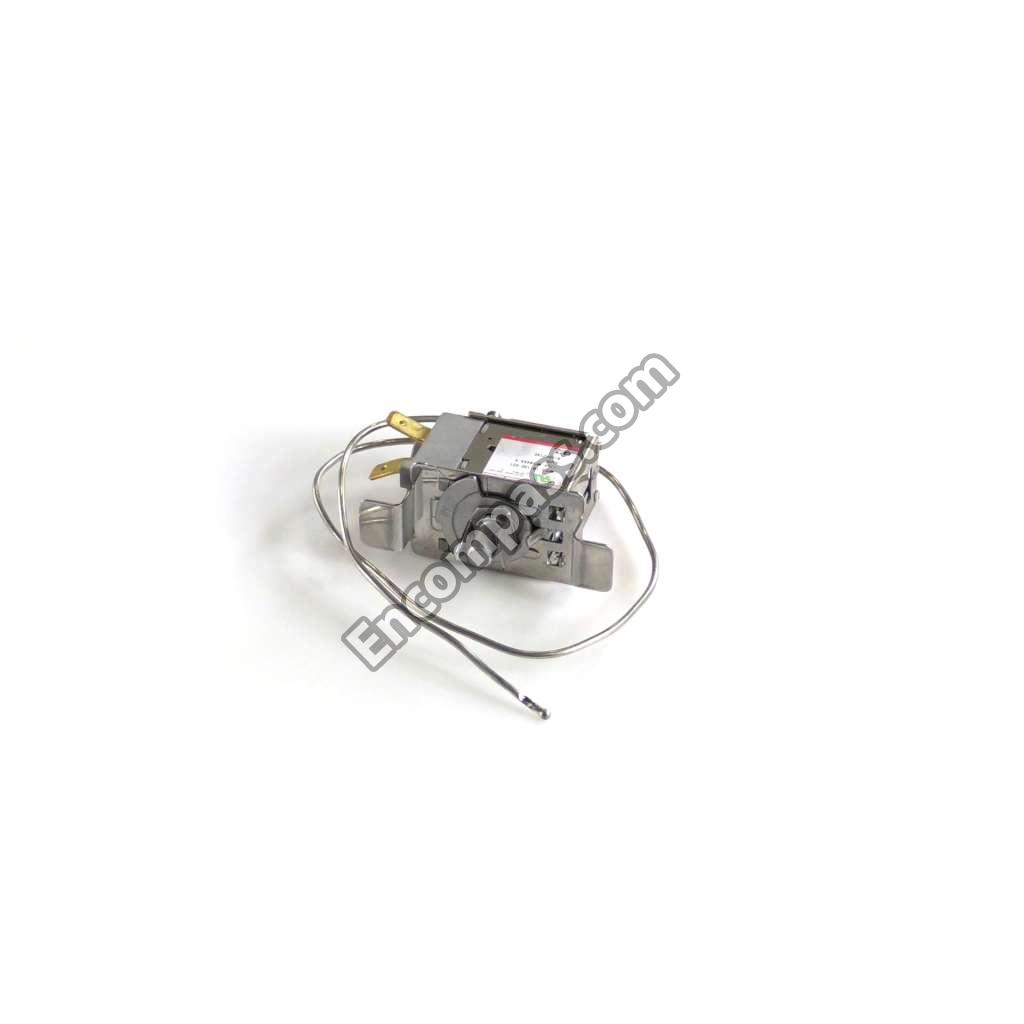

WPW10567140 WPW10567140 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
WP2166867 WP2166867 TIMER-DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
WP2201801 WP2201801 TRAY-EVAP
WP2163629 WP2163629 TRIM, DOOR SHELF
WP1120826 WP1120826 TRIM, DOOR SHELF (LOWER)
W11661102 W11661102 TUBE
876765 876765 TUBE KIT
2174791 2174791 TUBE, DISCHARGE
LIT2197115 LIT2197115 USE & CARE GUIDE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
WP487802 WP487802 WASHER (7/64 NYLON)
WP487576 WP487576 WASHER, NYLON 1/16
2174998 2174998 WIRE ASSEMBLY
2209657 2209657 WIRING ASSEMBLY, TERMINAL BLOCK
