Model Image
Manufacturer

Whirlpool

Model Number

3XLER5437KQ6

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387118 WP3387118 BASE
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
W10837240 W10837240 BRACKET
8271316 8271316 BRACKET
8066099 8066099 BRACKET
WP697557 WP697557 BULKHEAD
W11299300 W11299300 BULKHEAD
693152 693152 BUMPER
W11417441 W11417441 CABINET
WPW10121316 WPW10121316 CLAMP
W11712577 W11712577 CLIP
WP297092 WP297092 CLIP
WP3390902 WP3390902 CLIP
WP3394427 WP3394427 CLIP
WP688805 WP688805 CLIP
W11684573 W11684573 CLIP
W10113937 W10113937 CLIP, GROUNDING
3936144 3936144 CONNECTOR
3397269 3397269 CONNECTOR
3347243 3347243 CONNECTOR
W10511286 W10511286 CORD-POWER
WPW10354249 WPW10354249 COVER
W10601020 W10601020 COVER

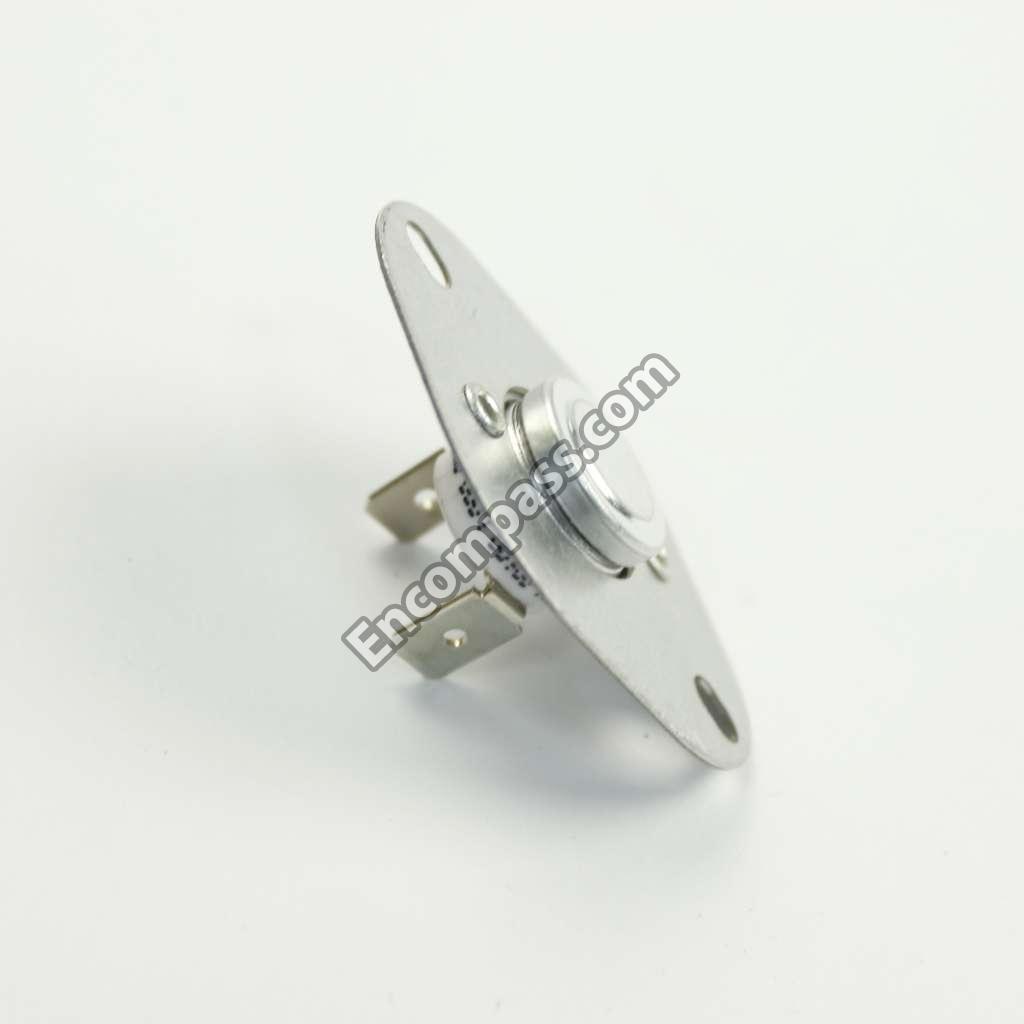

WP8572767 WP8572767 CUTOFF-TML
W11222846 W11222846 DOOR
W11663440 W11663440 DOOR
279570 279570 DOOR LATCH
280083 280083 DOOR-REAR
W10416573 W10416573 DRIVE MOTOR
W10545923 W10545923 DRUM
8212450A 8212450A DRY RACK
W10470674 W10470674 DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VENTING
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP8318459 WP8318459 ELEMENT
W10820038 W10820038 ENDCAP
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
W11086603 W11086603 GRILL-OUT
W10131645 W10131645 GUIDE, USE & CARE
3389522 3389522 HANDLE
W10167633 W10167633 HARNS-WIRE
W11175815 W11175815 HINGE
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10115524 W10115524 INSTRUCTIONS, INSTALLATION
4392067 4392067 KIT, DRYER REPAIR
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WP3957754 WP3957754 KNOB
WP3957799 WP3957799 KNOB
3957804 3957804 KNOB, PUSH-TO-START
WP8066120 WP8066120 LEVER
303776 303776 NO DESCRIPTION AVALIABLE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP3389249 WP3389249 NUT
WP357213 WP357213 NUT
799344 799344 PAINT
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10231550 W10231550 PANEL
8318383 8318383 PANEL-CNTL
285909 285909 PANEL-REAR
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
8066086 8066086 PLUG
W10191265 W10191265 PLUG
279640 279640 PULLEY-IDR
3402548 3402548 PULLEY-MTR
WPW10168174 WPW10168174 RANGE THERMOSTAT
279872 279872 RESISTOR
WP3388229 WP3388229 RETAINER
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
W10853898 W10853898 SCREW
WP489463 WP489463 SCREW
WP3387230 WP3387230 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
WP488627 WP488627 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP694091 WP694091 SCREW
WP488729 WP488729 SCREW
WP388326 WP388326 SCREW
WP90767 WP90767 SCREW
WP693995 WP693995 SCREW
3400097 3400097 SCREW
279393 279393 SCREW
3400934 3400934 SCREW
W10891954 W10891954 SCREW
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
WP8318396A WP8318396A SEAL
WP3390735 WP3390735 SEAL-DOOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11233063 W11233063 SHIELD
350938 350938 SPRAY
350930 350930 SPRAY
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WP8568314 WP8568314 STRAP
WPW10314173 WPW10314173 SUPPORT
W10115453 W10115453 SWITCH
WPW10237959 WPW10237959 SWITCH-DOR
WP8318457 WP8318457 SWITCH-PLG
WP3395382 WP3395382 SWITCH-PTS
WP94614 WP94614 TERMINAL
279318 279318 TERMINAL
W11224254 W11224254 TEST KIT
WP3391018 WP3391018 TIE-WIRE
WP8299770 WP8299770 TIMER
WP3406797 WP3406797 TOEPNL
3979278 3979278 TOP
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
WPW10349492 WPW10349492 WHEEL
687133 687133 WIRE
3395559 3395559 WIRE
3394081 3394081 WIRE
8283286 8283286 WIRE-JUMPER ASSEMBLY
W10167635 W10167635 WIRING DIAGRAM
