Model Image
Manufacturer

Whirlpool

Model Number

41EA2W

Description

No description available

Interactive Exploded View
Exploded View

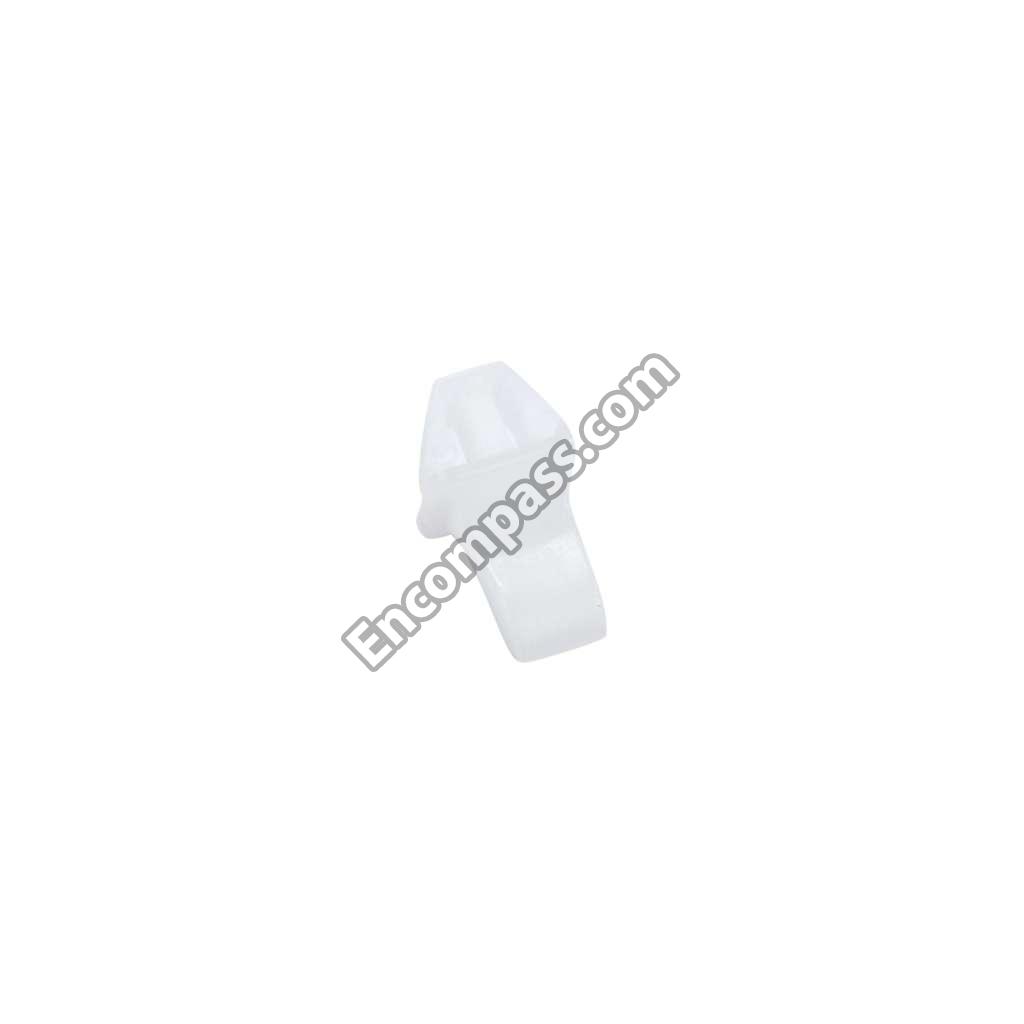

Parts List

Part Number Description
5425A003-60 5425A003-60 + HANDLE-
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
4002F168-80 4002F168-80 BACK, MAIN
4002F063-20 4002F063-20 BACK, MAIN
2601W346-84 2601W346-84 BACKGUARD
3601F215-45 3601F215-45 BAFFL-BRNR
3601F060-51 3601F060-51 BAFFLE
3601F018-23 3601F018-23 BAFFLE
3601F099-45 3601F099-45 BAFFLE, BROIL
3601F101-45 3601F101-45 BAFFLE, OVEN BURNER
3601F094-51 3601F094-51 BAFFLE, OVEN DOOR NLA
2205F009-16 2205F009-16 BOTTOM OV
4011F100-51 4011F100-51 BOTTOM, BROILER
4011F131-80 4011F131-80 BOTTOM, COMPARTMENT
2205F009-23 2205F009-23 BOTTOM, OVEN
4011F135-80 4011F135-80 BOX, BURNER
3802F038-23 3802F038-23 BRACE
3802F014-80 3802F014-80 BRACE
3802F037-34 3802F037-34 BRACE
3802F072-80 3802F072-80 BRACE COMPT. TOP
3802F012-80 3802F012-80 BRACE, BASE
WP3801F656-51 WP3801F656-51 BRACKET
3801F053-34 3801F053-34 BRACKET
3801F101-80 3801F101-80 BRACKET, TIE DOWN
8003P003-60 8003P003-60 BUMPER
74004077 74004077 BURNER ASSEMBLY., OVEN
7505P065-60 7505P065-60 BURNER, OVEN
7505P078-60 7505P078-60 BURNER, PILOT
7505P079-60 7505P079-60 BURNER, PILOT
3412A004-19 3412A004-19 BURNER, TOP
8002P001-60 8002P001-60 CATCH
WP71002106 WP71002106 CATCH, FEMALE
7112P020-60 7112P020-60 CLIP OVEN
7112P019-60 7112P019-60 CLIP, HINGE PIN
7112P064-60 7112P064-60 CLIP, SEAL
WP7112P004-60 WP7112P004-60 CLIP- THER
7602P100-60 7602P100-60 CLOCK
3407W004-11 3407W004-11 DRAWER ASSEMBLY.
4006W017-20 4006W017-20 FLUE ASSEMBLY.
3603F013-80 3603F013-80 FRAME WIN
7201P006-60 7201P006-60 GASKET
WP7201P017-60 WP7201P017-60 GASKET, WINDOW
7902P051-60 7902P051-60 GLASS
WP7902P715-60 WP7902P715-60 GLASS DOOR
W11400301 W11400301 GRATE-BRNR
3609F003-61 3609F003-61 GUARD, HINGE
7701P009-60 7701P009-60 HANDLE
7701P012-60 7701P012-60 HANDLE, DRAWER (CHR)
7106P003-60 7106P003-60 HINGE
7106P007-60 7106P007-60 HINGE
3418A027-34 3418A027-34 HINGE, BROILER (LT)
3418A028-34 3418A028-34 HINGE, BROILER (RT)
5720A009-34 5720A009-34 HINGE, MAIN TOP L.H.
5720A002-34 5720A002-34 HINGE, MAIN TOP R.H.
3418A070-34 3418A070-34 HINGE, OVEN DOOR (LT)
3418A069-34 3418A069-34 HINGE, OVEN DOOR (RT)
WP3413F018-19 WP3413F018-19 INSERT
7002P009-60 7002P009-60 INSULATION, BAFFLE
7002P012-60 7002P012-60 INSULATION, DOOR
WP7711P135-60 WP7711P135-60 KNOB
7731P001-60 7731P001-60 KNOB, THERMOSTAT
7731P054-60 7731P054-60 KNOB, THERMOSTAT
WP7711P466-60 WP7711P466-60 KNOB- CLOC
8009 8009 LIGHT BULB
2404F020-23 2404F020-23 LINING, BROILER
2408F005-80 2408F005-80 LINING, COMPARTMENT DOOR
2402W165-19 2402W165-19 LINING, OVEN DOOR
2402W165-23 2402W165-23 LINING, OVEN DOOR
2402W119-23 2402W119-23 LINING, OVEN DOOR
7807P001-60 7807P001-60 LINK, BROILER
3413F002-19 3413F002-19 M*INSERT PAN
7002P002-60 7002P002-60 NLAINSULATION
7103P067-60 7103P067-60 NLALOCK NUT, CATCH
7101P114-60 7101P114-60 NLASCREW
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE BOX, DISCONNECT (NOT REQUIRED)
M0282009 M0282009 NUT
WP7103P070-60 WP7103P070-60 NUT
1555261K 1555261K NUT & FERRULE (3/16``)
7103P004-60 7103P004-60 NUT, BASE MTG.
1555222 1555222 NUT, LOXIT (3/16``)
1555-251 1555-251 NUT, LOXIT (3/8``)
WP7103P114-60 WP7103P114-60 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
WP3401F075-19 WP3401F075-19 PAN, BROIL
2601W202-84 2601W202-84 PANEL, BACKGUARD ALMOND
2409F007-74 2409F007-74 PANEL, COMPARTMENT ALMOND
2401F042-74 2401F042-74 PANEL, DOOR (ALM)
2403F011-74 2403F011-74 PANEL, DRAWER (ALM)
2616F052-84 2616F052-84 PANEL, MANIFOLD ALMOND
2618F013-74 2618F013-74 PANEL, SIDE ALMOND
1566267 1566267 PILOT ASM
74006183 74006183 PILOT, OVEN
7113P002-60 7113P002-60 PIN- HINGE
7513P136-60 7513P136-60 PIPE MANIFOLD
7513P115-60 7513P115-60 PIPE MANIFOLD
7513P051-60 7513P051-60 PIPE, MANIFOLD (W/GRIDDLE)
7801P013-60 7801P013-60 RACK, OVEN
7408P035-60 7408P035-60 RECEPT, OVEN LIGHT
WP7510P083-60 WP7510P083-60 REGULATOR, PRESSURE
3804F050-80 3804F050-80 RETAINER NLA
74002481 74002481 SCREW
WP3387230 WP3387230 SCREW
WP74003976 WP74003976 SCREW
WP4159193 WP4159193 SCREW
WP7101P126-60 WP7101P126-60 SCREW
W10491986 W10491986 SCREW
WP3400017 WP3400017 SCREW
7101P004-60 7101P004-60 SCREW
7101P025-60 7101P025-60 SCREW
7101P034-60 7101P034-60 SCREW
7101P015-60 7101P015-60 SCREW 6-32X.625 TY23PH
7101P043-60 7101P043-60 SCREW CON
WP31750720 WP31750720 SCREW, CONTROL
7101P127-60 7101P127-60 SCREW, COUNTERWEIGHT
7101P013-60 7101P013-60 SCREW, SPECIAL
7101P022-60 7101P022-60 SCREW, SPECIAL
7101P029-60 7101P029-60 SCREW, SPECIAL
7101P250-60 7101P250-60 SCREW, TRIM
7212P025-60 7212P025-60 SEAL, OVEN DOOR
WP7212P003-60 WP7212P003-60 SEAL- OVEN
4005F036-20 4005F036-20 SHIELD
4016F006-80 4016F006-80 SIDE, BURNER BOX LEFT
4016F002-80 4016F002-80 SIDE, BURNER BOX RIGHT
4016F014-80 4016F014-80 SIDE, OVEN COMPARTMENT
8010P002-60 8010P002-60 SPACER, HANDLE
7803P003-60 7803P003-60 SPRING
7803P014-60 7803P014-60 SPRING
3420A035-34 3420A035-34 STOP OVEN
WP71002097 WP71002097 STRIKER- D
3807F143-34 3807F143-34 SUPPORT
5720A002-11 5720A002-11 SUPPORT, OVEN BOTTOM
3807F418-34 3807F418-34 SUPPORT, OVEN VALVE
3807F204-34 3807F204-34 SUPPORT, TOP PILOT
WP74008718 WP74008718 SWITCH, LIGHT
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
7515P026-60 7515P026-60 THERMOSTAT
7515P018-60 7515P018-60 THERMOSTAT
7515P032-60 7515P032-60 THERMOSTAT
7602P064-60 7602P064-60 TIMERCLK
2001F007-04 2001F007-04 TOP, MAIN
3404A014-51 3404A014-51 TRACK, BROILER DWR LEFT
3404A013-51 3404A013-51 TRACK, BROILER DWR RIGHT
2610F002-32 2610F002-32 TRIM
7720P059-60 7720P059-60 TRIM
7720P056-60 7720P056-60 TRIM
2610F001-32 2610F001-32 TRIM
7726P003-60 7726P003-60 TRIM
7726P014-60 7726P014-60 TRIM
7703P164-60 7703P164-60 TRIM, BACKGUARD
7720P055-60 7720P055-60 TRIM, LEFT
7720P058-60 7720P058-60 TRIM, RIGHT
3414F061-44 3414F061-44 TUBING (3/16 X 50``)
4003W002-20 4003W002-20 TV STAND ASSEMBLY. RANGE
3822F001-80 3822F001-80 UPRIGHT, FRONT CORNER
7501P026-60 7501P026-60 VALVE
7502P179-60 7502P179-60 VALVE BURN
7502P178-60 7502P178-60 VALVE LP
7502P177-60 7502P177-60 VALVE NATURAL
7501P027-60 7501P027-60 VALVE, BAKE
7502P234-60 7502P234-60 VALVE, BURNER
7502P014-60 7502P014-60 VALVE, BURNER
7502P135-60 7502P135-60 VALVE, BURNER
7501P110-60 7501P110-60 VALVE, OVEN
7502P009-60 7502P009-60 VALVEBRNR
