Model Image
Manufacturer

Whirlpool

Model Number

4VET18GKGW02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8281146 WP8281146 6CREW 8-15 X 1/2
978030 978030 ACCESS VALVE (3/4``)
9790408 9790408 AIR TOWER
350956 350956 ALMOND
WP72107 WP72107 ALMOND
482801 482801 ALSO ORDER INSTALLATION KIT
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
72032 72032 BLACK
WP1100939 WP1100939 BLADE-FAN
1129346 1129346 BLOCK-TERM
WP2197405 WP2197405 BRACKET
WPW10180172 WPW10180172 BRACKET
W11745278 W11745278 BRACKET
944791 944791 BRACKET
1129449 1129449 BUSHING
WP2151652 WP2151652 BUTTON-PLG
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP487996 WP487996 CAP-TUBE
WP2201147 WP2201147 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
489348 489348 CLAMP, TUBE
4386951 4386951 CLIP
W10812038 W10812038 CLIP
9791833 9791833 CLIP
24364001 24364001 CLIP, COMPRESSOR
510414 510414 CLIP, TUBE (4)
4387775 4387775 COMPRESSOR
WP2252730 WP2252730 CONDENSER
WP982704 WP982704 CONTAINER
2215326 2215326 CONTROL BOX
1129332 1129332 CORD-POWER
WP2213360 WP2213360 COVER
WP2162358 WP2162358 COVER ((PRODUCTION ALTERNATE))
WP2183061 WP2183061 COVER, AIR DIFFUSER
W11595196 W11595196 COVER, CRISPER
WPW10244012 WPW10244012 COVER, EVAPORATOR
2264669 2264669 COVER, EVAPORATOR
WP2217784 WP2217784 COVER, HOLE
WP9790379 WP9790379 COVER, MEAT PAN
WP2202819W WP2202819W COVER, SCREW (WHITE)
WP61002138 WP61002138 COVER-TERM
2213762 2213762 COVER-UNIT

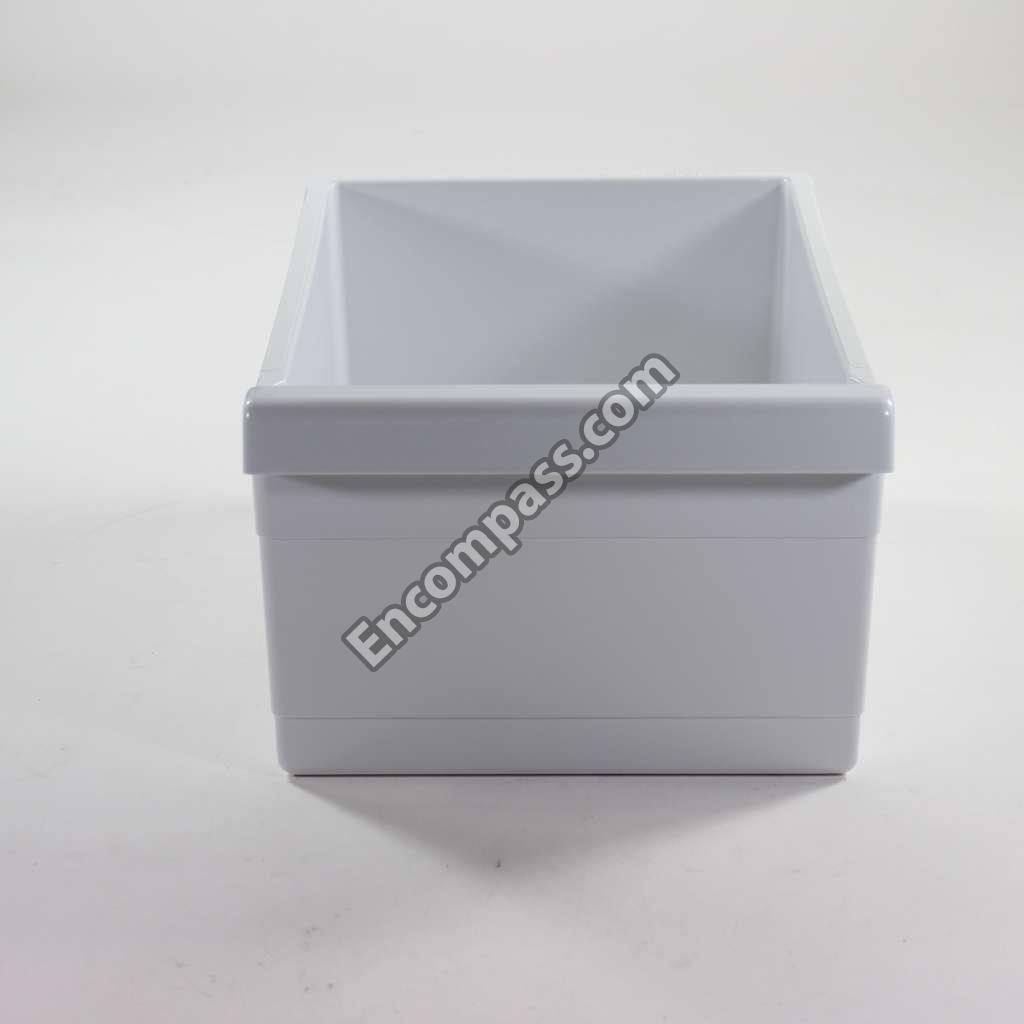

WP2164186 WP2164186 CRISPER PAN
2197416 2197416 DEFLECTOR
WP2221992 WP2221992 DIFFUSER
677969 677969 DO-IT-YOURSELF MANUAL REF./FZR.

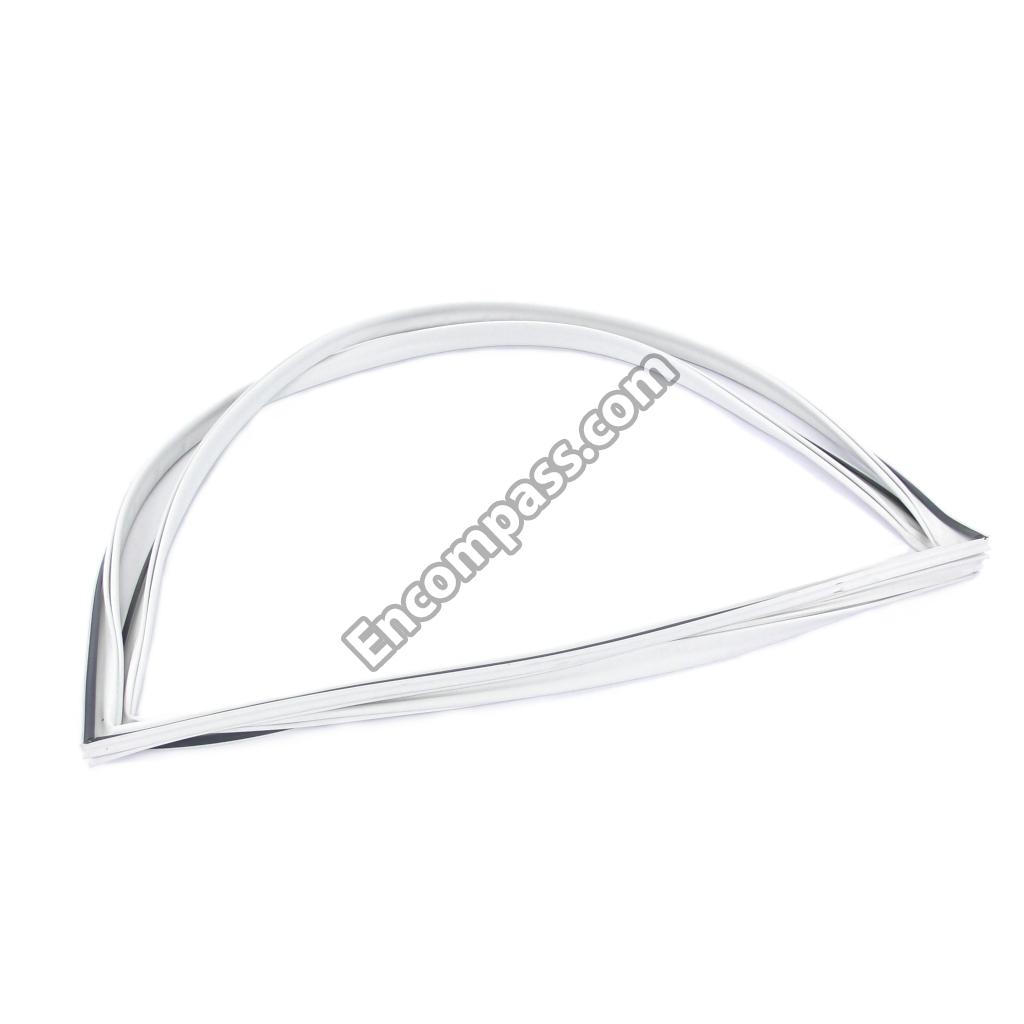

2188462A 2188462A DOOR GASKET
WP2166037 WP2166037 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
WP2266727 WP2266727 DOOR TRIM
WP2266738 WP2266738 DOOR TRIM
2174801 2174801 DOOR-COMP
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER ((SERVICE))
439290 439290 ENAMEL, BISCUIT (12 OZ. SPRAY CAN)
2188194 2188194 ENCLOSURE
WP2201801 WP2201801 EVAPORATING TRAY
WP2263920 WP2263920 EVAPORATOR
W10859322 W10859322 FILLER
WP2196157 WP2196157 FITTING
WP2174798 WP2174798 FLOOR
2197086 2197086 FREEZER DOOR PANEL (ALSO ORDER ITEM 11) (WHITE)
2158999 2158999 GASKET
WP2319264T WP2319264T GASKET ASSEMBLY
WP1120614 WP1120614 GASKET RETAINER, TOP & BOTTOM (2)
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
WP4387558 WP4387558 GROMMET
WP2163786 WP2163786 GROMMET
WP2264462 WP2264462 GROMMET
WP2202098 WP2202098 HANDLE, FREEZER

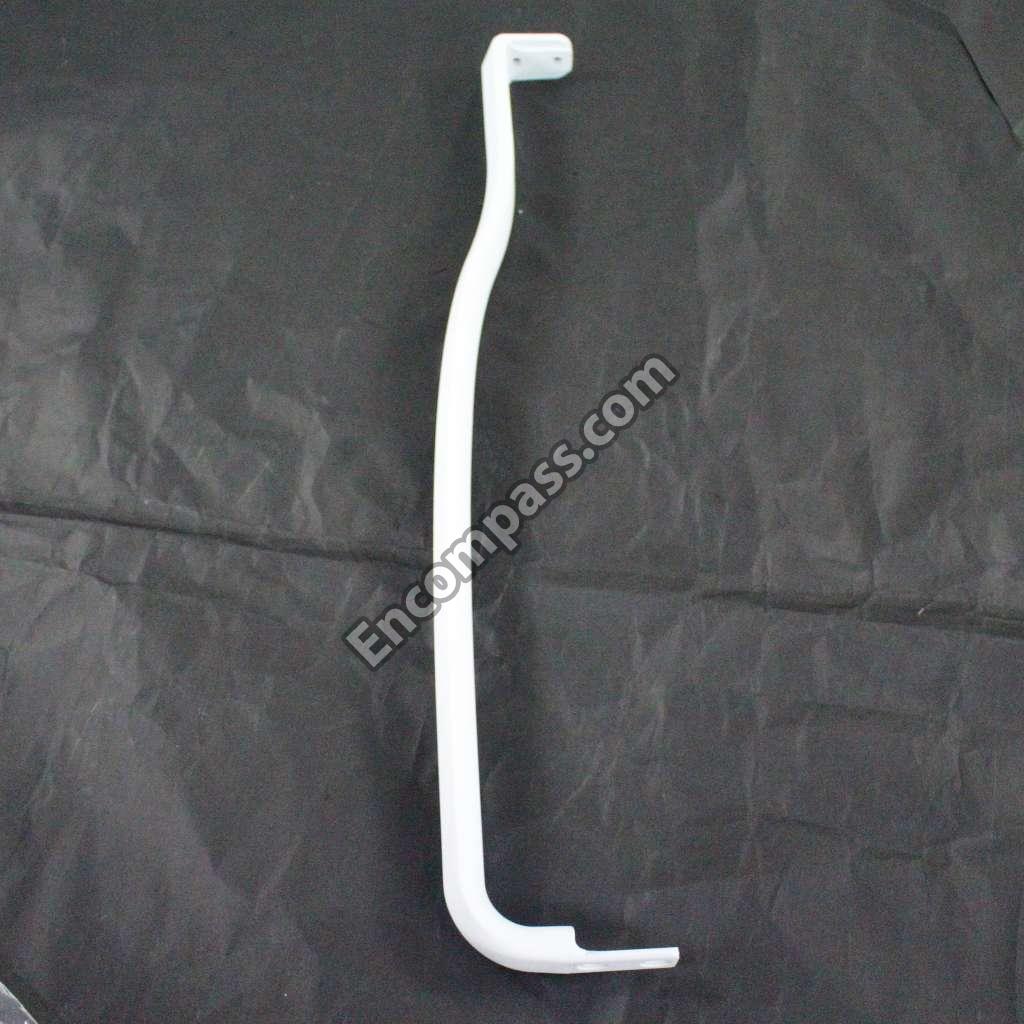

WP2221946W WP2221946W HANDLE, REFRIGERATOR
2266664 2266664 HARNS-WIRE
2192097 2192097 HARNS-WIRE
2176927 2176927 HARNS-WIRE
2319224 2319224 HEAT SHIELD
WP2167357 WP2167357 HEATER
WP2325482 WP2325482 HINGE BUTT, BTM
WP9791682 WP9791682 HINGE-PIN, BOTTOM
WP941839 WP941839 HOLE COVER, EVAPORATOR
WP2212648 WP2212648 HOLE PLUG, HINGE (2) (WHITE)

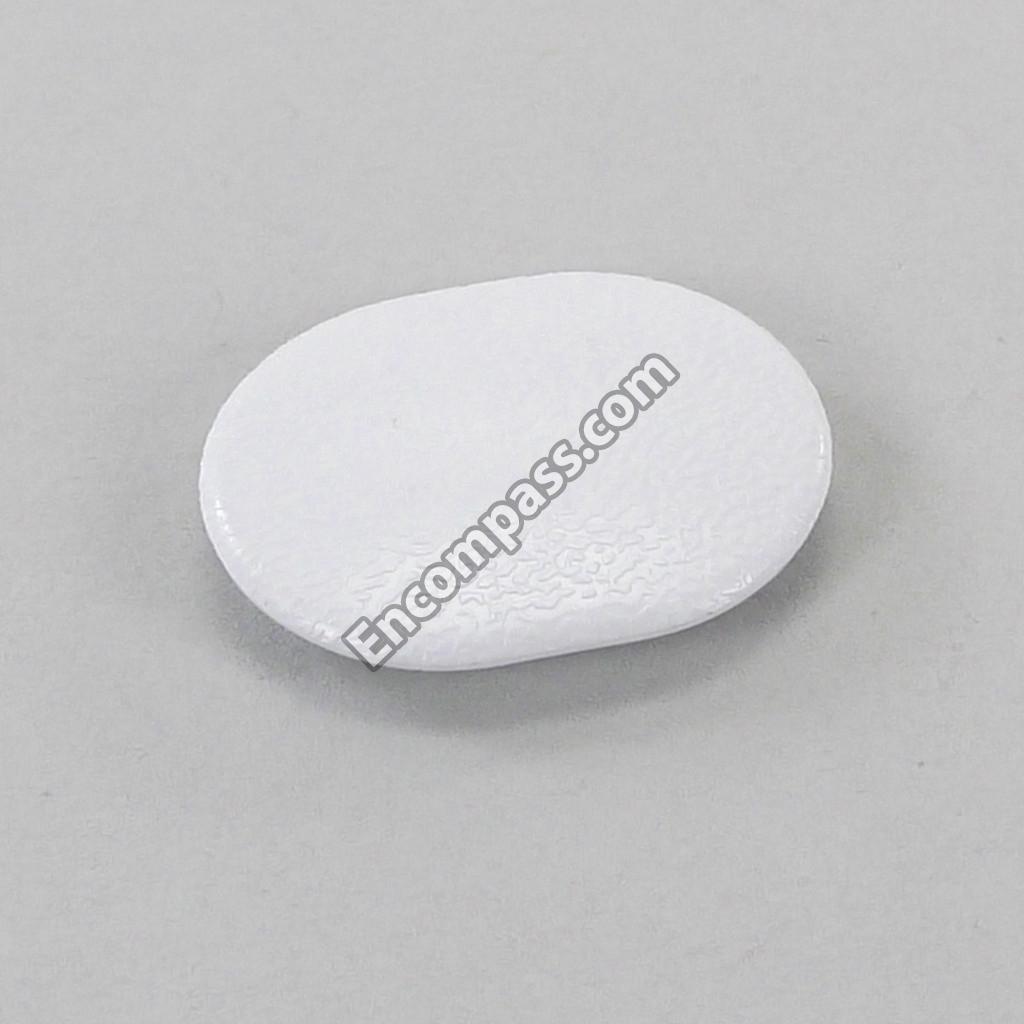

WP2189000 WP2189000 HOLE-PLUG, HANDLE (WHITE)
WP2316186 WP2316186 HOOD & FOIL ASSEMBLY
WPW10190943 WPW10190943 ICEMAKER
876370 876370 INSULATION
2197159 2197159 INTERIOR DOOR PANEL (FREEZER)
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 KNOB, CONTROL
W11034434 W11034434 LENS-LIGHT
WP67002552 WP67002552 LIGHT BULB
LIT2207890 LIT2207890 LITERATURE PARTS (SERVICE & WIRING SHEET)
LIT2222092 LIT2222092 LITERATURE PARTS (USE & CARE GUIDE)
2201218 2201218 MOTOR-EVAP
2157907 2157907 NAMEPLATE
285002 285002 NUT
2169410 2169410 OVERLOAD
799344 799344 PAINT
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP2183273 WP2183273 PAN, MEAT
2197158 2197158 PANEL-INT
WP2174706 WP2174706 PIN-HITCH
2183000 2183000 PLATE
WP2156006 WP2156006 PLUG TRIM (2)
2159365 2159365 PLUG, TRIM (2)
WP2156007 WP2156007 PLUG-TRIM (4)
WP836410 WP836410 POST CRISPER COVER
350942 350942 PRIMER
WP2183003 WP2183003 PROTECTOR
2197087 2197087 REFRIGERATOR DOOR PANEL (ALSO ORDER ITEM 11)
WP2262184 WP2262184 RELAY-STRT
2165773 2165773 RETAINER
1122553 1122553 RETAINER, GASKET
2210072 2210072 RETAINER, GASKET
WP489115 WP489115 RIVET
W11594405 W11594405 RIVET
939962 939962 RIVET
WPW10475495 WPW10475495 ROLLER-CAB
2324094 2324094 ROLLER-FRONT
WP489128 WP489128 SCREW
WP488163 WP488163 SCREW
WP487353 WP487353 SCREW
WP965173 WP965173 SCREW
WP489474 WP489474 SCREW
WP489174 WP489174 SCREW
WPW10141645 WPW10141645 SCREW
WP250830 WP250830 SCREW
489498 489498 SCREW
WP488921 WP488921 SCREW
WP3428970 WP3428970 SCREW
WP489497 WP489497 SCREW (8)
WP489442 WP489442 SCREW 8-15 X 5/8
WPW10272364 WPW10272364 SCREW, 10-16 X 5/8
WP939101 WP939101 SCREW, 8 X 1/2
WP489478 WP489478 SCREW, 8-18 X .50
WP489357 WP489357 SCREW, 8-18 X 3/4
WP489399 WP489399 SCREW, 8-32 X 5/16
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP1106508 WP1106508 SEAL GASKET
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
W11181679 W11181679 SHELF (3)
WPW10401604 WPW10401604 SHELF, FREEZER

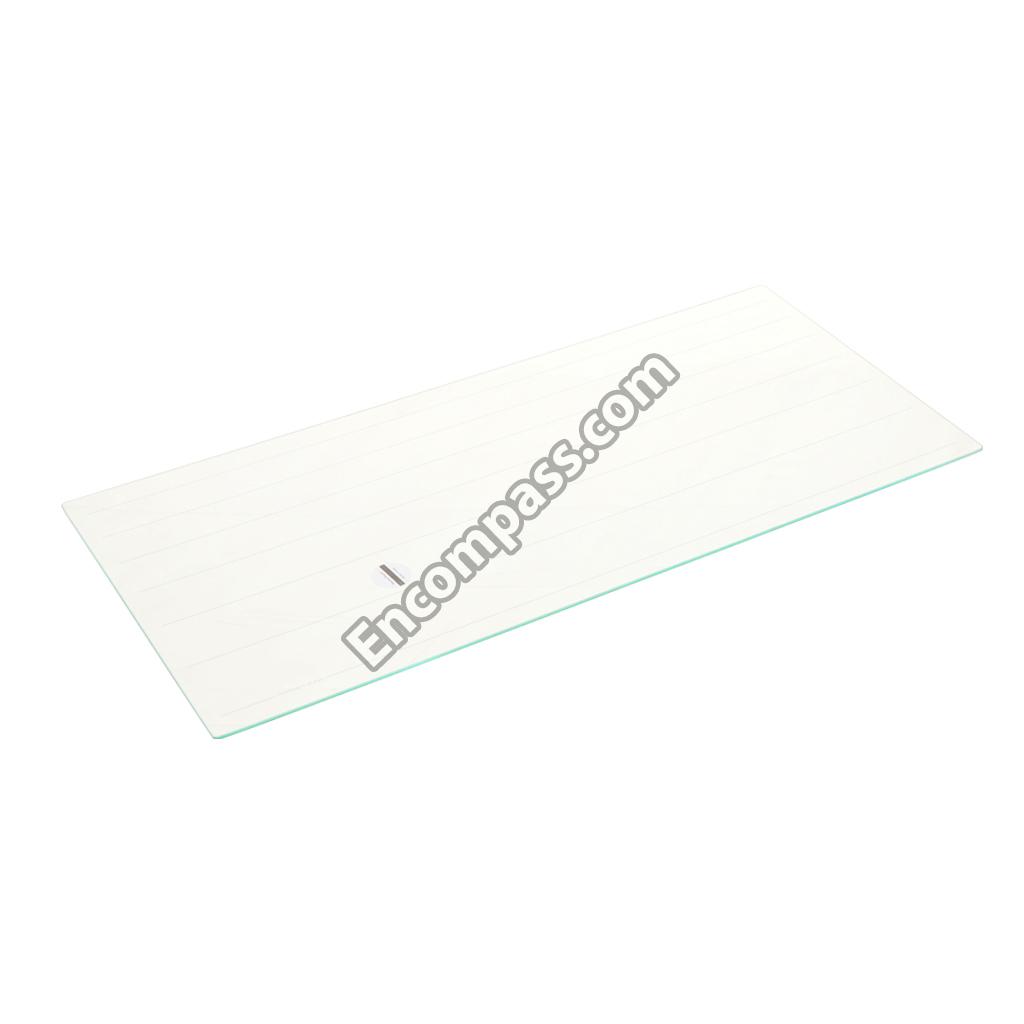

WP2210047 WP2210047 SHELF-GLAS
W11169703 W11169703 SHIM
WP2201567 WP2201567 SHIM, BOTTOM HINGE
2166043 2166043 SHIM, HINGE CENTER (WHITE)
WP2175210 WP2175210 SHROUD
944772 944772 SPACER
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10222451 WPW10222451 SUPPORT
WP9791824 WP9791824 SUPPORT CRISPER
8201619 8201619 SUPPORT-EV
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WPW10511937 WPW10511937 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
WP2188379 WP2188379 TIMER-DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
WP841180A WP841180A TRAY
2197360 2197360 TRIM, DOOR SHELF (LOWER)
2192654 2192654 TRIM, DOOR SHELF (UPPER)
W11661102 W11661102 TUBE
876765 876765 TUBE KIT
2174791 2174791 TUBE, DISCHARGE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
WP489467 WP489467 WASHER
WP487802 WP487802 WASHER (7/64 NYLON)
2174998 2174998 WIRE ASSEMBLY
2209657 2209657 WIRING ASSEMBLY, TERMINAL BLOCK
