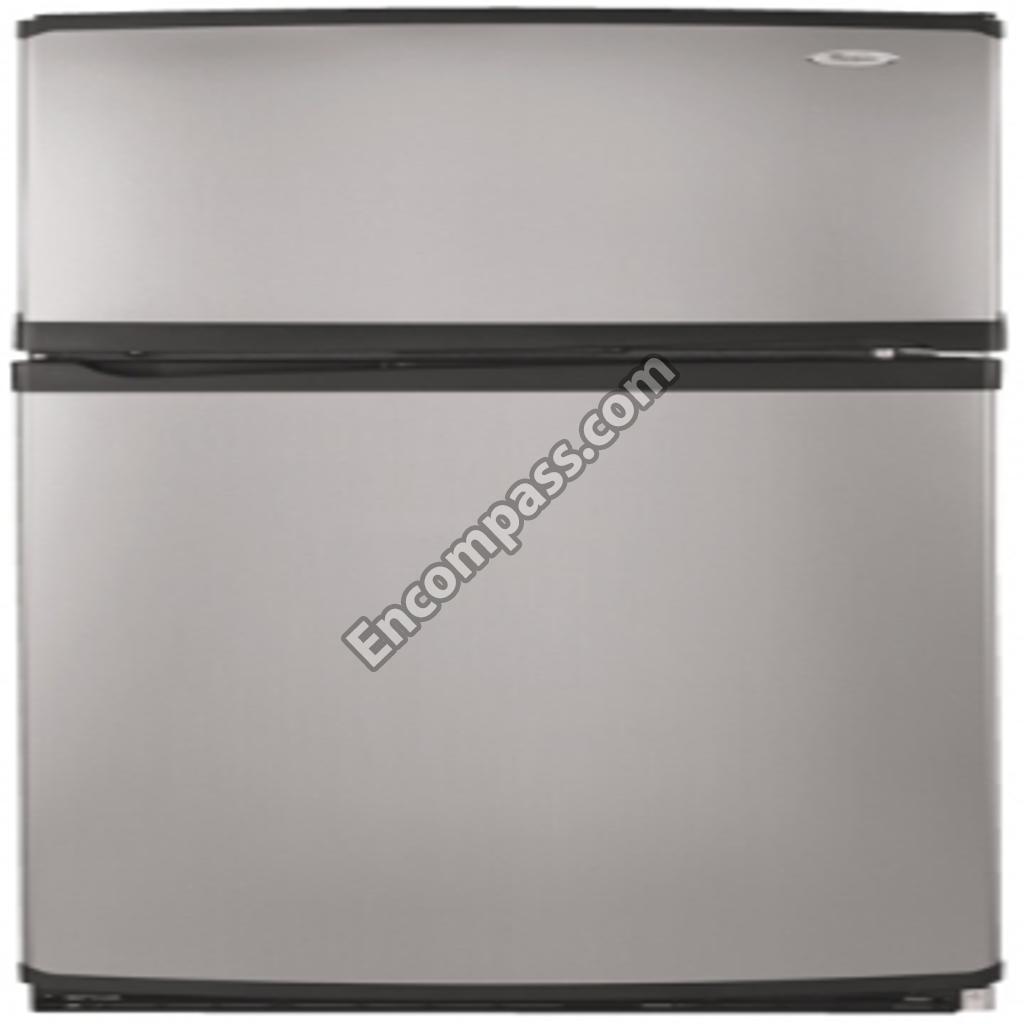

Model Image
Manufacturer

Whirlpool

Model Number

5GR2SHKXLS04

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP2302250 WP2302250 AIR BAFFLE
2212439 2212439 AIR SEPERATOR ASSEMBLY
WP2254354 WP2254354 AIR-TOWER
W11594405 W11594405 AXLE
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
2321257 2321257 BIMETL-DEF
WP2204813 WP2204813 BIN CONTROL LEVER
W11458267 W11458267 BLADE-FAN
WP2163777 WP2163777 BLADE-FAN
WP2212446 WP2212446 BODY-CNTRL
W11745278 W11745278 BRACKET
2254454 2254454 BRACKET EVAP. FAN, REAR
2163810 2163810 BRACKET, DAMPER KNOB
2176301 2176301 BRACKET, HEATER
4392899 4392899 BRUSH TOUCH-UP KIT (BISCUIT
WP2212651 WP2212651 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WP2151652 WP2151652 BUTTON-PLG
WP487996 WP487996 CAP-TUBE
WP2201147 WP2201147 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
489348 489348 CLAMP-CORD
31462A 31462A CLEANER, STAINLESS STEEL
WP2189356 WP2189356 CLIP
2182338 2182338 CLIP
2176341 2176341 CLIP
W10170300 W10170300 COMPRESSOR
WP2214960 WP2214960 CONDENSER
W10149973 W10149973 CONTRL-BOX
W10123575 W10123575 CORD-POWER
WP2314549 WP2314549 COVER
WP2213363 WP2213363 COVER
WP2213360 WP2213360 COVER
WP2176281 WP2176281 COVER, AIR DIFFUSER
WP2205003 WP2205003 COVER, HOLE
2166251 2166251 COVER, WATER VALVE
2320193 2320193 COVER-EVAP
WP2302358 WP2302358 COVER-UNIT
W10854037 W10854037 CRISPER PAN
2163762 2163762 CUP
4387121 4387121 DAMPER, AIR
WP2189452 WP2189452 DIFFUSER
677969 677969 DO-IT-YOURSELF MANUAL, REF./ FZR.
L2212419 L2212419 DOOR ASSEMBLY SS
L2218278 L2218278 DOOR ASSEMBLY SS
L2202520 L2202520 DOOR ASSEMBLY WH
L2202519 L2202519 DOOR ASSEMBLY WH
2177310 2177310 DOOR GASKET, MAGNETIC (BLACK)
2177311 2177311 DOOR GASKET, MAGNETIC (BLACK)
2159060 2159060 DOOR GASKET, MAGNETIC (MIST BEIGE)
2159061 2159061 DOOR GASKET, MAGNETIC (MIST BEIGE)
WP2254473 WP2254473 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
WP2195947 WP2195947 DOOR TRIM
WPW10421486 WPW10421486 DOOR TRIM
WP2218109 WP2218109 DOOR-COMP
WP2254295 WP2254295 DRAIN PAN
W10843121 W10843121 DRIER-TUBE
WPW10143759 WPW10143759 DRIER-UV
WP2195916K WP2195916K ENDCAP
WP2156006 WP2156006 ENDCAP-TRM
WP2177340 WP2177340 ENDCAP-TRM
WP2254249 WP2254249 EVAPORATOR ASSEMBLY.
WP2321273 WP2321273 EVAPORATOR MOTOR
2300638 2300638 EXTENSION
2198768 2198768 FENCE
W11252732 W11252732 FILLER
WPW10283959 WPW10283959 FILLER
2225476 2225476 FLOOR
2179838 2179838 FOIL, CONTROL BOX
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
WP2205162 WP2205162 FRAME ASSEMBLY, MEAT SHELF
WP2174447 WP2174447 FRAME ASSEMBLY, SHELF (2)
WP2254360 WP2254360 GASKET
2166284 2166284 GASKET, REAR
WP999520 WP999520 GLASS SHELF
WP2176225 WP2176225 GLASS SHELF
WP542638 WP542638 GREASE
WP2254313 WP2254313 GRILLE
WP2254315 WP2254315 GRILLE
WP4387558 WP4387558 GROMMET
WP2163786 WP2163786 GROMMET
WP2264462 WP2264462 GROMMET
W10852725 W10852725 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
WP2225096 WP2225096 HANDLE
WP2225108 WP2225108 HANDLE (BLACK)
WP2221644 WP2221644 HANDLE (BLACK)
2221641 2221641 HANDLE (WHITE)
W10123573 W10123573 HARNS-WIRE
W10123571 W10123571 HARNS-WIRE
W10123582 W10123582 HARNS-WIRE
W10123567 W10123567 HARNS-WIRE
W10123580 W10123580 HEATER
2204837 2204837 HOLE PLUG, ENDCAP (WHITE)
WP2210566 WP2210566 HOUSING
2300418 2300418 HOUSING BASE
W11700559 W11700559 ICEMAKER
W11553819 W11553819 INSULATION
2193491 2193491 INSULATION
876029 876029 INSULATION
876370 876370 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
2302536 2302536 KNOB-DAMPR
W10829461 W10829461 KNOB-THERM
2300520 2300520 LADDER
WP67002552 WP67002552 LIGHT BULB
WP2321271 WP2321271 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
2320183 2320183 NUT
2254453 2254453 ORIFICE
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP2218132K WP2218132K PAN-MEAT
2320187 2320187 PLATE
2204840 2204840 PLUG-HNDLE
350942 350942 PRIMER
WP2210509 WP2210509 RELEAS-VAC
2302129 2302129 RETAINER
2225473 2225473 RETAINER
WPW10475495 WPW10475495 ROLLER-CAB
WP2166108 WP2166108 ROLLER-CAB
WP489128 WP489128 SCREW
WPW10171469 WPW10171469 SCREW
WP488163 WP488163 SCREW
WP489478 WP489478 SCREW
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP489464 WP489464 SCREW
WP3400504 WP3400504 SCREW
3400518 3400518 SCREW
WP681249 WP681249 SCREW
WP2205079 WP2205079 SEAL
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
W10129943 W10129943 SERVICE & WIRING SHEET
2184667 2184667 SHELF, FREEZER
WP2212770 WP2212770 SHELF, ICE TRAY
WP2210522 WP2210522 SHELF, LADDER (2)
2204639 2204639 SHIELD
2201082 2201082 SHIELD, HEAT
WP2183854 WP2183854 SHIM
W10119914 W10119914 SHROUD
WP2176222 WP2176222 SLIDE
W11447232 W11447232 SOCKET
350930 350930 SPRAY
2321301 2321301 START-DEV
WP2172748 WP2172748 SUPPORT
2201185 2201185 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
W10129923 W10129923 THERMOSTAT
2212485 2212485 THERMOSTAT TUBE BARRIER
WP2314293 WP2314293 THIMBLE
2200831 2200831 THRML WGHT
WPW10339879 WPW10339879 TIE-WIRE
WP2321259 WP2321259 TIMER-DEF
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP841180A WP841180A TRAY
2159302 2159302 TRAY-DOOR
WP2254574 WP2254574 TRAY-EVAP
WP2159306 WP2159306 TRIM, DOOR SHELF
WP2195341 WP2195341 TRIM-PAN
2176357 2176357 TRIM-PAN
2205533 2205533 TUBE
2214924 2214924 TUBE
2154109 2154109 TUBE, PROCESS
2318229 2318229 USE & CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
WP487576 WP487576 WASHER
WP489467 WP489467 WASHER
511873 511873 WHITE PORCELAIN (2 OZ.)
