Model Image
Manufacturer

Whirlpool

Model Number

5VMFI267AA00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
WPW10312691 WPW10312691 AIR-BAFFLE
WPW10175514 WPW10175514 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
W10555984 W10555984 ASSEMBLY, AIR GRILLE
67006434 67006434 AXLE, ROLLER (2)
2302129 2302129 BALE STRAP
WP67003795 WP67003795 BAR- TEMP
WPW10503184 WPW10503184 BASKET-FZR
W11218042 W11218042 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WP12840004 WP12840004 BIN CONTROL LEVER
WPW10297151 WPW10297151 BIN CONTROL LEVER
WP67006337 WP67006337 BLADE- FAN
WP12825803 WP12825803 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WP12642303WD WP12642303WD BRACE- CRI
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10284683 WPW10284683 BRACKET
WPW10284682 WPW10284682 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10334463 WPW10334463 BRACKET
W10217546 W10217546 BRACKET, FILTER
67006325 67006325 BRACKET, FILTER BASE
W10174827 W10174827 BRACKET, ICE DOOR
W10346971 W10346971 BRACKET, SOLENOID
W10290553 W10290553 BUCKET, UPPER
W10290555 W10290555 BUCKET-WINE BOTTLE
N_P N_P CABINET (NOT A SERVICABLE PART)
W10311756 W10311756 CAMERA LENS, RC LED
W11395888 W11395888 CAP-FILTER
WP2201147 WP2201147 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11456069 W11456069 CLAMP
W11673433 W11673433 CLIP
W11712696 W11712696 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
W10165970 W10165970 CLIP, FAN MOTOR
WP12028505AP WP12028505AP CLOSER
W10183407 W10183407 COMPRESSOR (INCLUDES ITEMS 9, 10, 19, & 25) (ALSO ORDER 876765 TUBE KIT)
WPW10346415 WPW10346415 CONDENSER
WPW10334458 WPW10334458 CONNECTOR
WPW10486555 WPW10486555 CONTROL
WPW10337912 WPW10337912 CONTROL BOARD
W11125428 W11125428 CONTROL BOARD
W11106262 W11106262 CONTROL BOARD
WPW10356041 WPW10356041 CONTROL BOARD
12656202 12656202 CONTROL, HOUSING
W10462019 W10462019 CORD, POWER
W10827015 W10827015 COVER
WPW10309869 WPW10309869 COVER
WPW10337648 WPW10337648 COVER
WPW10191117 WPW10191117 COVER
12961602 12961602 COVER, CONTROL BOX
W10308421 W10308421 COVER, EVAPORATOR
W10191141 W10191141 COVER, FILL TUBE (APOLLO GREY)
W10482962 W10482962 COVER, ICE MAKER
W10212541 W10212541 COVER, UNIT
12960101 12960101 COVER, UPPER WATER TANK
W10208592 W10208592 COVER, VALVE
67006329 67006329 COVER, WATER TANK (LOWER)
WP67003924 WP67003924 COVER- FZ
WP67006331 WP67006331 COVER-FILT
W10327050 W10327050 CUP, FILL
12963002SP 12963002SP DAM (LEFT HAND)
12963102SP 12963102SP DAM (RIGHT HAND)
W10361441 W10361441 DEVICE, START
W10847995 W10847995 DIVIDER
WPW10309864 WPW10309864 DIVIDER
WP67002759 WP67002759 DIVIDER
W10146439 W10146439 DIVIDER, UPPER (BASKET)
13107316FQ 13107316FQ DOOR ASSEMBLY SA
13107315FQ 13107315FQ DOOR ASSEMBLY SA
12977875FQ 12977875FQ DOOR ASSEMBLY SP
W10917988 W10917988 DOOR HINGE
W11592375 W11592375 DOOR HINGE
W11592374 W11592374 DOOR HINGE
WPW10317279 WPW10317279 DOOR-CHUTE
WP67003531 WP67003531 DRAWER- PA
WPW10143759 WPW10143759 DRIER-UV
W10318914 W10318914 EJECTOR, ARM
W10118193 W10118193 ENCLOSURE, WATER VALVE CONNECTOR
W10874836 W10874836 ENDCAP
W11536253 W11536253 EVAPORATOR
W11529245 W11529245 EVAPORATOR MOTOR
WPW10351019 WPW10351019 EXTENSION
WP67006010 WP67006010 EXTR- GLAS
WP12587703AP WP12587703AP FILLER
EDR4RXD1 EDR4RXD1 FILTER
12689303 12689303 FILTER, LINE

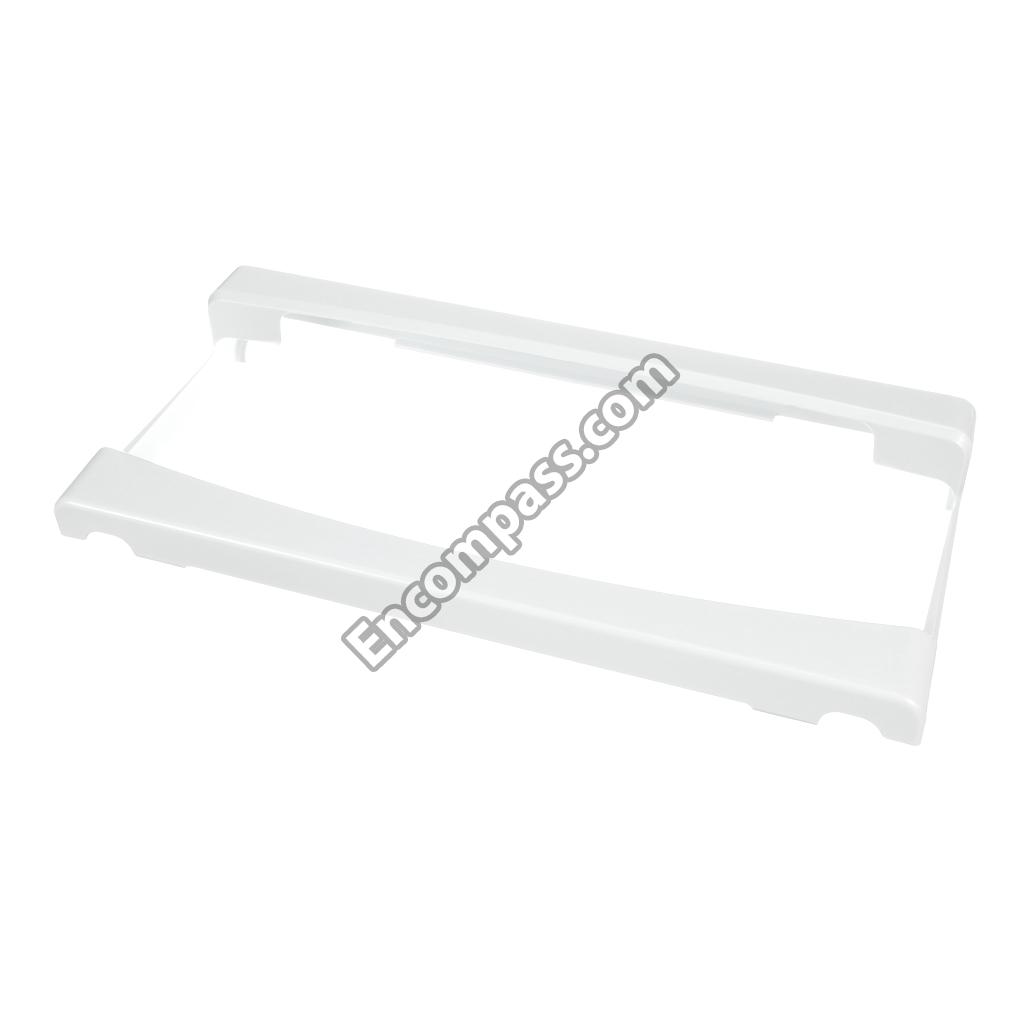

WPW10329866 WPW10329866 FRAME
WP67005923 WP67005923 FRONT- CRI
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
W10856123 W10856123 GASKET
WP67006341 WP67006341 GASKET
W11250029 W11250029 GASKET
WPW10714545 WPW10714545 GASKET ASSEMBLY
W10830055 W10830055 GASKET, DOOR, RIGHT HAND (GREY)
67006429 67006429 GASKET, HV CONTROL BOX
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
WPW10474715 WPW10474715 GEAR
WPW10474716 WPW10474716 GEAR
12002497 12002497 GEAR
W10348259 W10348259 GEAR MOUNT (LEFT HAND)
W10348260 W10348260 GEAR MOUNT (RIGHT HAND)
W11033333 W11033333 GLASS SHELF
W11402525 W11402525 GLASS SHELF
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE
WPW10534155 WPW10534155 GRILLE
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
WPW10137529 WPW10137529 GROMMET
W10151687 W10151687 GROMMET, FAN MOTOR
W11676465 W11676465 GROMMET- F
W10485986 W10485986 GUIDE, WATERLINE
WPW10435760 WPW10435760 GUIDE-ICE
W10252288A W10252288A HANDLE

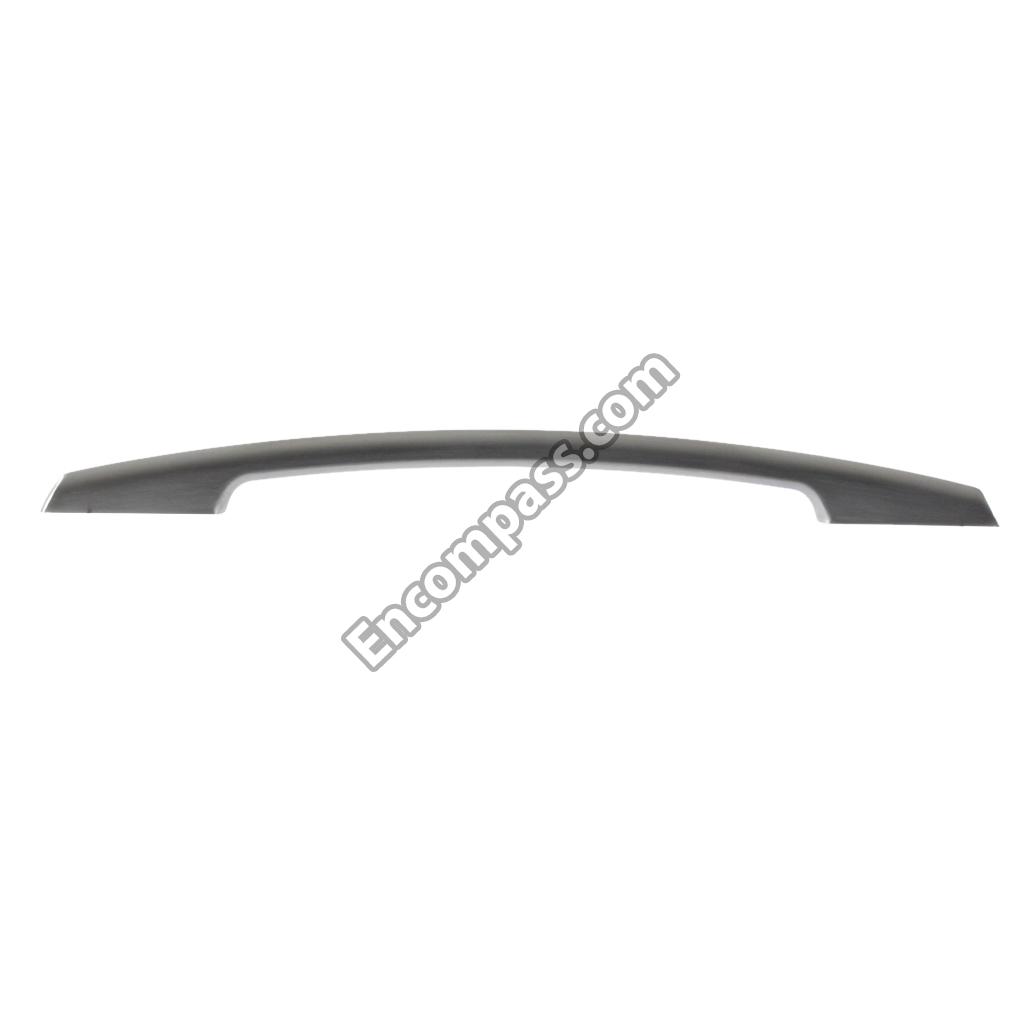

WPW10252300 WPW10252300 HANDLE, DOOR (STAINLESS)
W10459673 W10459673 HARNESS, ICE MAKER MODULE
W10459600 W10459600 HARNESS, RC LIGHT
W10510963 W10510963 HARNESS, UNIT
12729132 12729132 HEATER, DEFROST
W11434460 W11434460 HOUSING
W11684721 W11684721 HOUSING
WP2195914 WP2195914 HOUSING-IM
W11185686 W11185686 ICE-CONTNR
WPW10457318 WPW10457318 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10498988 WPW10498988 INLET VALVE
WPW10464773 WPW10464773 INLET VALVE
W10121282 W10121282 INLET, BLOWER
W11676504 W11676504 INSERT
W11706807 W11706807 INSULATION
833938 833938 KIT, TERMINAL CONNECTOR
W11498983 W11498983 KNOB
W10273464 W10273464 LADDER, CENTER
W10251966 W10251966 LADDER, SIDE (LEFT HAND)
W10251965 W10251965 LADDER, SIDE (RIGHT HAND)
WPW10141622 WPW10141622 LEVELER
W10118194 W10118194 LID, ENCLOSURE
W10296541 W10296541 LID, HV CONTROL BOX
W11290115 W11290115 LIGHT
WP67002552 WP67002552 LIGHT BULB
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
WPW10379147 WPW10379147 MOLD-ICE
WPW10246191 WPW10246191 MOTOR
WPW10205979 WPW10205979 MOTOR
WPW10457319 WPW10457319 MOTOR
W10459645 W10459645 MOTOR, EVAPORATOR (INCLUDES HEATER HARNESS)
W10190933 W10190933 MOTOR-MODL
W10190541 W10190541 MOUNT, CRISPER SUPPORT
W10464062 W10464062 MULLION, DOOR (GREY)
WPW10170766 WPW10170766 NAMEPLATE

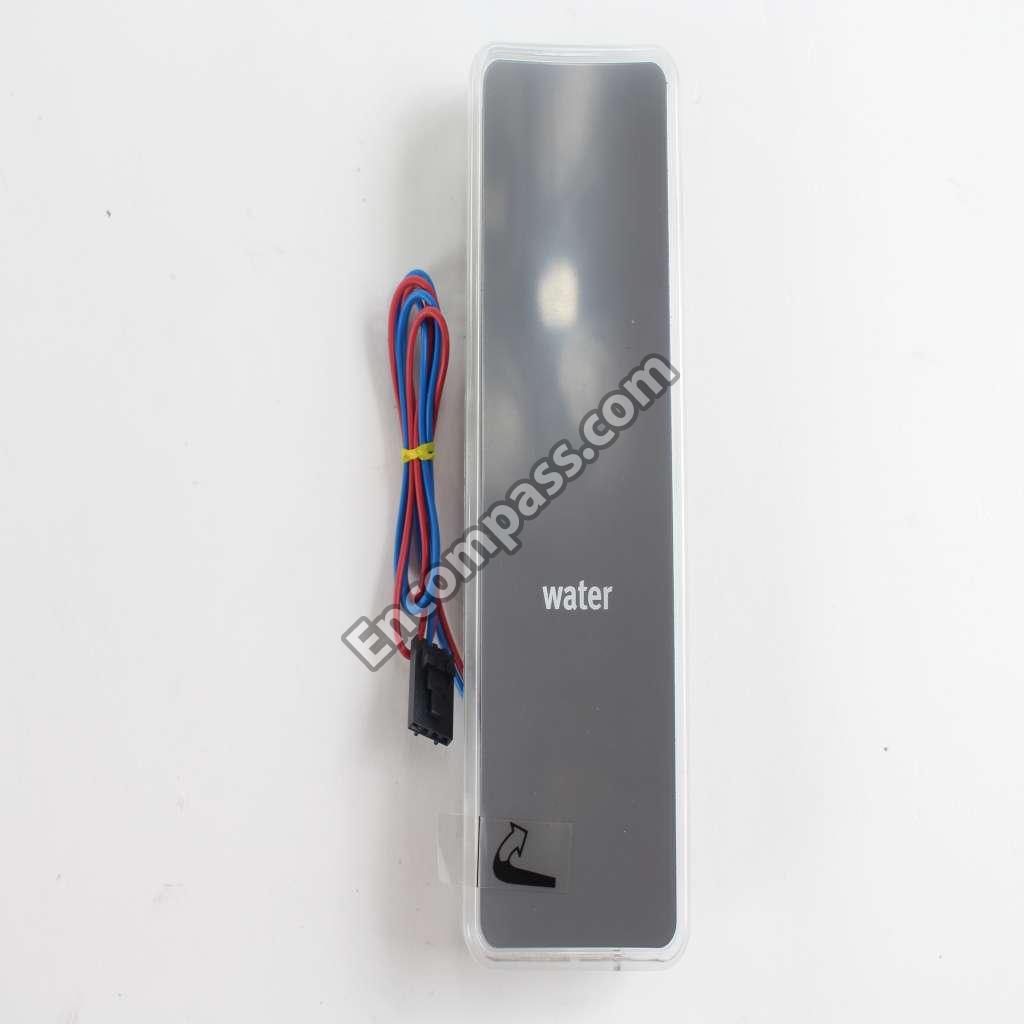

WPW10368732 WPW10368732 PAD ASSEMBLY, WATER & ICE
799344 799344 PAINT, BULK (1 QT.) (WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67004515 WP67004515 PAN- CRISP
WPW10655368 WPW10655368 PAN-DRIP
W11727651 W11727651 PLATE
W11489993 W11489993 RAIL
W11489994 W11489994 RAIL
WPW10326469 WPW10326469 RAIL-CENTR
W11346622 W11346622 RESERVOIR
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
WP67006908 WP67006908 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WP4449745 WP4449745 SCREW
WPW10273971 WPW10273971 SCREW
WPW10288153 WPW10288153 SCREW
W11311945 W11311945 SCREW
WP98165 WP98165 SCREW
W10001280 W10001280 SCREW
W10001240 W10001240 SCREW
W10185612 W10185612 SCREW
WP67006415 WP67006415 SCREW
WP3400065 WP3400065 SCREW
W10854958 W10854958 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
W10309863 W10309863 SCROLL, BLOWER
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
WPW10353552 WPW10353552 SEPARATOR
W11173556 W11173556 SHAFT
W11028221 W11028221 SHAFT
W11197490 W11197490 SHELF-CANT
W11469652 W11469652 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
W10119914 W10119914 SHROUD, LIGHT SOCKET
W11700329 W11700329 SHROUD- EV
W11658402 W11658402 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
WPW10457320 WPW10457320 SOLENOID
W11378860 W11378860 SPACER
W11227371 W11227371 SPIGOT
W11703060 W11703060 STOP-DOOR
WPW10346124 WPW10346124 SUPPORT
WP13062602 WP13062602 SUPPORT
WP12227305WD WP12227305WD SUPPORT
W11445850 W11445850 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10465886 W10465886 TECH SHEET
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001719 WP67001719 TRACK
WP67006104 WP67006104 TRAY
W11547653 W11547653 TRAY-DRIP
WPW10267863 WPW10267863 TRAY-DRIP
W11192301 W11192301 TRAY-DRIP
WPW10231345 WPW10231345 TRIM-SHELF
W10242974 W10242974 TUBE, DISCHARGE
W10619951 W10619951 TUBE-DRAIN
W10516192 W10516192 USE & CARE GUIDE
WP978025 WP978025 VALVE
876764 876764 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
W11045978 W11045978 WALL, DISPENSER FALSE (NICKEL)
WPW10511930 WPW10511930 WATER TUBE
WPW10444033 WPW10444033 WATER TUBE
W11415785 W11415785 WATER TUBE
WPW10123444K WPW10123444K WHEEL
511873 511873 WHITE PORCELAIN (2 OZ.)
