Model Image
Manufacturer

Whirlpool

Model Number

7MLGC9545JQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP3403636 WP3403636 BAFFLE, DRUM (SHORT) (1)
WP692490 WP692490 BAFFLE, DRUM (WIDE)
693986 693986 BASE, BURNER
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
279980 279980 BOX
WP694298 WP694298 BRACKET
W11684613 W11684613 BRACKET
W11398682 W11398682 BRACKET
8271426 8271426 BRACKET
694538 694538 BRACKET, COIL
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL
W10828905 W10828905 BULKHEAD
WP17258 WP17258 BUMPER
WP693140 WP693140 BURNER
279536 279536 BURNER-GAS
WP694419 WP694419 BUZZER
3406812 3406812 CABINET
W11226088 W11226088 CAMERA LENS
WP3389441 WP3389441 CATCH, DOOR
W11117429 W11117429 CHUTE
WP660658 WP660658 CLAMP
WP3404162 WP3404162 CLAMP
341029 341029 CLAMP
279771 279771 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP98234 WP98234 CLIP (2)
W11252547 W11252547 CLIP, HINGE
W10854425 W10854425 CLIP, TOE PANEL
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
3936144 3936144 CONNECTOR
WP3403498 WP3403498 CONNECTOR
3397269 3397269 CONNECTOR
3401144 3401144 CONNECTOR
3395683 3395683 CONNECTOR, (MOTOR)
WP3403499 WP3403499 CONNECTOR, 2 POSITION
WPW10476828 WPW10476828 CONTROL, ELECTRONIC
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
WP8283378 WP8283378 COVER, LINT SCREEN
W11736322 W11736322 COVER, TERMINAL BLOCK
677818L 677818L DIY
279570 279570 DOOR LATCH
WP3393549 WP3393549 DOOR, FRONT
WP695737 WP695737 DOOR, REAR
WP3406107 WP3406107 DOOR, SWITCH ASSEMBLY
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR
W10899578 W10899578 DRUM ASSEMBLY
8066086 8066086 DRUM HOLE PLUG
3406052 3406052 ELBOW UNION ASSEMBLY
W10820038 W10820038 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
WP8066049 WP8066049 FUNNEL

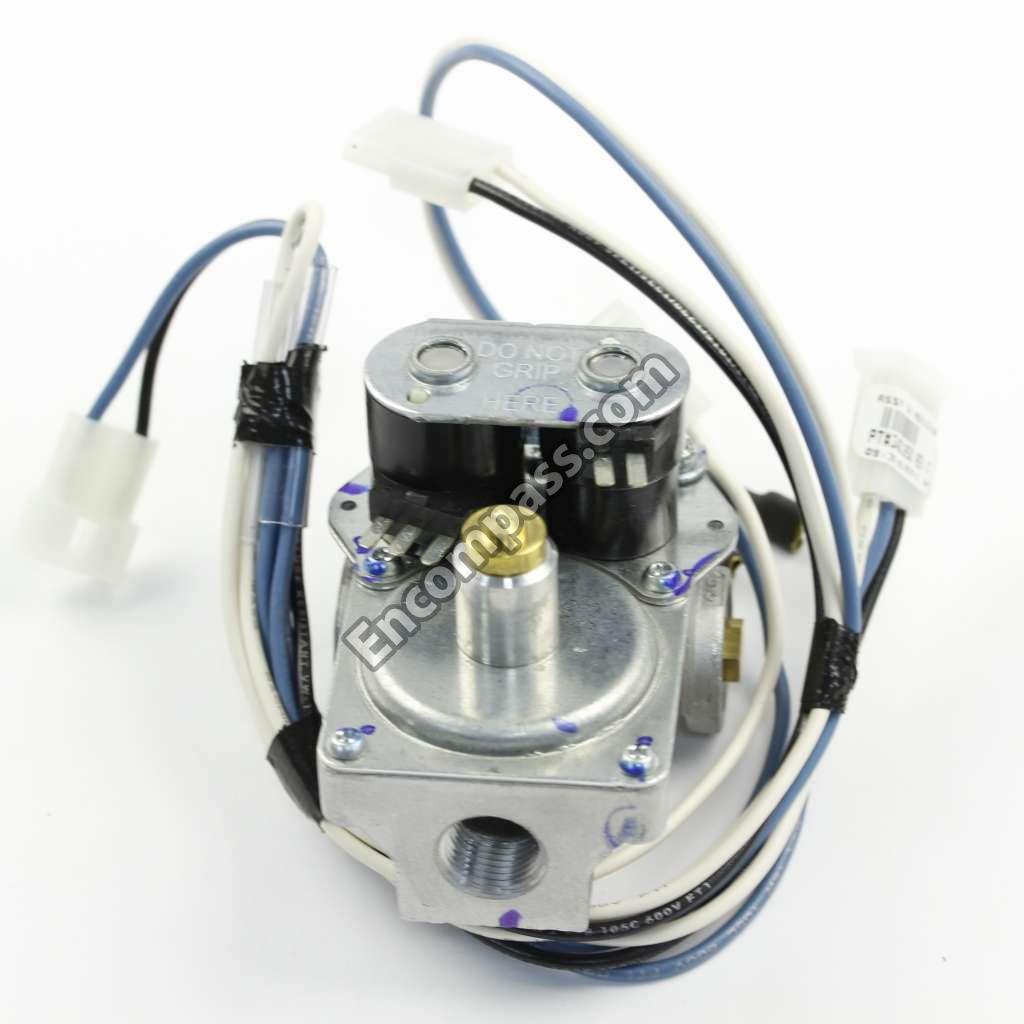

279923 279923 GAS VALVE
WP348721 WP348721 HANDLE, DOOR (WHITE)
3396032 3396032 HARNS-WIRE
3394309 3394309 HARNS-WIRE
WPW10044470 WPW10044470 HINGE, (RH)
WP8066057 WP8066057 HINGE, L.H.
WPW10044480 WPW10044480 HINGE, LINT LID (L.H.)
WP8066056 WP8066056 HINGE, R.H.
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
279311 279311 IGNITOR
WP3957754 WP3957754 KNOB
3957804 3957804 KNOB, PUSH-TO-START
WP694424 WP694424 LEAK LIMITER
WP22002263 WP22002263 LIGHT BULB
LIT3405347 LIT3405347 LITERATURE PARTS (INSTRUCTIONS, INSTALLATION)
LIT8519508 LIT8519508 LITERATURE PARTS (LABEL, WIRING DIAGRAM)
LIT8314838 LIT8314838 LITERATURE PARTS (USE & CARE GUIDE)
WP18776 WP18776 LOCK
233076 233076 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
WP234826 WP234826 ORIFICE, BURNER (TYPE 1)
15775 15775 ORIFICE, BURNER (TYPE 2)
15419 15419 ORIFICE, BURNER (TYPE 3)
WP229742 WP229742 ORIFICE, BURNER (TYPE 4 (PROPANE))
WP234868 WP234868 ORIFICE, BURNER (TYPE 4 (PROPANE))
799344 799344 PAINT
3977844 3977844 PANEL, CONTROL
W10103406 W10103406 PANEL, REAR CONSOLE
280043 280043 PANEL-REAR
696237 696237 PIPE
3393767 3393767 PIPE
W10295523 W10295523 PLUG
717252 717252 PLUG, 2-WAY TERMINAL
WP3394975 WP3394975 PLUG, FRONTPANEL (WHITE)
W11222083 W11222083 POWER CORD
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY, MOTOR
WP691366 WP691366 PULLEY-IDR
WP338906 WP338906 RADIANT, SENSOR
WP3398094 WP3398094 RELAY, PUSH-TO-START
279441 279441 RING, BEARING
WP349639 WP349639 SCREEN, LINT
WPW10109200 WPW10109200 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP694091 WP694091 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
W10850756 W10850756 SCREW
WPW10139210 WPW10139210 SCREW
WP681414 WP681414 SCREW
W11693756 W11693756 SCREW
WP693995 WP693995 SCREW
WPW10366705 WPW10366705 SCREW
3400500 3400500 SCREW
3400859 3400859 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
486146 486146 SCREW, 10-24 X 1/2
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
W10612022 W10612022 SEAL
279740 279740 SEAL & BEARING ASSEMBLY
WP339956 WP339956 SEAL FOAM
WP3394196 WP3394196 SEAL, BLOWER
W10906683 W10906683 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE
W10816105 W10816105 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
W11700522 W11700522 SOCKET, ASSEMBLY
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10041960 WPW10041960 SPRING, DOOR (2) PANEL (2)
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
349241T 349241T SUPPORT
8318269 8318269 SWITCH-CYC
WP94614 WP94614 TERMINAL, FEMALE
WP3392519 WP3392519 THERMAL FUSE

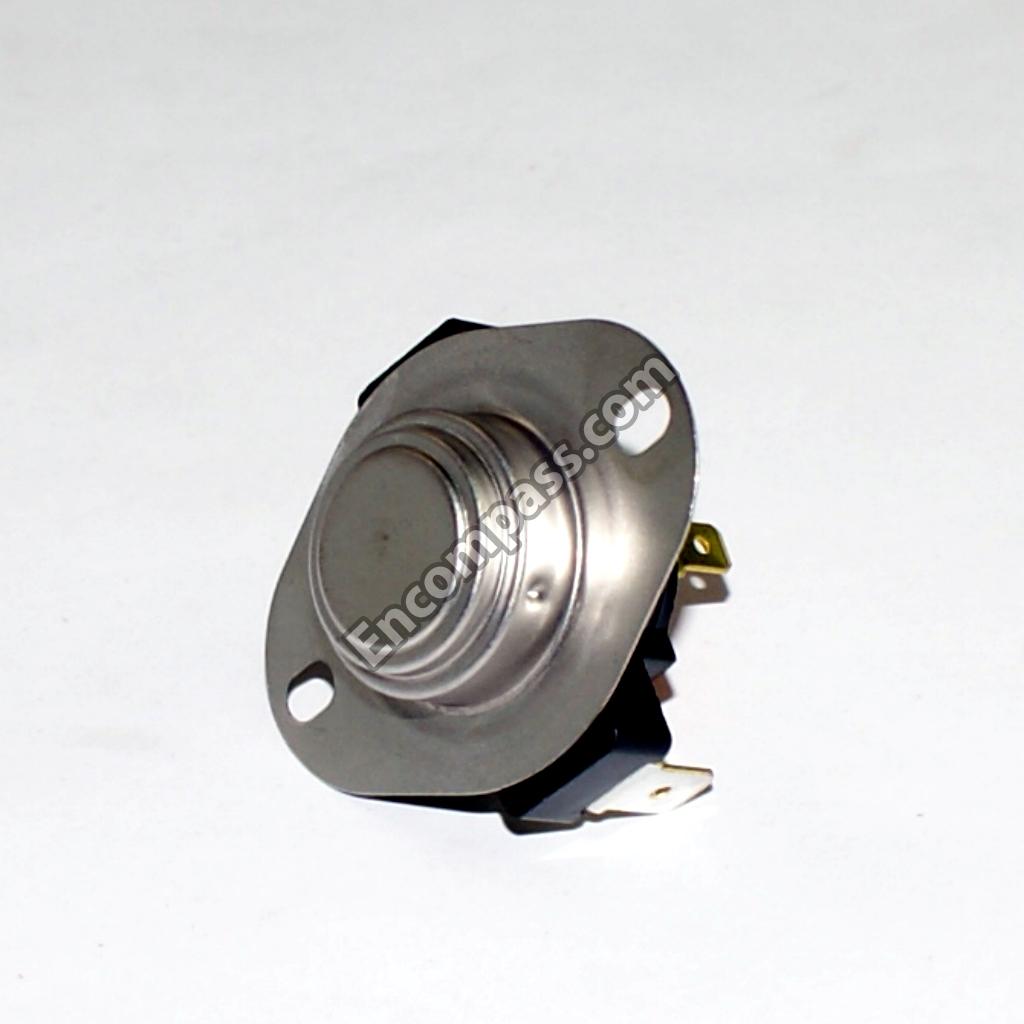

W11050897 W11050897 THERMOSTAT, 205 F (96.1 C)
WP8318268 WP8318268 THERMOSTAT, INTERNAL-BIAS
WP8299762 WP8299762 TIMER ASSEMBLY (60 HZ.)
WP8521918 WP8521918 TOP
WPW10512946 WPW10512946 TRI-RING (4)
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
3393812 3393812 WIRE
3393811 3393811 WIRE
