Whirlpool

Model Number

7MLGQ8857PT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP3403636 WP3403636 BAFFLE, DRUM (SHORT) (1)
WP692490 WP692490 BAFFLE, DRUM (WIDE)
693986 693986 BASE, BURNER
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
279980 279980 BOX
WP694298 WP694298 BRACKET
W11684613 W11684613 BRACKET
W11398682 W11398682 BRACKET
8544895 8544895 BRACKET
8541400 8541400 BRACKET
694538 694538 BRACKET, COIL
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL
W10828905 W10828905 BULKHEAD
WP693140 WP693140 BURNER
W10823508 W10823508 BURNER-GAS
WP694419 WP694419 BUZZER
8533643 8533643 CABINET
3977306 3977306 CABINET (INCLUDES ILLUS. 8) (BISCUIT)
W11226088 W11226088 CAMERA LENS
W11117429 W11117429 CHUTE
WP660658 WP660658 CLAMP
WP3404162 WP3404162 CLAMP
341029 341029 CLAMP
279771 279771 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP98234 WP98234 CLIP (2)
WP8536939 WP8536939 CLIP, KNOB (EXCEPT LSQ9010LQ2)
W10854425 W10854425 CLIP, TOE PANEL
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
3936144 3936144 CONNECTOR
WP3403498 WP3403498 CONNECTOR
3397269 3397269 CONNECTOR
3391885 3391885 CONNECTOR
3347243 3347243 CONNECTOR
3401144 3401144 CONNECTOR
3395683 3395683 CONNECTOR, (MOTOR)
WP3403499 WP3403499 CONNECTOR, 2 POSITION
WPW10476828 WPW10476828 CONTROL, ELECTRONIC
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
W11736322 W11736322 COVER, TERMINAL BLOCK
677818L 677818L DIY
W10861227 W10861227 DOOR
WP3402341 WP3402341 DOOR
279570 279570 DOOR LATCH
WP3402337 WP3402337 DOOR, FRONT (BISCUIT)
WP3406107 WP3406107 DOOR, SWITCH ASSEMBLY
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR
W10899578 W10899578 DRUM ASSEMBLY
3406839 3406839 DRY RACK ASSEMBLY
692989 692989 DRY RACK BRACKET
W10820038 W10820038 ENDCAP
279965 279965 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
280020 280020 FRONT PANEL ASSEMBLY (BISCUIT)
WP8066049 WP8066049 FUNNEL

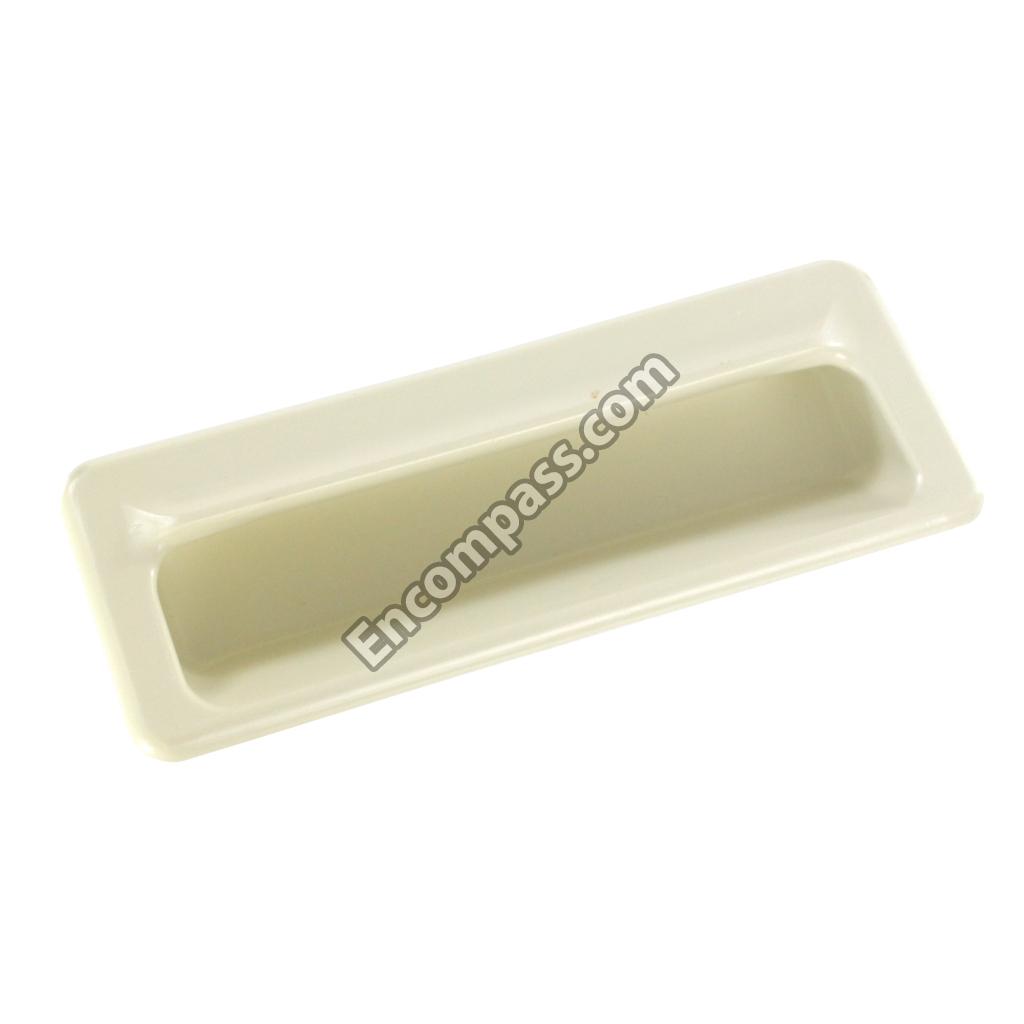

WP3405189 WP3405189 HANDLE
WP3405184 WP3405184 HANDLE, DOOR (WHITE)
8299891 8299891 HARNS-WIRE
WPW10362431 WPW10362431 HINGE AND PIN ASSEMBLY (2)
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
279311 279311 IGNITOR
8564241 8564241 INSTALLATION INSTRUCTIONS
4392065 4392065 KIT, DRYER REPAIR
346764A 346764A KIT, HOLD-DOWN (GAS DRYER MOBIL HOME INSTALLATION)

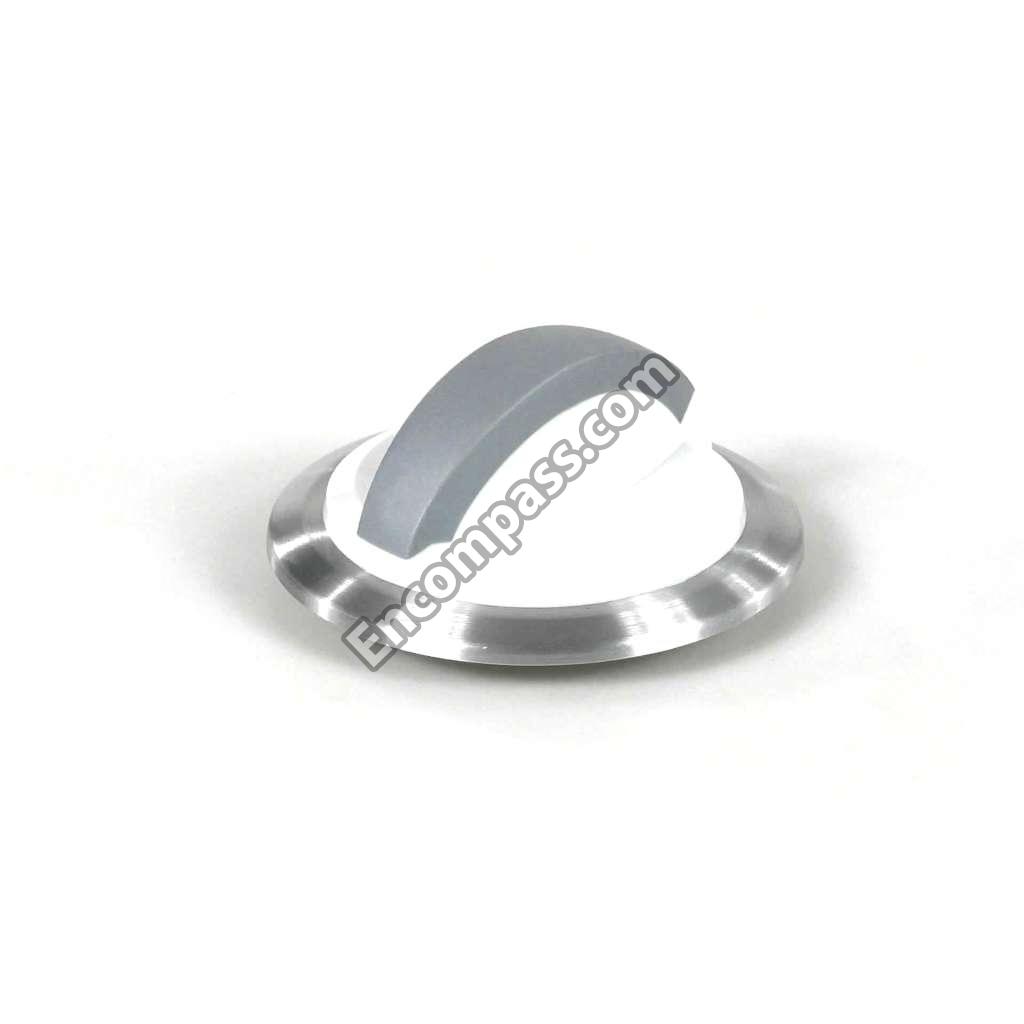

8544956 8544956 KNOB
W10756270 W10756270 KNOB
W10810477 W10810477 KNOB, CONTROL (WHITE)
WP694424 WP694424 LEAK LIMITER
WP22002263 WP22002263 LIGHT BULB
WP18776 WP18776 LOCK
3400985 3400985 MEDALLION
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
WP234826 WP234826 ORIFICE, BURNER (TYPE 1)
WP229742 WP229742 ORIFICE, BURNER (TYPE 4 (PROPANE))
WP234868 WP234868 ORIFICE, BURNER (TYPE 4 (PROPANE))
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
279854 279854 PANEL
W10103406 W10103406 PANEL, REAR CONSOLE
8318808 8318808 PANEL-CNTL
8318807 8318807 PANEL-CNTL
280043 280043 PANEL-REAR
WP3404413 WP3404413 PLUG
WP3403630 WP3403630 PLUG
W10295523 W10295523 PLUG
8066086 8066086 PLUG
717252 717252 PLUG, 2-WAY TERMINAL
WP3394978 WP3394978 PLUG, FRONT PANEL (BISCUIT)
WP3394975 WP3394975 PLUG, FRONTPANEL (WHITE)
WP3404415 WP3404415 PLUG, HINGE HOLE (BISCUIT)
WP3403632 WP3403632 PLUG, STRIKE HOLE (BISCUIT)
W11222083 W11222083 POWER CORD
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY, MOTOR
WP338906 WP338906 RADIANT, SENSOR
279441 279441 RING, BEARING
W11607443 W11607443 SCREEN
WP8557858 WP8557858 SCREEN, LINT (BISCUIT)
WPW10109200 WPW10109200 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP488627 WP488627 SCREW
WP3395530 WP3395530 SCREW
W10850756 W10850756 SCREW
WPW10139210 WPW10139210 SCREW
WP681414 WP681414 SCREW
W11693756 W11693756 SCREW
WPW10366705 WPW10366705 SCREW
WP693995 WP693995 SCREW
3400500 3400500 SCREW
3400859 3400859 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
W10612022 W10612022 SEAL
279740 279740 SEAL & BEARING ASSEMBLY
WP339956 WP339956 SEAL FOAM
WP3394196 WP3394196 SEAL, BLOWER
W10861521 W10861521 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE
W10816105 W10816105 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
8565899 8565899 SHEET, CYCLE FEATURE
W11233063 W11233063 SHIELD
W11700522 W11700522 SOCKET, ASSEMBLY
350930 350930 SPRAY (13 OZ.) (WHITE)
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
W11429589 W11429589 STRIKE, DOOR
349241T 349241T SUPPORT
WP3398095 WP3398095 SWITCH, PUSH-TO-START

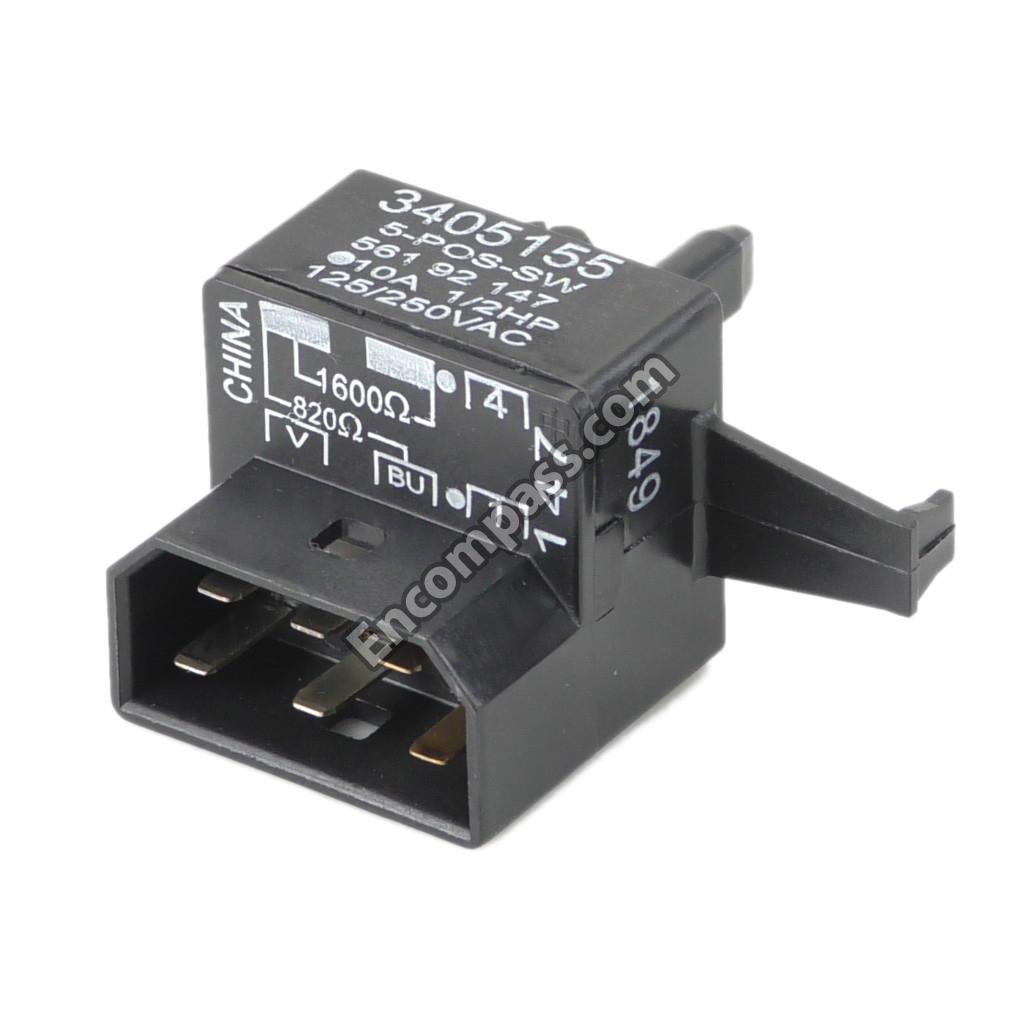

W11106324 W11106324 SWITCH, TEMPERATURE
3405154 3405154 SWITCH, WRINKLE SHIELD
WP94614 WP94614 TERMINAL, FEMALE
W11224254 W11224254 TEST KIT
W11050897 W11050897 THERMAL CUT-OFF (INCLUDES ILLUS. 15)
WP3392519 WP3392519 THERMAL FUSE
WP8318268 WP8318268 THERMOSTAT, INTERNAL-BIAS
WP3406725 WP3406725 TIMER
WP8544955 WP8544955 TIMER KNOB ASSEMBLY (WHITE)
WP8563985 WP8563985 TOP
8563986 8563986 TOP
WPW10512946 WPW10512946 TRI-RING (4)
8565897 8565897 USE & CARE GUIDE
WP8318277 WP8318277 VALVE, 60 HZ. (INCLUDES PIPE & ILLUS. 7)
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
WP3401707 WP3401707 WIRE
3401684 3401684 WIRE
8533206 8533206 WIRING DIAGRAM
