Model Image
Manufacturer

Whirlpool

Model Number

7MLGR3624JQ4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
279264 279264 AIR CHANNEL BOX
WP342847 WP342847 BAFFLE, DRUM
693986 693986 BASE, BURNER
WP348780 WP348780 BASE, MOTOR
WP3394508 WP3394508 BEARING, RING
341241 341241 BELT, DRIVE
279980 279980 BOX
WP694298 WP694298 BRACKET
W11398682 W11398682 BRACKET
8541400 8541400 BRACKET
694538 694538 BRACKET, COIL
3976435 3976435 BRACKET, SUPPORT
279793 279793 BULKHEAD
WP17258 WP17258 BUMPER
WP693140 WP693140 BURNER
W10823508 W10823508 BURNER-GAS
8533643 8533643 CABINET
3977306 3977306 CABINET (INCLUDES ILLUS. 8) (BISCUIT)
WP3389441 WP3389441 CATCH, DOOR
279505 279505 CHUTE
WP3404162 WP3404162 CLAMP
WP660658 WP660658 CLAMP
341029 341029 CLAMP
279771 279771 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP98234 WP98234 CLIP (2)
W10854425 W10854425 CLIP, TOE PANEL
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
WP3403498 WP3403498 CONNECTOR
3936144 3936144 CONNECTOR
3397269 3397269 CONNECTOR
3395683 3395683 CONNECTOR, (MOTOR)
WP3403499 WP3403499 CONNECTOR, 2 POSITION
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
WP8283378 WP8283378 COVER, LINT SCREEN
WP8283380 WP8283380 COVER, LINT SCREEN (BISCUIT)
W11736322 W11736322 COVER, TERMINAL BLOCK
677818L 677818L DIY
280077 280077 DOOR
279570 279570 DOOR LATCH
WP3406102 WP3406102 DOOR SWITCH ASSEMBLY
WP348205 WP348205 DOOR, FRONT
3978598 3978598 DOOR, FRONT (BISCUIT)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR
3396775 3396775 DRUM ASSEMBLY
279965 279965 ENDCAP
W10820038 W10820038 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
49621 49621 FOOT, PLASTIC
WP8066048 WP8066048 FUNNEL
339392 339392 HANDLE & LINT SCREEN ASSEMBLY
WP3978592 WP3978592 HANDLE, DOOR (BISCUIT)
WP686711 WP686711 HANDLE, DOOR (WHITE)
8299875 8299875 HARNS-WIRE
WP348023 WP348023 HINGE AND PIN ASSEMBLY (2)
WPW10044470 WPW10044470 HINGE, (RH)
WPW10044480 WPW10044480 HINGE, LINT LID (L.H.)
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
279311 279311 IGNITOR
4392065 4392065 KIT, DRYER REPAIR
346764A 346764A KIT, HOLD-DOWN (GAS DRYER MOBIL HOME INSTALLATION)
WP3957755 WP3957755 KNOB
WP3957754 WP3957754 KNOB
8271349 8271349 KNOB, PUSH TO START (BISCUIT)
8271418 8271418 KNOB, PUSH TO START (BISCUIT)
3957804 3957804 KNOB, PUSH-TO-START
WP694424 WP694424 LEAK LIMITER
LIT3978910 LIT3978910 LITERATURE PARTS (INSTALLATION INSTRUCTIONS (SPANISH))
LIT8533202 LIT8533202 LITERATURE PARTS (WIRING DIAGRAM)
WP18776 WP18776 LOCK
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
WP234826 WP234826 ORIFICE, BURNER (TYPE 1)
WP234868 WP234868 ORIFICE, BURNER (TYPE 4 (PROPANE))
WP229742 WP229742 ORIFICE, BURNER (TYPE 4 (PROPANE))
686889 686889 PAD, CABINET
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
280021 280021 PANEL
280022 280022 PANEL
8543126 8543126 PANEL, CONTROL (WHITE)
W10103406 W10103406 PANEL, REAR CONSOLE
8528133 8528133 PANEL-CNTL
280040 280040 PANEL-REAR
W10295523 W10295523 PLUG
8066086 8066086 PLUG
WP3394978 WP3394978 PLUG, FRONT PANEL (BISCUIT)
WP3394975 WP3394975 PLUG, FRONTPANEL (WHITE)
W11222083 W11222083 POWER CORD
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY, MOTOR
WP689790 WP689790 RACK, DRY
WP338906 WP338906 RADIANT, SENSOR
WP694674 WP694674 RANGE THERMOSTAT
717252 717252 RECEPTACLE, 2 WAY
WPW10109200 WPW10109200 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP694091 WP694091 SCREW
WP3395530 WP3395530 SCREW
WP488627 WP488627 SCREW
WP681414 WP681414 SCREW
W10850756 W10850756 SCREW
W11693756 W11693756 SCREW
WPW10139210 WPW10139210 SCREW
WPW10366705 WPW10366705 SCREW
WP693995 WP693995 SCREW
3400500 3400500 SCREW
3400859 3400859 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
239087 239087 SEAL
WP339956 WP339956 SEAL FOAM
WP3394196 WP3394196 SEAL, BLOWER
W11613302 W11613302 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
350930 350930 SPRAY (13 OZ.) (WHITE)
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
349241T 349241T SUPPORT
WP3977456 WP3977456 SWITCH, PUSH-TO-START
WP94614 WP94614 TERMINAL, FEMALE
W11224254 W11224254 TEST KIT
W11050897 W11050897 THERMAL CUT-OFF (INCLUDES ILLUS. 15)
WP3392519 WP3392519 THERMAL FUSE

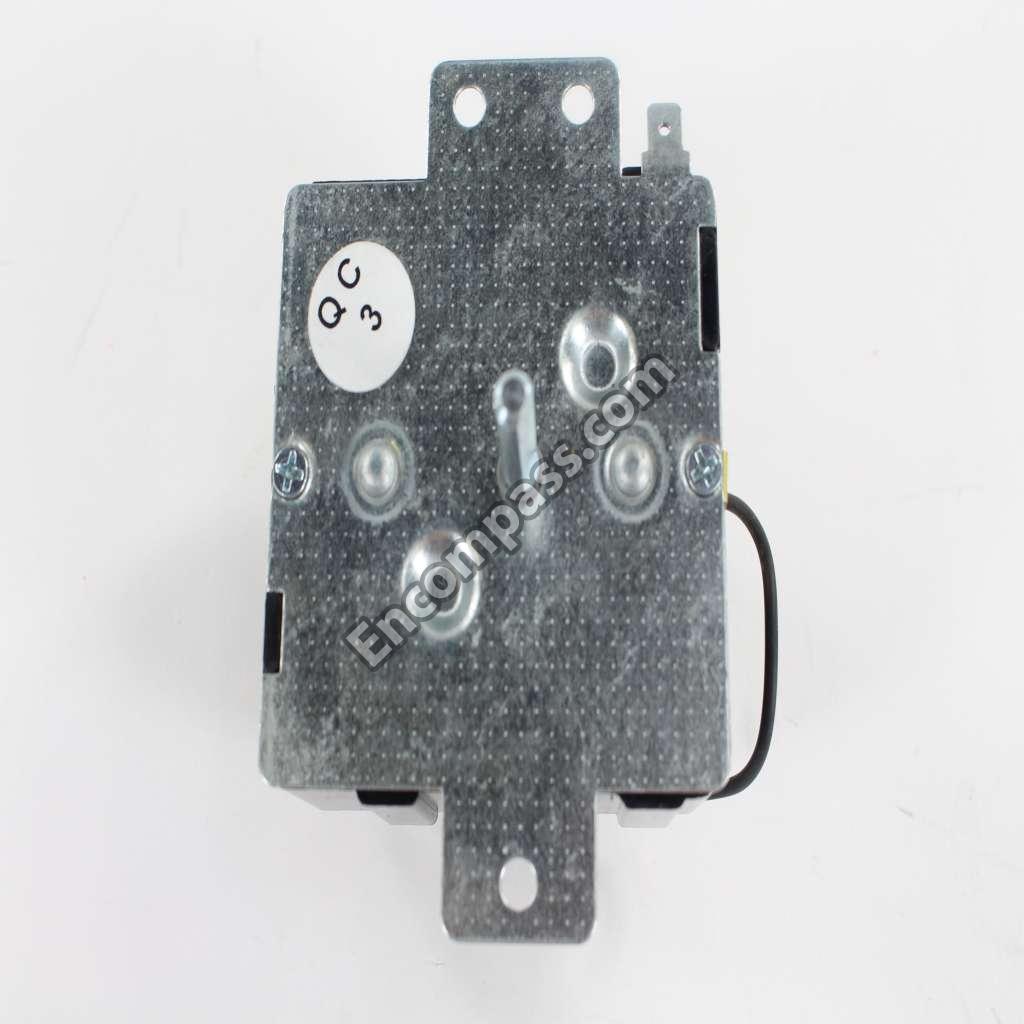

WP3976575 WP3976575 TIMER, 60 HZ.
WP8521918 WP8521918 TOP
WP8521920 WP8521920 TOP (BISCUIT)
WPW10512946 WPW10512946 TRI-RING (4)
LIT8543092 LIT8543092 USE & CARE GUIDE
WP8318277 WP8318277 VALVE, 60 HZ. (INCLUDES PIPE & ILLUS. 7)
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
WP3401707 WP3401707 WIRE
