Model Image
Manufacturer

Whirlpool

Model Number

7MMVWB955FC0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11197416 W11197416 ABSORBER
WP8564458 WP8564458 ABSORBER
W10825092 W10825092 ABSORBER, SOUND
W10135699 W10135699 ACCESSORY PARTS, AFFRESH WASHER CLEANER
W10355010 W10355010 ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
DRNEXT4 DRNEXT4 ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT
285452A 285452A ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2)
285448A 285448A ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4)
8212656RP 8212656RP ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212546RP 8212546RP ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212545RP 8212545RP ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED HOSE AND ONE BLUE HOSE W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212641RP 8212641RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLACK HOSES W/ STRAIGHT ENDS AND 4 RUBBER WASHERS)
8212487RP 8212487RP ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAIDED HOSES W/STRAIGHT ENDS & 4 RUBBER WASHERS)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
3363920A 3363920A ADAPTER
W10743267 W10743267 BASKET ASSEMBLY
W10749769 W10749769 BEZEL, BLEACH DISPENSER (GREY)
W10749749 W10749749 BEZEL, DETERGENT DISPENSER (GREY)
W10749759 W10749759 BEZEL, FABRIC SOFTENER DISPENSER (GREY)
W10522542 W10522542 BEZEL, FRESH FILL (CHROME)
W10747826 W10747826 BEZEL, LID LOCK (GREY)
W10763699 W10763699 CABINET (CHROME SHADOW)
W11123149 W11123149 CAP
W10463933 W10463933 CHANNEL, FRONT REAR
WP8269146 WP8269146 CLAMP
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP
WP285655 WP285655 CLAMP
W10832445 W10832445 CLAMP, CABLE
W10005430 W10005430 CLAMP, CABLE
3363365 3363365 CLAMP, HOSE
8534021 8534021 CLAMP, RECIRC HOSE RETAINER
WP90016 WP90016 CLIP
WP8536939 WP8536939 CLIP
W10652932 W10652932 CLIP, HOSE
W10754448 W10754448 CLUTCH
W11025449 W11025449 CONSOLE

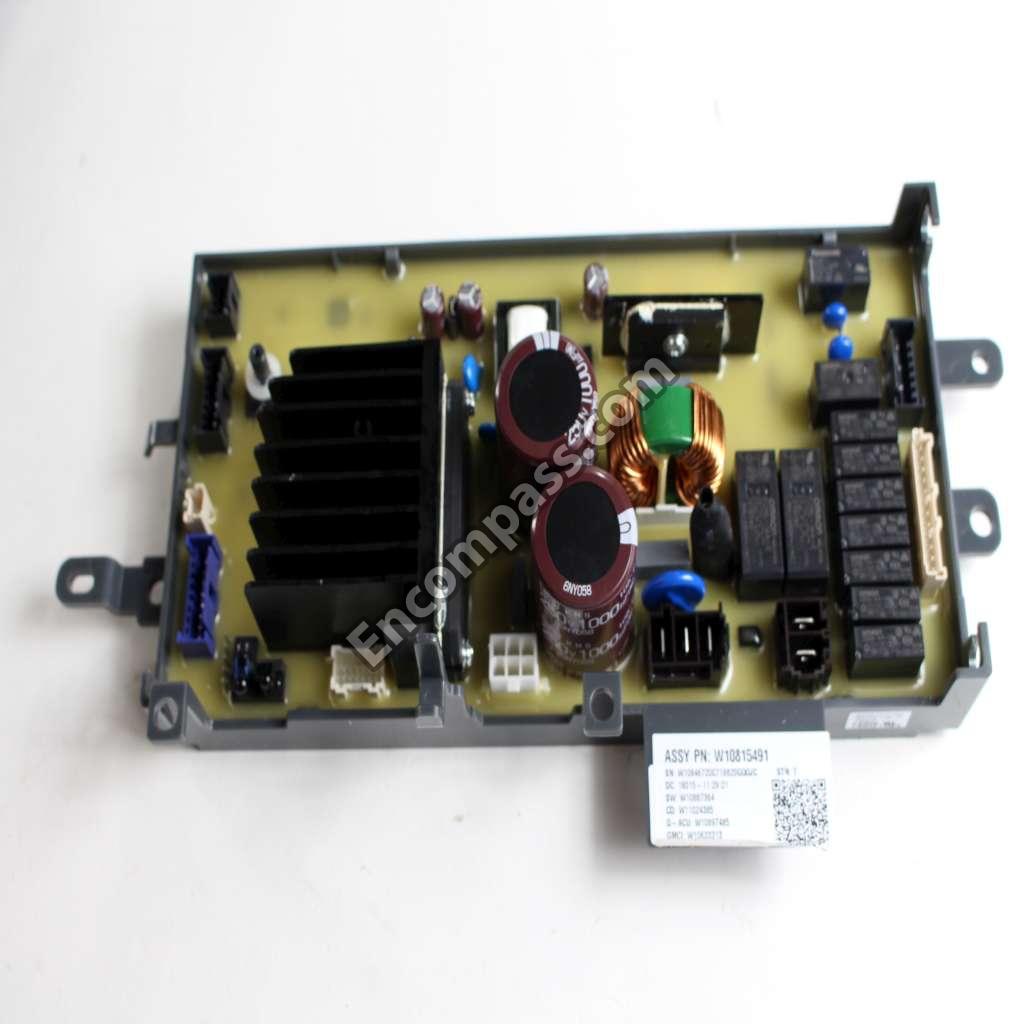

W10912345 W10912345 CONTROL BOARD

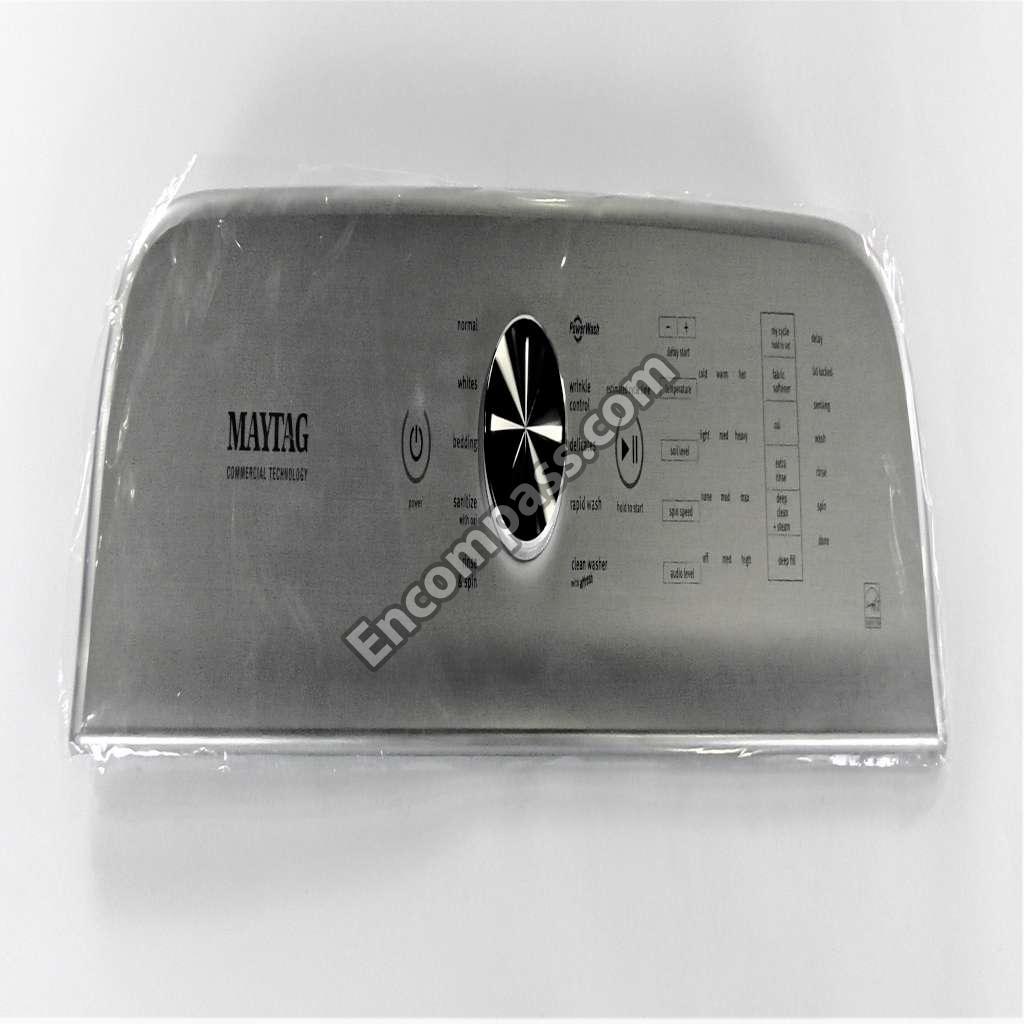

W11025446 W11025446 CONTROL PANEL
WP384496 WP384496 COUPLR-HSE
W11288102 W11288102 COVER
W10676061 W10676061 COVER, HARNESS
W11096159 W11096159 DAMPER, SOUND
W11678129 W11678129 DISPENSER
W11290602 W11290602 DISPENSER
W10749756 W10749756 DISPENSER ASSEMBLY, BLEACH (GREY)
W11188327 W11188327 DOOR LATCH
W10897039 W10897039 ENERGY GUIDE
W11204543 W11204543 FEET-LVLNG
W10912346 W10912346 FRAME
W11393684 W11393684 GEARCASE
W10711050 W10711050 GROMMET, SCREW
W10479815 W10479815 HARNESS, LOWER
W10479823 W10479823 HARNESS, USER INTERFACE
WPW10325894 WPW10325894 HEATER
W10781540 W10781540 HINGE, LID (LEFT)
W10523940 W10523940 HINGE, LID (RIGHT)
W10597575 W10597575 HOOD, DUAL PUMP
WP353244 WP353244 HOSE
W11246418 W11246418 HOSE
W11244231 W11244231 HOSE
W10622692 W10622692 HOSE, RECIRCULATION
W10702876 W10702876 HOSE, RECIRCULATION PUMP
W10804012 W10804012 HOSE, TUB TO PUMP
W10895900 W10895900 INSTALLATION INSTRUCTIONS
W10830755 W10830755 KNOB ASSEMBLY
W11490736 W11490736 LID
WPW10248088 WPW10248088 LOCK

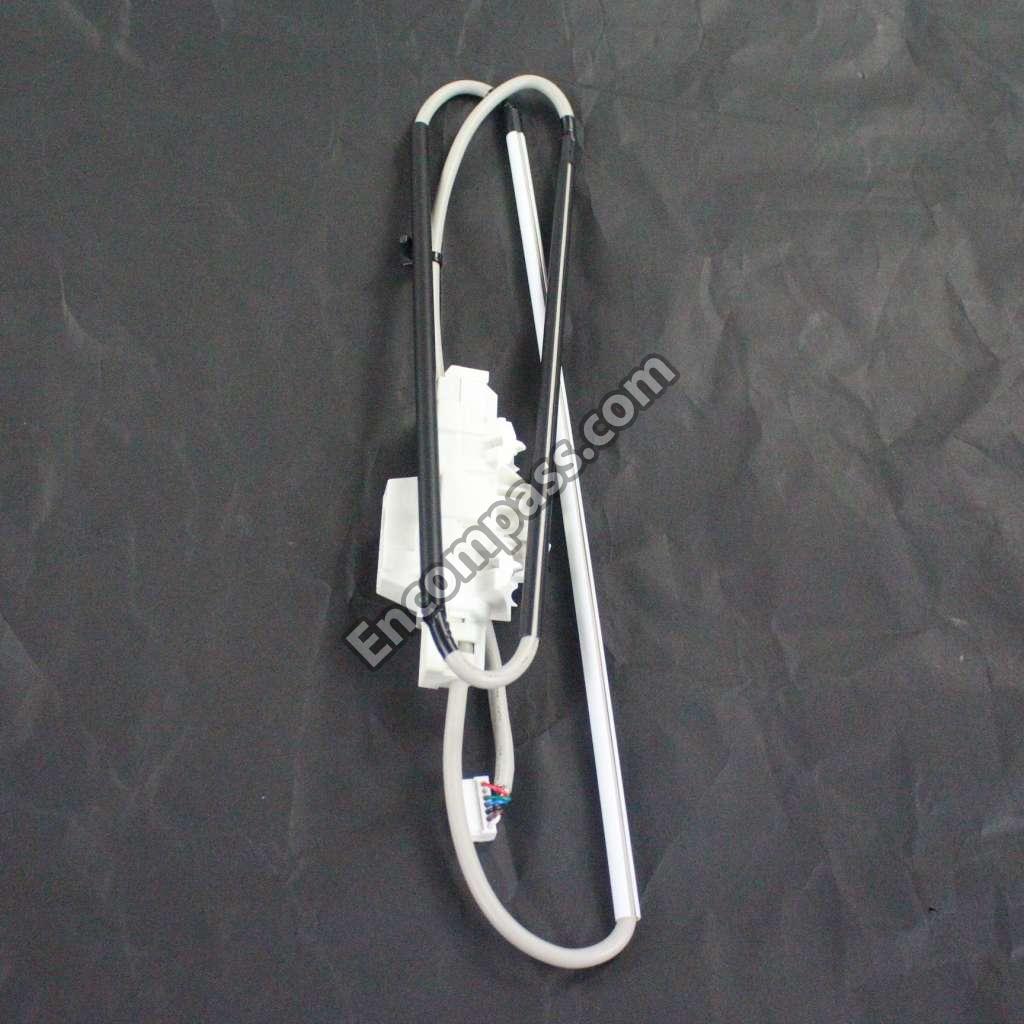

W11553311 W11553311 MODULE-LED
WPW10612926 WPW10612926 NAMEPLATE
W10749373 W10749373 NOZZLE ASSEMBLY, FRESH FILL
W11213336 W11213336 NUT
W11665965 W11665965 NUT-SPANER
W10804010 W10804010 O-RING
W10895904 W10895904 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10464765 W10464765 PANEL, REAR
W10734500 W10734500 POWER CORD
W10895905 W10895905 QUICK START GUIDE
W10798420 W10798420 REAR PANEL, CONSOLE (CHROME SHADOW)
WPW10280024 WPW10280024 RETAINER
W10754161 W10754161 ROTOR
WPW10109200 WPW10109200 SCREW
WPW10249633 WPW10249633 SCREW
WP8533928 WP8533928 SCREW
W10752189 W10752189 SCREW
W10743982 W10743982 SCREW
W11027980 W11027980 SCREW
W10752187 W10752187 SCREW
WPW10004910 WPW10004910 SCREW
W11700520 W11700520 SCREW
W11501418 W11501418 SCREW
W10846509 W10846509 SCREW
WP489069 WP489069 SCREW
8565324 8565324 SCREW
W10589828 W10589828 SCREW
WP9740848 WP9740848 SCREW
W11568617 W11568617 SCREW
W11311945 W11311945 SCREW
WP273556 WP273556 SCREW
WP489464 WP489464 SCREW
WP693995 WP693995 SCREW
WP356418 WP356418 SCREW
W11256564 W11256564 SEAL
W10481887 W10481887 SEAL PAD, WATER VALVE
WP285195 WP285195 SEALER
W10808661 W10808661 SHIELD, HEAT
W10846538 W10846538 SHIELD, MOTOR HARNESS
W10808660 W10808660 SHIELD, RECIRCULATION PUMP
W10734521 W10734521 SLIDER
W11123146 W11123146 SPEAKER
W10754158 W10754158 STATOR
W11130360 W11130360 SUSPENSION ROD KIT
W10828193 W10828193 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
W10885629 W10885629 TOP
W10161707 W10161707 TOP, FOAM SEAL
W10738088 W10738088 TRAY ASSEMBLY, LOWER REAR
W10704196 W10704196 TUB
W10512171 W10512171 TUB RING
W11188329 W11188329 VALVE
W11553312 W11553312 WASHER

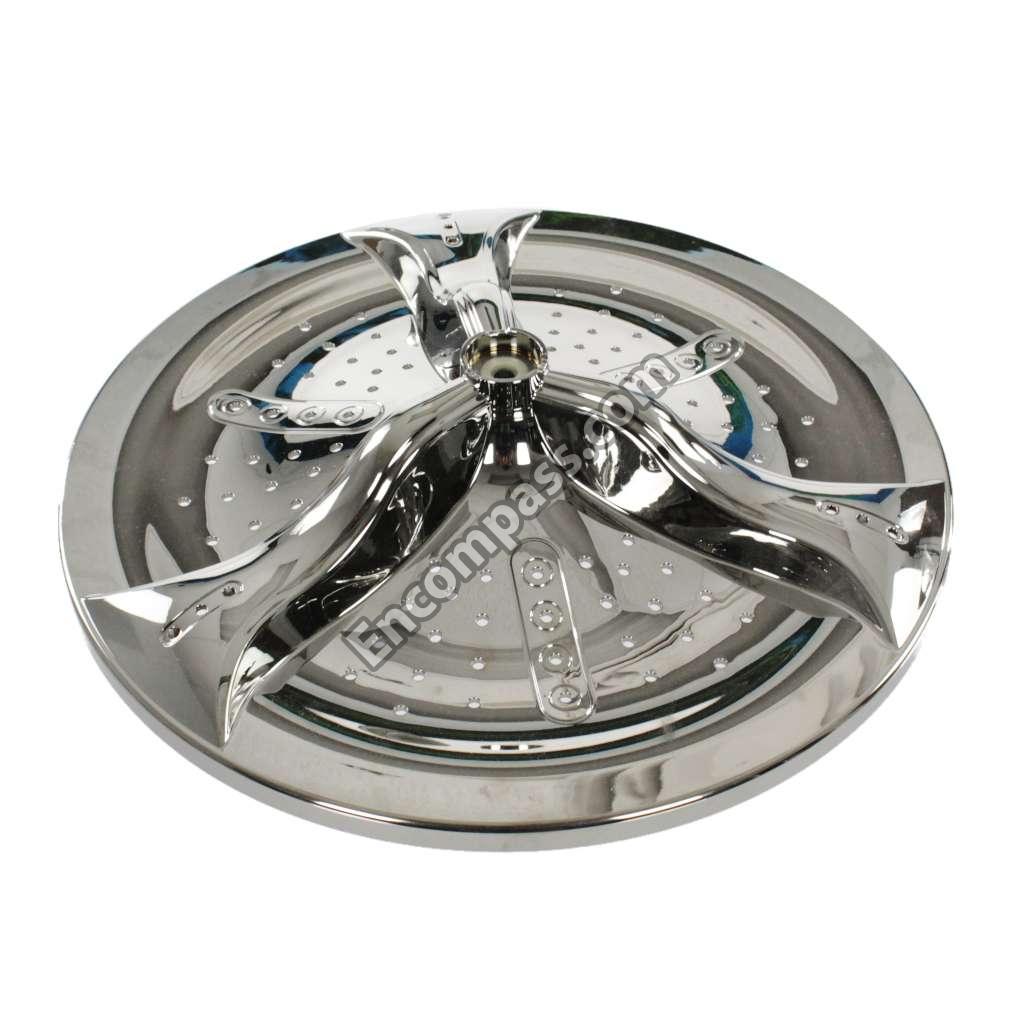

W11558969 W11558969 WASHPLATE
W11676805 W11676805 WATER PUMP
W10876600 W10876600 WATER PUMP
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
