Model Image
Manufacturer

Whirlpool

Model Number

8311TA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4011F232-80 4011F232-80 BOX, BURNER
7505P218-60 7505P218-60 BURNER (L.F.)
7505P217-60 7505P217-60 BURNER (L.R.)
7505P220-60 7505P220-60 BURNER (R.F.)
7505P219-60 7505P219-60 BURNER (R.R.)
74001457 74001457 CONTROL PANEL NLA
12400044 12400044 CORD, POWER
7724P004-60 7724P004-60 COVER, BURNER VALVE
4005F108-51 4005F108-51 COVER, TRANSFORMER
W11400301 W11400301 GRATE-BRNR
16000329 16000329 GUIDE, QUICK REF. - MAGIC CHEF
5125A385-60 5125A385-60 HARNESS, LOOSE WIRE
7106P005-60 7106P005-60 HINGE TOP
7106P001-60 7106P001-60 HINGE, TOP
4001F056-51 4001F056-51 HOUSING, UNIT
7432P017-60 7432P017-60 IGNITER (LT)
7432P009-60 7432P009-60 IGNITER (RT)

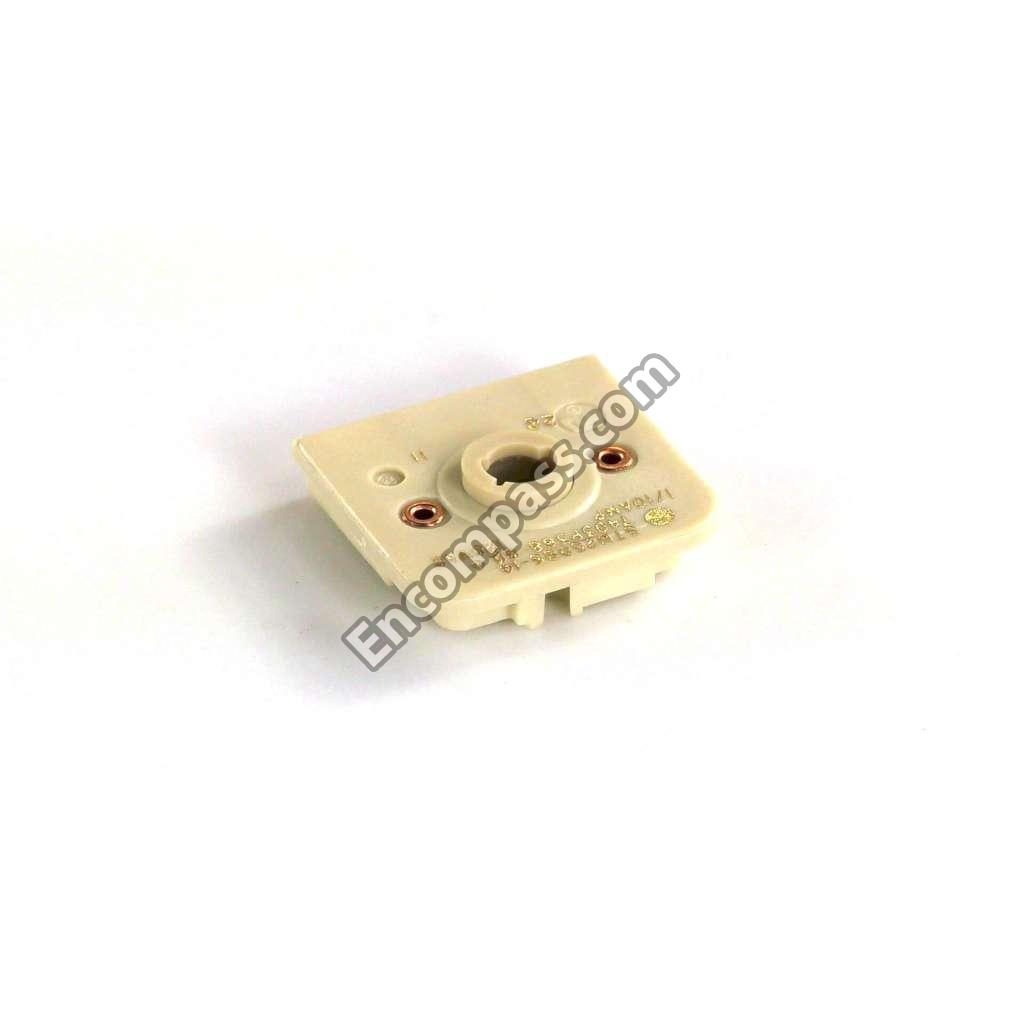

12002788 12002788 IGNITER SW
7733P102-60 7733P102-60 KNOB, VALVE (BLK)
8113P037-60 8113P037-60 MANUAL, USE & CARE
1430322 1430322 MODULE, SPARK
7103P016-60 7103P016-60 NUT
WPW10131078 WPW10131078 NUT
7103P028-60 7103P028-60 NUT, TWIN SPEED
7513P162-60 7513P162-60 PIPE, MANIFOLD
7718P006-60 7718P006-60 PLUG
74001788 74001788 PLUG, MANIFOLD PIPE
7510P084-60 7510P084-60 REGULATOR, PRESSURE
W10491986 W10491986 SCREW
WP4159193 WP4159193 SCREW
8010P072-60 8010P072-60 SPACER, TOP
3807F330-51 3807F330-51 SUPPORT, BURNER
7403P369-60 7403P369-60 SWITCH IG
7403P346-60 7403P346-60 SWITCH, BURNER
7403P345-60 7403P345-60 SWITCH, BURNER
7403P370-60 7403P370-60 SWITCH- IG
WP7403P279-60 WP7403P279-60 SWITCH- IG
2001F043-84 2001F043-84 TOP, MAIN (ALM)
7506P064-60 7506P064-60 TUBE, ASSEMBLY FLASH - GRIDDLE
7502P260-60 7502P260-60 VALVE BUR
7502P258-60 7502P258-60 VALVE, BURNER (L.F.)
7502P255-60 7502P255-60 VALVE, BURNER (R.R.)
15001198 15001198 WIRING INFORMATION
