Model Image
Manufacturer

Whirlpool

Model Number

9122XUB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74001988 74001988 BACK, MAIN
3601F215-45 3601F215-45 BAFFL-BRNR
3601F109-45 3601F109-45 BAFFLE
3601F103-51 3601F103-51 BAFFLE DO
3601F102-51 3601F102-51 BAFFLE-DR
74001925 74001925 BASE MAIN
7401P037-60 7401P037-60 BLOCK TER
2205F008-19 2205F008-19 BOTTOM, OVEN
74004661 74004661 BOTTOM, UPPER OVEN
4006W077-19 4006W077-19 BOX FLUE
2205M028-19 2205M028-19 BRLR-BOTTM
8003P009-60 8003P009-60 BUMPER DO
74004077 74004077 BURNER ASSEMBLY., OVEN
7111P007-60 7111P007-60 CLAMP, WIRE
7112P020-60 7112P020-60 CLIP OVEN
7112P093-60 7112P093-60 CLIP- GLAS
WP7112P004-60 WP7112P004-60 CLIP- THER
7602P118-60 7602P118-60 CLOCK (BLK)
74002963 74002963 CORD POWER
74001926 74001926 CORD, POWER
4005F088-80 4005F088-80 COVER
4005F421-45 4005F421-45 COVER IGN
74001913 74001913 COVER REA
4005F153-51 4005F153-51 COVER, WIRE
4005F011-35 4005F011-35 COVR-ACESS
W10204425 W10204425 COVR-ACESS
74004047 74004047 EXTRUSION
7756P072-60 7756P072-60 EXTRUSION VENT
7754P003-60 7754P003-60 EXTRUSION, BOTTOM
7507P008-60 7507P008-60 FITTING, BAKE BNR.
3603F013-80 3603F013-80 FRAME WIN

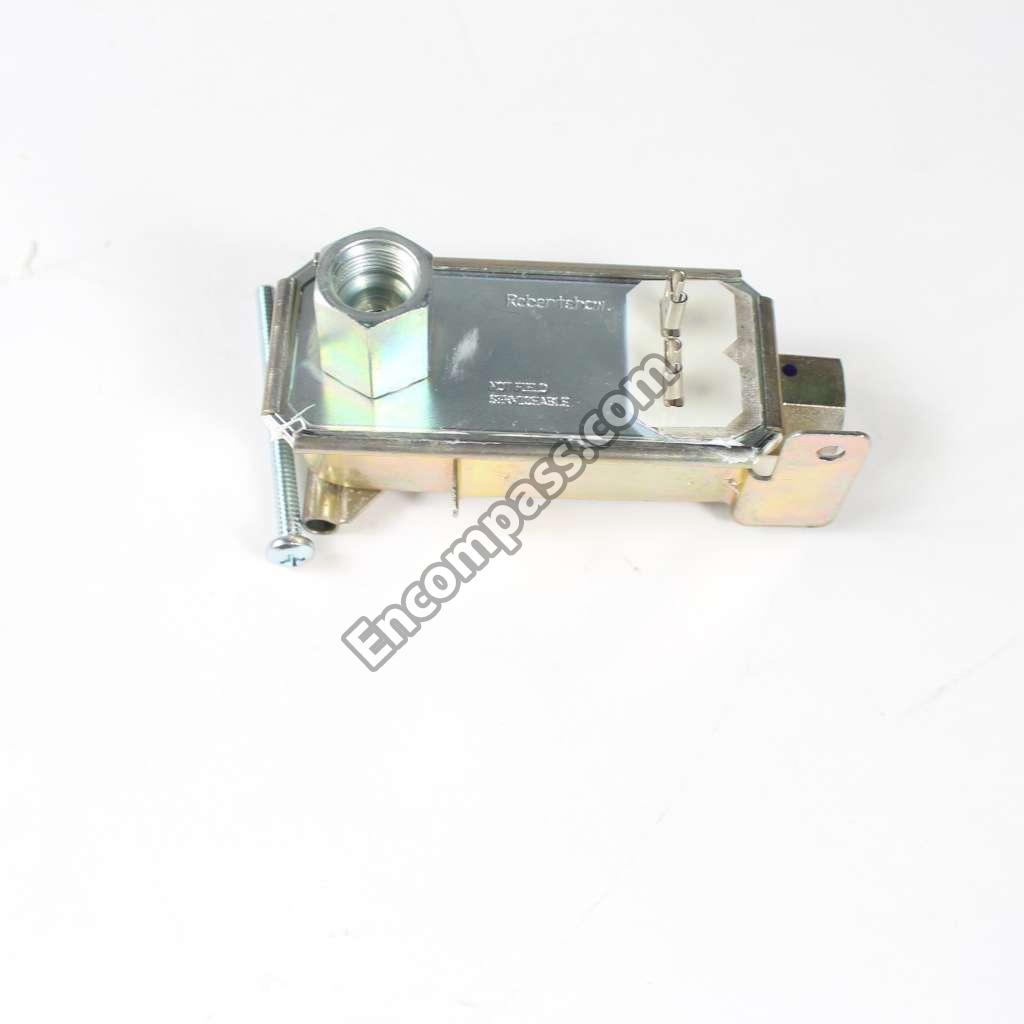

12002128 12002128 GAS VALVE
WP7902P715-60 WP7902P715-60 GLASS DOOR
WP7902P357-60 WP7902P357-60 GLASS, DOOR (BLK)
7902P335-60 7902P335-60 GLASS, OUTER (BLK)
8008P004-60 8008P004-60 GROMMET
16000329 16000329 GUIDE, QUICK REF. - MAGIC CHEF
WP7701P024-60 WP7701P024-60 HANDLE, DOOR (BLK)

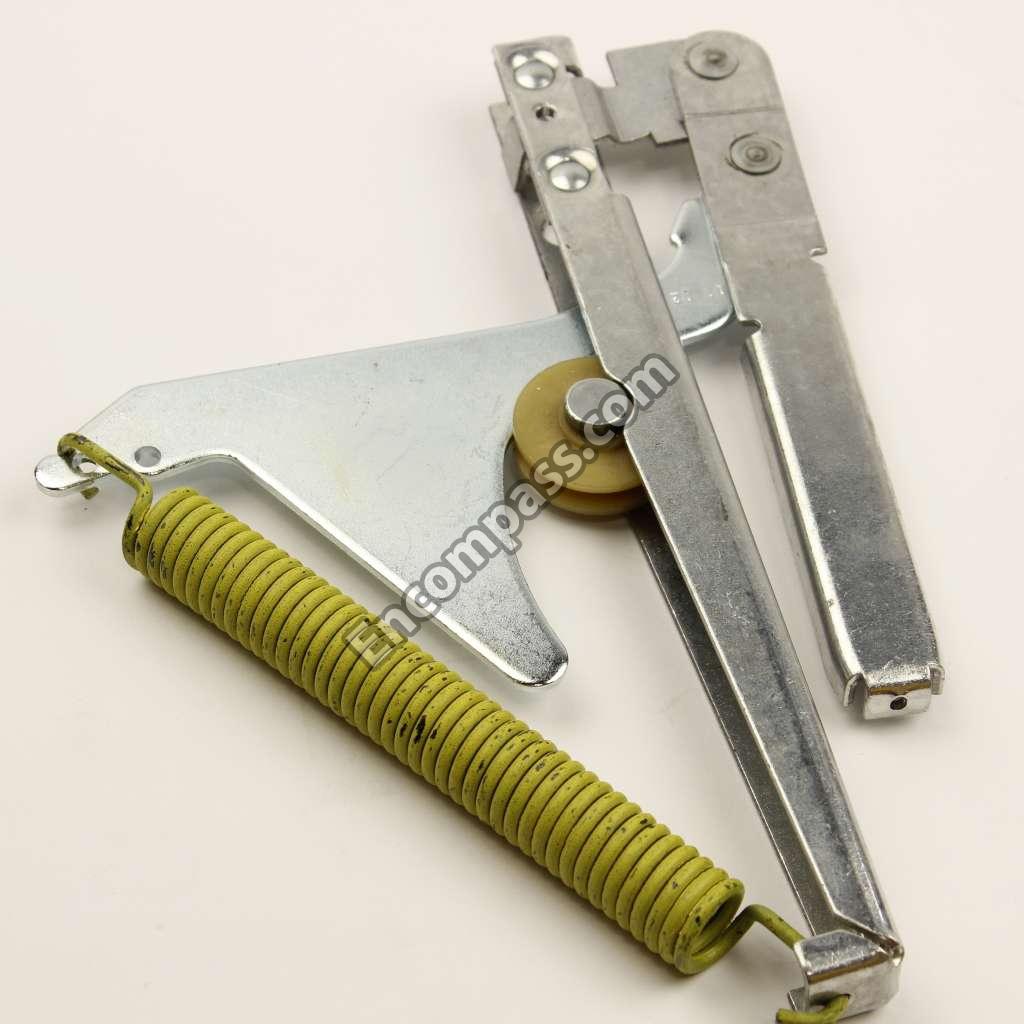

74001856 74001856 HINGE
74004059 74004059 HINGE- DOO
12400035 12400035 IGNITER KIT
WP3413F018-19 WP3413F018-19 INSERT
74001883 74001883 INSULATION
74001850 74001850 INSULATION
7002P019-60 7002P019-60 INSULATION
7002P015-60 7002P015-60 INSULATION
WP74001254 WP74001254 KNOB- THER
8009 8009 LIGHT BULB
74001905 74001905 LINING, DOOR
74004961 74004961 MANUAL, USE & CARE
74002013 74002013 NLAMANUAL, USE CARE
3807F029-80 3807F029-80 NLASUPPORT
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE 7101P071-60 NOT USED 21
7103P051-60 7103P051-60 NUT
W10080180 W10080180 NUT
7103P040-60 7103P040-60 NUT SNAP
1555-251 1555-251 NUT, LOXIT (3/8``)
7103P100-60 7103P100-60 NUT, TINNERMAN
WP7103P114-60 WP7103P114-60 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
7507P306-60 7507P306-60 ORIFICE
2402W205-19 2402W205-19 PAD, OVEN DOOR
WP3401F075-19 WP3401F075-19 PAN, BROIL
74001910 74001910 PANEL CON
2401F104-70 2401F104-70 PANEL, DOOR (BLK)
2401F199-70 2401F199-70 PANEL, DOOR (BLK)
2618F116-51 2618F116-51 PANEL, SIDE (LT)
2618F115-51 2618F115-51 PANEL, SIDE (RT)
74001837 74001837 PLATE, SUPPORT
W10282521 W10282521 RACK, OVEN
71003346 71003346 RACK, OVEN (FLAT)
7408P035-60 7408P035-60 RECEPTACLE

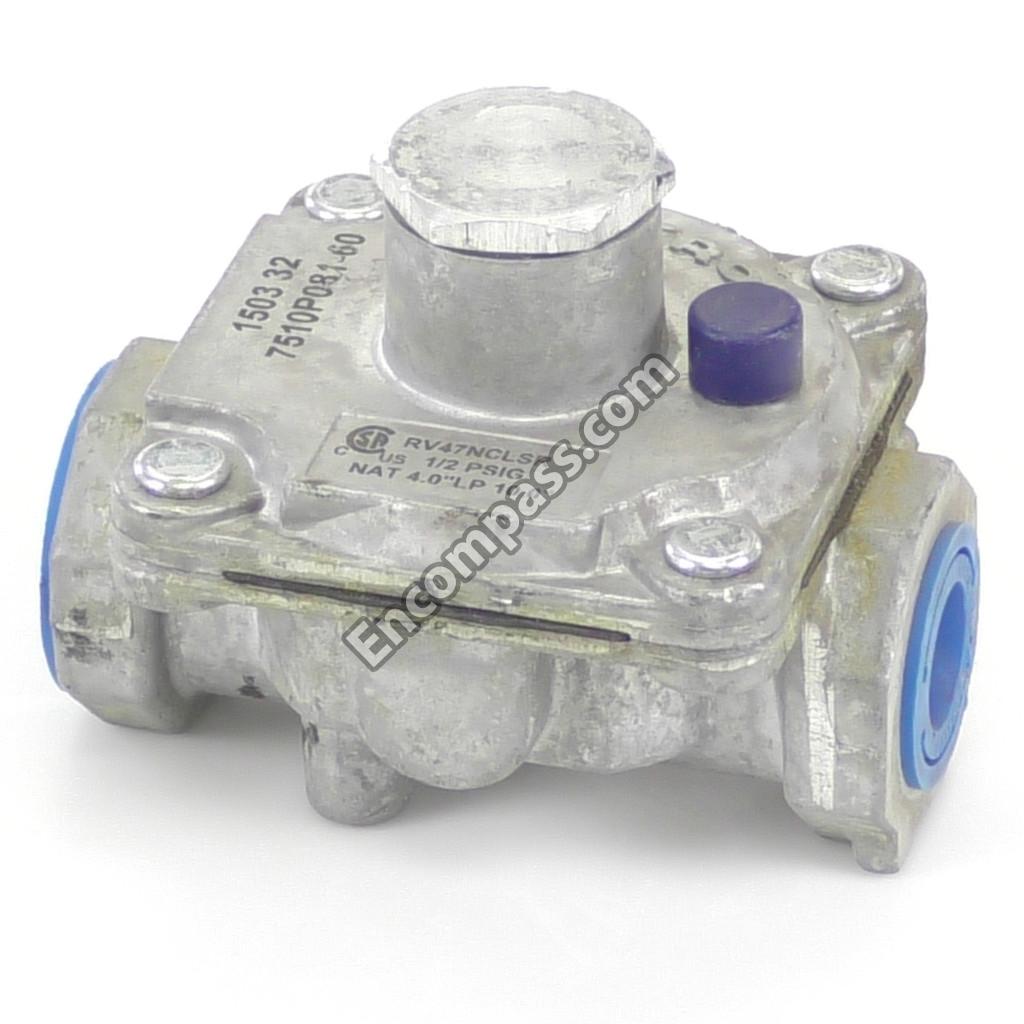

7510P081-60 7510P081-60 REGULATOR
7510P036-60 7510P036-60 REGULATOR PRESSURE
W11684512 W11684512 SCREW
WP3400017 WP3400017 SCREW
7101P287-60 7101P287-60 SCREW
WP59002061 WP59002061 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP98008545 WP98008545 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP3400074 WP3400074 SCREW
WP7101P072-60 WP7101P072-60 SCREW
W11233072 W11233072 SCREW
WP3351614 WP3351614 SCREW
WPW10068250 WPW10068250 SCREW
WP4159193 WP4159193 SCREW
7101P276-60 7101P276-60 SCREW (BLK)
7101P311-60 7101P311-60 SCREW----NA
WP7212P007-60 WP7212P007-60 SEAL- DOOR
WP7212P006-60 WP7212P006-60 SEAL- DOOR
WP7212P014-60 WP7212P014-60 SEAL- DOOR
WP7212P003-60 WP7212P003-60 SEAL- OVEN
8312P016-60 8312P016-60 SEALANT
74003986 74003986 SPACER, DOOR GLASS (BLK)
8010P015-60 8010P015-60 SPACER, HANDLE (BLK)
8019P004-60 8019P004-60 STRAP, WIRE TIE
3807F139-80 3807F139-80 SUPPORT
5720A011-23 5720A011-23 SUPPORT
3807F122-34 3807F122-34 SUPPORT
74001932 74001932 SUPPORT R
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
WP7404P098-60 WP7404P098-60 THERMOSTAT
W10799767 W10799767 TIMER-CLK
7756P104-60 7756P104-60 TRIM
74001903 74001903 TRIM SIDE
74001902 74001902 TRIM SIDE
3414F039-44 3414F039-44 TUBING, 3/8 X 31
3414F097-44 3414F097-44 TUBING, REGULATOR (3/8``)
7506P300-60 7506P300-60 TUBING-GAS
74005561 74005561 VALVE, SHUT OFF
7502P383-60 7502P383-60 VALVE-MAIN
15001522 15001522 WIRING INFORMATION
