Model Image
Manufacturer

Whirlpool

Model Number

A3120SRWLT

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5425A003-60 5425A003-60 + HANDLE-
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74009884 74009884 BACK, MAIN
3601F234-45 3601F234-45 BAFFLE, OVEN BOTTOM
3601F235-80 3601F235-80 BAFFLE, OVEN DOOR
4003W028-67 4003W028-67 BASE
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN
4011F462-80 4011F462-80 BOX, BURNER
4006D187-45 4006D187-45 BOX, VENT
3801F238-45 3801F238-45 BRACKET
WP3801F656-51 WP3801F656-51 BRACKET
74005025 74005025 BURNER, OVEN
7505P194-60 7505P194-60 BURNER, PILOT (LP)
3412A004-19 3412A004-19 BURNER, TOP
8007P023-60 8007P023-60 BUSHING
WP7112P004-60 WP7112P004-60 CLIP- THER
8114P335-60 8114P335-60 COVER, LOCK SLOT
3407F012-19 3407F012-19 DRAWER
7713P018-60 7713P018-60 END CAP
7726P052-60 7726P052-60 END CAP (LT-BLK)
WP7746P031-60 WP7746P031-60 END CAP (LT-BLK)
7726P051-60 7726P051-60 END CAP (RT-BLK)
WP7746P030-60 WP7746P030-60 END CAP (RT-BLK)
4022W005-19 4022W005-19 EXTENSION, FLUE BOX
2201F077-19 2201F077-19 FRONT, BROILER
8016P010-60 8016P010-60 GLIDE BRO
8016P011-60 8016P011-60 GLIDE, DRAWER
WP8016P015-60 WP8016P015-60 GLIDE-DRWR
W11400301 W11400301 GRATE-BRNR
7701P012-60 7701P012-60 HANDLE, DRAWER (CHR)
WP7106P055-60 WP7106P055-60 HINGE
3418F079-51 3418F079-51 HINGE, DRAWER (LT)
3418F080-51 3418F080-51 HINGE, DRAWER (RT)
3418A088-34 3418A088-34 HINGE, MAIN TOP (LT)
3418A087-34 3418A087-34 HINGE, MAIN TOP (RT)
4001F097-51 4001F097-51 HOUSING, CONTROL PANEL
WP3413F018-19 WP3413F018-19 INSERT
4804F025-60 4804F025-60 INSULATION
4804F033-60 4804F033-60 INSULATION, DOOR
4804F031-60 4804F031-60 INSULATION, OVEN BACK
WP74003112 WP74003112 INSULATION, OVEN WRAPPER
WP7711P135-60 WP7711P135-60 KNOB

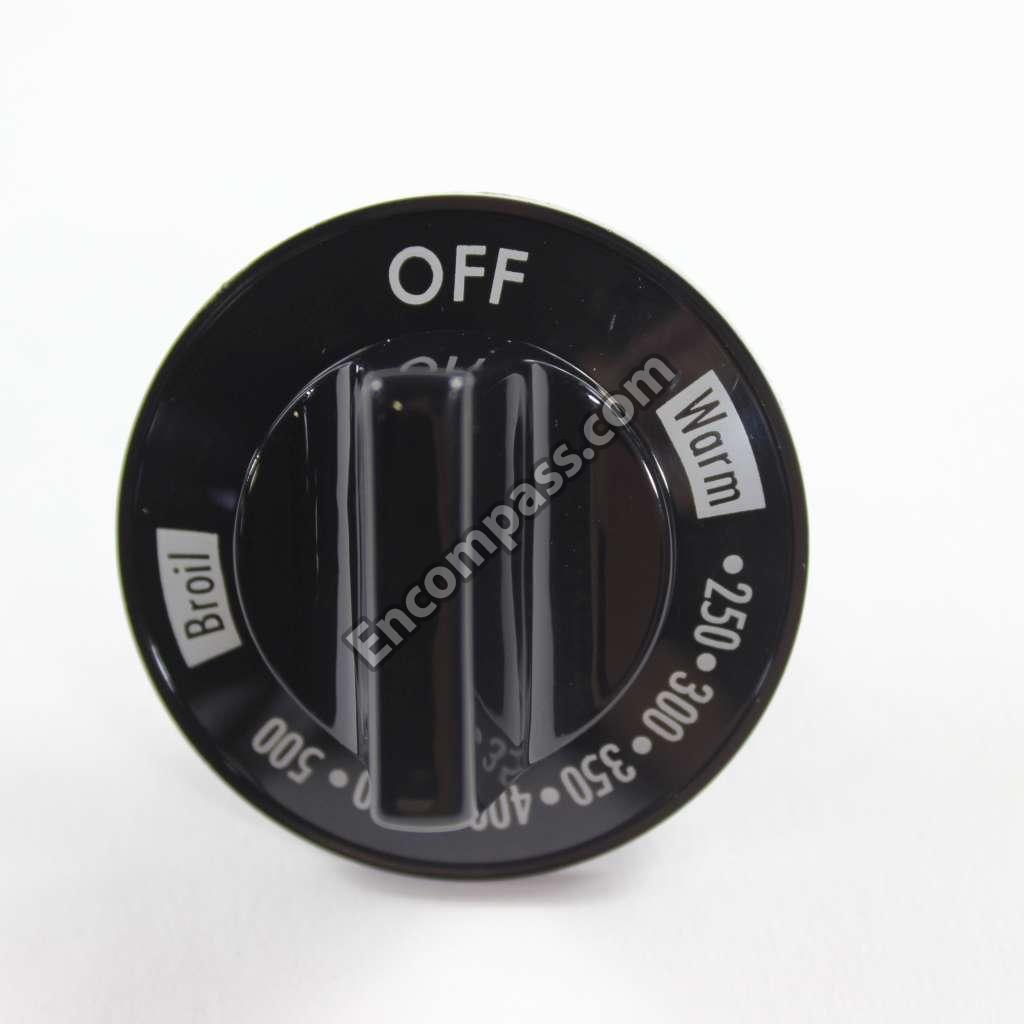

WP74002419 WP74002419 KNOB- THER
7101P306-60 7101P306-60 LEG, LEVELING
2404F035-19 2404F035-19 LINING, BROILER DRAWER NLA
2402W201-19 2402W201-19 LINING, DOOR
8113P042-60 8113P042-60 MMANUAL, USE CARE NLA
7719P062-60 7719P062-60 NAMEPLATE, ADMIRAL (BLK)
7712P092-60 7712P092-60 NLAPANEL, MANIFOLD
7103P125-60 7103P125-60 NUT
WP7103P070-60 WP7103P070-60 NUT
WP3195558 WP3195558 NUT
1555261K 1555261K NUT & FERRULE (3/16``)
1555279 1555279 NUT 1 4
7103P022-60 7103P022-60 NUT, GRIP
1555-251 1555-251 NUT, LOXIT (3/8``)
WP3401F075-19 WP3401F075-19 PAN, BROIL
2601F410-09 2601F410-09 PANEL, BACKGUARD
2403F028-62 2403F028-62 PANEL, BROILER DRW (WHT)
2601F413-84 2601F413-84 PANEL, CONTROL (ALM)
2601F413-81 2601F413-81 PANEL, CONTROL (WHT)
2401F096-62 2401F096-62 PANEL, DOOR (WHT)
2616F095-09 2616F095-09 PANEL, MANIFOLD (BLK)
2616F085-09 2616F085-09 PANEL, MANIFOLD (BLK)
2618F099-62 2618F099-62 PANEL, SIDE (WHT)
2618F085-62 2618F085-62 PANEL, SIDE (WHT)
74006183 74006183 PILOT, OVEN
7113P012-60 7113P012-60 PIN, BROILER HINGE
7513P132-60 7513P132-60 PIPE MANIFOLD
WPW10282492 WPW10282492 RACK-OVEN
7510P084-60 7510P084-60 REGULATOR, PRESSURE
7101P317-60 7101P317-60 SCREW
7101P280-60 7101P280-60 SCREW
W10491986 W10491986 SCREW
7101P345-60 7101P345-60 SCREW
WP74003976 WP74003976 SCREW
W10856125 W10856125 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
WP7101P062-60 WP7101P062-60 SCREW
WP3387230 WP3387230 SCREW
74002481 74002481 SCREW
WP98008545 WP98008545 SCREW
WP31750720 WP31750720 SCREW, CONTROL
7118P015-60 7118P015-60 SCREW, HOUSING
7101P311-60 7101P311-60 SCREW----NA
WP7212P043-60 WP7212P043-60 SEAL- DOOR
8036P001-60 8036P001-60 SHIELD
3604F188-09 3604F188-09 SHIELD
4016F039-45 4016F039-45 SIDES, BROILER
W10857933 W10857933 SPACER
12001735 12001735 SPACER, HANDLE (BLK)
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
7803P064-60 7803P064-60 SPRING, HINGE (LT)
7803P065-60 7803P065-60 SPRING, HINGE (RT)
4820F001-59 4820F001-59 STRAP, RETAINER
3807F411-51 3807F411-51 SUPPORT, BURNER
3807F450-45 3807F450-45 SUPPORT, CONTROL PNL (LT)
3807F449-45 3807F449-45 SUPPORT, CONTROL PNL (RT)
3807F416-45 3807F416-45 SUPPORT, OVEN BACK
7809P014-60 7809P014-60 SUPPORT, PROP
3807F204-34 3807F204-34 SUPPORT, TOP PILOT
7515P036-60 7515P036-60 THERMOSTAT
2001W081-81 2001W081-81 TOP, MAIN (WHT)
3404F018-51 3404F018-51 TRACK
3404F021-51 3404F021-51 TRACK, DRAWER (LT)
3404F022-51 3404F022-51 TRACK, DRAWER (LT)
3404F023-51 3404F023-51 TRACK, DRAWER (RT)
3608F042-09 3608F042-09 TRIM, VENT (BLK)
3414F108-44 3414F108-44 TUBING 3/16`` SUB
3414F094-44 3414F094-44 TUBING 3/8``
7502P175-60 7502P175-60 VALVE BURN
7501P127-60 7501P127-60 VALVE, OVEN
