Manufacturer

Whirlpool

Model Number

A906

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
213026 213026 *NLA*CLIP
213447 213447 *NLA*CLIP FOR BELT GUARD
211379 211379 *NLA*F*SCREW, #8-18 X 5/8 INCH
204230 204230 *NLA*FABRIC CONTROL SWITCH
203170 203170 *NLA*FABRIC CONTROL SWITCH
213428 213428 *NLA*FLOW WASHER
211348 211348 *NLA*GASKET
910426 910426 *NLA*RELAY BRACKET
211361 211361 *NLA*RETAINER
910422 910422 *NLA*SPRING LEVER FOR RELAY
211353 211353 *NLA*WASHER
202167 202167 31-C GREEN WIRE
204436 204436 ACCESSORY WATE VALVE
201825 201825 ADVANCE MOTOR
WP211726 WP211726 BALL
201621 201621 BALLAST
201628 201628 BALLAST
200862 200862 BALLAST
203274 203274 BASE
211022 211022 BEARING
WP200835 WP200835 BEARING- B
WP22003441 WP22003441 BEARING- R
12112425 12112425 BELT
213446 213446 BELT GUARD
201699 201699 BLEACH INL
212983 212983 BLEACH TANK
201018 201018 BODY FOR VALVE-NYLON
W10175939 W10175939 BOLT
W11129403 W11129403 BOLT
Y015629 Y015629 BOLT, GRINDING CHAMBER-DRAI
213053 213053 BRACE, TUB
211505 211505 BRACKET
213008 213008 BRACKET
213006 213006 BRACKET
21-1003 21-1003 BRACKET
212142 212142 BRACKET -MOTOR SHIELD
213002 213002 BRACKET FOR ADVANCE MOTOR
212153 212153 BRACKET FOR GEAR MOTOR SWITCH
213012 213012 BRACKET FOR LAMP SOCKET
212851 212851 BRACKET FOR UNBALANCE RELAY
211380 211380 BRACKET FOR VALVE
WP6-2011900 WP6-2011900 BRAKE-BD
76660 76660 BREAK-SPHN
213375 213375 BRIGHT COLORS BUTTON
WP212716 WP212716 BUMPER- LI
204701 204701 BUTTON KIT
203319 203319 CABINET-WHITE
203176 203176 CANCEL SWITCH
052836 052836 CAP SCREW, 3/8-16 X 1
211038 211038 CAP, OIL RETAINER
201408 201408 CAPACITOR
201101 201101 CAPACITOR
WPY056016 WPY056016 CENTER SEA
213044 213044 CENTER SHA
213054 213054 CENTERING SPRING - 3 USED
200846 200846 CLAMP
WP596669 WP596669 CLAMP
WPW10548433 WPW10548433 CLAMP
WP3367052 WP3367052 CLAMP
WP285655 WP285655 CLAMP
211448 211448 CLAMP
301548 301548 CLAMP, GROUND (W/SCREW)
211149 211149 CLIP
211809 211809 CLIP
210464 210464 CLIP, GROUND
WP213325 WP213325 CLIP- RETA
Y014839 Y014839 COLLARDRI
WP75614 WP75614 CONNECTOR
213009 213009 CONTROL COVER-WHITE
212991 212991 CONTROL PANEL
211099 211099 COUNTERWEIGHT
WP16272 WP16272 COUPLR-HSE
212624 212624 COVER FOR PUMP
211360 211360 COVER PLATE
Y059141 Y059141 CTN. 50 FT. 31/32 DRAIN HOS
213005 213005 CUSHION
213427 213427 DAM FOR VALVE BODY
211028 211028 DEFLECTOR,WATER (DRIVE TUBE)
213368 213368 DELICATE BUTTON
211912 211912 DELIVERY TUBE
200975 200975 DIAPHRAGM
212815 212815 DISPENSER CUP
015639 015639 DOWEL PIN

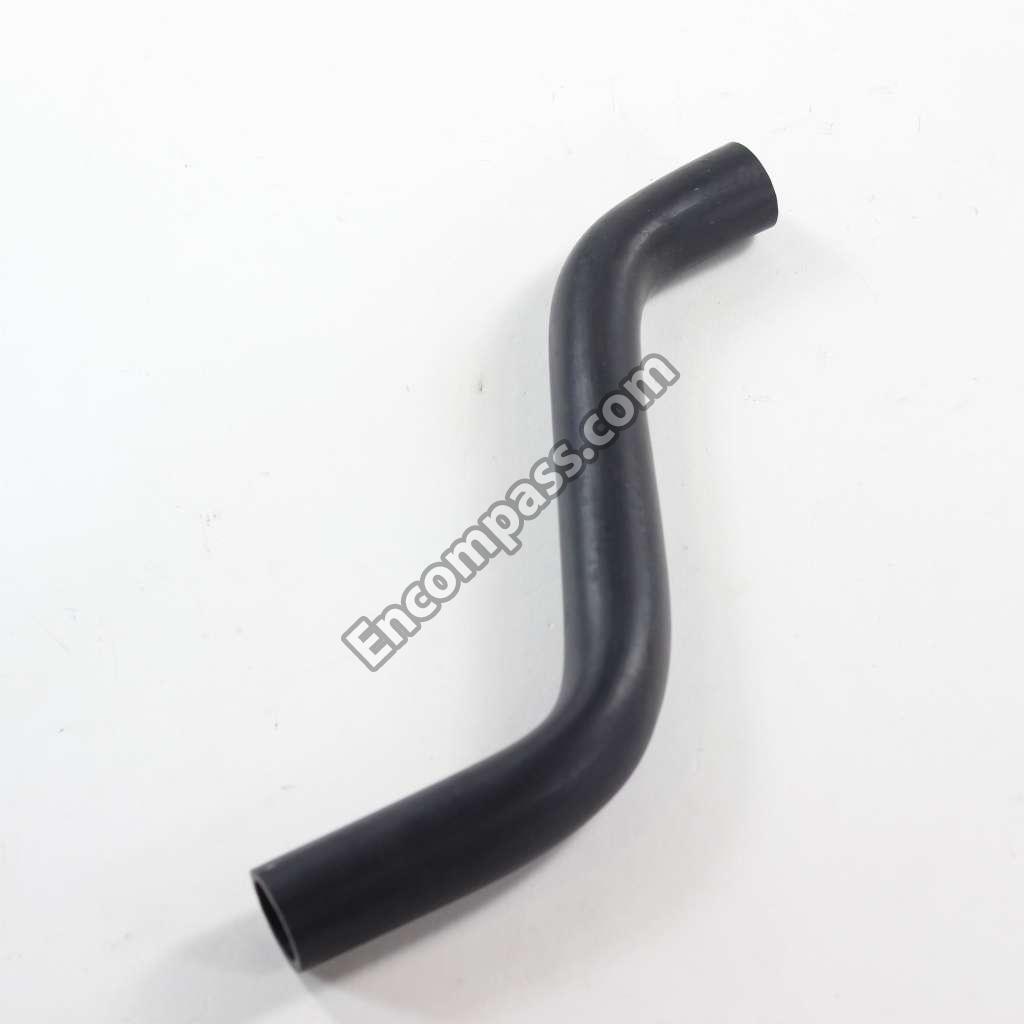

211704 211704 DRAIN HOSE
WP213045 WP213045 DRAIN HOSE
WP211948 WP211948 DRIVE BELT

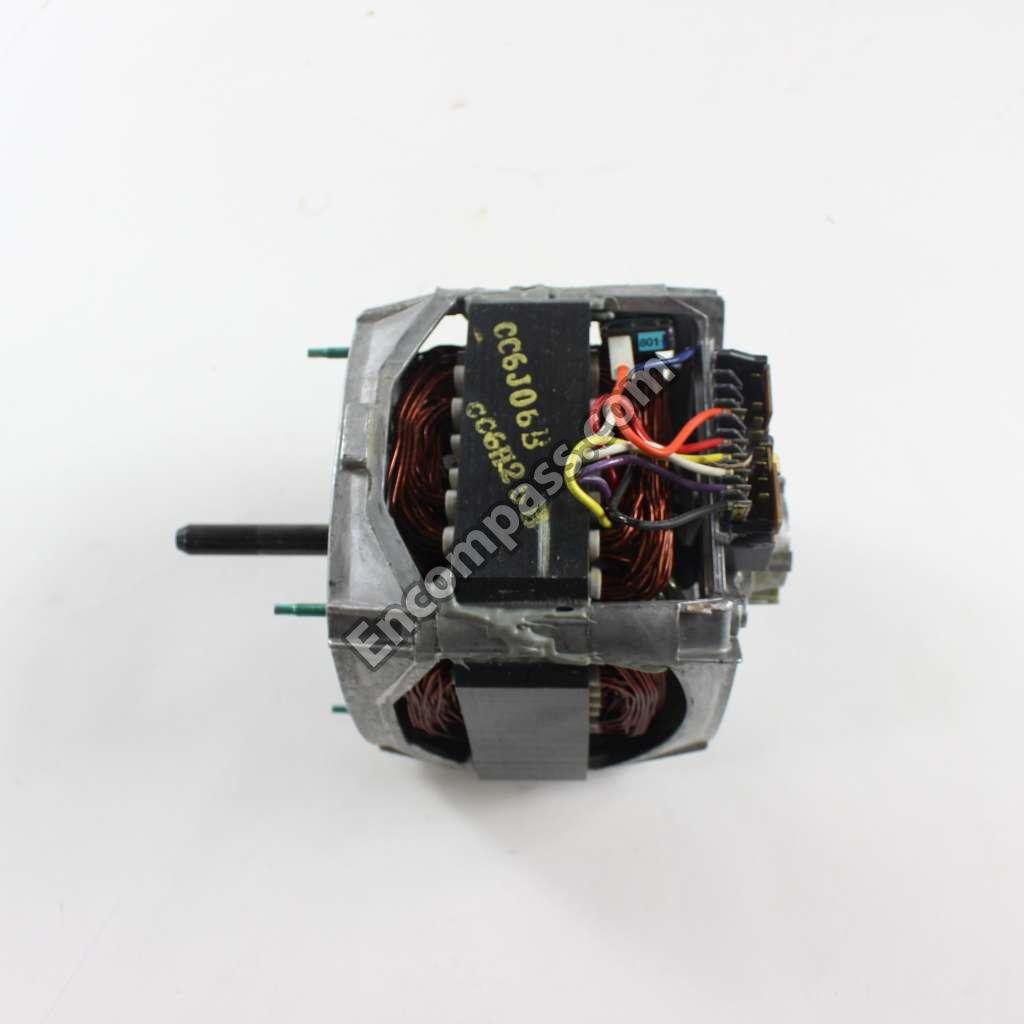

12002353 12002353 DRIVE MOTOR
Y204228 Y204228 DUAL PRESSURE SWITCH
212081 212081 EXTENSION SHAFT
205140 205140 EXTERNAL START SWITCH
212937 212937 F*BARRIER 1085 **NLA*
213323 213323 FASTENER
211250 211250 FASTENER
214135 214135 FASTENER CLIP
WP22001650 WP22001650 FASTENER-
203363 203363 FILL SWITCH
203226 203226 FILL SWITCH WITH SOLENOID
211354 211354 FLOW WASHER
200863 200863 FLUORESCEN
213373 213373 FULL COLORED LOAD BUTTON
213371 213371 FULL WHITE LOAD BUTTON
211357 211357 GASKET
22210632 22210632 GASKET
212384 212384 GASKET FOR
WPY013783 WPY013783 GASKET- IN
200750 200750 GEAR CASE COVER
200813 200813 GEAR CASE COVER ASSEMBLY
203193 203193 GEAR HOUSING W/STUDS & TUBE
204967 204967 GEAR KITP
202168 202168 GEAR MOTOR & SWITCH PLATE
201945 201945 GEAR MOTOR SWITCH KIT
213021 213021 GLASS PANEL F/CONTROL PANEL
204807 204807 GRNDWIRE
211881 211881 GROMMET C
211487 211487 GROOV-PIN
210183 210183 GROOVPIN
213846 213846 GUARD BEL
Y059137 Y059137 HOSE 31/32`` PER FOOT BRANCH ST
203144 203144 HOSE EXTENSION, HOT OR COLD
WP213013 WP213013 HOSE- INJE
350021 350021 HOSE-FILL
WP76314 WP76314 HOSE-FILL
WP89503 WP89503 HOSE-FILL
204224 204224 IMPELLER & SEAL ASSEMBLY
206154 206154 INJECTOR TUBE WITH SEAL
300463 300463 INLET HOSE, COLD (6`LONG)
200757 200757 INLET HOSE, HOT 4 FT.
WP216201 WP216201 INLET VALVE
207831 207831 INNER TUB W/PLUG
213778 213778 INSTRUCTION COVER FOR TIMER
203725 203725 ISOLATOR
203956 203956 KIT-DAMPER
205000 205000 KIT-GLIDE
214519 214519 LABEL, ELECTRICAL INSTRUCTION
202630 202630 LAMP
203368 203368 LAMP SOCKET & SEAL
213429 213429 LARGE BRACKET FOR VALVE
22003428 22003428 LEG, ADJUSTABLE (W/NUT)
216073 216073 LID (WHITE)
WP206415 WP206415 LID SWITCH
211130 211130 LINER- TUB
203265 203265 LINT FILTE
210172 210172 LOCK WASHER
486009 486009 LOCKWASHER (10)
203192 203192 LOWER HARNESS W/PLUG
201674 201674 LOWER MOTOR MOUNT----NA
211484 211484 LUG WASHER
WP211089 WP211089 LUG- STOP
202160 202160 MOTOR 120-50
202159 202159 MOTOR 240-50
205134 205134 MOTOR EXTERNAL START SWITCH
213737 213737 MOTOR SHIELD POLY
211359 211359 MOUNTING BRACKET
6-2095720 6-2095720 MOUNTING S
203237 203237 NO.17 WIRE WITH TERMINAL
WP213015 WP213015 NOZZLE
Y052734 Y052734 NUT
WP3400029 WP3400029 NUT
WP62739 WP62739 NUT
WP6-2110472 WP6-2110472 NUT- CLAMP
WP211949 WP211949 NUT- EYEBO
WP210385 WP210385 NUT- LOCK
Y052785 Y052785 NUTBRACE
211654 211654 O RING SEAL
203775 203775 OIL
6-0560800 6-0560800 OIL
211072 211072 OIL & WATER SLINGER-TOP
211071 211071 OIL SLINGER-BOTTOM
203229 203229 OUTER TUB
211715 211715 OUTLET
211362 211362 OUTLET RETAINER
WP210684 WP210684 PAD
215058 215058 PAD, CABINET BUMPER
213063 213063 PALNUT FOR BLEACH RESERVOIR
216078 216078 PANEL, FRONT (WHT)
213374 213374 PARTIAL COLORED BUTTON
213372 213372 PARTIAL WHITE LOAD BUTTON
213370 213370 PERMANENT PRESS BUTTON
211017 211017 PILOT LAMP
213010 213010 PIN FOR LID SWITCH
210315 210315 PINION
210054 210054 PINION
210052 210052 PITMAN
201463 201463 PITMAN WITH WRIST PIN
211878 211878 PLATE, ACCESS
22002924 22002924 PLATE, COVER (W/HOLE)
211352 211352 PLUNGER
204968 204968 PLUNGER & BRACKET ASSEMBLY
204314 204314 POLY LUBE - 4 OZ
WP204590 WP204590 POWER CORD
W10172457 W10172457 POWER UNIT W/GEARS
WP6-2301530 WP6-2301530 PULLEY
Y202496 Y202496 PULLEY MO
WP6-2008160 WP6-2008160 PULLEY- MO
WP6-2022030 WP6-2022030 PUMP AS PA
202569 202569 PUMP BEARING KIT
WP211451 WP211451 PUMP BELT
212028 212028 PUMP HOUSING, POLY
202677 202677 PUMP PULLEY WITH PIN
202807 202807 RECEPT FOR FLUORESCENT LAMP
201423 201423 RECEPTACLE
213430 213430 RESTRICTOR UNDER SCREEN
211378 211378 RETAINER
213023 213023 RETAINER **NLA*
213022 213022 RETAINER **NLA*
W10116752 W10116752 RETAINER-
WPY015667 WPY015667 RETAINING
210179 210179 RETAINING RING
213376 213376 RINSE BUTTON
212684 212684 ROLLPIN FOR PUMP PULLEY
211356 211356 RUBBER WASHER **NLA*
210429 210429 SCREEN
WP96160 WP96160 SCREEN
Y015627 Y015627 SCREW
204439 204439 SCREW
WP489128 WP489128 SCREW
211410 211410 SCREW
910186 910186 SCREW
WP8281227 WP8281227 SCREW
WP912618 WP912618 SCREW
WP489399 WP489399 SCREW
WP90767 WP90767 SCREW
W10142650 W10142650 SCREW
M0227520 M0227520 SCREW
WP1163839 WP1163839 SCREW
W10756178 W10756178 SCREW
W10850756 W10850756 SCREW
WP27001200 WP27001200 SCREW
WPY014874 WPY014874 SCREW
WPW10346892 WPW10346892 SCREW
WP3934714 WP3934714 SCREW
WP1163283 WP1163283 SCREW
WP8182296 WP8182296 SCREW
211486 211486 SCREW 3 8
204445 204445 SCREW FA
22003235 22003235 SCREW, BEARING INSERT (HEX)
213007 213007 SCREW, CABINET
212708 212708 SCREW, NO.10-32 X 3/8 INCH
212154 212154 SCREW, NO.4-24 X 3/4 INCH
212951 212951 SCREW, NO.6-32 X 1/4 INCH
053759 053759 SCREW, NO.6-32 X 3/8
211350 211350 SCREW, NO.8 X 1/2 INCH
212336 212336 SCREW, NO.8 X 3/4 INCH
211967 211967 SCREW, NO.8-32 X 3/8 INCH
211714 211714 SCREW, SELF-TAPPING
22001423 22001423 SCREW, SET (TORX)
213501 213501 SCREW-HEX HD TYPE B NO.6 X 15/16
310744 310744 SCREW-LAMP RECEPTACLE TO BRACK
WP211232 WP211232 SEAL
WP210286 WP210286 SEAL
WP6-0A57420 WP6-0A57420 SEAL
204062 204062 SEAL FOR I
WP210690 WP210690 SEAL- RUBB
Y015149 Y015149 SEALAGIT
312620 312620 SEMS SCREW
Y053241 Y053241 SET SCREW
213017 213017 SHROUD FOR ORIGINAL WASHER AGITATOR
WP99003172 WP99003172 SILICONE L
WP22213057 WP22213057 SLEEVE
201848 201848 SOLENOID 2
202981 202981 SOLENOID 240-50
200977 200977 SOLENOID F
202894 202894 SOLENOID F
211363 211363 SOLENOID GUIDE
211358 211358 SPACER
213377 213377 SPIN DRY BUTTON
0A4731 0A4731 SPLINE
211376 211376 SPRING
WP213720 WP213720 SPRING
Y015902 Y015902 SPRING FOR
211351 211351 SPRING FOR PLUNGER
211837 211837 SPRING FOR TUB SEAL
212850 212850 SPRING LEVER
212266 212266 SPRING-LIGHT BARRIER UNDER BUT
201840 201840 STARTER
201838 201838 STARTER SOCKET
Y015494 Y015494 STOP RING
211742 211742 STRAINER
12001413 12001413 STRAINER & WASHER KIT
205131 205131 SWITCH, MOTOR START
WP213718 WP213718 SWITCH-LID
202718 202718 TENSION SPRINGS
WP248562 WP248562 TERMINAL
211377 211377 THERMAL ELEMENT
204231 204231 TIMER
205211 205211 TIMER - A906
204453 204453 TIMER MOTO
202164 202164 TIMER MOTOR
204452 204452 TIMER MOTOR 120-50
204233 204233 TIMER W/RAPID ADVANCE
204232 204232 TIMER W/RAPID ADVANCE
Y038555 Y038555 TOOL-INSTALL CENTER SHAFT
203173 203173 TOP COVER-WHITE
212981 212981 TRANSFER TUBE
213001 213001 TRIM STRIP
6-2040130 6-2040130 TUB BEARIN
201765 201765 TUB COVER
WP22001619 WP22001619 TUBE- AIR
212279 212279 TWIN FASTENER
210866 210866 TWIN SPEED
211223 211223 UNBALANCE BUMPER
213719 213719 UNBALANCE LEVER
203372 203372 UPPER HARNESS W/PLUG
201639 201639 UPPER MOTOR MOUNT
213426 213426 VALVE BODY
212984 212984 VALVE MOUNTING PLATE
211447 211447 WASH FOR SIPHON BREAK
211200 211200 WASHER
203323 203323 WASHER AGITATOR - TURQUOISE
22002124 22002124 WASHER AGITATOR SHAFT
213073 213073 WASHER DO
214276 214276 WASHER FOR GEARS
Y054867 Y054867 WASHER LO
211100 211100 WASHER, CUSHION
212979 212979 WASHER, TUB BRACE
WP211210 WP211210 WASHER,CLAMPING NUT(STAINLESS)
WP6-2114830 WP6-2114830 WASHER- SP
WP22003555 WP22003555 WASHER- ST
WPY015666 WPY015666 WASHER-RET
211500 211500 WASHERBRA
Y014827 Y014827 WASHERCEN
205613 205613 WATER VALVE
201163 201163 WATER VALVE
Y205684 Y205684 WATER VALVE 240-50
211068 211068 WICKINGTO
211723 211723 WINDOW FOR TUB
WP311155 WP311155 WIRE
204234 204234 WIRE HARNESS
203373 203373 WIRE HARNESS-UNBALANCE RELAY
213667 213667 WIRE RETAINING CLIP
213369 213369 WOOL BUTTON
22038313 22038313 WRENCH, SPANNER
