Model Image
Manufacturer

Whirlpool

Model Number

ABD2533DEW

Description

Bottom Mount Refrigerator - Bottom-mount

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12002500 12002500 ADAPTER, SIDE (RT)
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
12531402 12531402 BAR, PANTRY
12457108 12457108 BASEPAN
67004987 67004987 BASKET, FRZ. (UPR)
WPW10503184 WPW10503184 BASKET-FZR
WPW10371193 WPW10371193 BIN CONTROL LEVER
WP12587601 WP12587601 BLADE- CON
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
WP12642303WD WP12642303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WP67005633 WP67005633 BRACKET
WP67004953 WP67004953 BRACKET
12456801V 12456801V BRACKET, FOOT
WP12812501WD WP12812501WD BRACKET- D
WP12812502WD WP12812502WD BRACKET- D
67004600 67004600 BUCKET, CHILLER
67004871 67004871 BUCKET, SHORT ASSEMBLY
WP67004977 WP67004977 BUSHING- D
WP67001130 WP67001130 BUTTON- PL
W11395888 W11395888 CAP-FILTER
W10833902 W10833902 CLAMP
10526701 10526701 CLAMP, WIRE
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
WPM0104106 WPM0104106 CLIP
M0104102 M0104102 CLIP, CORD
67001067 67001067 CLIP, DRAIN TUBE
10547002 10547002 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
67004701 67004701 CLIP, WATERLINE
WP67007126 WP67007126 CLIP- HAND
WPM0114003 WPM0114003 CLIP- SPEE
WP12627302 WP12627302 CLIP- TOE
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WP10423131 WP10423131 CONTAINER
WPW10196393 WPW10196393 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11033771 W11033771 COUPLING
W11519867 W11519867 COVER
W10720642 W10720642 COVER
W11284721 W11284721 COVER
12816203 12816203 COVER, CHILLER VENT
67003484 67003484 COVER, CORNER (WHT)
67003905 67003905 COVER, FZ LIGHT
67006101 67006101 COVER, MC BACK
67001014 67001014 COVER, TOP HINGE (WHT)
12726003 12726003 COVER, WATER LINE
67004098 67004098 COVER, WATER VALVE
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
WP628356 WP628356 CUP-FILL
12225601 12225601 DAM, LEFT RETURN
67001084 67001084 DAM, RIGHT RETURN
67006644 67006644 DIVIDER, BASKET
67004127 67004127 DIVIDER, BASKET (UPPER)
67004556 67004556 DIVIDER, PANTRY
67006807 67006807 DOOR ASSEMBLY., FRZ. FOAM (WHT)
WP12744905 WP12744905 DOOR COMP
67004599 67004599 DOOR, CHILLER (LT)
67004598 67004598 DOOR, CHILLER (RT)
WPB2150504 WPB2150504 DRIER
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER, ACOUSTIC
EDR4RXD1 EDR4RXD1 FILTER
WP2300868 WP2300868 FITTING
67004720 67004720 FRAME, CHILLER
WP67003854 WP67003854 FRAME- CRI
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
W11451451 W11451451 GASKET
W10443317 W10443317 GASKET ASSEMBLY
B5759649 B5759649 GASKET, MC BACK
W10368789 W10368789 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
12002497 12002497 GEAR (INCLDS. BOTH)
WP67006704 WP67006704 GLASS- CRI
WPW10175909 WPW10175909 GRILLE
67003213 67003213 GRIPPER, BUCKET
W10450022 W10450022 GRIPPER, BUCKET (MEDIUM)
67003493 67003493 GROMMET, COMPRESSOR
67005680 67005680 GROMMET, CONDENSER
WP61004743 WP61004743 GROMMET- B
WP67002780 WP67002780 GROMMET- F
WPW10179172 WPW10179172 HANDLE
WPW10119666 WPW10119666 HANDLE ASSEMBLY FACE MOUNT (WHT)
10508506 10508506 HANDLE, BASKET/SHELF
67003931 67003931 HARNESS, EVAP HEATER
67006094 67006094 HARNESS, FZ MODULE
67004955 67004955 HARNESS, MC
WP67002493 WP67002493 HEATER- DE
W11689473 W11689473 HINGE- CEN
67004602 67004602 HOOK, CHILLER FRAME
WP67006524 WP67006524 HOUSING
W11702858 W11702858 HOUSING
WPW10464769 WPW10464769 HOUSING
12806601 12806601 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
8003RP 8003RP ICEMAKER INSTALL KIT
WP67003753 WP67003753 INLET VALVE
WP67006531 WP67006531 INLET VALVE
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
67001264 67001264 INSTRUCTIONS, INSTALLATION
WP13012402 WP13012402 INSULATION
12002041 12002041 KIT, EVAP REPLACEMENT
12002023 12002023 KIT, WATER TANK
10549601 10549601 LABEL, CAUTION (ICE MAKER)
67001073 67001073 LADDER, CENTER
67001317 67001317 LADDER, SIDES
10436404 10436404 LID, UTILITY
W11679940 W11679940 LIGHT BULB
67002293 67002293 LINKAGE, CHILLER
67004601 67004601 LINKAGE, CHILLER CTR
67003769 67003769 LRG REF BUCKET/GRIP ASSEMBLY
67006811 67006811 MANUAL, OWNERS
67003906 67003906 MODULE, FZ CONTROL
Y67003896 Y67003896 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
Y12528501 Y12528501 NAMEPLATE (AMANA PLUS)
WP627018 WP627018 NUT
M0286708 M0286708 NUT, SPEED
67004279 67004279 OVERLAY, CONTROL
WP67005915 WP67005915 PAN, CRISPER
67005917 67005917 PAN, PANTRY
WP12579803 WP12579803 PAN- DRAIN
WP67001255 WP67001255 PAN-ICE
WP67006642 WP67006642 PIN
WP67001668 WP67001668 PLATE- FIL
WPA3076901 WPA3076901 PLUG, BUTTON
10712401 10712401 PLUG, VENT (WHT)
A4539607 A4539607 POP RIVET
WP67006506 WP67006506 POWER CORD
WPW10326469 WPW10326469 RAIL-CENTR
12658531WQ 12658531WQ REFRIGERATOR DOOR (W/ INSULATION) (WHITE)
67004717 67004717 RETAINER, DOOR
67001258 67001258 RETAINER, TUBE
WPM1205302 WPM1205302 RIVET
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP3400805 WP3400805 SCREW
WP8281196 WP8281196 SCREW
WP67006380 WP67006380 SCREW
WP681249 WP681249 SCREW
WP489349 WP489349 SCREW
67006608 67006608 SCREW
WP67006908 WP67006908 SCREW
W10709795 W10709795 SCREW
WP489474 WP489474 SCREW
67006491 67006491 SCREW
WP67006197 WP67006197 SCREW
WP33001882 WP33001882 SCREW
W10709798 W10709798 SCREW
71003131 71003131 SCREW
W10709797 W10709797 SCREW
WP400021-1 WP400021-1 SCREW
12992301 12992301 SCREW
WP67004954 WP67004954 SCREW
WP98165 WP98165 SCREW
WP489128 WP489128 SCREW
12846902 12846902 SCREW (2)
681390 681390 SCREW, 8-32 X 3/8
12991101 12991101 SCREW, HANDLE (BLACK)
67006668 67006668 SCREW, HI TORQUE
67006425 67006425 SCREW, SM
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
67006716 67006716 SHEET, TECH DATA
WP67004637 WP67004637 SHELF, GLIDE OUT
67001090 67001090 SHROUD, CONDENSER FAN
67002777 67002777 SHROUD, EVAP FAN
WP67005864 WP67005864 SLIDE
WP67006607 WP67006607 SLIDE
67002002 67002002 SLIDE,PANTRY
W11447232 W11447232 SOCKET
WPA1055105 WPA1055105 SPRING
W10613606 W10613606 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
WP12576801 WP12576801 STRAP, BALE
WP12603701 WP12603701 SUPPORT- C
12831101 12831101 SWEEP-WATER VALVE
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
WP12575501 WP12575501 SWITCH- LI
67005654 67005654 TAG, ENERGY
67006883 67006883 THERMISTOR
12002355 12002355 THERMISTOR KIT
WP67003426 WP67003426 THERMOSTAT
67002223 67002223 TOE GRILLE ASSEMBLY (WHT)
WP67001719 WP67001719 TRACK
67004102 67004102 TRACK, WATERLINE
10436506 10436506 TRAY, EGG
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
W10656987 W10656987 TRIM-SHELF
WPW10231344 WPW10231344 TRIM-SHELF
67001656 67001656 TRIVET, BOTTLE
WP12866903 WP12866903 TUBE
WPB5705307 WPB5705307 TUBE
67001066 67001066 TUBE, DRAIN
WP12531601 WP12531601 TUNNEL- PA
W10823511 W10823511 WATER TUBE
W11176463 W11176463 WATER TUBE
W11181718 W11181718 WATER TUBE

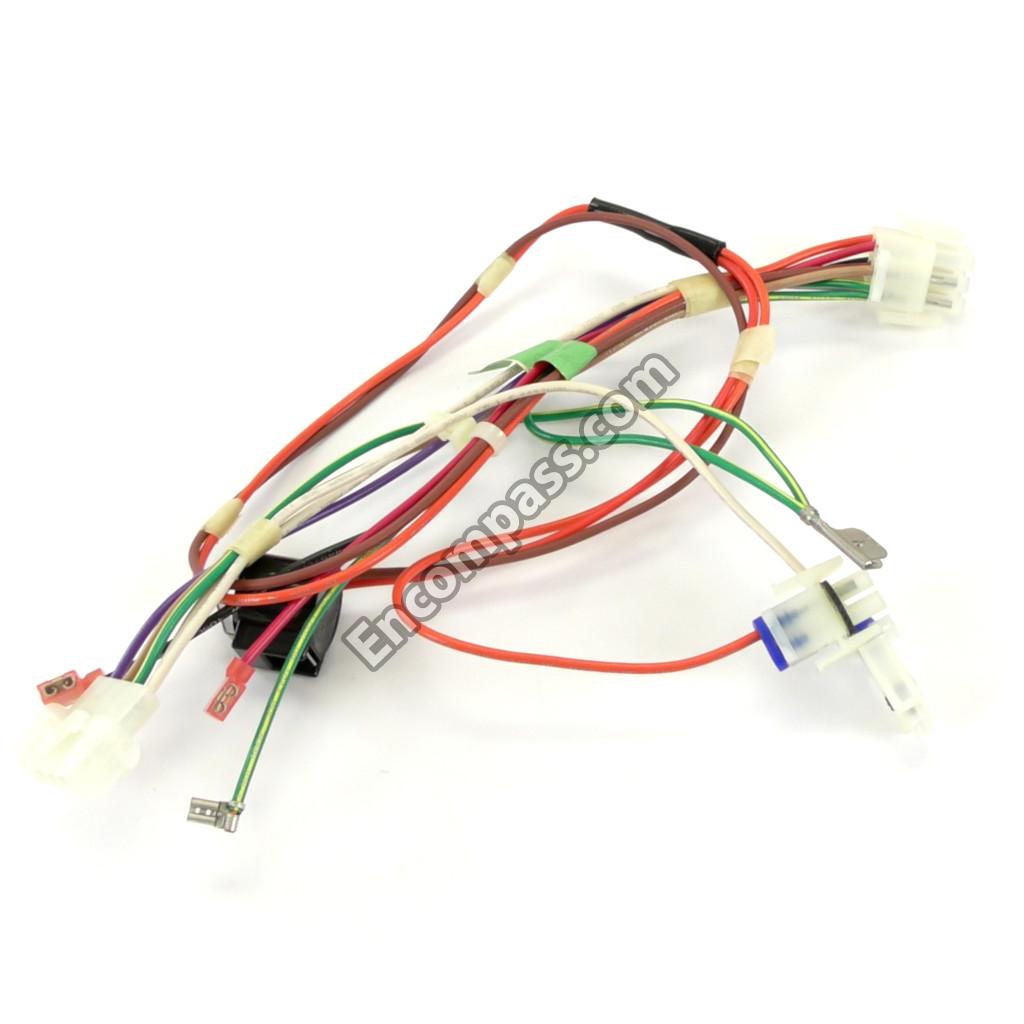

W11619328 W11619328 WIRE HARNESS
WPD7813010 WPD7813010 WIRE HARNESS
15003918 15003918 WIRING INFORMATION
