Model Image
Manufacturer

Whirlpool

Model Number

ACB6280AS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
71001883 71001883 BACK OUTE
2624F062-51 2624F062-51 BACK, OUTER (UPR)
71001852 71001852 BLADE FAN
WP74006613 WP74006613 BOARD, RELAY
12001914 12001914 BOARD, RELAY (LWR)
71002993 71002993 BRACKET G
71002872 71002872 BRACKET T
71002916 71002916 BRACKET, DOOR FILLER
WP9781049 WP9781049 CAMERA LENS-LIGHT
3415F007-51 3415F007-51 CLAMP
71002796 71002796 CLAMP GLA
71001170 71001170 CLIP OVEN

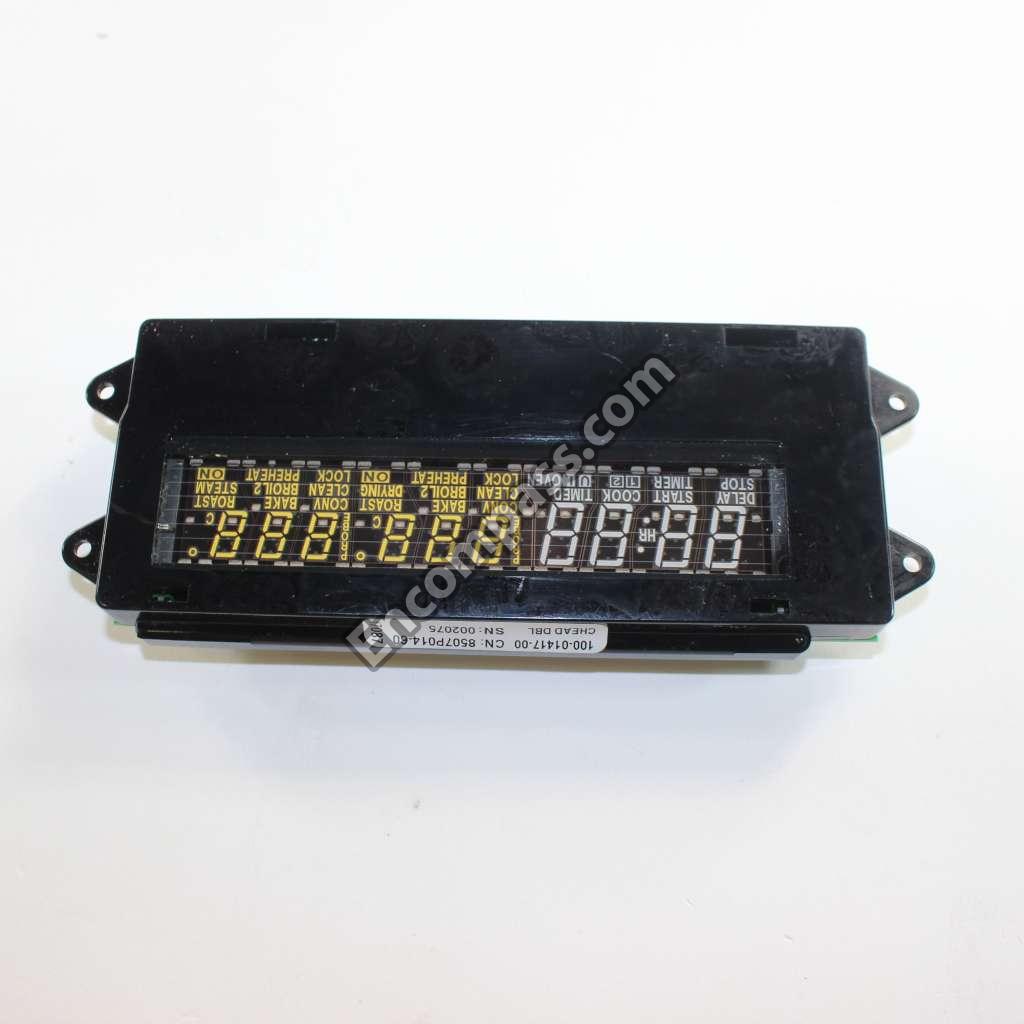

WP71001872 WP71001872 CONTROL BOARD
702929 702929 COVER HOL
74002380 74002380 COVER, HOLE
WP74008014 WP74008014 DOOR HINGE
WP71001845 WP71001845 DOOR LATCH, DOOR ASSEMBLY.
WPW10310258 WPW10310258 ELMNT-BAKE
WPW10310260 WPW10310260 ELMNT-BROL
71001843 71001843 EXTENSION, VENT
71001884 71001884 EXTRUSION (CTR)
WP74004947 WP74004947 FAN MOTOR
71003180 71003180 FRAME OVE
71002801 71002801 GLASS, INNER
74006945 74006945 GLASS, OUTER
74006942 74006942 HANDLE DO
74006937 74006937 HARNESS C
74006836 74006836 HARNESS L
74006938 74006938 HARNESS M
74006939 74006939 HARNESS S
74006835 74006835 HARNESS U
71001868 71001868 HARNESS, MEAT PROBE
74005614 74005614 HEAT SINK
WP74008015 WP74008015 HINGE-RECV
WP3413F018-19 WP3413F018-19 INSERT
74008278 74008278 INSULATION
71003614 71003614 INSULATION
71002920 71002920 INSULATION
71001839 71001839 INSULATION
71002918 71002918 INSULATION
71002329 71002329 INSULATION (BACK-TOP)
71001838 71001838 INSULATION, DOOR (BTM)
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
WP2402W265-19 WP2402W265-19 LINER-DOOR
74006940 74006940 MANUAL, USE & CARE
74005657 74005657 MOTOR ASSEMBLY, CONVECTION
74006943 74006943 NAMEPLATE
M0282005 M0282005 NUT
9831122 9831122 NUT, HEX 3/8``
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
71003005 71003005 OVEN WELD
WP3401F075-19 WP3401F075-19 PAN, BROIL
71002912 71002912 PANEL CON
74006944 74006944 PANEL DOO
74005645 74005645 PANEL OVE
Y74006818 Y74006818 PANEL TOP
74006821 74006821 PANEL TOP
71001885 71001885 PANEL, TOP (INR-CTR)
2624F056-51 2624F056-51 PANEL-BKGD
71003411 71003411 PLATE COV
71002903 71002903 PLATE NON
74005658 74005658 PLATE, CONVECTION (FRT)
71001812 71001812 PLATE, HINGE TRAP
WP71001870 WP71001870 PROBE- TEM
WPW10282527 WPW10282527 RACK-OVEN
71001866 71001866 RECEPTACLE, BULB
74009649 74009649 RECEPTACLE, PROBE
74005648 74005648 RETAINER
W10759523 W10759523 SCREW
WPW10296816 WPW10296816 SCREW
WP488234 WP488234 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
70273-1 70273-1 SCREW
W11233072 W11233072 SCREW
W10828565 W10828565 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
704745 704745 SCREW, FLAT
WP71001841 WP71001841 SEAL- DOOR
WP74005546 WP74005546 SPACER- RU
Y04100669 Y04100669 SUPPORT C
71002992 71002992 SUPPORT G
74006936 74006936 SWITCH MEMBRANE ASSEMBLY.
WP71002904 WP71002904 SWITCH, DOOR LIGHT
71001129 71001129 SWITCH, DOOR LOCK
WP71001844 WP71001844 THERMOSTAT
71001887 71001887 THERMOSTAT, FIXED
WPW10339879 WPW10339879 TIE-WIRE
71001804 71001804 TRIM CONT
71003111 71003111 TRIM DOOR
71003110 71003110 TRIM SIDE
74006941 74006941 TRIM, HANDLE END CAP
71002917 71002917 TRIM, LOWER (BLK)
71003109 71003109 TRIM, SIDE (RT-BLK)
71002417 71002417 TUBE VENT
71002419 71002419 TUBE VENT
7506P404-60 7506P404-60 TUBE-VENT
4011F438-45 4011F438-45 VENT (BTM)
71001847 71001847 VENT (TOP)
71001403 71001403 WASHER AL
WP5700M868-60 WP5700M868-60 WINDOW ASSEMBLY
71001888 71001888 WIRE CABLE
15001719 15001719 WIRING INFORMATION
