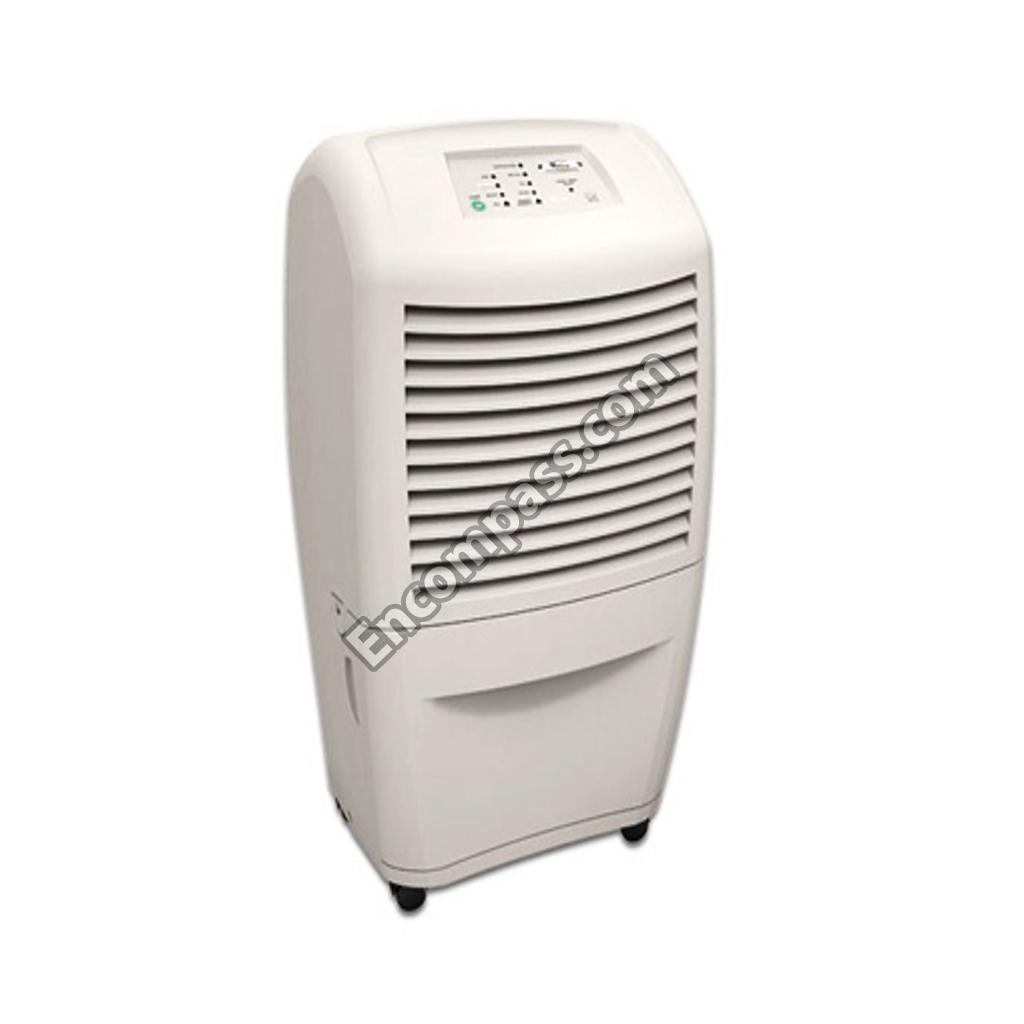

Model Image
Manufacturer

Whirlpool

Model Number

AD75UST0

Description

Dehumidifier

Interactive Exploded View
Exploded View

Parts List

Part Number Description
1188398 1188398 ASSEMBLY, CONTROL PANEL
1188558 1188558 BASE
4388784 4388784 BEND, RETURN
1188913 1188913 BUCKET
1188396 1188396 CABINET
1188395 1188395 CABINET

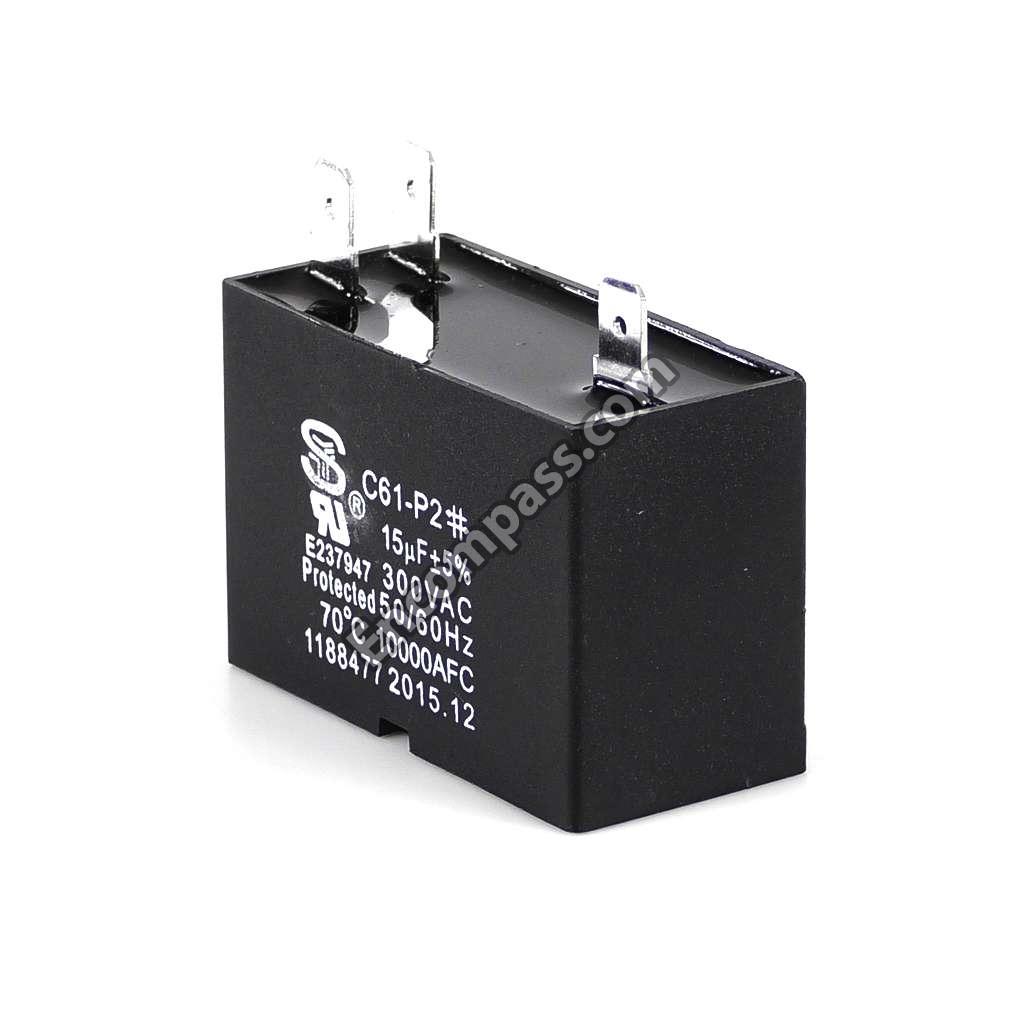

WP1188477 WP1188477 CAPACITOR

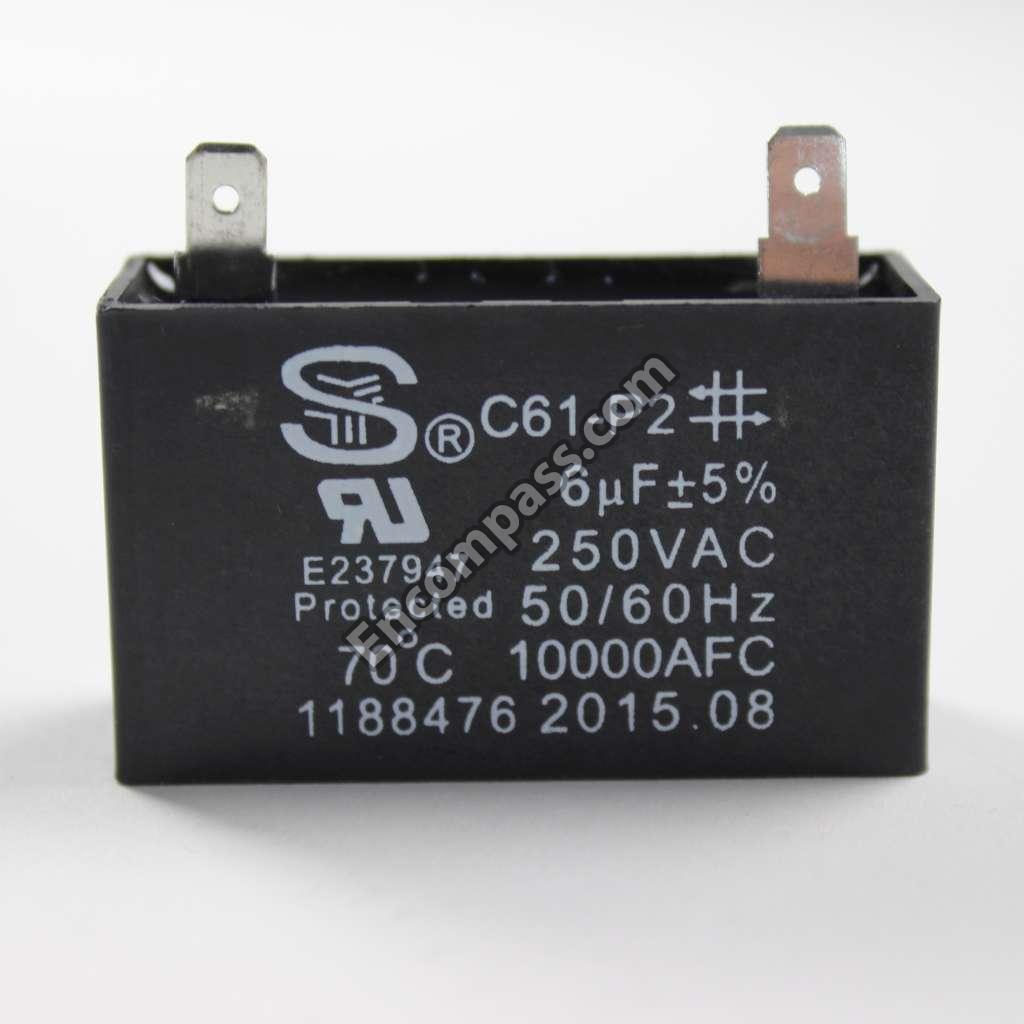

WP1188476 WP1188476 CAPACITOR
1188415 1188415 CASTER
8201767 8201767 COMPRESSOR
1188954 1188954 CONDENSER
1188469 1188469 CORD-POWER
1188822 1188822 COVER-TERM
1188957 1188957 EVAPORATOR
WP1188402 WP1188402 FILTER
1188341 1188341 FLOAT
1185793 1185793 GASKET-COV
1188564 1188564 GROMMET
1188467 1188467 HARNS-WIRE
8212502 8212502 HOSE-DRAIN
1188922 1188922 MOTOR-FAN
W10833054 W10833054 NUT-MTG
1188928 1188928 OVERLAY
WP1188572 WP1188572 OVERLOAD, PROTECTOR
100000 100000 REFRIGERANT CHARGE 11.7 OZ. R-22
W10850046 W10850046 SCREW
WP9740848 WP9740848 SCREW
WPW10109200 WPW10109200 SCREW
W10001320 W10001320 SCREW
WP950032 WP950032 SPRING-OVR
WP1162526 WP1162526 STRAINER
1188577 1188577 SUPPORT, LOWER
1188578 1188578 SUPPORT, UPPER
1188815 1188815 SWITCH-WL
WPW10339879 WPW10339879 TIE-WIRE
1188525 1188525 TUBE-RESTR
1188927 1188927 USE & CARE GUIDE
WP978025 WP978025 VALVE
978030 978030 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978028 978028 VALVE, ACCESS (1/2`` TUBE O.D.)
978865 978865 WASHER
1185794 1185794 WASHER, NUT
1188416 1188416 WHEEL-BLWR
1188575 1188575 WIRING DIAGRAM
