Model Image
Manufacturer

Whirlpool

Model Number

ADB1200AWW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10192799 WPW10192799 ACCUMULATR
WP6-917644 WP6-917644 ARM-SPRAY
WP6-919119 WP6-919119 BAFFLE
WP6-918873 WP6-918873 BASKT-WARE
WPW10118638 WPW10118638 BRACKET
WPW10118637 WPW10118637 BRACKET
6-918900 6-918900 BRACKET, DISPENSER
WP6-917103 WP6-917103 BRACKET, JUNCTION BOX SUPPORT
6-918346 6-918346 BRACKET, SPRING ADJUSTMENT
6-916979 6-916979 BRACKET, SUPPORT (LT)
6-916916 6-916916 BRACKET, WATER VALVE
99002607 99002607 BRACKET- C
WP6-916881 WP6-916881 BRACKET- C
WP99002643 WP99002643 BRACKET- M
WP6-917262 WP6-917262 BRACKT-HTR
6-917645 6-917645 BRKT, DRAIN PUMP (W/GROMMET)
99002017 99002017 CAP RACK
WP99002665 WP99002665 CAPACITOR-
WP99002658 WP99002658 CHOPPER
6-919353 6-919353 CHOPPER

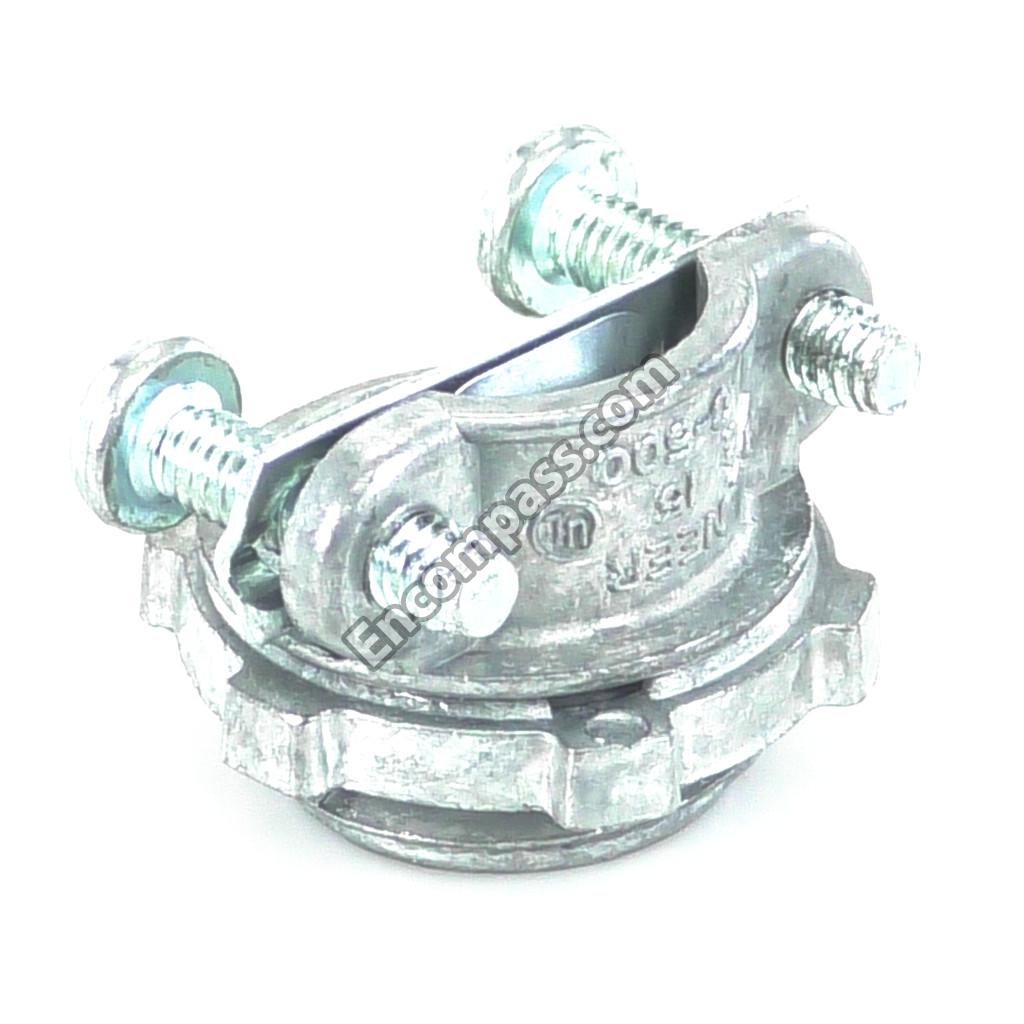

WP596669 WP596669 CLAMP
WP99002656 WP99002656 CLAMP- DRA
WP99002669 WP99002669 CLIP
99002634 99002634 CLIP- THER

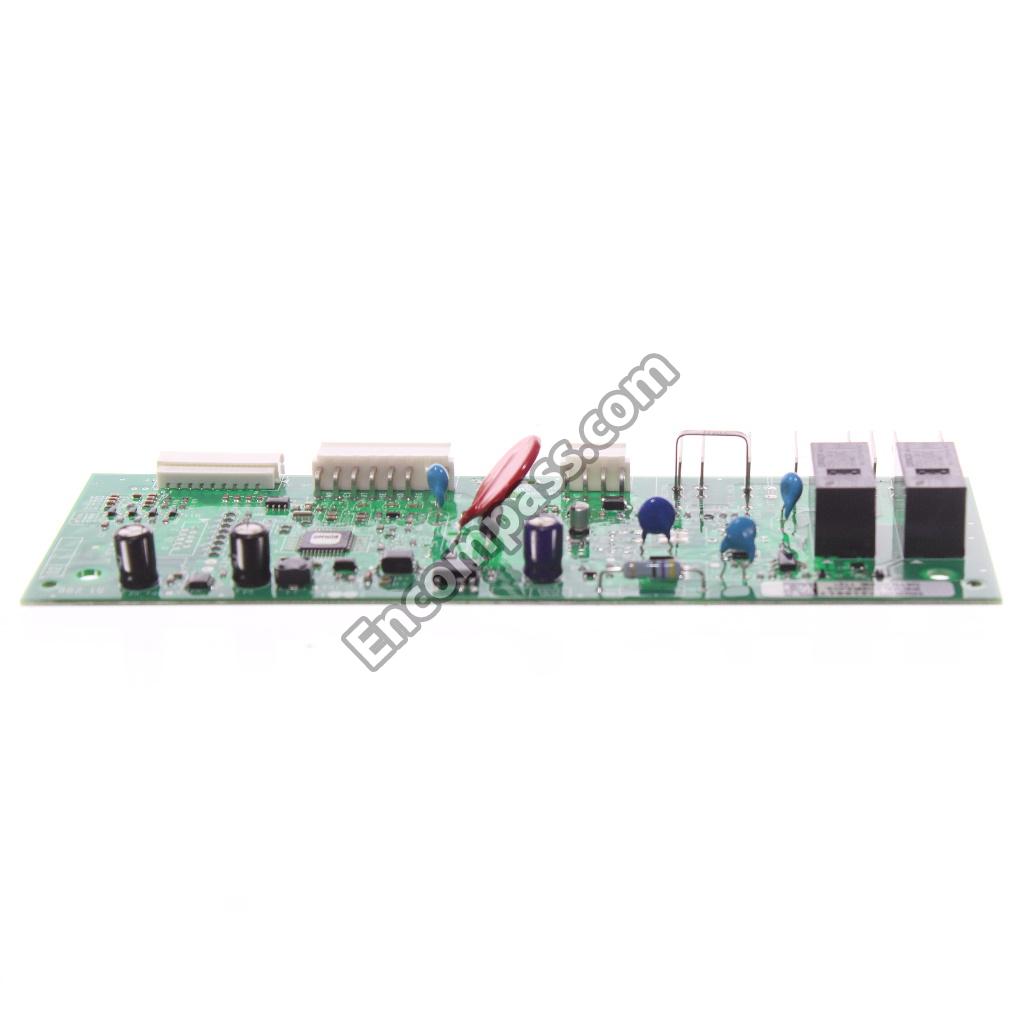

12002709 12002709 CONTROL BOARD
99002575 99002575 COVER
WP99002576 WP99002576 COVER
WP99002948 WP99002948 COVER, AIR/WATER INLET
99002638 99002638 COVER, JUNCTION BOX
99002604 99002604 CROSSBRACE, HINGE
99002590 99002590 DEFLECTOR
W10296525 W10296525 DISCHARGE, HOUSING ASSEMBLY
W10280784 W10280784 DISHRACK
WP99003317 WP99003317 DISPENSER
WP99003446 WP99003446 DOOR CABLE

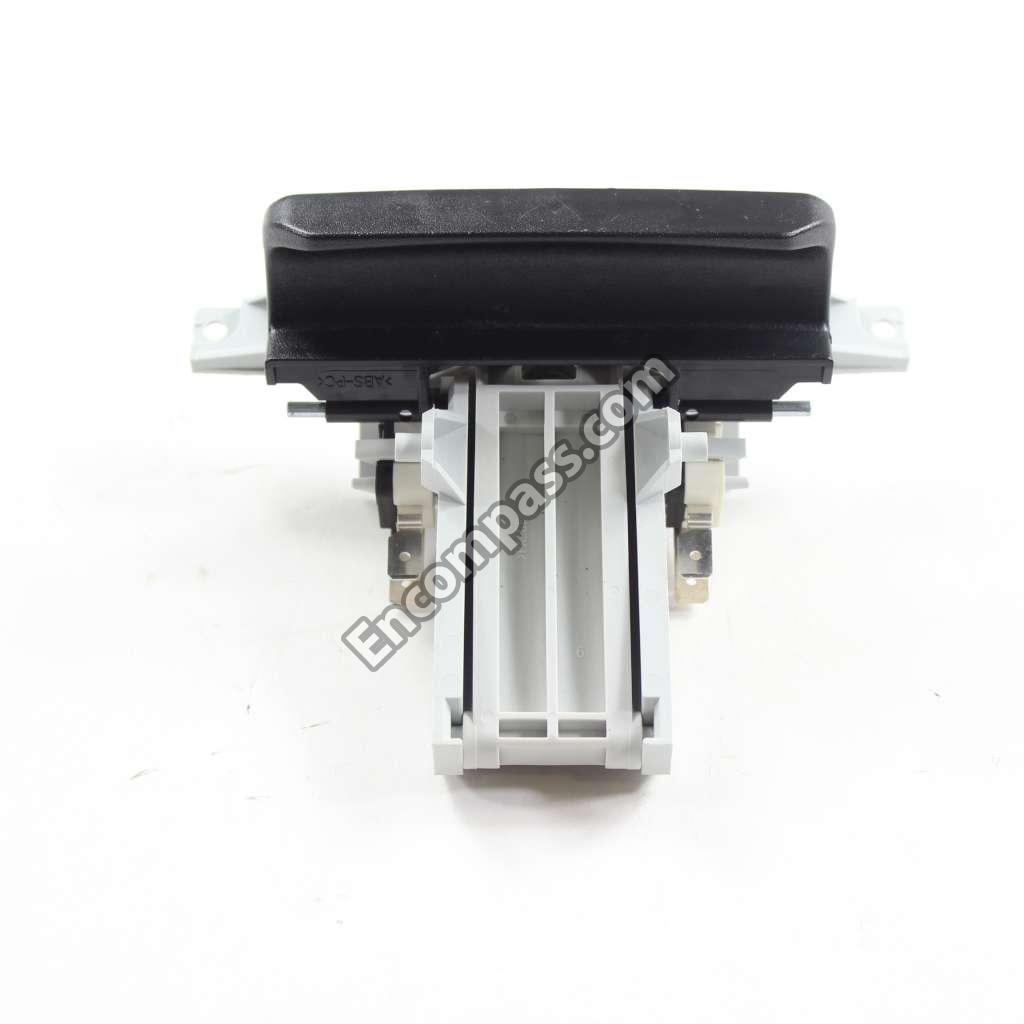

W10862259 W10862259 DOOR DOOR LATCH
WPW10275768 WPW10275768 DOOR DOOR LATCH
WP6-918615 WP6-918615 DOOR-INNER
WP6-917641 WP6-917641 DRAIN PUMP
99002640 99002640 FASTENER-
99002954 99002954 FELT, AIR/WATER INLET
WPW10166788 WPW10166788 FILTER-PLT
WP99002815 WP99002815 FLAPPER- D
W10202535 W10202535 FLOAT
99002955 99002955 FOAM BLOCK, AIR/WATER INLET
WP6-917025 WP6-917025 GASKET
99002973 99002973 GASKET- HE
99003434 99003434 GUIDE ENE
99002996 99002996 GUIDE ENE
99003169 99003169 GUIDE ENE
W10283681 W10283681 HEATER ELEMENT ASSEMBLY W/ GASKET
WP99002652 WP99002652 HOSE- DRAI
WP99002852 WP99002852 HOSE- INJE
WP99002659 WP99002659 IMPELLER
W11082871 W11082871 INLET VALVE
WP99002645 WP99002645 INLET- AIR
99002992 99002992 KNOB- RINS
WPW10143258 WPW10143258 LEVLER-LEG
WP99002642 WP99002642 MANIFOLD-
Y6918418 Y6918418 MANUAL
6918418 6918418 MANUAL, USE & CARE
99002854 99002854 MISC. PART
WP99002654 WP99002654 NUT
WP6-920168 WP6-920168 NUT-HEATER
WP99002857 WP99002857 O-RING- DR
99002651 99002651 O-RING- TU
WPW10223015 WPW10223015 PAD-INS
W10223014 W10223014 PAD-INS
WPW10117748 WPW10117748 PAD-INS

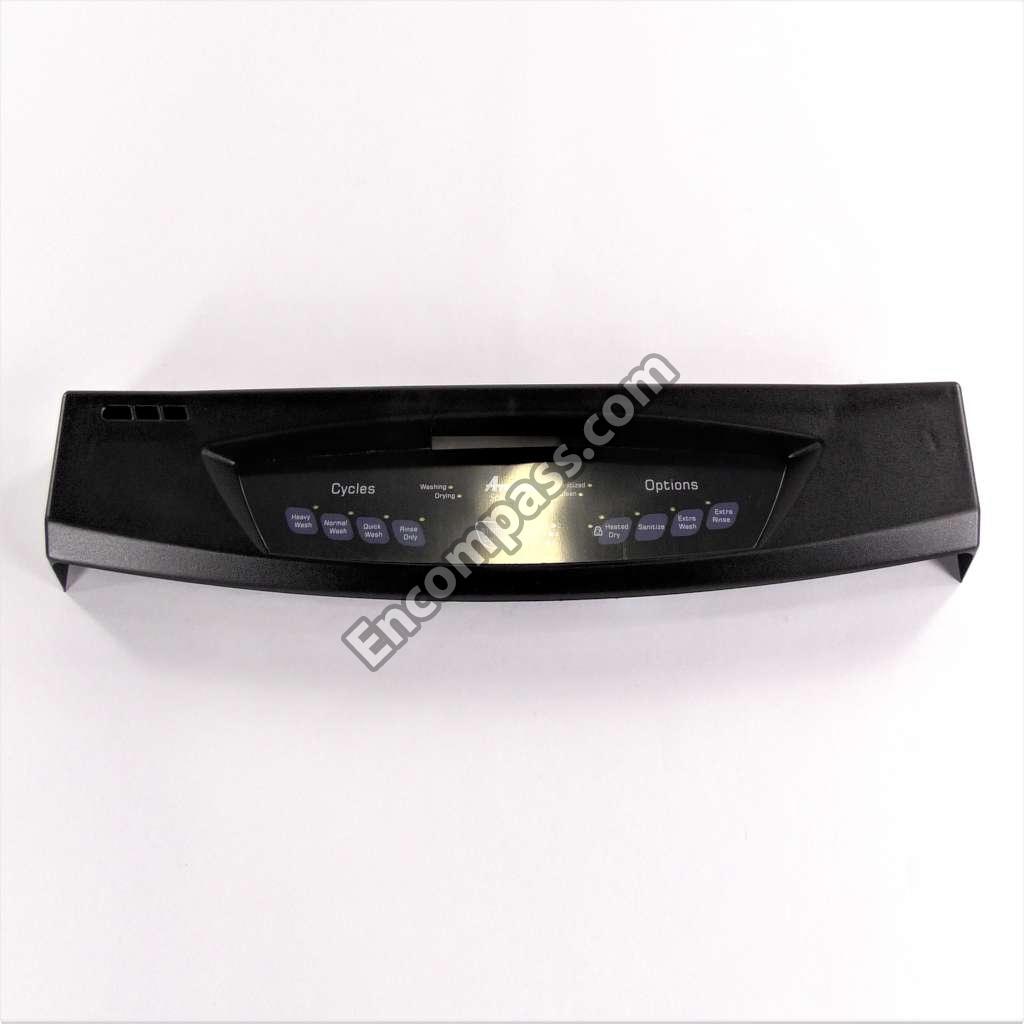

6-918723 6-918723 PANEL, CONTROL (WHT)
99002770 99002770 PANEL, DECO (W/DAMPER-WHT)
W10826937 W10826937 PANEL-TOE
99002943 99002943 PLATE
99002756 99002756 PUSHNUT- S
WPW10243301 WPW10243301 RACK ASSEMBLY (UPR)
99002586 99002586 REINFORCEMENT, INNER DOOR
WP99002753 WP99002753 RETAINER
WP99002608 WP99002608 ROLLER- CA
99001075 99001075 SCREW
99002601 99002601 SCREW
99002666 99002666 SCREW
WP3390631 WP3390631 SCREW
99001194 99001194 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP99002987 WP99002987 SCREW
WP489128 WP489128 SCREW
99002668 99002668 SCREW STA
99002692 99002692 SCREW TRI
WP99002664 WP99002664 SCREW, DISCHARGE HOUSING
99002657 99002657 SCREW, DRAIN PUMP MOUNTING
99002931 99002931 SEAL
WP6-919539 WP6-919539 SEAL KIT-
WP99002646 WP99002646 SEAL, AIR/WATER INLET
99002270 99002270 SEAL- BASE
WP99002589 WP99002589 SEAL- DOOR
WP99002186 WP99002186 SEAL- DOOR
WP99002588 WP99002588 SEAL- DOOR
WPW10120019 WPW10120019 SENSOR
99002653 99002653 SHIELD, RADIANT
99002609 99002609 SHOULDER B
WP99002598 WP99002598 SPRING- DO
WPW10261227 WPW10261227 STOP
WPW10119337 WPW10119337 STRIKE
WP99002644 WP99002644 STRIKER- D
WPW10117485 WPW10117485 SUPPORT
WPW10117484 WPW10117484 SUPPORT
WP6-918114 WP6-918114 SUPPORT, FRONT (W/SEALS)(WHT)
WP99002751 WP99002751 SWITCH- DO
16021814 16021814 TALL TUB SERVICE MANUAL
WP99002633 WP99002633 THERMOSTAT, LIMITING
DAX3400AXE DAX3400AXE TOE PANEL SPACER KIT (WHT)
99002621 99002621 TRACK
99002649 99002649 TRIM
DAX3200AXN DAX3200AXN TRIM STRIP KIT (BSQ)
DAX3200AXE DAX3200AXE TRIM STRIP KIT (WHT)
WP99002947 WP99002947 TUB WHEEL
WP6-917647 WP6-917647 TUBE
WPW10190890 WPW10190890 VENT HOUSING ASSEMBLY
WP6-917642 WP6-917642 WASH ARM-
WP6-917643 WP6-917643 WASH MANIF
6-919922 6-919922 WASH MOTOR
WPY912798 WPY912798 WASHER- TU
WP99002781 WP99002781 WHEEL
WP99002780 WP99002780 WHEEL
99002986 99002986 WIRE HARNE
15003316 15003316 WIRING INFORMATION
