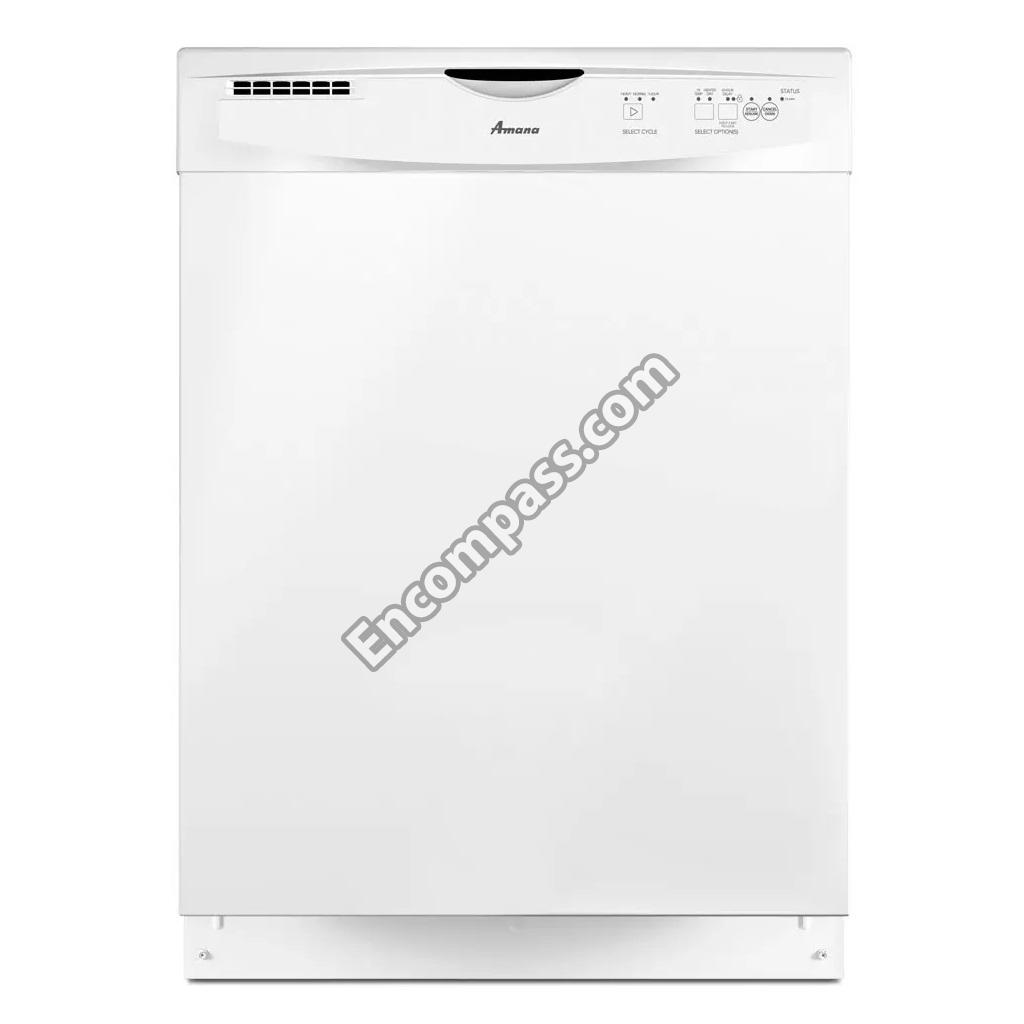

Model Image
Manufacturer

Whirlpool

Model Number

ADB1400PYW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
WP8524471 WP8524471 ACTUATOR
WPW10317197 WPW10317197 ARM-SPRAY
WPW10319027 WPW10319027 ARM-SPRAY
4396277 4396277 BARRIER
WPW10274884 WPW10274884 BOLT-DOOR LATCH
W10850371 W10850371 BRACE
WPW10372484 WPW10372484 BRACE
WPW10462232 WPW10462232 BRCKT-DISP
8212560 8212560 BRCKT-MTG
8171477 8171477 BRCKT-MTG
WP8269145 WP8269145 BRCKT-MTG
W10539489 W10539489 BRCKT-STAT
WP8268990 WP8268990 BUSHING
W10274843 W10274843 BUTTON
WP8533380 WP8533380 CAP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
W10789434 W10789434 CLAMP, HOSE
W10286810 W10286810 CLIP
W10783730 W10783730 CONNECTOR
W10456298 W10456298 CONSOLE
W10456299 W10456299 CONSOLE
W10906418 W10906418 CONTROL BOARD
4317824 4317824 CORD-POWER
WPW10455271 WPW10455271 COVER
W10385977 W10385977 COVER
WP8268991 WP8268991 COVR-BOX
WPW10254548 WPW10254548 DEFLECTOR
W11752368 W11752368 DISHRACK
W11169039 W11169039 DISHRACK
W10781857 W10781857 DISHRACK
WPW10300737 WPW10300737 DISPENSER
W11613573 W11613573 DOOR HINGE
W11613572 W11613572 DOOR HINGE
WPW10254547 WPW10254547 DOOR-INNER
WPW10545278 WPW10545278 DRAIN HOSE
WPW10348269 WPW10348269 DRAIN PUMP
W10447872 W10447872 ENERGY GUIDE
W10872845 W10872845 FILTER
WPW10345285 WPW10345285 FLOAT-ASM
WPW10254545 WPW10254545 GASKET
WP8531323 WP8531323 GASKET
W10542314 W10542314 GASKET
WPW10538166 WPW10538166 GROMMET
W10274837 W10274837 GUIDE
WP8269323 WP8269323 HANDLE
W10518394 W10518394 HEATER
8268826 8268826 HOLDER-CUP
W10445975 W10445975 HOSE
8269144A 8269144A HOSE-DRAIN
W10878507 W10878507 HOSE-FILL
W11175771 W11175771 INLET VALVE
WPW10195536 WPW10195536 INLET-WATR
W10435040 W10435040 INSTALLATION INSTRUCTIONS
WPW10195037 WPW10195037 LEVER
8193716 8193716 LEVLER-LEG
W10514737 W10514737 LID
W10514738 W10514738 LID
WPW10340683 WPW10340683 MANIFOLD
WPW10477552 WPW10477552 NUT, HEATER ELEMENT
WPW10508676 WPW10508676 NUT-TUBE
WP8268961 WP8268961 PAD
WPW10073520 WPW10073520 PAD-INS
4392900 4392900 PAINT
799344 799344 PAINT
WPW10274902 WPW10274902 PANEL
WPW10274895 WPW10274895 PANEL
WPW10274896 WPW10274896 PANEL
WPW10274898 WPW10274898 PANEL
WPW10441006 WPW10441006 PANEL
WPW10441007 WPW10441007 PANEL
8171656 8171656 PANL
8171657 8171657 PANL
8171658 8171658 PANL
8171659 8171659 PANL
WPW10292152 WPW10292152 PARTS-MISC
WPW10605059 WPW10605059 PUMP & MOTOR
W11133712 W11133712 PUMP MOTOR
4396840RC 4396840RC RAK KIT
4396838RC 4396838RC RAK KIT
WPW10503549 WPW10503549 RETAINER
WPW10503548 WPW10503548 RETAINER
WPW10354786 WPW10354786 SCREEN
W10165274 W10165274 SCREW
WP489069 WP489069 SCREW
WPW10109200 WPW10109200 SCREW
WPW10348413 WPW10348413 SCREW
WPW10177098 WPW10177098 SCREW
WP304231 WP304231 SCREW
W10817436 W10817436 SCREW
WP308685 WP308685 SCREW
WP3400892 WP3400892 SCREW
WP3400014 WP3400014 SCREW
WPW10348407 WPW10348407 SCREW
WP8269296 WP8269296 SEAL
WPW10705575 WPW10705575 SENSOR
WP8268828 WP8268828 SHELF
W11086533 W11086533 SHIELD
WPW10343251 WPW10343251 SHIELD
W10321574 W10321574 SHIELD, THERMOSTAT
W10514735 W10514735 SILVERWARE BASKET ASSEMBLY
WPW10306228 WPW10306228 SPACER
350930 350930 SPRAY
285006 285006 SPRAY
4392901 4392901 SPRAY
WPW10337934 WPW10337934 SPRING
WPW10316267 WPW10316267 STANDPIPE
WP8565925 WP8565925 STOP
WP8580309 WP8580309 STRIKE
WPW10482462 WPW10482462 SUMP
W11243394 W11243394 SUPPORT
W11680335 W11680335 SUPPORT
W11027055 W11027055 SUPPRT-HTR
WPW10274880 WPW10274880 SWITCH
WPW10195039 WPW10195039 SWITCH
WPW10372113 WPW10372113 TAB-SUMP
W10321977 W10321977 TECH SHEET (ENGLISH)
W10321978 W10321978 TECH SHEET (FRENCH)
WP661566 WP661566 THERMOSTAT
WP3385089 WP3385089 TRACK
W10413848 W10413848 TUB-DISHWR
W11244157 W11244157 TUBE-FEED
4392899 4392899 TUCHUP
4396853 4396853 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
WP676453 WP676453 TUCHUP
WP676455 WP676455 TUCHUP
W10380253 W10380253 USE & CARE GUIDE
WP3378128 WP3378128 WASHER
WP717273 WP717273 WASHER
W10888592 W10888592 WHEEL
WP8268645 WP8268645 WHEEL
WP8270016 WP8270016 WHEEL-TUB
W10537905 W10537905 WIRE HARNESS
