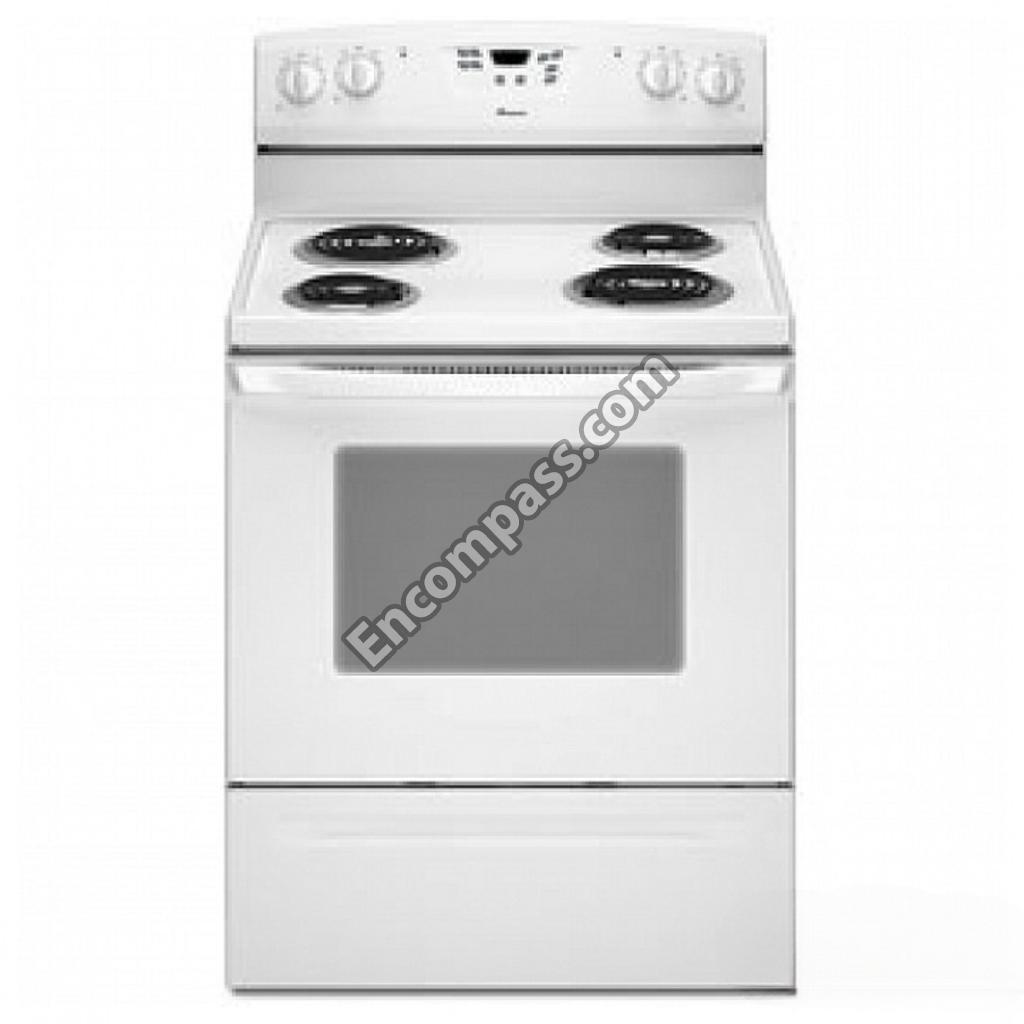

Model Image
Manufacturer

Whirlpool

Model Number

AER5522VCS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10355051 W10355051 ACCESSORY PARTS, CLEANER, COOKTOP
W11447673 W11447673 ANCHOR-TIP
WP8203546 WP8203546 BLOCK-TERM
WPW10196405 WPW10196405 BOWL-DRIP
WPW10196406 WPW10196406 BOWL-DRIP
W11699791 W11699791 BOX-BURNER
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
W11230932 W11230932 BRKT-MNTG
WPW10462912 WPW10462912 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W10404688 W10404688 BRKT-SUPRT
W11502236 W11502236 BRKT-SUPRT
238614 238614 BUMPER
WP3196068 WP3196068 CAMERA LENS-LIGHT
WP308605 WP308605 CLAMP
W10137382 W10137382 CLIP
313660 313660 CLIP
3196200 3196200 CLIP
9761517 9761517 CLIP
WP8273564 WP8273564 CLIP
WP9781235 WP9781235 CLIP
WPW10476681 WPW10476681 CONTROL BOARD
8195532 8195532 COOKTOP
8195534 8195534 COOKTOP
9761059 9761059 CORD, POWER
WPW10326122 WPW10326122 COVER-BLCK
8274034 8274034 COVER-REAR
WP8272473 WP8272473 COVER-REAR
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10107820 WPW10107820 DOOR DOOR LATCH
WPW10197980 WPW10197980 DOOR HANDLE
WPW10144890 WPW10144890 DOOR HANDLE
WPW10144888 WPW10144888 DOOR HANDLE
W10347466 W10347466 DOOR HINGE
8184858 8184858 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
WPW10308477 WPW10308477 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
W11219370 W11219370 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
241430 241430 FOIL-ALUM
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
8522414 8522414 GASKT-WIND
WP8053948 WP8053948 GLASS DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10114344 WPW10114344 GLIDE-DRWR
WP8053334 WP8053334 GLIDE-DRWR
9780585 9780585 GUARD-WIRE
W11226235 W11226235 HARNESS, ASSEMBLY LCC
WPW10295595 WPW10295595 HARNS-WIRE
W11172524 W11172524 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WP3148952 WP3148952 INFINITE CONTROL SWITCH
WP3149400 WP3149400 INFINITE CONTROL SWITCH
W10196159 W10196159 INSTRUCTIONS, INSTALLATION ENGLISH/FRENCH
W10182346 W10182346 INSULATION
WPW10208653 WPW10208653 INSULATION
WP8272612 WP8272612 INSULATION
WPW10278991 WPW10278991 INSULATION
W10119706 W10119706 KNOB
W10119705 W10119705 KNOB
8009 8009 LIGHT BULB
WP8523265 WP8523265 LIGHT-IND
WP9761344 WP9761344 LINER-DOOR
WP7103P027-60 WP7103P027-60 NUT
W10196162 W10196162 OWNERS MANUAL ENGLISH/FRENCH
511873 511873 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
4396923 4396923 PAN-BROILR
8053832 8053832 PANEL, SIDE (2) (BLACK)
W11219377 W11219377 PANEL-DRWR
W11230488 W11230488 PANEL-DRWR
WPW10237657 WPW10237657 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
W10170032 W10170032 PANL-CNTRL
W10170029 W10170029 PANL-CNTRL
WP3195060 WP3195060 PIN-COOKTP
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
814399 814399 RCPTCL-ELM
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
9756779 9756779 RELIEF
W10465685 W10465685 RETAINER
W10450380 W10450380 RETAINER
WP8054068 WP8054068 RETAINER
W11539580 W11539580 RETAINER
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
WP3195812 WP3195812 ROD-CKTOP
9757239 9757239 ROD-DOOR
W10078380 W10078380 ROD-LATCH
9762761 9762761 SAFER COOKING TIPS (ENGLISH)
W10065852 W10065852 SAFER COOKING TIPS (FRENCH)
W11244557 W11244557 SCREW
W11169708 W11169708 SCREW
3196172 3196172 SCREW
3196166 3196166 SCREW
W11233072 W11233072 SCREW
WP3196154 WP3196154 SCREW
WP3196557 WP3196557 SCREW
WP3400882 WP3400882 SCREW
WPW10067840 WPW10067840 SCREW
WP3196175 WP3196175 SCREW
WP98008545 WP98008545 SCREW
WP3400016 WP3400016 SCREW
W10777162 W10777162 SCREW
WP3196567 WP3196567 SCREW
WP3400832 WP3400832 SCREW
WP3196174 WP3196174 SCREW
WPW10031790 WPW10031790 SCREW
WP3400074 WP3400074 SCREW
W10491985 W10491985 SCREW
W10010350 W10010350 SEAL-OVEN
WPW10181986 WPW10181986 SENSOR
8053912 8053912 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
350930 350930 SPRAY
285006 285006 SPRAY
WP660532 WP660532 SURFACE ELEMENT
WPW10259865 WPW10259865 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10198628 W10198628 TECH SHEET (ENGLISH)
W10198629 W10198629 TECH SHEET (FRENCH)
9757143 9757143 TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
9757142 9757142 TEMPLATE-ANTI TIP
W10817433 W10817433 TRIM-VENT
WPW10310922 WPW10310922 TRIM-VENT
9755804 9755804 TUBE-VENT
72017 72017 TUCHUP
3184020 3184020 WIRE, GROUND
