Model Image
Manufacturer

Whirlpool

Model Number

AER5823XCS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WA906B WA906B ACCESSORY PARTS, SCRAPER, COOKTOP
W10355051 W10355051 AFFRESH COOKTOP CLEANER
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
W11447673 W11447673 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
WP8203546 WP8203546 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
WP9757601 WP9757601 BREAKER
WP9757602 WP9757602 BREAKER
W11230932 W11230932 BRKT-MNTG
WPW10462912 WPW10462912 BRKT-MNTG
W10838990 W10838990 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W10404688 W10404688 BRKT-SUPRT
W11502236 W11502236 BRKT-SUPRT
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10355010 W10355010 CLEANER
31617A 31617A CLEANER
W10336909 W10336909 CLEANER
W10137382 W10137382 CLIP
313660 313660 CLIP
3196200 3196200 CLIP
WP8273564 WP8273564 CLIP
W10834509 W10834509 CNTRLELEC
WPW10476679 WPW10476679 CONTROL, RANGE (BLACK)

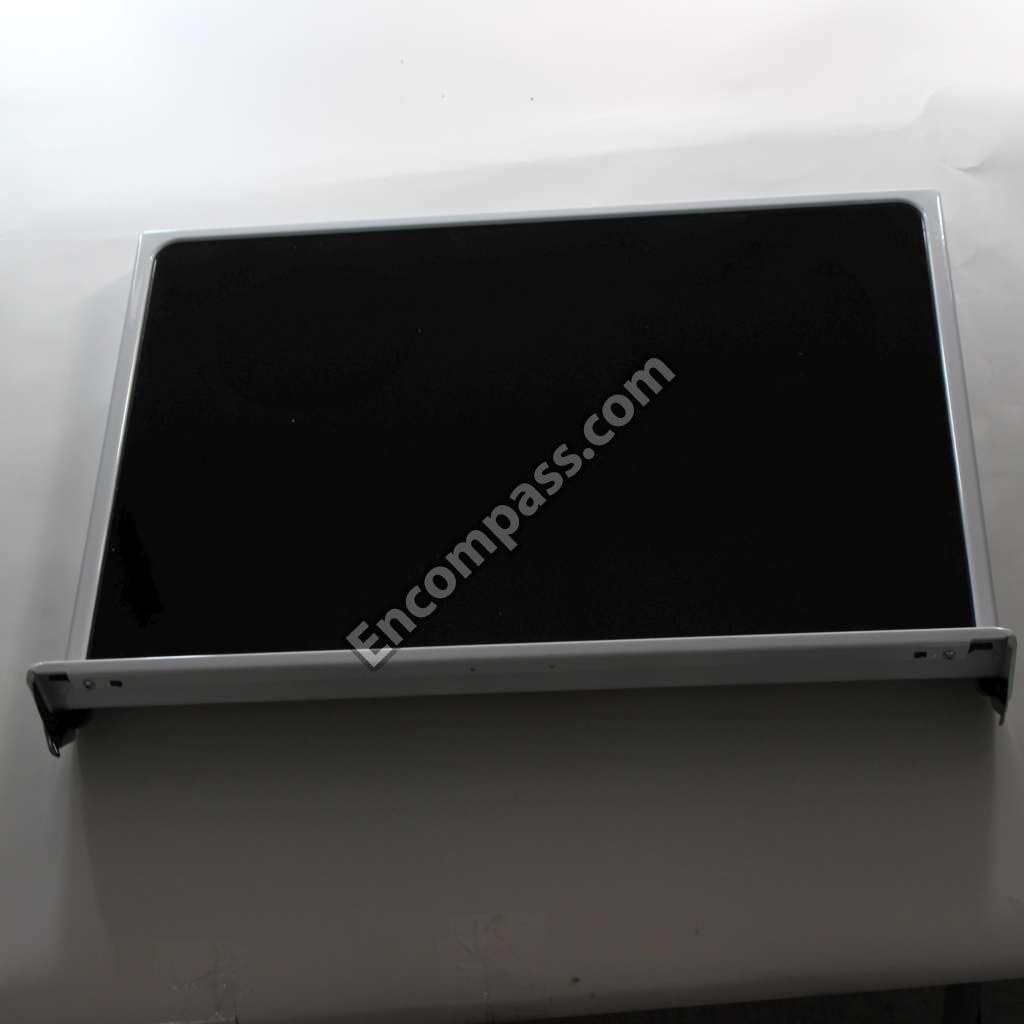

W10248201 W10248201 COOKTOP
W10248202 W10248202 COOKTOP
W11226497 W11226497 CORD-POWER
WPW10326122 WPW10326122 COVER-BLCK
W10289149 W10289149 COVER-REAR
WP8272473 WP8272473 COVER-REAR
W10275756 W10275756 DEGREASER
WPW10144890 WPW10144890 DOOR HANDLE
WPW10144888 WPW10144888 DOOR HANDLE
WPW10299227 WPW10299227 DOOR HINGE
WPW10299225 WPW10299225 DOOR HINGE
WPW10299226 WPW10299226 DOOR HINGE
W10761014 W10761014 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
W10813962 W10813962 DRAWR-UTIL
WPW10308477 WPW10308477 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL

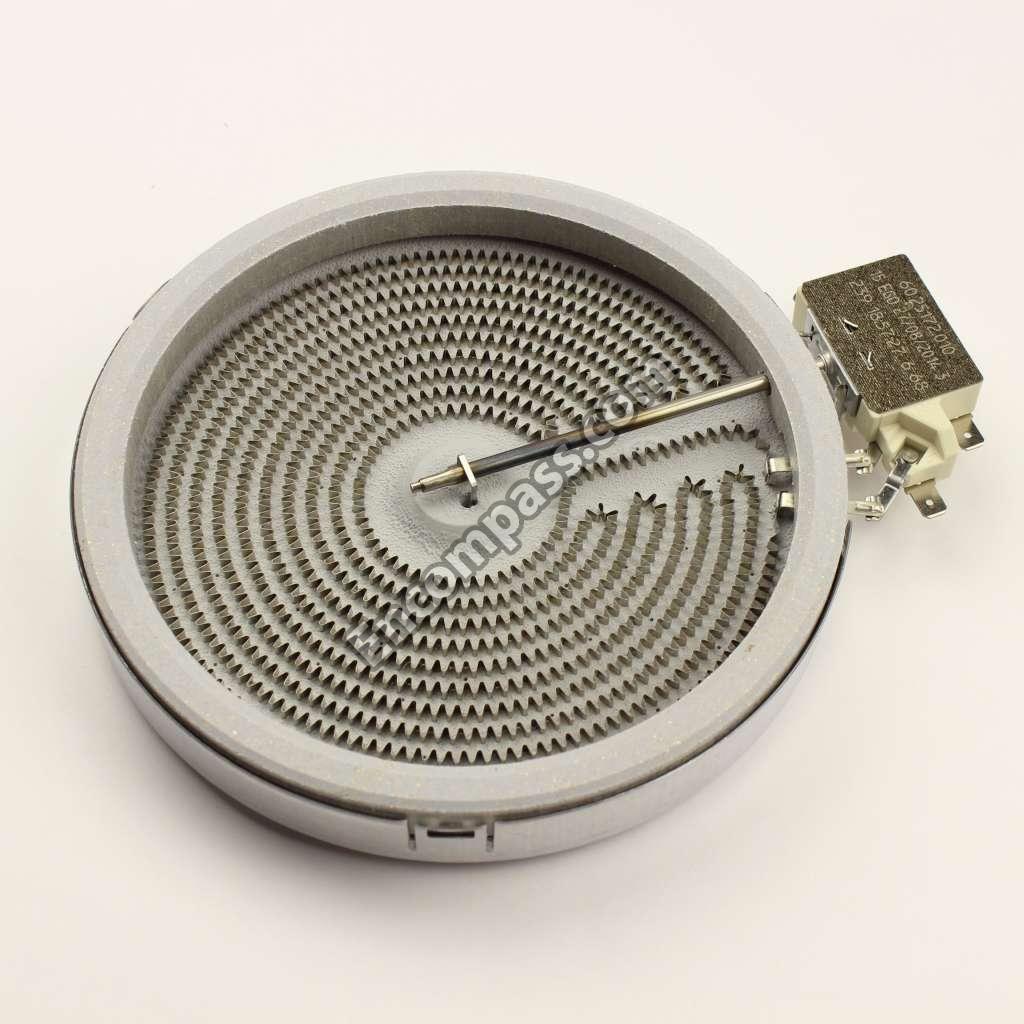

242905 242905 ELMNT-SURF
WPW10583047 WPW10583047 ELMNTBROL
W11219365 W11219365 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219370 W11219370 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
241430 241430 FOIL-ALUM
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
W10763667 W10763667 GLIDE-DRWR
4396096RB 4396096RB GRIDDLE
W10419380 W10419380 GUIDE, USE & CARE TIPS
W10251765 W10251765 HARNS-WIRE
W10273585 W10273585 HARNS-WIRE
W10273584 W10273584 HARNS-WIRE
W11232223 W11232223 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WP3148953 WP3148953 INFINITE CONTROL SWITCH
WP3148952 WP3148952 INFINITE CONTROL SWITCH
W10403812 W10403812 INSTALLATION INSTRUCTIONS
W11684918 W11684918 INSULATION
WPW10208653 WPW10208653 INSULATION
W11311894 W11311894 INSULATION
W10119706 W10119706 KNOB
W10119705 W10119705 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
WP7103P027-60 WP7103P027-60 NUT
W10861164 W10861164 OUTLT-ELEC
W10849725 W10849725 OUTLT-ELEC
511873 511873 PAINT
799344 799344 PAINT
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
W11244088 W11244088 PAN
W10123240 W10123240 PAN-BROILR
4396923 4396923 PAN-BROILR
WPW10170030 WPW10170030 PANEL, BACKGUARD (WHITE)
W11219377 W11219377 PANEL-DRWR
WPW10237657 WPW10237657 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
WPW10575396 WPW10575396 PANEL-SIDE
W10170032 W10170032 PANL-CNTRL
WP3195060 WP3195060 PIN-COOKTP
31463 31463 PROTECTANT, COOKTOP
4396927 4396927 RACK-OVEN
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
9756779 9756779 RELIEF
W11685635 W11685635 RETAINER
WP8054068 WP8054068 RETAINER
WP3196814 WP3196814 RIVET
9762761 9762761 SAFE COOKING (ENGLISH)
W10065852 W10065852 SAFE COOKING (FRENCH)
W11244557 W11244557 SCREW
3196172 3196172 SCREW
WP3196557 WP3196557 SCREW
W11233072 W11233072 SCREW
WP3400882 WP3400882 SCREW
WPW10067840 WPW10067840 SCREW
WP3196154 WP3196154 SCREW
WP3400016 WP3400016 SCREW
WP3196174 WP3196174 SCREW
WP3196175 WP3196175 SCREW
WPW10031790 WPW10031790 SCREW
WP3400074 WP3400074 SCREW
W10491985 W10491985 SCREW
W10777162 W10777162 SCREW
WPW10200660 WPW10200660 SCREW
WPW10181986 WPW10181986 SENSOR
W10384447 W10384447 SHEET, TECH (ENGLISH)
W10384462 W10384462 SHEET, TECH (FRENCH)
W10134247 W10134247 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
350956 350956 SPRAY
350938 350938 SPRAY
350930 350930 SPRAY
285006 285006 SPRAY
4392901 4392901 SPRAY
WPW10225448 WPW10225448 SPRING
WP8523045 WP8523045 SURFACE ELEMENT
WPW10242957 WPW10242957 SURFACE ELEMENT
WPW10310922 WPW10310922 TRIM-VENT
W10817433 W10817433 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
4392899 4392899 TUCHUP
72017 72017 TUCHUP
72032 72032 TUCHUP
