Model Image
Manufacturer

Whirlpool

Model Number

AFC2033DRW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10284690 W10284690 ADAPTER, SLIDE (LEFT)
12225601 12225601 AIR DAM
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
12575101WD 12575101WD BACK, MACH COMP
67003794 67003794 BAR- TEMP
12457108 12457108 BASEPAN
W10503185 W10503185 BASKET, LOWER
67004988 67004988 BASKET-FZR
WPW10289497 WPW10289497 BIN CONTROL LEVER
WPW10324005 WPW10324005 BIN-CNTLVR
W10156818 W10156818 BLADE, FAN
WP12587601 WP12587601 BLADE- CON
WP2169142 WP2169142 BLADE-FAN
WP67003405 WP67003405 BLOCK- PIV
WP12227304WD WP12227304WD BRACE- CRI
W10284691 W10284691 BRACKET
W10251557 W10251557 BRACKET
WP67004953 WP67004953 BRACKET
WP67005633 WP67005633 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
WP2256087 WP2256087 BRACKET
12456801V 12456801V BRACKET, FOOT
12028601W 12028601W BUSHING, DOOR BOTTOM RIGHT (WHITE)
67002722 67002722 BUSHING- D
67006229A 67006229A BUTTERTRAY
67003876 67003876 CARD- HAND
W10833902 W10833902 CLAMP
10526701 10526701 CLAMP WIR
WPM0104106 WPM0104106 CLIP
WP67006852 WP67006852 CLIP
WP2315522 WP2315522 CLIP
10547002 10547002 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
67001067 67001067 CLIP- DRAI
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP12627302 WP12627302 CLIP- TOE
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WPW10503278 WPW10503278 CONTROL BOARD
WP67003903 WP67003903 CONTROL- D
W11033771 W11033771 COUPLING
W11284721 W11284721 COVER
W10827015 W10827015 COVER
12479803 12479803 COVER WAT
67003905 67003905 COVER, FZ LIGHT
12684201W 12684201W COVER, TOP HINGE (LT-WHT)
12684202W 12684202W COVER, TOP HINGE (RT-WHT)
67003484 67003484 COVER- COR
WP67003924 WP67003924 COVER- FZ
12561901W 12561901W COVER- LWR
12726003 12726003 COVER- WAT
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
WP628356 WP628356 CUP-FILL
67001084 67001084 DAM RIGHT
67004127 67004127 DIVIDER
67004812 67004812 DIVIDER B
WP67002321 WP67002321 DIVIDER- P
67002713 67002713 DOOR ASSEMBLY., LT REF. F
WP12744905 WP12744905 DOOR COMP
WP12566607ED WP12566607ED DOOR HINGE
WP12566606ED WP12566606ED DOOR HINGE
12732401WQ 12732401WQ DOR-FIP WH
12658922WQ 12658922WQ DOR-FIP WH
WP12722803W WP12722803W DRAWER SLIDE RAIL
WPB2150504 WPB2150504 DRIER
WP12656105 WP12656105 ENDCAP
WP12656018 WP12656018 ENDCAP
12002041 12002041 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER- ACO
WP67006185 WP67006185 FRAME
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
B5759649 B5759649 GASKET MC
W10830189 W10830189 GASKET, DOOR (WHITE)
67003558 67003558 GASKET, FZ DOOR (WHT)
WPB8381501 WPB8381501 GASKET- DR
67002329 67002329 GASKET- PA
12002497 12002497 GEAR (INCLDS. BOTH)
WP67006655 WP67006655 GLASS SHELF
WP67002332 WP67002332 GLASS- PAN
WPW10235370 WPW10235370 GLIDE
WPW10175909 WPW10175909 GRILLE
67002223 67002223 GRILLE ASY
WP61004743 WP61004743 GROMMET- B
67003493 67003493 GROMMET- C
67005680 67005680 GROMMET- C
WP67002780 WP67002780 GROMMET- F
WP67004373 WP67004373 HANDLE
10508506 10508506 HANDLE, BASKET/SHELF
67006029 67006029 HARNESS, FZ MODULE.
67003931 67003931 HARNESS- E
67004955 67004955 HARNS-WIRE
67005251 67005251 HARNS-WIRE
12868801 12868801 HARNS-WIRE
WP67002493 WP67002493 HEATER- DE
12465001WD 12465001WD HINGE, BOTTOM E-CT (WHT)
W11689473 W11689473 HINGE- CEN
12656202 12656202 HOUSING
WPW10464769 WPW10464769 HOUSING
W11702858 W11702858 HOUSING- L
12806601 12806601 HOUSING- L
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP67003753 WP67003753 INLET VALVE
67003900 67003900 INSERT- DA
WPA3223101 WPA3223101 INSERT- PL
67001264 67001264 INSTRUCTIONS, INSTALLATION
WP67003904 WP67003904 INSULATION
8003RP 8003RP KIT, WATER INLET

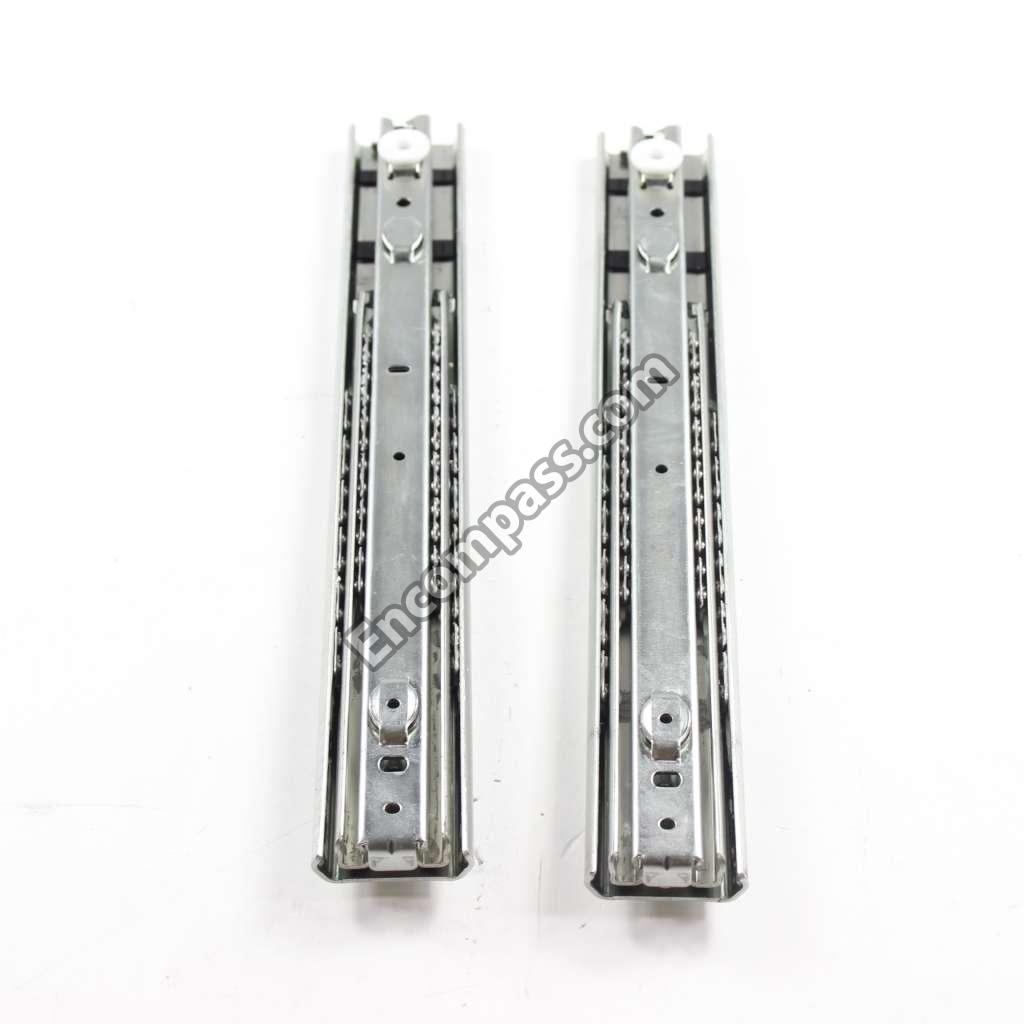

12002684 12002684 KIT- SLIDE
W11498983 W11498983 KNOB
10549601 10549601 LABEL, CAUTION (ICE MAKER)
67001073 67001073 LADDER- CE
67002489 67002489 LADDER- L
W11679940 W11679940 LIGHT BULB
67004078 67004078 MODULE LI
67003906 67003906 MODULE- FZ
W11613295 W11613295 MOTOR-COND
WP627018 WP627018 NUT
M0286708 M0286708 NUT- SPEED
67004279 67004279 OVERLAY- C
67003885 67003885 OWNERS MAN
WP67005908 WP67005908 PAN- CRISP
WP12619103 WP12619103 PAN-DRIP
WP67001255 WP67001255 PAN-ICE
W11490183 W11490183 PAN-UTILTY
WP67006642 WP67006642 PIN
10712401 10712401 PLUG
WPA3076901 WPA3076901 PLUG, BUTTON
A3080002 A3080002 PLUGHOLE
A4539635 A4539635 POP RIVET
WP67006506 WP67006506 POWER CORD
67001258 67001258 RETAINER
WPM1205302 WPM1205302 RIVET
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP98165 WP98165 SCREW
W10709795 W10709795 SCREW
681390 681390 SCREW
12846902 12846902 SCREW
W10856125 W10856125 SCREW
WP489474 WP489474 SCREW
WP681249 WP681249 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
WP400021-1 WP400021-1 SCREW
WPW10139210 WPW10139210 SCREW
71003131 71003131 SCREW
W10709801 W10709801 SCREW
WP7101P126-60 WP7101P126-60 SCREW
67006491 67006491 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
W11233072 W11233072 SCREW
WP489128 WP489128 SCREW
WP67006380 WP67006380 SCREW
67006425 67006425 SCREW (3)
M0260242 M0260242 SCREW TF
12991101 12991101 SCREW, HANDLE (BLACK)
67006697 67006697 SCREW, ROLLER (REAR)
M0238636 M0238636 SCREWSM
WP67003417 WP67003417 SEAL- FRON
WPM0500703 WPM0500703 SEAL- O RI
WP67002513 WP67002513 SEAL- REAR
WP854334 WP854334 SEAL-STRIP
67005681 67005681 SHEET, TECH DATA
67004801 67004801 SHELF GLI
12579702 12579702 SHIM, TOP HINGE
67001090 67001090 SHROUD, CONDENSER FAN
67002777 67002777 SHROUD- EV
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
WPA1055105 WPA1055105 SPRING
W10613606 W10613606 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
WP12576801 WP12576801 STRAP, BALE
WP12227305WD WP12227305WD SUPPORT
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
67004839 67004839 TAG ENERG
12002355 12002355 THERMISTOR
12001937 12001937 THERMOSTAT KIT
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
WPW10231346 WPW10231346 TRIM-SHELF
WPB5705307 WPB5705307 TUBE
WP12866903 WP12866903 TUBE
67001066 67001066 TUBE- DRAI
W11181718 W11181718 TUBE-WATER
W11176463 W11176463 WATER TUBE
W10823511 W10823511 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
15003687 15003687 WIRING INFORMATION
