Model Image
Manufacturer

Whirlpool

Model Number

AFD2535DEB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12002500 12002500 ADAPTER (RT)
12225601 12225601 AIR DAM
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
12575101WD 12575101WD BACK, MACH COMP
WP67003795 WP67003795 BAR- TEMP
12457108 12457108 BASEPAN
67004987 67004987 BASKET, FREEZER (UPPER)
WPW10503184 WPW10503184 BASKET-FZR
WPW10371193 WPW10371193 BIN CONTROL LEVER
WPW10289497 WPW10289497 BIN CONTROL LEVER
WP12587601 WP12587601 BLADE- CON
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
WP67003405 WP67003405 BLOCK- PIV
67006612 67006612 BOLT, ADJUSTING (REAR)
WP12642303WD WP12642303WD BRACE- CRI
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WP2256087 WP2256087 BRACKET
12456801V 12456801V BRACKET, FOOT
67003914 67003914 BRACKET, TILT OUT REF DR
WP12812501WD WP12812501WD BRACKET- D
WP12812502WD WP12812502WD BRACKET- D
67004004 67004004 BUCKET SH
WP67004003 WP67004003 BUCKET- TA
WP67002721 WP67002721 BUSHING- D
WP67002731 WP67002731 BUSHING- D
WP65889-4 WP65889-4 CAPACITOR
67007028 67007028 CARD- HAND
W10833902 W10833902 CLAMP
WPM0104106 WPM0104106 CLIP
WP67006852 WP67006852 CLIP
WP13067101 WP13067101 CLIP
WP2315522 WP2315522 CLIP
10547002 10547002 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
M0104102 M0104102 CLIP- CORD
67001067 67001067 CLIP- DRAI
67002779 67002779 CLIP- EVAP
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
67004701 67004701 CLIP- WATE
WP67003639 WP67003639 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WP10423131 WP10423131 CONTAINER
WPW10503278 WPW10503278 CONTROL BOARD
WP67003903 WP67003903 CONTROL- D
W11284721 W11284721 COVER
W10827015 W10827015 COVER
W11519867 W11519867 COVER
67003905 67003905 COVER, FZ LIGHT
W10177767 W10177767 COVER, LEFT HINGE (BLACK)
WP12561901B WP12561901B COVER, LWR HINGE (BLK)
12684202B 12684202B COVER, TOP HINGE (RT-BLK)
67004098 67004098 COVER, WATER VALVE
67003485 67003485 COVER- COR
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
12726003 12726003 COVER- WAT
WP12806701 WP12806701 COVER-BOX
10436404 10436404 COVER-EGG
W11727809 W11727809 COVER-EVAP
WP628356 WP628356 CUP-FILL
67001084 67001084 DAM RIGHT
67004127 67004127 DIVIDER
WP67002759 WP67002759 DIVIDER
67004064 67004064 DIVIDER, BASKET (LWR)
67003230 67003230 DOOR ASSEMBLY., FRZ. FOAM (BLK)
WP12744905 WP12744905 DOOR COMP
W10215663 W10215663 DOOR HINGE
WP12566607ED WP12566607ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
WP12566606ED WP12566606ED DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
12732402BQ 12732402BQ DOR-FIP BL
67002724 67002724 DORFIP
WP12722803B WP12722803B DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPB2150504 WPB2150504 DRIER
W10874836 W10874836 ENDCAP
12002041 12002041 EVAPORATOR

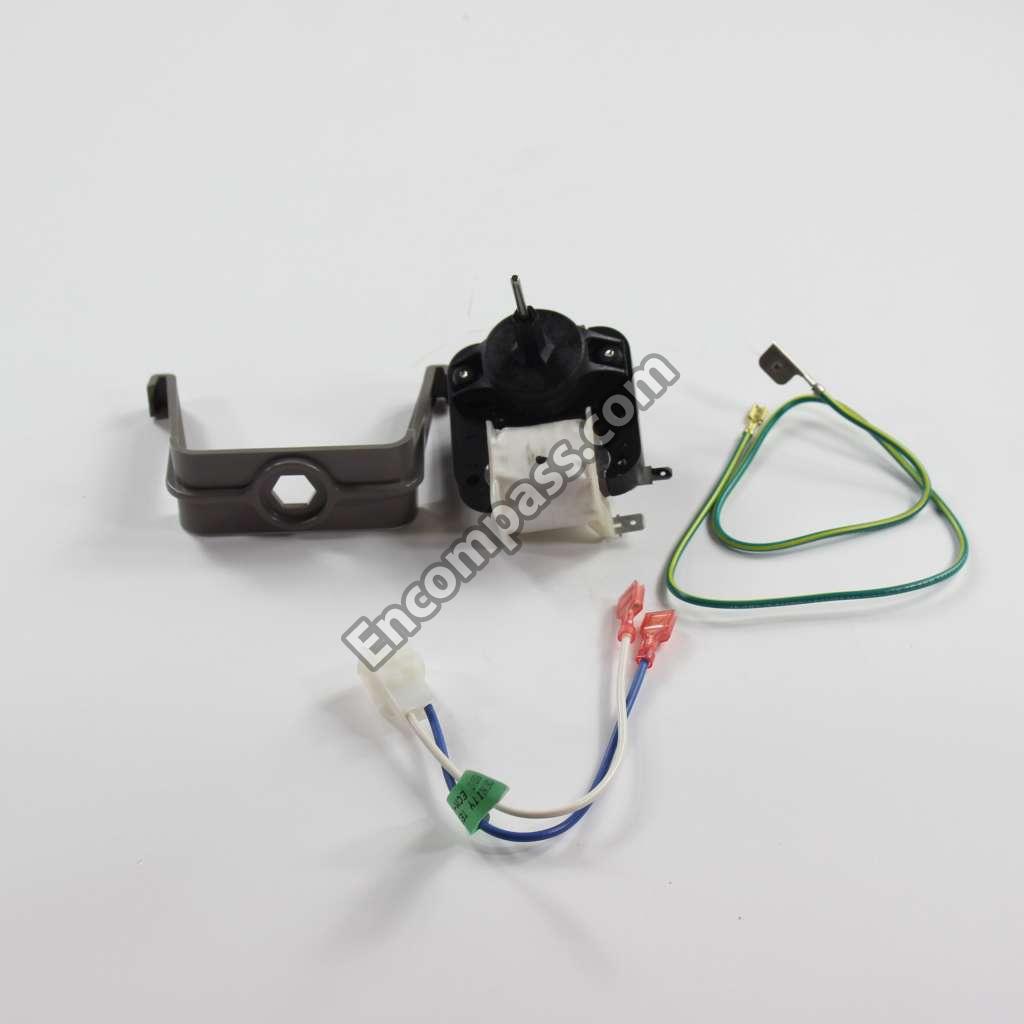

12002744 12002744 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
W10168903 W10168903 FACADE, DISPENSER
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER- ACO
WP2300868 WP2300868 FITTING
WP67003854 WP67003854 FRAME- CRI
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
W10856123 W10856123 GASKET
W11368721 W11368721 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
W10436252 W10436252 GASKET, DOOR (BLACK)
WPB8381501 WPB8381501 GASKET- DR
67002329 67002329 GASKET- PA
12002497 12002497 GEAR (INCLDS. BOTH)
WP67002761 WP67002761 GLASS, PANTRY
WP67006704 WP67006704 GLASS- CRI
WPW10235370 WPW10235370 GLIDE
WPW10175909 WPW10175909 GRILLE
WP67002224 WP67002224 GRILLE ASY
W10450022 W10450022 GRIPPER, BUCKET (MEDIUM)
67005680 67005680 GROMMET (2)
67003493 67003493 GROMMET- C
WP67002780 WP67002780 GROMMET- F
WP67005380 WP67005380 HANDLE
10508506 10508506 HANDLE, BASKET/SHELF
67003908 67003908 HARNESS, FZ MODULE
67004080 67004080 HARNS-WIRE
WP12868601 WP12868601 HARNS-WIRE
67004097 67004097 HARNS-WIRE
WP67004106 WP67004106 HEAD- WATE
WP67002493 WP67002493 HEATER- DE
67004005 67004005 HOUSING
12656202 12656202 HOUSING, CONTROL
12806601 12806601 HOUSING- L
W11702858 W11702858 HOUSING- L
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP67005154 WP67005154 INLET VALVE
67003900 67003900 INSERT- DA
WPA3223101 WPA3223101 INSERT- PL
WP67003904 WP67003904 INSULATION
8003RP 8003RP KIT, WATER INLET
12002023 12002023 KIT, WATER TANK
W11498983 W11498983 KNOB
67001073 67001073 LADDER- CE
67002489 67002489 LADDER- L
W11679940 W11679940 LIGHT BULB
67004703 67004703 MANUAL, OWNERS
67004078 67004078 MODULE LI
67003906 67003906 MODULE- FZ
12002738 12002738 MOTOR-COND
Y12528501 Y12528501 NAMEPLATE (AMANA PLUS)
WP486692 WP486692 NUT
M0286708 M0286708 NUT- SPEED
W10317181 W10317181 OVERLAY
WP67005915 WP67005915 PAN, CRISPER
WP12579803 WP12579803 PAN- DRAIN
WP67001255 WP67001255 PAN-ICE
WP67006642 WP67006642 PIN
WP67001668 WP67001668 PLATE- FIL
WPA3076901 WPA3076901 PLUG, BUTTON
WP12664501 WP12664501 PLUG, BYPASS
W11395888 W11395888 PLUG, BYPASS
67004838 67004838 PLUG, VENT (BLACK)
10712401 10712401 PLUG, VENT (WHT)
A3080001 A3080001 PLUGHOLE
A4539607 A4539607 POP RIVET
WP67006506 WP67006506 POWER CORD
10448903 10448903 RACK- BOTT
WPW10326469 WPW10326469 RAIL-CENTR
WPM1205302 WPM1205302 RIVET
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP681249 WP681249 SCREW
W10856125 W10856125 SCREW
681390 681390 SCREW
WP98165 WP98165 SCREW
W10709795 W10709795 SCREW
12992301 12992301 SCREW
WP400021-1 WP400021-1 SCREW
WPW10139210 WPW10139210 SCREW
71003131 71003131 SCREW
WP489474 WP489474 SCREW
WP67006197 WP67006197 SCREW
WP7101P126-60 WP7101P126-60 SCREW
67006491 67006491 SCREW
WPW10348409 WPW10348409 SCREW
WP489349 WP489349 SCREW
WP8281196 WP8281196 SCREW
W11233072 W11233072 SCREW
WP67006380 WP67006380 SCREW
67006425 67006425 SCREW (3)
M0221523 M0221523 SCREW SHL
M0260242 M0260242 SCREW TF
12991101 12991101 SCREW, HANDLE (BLACK)
M0238636 M0238636 SCREWSM
WP67003417 WP67003417 SEAL- FRON
WPM0500703 WPM0500703 SEAL- O RI
WP67002513 WP67002513 SEAL- REAR
WP854334 WP854334 SEAL-STRIP
W11028221 W11028221 SHAFT
16023133 16023133 SHEET, TECH DATA
WP67004637 WP67004637 SHELF, GLIDE OUT
12579702 12579702 SHIM, TOP HINGE
67001090 67001090 SHROUD, CONDENSER FAN
67002777 67002777 SHROUD- EV
12002683 12002683 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
W10613606 W10613606 START-DEV
W11708403 W11708403 STOP-DOOR
WP12576801 WP12576801 STRAP, BALE
WP12227305WD WP12227305WD SUPPORT
WP12603701 WP12603701 SUPPORT- C
12831101 12831101 SWEEP- DUA
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
67004702 67004702 TAG ENERG
12002355 12002355 THERMISTOR
WP67003426 WP67003426 THERMOSTAT
WP67001719 WP67001719 TRACK
67004102 67004102 TRACK WAT
10436506 10436506 TRAY- EGG
W11547653 W11547653 TRAY-DRIP
WPW10231344 WPW10231344 TRIM-SHELF
67001656 67001656 TRIVET- BO
WPB5705307 WPB5705307 TUBE
WP12866903 WP12866903 TUBE
67001066 67001066 TUBE- DRAI
EDR4RXD1 EDR4RXD1 WATER FILTER
W11176463 W11176463 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
15003556 15003556 WIRING INFORMATION
