Model Image
Manufacturer

Whirlpool

Model Number

AGM679W

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
500035H 500035H *NLA*ASSEMBLY,DOOR-HOME
500035L 500035L *NLA*ASSEMBLY,DOOR-HOME
35521 35521 *NLA*CLIP,HARNESS HOLDER
56156 56156 *NLA*MANUAL, SERVICE
500040H 500040H *NLA*N*ASSEMBLY, DOOR-HOME
500033H 500033H *NLA*N*PANEL,FRONT
500044H 500044H *NLA*PANEL,ACCESS
500659 500659 *NLA*PANEL,GRAPHIC
500042L 500042L *NLA*PULL,DOOR
500042H 500042H *NLA*PULL-DOOR
Y00214 Y00214 *NLA*TERMINAL-1
61849R 61849R *NLA*TRIM, CONT PNL TOP
22506P 22506P ADHESIVE,3M-1300-5 OZ.
56000 56000 ASSEMBLY, BLOWER FAN
Y56234 Y56234 ASSEMBLY, BURNER
500035W 500035W ASSEMBLY,DOOR-HOME **NLA*
500001LP 500001LP ASSY, CAB (HOME)
59937P 59937P ASSY, HOOD MTG
500117W 500117W ASSY,BULKHEAD-FRONT-COMP
500013WP 500013WP ASSY,CYLINDER-HOME-
58804 58804 ASSY,GAS VALVE-SINGLE-
500199 500199 ASSY,LINER & SEAL
62176 62176 ASSY,TIMER KNOB & SKIR
WP37001144 WP37001144 ASY- IDLER
500022 500022 BAFFLE,CYLINDER-WHT-SHORT
500070 500070 BASE DRYE
WP40111201 WP40111201 BELT
40116201 40116201 BRACKE, DOOR STRIKE
12002090 12002090 BRACKET
WP37001287 WP37001287 BRACKET
500821 500821 BRACKET, MOUNTING
500084 500084 BRACKETTO
WP40113601 WP40113601 BRAKT-ROLL
502614WP 502614WP BULKHEAD, REAR
61974 61974 BURNER HOUSING
30865 30865 BUTT SPLICE CONNECTOR
37001284 37001284 CABINET AS PACK
31249 31249 CAP,END-L.H.-CHROME
31248 31248 CAP,END-R.H.-CHROME
WP660658 WP660658 CLAMP
51291 51291 CLIP
61510 61510 CLIP,WIRE
500236 500236 CLIPDOOR
279834 279834 COIL-VALVE
90789 90789 CONNECTOR
WP7405P034-60 WP7405P034-60 CONNECTOR
Y00190 Y00190 CONNECTOR
697780 697780 CONNECTOR
58799 58799 CONNECTOR
58800 58800 CONNECTOR,3 CIRCUIT
61504 61504 CONVERSION PLATE
61505 61505 CONVERSION PLATE
WP27001142 WP27001142 CORD- POWE
61203 61203 COVER PLATE
500078 500078 COVER, BLOWER HOUSING
502092 502092 COVER, LINT FILTER
500820 500820 COVER,OUTLET-HEAT DUCT
500040W 500040W DOOR
LA-1003 LA-1003 DOOR LATCH
500040L 500040L DOORCMPLT
WP2200376 WP2200376 DRIVE MOTOR
500241 500241 DUCT, HEAT
500064 500064 EXHAUST DUCT
WP22001650 WP22001650 FASTENER-
Y00117 Y00117 FEMALE SOCKET TERMINAL
WP502140P WP502140P FILTER, LINT KIT
211881 211881 GROMMET, CORD
Y00161 Y00161 GROUND CLIP
37001007 37001007 HARNESS, WIRE (GAS VALVE)
500179P 500179P HEATER BOX ASSEMBLY
WP61623 WP61623 HEATR-STAT
Y503676 Y503676 HINGE, DOOR & TOP
500003 500003 HINGE- TOP
500338 500338 HOUSING, 10 POSITION
511969 511969 HOUSING, BLOWER

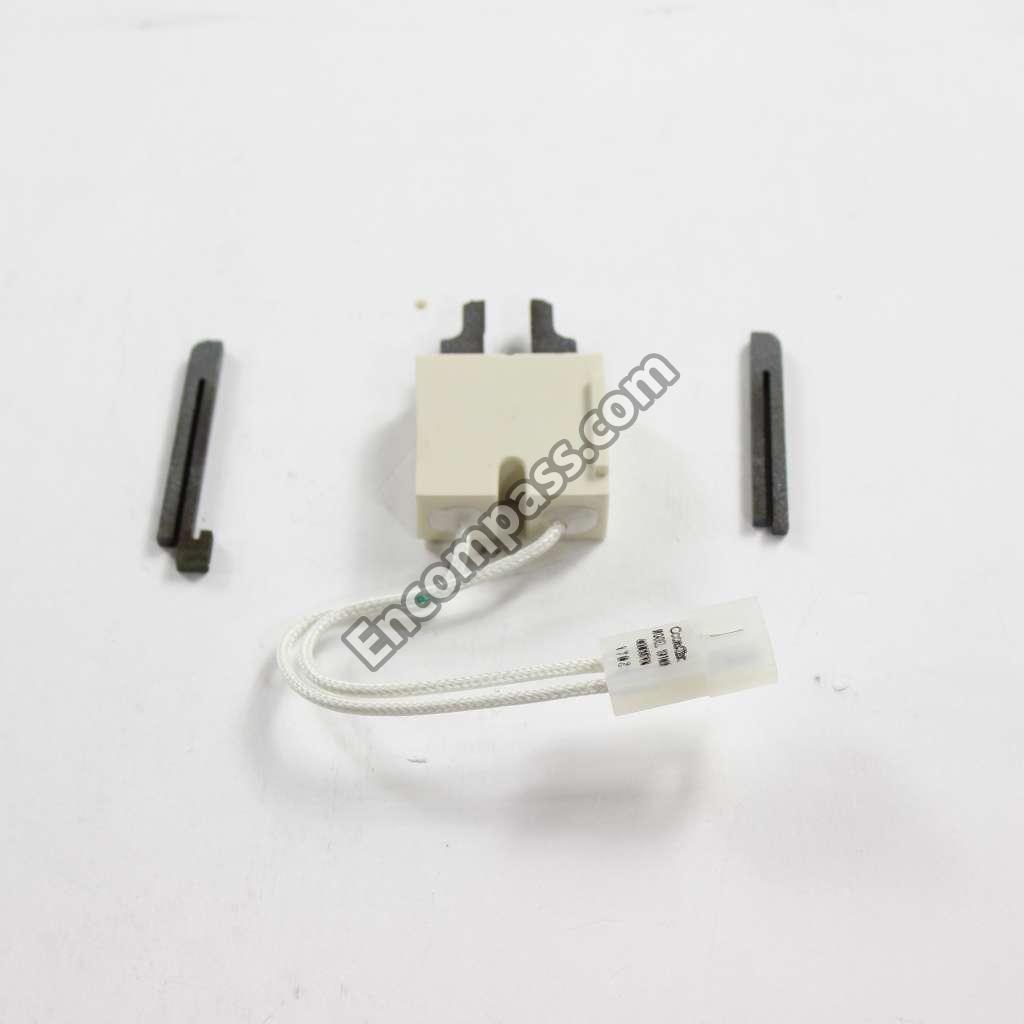

WP37001308 WP37001308 IGNITOR
503670 503670 INSULATOR SLEEVE
402P3 402P3 KIT,CONVERSION-NG
401P3 401P3 KIT- CONVE
R0130735 R0130735 KIT- SWITC
WP528P3 WP528P3 KIT-EXHST
33610 33610 KNOB
Y500101 Y500101 LEG- LEVEL
505187 505187 LOCATOR, PANEL
50000HP 50000HP M*CABINET-
503613 503613 MOUNT, MOTOR
58044A 58044A MOUNT,MOTOR-LOCKING
56079 56079 NLAPARTS CATALOG EKT396
WPW10139757 WPW10139757 NUT
WP500121 WP500121 PAD
Y56128 Y56128 PAD BUMPE
40045301WP 40045301WP PANEL, ACCESS (WHT)
500114 500114 PANEL, ACCESS COVER
500033W 500033W PANEL, FRONT
500033L 500033L PANEL, FRONT (ALMOND)
37001027 37001027 PANEL, TOP (WHT)
500044L 500044L PANEL,ACCESS **NLA*
40051401P 40051401P PANEL,BACK(HOME HOOD)
500085HP 500085HP PANEL,TOP-HOME
500085LP 500085LP PANEL,TOP-HOME
500647 500647 PIPE, LEAD-IN
56266 56266 PLUG
56448 56448 PLUG 2 CIR
23040 23040 PLUG 3 CI
500042W 500042W PULL,DOOR
500011 500011 PULLEY,MOTOR
WPY54414 WPY54414 PULLEY-IDR
56265 56265 RECEPTACLE
56451 56451 RECEPTACLE,2 CIRCUIT
WP23748 WP23748 RING- RETA
500226 500226 SCREW
WP489128 WP489128 SCREW
WP3390631 WP3390631 SCREW
WP3400094 WP3400094 SCREW
WP3351614 WP3351614 SCREW
WP90767 WP90767 SCREW
WP27001200 WP27001200 SCREW
WPY014874 WPY014874 SCREW
M0211530 M0211530 SCREW
WP3177991 WP3177991 SCREW
WP8281236 WP8281236 SCREW
W10815455 W10815455 SCREW
501285 501285 SCREW #12
31260 31260 SCREW #8
500824 500824 SCREW 1 4
Y62588 Y62588 SCREW, 10BT-12 X 1 TAP
51782 51782 SCREW, 6B-20X5/16
31752 31752 SCREW,NO.8ABX3/4 POZIDRI
500200 500200 SEAL,DOOR
500034 500034 SEAL,FRONT PANEL
WP37001132 WP37001132 SEAL- CYLI
500313 500313 SEAL-BLOWE
Y00000000 Y00000000 SEE NOTE HEATER BOX ASSEMBLY
WP338906 WP338906 SENSOR
WP56461 WP56461 SHAFT
500122 500122 SHROUD, HEAT DUCT
500823 500823 SIGNAL,ROTARY
Y00121 Y00121 SPADE TERMINAL(12 GAUGE)
Y00119 Y00119 SPADE TERMINAL(18 GAUGE)
WP56076 WP56076 SPRING- ID
500281 500281 STICKER
500049 500049 STICKER
56259 56259 STICKER
500670 500670 STICKER NG OR MIXED GA
24903 24903 STICKER,DISCONNECT POW
60520 60520 STICKER,LP GAS
60521 60521 STICKER,NG OR MIXED GAS
60516 60516 STICKER,VALVE CONVERTED
WP500039 WP500039 STRIKE
WP37001042 WP37001042 SUPPORT
WP37001298 WP37001298 SUPPORT
62173 62173 SWITCH TE
W10169313 W10169313 SWITCH-DOR
WP285432 WP285432 TERMINAL
Y00245 Y00245 TERMINAL
283P4 283P4 TERMINAL EXTRACTOR TOOL
00255 00255 TERMINAL,FEMALE 1/4
00130 00130 TERMINAL,PIN-1/8 FEMAL
Y00127 Y00127 TERMINAL,PIN-1/8 MALE
Y00116 Y00116 TERMINAL,PIN-MALE
00110 00110 TERMINAL,RING-10 STUD
Y00189 Y00189 TERMINAL,SPADE
00156 00156 TERMINAL,SPADE 3/16
00122 00122 TERMINAL,SPADE-1/4 FEM
Y00114 Y00114 TERMINAL,SPADE-1/4 FEM
Y00215 Y00215 TERMINAL1
Y00209 Y00209 TERMINAL3
Y00256 Y00256 TERMINALF
Y00188 Y00188 TERMINALF
Y00111 Y00111 TERMINALR
Y00237 Y00237 TERMINALS
Y00124 Y00124 TERMINALS
Y00115 Y00115 TERMINALS
Y00138 Y00138 TERMINALT
WPY61372 WPY61372 THERMOSTAT
489P3 489P3 THERMOSTAT, LIMIT
WPM0321209 WPM0321209 TIE-WIRE
502967 502967 TIMER, 5 CYCLE
128P4 128P4 TOOL,EXTRACTOR-HT-2038
60517 60517 VALVE CONVERTED TO LP GAS STIC
Y56229 Y56229 VALVE,ELBOW SHUT-OFF
WPW10121334 WPW10121334 WASHER
51474 51474 WASHER,13/64IDX1/2ODX.
NOTE_ NOTE_ WE USE DIFFERENT TIMER VENDORS. ALTHOUGH THE TIMERS DIFFER IN APPEARANCE, THEYARE COMPLETELY INTERCHANGEABLE WHEN IDENTIFIED BY THE SAME PART NUMBER.
