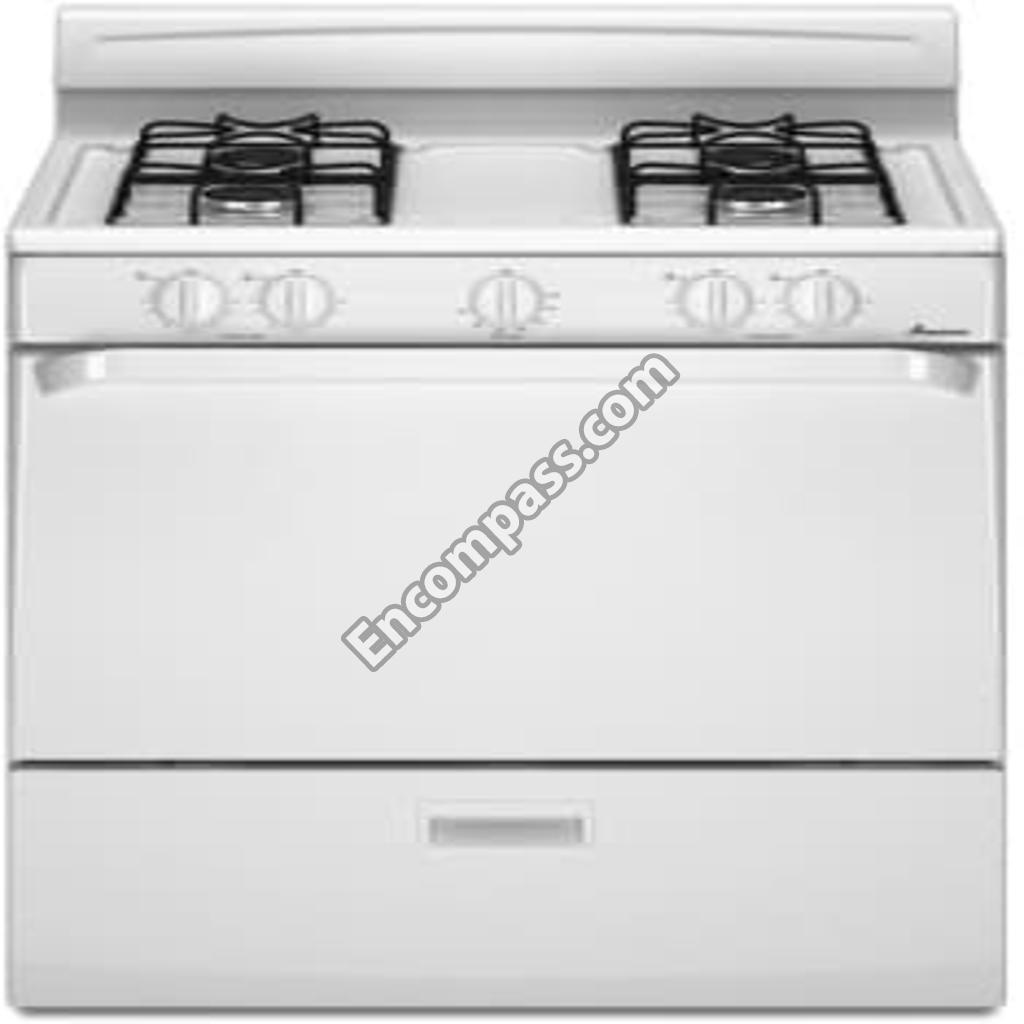

Model Image
Manufacturer

Whirlpool

Model Number

AGR3311WDW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10477747 WPW10477747 ANCHOR-TIP
98009818 98009818 BACKGUARD
98015099 98015099 BAFFL-BRNR
W10121634 W10121634 BAFFLE
98003847 98003847 BAFFLE-BTM
98006710 98006710 BLOCK-BAL
WP98004449 WP98004449 BOTTM-OVEN
98004761 98004761 BRKT-BROIL
98007410 98007410 BRKT-MNTG
98017516 98017516 BRKT-MNTG
98017967 98017967 BRKT-MNTG
WP98017741 WP98017741 BRKT-MNTG
98007126 98007126 BRKT-STAND
98013314 98013314 BRKT-SUPRT
W10831827 W10831827 BUMPER
98004052 98004052 BUMPER, DOOR
WP98012138 WP98012138 BURNR-OVEN
WPW10243396 WPW10243396 BURNR-TOP
98015022 98015022 BUSHING
WP98017461 WP98017461 CAP-BURNER
98006715 98006715 CHANNEL
549193 549193 CLAMP, POWER CORD
3196696 3196696 CLIP
98005502 98005502 CLIP
98005026 98005026 CLIP
98013690 98013690 CLIP
98008341 98008341 CLIP
98005896 98005896 CLIP
W11229684 W11229684 CLIP
WPW10278150 WPW10278150 CLIP
WP98017619W WP98017619W COOKTOP
98015100 98015100 COVER-REAR
98014104 98014104 COVR-ACESS
98014105 98014105 COVR-ACESS
98007192 98007192 COVR-MODLE
WP98017915W WP98017915W DOOR HANDLE
WP98017875 WP98017875 DOOR HINGE
98005252 98005252 ENDCAP-PNL
98005253 98005253 ENDCAP-PNL
98007431 98007431 FITTING
WPW10116396 WPW10116396 FLUE-BOX
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
W10166434 W10166434 FRAME-FRNT
WP98014893 WP98014893 GAS VALVE
WP98017162 WP98017162 GASKT-DOOR
WPW10217472 WPW10217472 GASKT-DOOR
WPW10180089 WPW10180089 GRATE-BRNR
WP98003480 WP98003480 GRID-PAN
W10330187 W10330187 GUIDE, USE & CARE
98004715 98004715 GUIDE-DRWR
WP3405184 WP3405184 HANDLE
W10142307 W10142307 HARNS-WIRE
98014534 98014534 HARNS-WIRE
W10201341 W10201341 HINGE-DOOR
98017873 98017873 HINGE-DOOR
12400035 12400035 IGNTR-OVEN
W10918546 W10918546 IGNTR-OVEN
WPW10209657 WPW10209657 IGNTR-SURF
WPW10209656 WPW10209656 IGNTR-SURF
W10138585 W10138585 INSTALLATION INSTR (TEMPLATE)
W10325589 W10325589 INSTRUCT, INSTALL
W11684802 W11684802 INSULATION
W10137230 W10137230 INSULATION
W10137233 W10137233 INSULATION
W11706555 W11706555 INSULATION
WPW10208653 WPW10208653 INSULATION
98015346 98015346 INSULATION
WP98006102 WP98006102 KNOB
WP98008321 WP98008321 KNOB
98005768 98005768 LINER-BACK
98017966 98017966 LINER-DOOR
98009179 98009179 NUT
WPY703856 WPY703856 NUT
WP98017348 WP98017348 ORIFICE
511873 511873 PAINT
799344 799344 PAINT
WP98016005 WP98016005 PAN-BROILR
WP98017968W WP98017968W PANEL-DOOR
WP98009342 WP98009342 PANEL-DRWR
WP98010042 WP98010042 PANEL-SIDE
W10260205 W10260205 PANL-MNFLD
98012220 98012220 PIN-DOOR
98017558 98017558 PIPE-MNFLD
W11173616 W11173616 POWER CORD
350942 350942 PRIMER
WPW10312013 WPW10312013 RACK-OVEN
98016570 98016570 RACK-PAN
98003830 98003830 RAIL-BASE
W11590249 W11590249 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10624131 W10624131 REGULATOR
98004564 98004564 RETAINER
98004629 98004629 RETAINER
98017250 98017250 RETAINER
98007130 98007130 SAFER COOKING TIPS
1180823 1180823 SCREW
WP3400805 WP3400805 SCREW
W11676351 W11676351 SCREW
98013634 98013634 SCREW
98017517 98017517 SCREW
W11206744 W11206744 SCREW
WP98007225 WP98007225 SCREW
W11233072 W11233072 SCREW
W10850756 W10850756 SCREW
W10837731 W10837731 SCREW
WP3400882 WP3400882 SCREW
W10837674 W10837674 SCREW
W10856125 W10856125 SCREW
3196166 3196166 SCREW
WP8533842 WP8533842 SCREW
WP59002061 WP59002061 SCREW
WP98008545 WP98008545 SCREW
W10164111 W10164111 SHIELD
98007191 98007191 SHIELD-HT
98004451 98004451 SIDE-OVEN
98004452 98004452 SIDE-OVEN
350930 350930 SPRAY
WPW10032010 WPW10032010 SPUD-ORFCE
98015363 98015363 SUPPORT
98012175 98012175 SUPPORT
98007032 98007032 TECH SHEET
WPW10641988 WPW10641988 THRMST-OVN
98006739 98006739 TIE-WIRE
WP3391018 WP3391018 TIE-WIRE
98004447 98004447 TOP-OVEN
WP98017171 WP98017171 TUBING-GAS
72017 72017 TUCHUP
WPW10141709 WPW10141709 VALVE-BRNR
WP98017582 WP98017582 VENTURI
WP98017359 WP98017359 VENTURI
WPW10361492 WPW10361492 WIRE HARNESS
3184020 3184020 WIRE, GROUND
